motorini XP50 User manual

XP50 –XP125

Dear user:
Thank you for choosing to buy a Motorini XP
This manual provides the correct operation and maintenance methods for safe riding and
maintaining the efficiency of your scooter.
Please read the owner’s handbook supplied with your Motorini carefully and make sure all routine
maintenance and servicing is carried out by the specialist staff of a Motorini dealer.
Important notice
The scooter is designed to carry one rider and one passenger, do not carry things over the maximum
load capacity of the scooter.
The scooter is only designed to be used on the road.
Pay special attention to the sentences and paragraphs with the following warning symbols.

Index
I.Safe Riding
1. Rules for safe riding
2.Load capacities
II. Components
1.VIN and Engine number
2.Gauges and indicators
III.Operation guide
1.Right hand switch
2.Left hand switch
3.Ignition switch
4.Fuel tank
5.Luggage compartment
6.Centre stand
IV.Riding the vehicle
1.Daily checks
2.Tyre size and pressures
3.Refuelling
4.Starting the engine
5.Stopping the engine
6.Running in
V.Maintenance
1.Engine oil
2.Engine oil level Check
3.Gear oil
4.Spark plug
5.Brake fluid
6.Air filter
7.Battery

I. Safe riding
Warning: When riding the scooter please observe the
following safety rules.
Safe riding rules
1. Before riding please carry out daily checks.
2. Most accidents occur when other road users
cannot see you; make yourself as visible as possible.
For example
Wear visible clothing.
Do not ride in other driver’s blind spots.
1. Speeding is a major cause of accidents, always
obey the speed limit.
2. Always make other road users aware (with
indicators) when you intend to change lanes or
when turning.
3. Be more careful when approaching crossings,
Schools, parked cars etc.
4. Always ride with both hands on the handlebars and
feet firmly on the footboard.
5. Do not leave the scooter unattended with the
engine running.
6. Avoid riding on uneven roads with pot holes as this
may damage the scooter.
Never overload the scooter, and
observe the Max Load capacities.
Rear carrier 5 Kg
Front luggage box 1 Kg
Under seat storage 10Kg

II Components
(1) Head Light
(2) Front Indicator
(3) Rear Brake
(4) Rear View Mirror
(5) Seat
(6) Tail Light
(7) Rear Indicator
(8) Engine
(9) Passenger Foot Rest
(10) Main Stand
(11) Side Stand

1. Scooter VIN and Engine Number
The scooter VIN number is stamped on the frame
behind the access panel.
The engine number is stamped on the left hand
engine case.
Please write down frame and engine number.
(1) (2)
VIN Number________________________________
Engine Number_____________________________
2. Gauges and Indicators.
The function of each indicator light is listed on the
table opposite. (1) (3)
(5) (4)
(2) (2)
1
Speedo
2
Indicator Warning Light
3
Main Beam
4
Fuel Gauge
5
Milometer
Fuel Gauge
The fuel gauge (1) indicates the approximate fuel in
the tank. When the needle points to (F) it indicates
the tank is full.
(2) (1)
When the needle enters the red warning (2) please
refuel.

III Operating Guide
(1) Right Handlebar Switch
(1) Engine Kill Switch
Stops the engine
Starter button (2)
The starter button (2)
Operates the electric starter. For the starter to
operate the ignition switch must be turned to the
(ON)position and the front or rear brake lever must
be pulled to the handlebar.
(2) Left Handlebar Switch
(3)
(1)(2)
Horn button (1)
When the horn button is pushed, the horn will sound.
Direction indicators switch (2)
Move the switch to the right to activate the right-
hand indicators and to the left to activate the left-
hand indicators Push the central button to deactivate
the turn indicators.
Headlight Dip Switch (3)
The headlight dip switch (3).
To select high beam, push the switch (3) to the
forward position.
To select low beam, push the switch (3) to the
backwards position.

(3) Ignition Switch
The ignition switch (1) is located on the inner leg
shield and is a 3 position key-operated switch. By
rotating the key, it is possible to turn the switch to
any of the following positions:
(OFF): the engine cannot be started.
(ON): the engine can be started.
(LOCK): turn the handlebars fully to the left, push the
key down and turn anti-clockwise, the steering is now
locked and the engine may not be started.
(1)
(4) Fuel Tank
The Fuel Tank is behind the seat, the cap (1) is visible
on the XP 50, to gain access to the cap (1) on the XP
125 you will need to lift the seat.
To open the cover of the fuel cap, insert key into the
lock (2) and turn clockwise.
After refuelling always check that the filler cap is cor-
rectly located and closed, push down on the cap until
you hear it click.
(1) (2)

(5) Luggage Compartment
To gain access to the luggage compartment (1)
proceed as follows:
Insert your key into lock (2) and turn clockwise.
To close the seat, proceed as follows:
Do not let the seat fall from the fully open position.
Lower it on to the lock and slightly press it down in
order to engage the seat with the lock.
(1)
(2)
(6) Centre Stand
Push the stand bracket (1) downwards with your foot,
whilst easing the vehicle backwards until it rests
safely on the centre stand.
Do not sit on the vehicle when it is resting on
the centre stand.
Always park on a firm, level surface to prevent the
vehicle from falling.

IV Riding The vehicle
(1) Daily checks
The following checks must always be carried out
before riding the vehicle in order to ensure trouble-
free operation. Failure to comply with this rule may
lead to serious injuries and damage to the vehicle.
Engine oil
Check Level.
Gear oil
Check For Leaks.
Braking system
Check the levers are not
sticking, Check the brake fluid
level and system for leaks.
Lights,
Indicators, Horn
Check all are working.
Tyres
Check for correct inflation
pressure, wear/damage.
Centre/Side
Stand
Check they retract properly.
Fuel Tank
Check the fuel level and ensure
there are no leaks.

(2) Tyre Pressures and Size
Tyre pressures must always be checked when the
tyres are cold. Incorrect tyre inflation will cause
abnormal tread wear and instability problems that
may lead to loss of control and an accident resulting
in serious damage and injuries.
Front Tyre Pressure
2.5 bar (36 psi)
Rear Tyre Pressure
2.5 bar (36 psi)
Tyre Size
110/70 –12PR
(3) Refuelling
Follow the procedure described in (III). (4) Fuel
tank section of this handbook to access the fuel
tank and refuel your vehicle.
Fuel Tank Capacity: approx. 6.8 litres
During refuelling, the ignition switch must be in
the OFF position. Petrol (fuel) is highly flammable;
do not smoke; keep away from sources of ignition;
do not inhale petrol fumes.
To prevent damage, ensure that petrol does not
spill onto the plastic fairings of the vehicle.

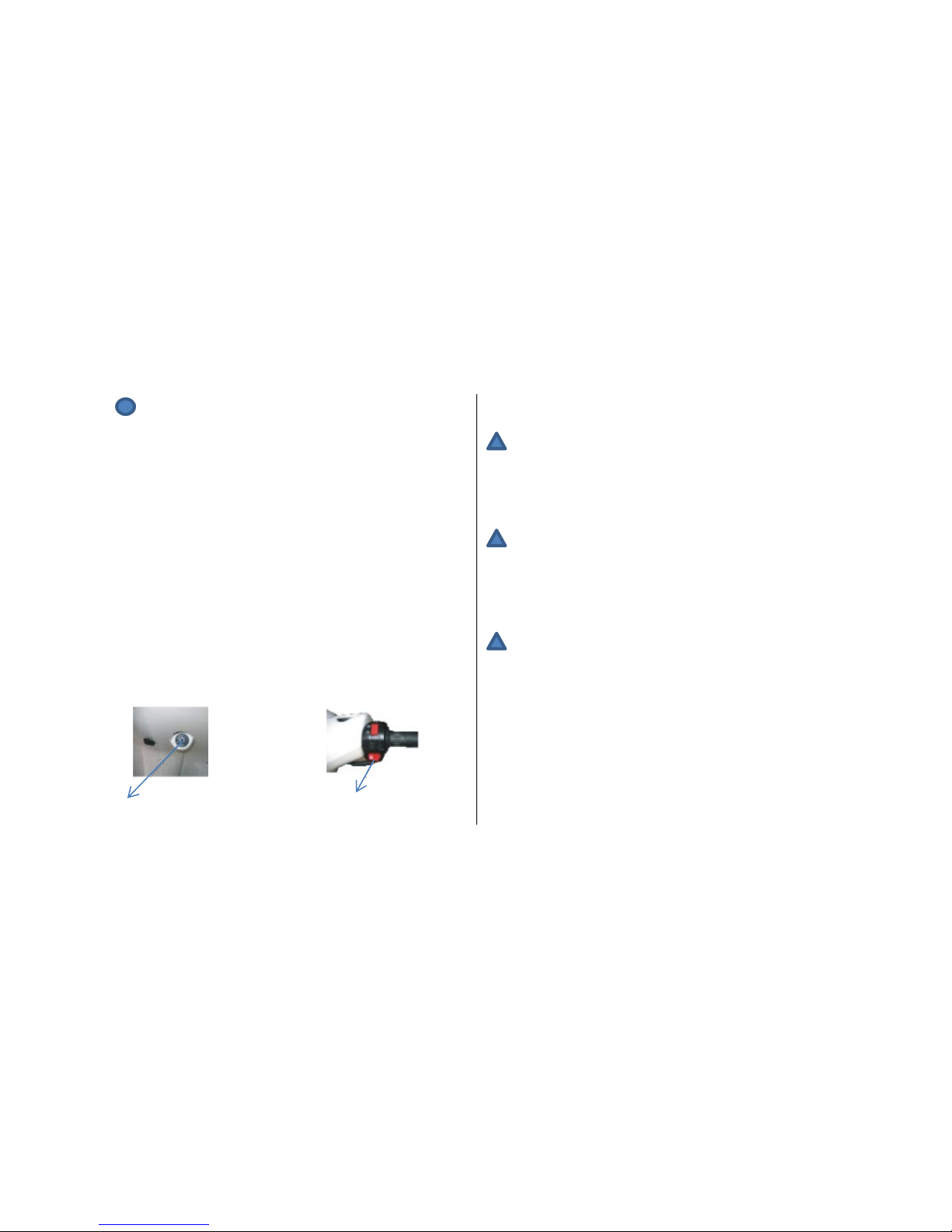

(4) Starting The Engine
Once all checks described in the IV.(1) Daily checks
section have been carried out, you may proceed to
start engine as follows:
Place the vehicle on its centre stand with the rear
wheel lifted off the ground.
Insert the key in the ignition switch (1) and rotate it to
(ON).
Keep the throttle control in the closed position.
While pulling the either brake lever press the
starter button (2) as shown.
(1) (2)
Never start the engine without its air box.
Dust or foreign objects may enter the engine and
damage it.
After starting the engine ride at moderate
speed during the first few minutes. A correct engine
warm-up limits the emissions and reduces fuel
consumption.
To prevent damage, do not rev up the engine
when cold. To safeguard the integrity and lifespan of
the engine, avoid riding at high revs for long periods.
Do not suddenly switch off the vehicle after riding
for a long time at the maximum speed; let it run at
idle for a few seconds.

(5) Stopping The Engine
Bring the vehicle to a halt and rotate the ignition
switch to the (OFF) position
With the ignition switch in this position, it is not
possible to start the engine, the key may be removed
and the steering lock is not engaged.
(6) Running-In
A period of careful running-in will ensure the
longevity of the engine.
YOU MUST ALWAYS HAVE YOUR VEHICLE
UNDERGO ROUTINE SERVICE FOLLOWING THE
SERVICE SCHEDULE. THE FIRST SERVICE IS OF GREAT
IMPORTANCE.

Important Notice
The first 1,000 km represent the most critical period in the life of your vehicle. A period of careful running-in
will optimise the performance, and longevity of the engine and other components. All Motorini parts have
been made using the highest quality materials and have been machined with minimal tolerances. A correct
running-in allows all components to ‘bed-in’ thereby reducing internal frictions.
The reliability and performance of your vehicle depend on how strictly you follow the instructions provided
within this section. It is important that you prevent the engine from overheating.
Engine speed should be varied constantly and it must not be allowed to remain constant for a long period of
time. This ensures that engine components are not being excessively stressed, thus allowing them to cool
down and to bed in properly. You must always ensure that engine components are not being overstressed by
avoiding high engine speeds.
The first service, at the 1,000 km (600 miles) mark, is the most important one for your vehicle. During running-
in all components will bed-in, thus requiring all adjustments to be checked, all fixings to be tighten and engine
oil to be replaced.
Performing such operations as soon as possible after the first 1,000 km (600 miles) will ensure the longevity
and optimal performance of your engine.
NB: The 1,000 km (600 miles) service must be carried out according to the “Scheduled Maintenance” section of
this handbook.

VMaintenance

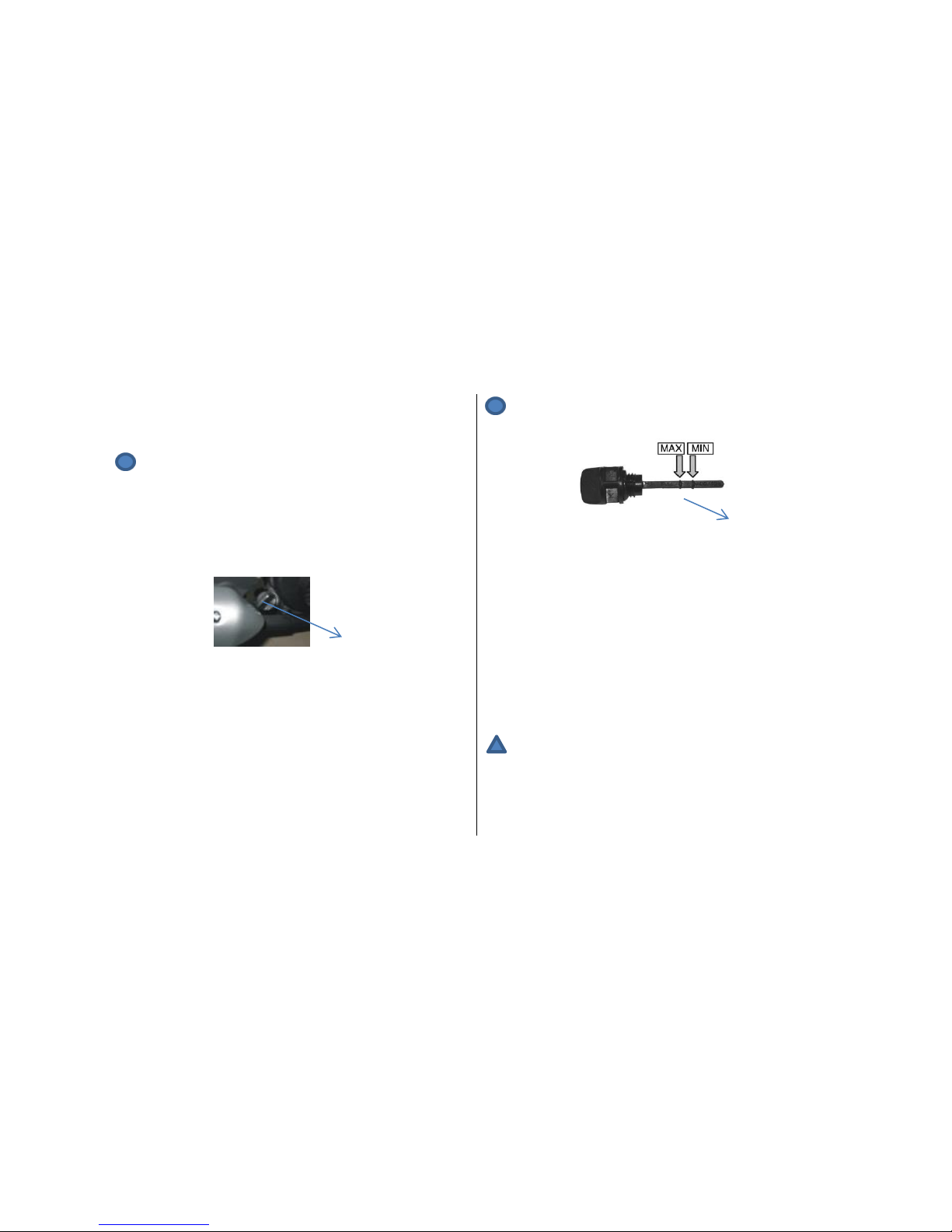

(1) Engine Oil
Engine oil level checks, top ups and replacement must
be carried out in accordance with the scheduled
maintenance chart.
(1)
(1) Oil Filler/Dipstick
Engine oil: SAE 10W-40 API-S
Quantity of engine oil 1.0 Ltr approx.
(2) Engine Oil Level Check
(1)
Rest the vehicle on its centre stand and on level
ground.
Loosen and remove the filler plug/dipstick (1) and dry
it with a clean rag.
Refit and tighten the filler plug/dipstick (1).
Loosen and remove the filler plug/dipstick (1) for a
second time and check that the oil level is now
between MIN and MAX marks as show in the figure.
Running the engine with insufficient or
contaminated oil will cause engine damage.

(3) Gear oil
How to change gear oil
Stand on the main stand.
Remove the oil filler plug (1)
Remove the oil drain plug (2) and drain out old
gear oil.
Tighten the oil drain plug (2).
Refill with fresh gear oil and tighten the oil refill
plug (1).
(1)
(2)
Please use the recommended gear oil:
SAE 5W/90
• Total capacity: 110ml approx.
• Replacing capacity: 100ml approx.
(4) Spark plug
Remove the park plug (1) using the spanner provided
in the tool kit.
Clean off any dirt and carbon residue from the spark
plug and check the spark plug gap.
Manually screw the spark plug in its seat and carefully
tighten.
Refit the spark plug cap.
(1) (2)
Adjust the gap (2) to 0.6-0.7mm with a feeler gauge.
Replacement Spark Plug NGK CR7HSA.

(5) Brake fluid
Ensure that the brake fluid level is never below the
minimum level marking (1).
The brake fluid reservoir is located on the right
handlebar.
TOP UP
Release the two reservoir cap screws (2) and detach
the cover (3)and sealing diaphragm.
Top up with new DOT4 brake fluid from a sealed
container.
(2)
(1)
(2)
(6) Air filter
Your vehicles air filter must be cleaned in line with
the scheduled maintenance chart.
Remove the five fixing screws (1) on the air box cover.
Remove the air box cover (2).
Unscrew the two retaining screws and remove air
filter element.
Clean or replace element.
(1) (2)

(7) Battery and main fuse
To replace the battery, proceed as follows:
Rest the vehicle on the centre stand and on level
ground.
Ensure that the ignition is switched off.
Remove battery cover.
Disconnect the leads starting with the negative lead.
-(1) followed by the positive +(2).
Remove the battery.
The main fuse is also located here (3).
(3)
(2)
(1)
Do not swap the battery leads. Reconnect
the battery, positive lead first.
This vehicle is fitted with a sealed
(maintenance free) battery.
Only use a suitable 12V charger.
Do not attempt to remove cell caps as this
may damage the battery.
The main fuse (3) is located in the battery box.
The fuse rating is 15 amp.

Distributed By:
Clements Moto Ltd, Unit 1a Woolton Farm, Bekesbourne, Canterbury, Kent, CT4 5EA
www.motorini.co.uk
