ATTENTION:
This product is certified in accordance with European Community
(EC) safety standards.
This product complies with Directive 2011/65/EU of the European
Parliament and of the Council, of 8 June 2011, on the restriction
of the use of certain hazardous substances in electrical and
electronic equipment.
(Applicable in countries with recycling systems).
This marking on the product or literature indicates that the
product and electronic accessories (eg. Charger, USB cable,
electronic material, controls, etc.) should not be disposed of
as other household waste at the end of its useful life. To avoid
possible harm to the environment or human health resulting
from the uncontrolled disposal of waste, separate these items
from other types of waste and recycle them responsibly to
promote the sustainable reuse of material resources. Home
users should contact the dealer where they purchased this
product or the National Environment Agency for details on
where and how they can take these items for environmentally
safe recycling. Business users should contact their vendor and
check the terms and conditions of the purchase agreement. This
product and its electronic accessories should not be mixed with
other commercial waste.
Thismarkingindicatesthattheproductandelectronicaccessories
(eg. charger, USB cable, electronic material, controls, etc.) are
susceptible to electric shock by direct or indirect contact with
electricity. Be cautious when handling the product and observe
all safety procedures in this manual.
STANDARDS TO FOLLOW
TECHNICAL SPECIFICATIONS
INSTALLATION OF THE ELECTROBRAKE
INSTALLATION INSTRUCTIONS
GEAR MOTOR WITH SAFETY DEVICE
01. SAFETY INSTRUCTIONS
02. THE AUTOMATISM
INDEX STANDARDS TO FOLLOW
00. CONTENT 01. SAFETY INSTRUCTIONS
MOTOR UNLOCKING

3A 3B2A 2B
ENEN
• It is important for your safety that these instructions are followed.
• Keep these instructions in a safe place for future reference.
• The ELECTROCELOS S.A. is not responsible for the improper use of the
product, or other use than that for which it was designed.
• The ELECTROCELOS S.A. is not responsible if safety standards were not
taken into account when installing the equipment, or for any deformation
that may occur.
• The ELECTROCELOS S.A. is not responsible for insecurity and malfunction
of the product when used with components that were not sold by the them.
• This product was designed and manufactured strictly for the use indicated
in this manual.
• This automatism is not appropriate for inflammable or explosive
environments.
• Any other use not expressly indicated may damage the product and/or can
cause physical and property damages, and will void the warranty.
• Do not make any changes to the automation components and/or their
accessories.
• Automatism for indoor use with 230V connection.
• Keep remote controls away from children, to prevent the automated system
from being activated involuntarily.
• The customer shall not, under any circumstances, attempt to repair or tune
the automatism. Must call qualified technician only.
• The installer must have certified professional knowledge at the level of
mechanicalassembliesindoorsandgatesandcontrolboardprogrammation.
He should also be able to perform electrical connections in compliance
with all applicable regulations.
• The installer should inform the customer how to handle the product in an
emergency and provide him the manual.
• This device can be used by children 8 year old or older and persons whose
physical, sensory or mental capacities are reduced, or by persons without
experienceorknowledgeiftheyhavereceivedsupervision orinstructions on
the use of the device in a safe manner and understood the hazards involved.
Children should not play with the device. Cleaning and maintenance by the
user must not be carried out by unsupervised children.
• Before installing, the installer must verify that the temperature range
indicatedontheautomatismisappropriatetothelocationoftheinstallation.
• Before installing, the installer must verify that the equipment to be
automated is in good mechanical condition, correctly balanced and opens
and closes properly.
• If the automation is to be installed at a level higher than 2,5 m above
ground level or other level of access, , should be followed the minimum
safety and health requirements for the use of work equipment workers
at work in Directive 2009/104/EC of the European Parliament and of the
Council of 16th September of 2009.
• In the case of the equipment where the automation will be installed, have
a pedestrian door, be aware that it must be closed when the automation is
activated.
• After installation, make sure that the mechanism is properly adjusted and
that the protection system and any manual unlocker works correctly.
• In order to protect the electrical cables against mechanical stress, you
should use conduit for the electrical wires, essentially on the power cable.
• When programming the control unit, pay particular attention to touching
only the location intended for that purpose. Failure to do so may result in
electric shock.
STANDARDS TO FOLLOW STANDARDS TO FOLLOW
01. SAFETY INSTRUCTIONS 01. SAFETY INSTRUCTIONS

4A 4B
Ø10
50
"L/2"
500 50
Ø12
B
C
E
C
K
H
I
G
G
E
F
D
D
L
A
268mm
475mm
258mm
225mm
368mm
72mm
1
3
2
3A 3B
ENEN

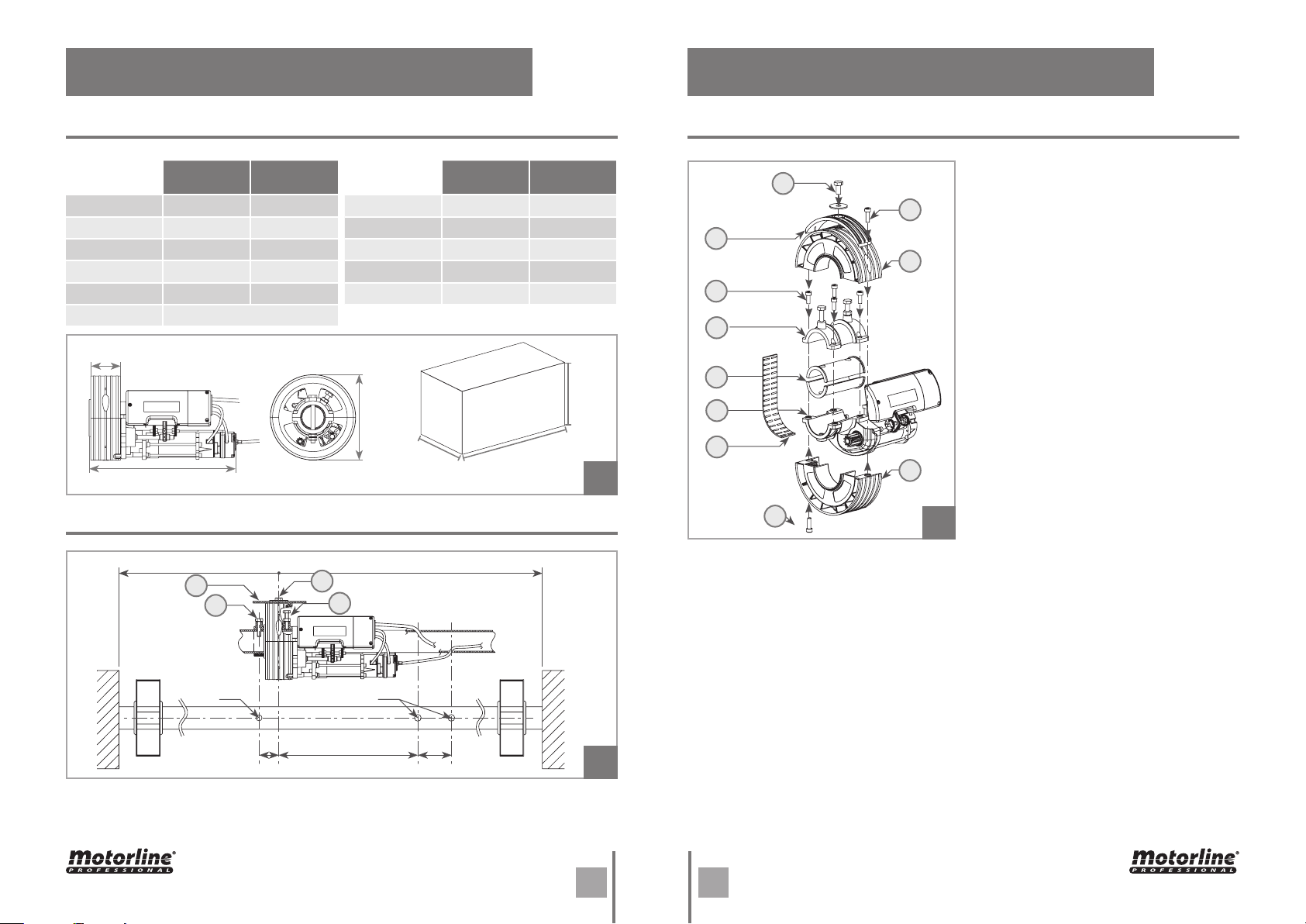

TECHNICAL SPECIFICATIONS INSTALLATION INSTRUCTIONS
02. THE AUTOMATISM 02. THE AUTOMATISM
01 • Close the rolling shutter.
02 • Make 3 holes in the shutter's tube as shown in image 2.
03 • Remove the M10 screw (C) from the crown of the gearmotor (figure 3).
04 • Remove the two semi-crown (D)
unscrewing the two M8 screws (E) as
shown in figure 3.
05 • Carefully remove the plastic band with
rolls (F) avoiding heavy folds that would
cause the spillage of the rolls.
06 • Separate the two elements of the
gearmotor (G) unscrewing the four M8
screws (H).
07 • In case the diameter of the tube is
inferior to 60mm, use the reductions Ø33 /
Ø42 / Ø48 (I) positioning them on the 10mm
hole drilled previously (figure 2).
08 • Assemble on the tube of the shutter
the two elements of the gearmotor (G)
using the four M8 screws (H) removed
before.
09 • Fasten the M10 screw (A) without
hexagon nut, screwing it inside the hole
10mm (figure 2).
10 • Tighten the M10 screw with nut (B) in order to block the gearmotor on the shaft.
11 • Install the plastic band with rolls (F) in its appropriate place.
12 • Install the two semi-crown (D) fixing them with the two M8 screws (E). In presence of
spring boxes diameter 220 mms use the adapter (K) (figure 3).
13 • Make 12 mm hole in the last element of the shutter (L), aligned with the M10 hole
existing on the crown motor.
14 • Place the last element of the shutter on the motor and secure it through the screw
M10 (C) with washer (figure 3).
INSTALLATION INSTRUCTIONS
ROLLING
160SP
ROLLING
360SP
Power supply 230V 50/60Hz 230V 50/60Hz
Consumption 2,3A 4,5A
Power 520W 1000W
Termal protection 4min 4min
Weight 8 kg 16 kg
Noise level LpA <= 70 dB (A)
ROLLING
160SP
ROLLING
360SP
Torque 150Nm 420Nm
Lifts 160Kg 360Kg
Maximum height 6m 6m
RPM 10 8
Capacitor 18µF 18µF (x2)
Only in
ROLLING160SP

5A 5B
M
O
N
Q2 Q1
21
5
4b
6
7
8
4a
ROLLING 360SP
ROLLING 160SP
4A 4B
ENEN
02. THE AUTOMATISM 02. THE AUTOMATISM
INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS
15 • Remove the limit-switch board's cover.
16 • Make the electrical connections as
shown in figure 4 passing the 4x1mm cable
supplied, inside the shutter shaft avoiding
any contact with the rotating parts (figure
2). In presence of motor with electrobrake,
insert the sheath of the brake inside the
other hole Ø12.
17 • Connect the terminal block (M) of the
power wire to the limit switch respecting
the right direction (figure 6). Fasten the
terminal block through the four screws.
18 • Close the limit switch through the
plastic cover (N) and then fasten with
the two screws (O), checking the correct
disposition of the cables (figure 7).
19 • After having installed the mechanical
parts and electrical connections, proceed
to the regulation of the limit-switches as
shown in figure 8.
Motor
Motor 2
Electrobrake
Capacitor
Earth
Power supply
230V
Switch
Brown Black
Common
Common
Brown
Black
Motor 1
Electrobrake
Capacitor 2
Capacitor 1
Earth
Power supply
230V
Switch
Brown
Black
Common
Black
Common
Brown

6A 6B
Ø10,5 90º
WNC
COM
M
Z
90º
9
10 11
12 13
5A 5B
ENEN
02. THE AUTOMATISM
INSTALLATION INSTRUCTIONS
20 • Rotate the plastic washer (Q1) by hand until you hear the click of the microswitch
1 (down regulation completed).
21 • Rotate the other plastic washer (Q2) towards the microswitch 2 (up). Give tension
to the motor through an electric command and verify if the shutter, climbing, stops in
desired point. Adjustments of the position can be effected acting always on the same
plastic washer and operating through electric command.
22 • Should the shutter need to be installed contrary to the description in figure 2, the
steps described above should be carried out to the contrary as microswitch 2 will stop
the closing and microswitch 1 will stop the opening.
23 • Fasten the counternuts after adjusting the limit-switch washers.
INSTALLATION OF THE ELECTROBRAKE
01 • Insert the brake on the back of the electrical motor.
02 • Fixing the electrobrake to the motor using the screws M5x50.
03 • Remove the bridge from the limit switch (fig. 9).
Do not damage the bridge pulling on the wire and keep it for future use.
04 • Connect the electric cables of the brake to the terminal of the limit switch, figure 4.
05 • Close the limit switch using the plastic cover.
02. THE AUTOMATISM
GEAR MOTOR WITH SAFETY DEVICE
03 • The downward run of the roller shutter
shall ben consistent with the downward
run of the safety brake. Place the gear
motor as shown.
04 • For microswitch versions, connect the
micro switch’s cable (W) in series to the fee
ding cable (common) of the gearmotor.
02 • After assembled the two elements of
the gearmotor (G), check that the pawl (Z)
is in the highest position perpendicular to
the rolling shutter axis.
Gear motor with safety device carried out to the stop the free fall of roller shutters and at
the same time, in microswitch versions, to interrupt the motoreductor’s feeding.
01 • Effect on the tube of the shutter a pas
sing perforation Ø10 perpendicular to the
axis.
Motor
Electrobrake
Capacitor
Switch
Power supply
230V
Shunt

76
14 15
EN
02. THE AUTOMATISM
MOTOR UNLOCKING
To unlock the motor simply unscrew the unlocking piece at the end of the steel cable by
turning it to the left. To lock the engine again, tighten the same piece.
