Motorline professional MTT03 Use and care manual

v3.0
REV. 04/2021
MTT03MTT03 EN
USER'S AND INSTALLER'S MANUAL

1B
4A
4A
8
6
4B
4B
5A
5A
5B
7B
7A
7A
1A 1B
EN EN
PACKING
MTT
INSTRUCTIONS FOR FINAL CONSUMERS / SPECIALIZED TECHNICIANS
DIAGRAM
. SAFETY INSTRUCTIONS
. AUTOMATION
. CONNECTIONS
. MAINTENANCE
. INSTALLATION
. TROUBLESHOOTING
TECHNICAL CHARACTERISTICS
DIMENSIONS
PRE-INSTALLATION
GROUND PREPARATION
INSTALLATION
MAINTENANCE
. PROGRAMMING
NAVIGATION IN THE MENUS
FUNCTIONS
01. SAFETY INSTRUCTIONS
This product is certified in accordance with European
Community (EC) safety standards.
This product complies with Directive 2011/65/EU of the
European Parliament and of the Council, of 8 June 2011, on
the restriction of the use of certain hazardous substances
in electrical and electronic equipment and with Delegated
Directive (EU) 2015/863 from Commission.
(Applicable in countries with recycling systems).
This marking on the product or literature indicates that the
product and electronic accessories (eg. Charger, USB cable,
electronic material, controls, etc.) should not be disposed
of as other household waste at the end of its useful life. To
avoid possible harm to the environment or human health
resulting from the uncontrolled disposal of waste, separate
these items from other types of waste and recycle them
responsibly to promote the sustainable reuse of material
resources. Home users should contact the dealer where
they purchased this product or the National Environment
Agency for details on where and how they can take these
items for environmentally safe recycling. Business users
should contact their vendor and check the terms and
conditions of the purchase agreement. This product and
its electronic accessories should not be mixed with other
commercial waste.
This marking indicates that the product and electronic
accessories (eg. charger, USB cable, electronic material,
controls, etc.) are susceptible to electric shock by direct or
indirect contact with electricity. Be cautious when handling
theproductandobserveallsafetyproceduresinthismanual.
ATTENTION:
00. CONTENT
ÍNDEX

2EN
01. SAFETY INSTRUCTIONS
GENERAL WARNINGS
•This manual contains very important safety and usage information.
very important. Read all instructions carefully before beginning the
installation/usage procedures and keep this manual in a safe place
that it can be consulted whenever necessary.
•This product is intended for use only as described in this manual. Any
other enforcement or operation that is not mentioned is expressly
prohibited, as it may damage the product and put people at risk
causing serious injuries.
•This manual is intended firstly for specialized technicians, and does
not invalidate the user’s responsibility to read the “User Norms”
section in order to ensure the correct functioning of the product.
•The installation and repair of this product may be done by qualified
and specialized technicians, to assure every procedure are carried
out in accordance with applicable rules and norms. Nonprofessional
and inexperienced users are expressly prohibited of taking any
action, unless explicitly requested by specialized technicians to do
so.
•Installations must be frequently inspected for unbalance and the
wear signals of the cables, springs, hinges, wheels, supports and
other mechanical assembly parts.
•Do not use the product if it is necessary repair or adjustment is
required.
•When performing maintenance, cleaning and replacement of parts,
theproduct mustbedisconnectedfrompower supply. Also including
any operation that requires opening the product cover.
•The use, cleaning and maintenance of this product may be carried
out by any persons aged eight years old and over and persons whose
physical, sensorial or mental capacities are lower, or by persons
without any knowledge of the product, provided that these are
supervision and instructions given by persons with experienced in
terms of usage of the product in asafe manner and who understands
the risks and dangers involved.
•Children shouldn’t play with the product or opening devices to avoid
the motorized door or gate from being triggered involuntarily.
WARNINGS FOR TECHNICIANS
•Before beginning the installation procedures, make sure that you
have all the devices and materials necessary to complete the
installation of the product.
•YoushouldnoteyourProtectionIndex(IP)andoperatingtemperature
to ensure that is suitable for the installation site.
•Provide the manual of the product to the user and let them know
how to handle it in an emergency.
•If the automatism is installed on a gate with a pedestrian door,
a door locking mechanism must be installed while the gate is in
motion.
•Do not install the product “upside down” or supported by elements
do not support its weight. If necessary, add brackets at strategic
points to ensure the safety of the automatism.
•Do not install the product in explosive site.
•Safety devices must protect the possible crushing, cutting, transport
and danger areas of the motorized door or gate.
•Verify that the elements to be automated (gates, door, windows,
blinds, etc.) are in perfect function, aligned and level. Also verify if
the necessary mechanical stops are in the appropriate places.
•The central must be installed on a safe place of any fluid (rain,
moisture, etc.), dust and pests.
•You must route the various electrical cables through protective
tubes, to protect them against mechanical exertions, essentially on
the power supply cable. Please note that all the cables must enter
the central from the bottom.
•If the automatism is to be installed at a height of more than 2,5m
from the ground or other level of access, the minimum safety and

3EN
01. SAFETY INSTRUCTIONS
health requirements for the use of work equipment workers at the
work of Directive 2009/104/CE of European Parliament and of the
Council of 16 September 2009.
•Attach the permanent label for the manual release as close as
possible to the release mechanism.
•Disconnect means, such as a switch or circuit breaker on the
electrical panel, must be provided on the product’s fixed power
supply leads in accordance with the installation rules.
•If the product to be installed requires power supply of 230Vac or
110Vac, ensure that connection is to an electrical panel with ground
connection.
•The product is only powered by low voltage satefy with central (only
at 24V motors)
WARNINGS FOR USERS
•Keep thismanualin asafeplacetobeconsultedwhenevernecessary.
•If the product has contact with fluids without being prepared, it
must immediately disconnect from the power supply to avoid short
circuits, and consult a specialized technician.
•Ensure that technician has provided you the product manual and
informed you how to handle the product in an emergency.
•If the system requires any repair or modification, unlock the
automatism, turn off the power and do not use it until all safety
conditions have been met.
•In the event of tripping of circuits breakers of fuse failure, locate
the malfunction and solve it before resetting the circuit breaker or
replacing the fuse. If the malfunction is not repairable by consult
this manual, contact a technician.
•Keep the operation area of the motorized gate free while the gate in
in motion, and do not create strength to the gate movement.
•Do not perform any operation on mechanical elements or hinges if
the product is in motion.
RESPONSABILITY
•Supplier disclaims any liability if:
•Product failure or deformation result from improper installation
use or maintenance!
•Safety norms are not followed in the installation, use and
maintenance of the product.
•Instructions in this manual are not followed.
•Damaged is caused by unauthorized modifications
•In these cases, the warranty is voided.
SYMBOLS LEGEND:
• Important safety
notices
• Useful information
• Programming
information
• Potentiometer
information
• Connectors
information
• Buttons
information

 





4A 4B
EN EN
MTT03
MTT is a tripoid turnstile with smooth, quiet operation and low energy consumption. It has
the possibility of placing sensors on both sides of the device, so that access can be carried
out in both directions.

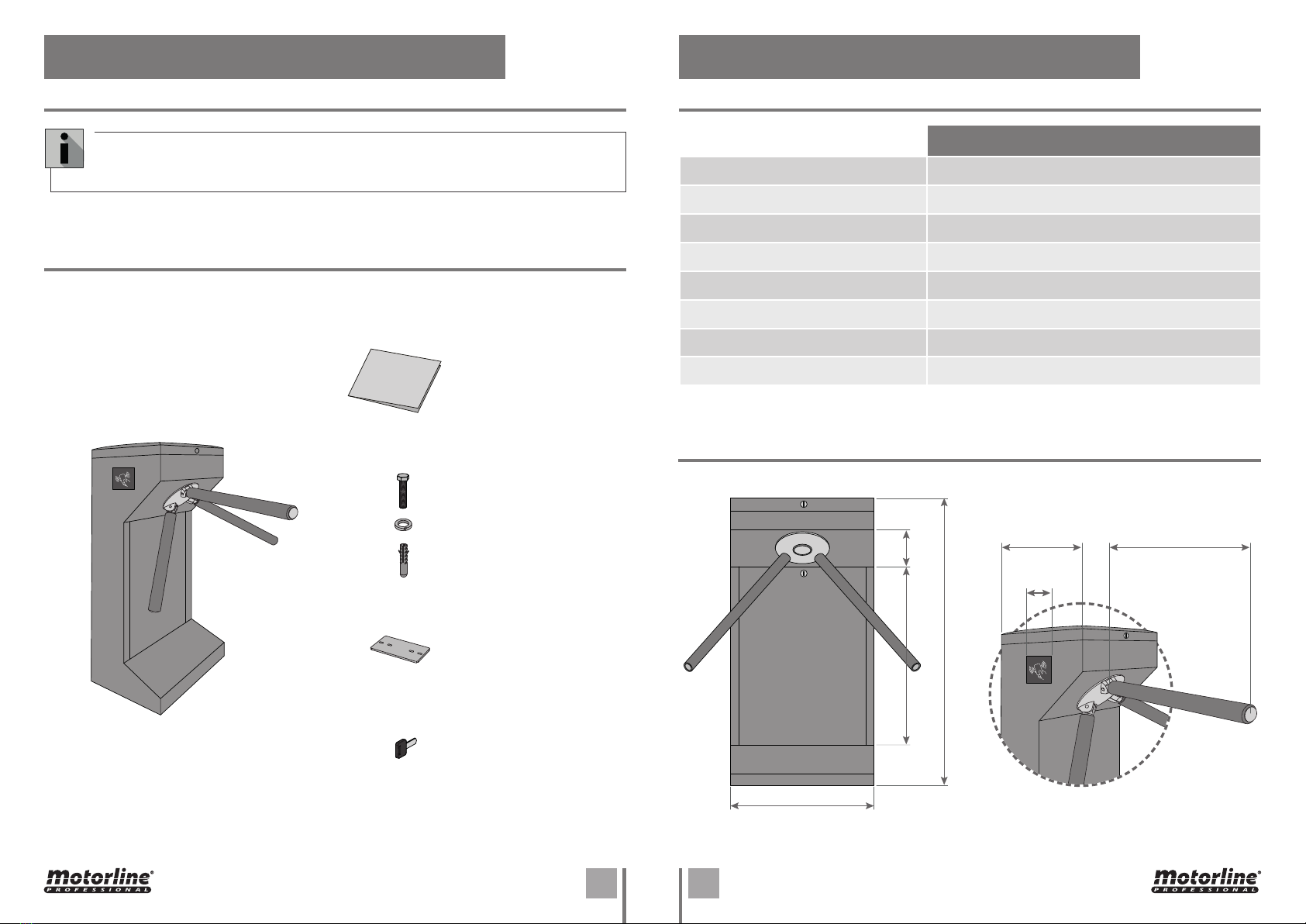

DIMENSIONS
PACKING
Inside the package you will find the following components:
02. AUTOMATION 02. AUTOMATION
TECHNICAL CHARACTERISTICS
Dimensions in mm
MTT03
• Power supply 230 Vac
• Power 60W
• Frequency 50~60 Hz
• Passage width 550 - 600mm
• Working temperature -25°C ~ 55°C
• Mechanism Electromagnetic
• IP IP56
• Passages per minute 30 - 40 people / min
• 03 Tripoid arm
• 06 Key
• 02 Fixing plate
• 01 Turnstile
• Mounting accessories
• 01 User Manual

1 5
3
3
4
6
4
4
2
5A 5B
EN EN
Remove the front access door to
the inside of the frame.
Place the turnstile at the
installation site and pass the
power cable (230V).
Mark the drilling areas according
to the holes in the bottom of the
turnstile. Remove the turnstile
and drill the soil.
Insert the bushings (x3), nuts (x3)
and screws (x3) into the holes.
Tighten with a wrench.
Replace the front door and close
with the key.
Insert the protective sponges into
each of the arms of the turnstiles.
• INSTALL TURNSTILE
• APPLY SPONGES ON ARMS
1
2
3
5
4
6
03. INSTALLATION
INSTALLATION
03. INSTALLATION
PRE-INSTALLATION
• The floor on which the turnstiles are to be mounted must be completely flat and balanced.
• Installations should not be made if there are bumps and slopes on the floor.
• The assembly must not be done on unstable floors (example: soil, sand, gravel, plaster).
• There must not be installation or wiring under the floor where the tourniquet will be installed (If it is
not possible to fulfill this requirement, the installation must be specified according to a project).
• No dust should enter the holes when mounting the turnstile on the floor.
• If possible, remove dust with a pneumatic hose or similar tools.
• Turnstile users must not open the mechanism. Maintenance and repair work should only be carried
out by specialized personnel. Unconscious interventions can lead to dangerous situations for the
mechanism and for the user
• Turnstiles must be protected against any type of shock and vibration.
• Do not insert any voltage beyond the values specified in the technical characteristics of the turnstile.
• Do not exceed the relative humidity and operating temperature values specified in the technical
characteristics of the turnstile.
• Check all connections and verify that they are correct before supplying power to the turnstile.
• Do not use any equipment on the turnstile other than the hardware and parts provided by the producer.
• Disconnect the power supply in the event of an electrical failure in the turnstiles. Please contact the
supplier directly without intervening in the product.
• Make sure the power was cut before proceeding to the maintenance / cleaning the turnstiles.
• The inside of the turnstile must not come into contact with water. Do not use the turnstile in high
magnetic fields.
• The turnstile cannot be stored or operated in a humid environment.
• Do not continue to use your turnstile if it is damaged or defective. Contact us and inform
• the technical service of the product without delay.
• Do not allow children or unauthorized persons to play with the turnstile.
GROUND PREPARATION

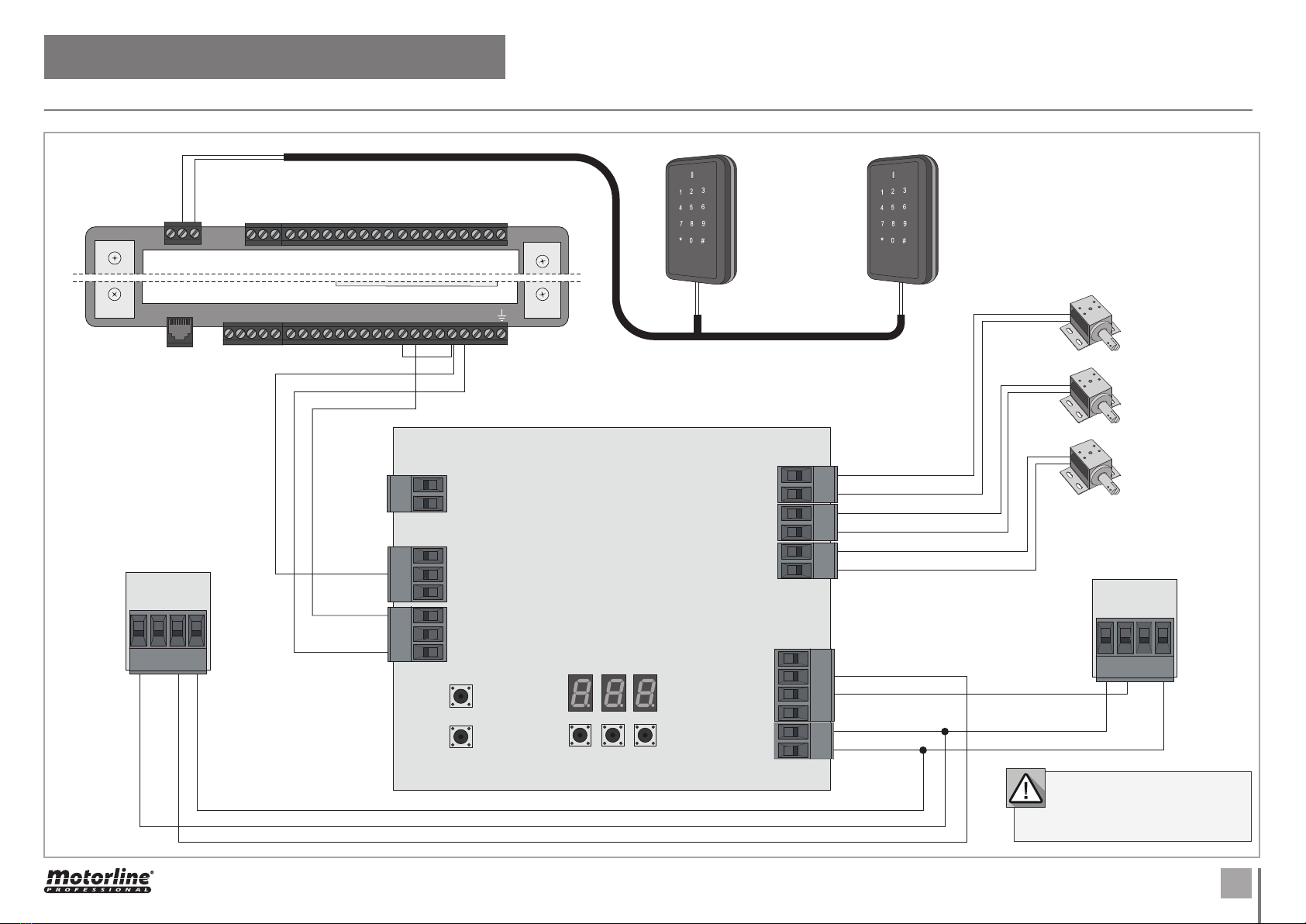

6
LEDs
MENU INC DEC
GND
GND OP-L OP-RCOMVCCZERO
P+ P-
GND
G R
v+
12v GND M1 24V M2 24V
+24v
GND
GR
+12v
LEDs
GND
GR
+12v
NC
ON
1 2 3 4 5 6 7 8
NORMAL
RESET
POWER LED
ID
JP11
JP11
JP12
JP12
T2
INITIAL
WIEGAND
ALARM2
LED
DOOR2
LED
ALARM1
LED
DOOR1
LED
NONC NONC NONC NONC
GNDCASE4 CASE3 CASE2 PUSH2 PUSH1CASE1 SENSOR
2
ALARM
2-
ALARM
2+
DOOR
2-
DOOR
2+
ALARM
1-
ALARM
1+
DOOR
1-
DOOR
1+
SENSOR
1
GND GND GND GND+12V
NORMAL
RESET
POWER LED
JP11
JP11
JP12
JP12
T2
INITIAL
WIEGAND
ALARM2
LED
DOOR2
LED
ALARM1
LED
DOOR1
LED
NONC NONC NONC NONC
GNDCASE4 CASE3 CASE2 PUSH2 PUSH1CASE1 SENSOR
2
ALARM
2-
ALARM
2+
DOOR
2-
DOOR
2+
ALARM
1-
ALARM
1+
DOOR
1-
DOOR
1+
SENSOR
1
GND GND GND GND+12V
ON
1 2 3 4 5 6 7 8
COM3
COM3
232
COM2
NORMAL
RESET
POWER LED
ID
JP11
JP11
JP12
JP12
T2
INITIAL
WIEGAND
COM2
COM1
COM1
COM1 COM2 COM3
+12V +5V
JP1
READER
ALARM2
LED
DOOR2
LED
ALARM1
LED
DOOR1
LED
485
GND GND GND PWRGND DATA 1CLK1ERR1BZ1DATA 2CLK2PWRDATA 3CLK3DATA 4CLK4485+
TXD1
485-
RXD1
TXD3RXD3 OK2 OK1ERR2BZ2
COM3
COM3
232
COM2
NORMAL
RESET
POWER LED
JP11
JP11
JP12
JP12
T2
INITIAL
WIEGAND
COM2
COM1
COM1
COM1 COM2 COM3
+12V +5V
JP1
READER
ALARM2
LED
DOOR2
LED
ALARM1
LED
DOOR1
LED
485
GND GND GND PWRGND DATA 1
CLK1
ERR1BZ1
DATA 2CLK2PWRDATA 3
CLK3
DATA 4CLK4485+
TXD1
485-
RXD1
TXD3RXD3 OK2 OK1
ERR2BZ2
EN
04. CONNECTIONS
DIAGRAM
Black
Black
Black
Black
Black
Red
Red
Red
Blue () Yellow (-)
Yellow
Yellow
Blue
Yellow
Green
Green
Right Arm
Solenoid
Access
Controller
(MRACWSN)
Input card
reader (ID)
(MPXRMSK)
RS cable Output card
reader (ID)
(MPXRMSK)
Left Arm
Solenoid
Red
Red
Main Arm Solenoid
(arm that falls in the
event of a power
failure)
The OP-L and OP-R connectors
are left and right NO contacts,
respectively.

MENU INC DEC
GND
GND OP-L OP-RCOMVCCZERO
P+ P-
GND
R
Gv+
12v
GND M1 24V M2 24V
+24v
7A 7B
EN EN
• All external components of the turnstile (arms, box and body) must be cleaned regularly to ensure
proper functioning.
• Acidic or basic chemicals should not be used on the turnstile sheet surface.
• All sheet metal surfaces must be cleaned with a stainless maintenance spray. If you do not have a
spray with the characteristics indicated, contact your supplier for advice.
• The mechanism must be cleaned and lubricated periodically every six months. For this purpose,
suitable lubricating grease must be used.
• The damper and brake settings of the mechanism must be checked and adjusted during
maintenance.
• The interior must be cleaned regularly with a dry cloth and must not be exposed to dust.
05. PROGRAMMING
NAVIGATION IN THE MENUS
01 • To access the functions press the MENU for 1 second.
02 • Use DEC and INC to navigate between functions.
03 • Press MENU to enter the desired function.
04 • Use DEC and INC to choose the desired value for the
function.
05 • Press MENU to save the value.
•After 5 seconds without
button operation, it
will automatically exit
programming.
FUNCTIONS
MENU FUNCTION FACTORY VALUE FACTORY
VALUE MINIMUM VALUE MAXIMUM VALUE
RELAY TIME
ADJUSTMENT
It allows defining the time between the
release of the arms (impulse to open) and the
passage block.
Value 1 = 1 second
 000 030
PASSAGE
PERMISSIONS
 • Right and left opening totally prohibited
 • Both allowed
 • Left opening prohibited, right opening
allowed
 • Right opening prohibited, left opening
allowed
 - -
OPERATION
MODE  • Free passage
 • Free passage when there is a power cut  - -
OCCUPANCY
LIMIT
 • Disabled
 • Allows you to define a maximum
occupancy number, blocking the passage if
the space capacity is at the limit.
(* Connection of an occupancy control system
is required - Example: PORTER)
  
MAINTENANCE
To make the maintenance of the turnstile, ensure that it is disconnected from the power
supply.
06. MAINTENANCE

8EN
Anomaly Cause Procedure
The turnstile arms do not lock, the LEDs are not working
and the turnstile does not receive commands, even if there
is power
• The energy may not be enough
• The control board's power cable may be disconnected.
• The power supply may be defective.
• The power of the power supply must be checked with a multimeter.
• External and internal power cables must be checked manually.
There is energy in the turnstile, the LEDs are on, but the
arms are stationary. The solenoids do not lock.
• The brake solenoid cables may be disconnected.
• The access card may be defective.
• The solenoid locking pins may be overloaded.
• Check the connections between the control board and the solenoids.
• Measure the voltage values.
The LED lights are in the “green arrow” position, but the
turnstile arms do not allow passage.
• The solenoids may be defective.
• The solenoid springs may have been deformed and may not be
able to pull the guides.
• The access card may be defective.
• If the solenoid is defective, it must be replaced.
• The solenoids must be cleaned with contact spray.
• If the springs are deformed, they must be replaced.
• If the access card is defective, it must be replaced.
The turnstile allows to pass but does not close after
passing. It closes automatically after several passes.
• Directional sensors may be defective.
• There may be poor contact when connecting the directional
sensors.
• The access card may be defective.
• If the sensors are defective, they must be replaced.
• Check the cable terminals manually. If they are defective, they must be replaced.
• If the access card is defective, it must be replaced.
After passing, the arms remain crossed before reaching
the center, or tap and stop audibly.
• The damper may be out of adjustment.
• The damper may be defective.
• The damper bearing may be defective.
• The damper must be adjusted as described in the manual.
• If the damper is defective, it must be replaced.
• If the bearing is defective, it must be replaced.
The suspended arm does not fall even in an emergency. • The motor may be defective. • Directional sensors may be defective.
• The drop pin may be stuck.
• If the engine is defective, it must be replaced.
• If the sensors are defective, they must be replaced.
• The drop pin must be cleaned and lubricated.
At the moment of passing, the arms remain locked, do not
rotate or are difficult to rotate.
• The spring may be damaged.
• A cable or an external element may be attached to the
mechanism.
• The movement springs may not be working.
• If the spring is defective, it must be replaced.
• The turnstile must be switched off and not switched on again. Contact your
authorized service.
• If the movement springs are deformed, they must be replaced.
When the suspended arm falls, it does not return to the
starting position. • The arm pin may not fit the handle. • The drop pin on the arm may be stuck.
• The arm drop pin must be cleaned with contact spray or similar materials.
• The mechanism must be lubricated with oil to facilitate the operation of the pin.
• If the problem is not resolved, the pin must be replaced.
The turnstile allows continuous passage in one direction
only. • It may be running in unidirectional free mode. • The solenoid cable or spring may be improperly connected. • If there is a spring or cable not properly connected, connect correctly. • If it doesn't work, they must be replaced.
The turnstile works correctly with all its functions, but the
LEDs do not light. • LED boards or cables may be defective. • The control board may be defective.
• If the LED board is defective, it must be replaced.
• If the LED cable is defective, it must be replaced.
• If the control board is defective, it must be replaced.
07. TROUBLESHOOTING
INSTRUCTIONS FOR FINAL CONSUMERS / SPECIALIZED TECHNICIANS
