Motorola solutions PELCO Esprit Anti-Corrosion Enhanced 1... User manual

Esprit Anti-Corrosion Enhanced 1
Series, PTZ
Installation Manual
Document number:MNLCNXPTZ2_2240
Publication date:11/22

Esprit Anti-Corrosion Enhanced 1 Series, PTZ Installation Manual
MNLCNXPTZ2_2240 | 11/22 2
Table of Contents
Legal Notices 4
Typographical conventions 5
Important safety rules 5
Regulatory Notices 7
Overview 9
Product description and type designation 9
Product marking 9
Checking the markings 9
Model identification 10
Preparing the Installation 10
Unpacking 10
Safely disposing of packaging material 11
Safety precautions before use 11
Preparing the product for use 11
Product Package Contents 11
Installation Steps 12
Range of use 12
Inserting an SD card 12
Installing the housing sunshield 13
Mounting in the Correct Orientation 14
Fixing with parapet or ceiling bracket 14
Fixing with wall mount bracket 16
Fixing the unit to the pole mount adapter or corner mount adapter 17
Cable Connections 18
Connecting External Power 18
Ethernet cable connection 19
Alarms and relays connections 19
Connecting an alarm with dry contact 20
Relay connection 20
Washing system connection 21
Switching on 21
First start-up 21
Connecting to the Camera 21
Initializing a Camera Username and Password 21
Assigning an IP Address 22
Accessing the Live VideoStream 22
Configuring the Camera 22

Esprit Anti-Corrosion Enhanced 1 Series, PTZ Installation Manual
MNLCNXPTZ2_2240 | 11/22 3
Resetting to Factory Default Settings 22
Maintenance 23
Routine maintenance 23
Inspecting the cables 23
Extraordinary maintenance 23
Fuses replacement 23
Cleaning 25
Cleaning of the window and external surfaces of the product 25
Troubleshooting 25
Technical drawings 26

Esprit Anti-Corrosion Enhanced 1 Series, PTZ Installation Manual
MNLCNXPTZ2_2240 | 11/22 4
Legal Notices
© 2023,Pelco Corporation. All rights reserved. PELCO, the PELCO logo, PELCO are trademarks of
Pelco Corporation. ONVIFis a trademark of Onvif, Inc. Other names or logos mentioned herein may be
the trademarks of their respective owners. The absence of the symbols ™ and ® in proximity to each
trademark in this document or at all is not a disclaimer of ownership of the related trademark. Pelco
Corporation protects its innovations with patents issued in the United States of America and other
jurisdictions worldwide (see www.pelco.com). Unless stated explicitly and in writing, no license is granted
with respect to any copyright, industrial design, trademark, patent or other intellectual property rights of
Pelco Corporation or its licensors.
Disclaimer
This document has been compiled and published using product descriptions and specifications available
at the time of publication. The contents of this document and the specifications of the products discussed
herein are subject to change without notice. Pelco Corporation reserves the right to make any such
changes without notice. Neither Pelco Corporation nor any of its affiliated companies: (1) guarantees the
completeness or accuracy of the information contained in this document; or (2) is responsible for your
use of, or reliance on, the information. Pelco Corporation shall not be responsible for any losses or
damages (including consequential damages) caused by reliance on the information presented herein.
Pelco Corporation
www.pelco.com
PDF-H5AFE-A
Revision: 1 - EN
20230117

Esprit Anti-Corrosion Enhanced 1 Series, PTZ Installation Manual
MNLCNXPTZ2_2240 | 11/22 5
Typographical conventions
This manual provides installation and operation information and precautions for the use of this device.
Incorrect installation could cause an unexpected fault. Before installing this equipment read this manual
carefully. Please provide this manual to the owner of the equipment for future reference.
Warning: This symbol indicates the presence of dangerous voltage within and outside the
product enclosure that may result in a risk of electric shock, serious injury or death to
persons if proper precautions are not followed.
Caution: This symbol alerts the user to the presence of hazards that may cause minor or
moderate injury to persons, damage to property or damage to the product itself if proper
precautions are not followed.
Warning: Failure to observe the following instructions may result in injury to persons or damage
to the device.
Caution: Hazardous moving parts. Keep fingers and other body parts away.
Info: Description of system specifications. We recommend reading this part carefully in order to
understand the subsequent stages.
Important safety rules
A power disconnect device must be included in the electrical installation, and it must be very
quickly recognizable and operated if needed.
Caution: The electrical system to which the unit is connected must be equipped with a 20A max
automatic bipolar circuit breaker. The minimum distance between the circuit breaker contacts
must be 3mm (0.1in). The circuit breaker must be provided with protection against the fault
current towards the ground (differential) and the overcurrent (magnetothermal).
Caution: Device installation and maintaining must be performed by specialist technical staff only.
Caution: TNV-1 installation type. The installation is type TNV-1, do not connect it to SELV
circuits.
If it is necessary to transport the device, this should be done with great care. Abrupt stops, bumps
and violent impact could damage the unit or injure the user.
lThe manufacturer declines all responsibility for any damage caused by an improper use of the
appliances mentioned in this manual. Furthermore, the manufacturer reserves the right to modify
its contents without any prior notice. The documentation contained in this manual has been
collected and verified with great care. The manufacturer, however, cannot take any liability for its
use. The same thing can be said for any person or company involved in the creation and
production of this manual.

Esprit Anti-Corrosion Enhanced 1 Series, PTZ Installation Manual
MNLCNXPTZ2_2240 | 11/22 6
lDo not expose the camera directly to high levels of x-ray, laser, or UV radiation. Direct exposure
may cause permanent damage to the image sensor.
lBefore starting any operation, make sure the power supply is disconnected.
lDo not subject the device cables to excessive stress, heavy loads or pinching.
lBe careful not to use cables that seem worn or old.
lNever, under any circumstances, make any changes or connections that are not shown in this
handbook. Improper use of the appliance can cause serious hazards, risking the safety of
personnel and of the installation.
lUse only original spare parts. Non-original spare parts could cause fire, electrical discharge or
other hazards.
lBefore proceeding with installation, check the supplied material to make sure it corresponds to the
order specification by examining the identification labels (Product marking).
lThis device was designed to be permanently secured and connected on a building or on a suitable
structure. The device must be permanently secured and connected before any operation.
lThis is a Class A product. In a domestic environment this product may cause radio interference. In
this case the user may be required to take adequate measures.
lFor products marked UL, powered at 24Vac, use a UL listed TNV/ES1 isolation transformer,
compliant with IEC/UL 60950-1 and IEC/UL 62368-1.
lInstallation category (also called Overvoltage Category) specifies the level of mains voltage
surges that the equipment will be subjected to. The category depends upon the location of the
equipment, and on any surge voltage protection provided. Equipment in an industrial
environment, directly connected to major feeders/short branch circuits, is subjected to Installation
Category III. If this is the case, a reduction to Installation Category II is required. This can be
achieved by use of an insulating transformer with an earthed screen between primary and
secondary windings, or by fitting UL listed Surge Protective Devices (SPDs) from live to neutral
and from neutral to earth. Listed SPDs shall be designed for repeated limiting of transient voltage
surges and the following rated operation conditions: Type 2 (SPDs permanently connected to the
power network and intended for installation on the load side of the service equipment); Nominal
Discharge Current (In) 20kA min. For example: FERRAZ SHAWMUT, STT2240SPG-CN,
STT2BL240SPG-CN rated 120Vac/240Vac, (In=20kA). Maximum distance between installation
and reduction is 5m.
lThe equipment is intended for installation in a Restricted Access Area by specialist technical staff.
lTo comply with the main supply voltage dips and short interruption requirements, use a suitable
Uninterruptible Power Supply (UPS) to power the unit.
lThe safety earthing system must be carried out according to local installation dispositions.
lThe separate protective earthing terminal provided on this product shall be permanently
connected to earth.
lFor continued protection against risk of fire, replace only with same type and rating of fuse. Fuses
must be replaced only by service personnel.
lConnect the device to a power source corresponding to the indications given on the marking label.
Before proceeding with installation make sure that the power line is properly isolated. The supply
voltage should never exceed the limit (±10%).

Esprit Anti-Corrosion Enhanced 1 Series, PTZ Installation Manual
MNLCNXPTZ2_2240 | 11/22 7
lThe appliance includes moving parts. Make sure that the unit is positioned where it is inaccessible
under normal operating conditions. Attach the warning label supplied with the appliance, placing it
near the unit so that it can be seen easily.
lAttach the Dangerous Moving Parts label near the device (Hazardous moving parts label.).
lDo not use the appliance in the presence of flammable substances.
lOnly skilled personnel should carry out maintenance on the device. When carrying out
maintenance, the operator is exposed to the risk of electrocution and other hazards.
lUse only the accessories indicated by the manufacturer. Any change that is not expressly
approved by the manufacturer will invalidate the warranty.
lBefore connecting all the cables make sure the device is properly connected to the earth circuit.
lIf the device has to be removed from the installation, always disconnect the earth cable last.
lTake all necessary precautions to prevent the apparatus from being damaged by electrostatic
discharge.
lHandle the unit with great care, high mechanical stress could damage it.
lMake especially sure that the power supply line is insulated at a sufficient distance from all the
other cables, including lightning protection devices.
lThe Cat5e/Cat6 shielded (STP) Ethernet cable is required to fully comply with EMC regulatory
standards.
Regulatory Notices
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1)this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This Class A digital apparatus complies with Canadian ICES-003.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
lReorient or relocate the receiving antenna.
lIncrease the separation between the equipment and the receiver.
lConnect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
lConsult the dealer or an experienced radio/TV technician for help.
Changes or modifications made to this equipment not expressly approved by Pelco Corporation or
parties authorized by Pelco Corporation could void the user’s authority to operate this equipment.
Disposal and Recycling Information
When this product has reached the end of its useful life, please dispose of it according to your local
environmental laws and guidelines.
Risk of fire, explosion, and burns. Do not disassemble, crush, heat above 100 °C (212 °F), or incinerate.

Esprit Anti-Corrosion Enhanced 1 Series, PTZ Installation Manual
MNLCNXPTZ2_2240 | 11/22 8
European Union:
This symbol means that according to local laws and regulations your product should be disposed of
separately from household waste. When this product reaches its end of life, take it to a collection point
designated by local authorities. Some collection points accept products for free. The separate collection
and recycling of your product at the time of disposal will help conserve natural resources and ensure that
it is recycled in a manner that protects human health and the environment.

Esprit Anti-Corrosion Enhanced 1 Series, PTZ Installation Manual
MNLCNXPTZ2_2240 | 11/22 9
Overview
Product description and type designation
PTZ camera for marine onshore/offshore or industrial applications.
The Esprit Anti-Corrosion Enhanced 1 Series, PTZ is resistant to rust and corrosion and does not require
maintenance thanks to the absolute precision of the construction process and the solid AISI 316L
stainless steel construction with micro-shot and electropolished surfaces.
Product marking
The product has a label compliant with CE marking.

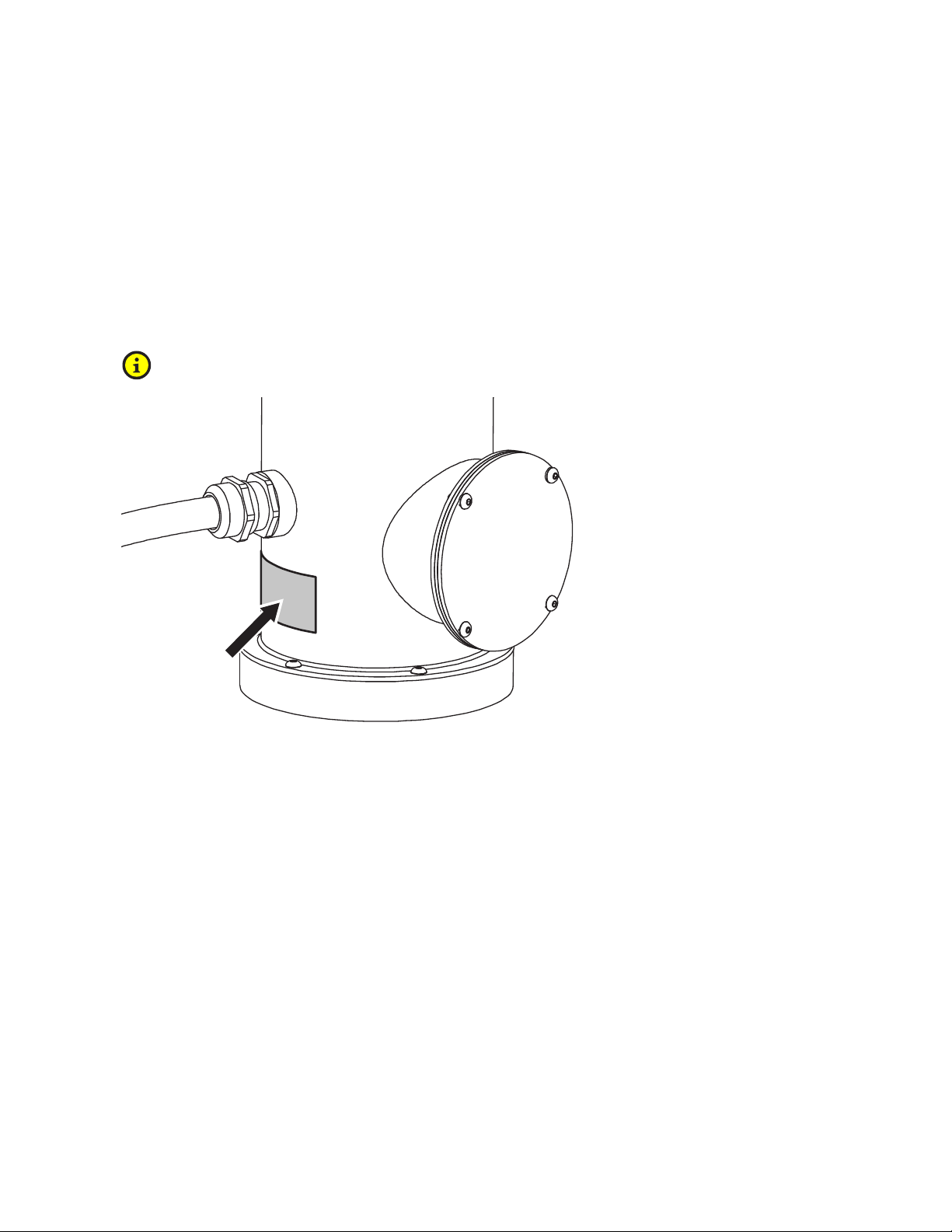

Figure 1: CE marking label position.
The label shows:
lModel identification code.
lSupply voltage (Volt).
lFrequency (Hertz).
lCurrent consumption (Ampere).
lProtection degree (IP).
lSerial number.
lMAC Address.
Checking the markings
Before proceeding further with installation, make sure the material supplied corresponds to the order
specification by examining the marking labels.

Esprit Anti-Corrosion Enhanced 1 Series, PTZ Installation Manual
MNLCNXPTZ2_2240 | 11/22 10
Never, under any circumstances, make any changes or connections that are not shown in this handbook.
Improper use of the appliance can cause serious hazards, risking the safety of personnel and of the
installation.
Model identification
ESPRIT® ANTI-CORROSION ENHANCED 2MPx40 OPTIONS
Part Number Description
ESSE1-2X40-SPT-M2 Esprit Anti-Corrosion Enhanced 1 Series, PTZ, 2MP 40x Zoom, PTZ, mains
220-230VAC, with Wiper
ESSE1-2X40-SPT-AC Esprit Anti-Corrosion Enhanced 1 Series, PTZ, 2MP 40x Zoom, PTZ, 24VAC,
with Wiper
ESSE1-2X40-SPT-M1 Esprit Anti-Corrosion Enhanced 1 Series, PTZ, 2MP 40x Zoom, PTZ, mains
120VAC, with Wiper
Table 1: Esprit Anti-Corrosion Enhanced 1 Series, PTZ.
Preparing the Installation
Caution: Device installation and maintenance must be performed by specialist technical staff only.
Use appropriate tools for the installation. The particular nature of the site where the device is to be
installed may mean special tools are required for installation.
Choose an installation surface that is strong enough to sustain the weight of the device, also
bearing in mind particular environmental aspects, such as exposure to strong winds.
It should be installed so that no one can be hit by moving parts. It should be installed so that moving
parts cannot hit other objects and create hazardous situations.
Make sure the product is secured to building before operation.
For technical services, consult only and exclusively authorized technicians.
Since the user is responsible for choosing the surface to which the unit is to be anchored, we do not
supply the fixing devices for attaching the unit firmly to the particular surface. The installer is
responsible for choosing fixing devices suitable for the specific purpose on hand.
It is possible to install the unit with several brackets.
We strongly recommend using only approved brackets and accessories during installation.
Unpacking
When the product is delivered, make sure that the package is intact and that there are no signs that it has
been dropped or scratched.
If there are obvious signs of damage, contact the supplier immediately.
When returning a faulty product we recommend using the original packaging for shipping.

Esprit Anti-Corrosion Enhanced 1 Series, PTZ Installation Manual
MNLCNXPTZ2_2240 | 11/22 11
Keep the packaging in case you need to send the product for repairs.
Safely disposing of packaging material
The packaging material can all be recycled. The installer technician will be responsible for separating the
material for disposal, and in any case for compliance with the legislation in force where the device is to be
used.
Safety precautions before use
The appliance includes moving parts. Make sure that the unit is positioned where it is inaccessible
under normal operating conditions. Attach the warning label supplied with the appliance, placing it
near the unit so that it can be seen easily.
Figure 2: Hazardous moving parts label.
Preparing the product for use
Any change that is not expressly approved by the manufacturer will invalidate the warranty.
Product Package Contents
Ensure the product package contains the following:
lPelco Esprit Anti-Corrosion Enhanced 1 Series, PTZ Camera
lSunshield
lBolts and screws
lWash system kit
lLabel (CAUTION: Hazardous moving parts)
lAllen wrench
lHandling flyer
lSafety leaflet
Additional supplies needed:
lThread locking compound (Loctite 270).
Allow for one hour of time for the thread locking compound to cure during the installation .

Esprit Anti-Corrosion Enhanced 1 Series, PTZ Installation Manual
MNLCNXPTZ2_2240 | 11/22 12
lScrews capable of bearing 4 times the weight of the unit (for securing the ceiling mount).
lScrews and fixing devices capable of bearing 4 times the weight of the unit (for securing the wall
mount).
Installation Steps
Caution: Device installation and maintaining must be performed by specialist technical staff only.
Before doing any technical work on the device, disconnect the power supply.
At start up the system makes some automatic calibration movements: do not stand near the
device when it is powering on.
The product is equipped with a multicore cable that allows connections to be made.
Complete the following sections to install the device.
Range of use
Installation temperature: from -40°C (-40°F) up to +65°C (149°F).
Operating temperature: from -40°C (-40°F) up to +65°C (149°F).
Inserting an SD card
It is possible to equip the product with a microSD memory card.
It is recommended that the microSD card have a capacity of 64GB or more. Video Speed Class microSD
card required, with Class V10 or better recommended. If the microSD card does not meet the
recommended capacity or write speed, the performance of the onboard storage may suffer and result in
the loss of frames or footage.
Loosen the four screws on the front of the housing.

Esprit Anti-Corrosion Enhanced 1 Series, PTZ Installation Manual
MNLCNXPTZ2_2240 | 11/22 13

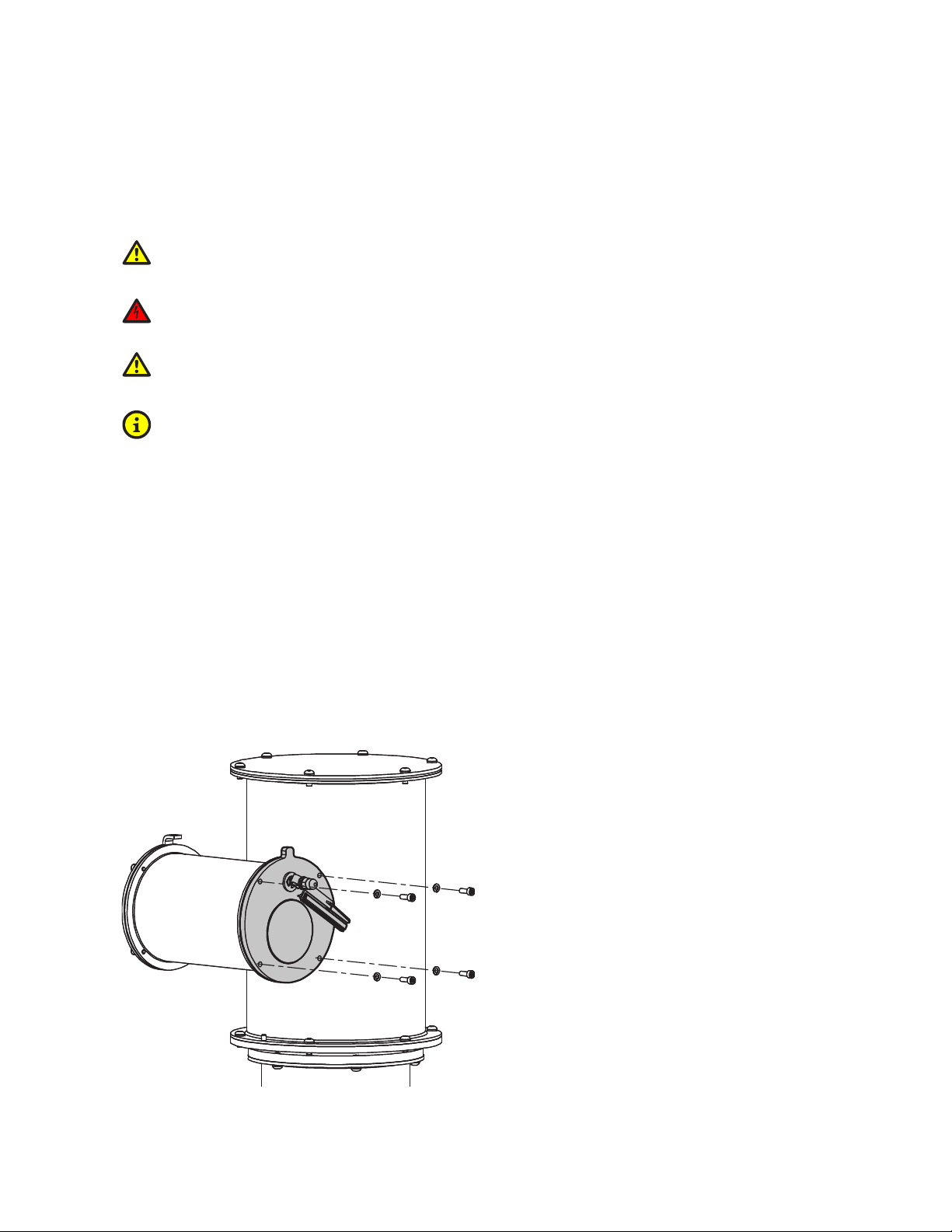

Figure 3: Loosen the screws .
Remove the optical kit taking care not to damage the flat cables.

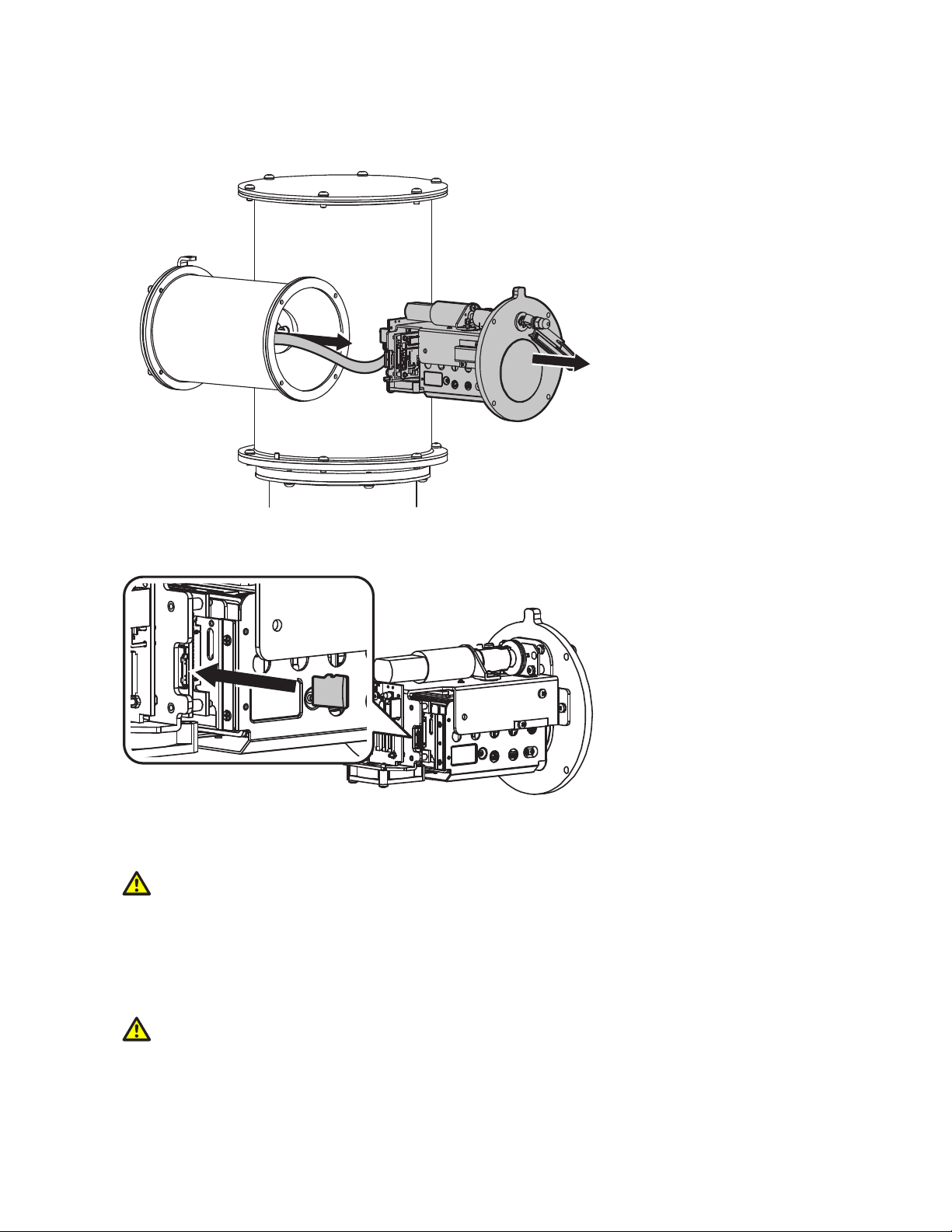

Figure 4: Optical kit removal.
Insert the memory card into the slot as indicated. Pay attention to the direction of the memory card.
Figure 5: Memory card insertion.
Reassemble the optical kit and fix the four screws.
Pay attention to the fixing. Tightening torque: 1.5Nm.
Installing the housing sunshield
You can fix the sunshield to the housing using the screws supplied.
Apply a generous amount of thread locking compound (Loctite 270) into the threaded holes.
Pay attention to the fixing. Tightening torque: 2Nm.
The thread compound must cure for one hour, allow for this period prior to completing the installation.

Esprit Anti-Corrosion Enhanced 1 Series, PTZ Installation Manual
MNLCNXPTZ2_2240 | 11/22 14
Figure 6: Installing the housing sunshield.
Mounting in the Correct Orientation
The system can be installed only in a standard or inverted position (ceiling mount). When installed for
inverted operation, the camera orientation and controller functions are reconfigured for normal operation
through the system’s software.
Hardware adjustment is not required for inverted operation.

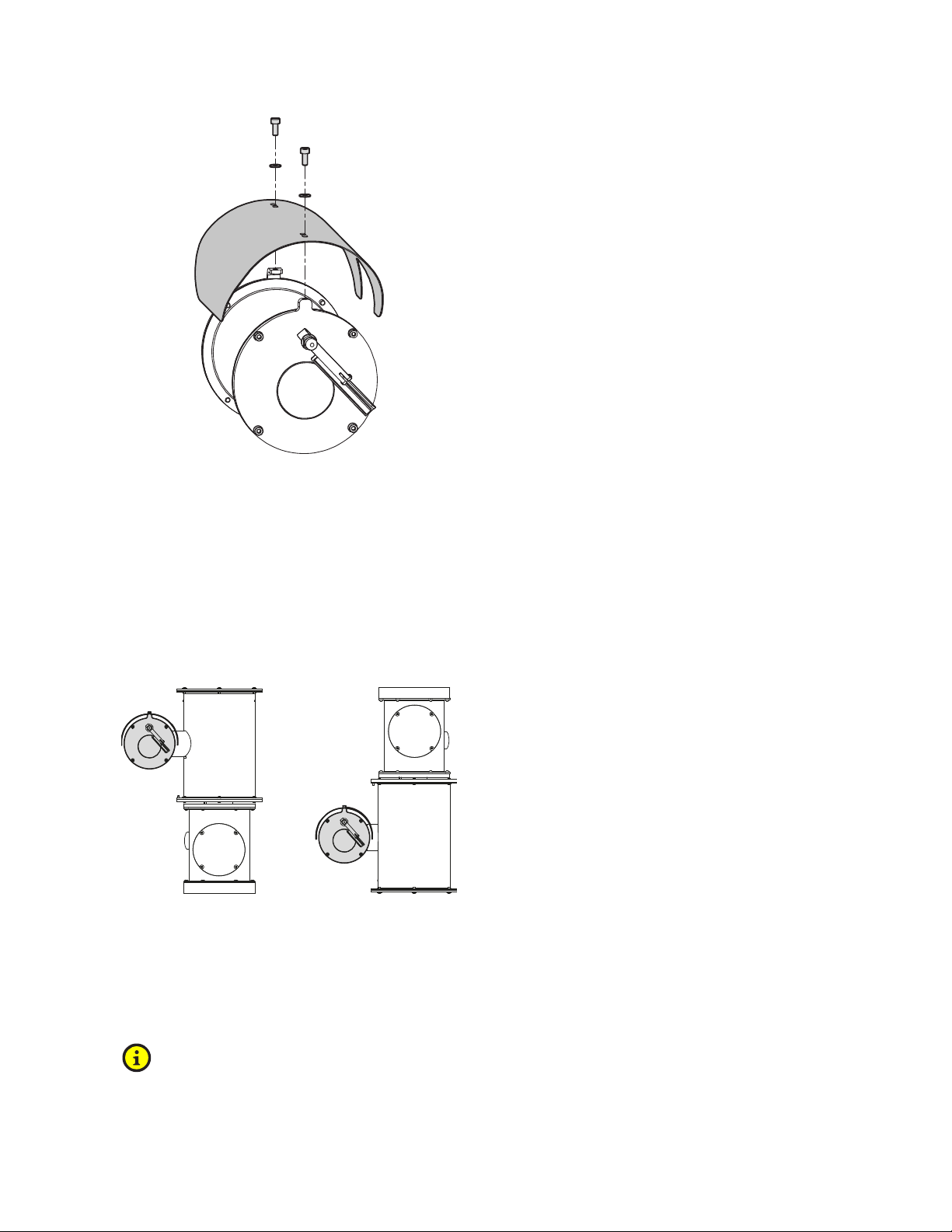

Figure 7: Mounting in the correct orientation.
Fixing with parapet or ceiling bracket
For ceiling assembly, the Ceiling Assembly mode must be enabled using the web interface (Pelco
Esprit Anti-Corrosion Enhanced Operations Manual).

Esprit Anti-Corrosion Enhanced 1 Series, PTZ Installation Manual
MNLCNXPTZ2_2240 | 11/22 15
Fix the bracket (01) to the bottom of the unit using the 4 flat countersunk screws (02) with hexagonal
socket M10x20mm in stainless steel (A4 class 70) supplied with the bracket.
Make sure the thread are free of dirt and debris.
Apply a generous amount of thread locking compound (Loctite 270) into the threaded holes in the base of
the device.
Pay attention to the fixing. Tightening torque: 35Nm.
The thread compound must cure for one hour, allow for this period prior to completing the installation.
Figure 8: Fixing to parapet or ceiling mount.
Use the external holes in the bracket to fix the assembled unit to the parapet or to the ceiling. Use screws
that can bear at least 4 times the weight of the unit.

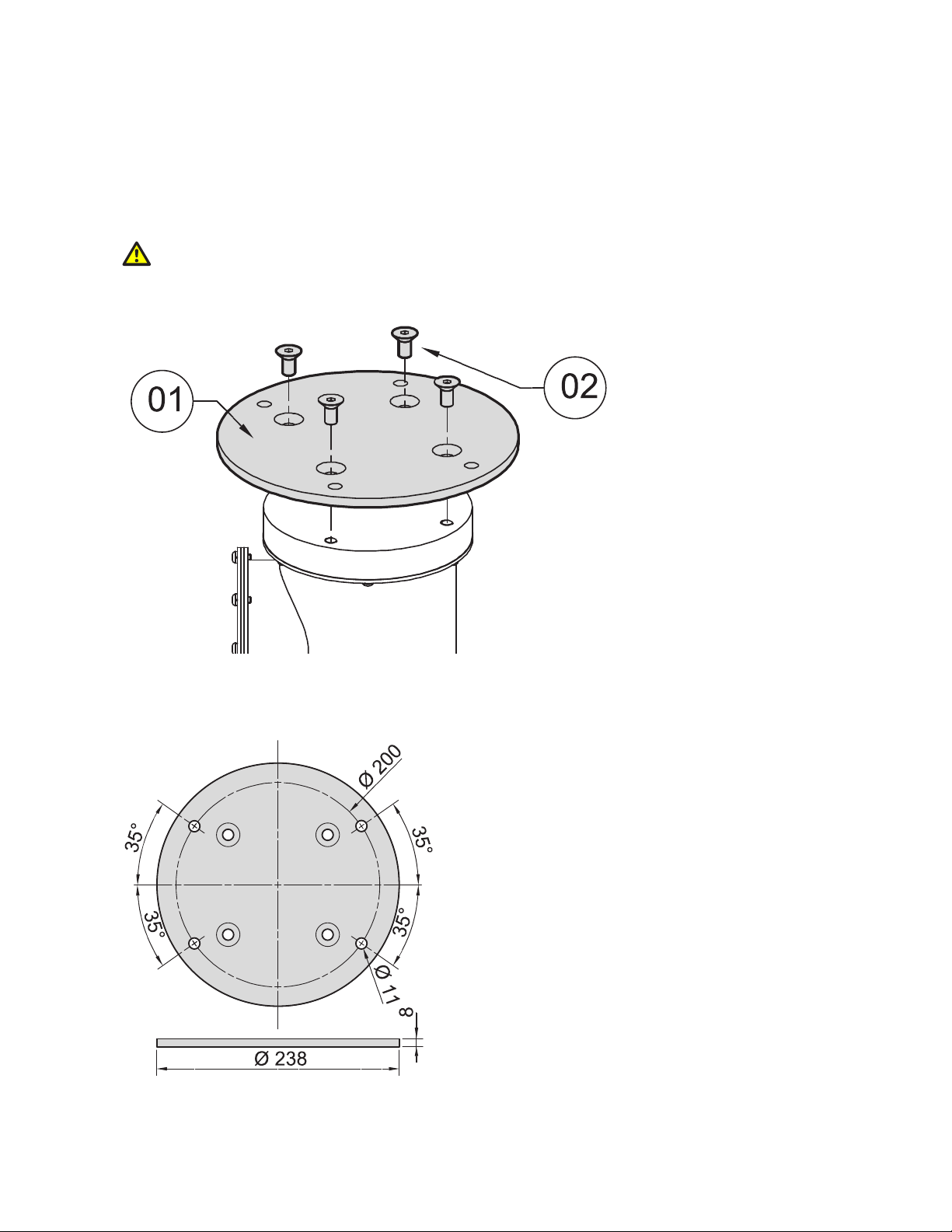

Figure 9: Parapet or ceiling mount drilling pattern.

Esprit Anti-Corrosion Enhanced 1 Series, PTZ Installation Manual
MNLCNXPTZ2_2240 | 11/22 16
Fixing with wall mount bracket
Fasten the device to the bracket by using 4 flat washers, 4 serrated stainless steel washers and 4
stainless steel hex head screws (A4 class 70) M10x20mm supplied with the bracket.
Make sure the thread are free of dirt and debris.
Apply a generous amount of thread locking compound (Loctite 270) on the 4 screws.
Tighten the screws.
Pay attention to the fixing. Tightening torque: 35Nm.
The thread compound must cure for one hour, allow for this period prior to completing the installation.
Figure 10: Fixing with wall mount bracket.
The bracket can be fixed to the vertical wall. Use screws and wall fixing devices that can bear at least 4
times the weight of the unit.

Esprit Anti-Corrosion Enhanced 1 Series, PTZ Installation Manual
MNLCNXPTZ2_2240 | 11/22 17

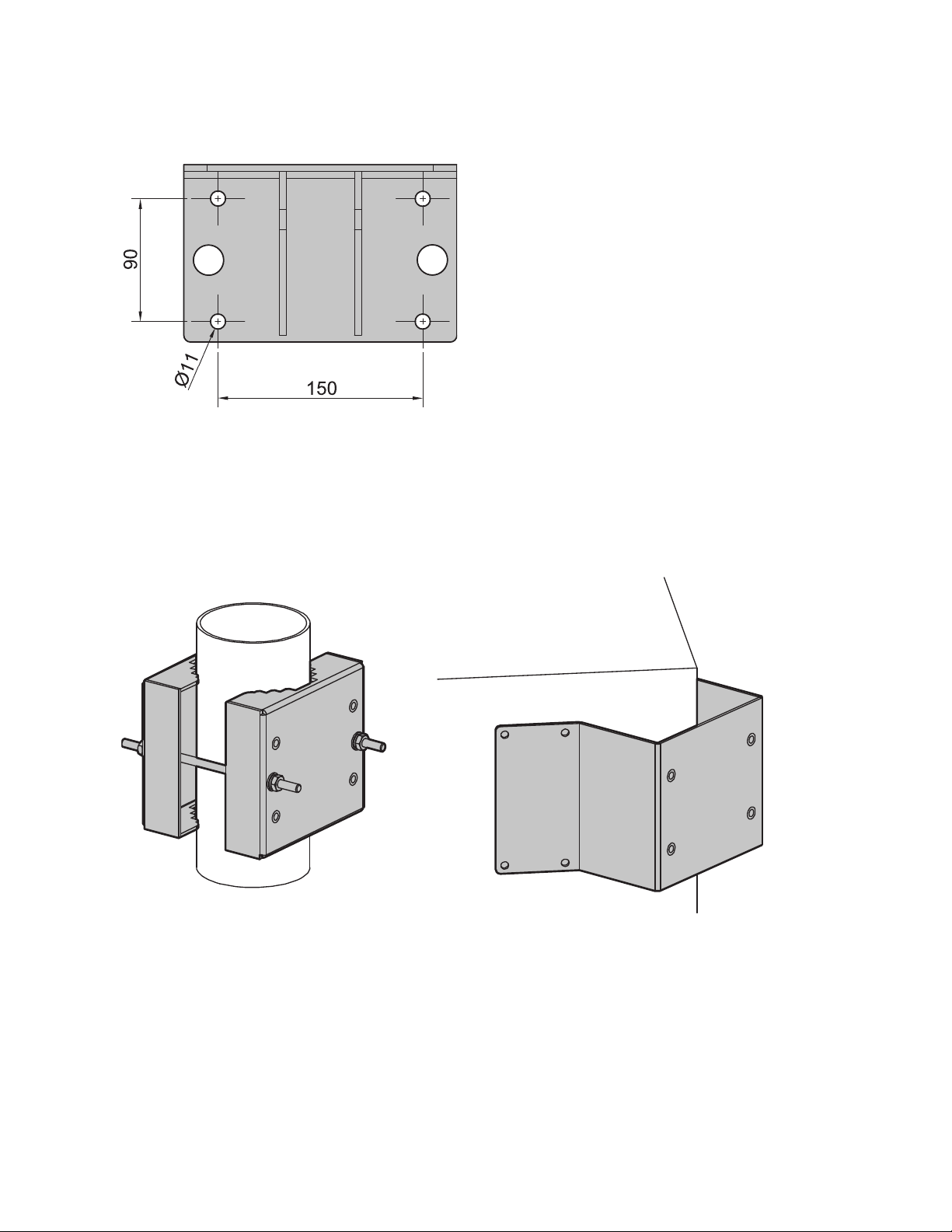

Figure 11: Wall mount drilling pattern.
Fixing the unit to the pole mount adapter or corner mount adapter
The adapter can be fixed to a pole or a vertical wall. Use a pole or screws that can bear at least 4 times
the weight of the unit.
Figure 12: Pole mount adapter or corner mount adapter
To install the product on the corner adaptor module or pole, first of all fasten the support bracket.
To fasten the support bracket, use the 4 flat washers, the 4 elastic washers in stainless steel and the 4
hexagonal head screws in stainless steel (A4 class 70) M10x30mm supplied with the bracket.
Make sure the thread are free of dirt and debris.
Apply a generous amount of threadlocker (Loctite 270) on the 4 threaded holes on the adaptor module.
Tighten the screws.

Esprit Anti-Corrosion Enhanced 1 Series, PTZ Installation Manual
MNLCNXPTZ2_2240 | 11/22 18
Pay attention to the fixing. Tightening torque: 35Nm.
The thread compound must cure for one hour, allow for this period prior to completing the installation.
Figure 13: Fasten the support bracket.
To fix the device to the bracket, consult the relevant chapter (Fixing with wall mount bracket).
Cable Connections
The camera is supplied with a 3m multicore cable. The cable diameter is 19mm.
Connecting External Power
Electrical connections must be performed with the power supply disconnected and the circuit-
breaker open.
When commencing installation make sure that the specifications for the power supply for the
installation correspond with those required by the device.
Check that the power supply socket and cable are adequately dimensioned.
Depending on the version, the device can be provided with different power supply voltages. The power
supply voltage is indicated on the product identification label (Product marking).
The multicore cable has the power and earthing cables inside.
Carry out the connections as described in the table.

Esprit Anti-Corrosion Enhanced 1 Series, PTZ Installation Manual
MNLCNXPTZ2_2240 | 11/22 19
CONNECTING THE POWER SUPPLY
Cable colour Description
Power supply 24Vac
Black 2 (N) Neutral
Black 1 (L) Phase
Yellow/Green Safety earth
Power supply 220-230Vac
Black 2 (N) Neutral
Black 1 (L) Phase
Yellow/Green Safety earth
Power supply 120Vac
Black 2 (N) Neutral
Black 1 (L) Phase
Yellow/Green Safety earth
Table 2: Connecting the power supply.
Ethernet cable connection
The Ethernet cable shield on the operator side must always be earthed via the connector.
The RJ45 connector pinout follows the TIA/EIA-568-B standard.
Alarms and relays connections
The Alarms and relays cable shield on the operator side must always be earthed via the cable
shield braid.
The unit is equipped with the alarms and relays indicated in the table.
ALARMS AND RELAYS CONNECTIONS
Cable colour Description
Red-Blue Relay 1, A
Grey-Pink Relay 1, B
Brown-Green Relay 2, A
White-Green Relay 2, B

Esprit Anti-Corrosion Enhanced 1 Series, PTZ Installation Manual
MNLCNXPTZ2_2240 | 11/22 20
ALARMS AND RELAYS CONNECTIONS
Cable colour Description
Green Common alarm, COM
Brown Alarm 1 (dry contact), AL1
White-Yellow Reset input power supply
Black Reset input
Table 3: Alarms and relays connections.
Electrically insulate all cables not connected or not listed on the table.
Connecting an alarm with dry contact
For a dry contact alarm (alarm AL1), implement the connection as shown in the figure.
Figure 14: Connecting an alarm with dry contact.
The dry contact alarm can be NO (normally open) or NC (normally closed).
About the configuration please refer to the relative manual (Configuring the Camera).
The alarm has a reach of 200m (656ft) max, which can be obtained using a shielded cable with a
minimum section of 0.25mm² (23AWG).
Relay connection
The relays can be used with the specifications outlined below. Working voltage: up to 30Vac or
60Vdc. Current: 1A max. Use suitable cable sections with the following characteristics: from
0.25mm² (23AWG) up to 1.5mm² (15AWG).
Due to the absence of polarity, both terminals of the same relay can be connected either to alternating or
direct current voltages.
