Motorola MBP33 User manual

USER’S GUIDE
MBP33
BABY MONITOR
USER’S GUIDE
The features described in user's guide are subject to
modifications without prior notice.

This User's Guide provides you with all the information you need
to get the most from your product.
Before you can use the baby monitor, we recommend you insert
and fully charge the battery in the parent unit, so that it continues
to work if you disconnect it from the power supply to carry it to
another location. Please read the Safety Instructions on page 6
before you install the units.
Got everything?
• 1 x Parent unit
• 1 x Baby unit
• 1 x Rechargeable Ni-MH battery pack for the parent unit
• 1 x Power adapter for the Parent unit
• 1 x Power adapter for the Baby unit
Welcome...
to your new Motorola Baby Monitor!
Thank you for purchasing the MBP33. Now you can see and hear
your baby sleeping in another room or you can monitor your older
children in their playroom.
Please retain your original dated sales receipt for your records. For
warranty service of your Motorola product, you will need to provide
a copy of your dated sales receipt to confirm warranty status.
Registration is not required for warranty coverage.
For product related questions, please call:
US and Canada 1-888-331-3383
UK 0845 218 0890
On the Web: www.motorola.com

1. Display (LCD screen)
2. Vol + Key )
Normal Mode: Vol Up
Menu Mode: Up
3. Vol - Key (
Normal Mode: Vol Down
Menu Mode: Down
4. Brightness + Key ]
Normal Mode: Brightness up
Menu Mode: Right
5. Brightness - Key [
Normal Mode: Brightness down
Menu Mode: Left
6. Menu Key M
Press to open the Menu options
7. OK Key O
8. Video ON/OFF Key V
Press to turn OFF the LCD
display
Press again to turn ON the
LCD display
9. Tal k Key T
Press and hold to speak to
your baby
10. Power Adapter / Battery LED
BLUE when mains adapter
power on.
Flashes BLUE when battery
charging.
Flashes RED when battery low.
11. Unit ON/OFF LED (Green)
12. Audio Level LED (Green,
Orange, Red, Red)
13. Microphone
14. Power Key P
Press and Hold to turn the unit
ON/OFF
15. Antenna
Lift the antenna for optimal
reception
16. Battery cover
17. Stand
18. Speaker
19. USB connector
Connection to AV output
* AV Cable (Optional accessory,
to be purchased separately)
20. Power Adaptor connector
Overview of the Parent Unit
18
15
11 14
13
16
17
19
20
6
7
8
9
2
3
4
5
10 12 1
Parent unit menu icons
1Signal Level (5 Levels)
NNight Vision Mode (Screen changes to Black/White)
TTalk Mode
Battery Level Control (4 Levels)
B

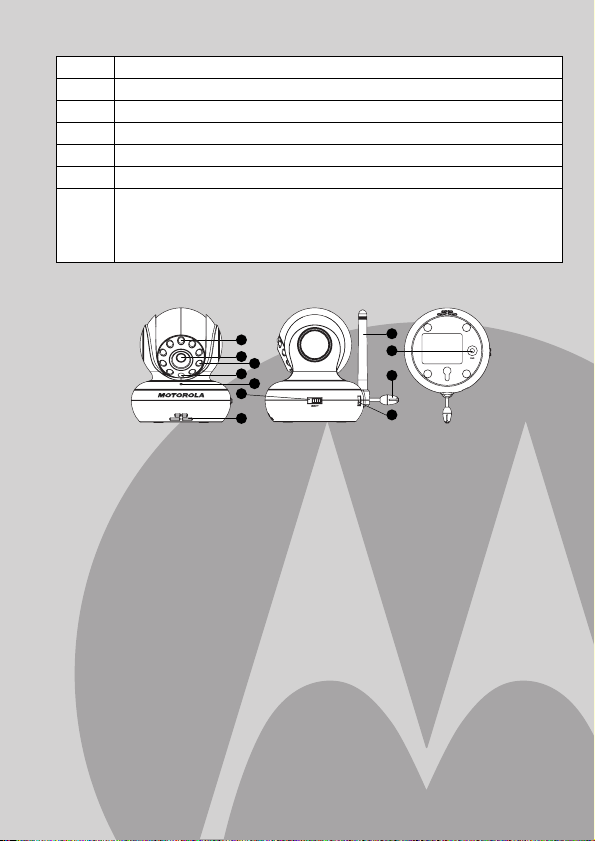

1. Photo Sensor (Night Vision
Mode)
2. Camera Lens
3. Infared LEDs
4. Power LED
5. Microphone
6. Speaker
7. ON/OFF Switch
8. Power Adaptor Connector
9. Antenna
10. Temperature Sensor
11. Pair Key
Important guidelines for installing your Baby Monitor
• To use your Video Monitor Baby and Parent Unit together, you must
be able to establish a radio link between them, and the range will be
affected by environmental conditions.
• Any large metal object, like a refrigerator, a mirror, a filing cabinet,
metallic doors or reinforced concrete between the Baby and Parent
Unit may block the radio signal.
• The signal strength may also be reduced by other solid structures, like
walls, or by radio or electrical equipment, such as TVs, computers,
cordless or mobile phones, fluorescent lights or dimmer switches.
• Use of other 2.4GHz products, such as wireless networks, Bluetooth®
systems, or microwave ovens, may cause interference with this
product, so keep the baby monitor away from these types of products,
or turn them off if they appear to be causing interference.
• If the signal is weak, try moving the Parent and/or the Baby Unit to
different positions in the rooms.
Parent unit menu icons (cont’d)
Overview of Your Baby Unit
*Volume Level Control (8 Levels)
&Brightness Level Control (8 Levels)
mLullaby Control (5 Song Selections)
ZZoom Level Control (1X, 2X)
AAlarm Setting (6h, 4h, 2h, OFF)
CCam Control (scan, view, add, del)
t
Temperature Reading (HH ºC / ºF or LL ºC / ºF)
Icon & readings turn RED > 29ºC / 84ºF, and reading display
HH ºC / ºF > 36ºC /97 ºF)
Icon & readings turn RED < 14ºC / 57ºF, and reading display
LL ºC / ºF < 1ºC /34 ºF)
19
11
10
8
23
6
5
4
7

Table of contents 5
ENGLISH
Table of contents
1. Safety Instructions ......................................................................... 6
2. Getting Started ............................................................................... 8
2.1 Baby Unit Power Supply.................................................................8
2.2 Parent Unit Battery Installation.......................................................8
2.3 Parent Unit Power Supply ..............................................................9
2.4 Registration (Pairing)....................................................................10
2.5 View Video Through TV................................................................10
3. Using the Baby Monitor MBP33 .................................................. 11
3.1 Setting up .....................................................................................11
3.2 Manual Pan and Tilt......................................................................11
3.3 Night Vision Mode ........................................................................11
3.4 Talk Mode.....................................................................................11
3.5 Video ON/OFF..............................................................................11
3.6 Temperature Display (HH ºC / ºF or LL ºC / ºF)............................11
4. MBP33 Parent Unit Menu Options .............................................. 12
4.1 Volume .........................................................................................12
4.2 Brightness.....................................................................................12
4.3 Lullaby ..........................................................................................12
4.4 Zoom ............................................................................................12
4.5 Alarm ............................................................................................13
4.6 Camera Control ............................................................................13
4.6.1 Add (pair) a camera .......................................................13
4.6.2 View a camera ...............................................................13
4.6.3 Delete a camera .............................................................14
4.6.4 Scan camera ..................................................................14
4.7 Temperature.................................................................................14
5. Disposal of The Device (environment) ....................................... 15
6. Cleaning ........................................................................................ 16
7. Help................................................................................................ 17
8. General Information .....................................................................19

6 Safety Instructions
1. Safety Instructions
WARNING
This baby monitor is compliant with all relevant standards regarding
electromagnetic fields and is, when handled as described in the User's
Guide, safe to use. Therefore, always read the instructions in this User's
Guide carefully before using the device.
• Adult assembly is required. Keep small parts away from children when
assembling.
• This product is not a toy. Do not allow children to play with it.
• This baby monitor is not a substitute for responsible adult supervision.
• Keep this user's guide for future reference.
• Do not place the baby unit or cables in the cot / crib or within reach of
the baby (the unit should be at least 3 feet away).
• Keep the cords out of reach of children.
• Do not cover the baby monitor with a towel or blanket.
WARNING:
STRANGULATION HAZARD - Keep the adapter cord out of
baby's reach.
NEVER place camera or cords within the cot / crib.
Secure the cord some distance away from baby's reach.
Never use extension cords with AC Adapters. Only use the AC
Adapters provided.
CAMERA SET UP & USE:
●Determine a location for the CAMERA that will provide the best
view of your baby in his cot / crib.
●Place the CAMERA on a flat surface, such as a dresser, bureau,
or shelf.
●NEVER place camera or cords within cot / crib.
●Secure the cord to the wall to keep cord away from the baby's reach.

Safety Instructions 7
ENGLISH
• Never use extension cords with power adapters. Only use the power
adapters provided.
• Test this monitor and all its functions so that you are familiar with it
prior to actual use.
• Do not use the baby monitor near water.
• Do not install the baby monitor near a heat source.
• Only use the chargers and power adapters provided. Do not use other
chargers or power adapters as this may damage the device and
battery pack.
• Only insert a battery pack of the same type.
• Do not touch the plug contacts with sharp or metal objects.
CAUTION
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.

8 Getting Started
2. Getting Started
2.1 Baby Unit Power Supply

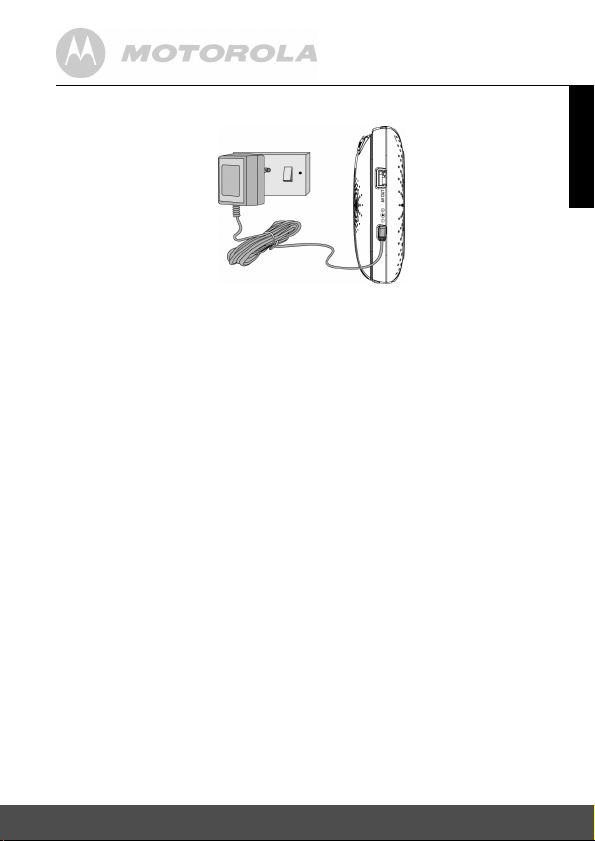

1. Connect the small plug of the power adapter to the baby unit and the
other end to the electrical outlet.
NOTE
Only use the enclosed power adapter (5.9V DC / 1000mA).
2. Slide the ON/OFF switch to the ON position. The power LED will
light up in green.
3. Slide the ON/OFF switch to the OFF position to turn the Baby Unit off.
2.2 Parent Unit Battery Installation
1. Insert the wire tab of the rechargeable battery pack into the contact
slot as shown above and fit the battery pack into the compartment.
2. Replace the battery cover over the compartment and gently tighten
the screw in a clockwise direction using a small cross head or Flat
end screw drivers.
Black Red
Small cross head or
Flat end screw driver

Getting Started 9
ENGLISH
2.3 Parent Unit Power Supply
IMPORTANT
Installing the rechargeable battery pack and charging it fully before use is
recommended. This will allow the unit to operate on battery in the event
of a power failure.
1. Connect the small plug of the power adapter to the parent unit and
the other end to the electrical outlet. Only use the enclosed power
adapter (6V DC/500mA).
2. Press and hold the PPOWER ON/OFF button, until the progress
bar finishes scrolling, to turn ON the parent unit.
3. Once the baby and parent units are switched on, the display on the
parent unit will show the video captured by the baby unit.
4. If there is no connection or you are out of range, the video display
will go off and the words
No Signal will be shown on the LCD display,
and the unit will beep every 5 seconds. Move the parent unit closer
to the baby unit until the link is re-established.
5. Press and hold the PPOWER ON/OFF button, until the progress
bar finishes scrolling, to turn OFF the parent unit.
NOTE
The battery icon turns RED to indicate that the battery is low, the red
LED blinks, and it gives a beep every 16 seconds. The battery needs to
be recharged. The battery pack takes about 16 hours to charge fully.
When charging
1. During power OFF, when the adapter is plugged in, a flashing battery
symbol will display for 45 sec. The Blue LED at the top left will flash to
indicate the adaptor is plugged in.
0

10 Getting Started
2. During power ON, when the adaptor is plugged in, the battery icon in
the top right corner will show that the battery is charging. The Blue
LED at the top left turns on to indicate the adaptor is plugged in, and
flashes while the battery is charging.
2.4 Registration (Pairing)
The Baby monitor is pre-registered to your Parent Unit. You do not need
to register it again unless the Baby Unit loses its link with the Parent Unit.
To re-register your Baby Unit, or register a new Baby Unit, follow the
procedure below:
1. Press the Mbutton of the parent unit and the menu bar will pop up.
2. Press the <LEFT button or >RIGHT button until Cis highlighted,
and the
del/add/view/scan menu will pop up.
3. Press the +UP button or -DOWN button to select
ADD , and press
the OK button to confirm.
4.
CAM 1 / CAM 2 / CAM 3 / CAM 4 will pop up, press the +UP button or -
DOWN button to select the desired CAM and press the OK button to
start searching for a camera unit. The green audio level LED will
flash rapidly while searching.
5. Press and hold the PAIR button underneath the baby unit until the
parent unit finds the camera, beeps and the video from the camera
appears.
NOTE
If a particular Baby Unit was registered previously, registering this current
Baby Unit again will overwrite the old registration.
2.5 View Video Through TV
Connect a suitable AV cable into the AV OUT socket on the side of the
Parent Unit and into the AV input of the TV. Scroll through the AV inputs
on the TV menu until the Baby monitor picture is visible.
AV cable is an optional accessory, which is to be purchased separately.
NOTE
The Monitor's power button must be turned ON and CAM pre-selected
before connecting the AV cable. Once the AV cable is connected, the
Monitor's controls cannot be activated.

Using the Baby Monitor MBP33 11
ENGLISH
3. Using the Baby Monitor MBP33
3.1 Setting up
• Place the baby unit in a convenient location (e.g. on a table) and point
the camera lens towards the area you want to monitor.
• Adjust the baby unit's head angle by rotating the camera up, down, left
and right until you are satisfied with the image in the parent unit.
NOTE
Do not place the baby unit within baby's reach! If there is interference with
the picture or sound, try moving the units to different locations, and
ensure they are not close to other electrical equipment.
3.2 Manual Pan and Tilt
You can rotate the cam sphere up/down/left/right by hand to desire angle.
3.3 Night Vision Mode
The baby unit has 8 high-intensity infrared LEDs for picking up clear images
in the dark. When the built-in photo sensor detects a low level of ambient
light, the LEDs will automatically activate and the screen on the parent unit
will display in black and white. The Nicon will be displayed on the screen.
3.4 Talk Mode
Press and hold the TTALK button on the parent unit to talk to your baby
through the baby unit's loudspeaker. The Ticon will be displayed at the
top of the LCD screen.
3.5 Video ON/OFF
Press VVIDEO ON/OFF key to turn the LCD display on or off, but will
still leave the audio monitor on.
3.6 Temperature Display (HH ºC / ºF or LL ºC / ºF)
The temperature reading from the temperature sensor at the back of
the Baby Unit will be displayed at the top of the LCD screen. The
readings will turn RED if the temperature goes above 29ºC / 84ºF or
below 14ºC / 57ºF. The reading will change to HH ºC / ºF if the
temperature goes above 36ºC / 97ºF. The reading will change to LL ºC /
ºF if the temperature goes below 1ºC / 34ºF.

12 MBP33 Parent Unit Menu Options
4. MBP33 Parent Unit Menu Options
4.1 Volume
Press the )VOL UP button or (VOL DOWN button to select the desired
volume level from level 1 ~ 8. (The default volume level setting is level 3.)
4.2 Brightness
Press the ]BRIGHTNESS UP button or [BRIGHTNESS DOWN
button to select the desired brightness level from level 1 ~ 8. (The default
brightness level setting is level 4.)
4.3 Lullaby
1. Press the Mbutton and the menu bar will pop up.
2. Press the <LEFT button or >button until mis highlighted.
3. Press the +UP button or -DOWN button to select the desired song
from the 5 lullabies available, or the cycle option to play all 5 songs in
turn. If an individual song is selected it will only play once and then stop.
(The default setting is STOP, with the lullaby turned off.)
4. While still in the menu screen and with a lullaby selected, press the
OK button and then press the +UP button or -DOWN button to
adjust the volume level played from the baby unit.
4.4 Zoom
1. Press the Mbutton and the menu bar will pop up.
2. Press the <LEFT button or >button until Zis highlighted.
3. Press the +UP button or -DOWN button to select the
1X or 2X
Zoom. (The default setting is 1X.)

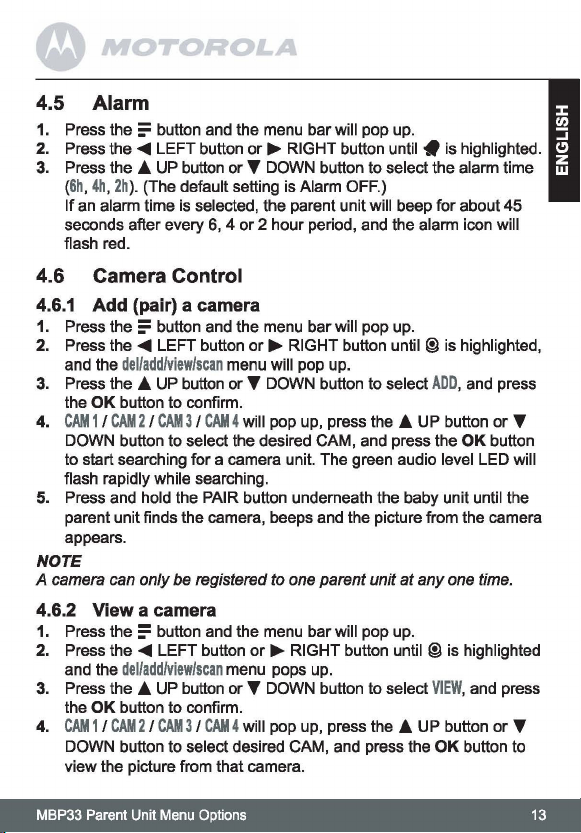

Disposal of The Device (environment) 15
ENGLISH
5. Disposal of The Device
(environment)
At the end of the product lifecycle, you should not dispose
of this product with normal household waste. Take this
product to a collection point for the recycling of electrical
and electronic equipment. The symbol on the product,
user's guide and/or box indicates this.
Some of the product materials can be reused if you take
them to a recycling point. By reusing some parts or raw materials from
used products you make an important contribution to the protection of the
environment.
Please contact your local authorities in case you need more information
on the collection points in your area.
Dispose of the battery pack in an environmentally-friendly manner
according to your local regulations.

16 Cleaning
6. Cleaning
Clean the MBP33 with a slightly damp cloth or with an anti-static cloth.
Never use cleaning agents or abrasive solvents.
Cleaning and care
• Do not clean any part of the product with thinners or other solvents
and chemicals –- this may cause permanent damage to the product
which is not covered by the warranty.
• Keep your MBP33 away from hot, humid areas or strong sunlight, and
don't let it get wet.
• Every effort has been made to ensure high standards of reliability for
your MBP33. However, if something does go wrong, please do not try
to repair it yourself –- contact Customer Service for assistance.

Help 17
ENGLISH
7. Help
Display
No display
• Try recharging or replacing the battery pack.
• Reset the units. Disconnect the battery pack of the parent unit and
unplug both the units' electrical power, then plug them back in.
• Is the unit turned on?
Press and hold the ON/OFF key Pon the parent unit to turn it ON.
• Is the correct camera selected?
Change the camera number, if necessary.
• Is the video display turned on?
Press the VIDEO ON/OFF key Vto turn it on.
• If the parent unit is only powered by the battery, the screen will turn off
after a few minutes to conserve battery power. Press any button to
turn the video back on.
Registration
If the Baby Unit has lost its link with the Parent Unit
• Try recharging or replacing the battery pack.
• If the Baby Unit is too far away it may be going out of range, so move
the Baby Unit closer to the Parent Unit.
• Reset the units by disconnecting them from the battery and electrical
power. Wait about 15 seconds before reconnecting. Allow up to one
minute for the Baby Unit and the Parent Unit to synchronize.
• See 2.4 Registration (Pairing), if there is a need to re-register the
units.

18 Help
Interference
Noise interference on your parent unit
• Your baby and parent units may be too close. Move them farther apart.
• Make sure there is at least 3 feet between the 2 units to avoid audio
feedback.
• lf the baby unit is too far away it may be out of range, so move the
baby unit closer to the parent unit.
• Make sure the baby and parent units are not near other electrical
equipment, such as a television, computer or cordless/mobile telephone.
• Use of other 2.4GHz products, such as wireless networks, Bluetooth
systems, or microwave ovens, may cause interference with this
product, so keep the baby monitor away from these types of products,
or turn them off if they appear to be causing interference.
• If the signal is weak, try moving the Parent and/or Baby Unit to
different positions in the rooms.

General Information 19
ENGLISH
8. General Information
lf your product is not working properly....
1. Read this User's Guide or the Quick Start Guide.
2. Visit our website:
www.motorola.com
3. Contact Customer Service:
To order a replacement battery pack, contact customer service or visit our
website.
Consumer Products and Accessories Limited
Warranty ("Warranty")
Thank you for purchasing this Motorola branded product manufactured
under license by Binatone Electronics International LTD ("BINATONE").
What Does this Warranty Cover?
Subject to the exclusions contained below, BINATONE warrants that this
Motorola branded product ("Product") or certified accessory
("Accessory") sold for use with this product that it manufactured to be
free from defects in materials and workmanship under normal consumer
usage for the period outlined below. This Warranty is your exclusive
warranty and is not transferable.
Who is covered?
This Warranty extends only to the first consumer purchaser, and is not
transferable.
US and Canada 1-888-331-3383
UK 0845 218 0890

20 General Information
What will BINATONE do?
BINATONE or its authorized distributor at its option and within a
commercially reasonable time, will at no charge repair or replace any
Products or Accessories that does not conform to this Warranty. We may
use functionally equivalent reconditioned/ refurbished/ pre-owned or new
Products, Accessories or parts.
What Other Limitations Are There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE
DURATION OF THIS LIMITED WARRANTY, OTHERWISE THE
REPAIR OR REPLACEMENT PROVIDED UNDER THIS EXPRESS
LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE
CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OF IMPLIED. IN NO EVENT SHALL
MOTOROLA OR BINATONE BE LIABLE, WHETHER IN CONTRACT
OR TORT (INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS
OF THE PURCHASE PRICE OF THE PRODUCT OR ACCESSORY, OR
FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL
DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR PROFITS,
LOSS OF BUSINESS, LOSS OF INFORMATION OR OTHER
FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE
ABILITY OR INABILITY TO USE THE PRODUCTS OR ACCESSORIES
TO THE FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY
LAW.
Some jurisdictions do not allow the limitation or exclusion of incidental or
consequential damages, or limitation on the length of an implied
warranty, so the above limitations or exclusions may not apply to you.
This Warranty gives you specific legal rights, and you may also have
other rights that vary from one jurisdiction to another.
