Motorola iDEN i880 User manual

Motorola
iDEN
Digital Multi-service Data-capable Phone
i880 Phone User’s Guide
@NNTN6996A@
NNTN6996A

IMPORTANT NOTICE: PLEASE READ
PRIOR TO USING YOUR PHONE
The SIM card provided in this kit is intended for use with
the phone provided in this package.
Loss of certain features will result when using a SIM
card from one of the following models: i30sx, i35s,
i50sx, i55sr, i58s, i60c, i80s, i85s, i88s, i90c, i95cl
series, and the i2000 series.
For more information on SIM card compatibility, go to
www.motorola.com/iden/support.
Defects or damage to your Motorola phone that result
from the use of non-Motorola branded or certified
Accessories, including but not limited to replacement
housings and or other peripheral accessories, are
excluded from warranty coverage. Please refer to the
text of Motorola's Limited One Year warranty located in
this user’s guide for complete details.

i
Contents
Getting Started........................................... 1

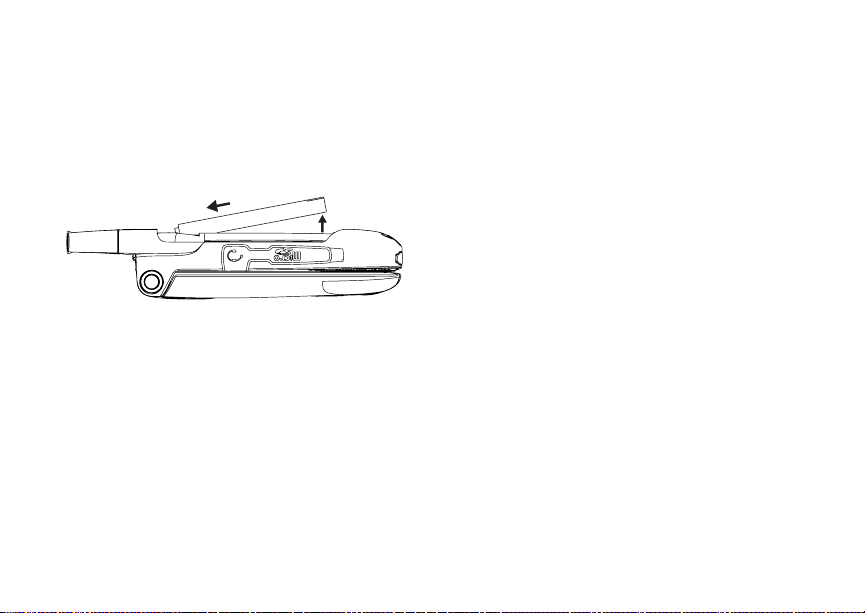

Locating Your SIM Card....................................3

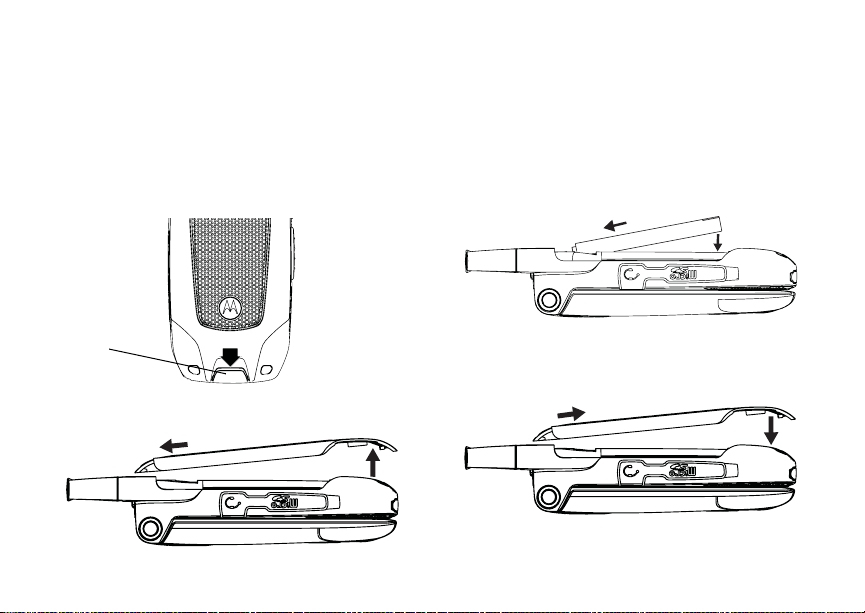

Battery...............................................................4
Activating Service..............................................6
Powering On and Off.........................................6
Phone Programming .........................................8
Finding Your Phone Number.............................8

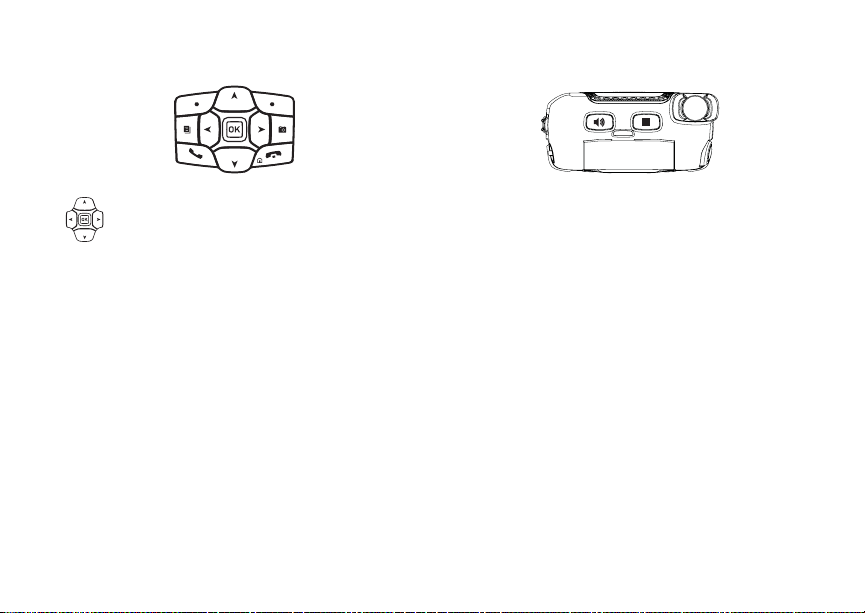

Phone Basics ....................................................8
Using a Memory Card .....................................14
SIM Card Security...........................................14
Antenna...........................................................18
Accessories.....................................................19
For More Information.......................................19
Making Calls............................................. 20
Phone Calls.....................................................20
Private Calls....................................................20
Receiving Calls................................................21
Choosing a Number to Call.............................22
Missed Phone Calls.........................................23
Using Speakerphone.......................................23
Using Mute......................................................24
Making Emergency Phone Calls.....................24
MOTOtalkTM .......................................................... 25
Switching to MOTOtalk ...................................25
Exiting MOTOtalk............................................26
Channels and Codes.......................................26
Private MOTOtalk Calls...................................28
Making Emergency Calls While in
MOTOtalkTM Mode.....................................29
Setup Options .................................................29
Call Alerts..................................................31
Sending Call Alerts..........................................31
Receiving Call Alerts.......................................31
Using the Call Alert Queue..............................31
Recent Calls..............................................33
Viewing the Recent Calls List..........................33
Calls and Call Alerts........................................33
PTX Items in Private Calls ..............................34
Storing Items to Contacts................................37
Deleting Items.................................................38

ii
Making Calls From the Recent Calls List ........38
Contacts ................................................... 40
Accessing Contacts.........................................41
Creating Entries...............................................41
Storing Numbers Faster..................................43
Editing Entries.................................................44
Viewing Entries................................................44
Deleting Entries...............................................46
Checking Capacity ..........................................47
Creating Pauses and Waits.............................47
International Numbers.....................................48
Making Calls From Contacts...........................48
Accessing Contacts with GSM Phones...........49
Entering Text............................................ 50
Using Word Mode............................................50
Special Function Keys.....................................51
Call Forwarding........................................ 53
Forwarding All Calls ........................................53
Turning Off Call Forwarding............................53
Forwarding Missed Calls.................................54
Viewing Call Forwarding Settings ...................54
Advanced Calling Features.....................55
Call Waiting.....................................................55
Switching Between Calls.................................55
Putting a Call on Hold .....................................56
Calling 2 People..............................................56
Creating Pauses and Waits While Dialing.......57
Making International Calls...............................57
Setting Flip Actions .........................................57
Call Timers......................................................58
Using Your Phone as a Modem ......................59
Features for the Hearing Impaired ..................60
Group Calls and Selective Dynamic
Group Calls ...........................................63
Group Calls .....................................................63
Selective Dynamic Group (SDG) Calls ...........65
Ring Tones................................................70
Setting Your Phone to Vibrate.........................70
Ring and Vibrate .............................................71
Assigning Ring Tones to Contacts..................71
Viewing Ring Tone Assignments ....................72

iii
Downloading More Ring Tones.......................72
About DRM Ring Tones ..................................72
Managing Memory...........................................72
Deleting Custom Ring Tones ..........................73
Messages ................................................. 74
Message Center Options.................................74
Message Notifications.....................................75
Voice Mail Messages............................... 77
Receiving a Message......................................77
Accessing Voice Mail From
the Message Center ...................................77
Sending Unanswered Calls to Voice Mail .......77
MOSMS Messages................................... 78
Setting Up........................................................78
Receiving a Message......................................79
Reading from the Message Center .................79
Creating and Sending Messages....................80
Quick Notes.....................................................82
Drafts...............................................................83
Text Outbox.....................................................83
Sorting Messages............................................85
Managing Memory ..........................................85
Multimedia Messages ..............................87
Navigating the MMS Inbox, Drafts Folder,
and Outbox.................................................87
Creating and Sending Messages....................88
Drafts...............................................................98
MMS Outbox...................................................99
Receiving a Message....................................100
Navigating a Message...................................101
Viewing Received Messages
From the Message Center........................102
Actions for Received Messages....................103
Message Transmission .................................106
Customizing MMS.........................................107
Managing Memory ........................................109
Using a Memory Card ............................111
Ensuring Files on the Memory Card Are
Compatible With Your Phone ...................111
Using the Memory Card With
Your Phone...............................................114
Using the Memory Card With
Your Computer .........................................116

iv
Memory Cards Compatible
With Your Phone.......................................120
Audio Player........................................... 121
Playing Audio Files with the Flip Closed .......121
Playing Audio Files with the Flip Open..........122
Adjusting the Volume ....................................123
How Your Audio Files Are Organized............123
Playing Music While Files Are Loading.........124
Searching By First Letter...............................124
Playing a List and Using Repeat and Shuffle124
Working With Playlists...................................125
Working With Podcast...................................128
Deleting Audio Files ......................................131
DRM Items ....................................................131
Setting Audio and Visual Options..................132
Camera ................................................... 133
Accessing the Camera..................................133
Taking Pictures..............................................133
More Actions for Captured Pictures ..............135
Recording Videos..........................................136
Changing Storage Preference.......................137
Accessing the Media Center .........................138
Customizing the Camera...............................138
Managing Memory ........................................139
Media Center...........................................140
Viewing the Media Center.............................140
Forward Locked Items...................................142
DRM Items ....................................................143
Pictures.........................................................143
Videos...........................................................144
Audio Recordings..........................................145
Renaming Items............................................146
Locking Items................................................146
Deleting Items...............................................147
Copying and Moving Items............................147
Changing Storage Preference.......................148
Accessing the Camera..................................148
Accessing the Audio Player ..........................148
Managing Memory ........................................149
Using PTX Features ...............................150
PTX Icons......................................................150
Send Messages ............................................151

v
Send Pictures................................................153
Send Datebook Events..................................156
Send My Info.................................................159
Send Contact Information..............................160
PT Manager ............................................ 162
Accessing PTX Features
From PT Manager.....................................162
Turning PTX Features On and Off ................162
Changing the Quick Notes List......................162
Setting One Touch PTT.................................163
Setting My Info Sending Option.....................164
Using Quick PTT...........................................165
My Info.................................................... 167
Viewing My Info.............................................167
Editing My Info...............................................167
Datebook ................................................ 169
Viewing Datebook .........................................169
Creating Events.............................................170
Editing Events ...............................................172
Deleting Events.............................................172
Receiving Reminders....................................173
Making Calls From Datebook and
Datebook Reminders................................173
Customizing Datebook Setup........................174
Digital Rights Management ...................176
Installing Items..............................................176
Understanding DRM Status Icons.................176
Sharing Items................................................176
Managing DRM Items ...................................177
Java Applications...................................180
Installing Applications....................................180
Running Applications ....................................180
Suspending Applications...............................180
Resuming Applications..................................181
Ending Applications.......................................181
Downloading Applications.............................181
Deleting Applications.....................................182
Managing Memory ........................................182
Storing Java Applications on the Memory
Card..........................................................183
Shortcuts on the Main Menu .........................184
Java Applications and GPS Enabled ............184

vi
Bluetooth®............................................. 187
Understanding Bluetooth®Access Settings..187
Setting Your Phone for Bluetooth®.....................188
Accessing Bluetooth®...................................189
Making a Bluetooth®Connection..................189
Setting Device Details...................................192
Sending Contacts, Datebook Events,
and Media Center Items ...........................193
Receiving Items.............................................194
GPS Enabled.......................................... 196
IMPORTANT: Things to Keep in Mind ..........196
Making an Emergency Call ...........................198
Viewing Your Approximate Location .............199
Enhancing GPS Performance.......................200
Updating Satellite Almanac Data...................201
Setting Privacy Options.................................202
Using GPS with Map Software......................203
Memo ...................................................... 205
Voice Records........................................ 206
Viewing Voice Records .................................206
Creating Voice Records ................................206
Playing Voice Records..................................207
Labeling Voice Records ................................207
Locking Voice Records .................................207
Deleting Voice Records.................................208
Managing Memory ........................................208
Customizing Your Phone.......................209
Setting the Volume........................................209
Setting Your Phone to Vibrate.......................209
Changing the Look of Your Phone................210
Temporarily Turning Off Transmissions........213
Using Settings...............................................213
Profiles ....................................................219
Viewing Profiles.............................................219
Switching Profiles..........................................219
How Changing Settings Affects Profiles........219
Temporary Profiles........................................220
Creating Profiles............................................221
Editing Profiles ..............................................221
Deleting Profiles............................................221
Setting Call Filtering......................................222
Setting a Profile for Use With a Car Kit.........223

vii
Shortcuts................................................ 224
Creating a Shortcut .......................................224
Using a Shortcut............................................224
Editing a Shortcut..........................................225
Deleting Shortcuts.........................................225
Using a Headset..................................... 226
Using a Bluetooth Headset............................226
Attaching a Headset......................................226
Using a Remote PTT Button .........................226
Understanding Status Messages......... 228
Safety and General Information ........... 231
RF Operational Characteristics.....................231
Portable Radio Product Operation and
EME Exposure..........................................231
Electromagnetic Interference/Compatibility...234
Medical Devices............................................234
Operational Warnings....................................235
Operational Cautions.....................................236
Accessory Safety Information........................237
Hearing Aid Compatibility .....................239
Caring for the Environment
by Recycling........................................241
Disposal of your Mobile Telephone and
Accessories ..............................................241
MOTOROLA LIMITED WARRANTY.......242
Limited Warranty
Motorola Communication Products
(International)......................................246
Patent and Trademark Information.......250
Index........................................................251
Driving Safety Tips.................................260

viii
DECLARATION OF CONFORMITY
Per FCC CFR 47 Part 2 Section 2.1077(a)
Responsible Party Name: Motorola, Inc.
Address: 8000 West Sunrise Boulevard
Plantation, FL 33322 USA
Phone Number: 1 [phone]
Hereby declares that the product:
Product Name: i880
Model Number: H94XAH6RR4AN
Conforms to the following regulations:
FCC Part 15, subpart B, section 15.107(a),
15.107(d) and section 15.109(a)
Class B Digital Device
As a personal computer peripheral, this device
complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
Note: This equipment has been tested and
found to comply with the limits for a Class
B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to
provide reasonable protection against
harmful interference in a residential
installation. This equipment generates,
uses and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur
in a particular installation.
If this equipment does cause harmful
interference to radio or television reception,
which can be determined by turning the
equipment off and on, the user is
encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced
radio/TV technician for help.

1
Getting Started
volume
controls
stereo
headset jack
retractable
antenna
mirror
memory
card slot
external
display
PTT button
camera
lens
spotlight
accessory
connector
flip open
button
backlit
logo
audioplayer
keys
light sensor
microphone
power
button
speaker speaker

2
Getting Started
Navigation key — press the arrows to
scroll through menus and lists.
OOK key — selects highlighted item;
answers calls.
mMenu key — accesses context-sensitive
menus.
AOption key — selects the option
appearing above it on the display.
sSend key — places phone calls.
eEnd key — ends phone calls; returns to
idle screen.
t Acts like swhen the flip is closed; turns
speaker on; used with voice names and
voice records.
. Acts like ewhen the flip is closed;
accesses recent calls; sends incoming
calls to voice mail.
cCamera key — accesses camera;
captures picture.

3
Locating Your SIM Card
To start using your i880 phone:
•Make sure your SIM card is in place.
•Charge the battery.
•Activate your service.
•Enable over-the-air security if you are prompted
to.
Locating Your SIM Card
Your SIM (Subscriber Identity Module) card is a
small piece of plastic located in the SIM card
holder in the back of your phone, underneath the
battery.
If your SIM card is not in the SIM card holder, it
may be in the box your phone came in, attached to
a piece of plastic about the size of a credit card. If
this is the case, carefully detach your SIM card
from the surrounding plastic and insert it as
described in “Inserting Your SIM Card” on page 16.
If there is no SIM card in your phone or the box,
contact your service provider.
yAccesses the audio player when the flip is
closed; plays audio files; pauses audio
files.
zWhen an audio file is playing,
fast-forwards and skips to the next audio
file.
xWhen an audio file is playing, rewinds and
skips to the previous audio file.
SIM card

4
Getting Started
Battery
Removing the Battery Door
1Make sure the phone is powered off. See
“Powering On and Off” on page 6.
2Slide the release button back until it releases the
battery door.
3Allow the battery door to pop up, slide it forward,
and remove it from the back of your phone.
Inserting the Battery
Your phone comes with a High Performance
Lithium Ion Battery.
1Remove the battery door.
2Insert the battery into the battery area. Press the
battery down to secure it.
3Replace the battery door and press it gently until
you hear a click.
release
button

5
Battery
Charging the Battery
1Plug the charger into an electrical outlet.
2Open the connector cover.
3Plug the other end of the charger into the
accessory connector.
4 Charger Attached or Device Attached appears
on the internal display.
Tip: To remove the charger from the accessory
connector: Press the buttons on the sides
of the plug. Pull the plug straight out.
5If you have purchased optional batteries or
chargers, see “Charging Times”.
Charging Times
See your battery and charger to determine the
appropriate charging time.
For best results, charge the batteries within the
temperature range of 50°F to 104°F (10°C to
40°C).
Prolonged charging is not recommended.
connector
cover
Battery Charger
Rapid Mid-Rate
High
Performance 2.5 hours 5 hours
Maximum
Capacity 3.5 hours 6 hours

6
Getting Started
Removing the Battery
1With the phone powered off, remove the battery
door.
2Remove the battery by pushing it toward the
antenna and lifting it out.
Battery Use and Maintenance
•The Motorola iDEN Approved Lithium Ion
chargers provide optimum performance. Other
chargers may not fully charge the iDEN Lithium
Ion battery or may yield a reduced number of
lifetime charge cycles.
•Extreme temperatures degrade battery
performance. Do not store the battery where
temperatures exceed 140°F (60°C) or fall below
-4°F (-20°C).
•Lithium Ion batteries have a self discharge rate
and without use, lose about 1% of their charge
per day.
•The battery capacity is degraded if the battery is
stored for long periods while fully charged. If
long term storage is required, store at half
capacity.
Activating Service
The first time you power on your phone, you must
be in your local calling area. This activates your
service.
Powering On and Off
The first time you power your phone on, a screen
may appear asking you to update your browser
information. This means you must enable security.
To power your phone on:
1Open the flip.
Tip: Press the flip open button to open the flip
easily.
2Press p.

7
Powering On and Off
Note: When powering on, if you hold puntil a
blue screen appears on the display, you
will turn off calls and other transmissions.
See “Temporarily Turning Off
Transmissions” on page 213.
To power your phone off:
1Open the flip.
2Press and hold p.
When You Power On For the First
Time
If the Enter SIM PIN Code screen appears, enter
your SIM PIN. See “Entering the PIN” on page 14.
Press Aunder Ok.
When you receive your phone, the SIM PIN is
0000. Change your PIN to prevent fraudulent use
of the SIM card (see “Changing the PIN” on page
14).
As your phone connects to the network, you will
see a welcome message and a connecting
message. When the idle screen appears, the
phone is ready to use.
Enabling Over-the-Air Security
If you are set up to receive over-the-air
programming from your service provider, you must
enable security the first time you power on your
phone or within 10 days of first activation of your
phone:
1When you power on your phone for the first time,
after the idle screen appears, you will be
prompted to select Ok to update your browser
information.
2Press Aunder Ok.

8
Getting Started
3You are prompted to enable security. Press A
under Yes. A series of screens appears. If you
subscribe to your service provider’s plan, your
home page appears.
4Press eto return to the idle screen.
Phone Programming
Within 24 hours of enabling security, you may
receive an alert notification containing your Private
ID and Talkgroup lists for Private calls.
To accept programming:
1When you receive an alert notification saying
New Browser Message - Receive
Programming Info, press Oor press Aunder
Goto.
2You are prompted to accept changes to your
lists. Press Oor press Aunder Ok.
3If you are prompted again to accept changes to
your lists, press Oor press Aunder Ok.
4A confirmation screen displays. Press Oor
press Aunder Ok.
5Press eto return to the idle screen.
Finding Your Phone Number
My Info lets you view your phone number, Private
ID, and other phone information:
1Press mto access the main menu.
2Scroll to My Info.
3Press O.
4Scroll to see your information.
Line 1 and Line 2 are your phone numbers.
Private is your Private ID, the number that others
use to contact you using Private service. These
numbers appear when you receive your alert
notification after enabling security on your phone.
See “My Info” on page 167 for more information
about this feature.
Phone Basics
Flip Open Button
The flip open button located on the upper right
corner of your phone enables you to quickly open
the flip by pushing the button.
Display
Any time your phone is powered on, the display
provides you with information and options.
