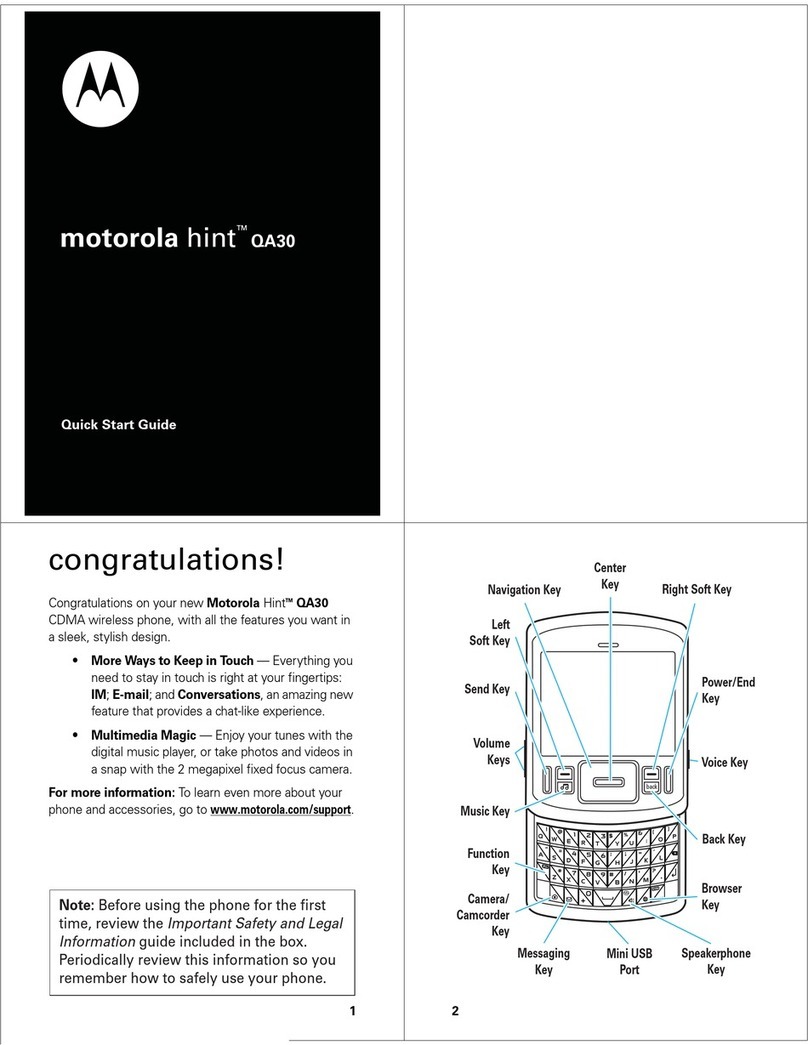

phone diagram
Center key
Navigation key
Left Soft Key
Send key
Volume Keys
Music key
Camera/camcorder key
Function key
Messaging key
Micro USB port
Right Soft Key
Power/End key
Voice key
Back key
Browser key
Speakerphone key
The important keys and connectors.
MOTOROLA and the Stylized
M Logo are registered in the
US Patent & Trademark Office.
The Bluetooth trademarks are
owned by their proprietor and
used by Motorola, Inc. under
license. Microsoft Windows,
Windows Media Player, and
Exchange Server are either
a registered trademark or
a trademark of Microsoft
Corporation in the United
States and/or other countries.
All other product or service
names are the property of their
respective owners.
© Motorola, Inc. 2009. All
rights reserved.
Certain mobile phone
features are dependent on
the capabilities and settings
of your service provider’s
network. Additionally, certain
features may not be activated
by your service provider, and/
or the provider’s network
settings may limit the feature’s
functionality. Always contact
your service provider about
feature availability and
functionality. All features,
functionality, and other product
specifications, as well as the
information contained in this
tutorial, are based on the latest
available information and are
believed to be accurate at the
time of publication. Motorola
reserves the right to change
or modify any information or
specifications without notice
or obligation.
NEXTBACK

EXTERNAL LINKS:
Additional Support
HOME »
LESSON:
PRINT »
VIEW »
EXIT »
motorola hintTM QA30
PHONE DIAGRAM »
KNOW YOUR PHONE »
TRANSFERRING MUSIC »
PLAYING MUSIC »
PLAYLIST BASICS »
MUSIC PLAYER OPTIONS »
continue getting to know your phone
turn it on & off
To turn on your phone,
press and hold the power
key for a few seconds,or
until the display turns on.
1
2
3
To turn off your phone, press
and hold .
make & answer calls
To make a call, enter a
phone number and press
the send key
.
To answer a call, when
your phone rings and/or
vibrates, just press
.
To hang up, press
.
opening and navigating
menus
Press the left soft key a a to
open the Main Menu.
Press the navigation key up,
down, right, or left, to highlight
a menu option.
Press the center key to select
the highlighted option.
NEXTBACK

EXTERNAL LINKS:
Additional Support
HOME »
LESSON:
PRINT »
VIEW »
EXIT »
motorola hintTM QA30
PHONE DIAGRAM »
KNOW YOUR PHONE »
TRANSFERRING MUSIC »
PLAYING MUSIC »
PLAYLIST BASICS »
MUSIC PLAYER OPTIONS »
transferring music to your phone Note: You’ll need an
optional microSD
memory card installed
in your phone to use the
music player.
Note: Before you copy files
to your phone, make sure
the files are in a format that
the phone recognizes. Your
phone’s music player can
play the following types
of audio files: AAC, AAC+,
MP3, WAV, WMA, Real
Audio G2/8/10.
2
4Attach a Motorola Original USB cable to the
micro USB port on your phone and to an
available USB port on your computer.
5
1
3
Select the “Sync” tab in Windows Media
Player 11.
You can listen to music from your favorite CDs or your old phone on your new Motorola Hint QA30.
Just load the music onto your computer, and then transfer the music from the computer to
your phone.
Set your phone to Mass Storage mode by
pressing Main Menu >Settings > USB >
Mass Storage. Plug your phone into your
computer using the USB data cable.
from a CD – Windows Media Player
Insert the music CD in your computer’s CD
drive and Launch Windows Media Player 11.
Copy the music CD to the media player
library (also called ripping the CD).
Drag and drop songs or playlists onto the
“Sync List” on the right side of the Windows
Media Player 11 screen.
When you finish, disconnect your phone
from the computer
Click “Start Sync” to copy the songs onto
the phone’s memory card.
6
7
8NEXTBACK

EXTERNAL LINKS:
Additional Support
HOME »
LESSON:
PRINT »
VIEW »
EXIT »
motorola hintTM QA30
PHONE DIAGRAM »
KNOW YOUR PHONE »
TRANSFERRING MUSIC »
PLAYING MUSIC »
PLAYLIST BASICS »
MUSIC PLAYER OPTIONS »
transfer music from a microSD card Note: Optional
accessories required.
You can remove a
microSD memory card
from a MOTORAZR™
V9m or a MOTOROKR™
Z6m mobile phone and
install it in your Motorola
Hint™ QA30 phone. Just
move the music files
that are already stored
on the memory card to
|a different folder on
your memory card.
Note: The unauthorized
copying of copyrighted
materials is contrary to
the provisions of the
Copyright Laws of the
United States and other
countries. This device
is intended solely for
copying non-copyrighted
materials, materials
in which you own the
copyright, or materials
which you are authorized
or legally permitted to
copy. If you are uncertain
about your right to copy
any material, please
contact your legal
advisor
3
1Insert the memory card into your
Motorola Hint QA30 phone, then turn
it on.
Have music already loaded on a memory card? You can load it onto your phone in a few simple steps.
Now change your connection settings
to mass storage. Press Main Menu >
Settings> USB > Mass Storage
4Attach a Motorola Original USB cable to the
micro USB port on your phone and to an
available USB port on your computer.
5On your computer, double click
My Computer Icon
and then Removable Disk icon
You will see a variety of folders,
double click music folder icon.
Remember, you must tell your
computer you are going to disconnect
the phone from the USB port.
Copy all of the music files from this
folder and paste them into the My
music folder icon.
6
7
8
You can now select and play the
music files with your phone’s
music player.
2Insert the memory card into your phone.
NEXTBACK

EXTERNAL LINKS:
Additional Support
HOME »
LESSON:
PRINT »
VIEW »
EXIT »
motorola hintTM QA30
PHONE DIAGRAM »
KNOW YOUR PHONE »
TRANSFERRING MUSIC »
PLAYING MUSIC »
PLAYLIST BASICS »
MUSIC PLAYER OPTIONS »
playing music
Launch Music player
Now that your music is loaded onto your phone, you can easily launch the music player and enjoy.
1
2Your phone shows the Music Player menu
To activate your phone’s music player,
press the music player key.
3To scroll through a menu or list, press
the navigation key up or down.
4To select a highlighted option, press
the center key.
Music Controls
Your music player has all the same
controls you’d expect. Here’s how
to use them.
pause/play Press .
fast forward Press & hold right.
next song Press right.
rewind Press & hold left.
previous song Press left.
turn off music Press the power key .
player
Note: If you receive a
call during a song, the
music player pauses the
song until the call is over.
Note: While the music
player is active, your
phone may conserve
battery power by
turning off the display
and keypad backlights.
To turn the display and
backlights back on, press
any key
NEXTBACK

EXTERNAL LINKS:
Additional Support
HOME »
LESSON:
PRINT »
VIEW »
EXIT »
motorola hintTM QA30
PHONE DIAGRAM »
KNOW YOUR PHONE »
TRANSFERRING MUSIC »
PLAYING MUSIC »
PLAYLIST BASICS »
MUSIC PLAYER OPTIONS »
making a playlist TIP: You can also search
for a specific song (by
title) using the search
bar at the bottom of the
screen.
TIP: When you name a
playlist, it must be fewer
than 32 characters and
cannot include these
special characters: / \ : *
? < > | “ !
Note: Your music player
includes a special playlist
named ringtones. You
can’t rename this playlist.
Songs added to this
playlist are not visible
in other categories (for
example, Genres) in
the music player. The
ringtones playlist initially
contains ringtones that
are preloaded on your
phone. You can still edit
this playlist, just like any
other playlist, to add or
remove new ringtones
that you purchase.
You can create your own sets of music—or playlists—to use when riding the train to work or
working out.
1
5
Press the music player key.
2Select Playlists and Create Playlist.
3Enter a name for your new playlist and
press Done.
4With the new playlist highlighted on
the Playlists screen, press Options,
then select Add a Song. Scroll to a
desired song and press the center key.
Add as many songs as you like. When
you are finished Press Back.
Now you have a unique playlist
just for you listed in your music
library.
NEXTBACK

EXTERNAL LINKS:
Additional Support
HOME »
LESSON:
PRINT »
VIEW »
EXIT »
motorola hintTM QA30
PHONE DIAGRAM »
KNOW YOUR PHONE »
TRANSFERRING MUSIC »
PLAYING MUSIC »
PLAYLIST BASICS »
MUSIC PLAYER OPTIONS »
remove song from playlist
Launch the music player, scroll to
Playlists and press the center key.
removing a song
Changing a playlist is as easy as changing your mind.
1
2Select the playlist you’d like to change
and press the center key.
3Scroll to the song you want to remove
and press Options> Remove from Playlist.
Don’t worry, you are not deleting
the song from your library, your
just removing it from your playlist.
NEXTBACK

EXTERNAL LINKS:
Additional Support
HOME »
LESSON:
PRINT »
VIEW »
EXIT »
motorola hintTM QA30
PHONE DIAGRAM »
KNOW YOUR PHONE »
TRANSFERRING MUSIC »
PLAYING MUSIC »
PLAYLIST BASICS »
MUSIC PLAYER OPTIONS »
delete a playlist
Launch the music player, scroll to
Playlists and press the center key.
1
2Press Options and seelct Delete Playlist.
delete a playlist
Decide you want to remove a playlist from your phone completely? No problem, it’s easy to do as well.
NEXTBACK

EXTERNAL LINKS:
Additional Support
HOME »
LESSON:
PRINT »
VIEW »
EXIT »
motorola hintTM QA30
PHONE DIAGRAM »
KNOW YOUR PHONE »
TRANSFERRING MUSIC »
PLAYING MUSIC »
PLAYLIST BASICS »
MUSIC PLAYER OPTIONS »
music player options
1
You can select sounds like Club, Full
Bass, and Dance.
To customize music playback, press
Settings> Audio Effects
2
3You can also select custom visual
effects for the music playback screen
Press Options> Visual Effects and
select one of the seven pre-loaded
themes.
While you’re listening to the music player, you have a number of settings you can adjust.
