Motorola Integrated Digital Cellular Phone User manual

Integrated Digital Cellular Phone with Cradle
In-Vehicle Operation Guide
Mercedes-Benz
Mercedes-Benz USA, LLC
One Mercedes Drive
Montvale, New Jersey 07645
© 2004 Mercedes-Benz USA, LLC
Technical Information
Order Number S-2798-05A
Printed in the USA
All illustrations and specifications contained in this folder
are based on the latest product information available at the
time of publication approval.
Mercedes-Benz reserves the right to make changes at any
time, without notice.
6840402Z01
6/04-RGC
68P40402Z01_cvr 6/16/04 3:11 PM Page 1

Please familiarize yourself with these operating instructions and your Motorola cellular
telephone before attempting to operate it while driving.
We continuously strive to improve the integrated telephone system and we ask for your
understanding that we reserve the right to make changes in design and equipment.
Therefore, information, illustrations and descriptions in this operating manual might differ
from your vehicle.
If there are any equipment details that are not shown or described in these operating
instructions, or if you have any questions regarding the descriptions or the operation of the
digital telephone system, your authorized Mercedes-Benz Center will be happy to assist you.
Please read this manual carefully before putting it aside. Then return it to your vehicle where
it will be handy for your reference.
We extend our best wishes for many miles of safe, pleasurable driving.
Mercedes-Benz USA, LLC
ADaimlerChrysler Company
68P40402Z01_cvr 6/16/04 3:11 PM Page 2

commun
i
cat
i
ons
!
W
e are p
l
ease
d
t
h
at you
h
ave c
h
osen t
h
e
Motorola V60i TDMA wireless phone.
Headset Jack
Insert headset
accessory for
hands-free use.
Status Light
See incoming call
and service status.
Volume Keys
Adjust earpiece and
ringer volume.
Smart Key
Select menu items,
send and end calls.
Voice Key
Create voice
recordings,
phonebook and
shortcut names.
Micro
p
hone
Accessory
Connector Port
Insert charger and
phone accessories.
Power Key
ight Soft Key
Perform functions
identified by right
display prompt.
Menu Key
End Key
nd phone calls,
exit menu.
Scroll Key
Move through
menus and lists.
Left Soft Key
Perform functions
identified by left
display prompt.
Send Key
Send and answer
calls, view recent
dialed calls list.
Phone Overviews - v60i/v60x model
1
Consult your phone’s user manual to determine which of the following phone models is supported in your
vehicle. Note that all models will use the vehicle’s integrated antenna when connected via the coilcord.
68P40402Z01_rev5.qxd 6/22/04 2:15 PM Page 1

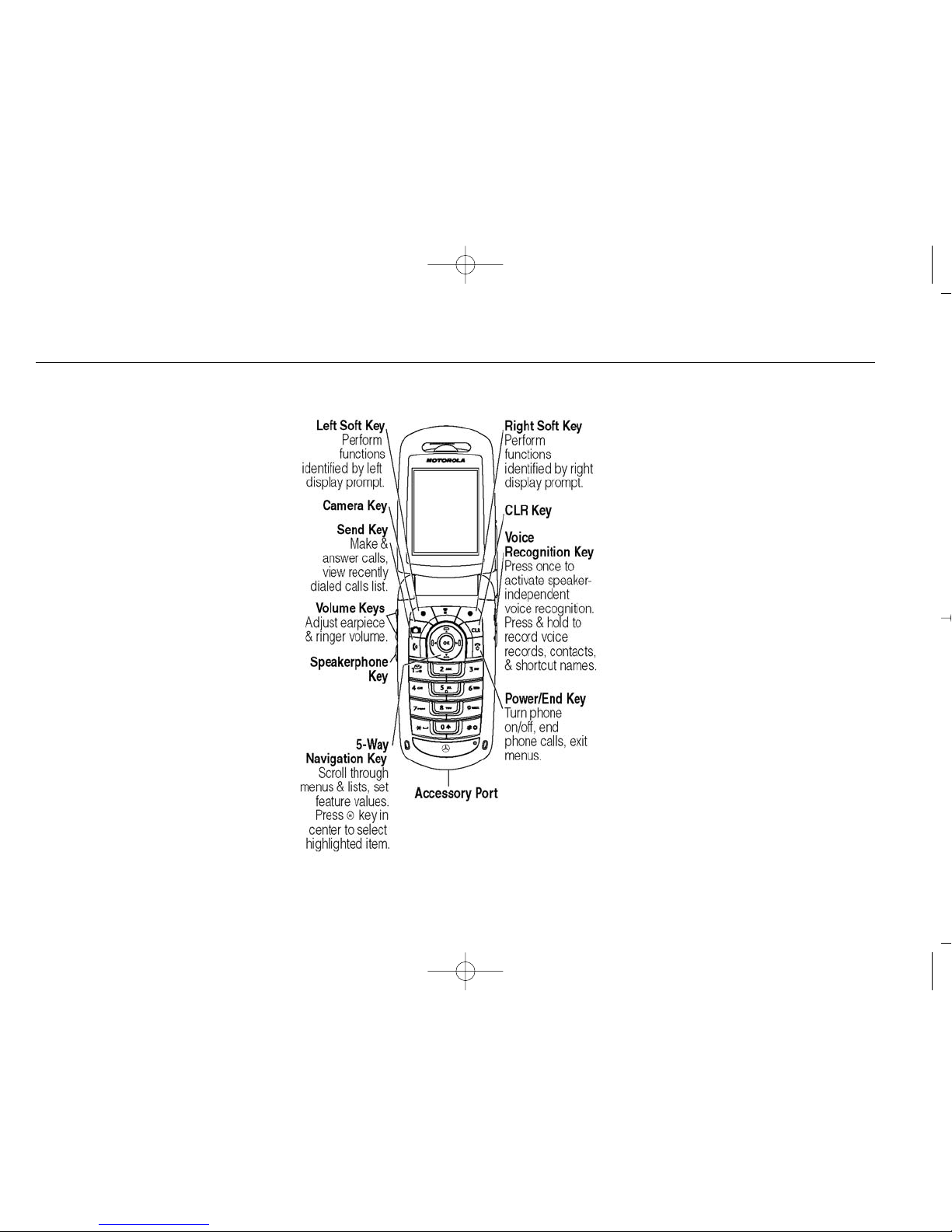

v60s model v600 model
2
68P40402Z01_rev 2.qxd 6/22/04 2:11 PM Page 2

v710 model
3
68P40402Z01_rev 2.qxd 6/22/04 2:11 PM Page 3

Personal Communications Sector
600 North U.S. Highway 45
Libertyville, Illinois 60048
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States)
1-800-461-4575 (Canada)
www.motorola.com (United States)
www.motorola.ca (Canada)
MOTOROLA, the Stylized M Logo and all other trademarks indicated as such herein are trademarks of Motorola, Inc. ®Reg. U.S. Pat. & Tm. Off. All
other product or service names are the property of their respective owners.
© 2001 Motorola, Inc. All rights reserved. Printed in the U.S.A.
SS
SSoo ooff fftt ttww wwaa aarr rree ee CC CCoo oopp ppyy yyrr rriiiigg gghh hhtt tt NN NNoo oott ttiiiicc ccee ee
The Motorola products described in this manual may include copyrighted Motorola and third party software stored in semiconductor memories or
other media. Laws in the United States and other countries preserve for Motorola and third party software providers certain exclusive rights for
copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software
contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by
law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise,
any license under the copyrights, patents, or patent applications of Motorola or any third party software provider, except for the normal, non-
exclusive, royalty-free license to use that arises by operation of law in the sale of a product.
Manual number: 6809437A95-O
68P40402Z01 Rev. AA
© 2004
4
68P40402Z01_rev.qxd 6/9/04 2:33 PM Page 4

Features
The Motorola Telephone system has been designed and tested as a fully integrated system within your Mercedes-Benz
vehicle. P ortable SS
SS
u
pp
ort EE
EE
lectronics Unit. This PSE can be used
The usability of hands free operation of the new Mercedes-Benz phone system in the vehicle is influenced by a number
of factors, some of which are vehicle background noise, vehicle cabin dimensions, and network connections. The voice
clarity in the hands free mode of the phone system has been optimized to deliver reduced echoing, clear voice identi-
fication, lower background noise, and improved volume level. Due to the design priority given to overall voice clarity in the
You can scroll through the first 1000 entries in your phone book and access the entire phone number memory; place,
receive, and terminate calls; change volume; and view call status (such as Ready, Dialing, Incoming Call, Call Active, No
Service, Redial, etc.). Because exact phone features are dependent on the particular audio system installed in your vehi-
cle, detailed operation is covered in your audio system manual. Please refer to it.
Notes:
•In order for your Mercedes-Benz volume controls to work in conjunction with your Motorola phone (to change ringer
volume or adjust call volume), the vehicle must have either the engine running or the ignition key turned clockwise
to the last position before starting the engine.
•Your phone includes many new features that take additional time to initialize, resulting in increased power up/down
time. Please wait until the phone is completely powered up before using any feature from both the audio head unit
and phone controls.
5
68P40402Z01_rev.qxd 6/9/04 2:48 PM Page 5

Finding Information on Phone Features
Your new Mercedes-Benz telephone operates in two modes:
• Vehicular Mode —when the phone is inserted and snapped into the cradle in the vehicle
• Portable Mode —when the phone is operating as a stand alone device ( OT inserted and snapped into the privacy
cradle in the vehicle)
Most features of your new Mercedes-Benz telephone are available in both modes.
This guide contains basic information on using your phone in Vehicular Mode to place and receive calls.
Refer to the user’s guide for your phone for information on the following:
• Installing and charging your phone’s battery
• Turning the phone on and off
• Placing, receiving, and ending calls
• Redialing numbers
• Reading your phone’s indicators
• Controlling phone volume
• Storing numbers in your phone’s built-in phonebook
• Other phone options and features
oo oott ttee ee::::
Your cellular carrier may not support some of the features of your new Mercedes-Benz Integrated System; to find out
what features are available, contact your cellular carrier.
6
68P40402Z01_rev.qxd 6/9/04 2:07 PM Page 6

Vehicular Mode Operation
When you connect your phone to your Mercedes-Benz vehicle, the phone is ready to operate in Vehicular Mode.
In Vehicular Mode, your phone is connected to many integrated features of your vehicle and its audio system, offering
these advantages:
7
• Your phone uses your vehicle’s speakers for better sound fidelity in Hands Free mode.
• Your vehicle charges your phone’s battery when the vehicle is running.
• When you place or receive a call, your vehicle’s audio head unit, CD, and/or tape player volume is automatically
muted so you can hear the person on the other end.
Before you use your phone in Vehicular Mode, you should familiarize yourself with how this system operates.
Switching into Vehicular Mode
Switch your phone into Vehicular Mode by docking it.
To dock your phone:
Step
11
11
Angle the phone into the cradle so that the connector on the bottom of the phone engages the connector built into
the cradle.
22
22
Pivot the top end of the phone down to latch it into place.
NOTE: Close the flip after securing the phone in the cradle in order to prevent damage to the phone when the console cover
is closed.
68P40402Z01_rev.qxd 6/9/04 2:07 PM Page 7

Notes:
• Your phone plays a confirmation beep when docked. Wait for this beep before undocking.
• While in Vehicular Mode, the phone operates on the vehicle’s integrated cellular antenna.
CC
CCaa aauu uutt ttiiiioo oonn nn:::: Mercedes-Benz recommends keeping the phone docked in the cradle while operating the vehicle. If you
must use the handset for privacy operation, stop the vehicle prior to removing the phone from the cradle.
When in Vehicular Mode
In Vehicular Mode, the phone turns on automatically each time you turn on the vehicle ignition if the audio head unit
is turned on.
To turn off the phone, open the flip, and press P. If your ignition is on when you turn your phone off, a flashing battery
icon and Pwr will appear in the display. While in this mode, calls cannot be placed or received. The next time the ignition is
turned on, the phone will turn on. To turn the phone back on, press P again.
If your phone is on for more than one minute when your vehicle’s ignition is off, the phone automatically turns itself off to
conserve your vehicle’s battery.
Switching Out of Vehicular Mode
To disengage your phone from Vehicular Mode:
Step
Remove the phone from the cradle by pushing the release lever on the top of the cradle.
8
Note: If you switch out of Vehicular Mode during a call, the party on the other end will hear a click.
To turn off the phone, open the flip, and press the Power key. If your ignition is on when you turn your phone off, a flashing
battery icon and Charging will appear in the display. While in this mode, calls cannot be placed or received. The next time
the ignition is turned on, the phone will turn on. To turn the phone back on, press the Power key again.
68P40402Z01_rev.qxd 6/9/04 2:07 PM Page 8

8
Placing a Call Using Hands Free Operation
Hands Free operation allows you to use the phone while it is docked in the cradle. The phone audio is projected through
your vehicle’s audio system speakers. The Hands Free microphone allows both driver and passenger to engage in the con-
versation.
Step
11
11
Prepare the phone for Hands Free use:
• Dock the phone. (See “Switching into Vehicular Mode” on page 5.)
•Ensure the flip is closed.
22
22
Dial the telephone number via the audio head unit keypad or via voice command.
*
NN
NNoo oott ttee ee::::
You can enter up to 32 digits.
* Not available on all models.
33
33
Press Send on the audio head unit keypad or steering wheel, or speak the voice command: “Dial.”
*
If the network is busy, you hear a fast busy signal. Your phone automatically redials over the next four minutes. When the call
goes through, your phone rings one time and connects the call.
44
44
Begin your conversation.
55
55
To end the call, press the End key on the audio head unit keypad, steering wheel, or push the voice activation stalk.
*
9
7
68P40402Z01_rev.qxd 6/9/04 3:30 PM Page 9

Answering a Call Using Hands Free Operation
Step
11
11
Prepare the phone for Hands Free use:
aa
aa
Close the flip on the phone.
bb
bb
Dock the phone. (See “Switching into Vehicular Mode” on page 5.)
22
22
Answer the call by pressing Send on the audio head unit keypad,steering wheel,
*
or by pulling the
voice activation stalk.
* Not available on all models.
33
33
Speak clearly in order for the Hands Free microphone to deliver your conversation.
44
44
After you finish your conversation, end the call by pressing the End key on the audio head unit keypad,
steering wheel, or by pushing the voice activation stalk.
*
10
7
68P40402Z01_rev.qxd 6/9/04 3:34 PM Page 10

11
Switching from Hands Free to Handset Operation
If you are using the phone in Hands Free operation and wish to switch to Handset operation:
Switching from Handset to Hands Free Operation
With the phone in the cradle, close the flip to switch the call from Handset to Hands Free mode.
Muting and nmuting a Hands Free Call
To Mute
Depending on vehicle equipment press Mic Off or MUT soft keys on audio head unit. Refer to audio system
To nmute
Depending on vehicle equipment press Mic On or MUT soft keys on audio head unit. Refer to audio system
Muting and nmuting a Handset Call
To Mute
Press the Mute soft key.
This mutes the call so the other party cannot hear you speaking.
To nmute
Press the Unmute soft key.
Step
11
11
Open the flip on your phone.
22
22
Remove the phone from the cradle.
33
33
Begin speaking.
operating instructions.
operating instructions.
11
68P40402Z01_rev.qxd 6/9/04 2:07 PM Page 11

12
Entering and Exiting Vehicular Mode During a Call
To Continue a Call While Leaving the Vehicle
You can now continue your conversation outside the vehicle.
oo oott ttee ee::::
The call will be disconnected if the phone is removed from the cradle when the flip is closed.
To Continue a Call While Entering the Vehicle
When your phone is properly docked, your vehicle’s electrical system begins to recharge the phone’s battery. If the phone
is properly docked, the battery icon in the phone’s display will blink on and off.
Operation from the Audio Head Unit
Features available through your vehicle’s audio head unit controls include:
• Digit dialing (to dial any phone number)
• Memory scrolling (alpha or numeric)
Step
11
11
Open the flip.
22
22
Remove the phone from the cradle.
Step
11
11
Attach the phone to the cradle.
22
22
Ensure the vehicle is running or audio head unit is on.
Ensure head unit registers phone completely before closing the flip.
12
3
68P40402Z01_rev.qxd 6/9/04 2:07 PM Page 12

• Last 10 numbers dialed
• Unlock the phone system (using the first 3 digits of the phone’s 4-digit unlock code)
• Answer a call
• DTMF tone dialing during a call (for accessing voice mail, automated phone menus, etc.)
• Speed dialing, Turbo Dial™
• Signal strength
• Phone status information (in use, roaming, etc.)
• Automatic redial
• Phonebook editing
13
• Mobile Terminated SMS (Short Message System)
(SMS Messages can be received and displayed on the audio head unit in Vehicular Mode but cannot be sent by the
head unit.)
• Caller ID
• Last number dialed from portable phone
• Incoming call list*
• Missed call message*
These features are described in the user’s guide for your phone and in the audio head unit manual.
* ot available on all models.
Some phones are capable of receiving “Long SMS” messages that are greater than 160 characters. If this type of SMS is
received, only the first 160 characters ill be visible in the audio head unit. Remove the phone from the cradle and vie the
message on the phone directly to see the complete text of the SMS.
†
†
68P40402Z01_rev.qxd 6/9/04 2:07 PM Page 13

Memory Download
The radio cannot directly access your phone’s memory. Instead, it saves a synchronized copy of the phone’s memory. This
synchronization process is performed automatically during the following conditions: When changes are made to the Last
Call Dialed list, Phone Book list, or Calls list. Synchronization also occurs when the phone is docked or when the vehicle is
turned on.
nlocking the Phone in Vehicular Mode
Your phone uses a the first three digits of your phone’s 4-digit unlock code in Vehicular Mode. The PI code must be
entered completely from either the head unit or the phone, not a combination of the two.
14
In order to unlock your phone in vehicular mode, the lock code (and PI code, where applicable) must be entered com-
pletely from either the audio head unit or the phone, not a combination of the two.
The audio head unit cannot directly access your phone’s memory. Instead, it saves a synchronized copy of the phone’s
memory. This synchronization process is performed automatically during the following conditions: When changes are
made to the Last Call Dialed list, Phone Book list, or Calls list. Synchronization also occurs when the phone is docked or
when the vehicle is turned on.
68P40402Z01_rev.qxd 6/9/04 2:07 PM Page 14

15
Notes
68P40402Z01_rev.qxd 6/9/04 2:07 PM Page 15

16
Notes
68P40402Z01_rev.qxd 6/9/04 2:07 PM Page 16

Integrated Digital Cellular Phone with Cradle
In-Vehicle Operation Guide
Mercedes-Benz
Mercedes-Benz USA, LLC
One Mercedes Drive
Montvale, New Jersey 07645
© 2004 Mercedes-Benz USA, LLC
Technical Information
Order Number S-2798-05A
Printed in the USA
All illustrations and specifications contained in this folder
are based on the latest product information available at the
time of publication approval.
Mercedes-Benz reserves the right to make changes at any
time, without notice.
6840402Z01
6/04-RGC
68P40402Z01_cvr 6/16/04 3:11 PM Page 1
