HELLOMOTO
Introducing your new MOTO KRZR™ K1m wireless phone. Here’s a quick anatomy lesson.
N
Contacts
P
X
51
Smart/
Speakerphone
Key
Make & answer
calls.
Scroll up, down,
left, or right.
Turn on & off,
hang up, exit
menus.
Select.
Volume Keys
Left Soft Key Right Soft Key
Clear/Back Key
Mini USB Port
Charge &
connect phone
accessories.
Voice
Command/
Voice Record
Key
Play/
Pause
Skip
back.
Skip
forward.
Music Player Controls/
Camera
Increase/
decrease
volume.
Launch
music,
lock player
controls
or
use camera
(press and
release).
N
P
X
51

2
6Îì
MON 1/22/07
8:45am
Recent Contacts
h
e
ns
É
wm
eFF
h
L
1
23
Press the center
key sto open the
Main Menu.
Press and hold the
Power Key P for a
few seconds or until
the display lights up to
turn on your phone.
4
Home Screen Main Menu
Press the center

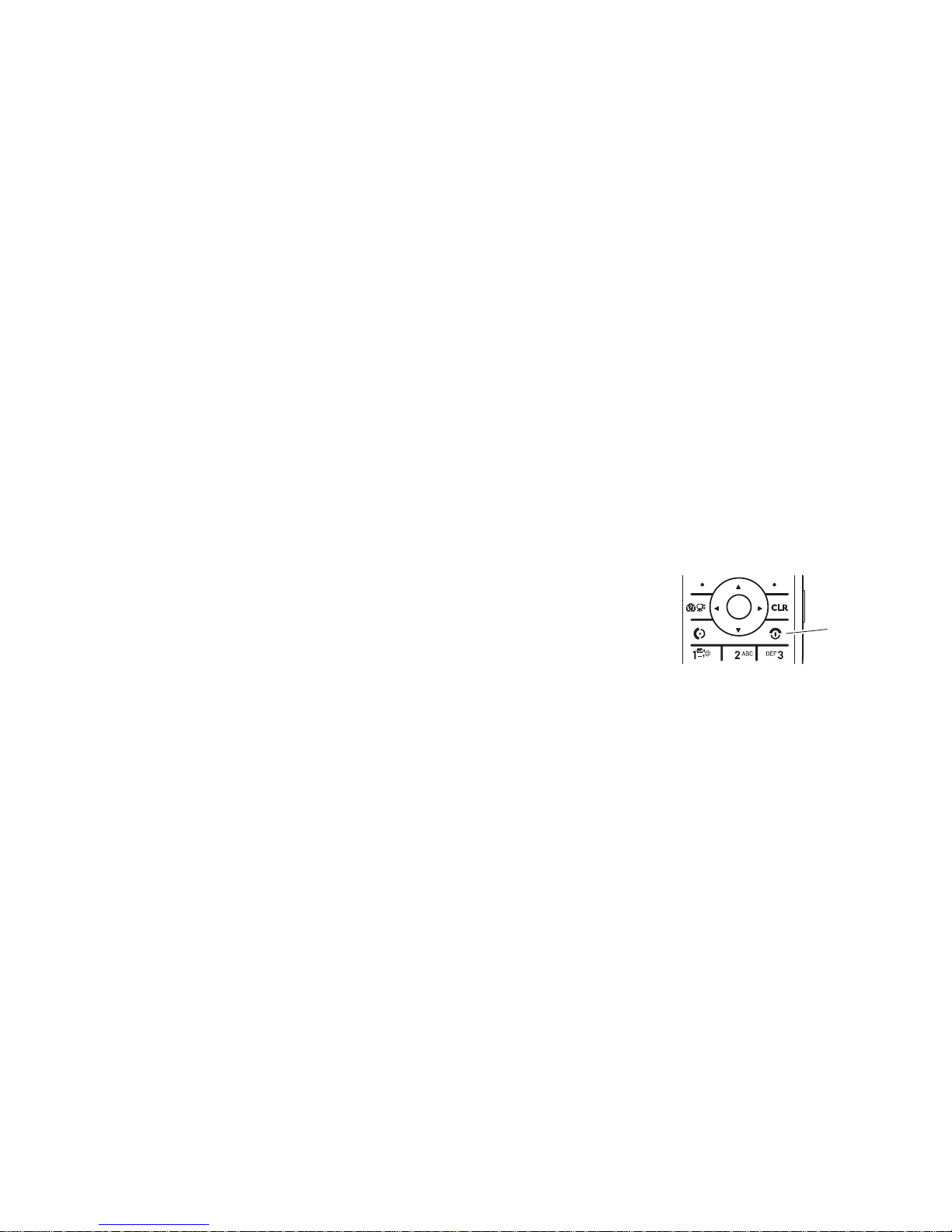

key sto select.
Press the navigation
key S
up , down ,
left , or right to
highlight a menu
option.
Select Exit
Media Gallery
L

3
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States for hearing
impaired)
1-800-461-4575 (Canada)
www.hellomoto.com
Certain mobile phone features are dependent on the
capabilities and settings of your service provider’s
network. Additionally, certain features may not be
activated by your service provider, and/or the
provider’s network settings may limit the feature’s
functionality. Always contact your service provider
about feature availability and functionality. All
features, functionality, and other product
specifications, as well as the information contained
in this user’s guide are based upon the latest
available information and are believed to be accurate
at the time of printing. Motorola reserves the right to
change or modify any information or specifications
without notice or obligation.
MOTOROLA and the Stylized M Logo are registered
in the US Patent & Trademark Office. The Bluetooth
trademarks are owned by their proprietor and used by
Motorola, Inc. under license. All other product or
service names are the property of their respective
owners.
© Motorola, Inc., 2007.
Caution: Changes or modifications made in the radio
phone, not expressly approved by Motorola, will void
the user’s authority to operate the equipment.
Manual number: 6809506A09-B

4
contents
contents
menu map . . . . . . . . . . . 6
Use and Care . . . . . . . . . 8
essentials . . . . . . . . . . . . 9
about this guide. . . . . . . 9
battery . . . . . . . . . . . . . 10
turn it on . . . . . . . . . . . 12
adjust volume . . . . . . . 13
make a call. . . . . . . . . . 13
answer a call . . . . . . . . 14
change call alert. . . . . . 14
view your phone number
15
main attractions . . . . . 16
airplane mode . . . . . . . 16
MP3 music player . . . . 16
take & send photo . . . . 27
record & play video
clip. . . . . . . . . . . . . . . . 29
send multimedia
message . . . . . . . . . . . 31
receive multimedia
message . . . . . . . . . . . 34
memory card . . . . . . . . 35
cable connections . . . . 39
Bluetooth connections 39
TTY operation . . . . . . . 41
basics . . . . . . . . . . . . . . 44
home screen . . . . . . . . 44
navigation key . . . . . . . 47
menus . . . . . . . . . . . . . 47
enter text. . . . . . . . . . . 49
external display . . . . . . 55
handsfree speaker. . . . 55
change a code or
password. . . . . . . . . . . 56
lock/unlock phone . . . . 57
if you forget an unlock
code or security code . 57
customize . . . . . . . . . . 58
ring styles & alerts. . . . 58
answer options . . . . . . 59
wallpaper . . . . . . . . . . . 59
screen saver . . . . . . . . 59
display brightness . . . . 60
display timeout . . . . . . 60
backlight . . . . . . . . . . . 60
talking phone settings . 61
AGPS & your location . 61
AGPS limitations
& tips . . . . . . . . . . . . . . 61
conserve battery . . . . . 62
calls . . . . . . . . . . . . . . . 63
change active line . . . . 63
redial . . . . . . . . . . . . . . 63

5
contents
automatic redial . . . . . 63
silence a call alert . . . . 64
emergency calls . . . . . 64
use AGPS during
emergency call . . . . . . 64
recent calls . . . . . . . . . 65
notepad . . . . . . . . . . . 67
return unanswered
call . . . . . . . . . . . . . . . 67
attaching a number. . . 67
speed dial . . . . . . . . . . 67
1-touch dial . . . . . . . . . 68
voicemail . . . . . . . . . . 68
other features . . . . . . . . 69
advanced calling . . . . . 69
messages. . . . . . . . . . 70
contacts . . . . . . . . . . . 72
personalize . . . . . . . . . 77
call times & data
volumes . . . . . . . . . . . 82
Bluetooth wireless
connections . . . . . . . . 84
handsfree . . . . . . . . . . 85
data & fax calls . . . . . . 87
network . . . . . . . . . . . 87
personal organizer . . . 88
security. . . . . . . . . . . . 90
fun & games. . . . . . . . 90
service & repairs . . . . . 93
Specific Absorption
Rate Data
. . . . . . . . . . . 94
Safety and General
Information
. . . . . . . . . 98
Industry Canada
Notice to Users
. . . . . 103
FCC Notice To Users . 104
Motorola Limited
Warranty for the
United States and
Canada
. . . . . . . . . . . . 105
Hearing Aid
Compatibility with
Mobile Phones
. . . . . . 110
Information from
the World Health
Organization
. . . . . . . . 111
California Perchlorate
Label
. . . . . . . . . . . . . . 113
Smart Practices
While Driving
. . . . . . . 114
index . . . . . . . . . . . . . . 116
