Welcome
The MOTOROKR™ EQ5 Ultra-Portable Wireless Speaker is sleek, stylish
and pocket-sized. It’s the perfect companion to your MP3 player or music
phone.
• Pocket portability—The sleek, slim design fits comfortably in your pocket,
so your music and speakerphone calls can go anywhere you go.
• Expand your sound—The EQ5 delivers high-definition stereo sound
powered by SRS™ WOW HD™ enhanced audio technology.
• Don’t miss a call—When paired with your phone, the MOTOROKR™ EQ5
doubles as a speakerphone with echo-cancellation and noise-reduction to
keep you sounding clear. Switch between music and calls with the touch
of a button.
• Wireless mobility—Tangled wires are a thing of the past. Bluetooth stereo
connectivity cuts the speaker cable, and the rechargeable battery unplugs
you from the wall. Integrated music and call controls mean there’s no need
to reach for your phone, and your music automatically pauses with each
call.

English
5
Before you begin

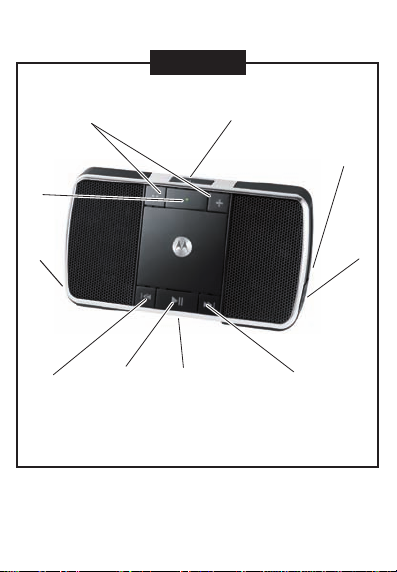

See figure 1 on page 1
Take a moment before you get started to familiarize yourself with the
components of your speaker.
1. Volume Buttons
2. Call Button
3. Microphone (on side)
4. Audio In Port (on side behind flap)
5. Forward Button
6. Power Switch (on bottom)
7. Play/Pause Button
8. Reverse Button
9. Charging Port and Light (behind flap)
10. Main Indicator Light

English
6
Charge your speaker

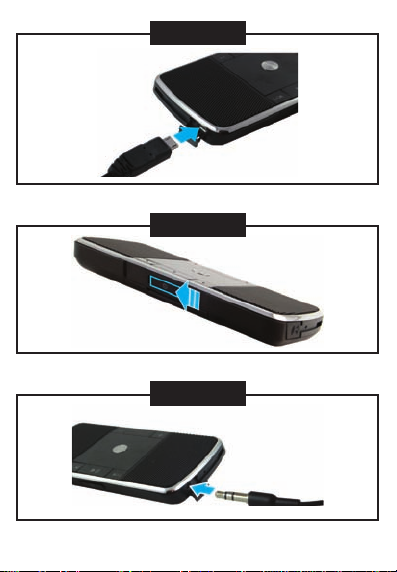

See figure 2 on page 2
You’ll need to charge your speaker’s battery for a minimum of 1 hour using
the included charger.
Note: The speaker is operational while charging.
The Charging indicator light turns red when battery is charging. It may take
up to 1 minute for the indicator light to turn on. When the speaker’s battery is
fully charged, the indicator light turns green.
To check your speaker’s battery charge level, press and hold both Volume
buttons. The main indicator light displays charge status until the Volume
buttons are released.
Main Indicator Light Battery Charge Status
Red Less than 30% charge
Yellow Between 30% and 70% charge
Green More than 70% charge
When your speaker is in a low battery charge state, the main indicator light
flashes quickly in red, and a tone is repeated every minute.
Turn it on & off
See figure 3 on page 2
To turn your speaker on and off, slide the Power switch to the ON position.
The main indicator light flashes 3 times.

English
7
Connect your speaker
Connect wirelessly
To listen to your music via Bluetooth wireless connection, as well as make
and receive handsfree calls, you need to pair (link) your speaker with your
Bluetooth phone and/or music player.
1. Turn off any Bluetooth devices previously paired with your speaker.
2. Turn on the Bluetooth feature on your Bluetooth phone or music player.
3. Turn on your speaker.
The main indicator light is steadily lit in blue to indicate the speaker is in
discoverable mode.
4. Place phone or music player in Bluetooth search mode.
The phone or music player searches for your speaker.
5. Select Motorola EQ5 from search results on your phone or music player
and confirm pairing following the on-screen instructions.
6. If prompted, enter 0000 passkey.
When your speaker successfully pairs and connects with your phone or
music player, the main indicator light flashes blue and purple. Music playing
from your connected music source is heard on your speaker.
After successfully pairing your speaker and Bluetooth device, you don’t
need to repeat these steps. For each use, ensure that your speaker is turned
ON and that your device’s Bluetooth feature is ON.
Some music devices will automatically attempt to play music when the EQ5
re-connects to it.

English
8
Connect wirelessly to 2 devices (multipoint connection)
To connect to phone and music device at the same time:
1. Pair and connect to your phone first (see section “Connect Wirelessly).
2. Turn off your phone and your speaker.
3. Turn your speaker back on. The Bluetooth indicator flashes to indicate the
speaker is in discoverable mode.
4. Turn on your music device. Make sure the Bluetooth feature is turned
on in the device.
The music device searches for your speaker.
5. Complete steps 5 & 6 on section “Connect Wirelessly” to pair and connect
your music device and speaker successfully.
6. Turn off your speaker.
7. Turn your phone back on and make sure the Bluetooth feature is turned on
in both the phone and music device.
8. Turn your speaker system back on. It should now connect to both
devices.
Connect with a cable
To listen to your music using a wired connection, connect your music player
to the Audio port on your speaker using the included audio cable.
See figure 4 on page 2
Notes:
• The Audio port functions as an input port from a music device only (not as
a headphone jack).
• Playback controls provided on your speaker cannot be used when listening
to music input from wired connection.
• In wired connection, if no audio is heard turn up volume on music device.

English
9
Control your tunes
See figure 1 on page 1
Playback controls on your speaker can be used when listening to wireless
music streaming from a Bluetooth-enabled music player that also provides
remote control capabilities (AVRCP).
When remote control capabilities are not supported by your music player,
the EQ5 simply acts as a speaker, and music should be controlled from your
music player.
ÅShort press—play/pause music
Long press—stop music
ÃShort press—skip to previous track
Long press—rewind track*
ÄShort press—skip to next track
Long press—fast-forward track*
Ïor 9Short or long press—decrease or increase volume**
* If your music player supports this feature
** You’ll hear a tone when maximum or minimum volume is reached on
your speaker.
The volume setting on your music player may impact volume on your
speaker.

English
10
Make and receive handsfree calls
To make and receive calls using the speaker, a Bluetooth handsfree (HFP)
connection must be established with your phone
Make a call
Using the speaker to make a call, you can redial the last dialed number or
make a voice dial call (if your phone supports this feature). When making a
voice dial call, the microphone on the speaker is enabled, and you hear a
prompt from your phone.
ÑShort press—make a voice dial call (you hear a prompt
from your phone)
Long press—redial last number
Receive a call
When there’s an incoming call, the main indicator light flashes quickly in
blue on your speaker, and you hear a ring tone over your speaker. If music
is playing when a call is received, the music pauses or mutes, depending on
your music player and connection setup.
ÑShort press—answer call
Ãor ÄLong press on either button—reject call

English
11
While on a call
When a call is active, the main indicator light slowly pulses in blue on your
speaker.
Ïor 9Short or long press—adjust call volume
ÅShort press—mute call (main indicator light pulses in
purple while muted)
ÑShort press—end call
When there’s a second incoming call, the main indicator light flashes quickly
in blue on your speaker and you hear an alert.
ÑShort press—
1. answer second call (first call is placed on hold),
2. end second call (first call resumes),
3. resume first call on hold (wÍhen second caller hangs up)
Ãor ÄLong press (either button)—reject second incoming call*
* If your phone supports this feature.

English
12
Indicator light
The main indicator light on your speaker displays current status of Bluetooth
wireless connection(s) to your phone and/or music player.
Main Indicator Light Wireless Status
Steady blue Pairing mode
Long blue flash Standby (handsfree connection only)
Long yellow flash Standby (streaming music connection only)
Long green flash Standby (both handsfree and streaming music
connection)
Quick blue flash Incoming/outgoing call
Long blue pulse Connected on a call
Long purple pulse Connected call muted
3 green flashes Started/paused music player
Long green pulse Music streaming (with handsfree connection
active)
Long yellow pulse Music streaming (without handsfree
connection active)
Long purple pulse Music from wired connection active
2 yellow flashes SRS WOW HD on/off
3 yellow flashes Stopped music player
Slow red flash Idle (not connected to a device)

English
13
Additional tips
Pairing
• To initiate pairing (discoverable) mode manually when your speaker is
already powered on, press and hold both Call and Play/Pause buttons at
the same time.
• To clear paired devices list in your speaker, press and hold both Reverse
and Forward buttons at the same time until speaker resets.
Disabling SRS WOW HD
SRS WOW HD is an audio enhancement technology that provides better
width and improved bass and definition control. This feature is enabled on
your speaker at purchase.
If your music player also has SRS or any other sound enhancement
technology, best audio results may be achieved if the audio enhancement
feature is enabled on only either the music source or the speaker (but not
both).
To disable the SRS WOW HD audio enhancement feature on your speaker,
press and hold the Play/Pause and Rewind buttons at the same time
until you hear a tone and the main indicator light flashes yellow twice. To
re-enable the SRS feature, perform the same action.
If you have any additional questions, please call your hotline number
(0870-9010-555) or visit us at www.hellomoto.com.

Quick Start Guide
EQ5
MOTOROKR
TM
MOTOROLA and the Stylized M Logo are registered in the US Patent &
Trademark Office. All other product or service names are the property of
their respective owners. The Bluetooth trademark and logos are owned by
the Bluetooth SIG, Inc. and any use of such marks by Motorola, Inc. is under
license. © 2007 Motorola, Inc. All rights reserved.
6803578F36
motorola.com
