1Congratulations
Congratulations
MOTOsmart mix

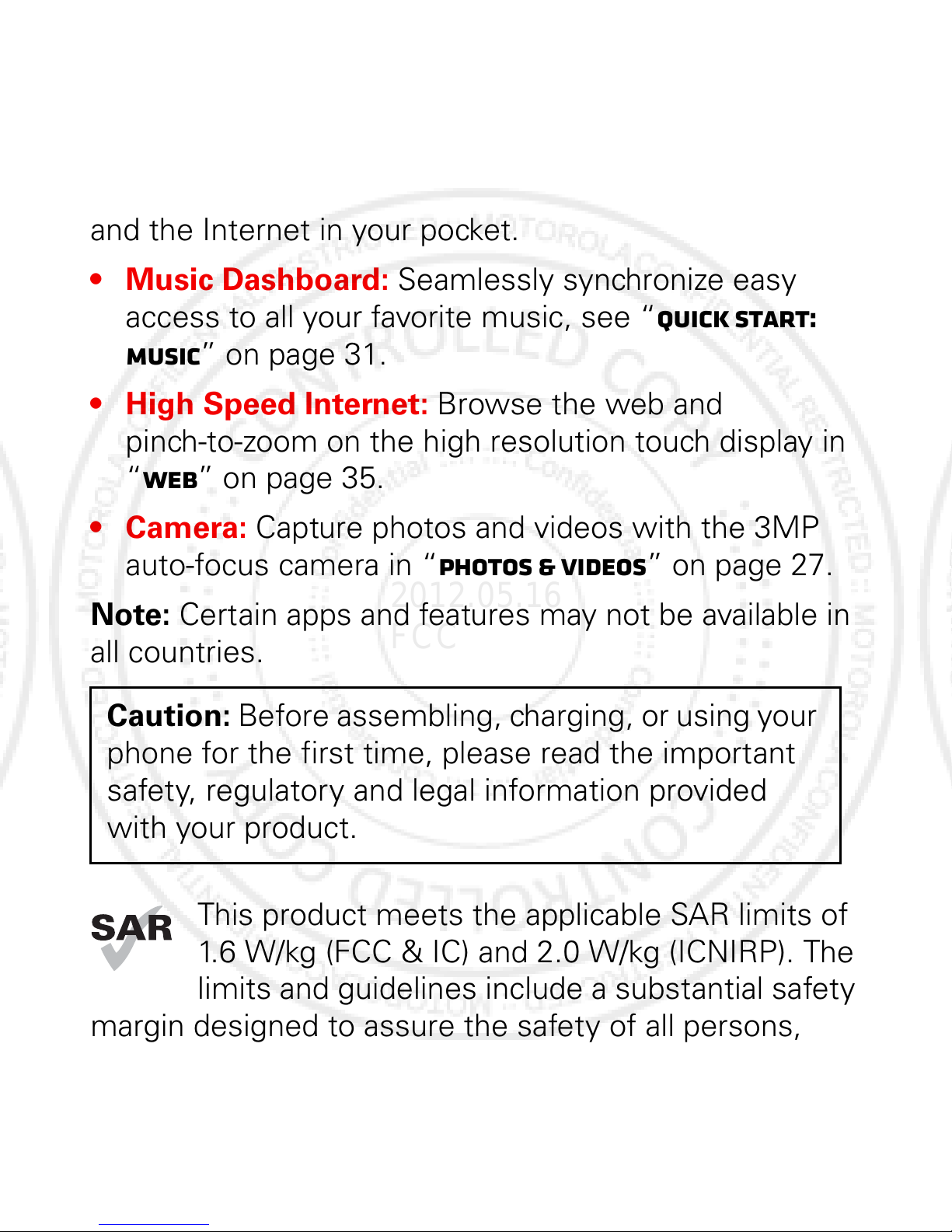

Yo u r MOTOSMART MIX smartphone gives you music
and the Internet in your pocket.
• Music Dashboard: Seamlessly synchronize easy
access to all your favorite music, see “quick start:
music” on page 31.
• High Speed Internet: Browse the web and
pinch-to-zoom on the high resolution touch display in
“Web” on page 35.
• Camera: Capture photos and videos with the 3MP
auto-focus camera in “Photos & videos” on page 27.
Note: Certain apps and features may not be available in
all countries.
This product meets the applicable SAR limits of
1.6 W/kg (FCC & IC) and 2.0 W/kg (ICNIRP). The
limits and guidelines include a substantial safety
margin designed to assure the safety of all persons,
regardless of age and health. The highest SAR values
Caution: Before assembling, charging, or using your
phone for the first time, please read the important
safety, regulatory and legal information provided
with your product.
2012.05.16
FCC

2Congratulations
measured for this device are listed in the regulatory
information packaged with your product.
Note: When using the product while worn on your body,
either use an approved accessory such as a holster or
maintain a distance of 2.5 cm (1 inch) from the body to
ensure compliance with SAR requirements. Note that
the product may be transmitting even if you are not
making a phone call.

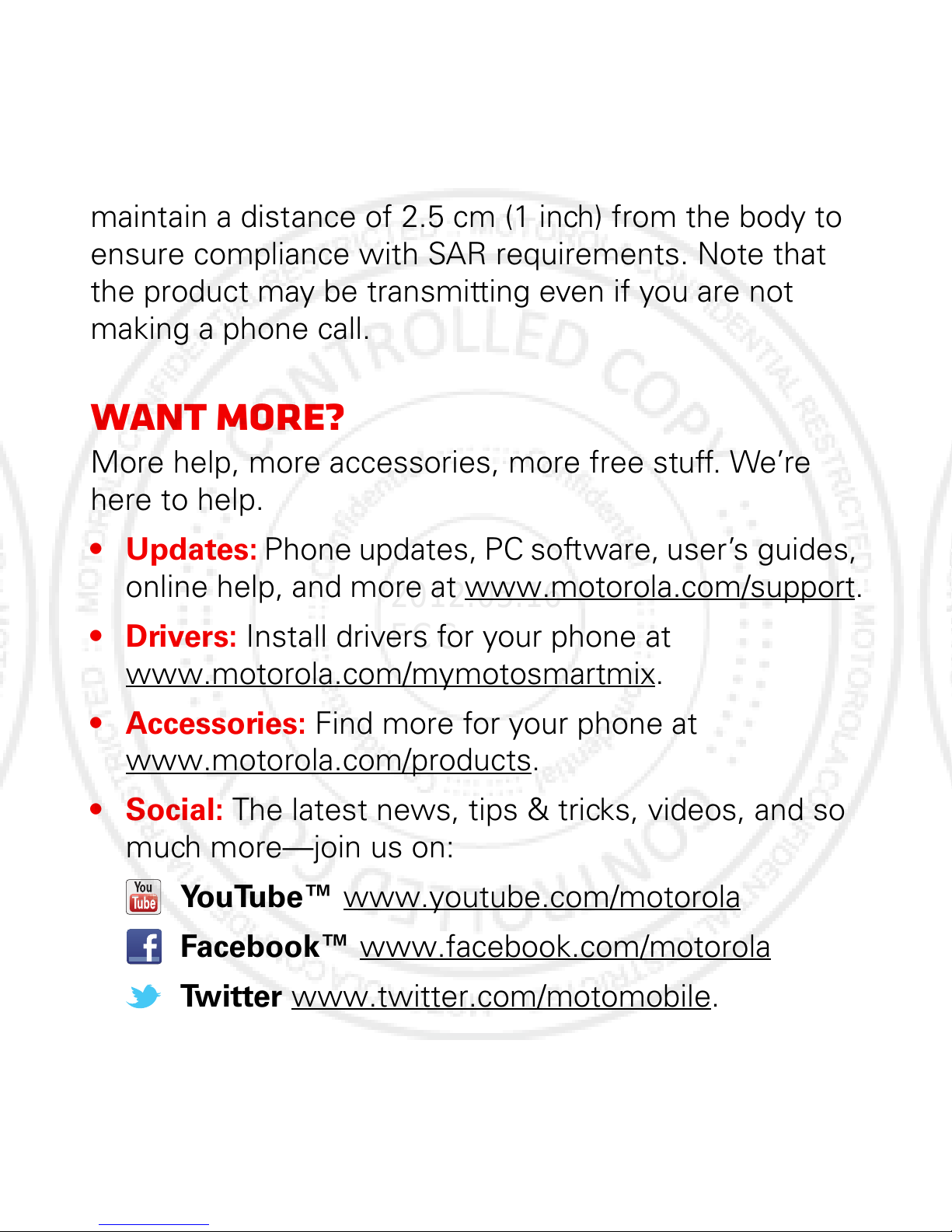

Want more?
More help, more accessories, more free stuff. We’re
here to help.
• Updates: Phone updates, PC software, user’s guides,
online help, and more at www.motorola.com/support.
•Drivers:Install drivers for your phone at
www.motorola.com/mymotosmartmix.
• Accessories: Find more for your phone at
www.motorola.com/products.
•Social:The latest news, tips & tricks, videos, and so
much more—join us on:
YouTube™ www.youtube.com/motorola
Facebook™ www.facebook.com/motorola
Twitter www.twitter.com/motomobile.
2012.05.16
FCC

3Your smartphone
Your smartphone
the important keys & connectors
Note: Your smartphone might look a little different.
Back Key
Menu Key
Home Key
Volume Keys
Touch to open
menu options.
Search
Key
Microphone
Front
3.5mm Headset Jack
Power/
Lock Key
Touch to open
menu options.
Micro USB
Connector
Music Key
Touch to open
music player,
then touch to
play/pause.
Camera
2012.05.16
FCC

4Your smartphone
Contents
Let’s go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Touchscreen & keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Apps & updates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Contacts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Text entry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Photos & videos. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Web. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Personalize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Wireless. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
File management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Safety, Regulatory & Legal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
2012.05.16
FCC

5Let’s go
Let’s go
let’s get you up and running
Assemble & charge
Caution: Please read “Battery Use & Safety” on page 48.
microSD in.
m
3
Remove cover.
R
1
Insert battery.
In
4
Replace cover.
R
5
Charge up.
3H
C
6
2
SIM microSIM microSIM
+ Adapter
SIM in.
2012.05.16
FCC

6Let’s go
Note: This smartphone supports apps and services that
use a lot of data, so make sure your data plan meets
your needs. Contact your service provider for details.

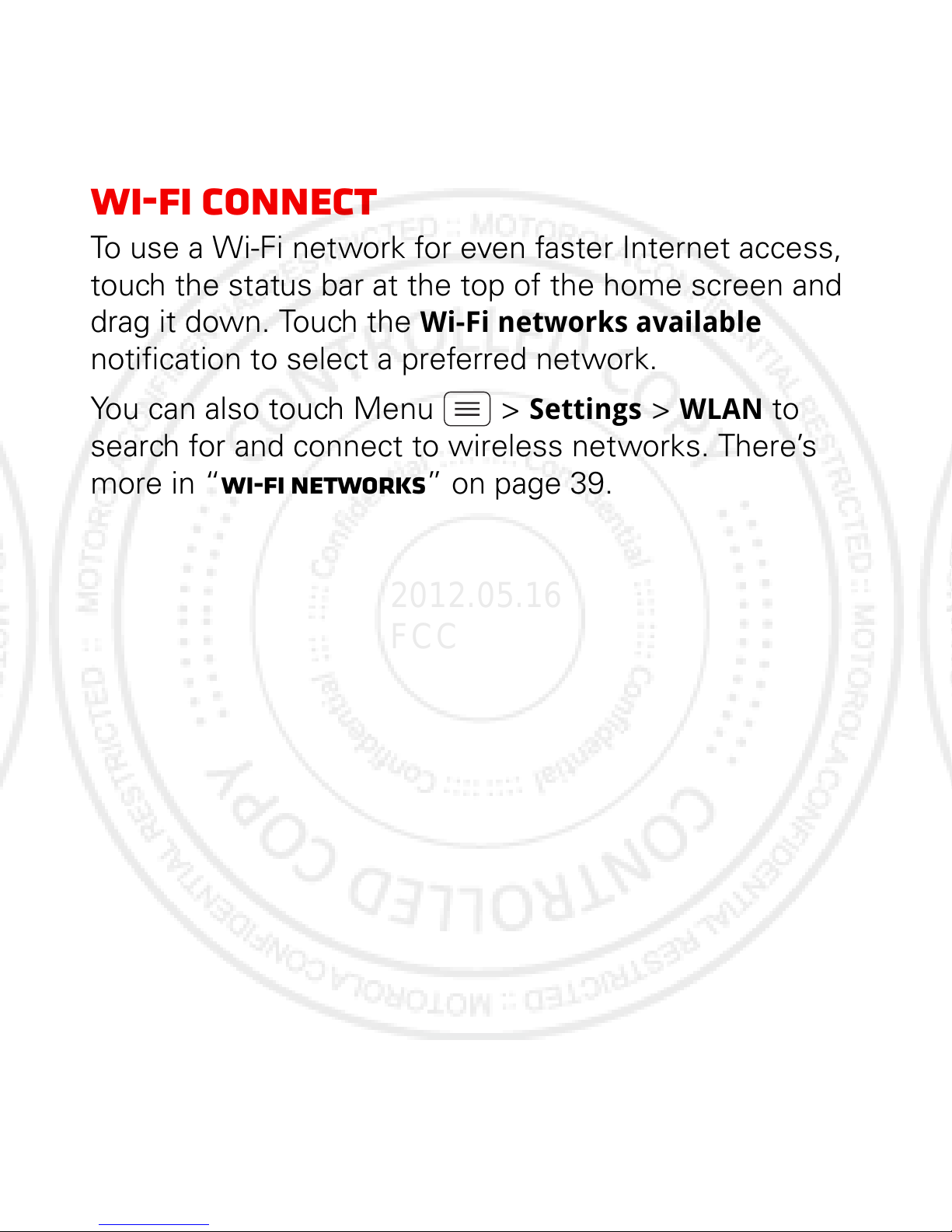

Wi-Fi connect
To use a Wi-Fi network for even faster Internet access,
touch the status bar at the top of the home screen and
drag it down. Touch the Wi-Fi networks available
notification to select a preferred network.
You can also touch Menu > Settings > WLAN to
search for and connect to wireless networks. There’s
more in “Wi-Fi networks” on page 39.
2012.05.16
FCC

7Touchscreen & keys
Touchscreen & keys
a few essentials
Touchscreen on/off
Your touchscreen is on when you need it and off when
you don’t.
•When you hold the smartphone to your ear during
calls, your touchscreen sleeps to prevent accidental
touches.
•To make your touchscreen sleep or wake up, just
press Power .
•To unlock the screen, press Power then touch
and flick to .
Note: Your
touchscreen might
stay dark if the sensor
just above it is
covered. Don't use
covers or screen protectors (even clear ones) that cover
this sensor.
2012.05.16
FCC

8Touchscreen & keys
Touch tips
It’s all in the touch:
•Touch:Choose an icon or option.
• Touch & Hold: Show options.
•Drag:Scroll or move slowly.
•Flick:Scroll or move quickly.

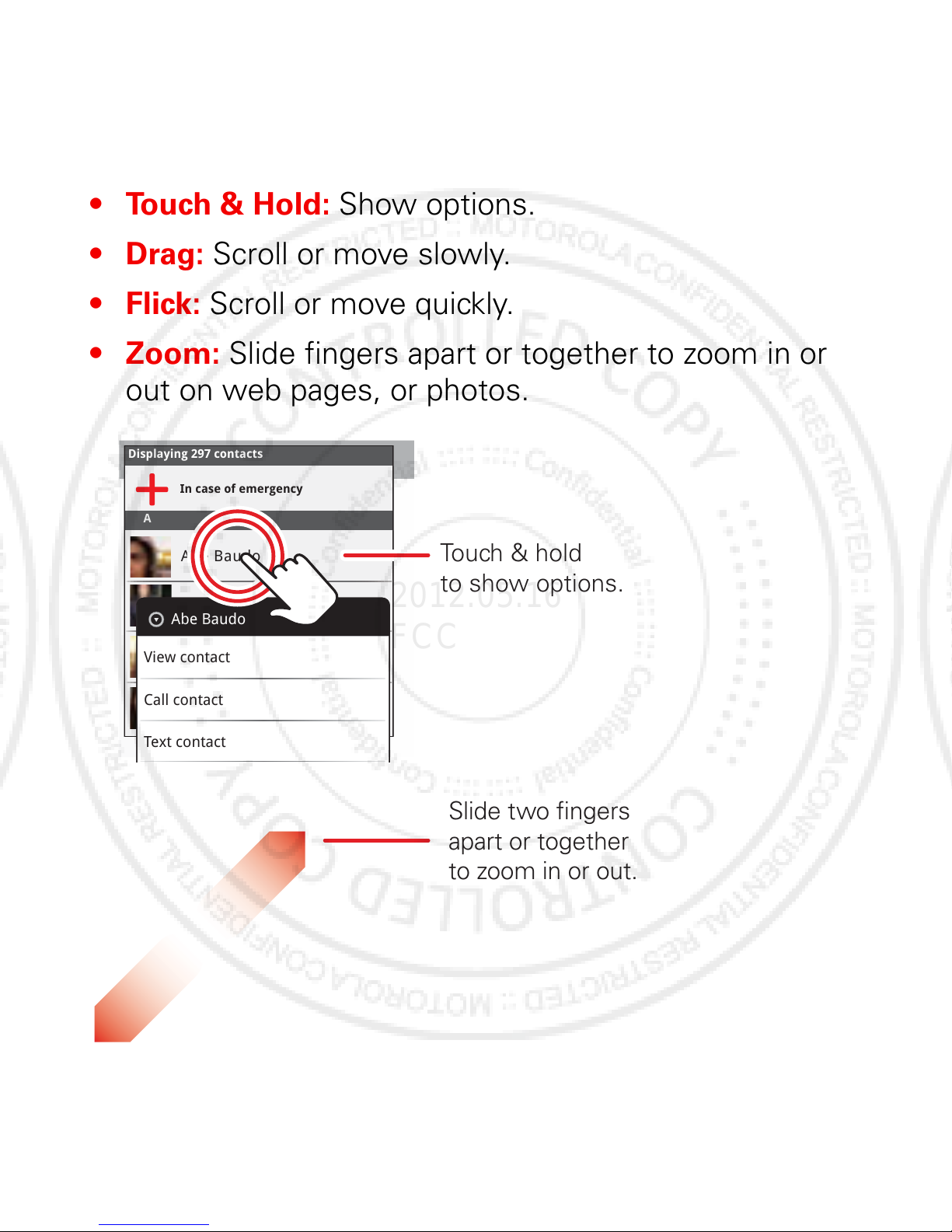

• Zoom: Slide fingers apart or together to zoom in or
out on web pages, or photos.
Displaying 297 contacts
In case of emergency
A
Abe Baudo
Allie Smyth
Anna Medina
Astrid Fanning
Abe Baudo
View contact
Call contact
Text contact
Slide two fingers
apart or together
to zoomin or out.
Touch & hold
to show options.
2012.05.16
FCC

9Touchscreen & keys
Key tips

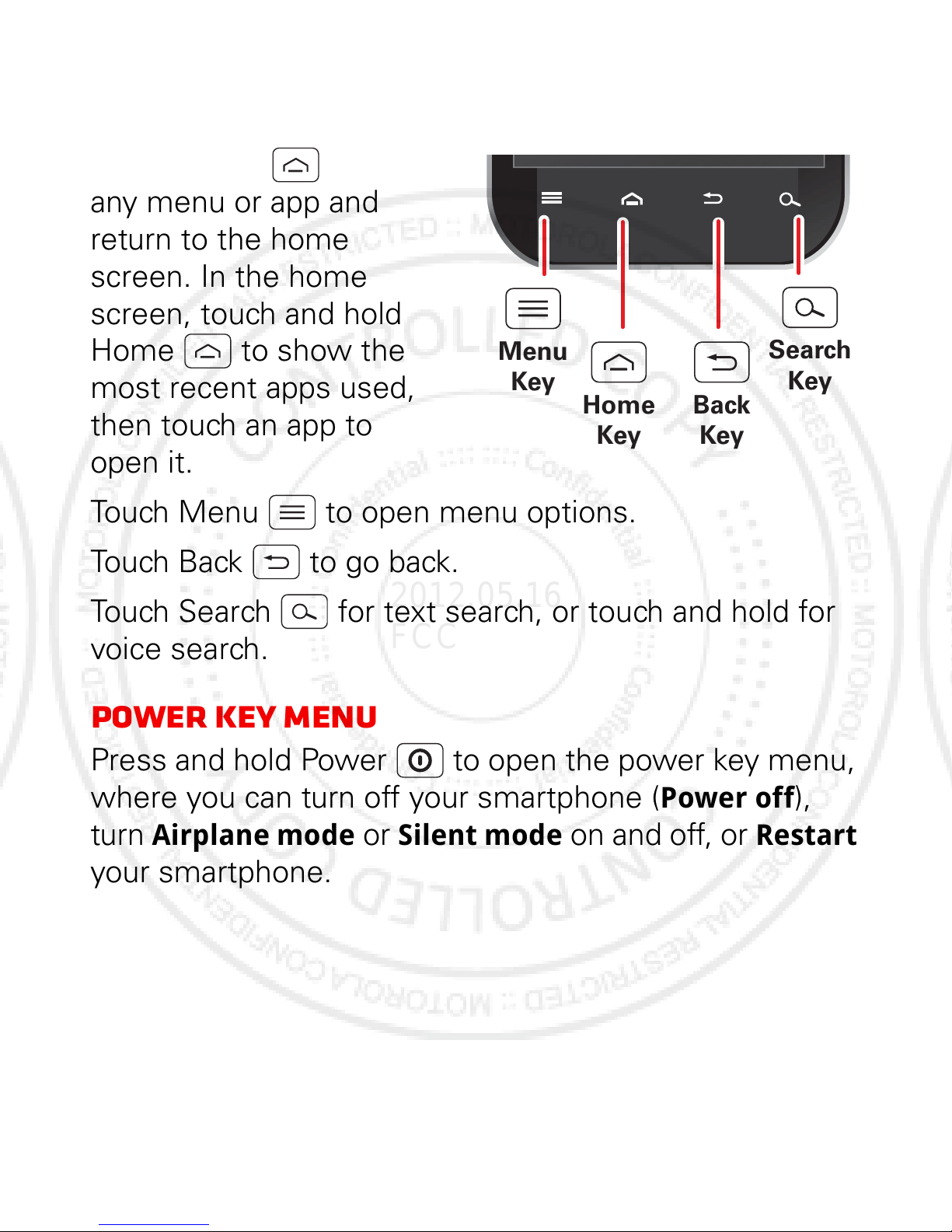

Menu, home, back, & search
Touch Home to close
any menu or app and
return to the home
screen. In the home
screen, touch and hold
Home to show the
most recent apps used,
then touch an app to
open it.
Touch Menu to open menu options.
Touch Back to go back.
Touch Search for text search, or touch and hold for
voice search.
Power key menu
Press and hold Power to open the power key menu,
where you can turn off your smartphone (Power off),
turn Airplane mode or Silent mode on and off, or Restart
your smartphone.
Menu
Key
Search
Key
Home
Key
Back
Key
2012.05.16
FCC

10 Home screen
Home screen
quick access to the things you need most
Quick start: Home screen

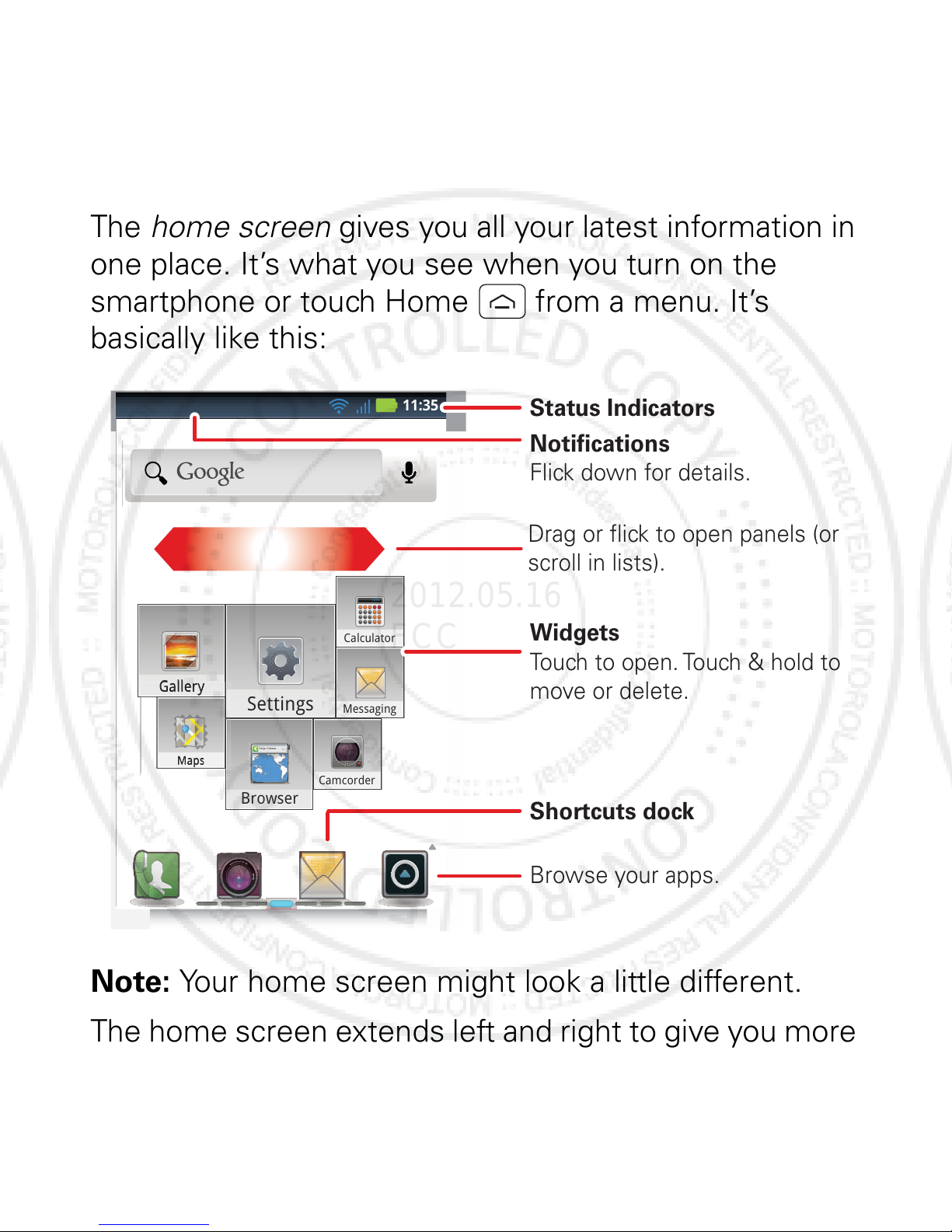

The home screen gives you all your latest information in
one place. It’s what you see when you turn on the
smartphone or touch Home from a menu. It’s
basically like this:
Note: Your home screen might look a little different.
The home screen extends left and right to give you more
room for adding shortcuts, widgets, and more. Flick the
B
r
o
w
se
r
Browser
11:35
Ma
p
s
C
a
l
cu
l
ator
Calculator
Messa
gi
n
g
Messaging
C
amcorde
r
Camcorder
Gll
Gallery
Sett
i
ngs
Settings
12345
http://www.
G
l
l
G
l
l
Ma
s
Ma
ps
Ma
ps
y
Gallery
G
a
ll
er
y
Galler
y
w
w
5
5
5
5
5
4
4
4
4
4
0
0
0
0
0
6
6
6
6
6
6
6
-
7
7
7
7
7
-
--
-
-
2
2
2
2
2
2
2
2
0
0
0
8
8
8
2
2
2
2
2
4
4
4
5
5
5
5
5
5
4
4
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
5
Notifications
Flick down for details.
Status Indicators
Shortcuts dock
Browse your apps.
Widgets
Touch to open. Touch & hold to
move or delete.
Drag or flick to open panels (or
scroll in lists).
2012.05.16
FCC

11Home screen
home screen left and right to see more panels or to add
widgets or shortcuts.
Tip: From the home
screen, touch
Home to see
thumbnails of the
seven home screen
panels. Touch a
thumbnail to go to the
panel.
Use & change your home screen
On your home screen, shortcuts are icons that open
your favorite apps, web bookmarks, contacts, mail
labels, or music playlists. Widgets show you news,
weather, messages, and other updates.
To see other panels of shortcuts and widgets, flick the
home screen left or right. Or, touch Home and touch
a thumbnail to go to the panel.
•To open something, touch it. Touch Home to
return to the home screen.
Tip: When you open a widget, touch Menu to see
any options or settings.
2012.05.16
FCC

12 Home screen
•To resize widgets, touch
and hold a corner until you
feel a vibration, then drag.

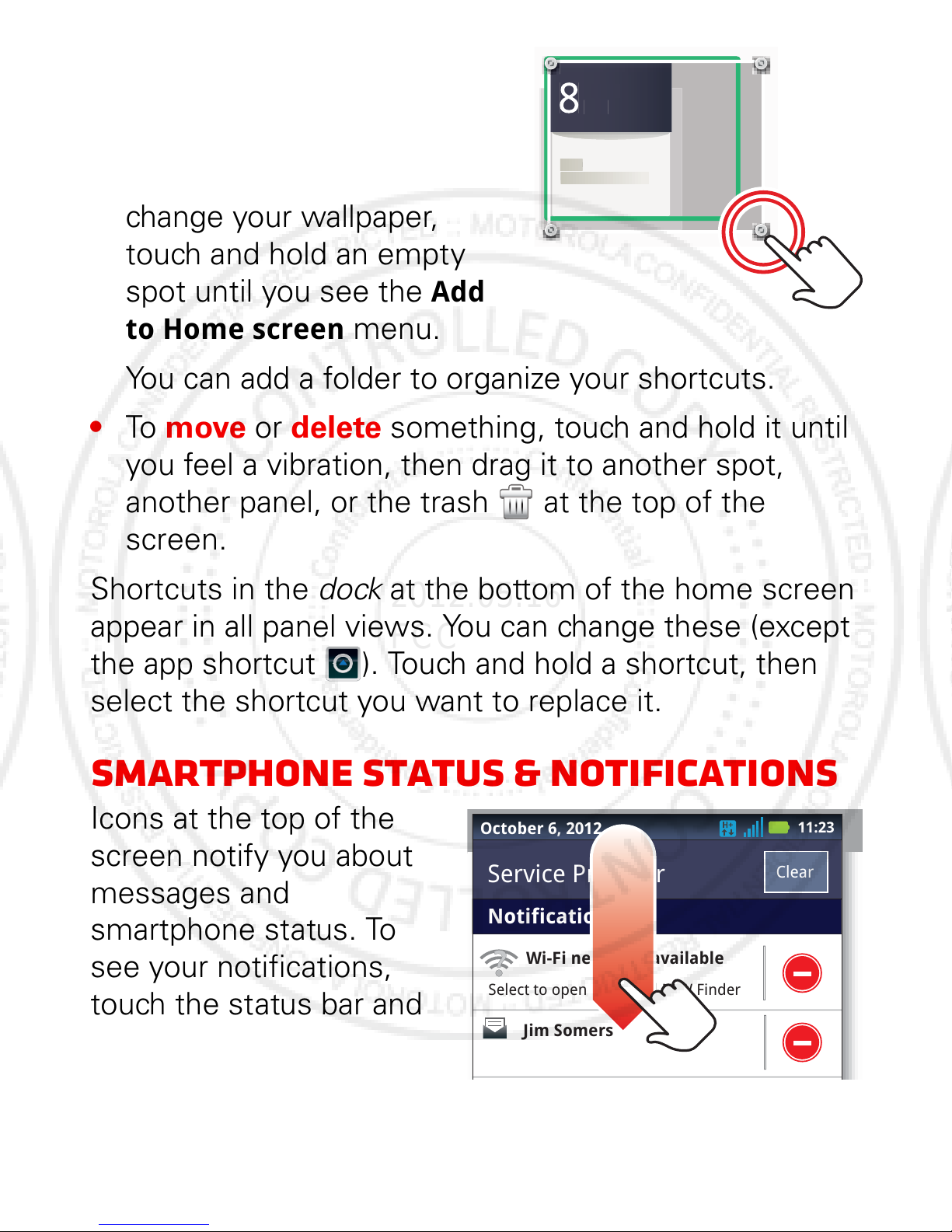

•To add something or
change your wallpaper,
touch and hold an empty
spot until you see the Add
to Home screen menu.
You can add a folder to organize your shortcuts.
•To move or delete something, touch and hold it until
you feel a vibration, then drag it to another spot,
another panel, or the trash at the top of the
screen.
Shortcuts in the dock at the bottom of the home screen
appear in all panel views. You can change these (except
the app shortcut ). Touch and hold a shortcut, then
select the shortcut you want to replace it.
Smartphone status & notifications
Icons at the top of the
screen notify you about
messages and
smartphone status. To
see your notifications,
touch the status bar and
drag it down. Touch
a notification to select it.
Kristine Kelley
Not even ready to
go back to school
8
3pm
Budget Meeting
THU
JUL
3p
m
Bud
g
et Meetin
g
THU
JU
L
2:47 PM
Wi-Fi networks available
Select to open Preferred N/W Finder
Jim Somers
Meet me outside the...
Notifications
Clear
Service Provider
October 6, 2012 11:23
2012.05.16
FCC

13Home screen
To dismiss a single notification, touch . To dismiss all
notifications, touch Clear.
Tip: To see today’s date, touch the status bar at the top
of the screen.
Status bar icons
network strength battery strength
new voicemail new text message
Bluetooth™ on Bluetooth
connected
Wi-Fi connected airplane mode
USB connected alarm set
silent ringer silent ringer, vibrate
on
mute call speakerphone
2012.05.16
FCC

14 Apps & updates
Apps & updates
get the app you want
Quick start: Apps & updates
You can find all of your apps in one place. Touch to
open the app menu. To see all of your apps, flick up and
down.
To group your apps, touch All apps, then choose All
apps, Recent, or Downloaded.
To close, touch Home or Back .
Recent apps
Your smartphone remembers the apps that you used
most recently. From the home screen, touch and hold
Home to show the most recent apps used, or touch
> Recent.
All apps
New group
All apps
All apps
Recent
Rece
nt
Downloaded
Download
ed
Open and add groups.
Choose which group
you want to view.
Create a new group.
Find new apps
on Play Store™.
2012.05.16
FCC

15Calls
Calls
it’s good to talk
Quick start: Calls
Dialing options
From the home screen, touch Phone.
Tip: Search for contacts right from the dialpad. For
example, to find Jeff in your contacts list, touch 5-3-3-3.
Matching contacts appear above the dialpad.
Phone Call log Contacts Favorites Groups
*
GHI
4
1ABC
2
DEF
3
MNO
6
TUV
8
PQRS
7
WXYZ
9
+
0
5
JKL
#
Lists
Backspace
Delete digits you entered.
Call
Enter a phone number
& touch here to call it.
Julie Smith
Mobile [phone] hour ago
Return Call
Show/hide dialpad.
(If two SIMs are inserted,
you will see two Call keys.
Choose the SIM you want to
use to call.)
2012.05.16
FCC

16 Calls

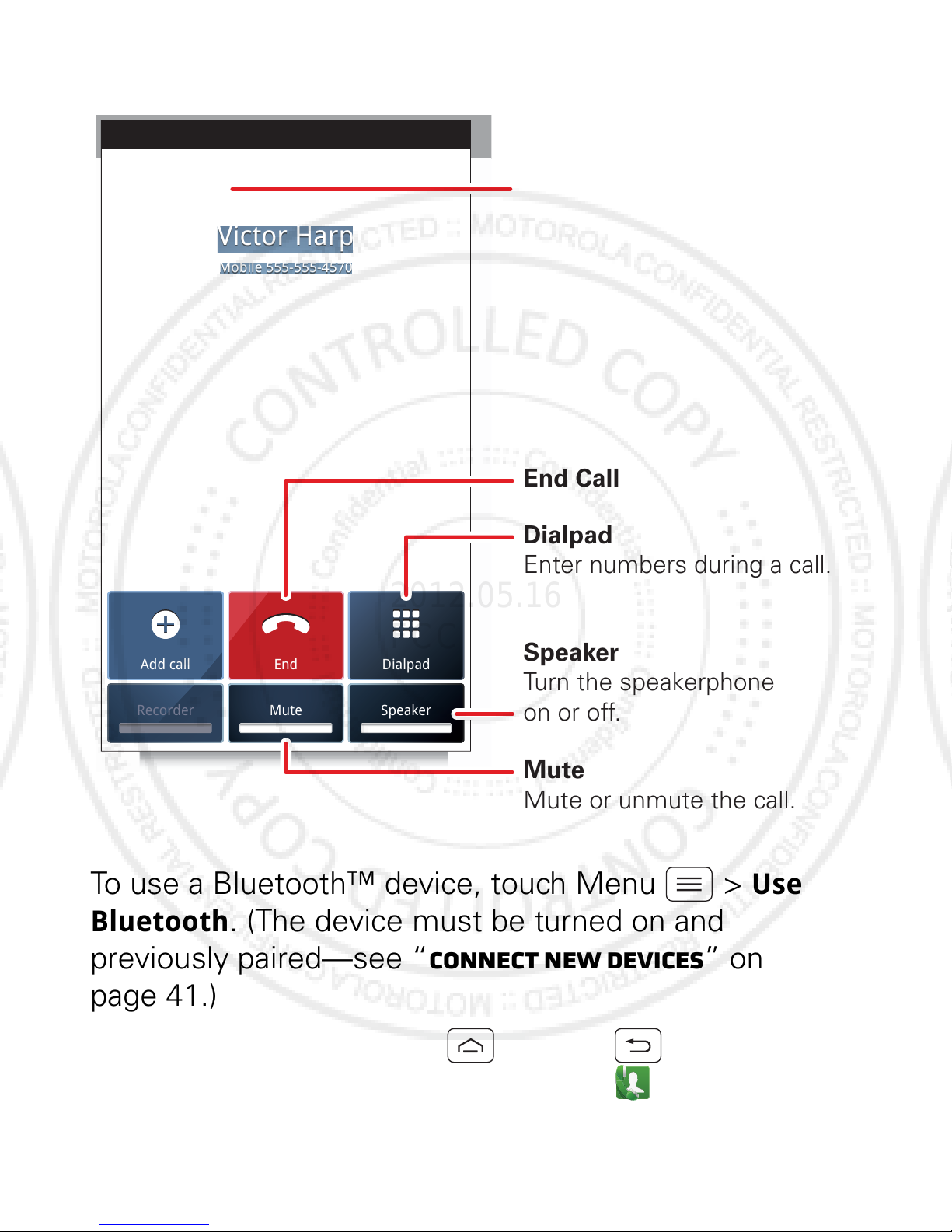

In-call options
To use a Bluetooth™ device, touch Menu > Use
Bluetooth. (The device must be turned on and
previously paired—see “Connect new devices” on
page 41.)
Tip: You can touch Home or Back to leave the
active call display. To reopen it, touch Phone.
M
Mo
bi
i
le
le
5
5
55
55
-5
-5
55
55
-4
57
7
0
0
V
V
i
i
c
c
c
t
t
t
o
o
o
r
r
r
H
H
H
H
a
a
a
r
r
r
p
p
p
Mobile [phone]
Victor Harp
Add call DialpadEnd
MuteRecorder Speaker
Current call 00:07 Call Timer
End Call
Speaker
Turn the speakerphone
on or off.
Dialpad
Enter numbers during a call.
Mute
Mute or unmute the call.
2012.05.16
FCC

17Calls
Note: Using a mobile device or accessory while driving
may cause distraction and may be illegal. Always obey
the laws and drive safely.
Make & answer calls
To make a call, touch Phone, enter a number, then
touch .
To answer a call, touch and flick to .
To ignore an incoming call, touch and flick to .
Tip: To silence an incoming call alert, press Power or
the volume keys.
Note: When you hold your smartphone to your ear, the
display goes dark to prevent accidental touches. When
you move it away from your ear, the display lights up
again.
Emergency calls
Note: Your service provider programs one or more
emergency phone numbers that you can call under any
circumstances, even when your smartphone is locked.
Emergency numbers vary by country. Your
pre-programmed emergency number(s) may not work in
all locations, and sometimes an emergency call cannot
be placed due to network, environmental, or
interference issues.
1Touch Phone (if your smartphone is locked, touch
Emergency Call).
2012.05.16
FCC

18 Calls
2Enter the emergency number.
3Touch to call the emergency number.
Cool down
In very limited circumstances, such as where your
smartphone has been exposed to extreme heat, you
may see “Cool Down” messages. To avoid possible
damage to your battery and smartphone, you should
follow these instructions until the smartphone is within
its recommended temperature range. When your
smartphone is in “Cool Down” mode, only emergency
calls can be made.
2012.05.16
FCC
