Motorola W375 User manual

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GM1
INSTRUCTION MANUAL
•A preliminary draft copy of the User’s Manual follows this cover page.
•The User’s Manual will have the following text added to it:
"NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
. Reorient or relocate the receiving antenna.
. Increase the separation between the equipment and receiver.
. Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
. Consult the dealer or an experienced radio/TV technician for help."
EXHIBIT 8

motorola.com
W375
GSM
English

DRAFT
1
HELLOMOTO
Welcome to the world of Motorola digital wireless communications! We are pleased that you
have chosen the Motorola W375 wireless phone.
Earpiece
Listen to your voice calls
& messages.
Left Soft Key
Perform functions identified
by left display prompt.
Send/Answer Key
Make & answer calls. Press
in idle screen to see recently
dialed calls.
Menu Key
Open a menu when it
appears in the display.
Right Soft Key
Perform functions identified by
right display prompt.
Power/End Key
Press & hold to turn the phone
on/off. Press & release to end
phone calls, exit menu system.
Message Key
Access the Message menu.
Navigation Key
Scroll up, down, left or right.
Web Browser Key
Volume Controls
Mini-USB Connector
Charge the battery or
connect to a PC.
Headset Jack

2
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.hellomoto.com
MOTOROLA and the Stylized M Logo are registered in the US
Patent & Trademark Office. 2006 All other product or service
names are the property of their respective owners.
© Motorola, Inc. 2006.
Caution: Changes or modifications made in the radio phone, not
expressly approved by Motorola, will void the user's authority to
operate the equipment.
Certain mobile phone features are dependent on the capabilities
and settings of your service provider’s network. Additionally,
certain features may not be activated by your service provider,
and/or the provider's network settings may limit the feature’s
functionality. Always contact your service provider about feature
availability and functionality. All features, functionality, and other
product specifications, as well as the information contained in this
user's guide are based upon the latest available information and
are believed to be accurate at the time of printing. Motorola
reserves the right to change or modify any information or
specifications without notice or obligation.
Manual Number: 680XXXXAXX-O

DRAFT
3
check it out!
Note: Your phone may not appear exactly as
the phone image above.
Headset Jack
Insert the
headset
accessory for
handsfree
use.
Battery
Battery
Indicator
Call Indicator
Camera Lens
Message
Indicator

DRAFT
4
contents
check it out! . . . . . . . . . . 3
contents . . . . . . . . . . . . . 4
menu map . . . . . . . . . . . 6
essentials . . . . . . . . . . . . 9
about this guide. . . . . . . 9
SIM card . . . . . . . . . . . 10
battery . . . . . . . . . . . . . 10
turn it on & off . . . . . . . 12
make a call. . . . . . . . . . 13
answer a call . . . . . . . . 13
your phone number . . . 13
main attractions . . . . . 14
multimedia
messages . . . . . . . . . . 14
chatting . . . . . . . . . . . . 15
camera. . . . . . . . . . . . . 16
use the FM radio . . . . . 18
usb connection . . . . . . 20
basics . . . . . . . . . . . . . . 22
display . . . . . . . . . . . . . 22
menus . . . . . . . . . . . . . 25
text entry . . . . . . . . . . . 26
volume. . . . . . . . . . . . . 29
navigation key . . . . . . . 29
handsfree speaker. . . . 29
codes & passwords . . . 30
check battery meter. . . 30
customize . . . . . . . . . . . 31
ring style . . . . . . . . . . . 31
time & date . . . . . . . . . 31
wallpaper . . . . . . . . . . . 32
screen saver . . . . . . . . 32
display appearance . . . 33
answer options . . . . . . 34
personal greetings. . . . 34
optional handsfree
operation . . . . . . . . . . . 34
calls . . . . . . . . . . . . . . . 36
recent calls . . . . . . . . . 36
redial . . . . . . . . . . . . . . 37
return a call . . . . . . . . . 37
notepad . . . . . . . . . . . . 37
hold or mute a call . . . . 37
call waiting. . . . . . . . . . 38
caller ID . . . . . . . . . . . . 38
emergency calls . . . . . 38
international calls. . . . . 39
1-touch dial. . . . . . . . . . 39
voicemail . . . . . . . . . . . 40

DRAFT
5
inserting special
characters into dialing
sequences . . . . . . . . . 41
other features . . . . . . . . 42
advanced calling . . . . . 42
phonebook . . . . . . . . . 44
messages. . . . . . . . . . 47
chat. . . . . . . . . . . . . . . 49
web browser
(wap 2.0). . . . . . . . . . . 49
personalizing. . . . . . . . 50
call times & costs. . . . 52
handsfree operation . . 54
network . . . . . . . . . . . 54
personal organizer . . . 54
security. . . . . . . . . . . . 56
fun & games. . . . . . . . 56
troubleshooting . . . . . . 57
check here first . . . . . . 57
when the backlight is
turned off, it can seem like
your phone isn’t
working. . . . . . . . . . . . 57
no display . . . . . . . . . . 57
no backlight on the
display . . . . . . . . . . . . 58
phone doesn’t vibrate. 58
messages: “enter special
code,” “SIM locked -
contact service provider,”
“subsidy password”. . 58
keypad does not
respond . . . . . . . . . . . 59
no signal or no
service . . . . . . . . . . . . 59
screen flickers while
taking a picture (for
W375 only) . . . . . . . . . 59
service and repairs . . . 60
EU Conformance . . . . . 65
index . . . . . . . . . . . . . . 66

6
menu map
DRAFT
menu map
main menu
n Phonebook
s Recent Calls
•ReceivedCalls
• Dialed Calls
• NotePad
•CallTimes
• Call Cost
• Data Times
• Data Volumes
e Messages
•Create
•Inbox
•Draft
•Outbox
•QuickNotes
•Voicemail
• Browser Msgs
• Info Services
• MMS Templates
É Office Tools
•Calculator
• MyMenu
•AlarmClock
• Stop Watch
•Chat
• Dialing Services
•STKService
• Calendar
•Lantern
Q Games & Apps
• Football
•Space
•Crazy
á WebAccess
• Start Browser
• Web Shortcut
•GotoURL
•WebSession
• Stored Pages
•History
• General Setting
h Multimedia
•Camera
•Pictures
• Sounds
•FMRadio
l Personalize
• Home Screen
•MainMenu
• Color Setting
• Greeting
• Wallpaper
• Screen Saver
•QuickDial
w Settings
(see next page)
Note: The STK Service depends
on your carrier's SIM card.
You may not see this function.
Chat and Quick Dial depend on
your carrier's settings. You
may not see these features in
your phone.

7
menu map
DRAFT
settings menu
t Ring Style
•Style
•Detail
H Call Forward
• Voice Calls
•FaxCalls
• Data Calls
• Cancel All
• Forward Status
U In Call Setup
• In-Call Timer
•CallCostSetup
• My Caller ID
• Answer Options
• Call Waiting
Z Initial Setup
• Time and Date
• 1-Touch Dial
• Display Settings
• Backlight
•Scroll
• Language
• PC Charge Time Out
• Contrast
•DTMF
•TTYSetup
• Master Reset
• Master Clear
• Format USB storage device
m Phone Status
•MyNumbers
•ActiveLine
•BatteryMeter
S Headset
• Auto Answer
j Network
•NewNetwork
•NetworkSetup
• Avail. Networks
• My Network List
• Service Tone
•CallDropTone
• Band Selection
u Security
• Phone Lock
• Fixed Dial
•CallBarring
• SIM PIN
•NewPasswords
Easy Prefix
• Auto Change
•Pref.Op
Lantern
• Lantern
Note: The Active Line function,
My Network List , Service Tone , STK
Service
and Band Selection depend
on your carrier's settings. You
may not see these features in
your phone.

8
Use and Care
Use and Care
To care for your Motorola phone, please keep it away from:
liquids of any kind dust and dirt
Don’t expose your phone to
water, rain, extreme humidity,
sweat, or other moisture.
Don’t expose your phone to
dust, dirt, sand, food, or other
inappropriate materials.
extreme heat or cold cleaning solutions
Avoid temperatures below
-10°C/14°F or above 45°C/113°F.
To clean your phone, use only a
dry soft cloth. Don’t use alcohol
or other cleaning solutions.
microwaves the ground
Don’t try to dry your phone in a
microwave oven.
Don’t drop your phone.

9
essentials
DRAFT
essentials
about this guide
This guide shows how to locate a menu
feature as follows:
Find it : Press M > Recent Calls > Dialed Calls
This example shows that, from the home
screen, you press
M to open the menu,
highlight and select
Recent Calls , then highlight
and select
Dialed Calls .
Press
S to scroll to and highlight a menu
feature. Press the
SELECT key to select the
highlighted menu feature.
CAUTION: Before using the phone for the
first time, read the
Important Safety and
Legal Information
included in the
gray-edged pages at the back of this guide.
032257o
symbols
This means a feature depends on the
network or subscription and may not
be available in all areas. Contact your
service provider for more information.
This means a feature requires an
optional accessory.

10
essentials
DRAFT

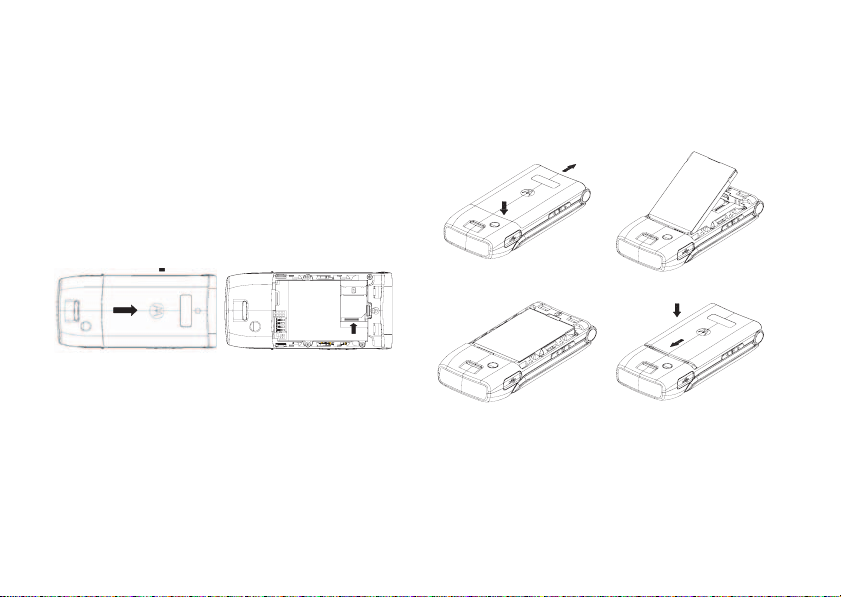

SIM card
Yo u r Subscriber Identity Module (SIM) card
contains personal information like your phone
number and phonebook entries.
Caution: Do not bend or scratch your SIM
card. Keep it away from static electricity,
water, and dirt.
battery
battery installation
Note: If you remove the battery for a long
time, the phone will ask you to reset the time
and date. If you choose to cancel or ignore,
the time and date will be
affected . You can
input the correct time and date by:
12
12
34

11
essentials
DRAFT
Find it: Press M > Setting > Initial Setup > Time and
Date
But, if you remove the battery just for a few
seconds (e.g., quickly change SIM card), the
system either won’t ask you to reset the time
and date or if prompted, you can choose
BACK
on the time and date screen, the clock will
only be slightly affected.
battery charging
Before you can use
your phone, you
need to completely
charge the battery.
New batteries are
not fully charged.
Plug the Mini-USB
cord into your
phone and an electrical outlet or a PC. Your
phone displays
Charge Complete when finished.
Tip: You cannot overcharge your battery. It will
perform best after you fully charge and
discharge it a few times.
New batteries are shipped partially charged.
Before you can use your phone, install and
charge the battery as described below. Some
batteries perform best after several full
charge/discharge cycles.
battery tips
Battery life depends on the network, signal
strength, temperature, features, and
accessories you use.
• Always use Motorola
Original™ batteries and
chargers. The warranty does
not cover damage caused by
non-Motorola batteries and/or chargers.
• New batteries or batteries stored for a
long time may take more time to charge.
Power Connector
Insert the charger.

12
essentials
DRAFT
• When charging your battery, keep it near
room temperature.
• When storing your battery, keep it
uncharged in a cool, dark, dry place, such
as a refrigerator.
• Never expose batteries to temperatures
below -10°C (14°F) or above 45°C (113°F).
Always take your phone with you when
you leave your vehicle.
• It is normal for batteries to gradually wear
down and require longer charging times.
If you notice a change in your battery life,
it is probably time to purchase a new
battery.
Contact your local recycling center for
proper battery disposal.
Warning: Never dispose of batteries
in a fire because they may explode.
Before using your phone, read the battery
safety information in the “Safety and General
Information”section included in the gray-
edged pages at the back of this guide.
turn it on & off
To turn on your phone,
press and hold
P for 2
seconds. If prompted,
enter your SIM card PIN
code and/or unlock
code.
Caution: If you enter an incorrect PIN code 3
times in a row, your SIM card is disabled and
your phone displays
SIM Blocked . Contact your
service provider.
To turn off your phone, press and hold
P for
2 seconds.

13
essentials
DRAFT
make a call
Enter a phone number and press N to make
a call.
To end the call, press
P .
answer a call
When your phone rings and/or vibrates, press
N to answer.
To end the call, press
P .
You can also answer or end a call by pressing
any key when the
Multi-key answer option is
activated.
Find it: Press M > Settings > In Call Setup
>
Answer Options
your phone number
To see your number:
Press
M > Settings > Phone Status > My Numbers
To store or edit your name and number on
your SIM card, press the
VIEW key while
displaying it. If you don't know your phone
number, contact your service provider.

14
main attractions
DRAFT
main attractions
multimedia messages
For more message features, see page 47.
send a multimedia
message
A Multimedia Messaging Service (MMS)
message contains pages with text and media
objects (including photos, pictures,
animations, or sounds). You can send the
multimedia message to other phones with
MMS and to email addresses.
Find it: Press M > Messages > Create > Create
Message
> SMS/EMS , MMS or MMS Templates
Note: The MMS templates can’t be downloaded
or expanded. You can only use the default
templates.
1 Press 1 - 0 to enter text message. For
details about text entry, see page 26.
Tip: To insert a picture, sound, or other
object
, press M > INSERT .
To insert another slide, press
M > Insert
>
Insert Slide . You can enter additional text
and objects on the new slide.
2 When the message is finished, press OK .
3 Scroll to the desired entry and press ADD .
Repeat step 3 until all desired entries are
added, and press
DONE .

15
main attractions
DRAFT
Tip: To enter a new number, scroll to [One Time
Entry]
and press SELECT .
To enter and store a new number, scroll to
[New Entry] and press SELECT .
4 Scroll to the desired message field, and
press
CHANGE to edit.
5 Press SEND to send the message.
Tip: To cancel or save the message as a Draft,
press
M .
receive a multimedia
message
When you receive a multimedia message or
letter, your phone sounds an alert and displays
New Message with a message indicator such as
r .
Press the
READ key to open the message.
If a multimedia message contains media
objects:
• photos, pictures, and animations will
display as you read the message.
• sound files will play when its slide bar
displays.
chatting
Select Chat from the Office Tools menu to keep in
touch with friends. You can save time by
inserting a common phrase, such as I
n a meeting
now
or Take Care , by selecting Msg: > Change
>
Insert .

16
main attractions
DRAFT
camera
To activate your phone's camera using the
menu system:
Find it: Press M > Multimedia > Camera
The active viewfinder image appears on your
display.
Point the camera lens at the photo subject,
then:
1 Press CAPTURE to take a photo.
2 Press STORE to view storage options. If you
choose to keep the photo, continue to
step 4.
3 Press DISCARD to delete the photo and
return to active viewfinder.
4 Scroll to Send in Message , Store Only , Apply as
Wallpaper
, Apply as Screen Saver or Apply as
Phonebook
and press SELECT .
Note: If the screen flickers when taking a
picture, you may need to select an alternative
frequency for the
Flicker setting. For example, if
the
Flicker setting is currently 50Hz, switch to
60Hz, and try to take the picture again.
Find it: Press M > Multimedia > Camera > M
>
Picture Setup > Flicker
Press S up or
down to zoom
in or out.
Press
S left or
right to
decrease or
increase image
brightness.
Press
CAPTURE
to take a photo.
Photo storage
space used
(phone).
Press
BACK to
return to
previous
screen.
Press
M to open
Pictures Menu .
AREA
CAPTURE BACK
RAM Used:8%
Viewfinder

17
main attractions
DRAFT
From the active viewfinder, you can press M
to enter the
Pictures Menu :
After
Capture , you can choose to Store your
picture. Store options include:.
option
Go to Pictures
Go to the picture library.
Auto-Timed Capture
Set the camera to take a photo
automatically after counting down 5 or 10
seconds.
Picture Setup
Adjust the picture settings, including Auto
Repeat
, Shuffle , Lighting Conditions , Special Effect ,
Exposure , Resolution , Shutter Tone , Image Quality , and
Flicker .
View Free Space
Check used and available memory.
option
Send in Message
An MMS message will be initiated with the
captured picture. You can edit the MMS
message and send it with the captured
picture. You can also add a voice note.
Store only
The captured picture will be stored in Pictures .
Apply as Wallpaper
Your picture will be applied as Wallpaper.
Apply as Screen Saver
Your picture will be applied as the Screen
Saver
Apply as Phonebook Entry
Your picture will be saved in the Phonebook .
