Motorola DCX 3400-M User manual

SHAW HDPVR
INSTALLATION INSTRUCTIONS
(Approx. Hardware Setup Time: 10-15 Minutes)
STEP 1 |DO YOU HAVE EVERYTHING?

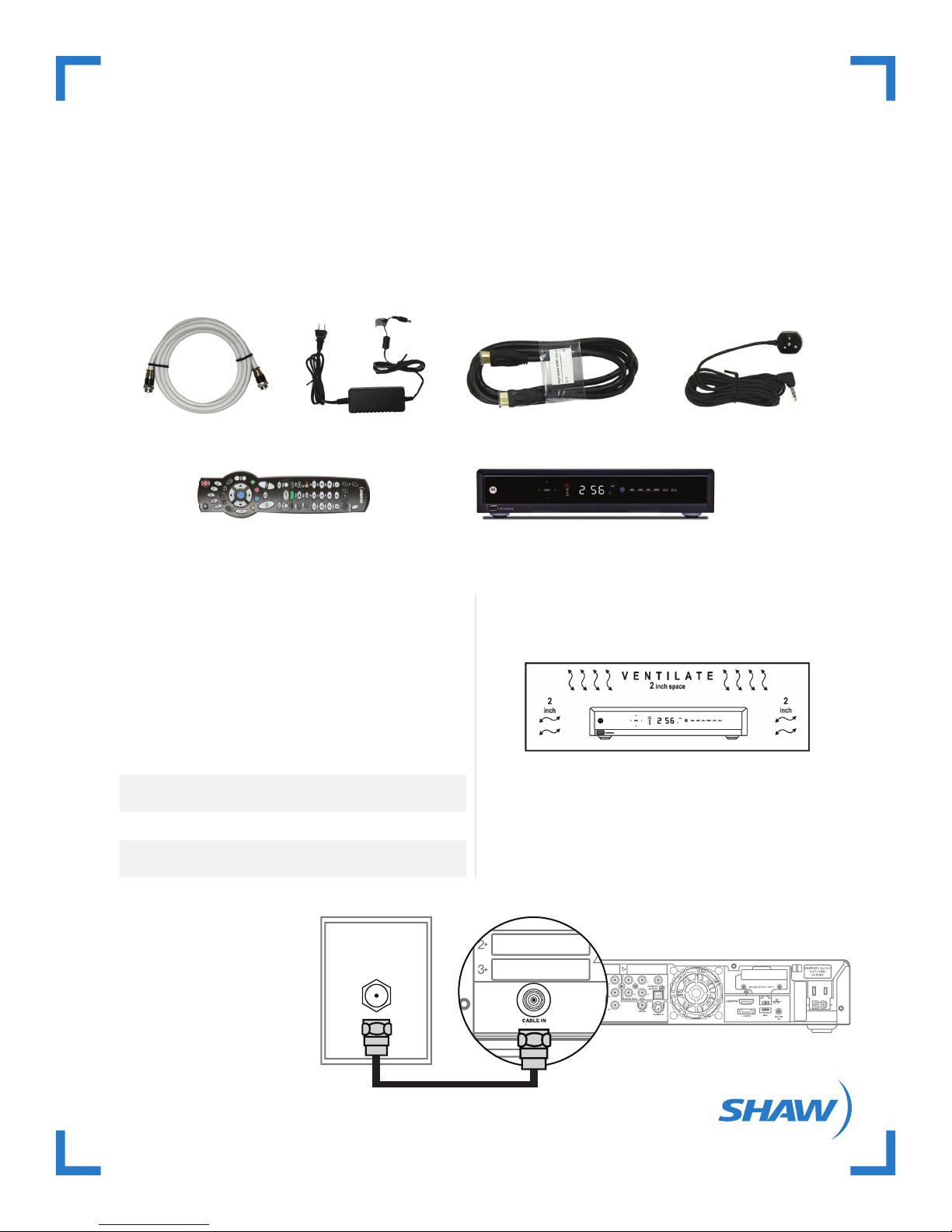

The following components are included in the package that your HDPVR came in:
Cable Cord (Coax) Power Cord HDMI Cable IR Receiver + Tether Cord
(Optional Use)
Shaw Universal Remote Motorola DCX 3400-M HDPVR
STEP 2 |TIME TO HOOK UP YOUR NEW HARDWARE.
B. Find a location to put your new hardware that will allow
it to breathe.
C. Screw one end of the
included white cable cord
(with silver ends) in to your
wall cable outlet and the
other end in to CABLE IN
on the back of the HDPVR.
For an optimal viewing
experience, we recommend
using the included cable
cord instead of any others
that you might have around.
A. Your serial number, “Host SN,” is located on the back
of the HDPVR (next to the number 3) and starts with
the letter “M”. Alternatively, you can nd the serial
number on the white sticker labeled “S/N” on the
HDPVR packaging.
Before you hook up your HDPVR, write your serial
number and account number below. You will need it
when you contact us to activate your new hardware.
Wall Outlet
Cable InCable Out
Serial Number:
Account Number:

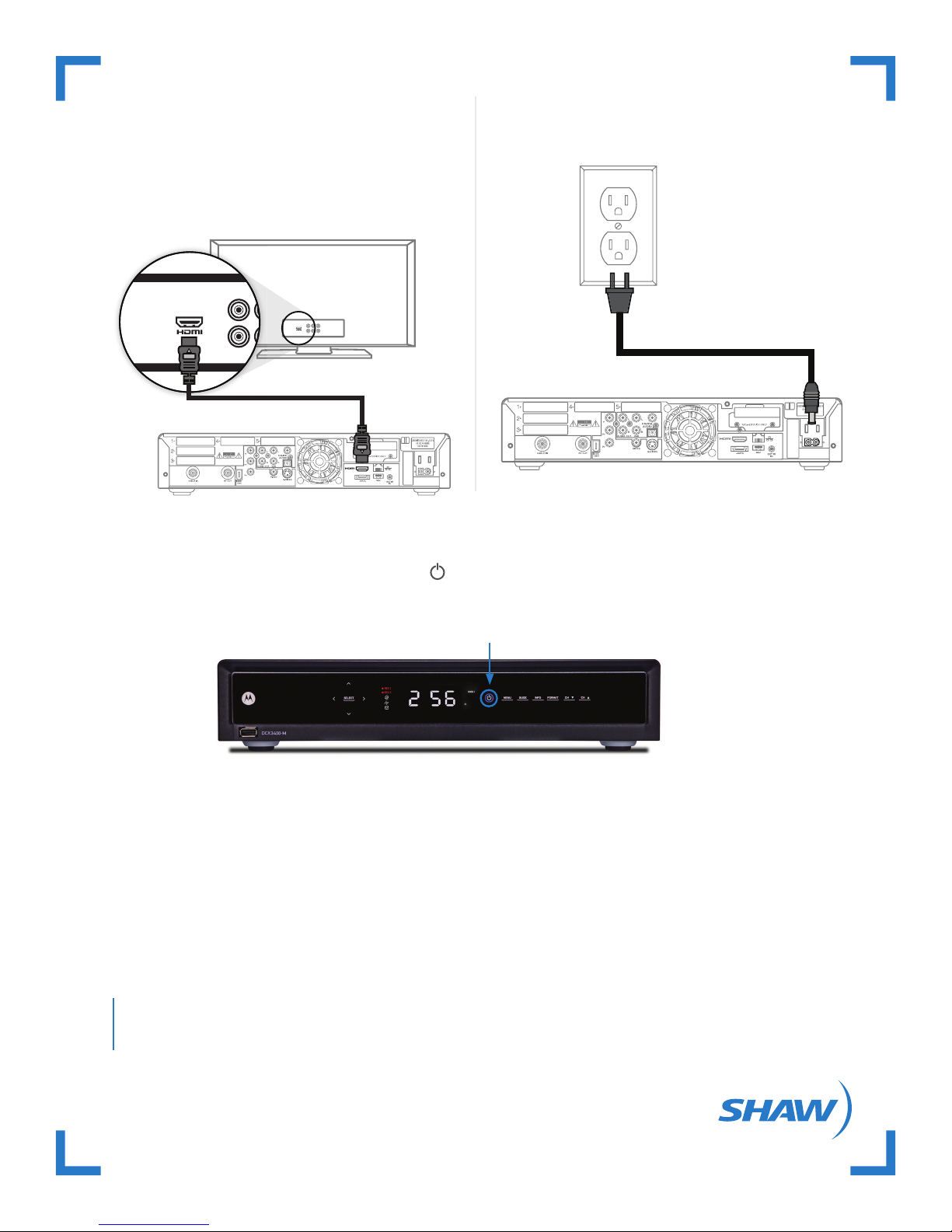

D. Connect the included HDMI cable (black cable with
at gold ends) from the HDPVR to your TV. Both video
and audio travel through HDMI cable. Note the input
you plug your HDMI cable into on the back of your TV
(i.e. HDMI 1, HDMI 2, etc.). For more advanced audio/
video setups, please refer to the manufacturers guide
included with your HDPVR.
E. Connect the included power adapter from the wall
power outlet to the HDPVR.
HDMI Out
HDMI In
Television
Power Cord
STEP 3 |NOW WE JUST NEED TO GET YOUR BOX ACTIVATED.
A. Turn on your HDPVR by pressing the power button on the front of the box. After a couple of seconds the blue
power indicator will light up to conrm the box has power. The display on the front of your HDPVR may display
multiple messages once it is powered on, this is normal.
B. Select the High Denition (HD) input (i.e. HDMI 1, HDMI 2, etc.) that you plugged the HDPVR into in step 2-D.
C. Activate your HDPVR online by visiting SHAW.CA/ACTIVATIONS. Make sure you have your serial number and
account number ready. If you do not have Internet access, or need additional help, please call us at 1.888.270.2433
D. The IR Receiver can be plugged in to EXT IR IN on the back of the HDPVR if you wish to place your HDPVR out of
sight (i.e. in a cabinet). The IR Receiver should be placed somewhere that your remote will have a clear line
of sight to.
E. To program your Shaw Universal Remote to work with your TV (adjust volume etc.), follow the “Quick Setup”
instructions on the reverse of the remote or visit www.urcsupport.com/shaw.
Note: Once your HDPVR is activated it may take a few minutes for your on-screen programming
guide to display and up to 30 minutes for program information to load.
Power Button
HDPVR_3400_INSTALL_SEPT12
