Motorola VIP 1910 User manual

VIP1910/VIP1920
INSTALLATION MANUAL

2
Declaration of Conformity
We Motorola, Inc.
Teknikringen 20
583 30 Linköping, Sweden
declare under our sole responsibility that the
Motorola VIP1910 and Motorola VIP1920
to which this declaration relates are in conformity with one or more of the
following standards:
EMC Standards
EN55022 EN55024 EN50083-2 CISPR-22 CISPR-24
Safety Standards
EN60065 EN60825 EN60950
IEC 60950 + A1: 1992 + A2: 1993 + A3: 1995 + A4: 1996
following the provisions of the Directive(s) of the Council of the European Union:
EMC Directive 89/336/EEC
Low Voltage Directive 73/23/EEC
WEEE Directive 2002/96/EC
Caring for the Environment by Recycling
When you see this symbol on a Motorola product, do not dispose of the
product with residential or commercial waste.
Recycling your Motorola Equipment
Please do not dispose of this product with your residential or commercial
waste. Some countries or regions, such as the European Union, have set up
systems to collect and recycle electrical and electronic waste items. Contact
your local authorities for information about practices established for your re-
gion. If collection systems are not available, call Motorola Customer Service
for assistance.

3
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
Important Safety Instructions
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched, particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
• Use only attachments and accessories specified by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as when the power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
CAUTION
RISK OF ELECTRIC SHOCK
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
CAUTION:

4
CAUTION
TO PREVENT ELECTRICAL SHOCK, DO NOT USE THIS PLUG WITH AN EXTENSION CORD,
RECEPTACLE, OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO
PREVENT BLADE EXPOSURE.
The lightning flash with arrowhead within an equilateral triangle is intended
to alert the user to the presence of uninsulated dangerous voltage within the
product’s enclosure that may be of sufficient magnitude to constitute a risk of
electric shock.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the product.
Repairs
If you find the unit in need of repair, contact your system operator for repair or replacement.
© 2006 Motorola, Inc. All rights reserved. No part of this publication may be reproduced in any
form or by any means or used to make any derivative work (such as translation, transforma-
tion, or adaptation) without written permission from Motorola, Inc.
MOTOROLA and the Stylized M logo are registered in the US Patent and Trademark Office. All
other product or service names are the property of their respective owners.
Motorola reserves the right to revise this publication and to make changes in content from
time to time without obligation on the part of Motorola to provide notification of such revision
or change. Motorola provides this guide without warranty of any kind, implied or expressed,
including, but not limited to, the implied warranties of merchantability and fitness for a particu-
lar purpose. Motorola may make improvements or changes in the product(s) described in this
manual at any time.

5
IP set-top box Remote control Ethernet SCART
with 2 AAA batteries cable cable

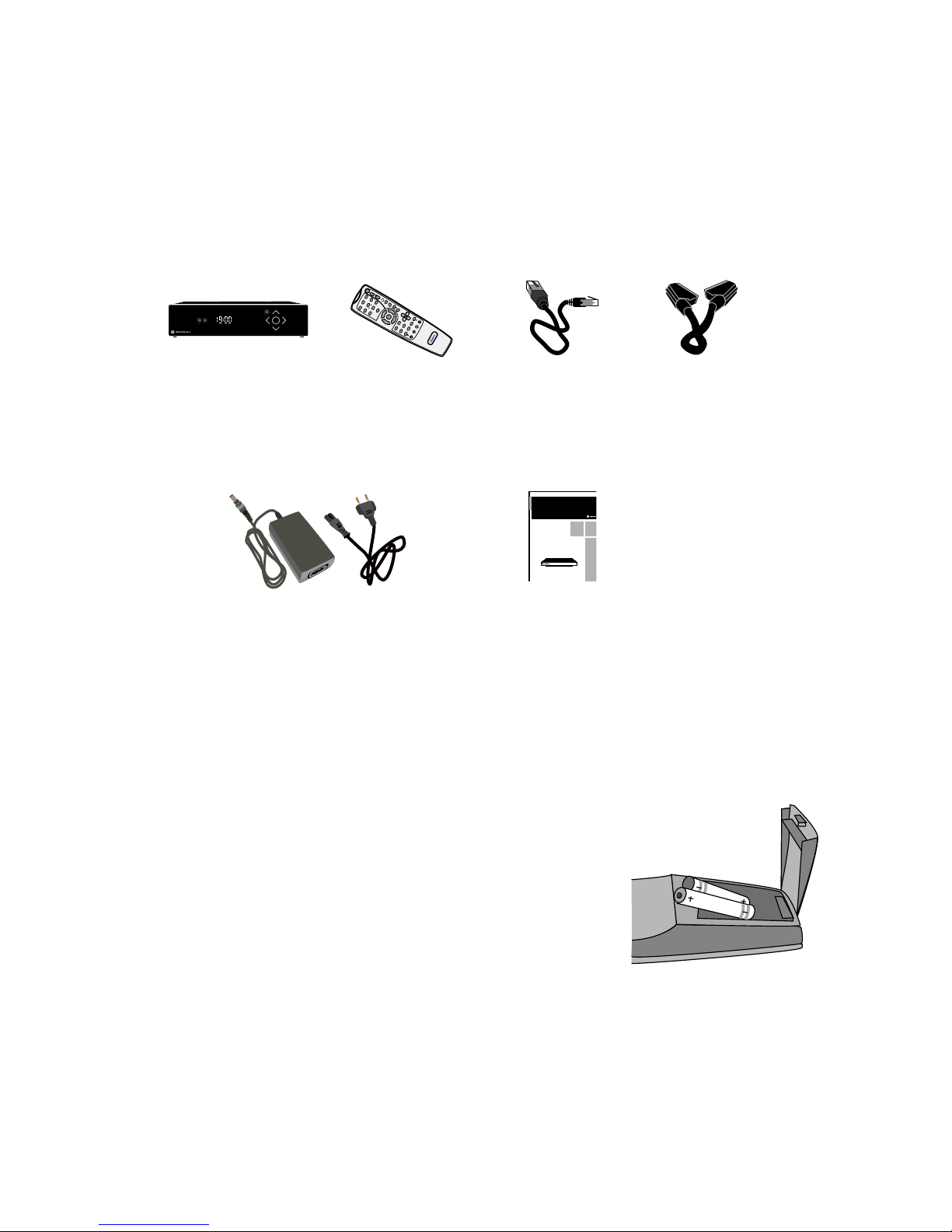

YOUR VIP1910/VIP1920 PACKAGE
Enclosed material
The following material should be present in your package.
PREPARINGTHE REMOTE CONTROL FOR USE
In order to prepare your remote control for use, insert
the batteries.
Carefully place the terminals (+ and -) of the batteries
as indicated on the back of the battery compartment.
AC adaptor Installation
guide
InstallationG uide
VIP1100
123
456
789
0
TEXT
MENU
INFO
BACK
STOP
OK
-
+



WWW
TV

6

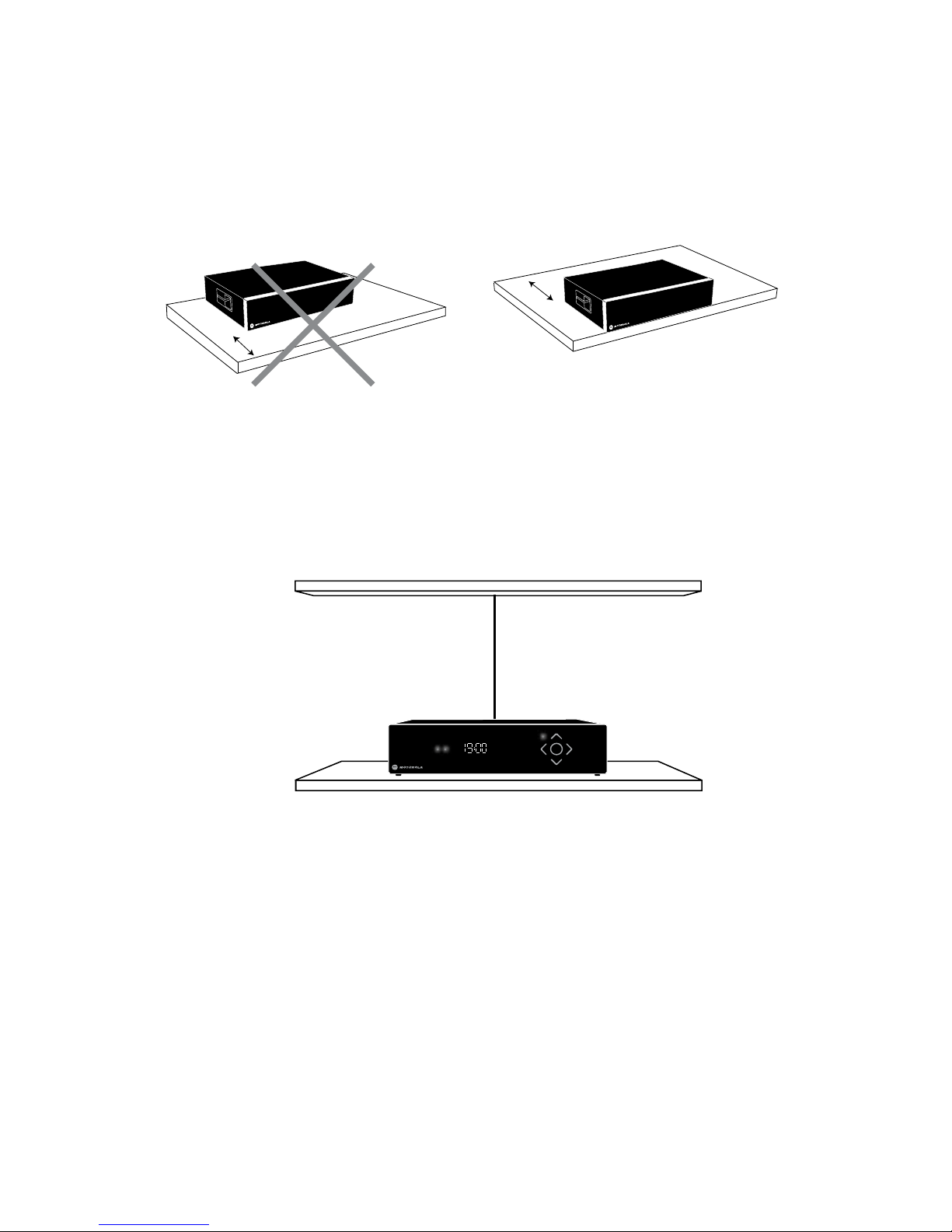

PLACEMENT
For best reception of the IR-signals from the remote control to the set-top
box, make sure to place the set-top box close to the edge of the shelf.
Do not place anything on top of the set-top box, instead leave a free space
of 20 cm above it for proper ventilation and cooling.
When using the remote control, point it to the IR-receiver in the center of
the front panel. Make sure that there is no obstacle between the remote
control and the set-top box, such as for example a table.
20 cm

7
+5.7V DC
0V
ETHERNET
POWER
USB
HDMI
S/PDIF
L
RPr
Pb
Y
VCR
TV
TOSLINK
RF - IN
RF - OU T

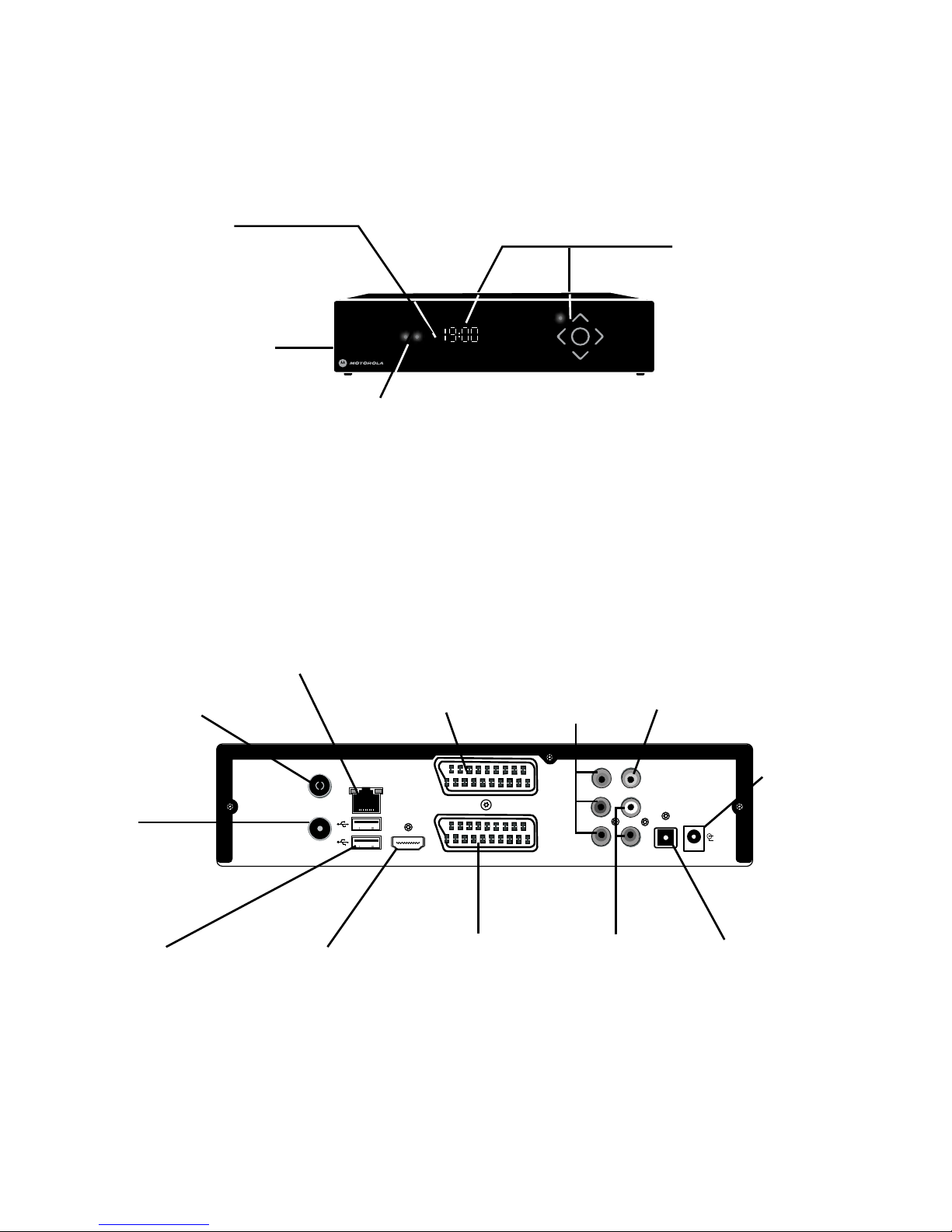

VIP1910/VIP1920 OVERVIEW
Front panel
Rear panel
IR receiver
Receives signals
from remote con-
trol and keyboard.
Smartcard slot
On the side panel
SCART (TV)
for connection to
TV set (analog
Standard Definition
video)
ETHERNET
for broadband
connection
Y, Pb and Pr
(Component video)
for connection to
TV set (analog High
Definition video)
HDMI
for connection
to TV set (digital
High Definition
video)
AUDIO L/R
for connection
to HiFI equipment
or TV set (analog
stereo audio)
RF IN
for connection to
digital terrestrial
television.
(VIP1920 model
only)
RF OUT
for connection to
older TV sets.
(VIP1920 model
only)
USB
for connetion to
external devices
that your operator
may suggest
SCART (VCR)
for connection to
additional equip-
ment such as
VCR or DVD
POWER
for connection
to power
outlet
S/PDIF
for connection
to digital audio
equipment
TOSLINK
for optical
connection to
digital audio
equipment
Display and
navigation buttons
Only available on
some models
LED
Green light - the set-top box is operational.
Red flash - the set-top box receives a signal from the
remote control or a keyboard.
Steady red light - the set-top box is in stand-by mode.

8

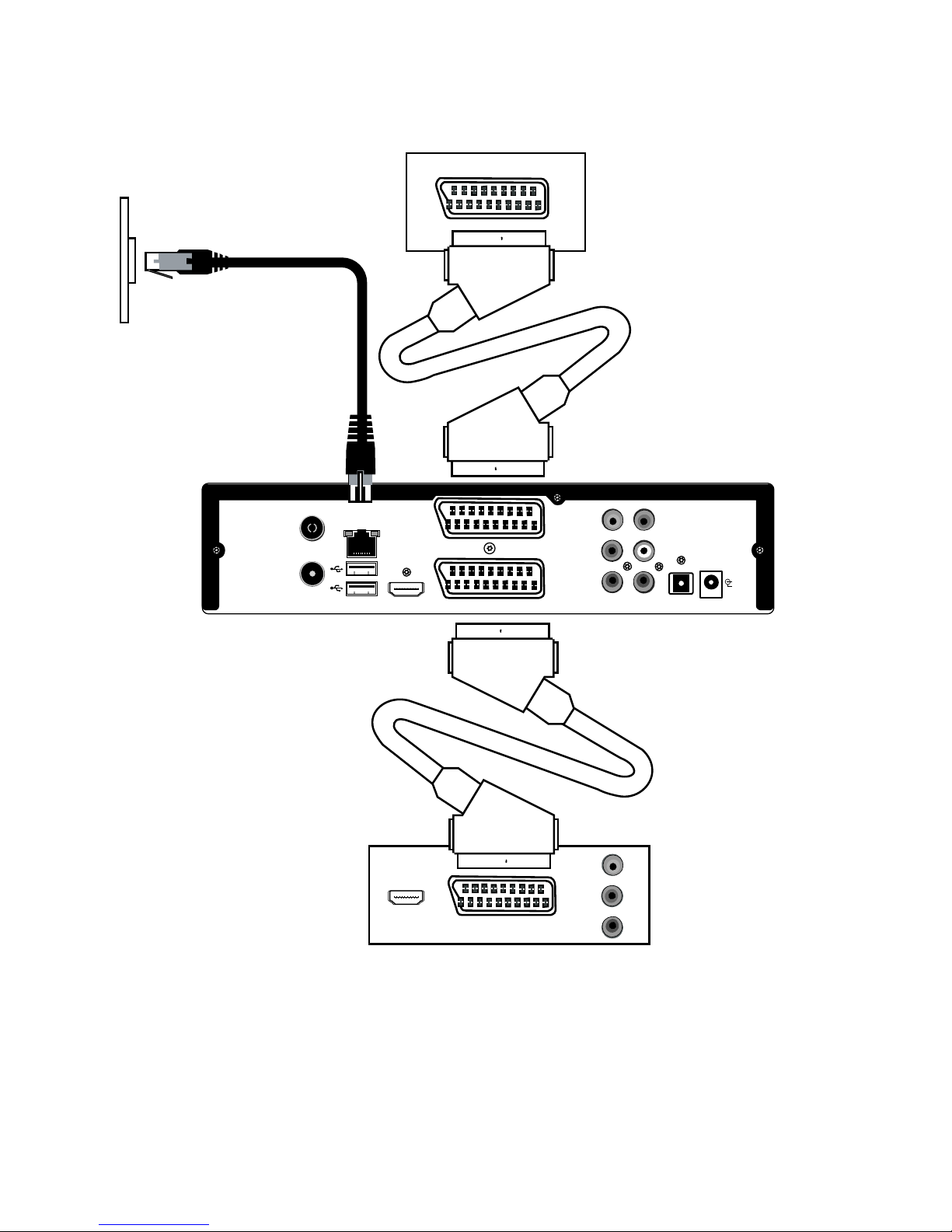

INSTALLING THE VIP1910/VIP1920
jConnecting to broadband
Connect one end of the Ethernet cable to the connector marked
ETHERNET on the rear panel of the set-top box and the other end to a hub
or the Ethernet wall connector provided by your broadband operator.
kConnecting to theTV set
Connect one end of the enclosed SCART cable to the SCART connector
marked TV on the set-top box and the other end to your TV set. Both analog
audio and standard definition video are sent to the TV set through this con-
nection.
lOptional: Connecting to a VCR or digital video recorder
You can record the program you are currently watching by connecting an
auxiliary device, such as a VCR or a digital video recorder, to the VIP1910/
VIP1920, provided that the program is copy-approved content.
Connect the set-top box to the auxiliary device using the SCART connector
marked “VCR”.
To record, change to the TV channel on the set-top box you wish to record
and start recording on the device.
To watch recorded video, first put the set-top box in stand-by mode, and
then press play on the auxiliary device.

9
+5.7V DC
0V
ETHERNET
POWER
USB
HDMI
S/PDIF
L
RPr
Pb
Y
VCR
TV
TOSLINK
RF - IN
RF - OU T
TV
Pr
Pb
Y
Broadband
wall outlet
or hub
j
k
Optional:
VCR
or
DVD recorder
l

10

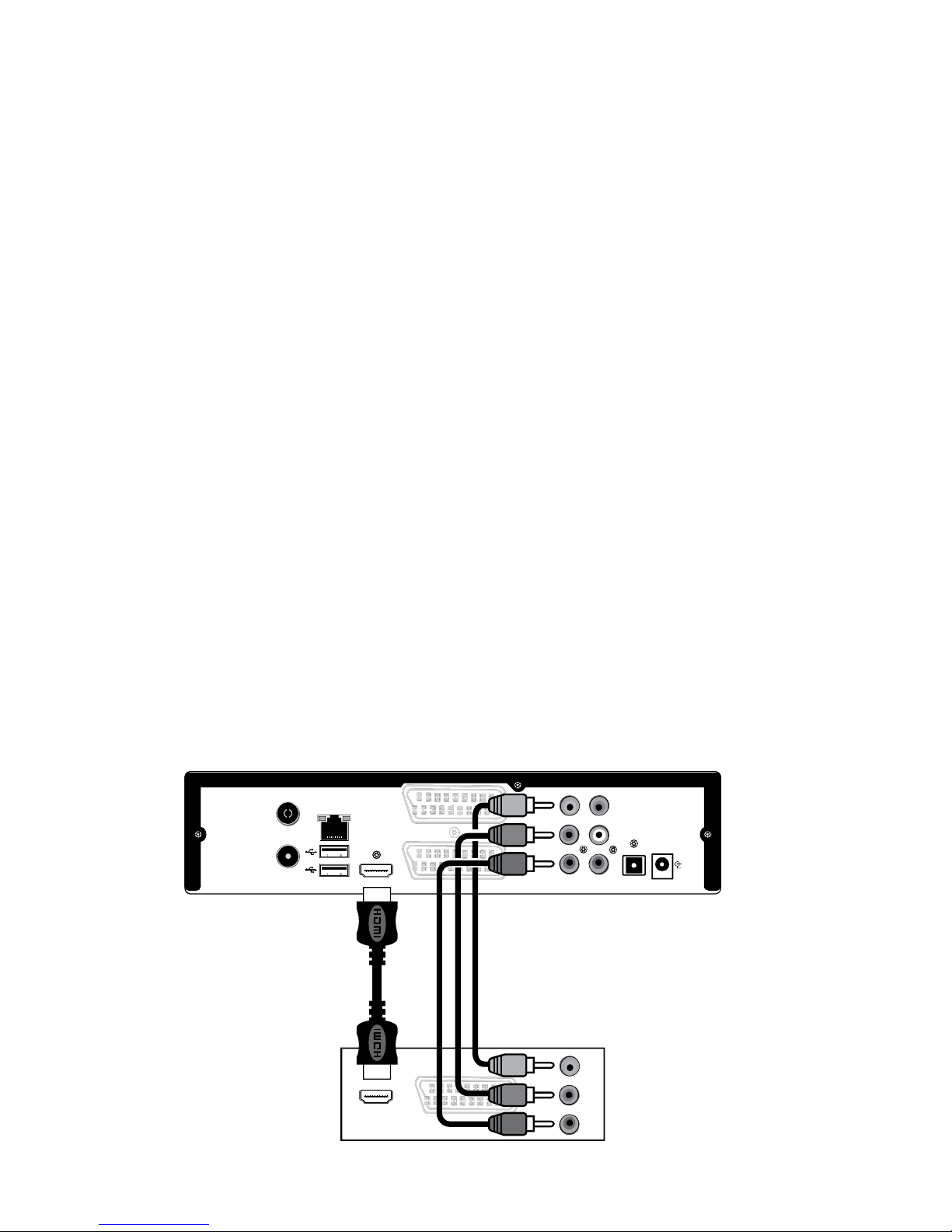

OPTIONAL: CONNECTING HIGH DEFINITION
VIDEO
If your TV set is HDTV compatible, you can connect the set-top box to the
TV set using the HDMI or the component connectors instead of the SCART
connector to receive and display HDTV, i.e. skip installation step kand
replace it with installation step mor n.
mUsing the HDMI connector
If your TV set has a HDMI connector, you can connect it to the HDMI
connector on the set-top box with a HDMI cable (not included) to receive
digital high definition video and digital audio.
nUsing the component connectors (YPbPr)
If your TV set has a component video connectors (YPbPr), you can connect
it to the component connectors on the set-top box with three RCA cables
(not included) to receive analog high definition video.
Make sure to match the connectors so that Y on the set-top box is
connected to Y on the TV set, Pb to Pb and Pr to Pr.
Note! The component connectors only send video signals. To receive audio
you also need to use one of the possible audio connections, i.e. step o, p
or q.
+5.7V DC
0V
ETHERNET
POWER
USB
HDMI
S/PDIF
L
RPr
Pb
Y
VCR
TV
TOSLINK
RF - IN
RF - OU T
TV
Pr
Pb
Y
m
n

11
OPTIONAL: CONNECTING TO EXTERNAL AUDIO
If you want to use an external source to play audio such as a stereo or
home cinema equipment or if you are using the component connectors to
connect the set-top box to the TV set, there are three possible methods of
connecting to audio.
oAnalog stereo: Using the Audio L/R connectors
Connect a dual RCA cable (not included) to the Audio L/R connectors on
the set-top box and connect the other ends to your stereo or TV set. Make
sure to match the connectors so that L on the set-top box (white) is con-
nected to L on the TV set or stereo and R is connected to R.
pDigital audio: Using the SPDIF connector
Connect a RCA cable (not included) to the SPDIF connector on the set-top
box and connect the other end to your stereo or TV set.
qDigital audio: Using the opticalToslink connector
Connect a Toslink cable (not included) to the Toslink connector on the set-
top box and connect the other end to your stereo or TV set.
+5.7V DC
0V
ETHERNET
POWER
USB
HDMI
S/PDIF
L
RPr
Pb
Y
VCR
TV
TOSLINK
RF - IN
RF - OU T
Stereo/
HiFi system
S/PDIF 1 S/PDIF 2
L
R
VCR
TV
Pr
Pb
Y
VCR
TV
VCR
TV
o
p
q

12
DIGITAL TERRESTRIALTV (VIP1920 MODEL ONLY)
rConnecting to DigitalTerrestrialTV
Connect one end of a RF cable (not included) to the RF-IN connector, and
the other end to the antenna outlet in your home. You will now be able to
receive TV channels broadcasted over the digital terrestrial network.
For information on how you proceed with the channel search and scanning,
please see separate instructions from your operator.
CONNECTING TO POWER
sConnecting to power
When all other cables are connected, connect the power cord to the power
connector on the set-top box and to mains power.
+5.7V DC
0V
ETHERNET
POWER
USB
HDMI
S/PDIF
L
RPr
Pb
Y
VCR
TV
TOSLINK
RF - IN
RF - OU T
s
Power
+5.7V DC
0V
ETHERNET
POWER
USB
HDMI
S/PDIF
L
RPr
Pb
Y
VCR
TV
TOSLINK
RF - IN
RF - OU T
r
Digital TV
outlet/Antenna

13

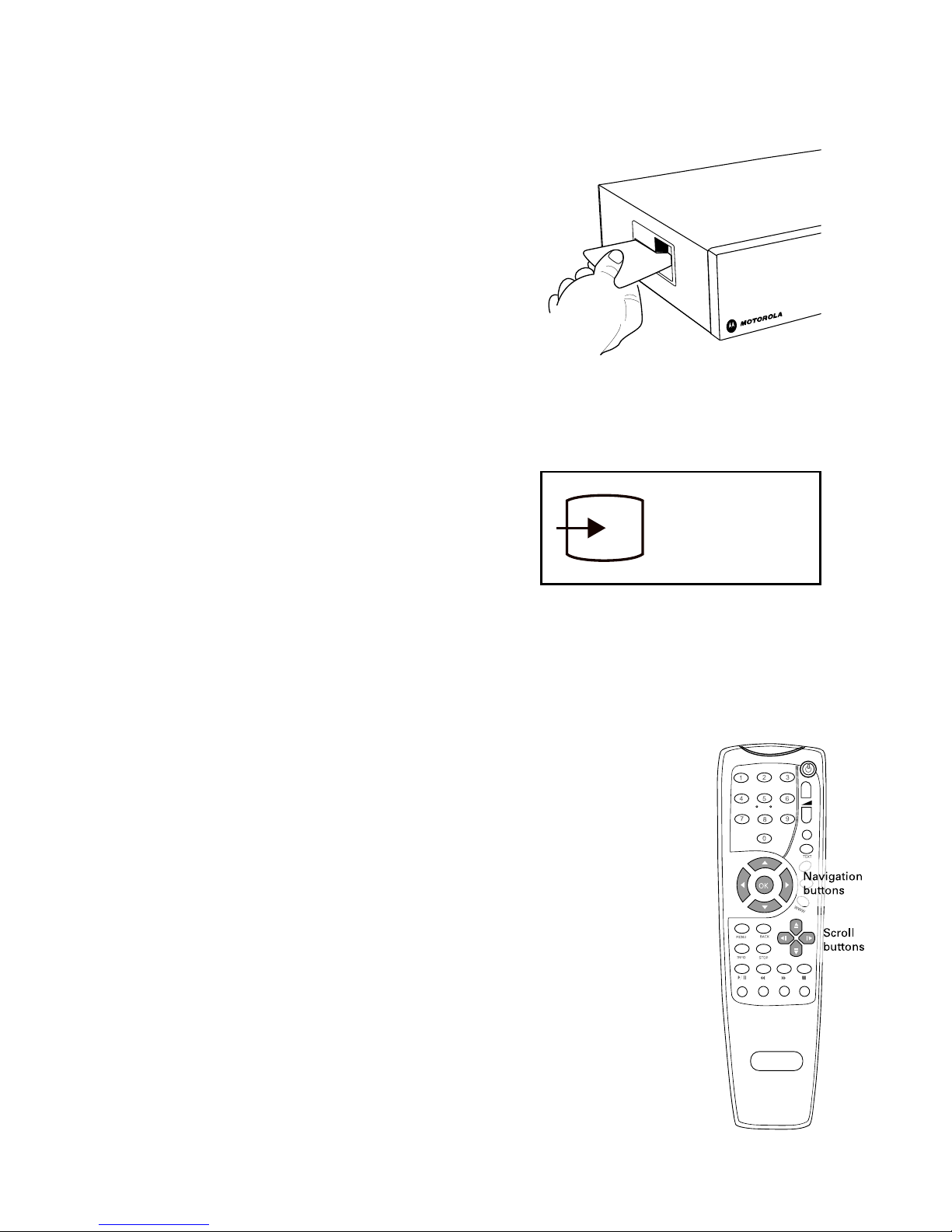

Optional: Inserting a smartcard
If you have received a smartcard to enable
access to the TV signals, insert it in the
smartcard slot on the side of the set-top
box. The chip on the smartcard should
be directed downwards and towards the
set-top box. The card is fully inserted when
only 5 mm of the card remains on the
outside.
Displaying picture
To display the signal from the set-top
box on the TV set, switch to an external
input. (On some TV sets this is done
automatically.) There is often a button on
the TV remote control for this purpose.
Otherwise, see your TV User’s Guide for
instructions.
NAVIGATING USING THE REMOTE CONTROL
The navigation buttons (four arrow buttons and a OK button)
are used to move around on Service portal pages and in
menus, and to select the highlighted alternative.
The navigation buttons are also used to navigate web pages,
as the arrows move the indicator between the different
links. Use the OK button to select links to be opened.
The scroll buttons are used when a web page contains more
information than can be displayed on a TV screen.
For information about the functionality of the other buttons
on the remote control, please see the information provided
by your IPTV provider.
An example of
what the input
symbol may look
like.

14
SETTING UP TV FORMAT
Immediately as the set-top box is starting, press and hold the MENU but-
ton to enter the TV setup menu.

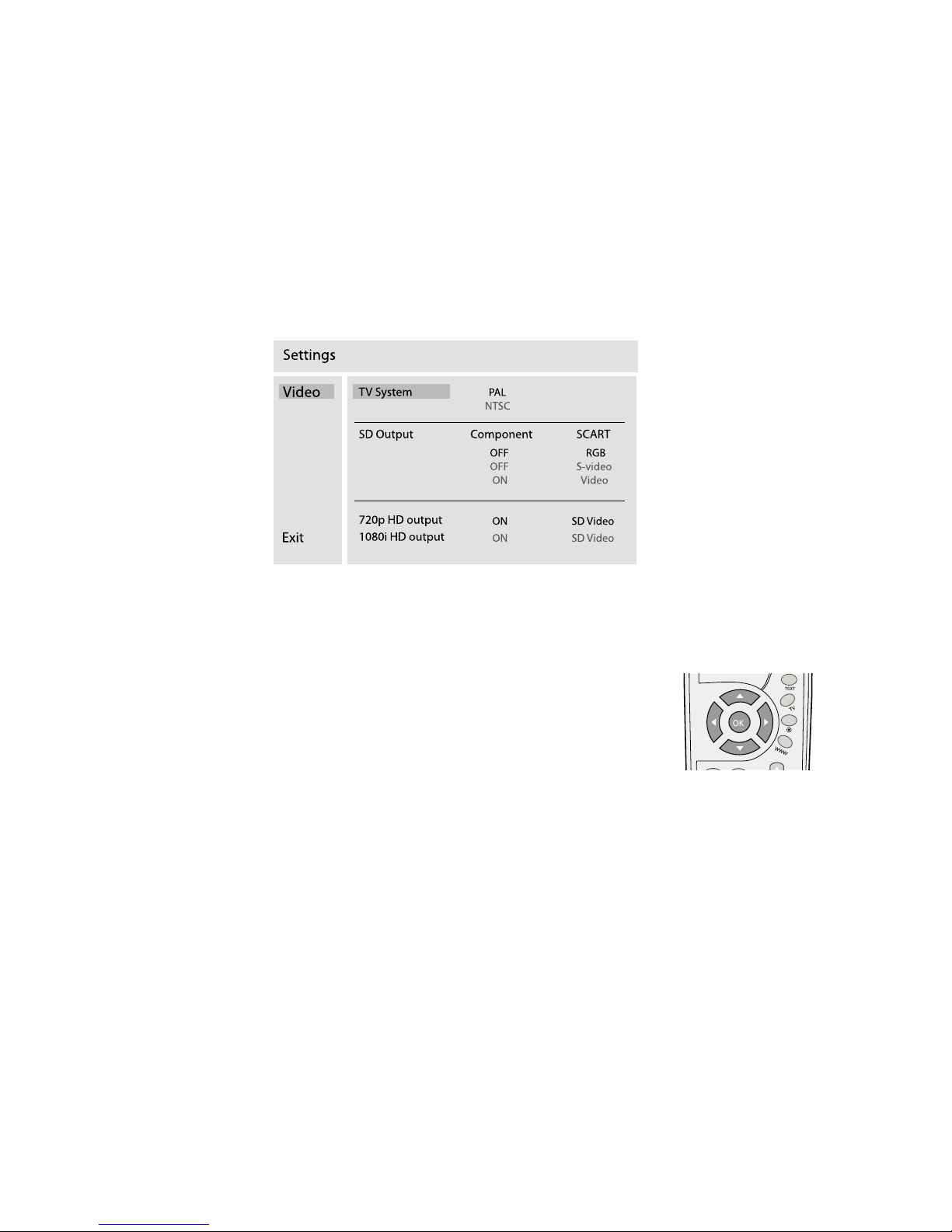

A screen similar to the one below should now appear. While you view the
set-top box configuration window, the LED on the front panel will toggle
between red and green light each second. The LED will also flicker red and
green for every button pressed on the remote control.
Selecting TV format
Start by selecting the the TV color system format that
is used. Press OK button enter the TV system settings,
and choose between PAL and NTSC with the up() and
down() buttons.
PAL is the standard primarily used in Europe, whereas
NTSC is primarily used in North America.
Press OK when your are standing on your chosen format to select it and go
back one step in the menu.
Selecting video format
Select video output format depending on the capabilities of your TV set and
what video connectors you are using.

15

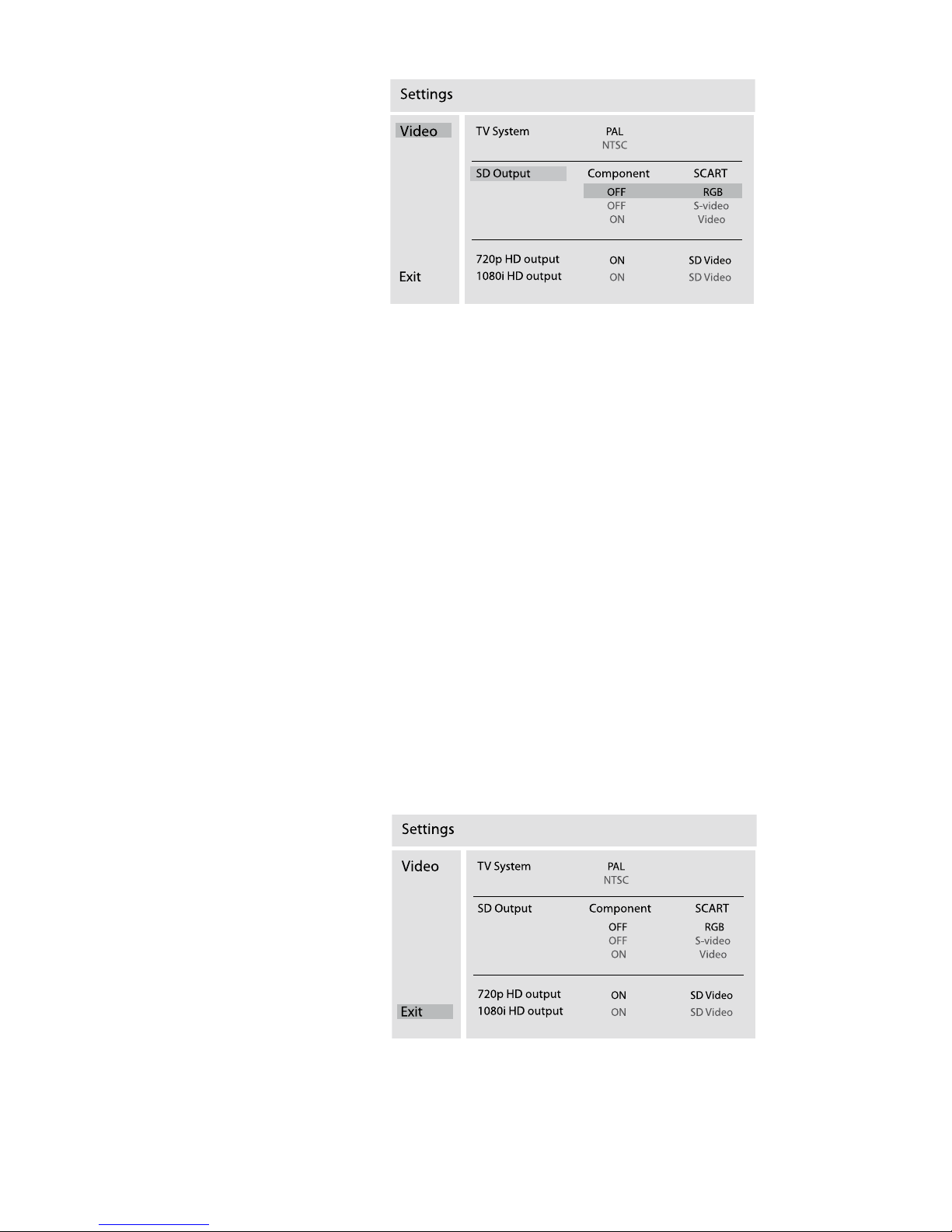

Standard DefinitionTV set
If your TV set is a standard
definition TV set (not HDTV
capable), press arrow down()
button to mark “SD Output”
and press OK.
If you are using the SCART
cable, select with arrow up()
and down() buttons which
video format you prefer.
Note: if you are using the SCART cable, you will always be able to see TV
and video in standard resolution, no matter what video format you have
chosen.
If you are using the component connectors on the set-top box with a stan-
dad definition TV set, select the third alternative - Component set to “ON”
Press OK when your are standing on your chosen format to select it and go
back one step in the menu.
High DefinitionTV set
If your TV set is HDTV enabled and it is connected to set-top box using the
HDMI or component video connectors on the set-top box, please refer to
your TV set specification to learn what resolution it supports. If you can’t
find the resolution, we recommend that you use the setting of 720p HD
output. Press OK on your selected choice.
Saving the settings/Exiting settings
Press BACK to go back to the
left main menu to exit the set-
tings window and press down
() and OK to select Exit
You will now be prompted if
you wish to save your settings.
Choose “Save and reboot” if
you wish to save your settings
or “Reboot without saving” if
you want to discard them.
The box will now be rebooted regardless if anything has been changed or
not.

|6117310232R1BE~
STARTING UP
When the set-top box is connected to the
TV set, Ethernet and power, you will see
an image similar to the one to the right on
the TV screen.
The set-top box is now connecting to the network and downloading the
software needed. Please wait until the loading is finished.
The dots in the middle of the screen will change color during the start up
of the system. From the start, all dots are dark grey. As the set-top box
searches for software or is processing downloaded software, one dot
at a time starts blinkning yellow. When software is being downloaded, a
progress bar of ten smaller dots appear and the main dot blinks green.
When one of the five steps in the start up process is completed, the dot
for it turns green. When all five main dots are green, the system is ready to
run. If the software in any of the steps could not be loaded, the dot turns
red and the remaining steps are cancelled.
TROUBLE SHOOTING
If you encounter any problems during start up, please note which of the
main dots (1 - 5) that has not turned green before you contact your support
personnel.
ON-LINE HELP
When your set-top box is up and running, please see the instructions
provided by your IPTV provider on how to reach the services and how to
access the User’s Guide.
Motorola, Inc.
Teknikringen 20
583 30 Linköping, Sweden
http://www.motorola.com
06/06
