GP644R User Guide
6866542D03-P

m
MOTOROLA and the Stylized M Logo are registered in the U.S. Patent and Trademark Office.
All other product or service names are the property of their respective owners.

1English
CONTENTS
CONTENTS
Computer Software Copyrights . . . . . . . 2
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Product Safety and RF Exposure
Compliance . . . . . . . . . . . . . . . . . . . . . . . . 3
radio overview . . . . . . . . . . . . . . . . . . . . . 4
Operation and Control Functions . . . . . . . . 5
Radio Controls . . . . . . . . . . . . . . . . . . . 5
Programmable Buttons . . . . . . . . . . . . . 6
Audio Signal Tones (Normal Tones). . . 7
Audio Signal Tones (Alternative). . . . . . 8
Getting Started . . . . . . . . . . . . . . . . . . . . . 9
Battery Information . . . . . . . . . . . . . . . . . . 9
Battery Care and Tips . . . . . . . . . . . . . 9
Battery Label . . . . . . . . . . . . . . . . . . . . 10
Recycling or Disposal of Batteries . . . 11
Charging the Battery . . . . . . . . . . . . . . 11
Accessory Information . . . . . . . . . . . . . . . 12
Attaching the Battery . . . . . . . . . . . . . 12
Removing the Battery . . . . . . . . . . . . . 12
Attaching the Antenna . . . . . . . . . . . . 13
Removing the Antenna . . . . . . . . . . . . 13
Draining Water from the IP67 GP644R
Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Radio Operation . . . . . . . . . . . . . . . . . . . .15
Turning The Radio On or Off . . . . . . . 15
Adjusting the Radio’s Volume. . . . . . . 15
Radio Registration . . . . . . . . . . . . . . . 15
Radio Calls . . . . . . . . . . . . . . . . . . . . . . . 16
Making a Call . . . . . . . . . . . . . . . . . . . 16
Contact List. . . . . . . . . . . . . . . . . . . . . 16
User Absent . . . . . . . . . . . . . . . . . . . . .16
Dedicated Calls . . . . . . . . . . . . . . . . . 17
Ending a Call . . . . . . . . . . . . . . . . . . . 17
Cancelling a Call . . . . . . . . . . . . . . . . .17
Receiving A Call . . . . . . . . . . . . . . . . .17
Missed Calls . . . . . . . . . . . . . . . . . . . . 18
Call Diversion . . . . . . . . . . . . . . . . . . . 19
Emergency Calls . . . . . . . . . . . . . . . . .20
Personality . . . . . . . . . . . . . . . . . . . . . . . 21
MPT . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Talkgroup . . . . . . . . . . . . . . . . . . . . . . .21
Fixed and Dynamic Groups . . . . . . . . 21
Conventional Mode . . . . . . . . . . . . . . .22
Personality Selection . . . . . . . . . . . . . 22

2
English
COMPUTER SOFTWARE
COPYRIGHTS
COMPUTER SOFTWARE
COPYRIGHTS
The Motorola products described in this
manual may include copyrighted Motorola
computer programs stored in semiconductor
memories or other media. Laws in the United
States and other countries preserve for
Motorola certain exclusive rights for
copyrighted computer programs, including, but
not limited to, the exclusive right to copy or
reproduce in any form the copyrighted
computer program. Accordingly, any
copyrighted Motorola computer programs
contained in the Motorola products described
in this manual may not be copied, reproduced,
modified, reverse-engineered, or distributed in
any manner without the express written
permission of Motorola.
Furthermore, the purchase of Motorola
products shall not be deemed to grant either
directly or by implication, estoppel, or
otherwise, any license under the copyrights,
patents or patent applications of Motorola,
except for the normal non-exclusive license to
use that arises by operation of law in the sale
of a product.

3English
SAFETY
SAFETY
PRODUCT SAFETY AND RF
EXPOSURE COMPLIANCE
ATTENTION!
This radio is restricted to occupational use only to
satisfy FCC RF energy exposure requirements.
Before using this product, read the RF energy
awareness information and operating instructions
in the Product Safety and RF Exposure booklet
enclosed with your radio (Motorola Publication part
number 6864117B25) to ensure compliance with
RF energy exposure limits.
For a list of Motorola-approved antennas,
batteries, and other accessories, visit the following
web site which lis ts approved accessorie s:
http://www.motorola.comgovernmentandenterprise
Before using this product, read
the operating instructions for safe
usage contained in the Product
Safety and RF Exposure booklet
enclosed with your radio.
!
C
a u t i o
n

4
English
RADIO OVERVIEW
RADIO OVERVIEW
This user guide covers the operation of the
GP644R Portable Radio.
Top Button
(programmable)
LED Indicator
Microphone
LCD Screen
Rotary Knob
On-Off / Volume
Knob
Push to Talk
Button (PTT)
Clear Button (Side
Button 1)
Side Button 2
(programmable)

5English
RADIO OVERVIEW
OPERATION AND CONTROL FUNCTIONS
Radio Controls
The numbers below refer to the illustrations on
the inside front cover.
1. Rotary Knob
Used as a multi-function scroll key and as a
channel selector in Conventional mode.
2. On-Off / Volume Knob
Used to turn the radio on or off, and to adjust
the radio’s volume.
3. Push to Talk Button (PTT)
Press and hold down this button to talk, release
it to listen.
4. Clear Button (Side Button 1)
Used to cancel a call, clear down at the end of
a call or Carrier Monitor (Conventional mode).
5. Side Button 2 (programmable)
Personality button, otherwise programmable.
6. Top Button (programmable)
Recommended as Emergency button.
7. LED Indicator
Green: Flashes to indicate NO SERVICE.
Red: On when radio is transmitting.
Red Flashing: When transmitting - battery low.
Green: On to indicate monitor mode active
(Conventional Mode).
Red Flashing: When receiving - channel busy
(Conventional Mode).
8. Microphone
9. Antenna
10. Accessory Connector
Connects headsets, remote speaker/micro-
phones and other accessories. Replace
attached dust cap when not in use.

6
English
RADIO OVERVIEW
Programmable Buttons
Several of your radio buttons can be
programmed (by your dealer) to activate the
radio features.
The following table shows the features that can
be assigned to the Top button and Side Button 2.
Feature Description
Dedicated Call/
Emergency
To make a call to a pre-determined number. This can be
an emergency number, effectively activating an
Emergency Call.
Personality
To select one of two radio personalities, (e.g. MPT
trunking system or conventional system).
This will normally be Side Button 2.
Missed Calls
To select the Missed Call list. This is a list of calls received
and stored by the radio when you were unable to take the
call.

7English
RADIO OVERVIEW
Audio Signal Tones (Normal Tones)
High pitched tone Low pitched tone
Tone Signal Description
Self test Power up.
Tone A Call clear indication.
Tone B
Traffic channel
allocated or PTT/ Mic/
Loudspeaker enabled.
Tone C1 System busy.
Tone C2 Unavailable.
Tone C3 Called party busy.
Tone C4 Invalid number.
Tone D
Call set up in progress,
wait for further
indications.
Tone F
Transaction
confirmed, called unit
will call back.
Tone G
Look at display for
call set up or
System information.
Tone H Invalid entry.
Key click
Confidence tone when
any key pressed or
speech limitation alert.
Fail tone
Hardware error or
Call timed out
(conventional mode).
Tone I Low battery warning.
Tone L1 1st Personality.
Tone L2 2nd Personality.
Tone M1 Talkgroup Confirmation.
Tone M2 Talkgroup unavailable.
Tone N1 Out of range alert.
Ring
tones
Standard/
English/French/
General
Incoming call, press
PTT, then wait for
further indications.
Tone Signal Description

8
English
RADIO OVERVIEW
Audio Signal Tones (Alternative)
High to Low pitched tones
Tone Signal Description
Self test Power up.
Tone A Call clear indication.
Tone B
Traffic channel
allocated or PTT/ Mic/
Loudspeaker enabled.
Tone C1 System busy.
Tone C2 Unavailable.
Tone C3 Called party busy.
Tone C4 Invalid number.
Tone D
Call set up in progress,
wait for further
indications.
Tone F
Transaction
confirmed, called unit
will call back.
Tone G
Look at display for
call set up or
System information.
Tone H Invalid entry.
Key click
Confidence tone when
any key pressed or
Speech limitation alert.
Fail tone
Hardware error or
Call timed out
(conventional mode).
Tone I Low battery warning.
Tone L1 1st Personality.
Tone L2 2nd Personality.
Tone M1 Talkgroup Confirmation.
Tone M2 Talkgroup unavailable.
Tone N1 Out of range alert.
Ring
tones
Standard/
English/French/
General
Incoming call, press
PTT, then wait for
further indications.
Tone Signal Description

9English
GETTING STARTED
GETTING STARTED
BATTERY INFORMATION
Battery Care and Tips
This product is powered by a nickel-metal-
hydride (NiMH) or lithium-ion rechargeable
battery.
The following battery tips will help you obtain the
highest performance and longest cycle life from
your Motorola rechargeable battery.
• Charge your new battery overnight (14-16 hrs)
before using it to obtain maximum battery
capacity and performance.
• Charging in non-Motorola equipment may lead
to battery damage and void the battery warranty.
• When charging a battery that is attached to the
radio, turn the radio off to ensure a full charge.
• The battery should be at about 25°C (room
temperature) whenever possible. Charging a
cold battery (below 10°C) may result in leakage
of electrolyte and ultimately, in failure of the
battery.
• Charging a hot battery (above 35°C) results in
reduced discharge capacity, affecting the
performance of the radio. Motorola rapid-rate
battery chargers contain a temperature-sensing
circuit to ensure that the battery is charged
within these temperature limits.
• New batteries can be stored up to two years
without significant cycle loss. Store new/unused
batteries in a cool dry area.
• Batteries which have been in storage should be
charged overnight.
• Do not return fully charged batteries to the
charger for an “extra boost”. This action will
significantly reduce cycle life.
• Do not leave your radio and battery in the
charger when not charging. Continuous charging
will shorten battery life. (Do not use your charger
as a radio stand.)
• For optimum battery life and operation use only
Motorola brand chargers. They were designed to
operate as an integrated energy system.

10
English
GETTING STARTED
Battery chargers will charge only the Motorola
authorized batteries listed below; other
batteries will not charge.
Note: IP67 water submersible radios MUST be
fitted with Motorola authorized IP67 batteries
to ensure proper functionality.
Warning:When charging a IP67 battery, make sure
that the IP67 battery (or IP67 battery with
IP67 radio) is not wet prior to placing in the
charger.
Warning:The battery charger is not waterproof. For
your safety and proper operation of the
charger, IP67 radios MUST be dry prior to
placing in the battery charger for charging.
Do NOT operate the charger, when your
hands are wet or while holding a wet IP67
radio. Do NOT touch the battery contacts,
when your hands are wet. Do NOT put the
battery into water, as this may cause the
IP67 metal contacts to corrode.
Battery Label
Table 1: IP54 Radio Battery List
Part No. Description
JMNN4023_R Slim Li-Ion, 1000 mAh, 7.5 V
Battery (IP54)
JMNN4024_R High Capacity Li-Ion, 1320
mAh, 7.5 V Battery (IP54)
JMNN4025_R NiMH, 700 mAh, 7.5 V FM
Approved Battery (IP54)
Do not use IP54 batteries with IP67 radio.
Table 2: IP67 Radio Battery List
Part No. Description
PMNN4073_ Li-Ion FM IP67 Standard
Battery
PMNN4074_ Li-Ion Non-FM IP67
Standard Battery
IP67

11 English
GETTING STARTED
Recycling or Disposal of Batteries
Motorola endorses and encourages the recycling
of all re-chargeable batteries. Contact your local
Motorola dealer for further information.
Charging the Battery
If a battery is new, or its charge level is very low,
indicated by high pitched warning tones, you will
need to charge the battery before you can use it
in your radio.
Note: Batteries are shipped uncharged from the
factory. New batteries could prematurely
indicate full charge, charge a new battery for
14-16 hrs before initial use.
1. Place the radio with the battery attached, or the
battery alone, in the charger.
2. The charger’s LED indicates the charging
progress.
Charger LED Status
Red Battery is charging
Green Battery is fully charged
Flashing Red * Battery is unchargeable
Flashing Yellow Charger is getting ready to charge
Flashing Green Battery is 90% charged
*Battery is damaged. Please contact your dealer.

12
English
GETTING STARTED
ACCESSORY INFORMATION
Attaching the Battery
1. Fit the extensions at the bottom of the battery
into the slots at the bottom of the radio’s body.
2. Press the top part of the battery towards the
radio until you hear a click.
Removing the Battery
1. Turn off the radio, if it is turned on.
2. Slide the battery latches, on both sides of the
battery, downwards.
3. Pull the top part of the battery away from the
radio’s body, and remove the battery.

13 English
GETTING STARTED
Attaching the Antenna
1. Align the threaded end of the antenna with the
radio’s antenna connector.
2. Turn the antenna clockwise to fasten it.
Removing the Antenna
1. Turn the antenna counterclockwise until you
can remove it.

14
English
GETTING STARTED

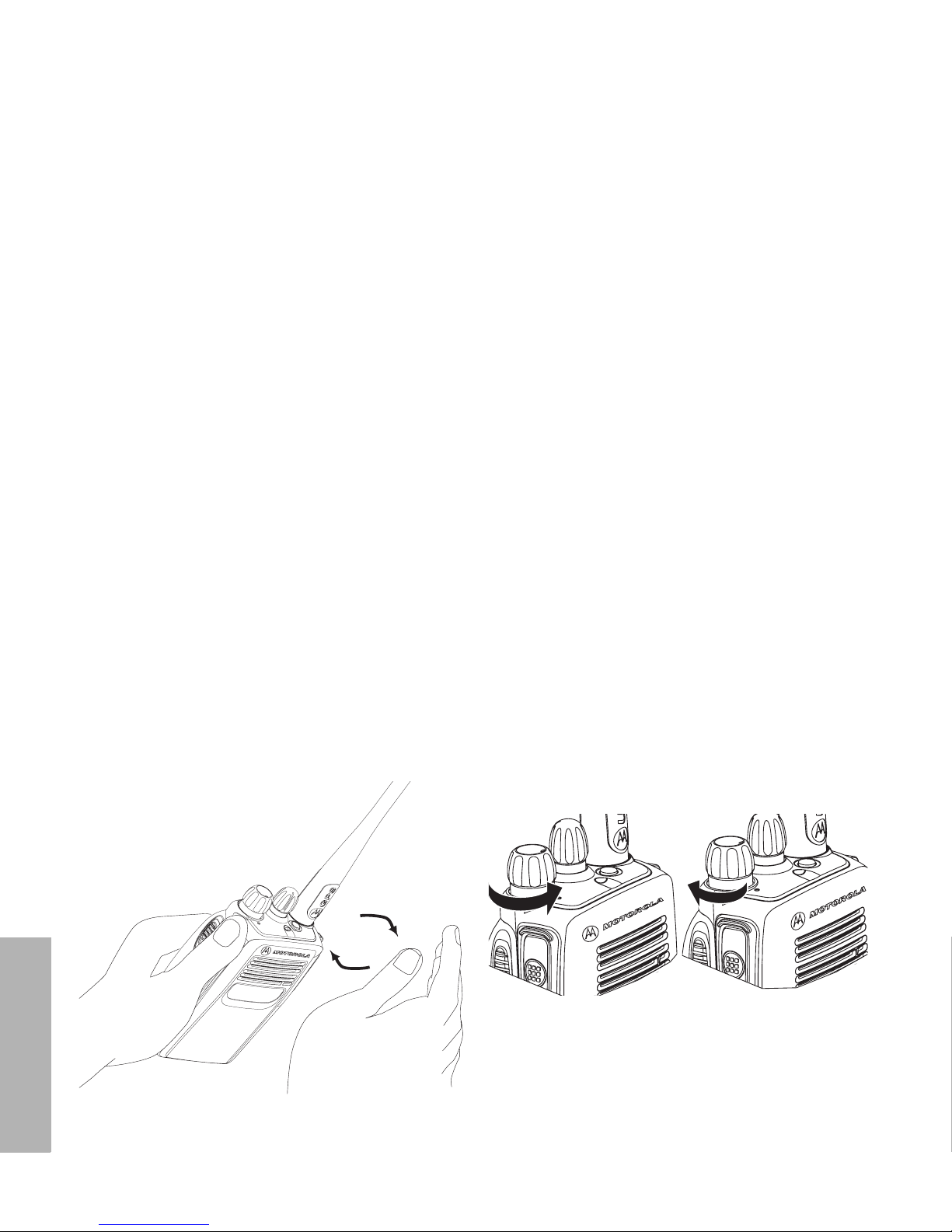

DRAINING WATER FROM THE IP67 GP644R
SPEAKER
Note: If you accidentally drop your GP644R Plus
radio into water, pick up the radio, and gently
tap the radio (as shown above) to remove
the water from the speaker grille and
microphone port before using it.
Note: Do not submerge your radio for any longer
than 30 minutes and no deeper than 1
metre. If these limits are exceeded then your
radio could be permanently damaged.
RADIO OPERATION
Turning The Radio On or Off
• To turn the radio on, turn the On-Off/Volume
Control knob clockwise.
• To turn the radio off, turn the On-Off/Volume
Control knob counterclockwise until you hear a
click.
Adjusting the Radio’s Volume
• Turn the On-Off/Volume Control knob to adjust
the volume level.
ON OFF

15 English
GETTING STARTED
Radio Registration
When turned on, the radio enters a self test routine,
the self test tone will sound and the LED will light
green. If the radio fails the self test a continuous low
tone will sound until the radio is turned off .
Note: If the radio fails the self test routine, consult
your dealer.
When the self test is complete the radio will scan for
system access with the LED on the top of the radio
flashing GREEN.
The radio personality will be the one last used prior
to the radio being switched off. To check the radio
personality or select a new personality refer to
PERSONALITY - Personality Selection.
When a system is acquired, the green LED will go
off.

16
English
RADIO CALLS
RADIO CALLS
Making a Call
The radio is capable of making a variety of
calls, including calls to individual radios,
groups of radios and calls to private and public
telephone systems.
Before you can make a call the radio must be
in the IDLE STATE, i.e. a personality has been
selected and no call is in progress.
The radio can make calls by using the Contact
List or Dedicated Calls.
Contact List
The contact list allows access to up to 16
preprogrammed numbers using the rotary
knob (1) when the radio is in the IDLE STATE.
Use the rotary knob to scroll through the list
and select the required number indicated on
base of the knob. Make the call by:
If a contact list number is selected but no call
request is sent, tone H sounds and the radio
reverts to the IDLE STATE.
User Absent
User Absent is a network feature which may be
enabled in your radio. With this feature
enabled, entry into the user absent mode is
automatic and any calls received when you are
away from your radio will be put into the
Missed Calls list automatically and the
message “Will call back” sent to the caller.
When you return to your radio, check whether
tone G sounds every 10 seconds which
indicates that your radio is in user absent
mode. Press any button to exit user absent
mode and return the radio to the idle state for
normal operation.
1PTT button to make radio call.
The radio sends out its ID and sounds a tone.
2After the call is set-up, press PTT button and
talk with your mouth 2.5-5 cm from
microphone. Release PTT to listen.
3When finished with call.
4CLEAR BUTTON Tone A sounds

17 English
RADIO CALLS
Dedicated Calls
Dedicated calls can be made from a
preprogrammed Dedicated Call button. Press
the Dedicated Call button to make a call to a
commonly used pre- programmed number.
The call may also be programmed as an
Emergency call, Priority call or Status call.
Ending a Call
Always end a call by:
Cancelling a Call
At any time while setting up a call it may be
cancelled by:
Receiving A Call
There are two types of systems on which the
radio may be used, Off Air Call Set Up (OACSU)
and Full Off Air Call Set Up (FOACSU).
If you are in doubt about which system you are
operating on, please consult your dealer.
Receiving a call on an OACSU system
When the radio is called:
1CLEAR BUTTON Tone A sounds
1CLEAR BUTTON Tone D or G
sounds
1Tone D sounds LED flashes red. Call is
being set up
2Tone B sounds LED extinguished

18
English
RADIO CALLS
Receiving a call on an FOACSU system
When the radio is called:
Note: The system may have a limited call time and
the call may be terminated automatically if
this call time is exceeded.
Missed Calls
If a call remains unanswered, the call will be
stored by the radio, provided that missed calls
has been programmed into your radio.
Only one call can be stored. If the same radio
calls more than once the call is only stored
once. When the call have been stored by the
radio, any further calls received overwrite the
stored call.
When a call has been stored by the radio, tone
Gwill sound every ten seconds.
The Missed Call List is entered directly by
pressing the Missed Call button when the radio
is in the IDLE STATE.
You can call back to the number in the Missed
Call list by:
1Ringing tone sounds LED flashes red.
2PTT button to accept call.
(Unless in talkgroup personality, when the
radio unmutes automatically for dynamic and
fixed group calls)
3Tone D sounds LED flashes red. Call is
being set up
4Tone B sounds LED extinguished
1PTT button to make the call.
The radio sends out its ID and sounds a tone.
2After the call is set-up, press PTT button and
talk with your mouth 2.5-5 cm from
microphone. Release PTT to listen.
3CLEAR BUTTON Tone A sounds
