GM1200E User Guide
English
Contents
GM1200E
User Guide
Contents Page:
General Information............................................ 2
Radio Controls ................................................... 2
Display Icons ...................................................... 3
Audio Tones........................................................ 3
Turning the Radio On/Off.................................... 4
Menu Selection................................................... 4
Making a Call ..................................................... 5
Shortform Dialling......................................... 5
Fixed and Dynamic Groups.......................... 6
Dedicated Calls............................................. 7
Manual Dialling............................................. 7
Last Number Redial...................................... 7
Keypad Edit................................................... 7
Ending a Call...................................................... 7
Cancelling a Call ................................................ 7
Receiving a Call ................................................ 8
Receiving a Call on an OACSU System....... 8
Receiving a Call on an FOACSU System..... 8
Page:
Call in Absence .............................................9
Call Diversion ..............................................10
External Alarm.............................................10
Special Calls .....................................................11
Short Data Messages (SDM) ......................11
Status Calls.................................................14
Emergency Calls.........................................15
Priority Calls................................................15
Broadcast Calls...........................................15
DTMF ..........................................................15
Personality Selection.........................................15
MPT Mode...................................................16
Conventional Mode......................................16
Call Progress.....................................................17
Call Progress-Sending ................................17
Call Progress-Receiving..............................18
Call Progress-Cancelling.............................18
Call Progress-Ending ..................................18
Safety Information.............................................19
Computer Software Copyrights.........................19

2
General Information
English
General Information/Radio Controls
General Information
This user guide covers the operation of the
GM1200E Mobile Radio used on MPT1327 Trunked
Radio Systems.Please note that the location of the
system may affect the types of call which are
available.The radio display prompts are available in
various languages.Please consult your dealer for
further information.
WARNING: When installing or removing the
mobile radio from the vehicle it
must be switched off.
Radio Controls
Numbers refer to the illustrations on inside covers.
1. Radio ON/OFF .
2. Microphone connector .
When installing the microphone, turn the radio off
and on again.
3. Volume Up/Down Control .
4. LED Indicators :
Red: On when radio is transmitting
Green: Flashes to indicate NO SERVICE.
5. External Alarm Button .
Switches external alarm feature On/Off.
6. Base Call Button .
For making calls to a commonly used, pre-
programmed number.
7. LCD Display .
8. Up/Down Scroll Buttons .
Shortform Dial/Call in Absence/SDM Selector
or
Channel Selector (conventional mode).
9. Menu Button .
10. Clear/Edit
or
Monitor Button
(conventional mode).
11. Numeric Keypad .
0 - 9 - for entering digits/selecting dedicated calls.
- for sending a call.
- call modifier for priority, broadcast,
emergency and status calls.
12. Volume Level Indicators .
13. Left/Right Scroll Buttons .
Used to view data message text in the SDM stack.
Left = scroll up SDM, Right = scroll down SDM
14. Personality Selection Button .
15. Status Button for initiating a status call request.
16. Data Button for interrogating the data message
stack or initiating a short data call request.
17. Call in Absence Button for interrogating the call
in absence stack.
18. Microphone PTT (PushToTalk) .
#
✱

3
Display Icons
English
Display Icons
Scanning.
Registered /
Carrier Monitor selected (Conventional mode).
Loudspeaker Open.
Call present in Call in Absence Stack.
External Alarm selected.
Call in Progress.
Data message(s) in the Data Message stack.
Signal Strength indicator.
AudioTones
High pitched tone Low pitched tone
Self test: Sounded on power up.
Tone A: Call clear indication.
Tone B: Traffic channel allocated
and PTT/Mic/
Loudspeaker enabled.
Tone C1: System busy.
Tone C2: Unavailable.
Tone C3: Called party busy.
Tone C4: Invalid number.
Tone D: Call set up in progress,
wait for further
indications.
Tone E: Incoming call, press PTT,
then wait for further
indications.
Tone F: Transaction confirmed,
called unit will call
back.
Tone G: Look at display for call set
up or system information.
Tone H: Invalid entry.
Key click: Confidence tone when
any key pressed/speech
limitation warning.
Fail tone: Hardware error/call timed
out (conventional mode).
Display Icons/Audio Tones

4
Turning the Radio ON/OFF
English
Turning the Radio ON/OFF
To switch the radio on, press and release the ON/
OFF switch (1).The radio performs a self test and a
high-pitched start-up test tone will be heard.The
LED will light green.If the radio fails the self test a
continuous low tone will sound and the display will
show the type of fault:
until the radio is turned off by pressing the ON/OFF
switch (1) again.
Note:
If the radio fails the self test routine,
consult your dealer.
When the self test is complete the radio will display:
where "213" is the identity of the radio.
After this text has been displayed, the radio will scan
for system access with the LED flashing GREEN
and the scanning icon lit.
When a system is acquired, the green LED will go
off and the scanning icon will be replaced by the
registered icon .
Use theVOLUME control (3) to adjust the volume to
a comfortable listening level, indicated by the
volume bar below the display.
Menu Selection
There are two levels of menu, Level 1 allows you to
choose between two options, User Absent and
Diagnostics, and Level 2 which allows selection/de-
selection (on/off) of the chosen option.
To enter the menu mode Level 1, press the MENU
button (9).The display shows:
Use the up/down scroll keys (8) to toggle between
options indicated by the‘>’icon on the left of the
display.
Press the menu button (9) to select the option
and enter menu Level 2.The display shows:
SYNTH. OUT OF LOCK
RADIO FAILURE
FREETEXT
213
Menu
>USER ABSENT
DIAGNOSTICS
Menu
>USER ABSENT ON
USER ABSENT OFF
Turning the Radio ON/OFF/Menu Selection

5
Making a Call
English
Use the up/down scroll keys (8) to select/de-select
(switch on/off) the option indicated by the‘>’icon on
the left of the display.Press the menu button (9)
to confirm selection.
Press the Clear/Edit button (10) to return to
menu Level 1 and press again to exit the Menu
mode and return the radio to the IDLE STATE.
The options available for selection via the Menu
mode are User Absent and Diagnostics.
User Absent is used to inform the caller that you are
unavailable to take the call. Missed calls are
normally placed on the Call in Absence stack.The
User Absent option is also programmable via the
DPS.Whether selected manually or automatically
the radio operation is identical in both cases.
However if selected manually via the menu you must
switch the feature off when normal radio operation is
required, otherwise all incoming calls will be placed
on the stack.
The Diagnostics option is for use by technicians and
need not be entered in normal radio operation.
Making a Call
The radio is capable of making a variety of calls,
including calls to individual radios, groups of radios
and calls to private and public telephone systems.
Before you can make a call the radio must be in the
IDLE STATE, i.e.a personality has been selected
and no call is in progress (see " Personality
Selection "). In the IDLE STATE the radio displays:
The radio can make calls by using Shortform
Dialling , Dedicated Calls or Manual Dialling .
Shortform Dialling
When the radio is in the IDLE STATE shortform
dialling may be used.This allows quick access to up
to 40 preprogrammed numbers of up to 20 digits
using the Up/Down Scroll buttons (8).
Depending on the way your radio is programmed,
the radio will display the alphanumeric alias, the
number to be dialled or the position in the list.
One of four tones may be associated with
preprogrammed numbers, which will sound when
the radio receives a call.
Menu
C
FREETEXT
213
Making a Call/Shortform Dialling

6
Making a Call
English
For example:
or
or
where XX indicates position in Fixed Group list.
or
where BA SERVICE is a Dynamic Group alpha alias.
or
where XX indicates position in Dynamic Group list.
The call request is sent either by pressing the PTT
key (18) or .
If the Up/Down Scroll buttons (8) are operated for
short form dialling, but no call request is sent, the
display will be held until tone H sounds.The display
will then revert to the IDLE STATE.
When the shortform dial number is displayed, it may
be edited as described in the Keypad Edit section.
Fixed and Dynamic Groups
A fixed group is a group of users, the address
(number) of which is pre-programmed into your
radio by your dealer.
A dynamic group is a group of users, the address
(number) of which is sent to your radio ‘over air’at
any time via the system controller.Therefore at any
time you may become a member of a dynamic
group, able to receive calls and (depending on how
your radio is programmed) send calls to that group.
Incoming calls to fixed and dynamic group numbers
are detailed in Receiving a Call and displayed
under Call Progress - Receiving .
To make an outgoing call to a fixed or dynamic
group address, use the Up/Down Scroll buttons (8)
when the radio is in the IDLE STATE as detailed in
Shortform Dialling .
JOHN SMITH
213
213
NAME UNKNOWN
GROUP XX
NUMBER
BA SERVICE
DYNAMIC XX
DYNAMIC XX
NAME UNKNOWN
#
Making a Call/Fixed and Dynamic Groups

7
Making a Call
English
Dedicated Calls
Dedicated calls can be made from either the Base
Call button or from the keypad.Press the Base Call
button to make a call to the most commonly used
pre-programmed number or hold down one of the
keypad keys (0 to 9) for a preset period to make a
call to one of ten (1 of 10) preprogrammed numbers
which are the first ten entries (1 to 9, 0=10) in the
short form dial list.The selected number will be
displayed and the conversation can go ahead.
Manual Dialling
To make a call enter the telephone number, the
identity of the radio or group of radios via the keypad
(11), e.g."213" followed by or PTT:
Last Number Redial
The last number dialled by the radio is stored in the
memory of the radio.For status calls only the called
number will be stored, not the status message.
Partially entered numbers are also stored.
The stored number can be displayed when the radio
is in the IDLE STATE.This number may be recalled
by pressing the PTT key (18).The number may also
be edited, see Keypad Edit .
Keypad Edit
Before a call is initiated the last digit may be deleted
by pressing the clear/edit button (10). Press the
button again to delete the next digit and enter the
correct digit. If the clear/edit button (10) is
pressed during a call, the call will be ended.
Ending a Call
A call should always be ended by pressing the clear
button (10), by replacing the microphone, or by
dialling . See " Call Progress - Ending a
Call" .
Cancelling a Call
At any time while setting up a call it may be
cancelled by pressing the clear button (10) or by
dialling . See "
Call Progress - Cancelling a
Call
".
#
213
NAME UNKNOWN
C
C
C
✱#
C
✱#
Making a Call/Ending a Call/Cancelling a Call

8
Receiving a Call
English
Receiving a Call
There are two types of systems on which the radio
may be used, Off Air Call Set Up (OACSU) and
Full Off Air Call Set Up (FOACSU) .
If you are in doubt about which system you are
operating on, consult your dealer.
Receiving a call on an Off Air Call Set Up
(OACSU) System
When the radio is called, tone D will sound and the
display will change to:
This will be followed by tone B and the display will
change to indicate the type of call being received.
See " Call Progress - Receiving ".
Receiving a call on a Full Off Air Call Set Up
(FOACSU) System
When the radio is called, tone E will sound and the
display will change to:
Press either the PTT or key or lift the
microphone to accept the call.Tone D will sound
until a traffic channel is allocated then tone B will
sound and the display will change to indicate the
type of call being received. See " Call Progress -
Receiving ".
Note:
The system may have a limited call time and the
call may be terminated automatically if this call
time is exceeded.
or
ALERTED
213
if the number is stored in the shortform dial list
ALERTED
ALIAS
or
ALERTED
213
if the number is stored in the shortform dial list
ALERTED
ALIAS
#
Receiving a Call

9
Receiving a Call
English
Call in Absence
If a call is not answered within a preprogrammed
amount of time, the call will be stored by the radio.
Up to ten calls can be stored.If the same radio calls
more than once the call is only stored once.When
ten calls have been stored by the radio, the eleventh
call received overwrites the first.
When a call has been stored by the radio, tone G
will sound every ten seconds and the display will
show the identity of the calling party.The call in
absence icon will be lit.If no calls are answered,
the display will show the number (NN) of calls which
are stored in the stack:
To view the calls in the stack, press the call in
absence button (17).The call in absence
display will look like this:
where "01" indicates the position in the stack, “03”
indicates the number of calls in the stack and "213"
is the number or Alias the name of the calling party.
For status calls the call in absence display will look
like this:
where "02" indicates the position in the stack, “03”
indicates the number of calls in the stack and "213" is
the number, or Alias the name of the calling party. In
addition, the status number (XX) or message
(MMMM) is displayed.
The most recent call stored by the radio will be on
position "01".Operate the Up/Down Scroll buttons (8)
to display any other calls in the stack.
Press either the PTT or key to make a call.On a
successful call set-up, the entry is automatically
deleted from the stack.Unanswered calls may be
deleted from the stack at any time by pressing and
holding the clear button (10) for a pre-defined
period.
To exit the Call in Absence stack, press the call in
absence button (17).
CALLS IN STACK NN
01 VOICE 03
ALIAS/213
02 STATUS XX 03
ALIAS/213
02 MMMMMMMMMMMMMM 03
ALIAS/213
or
if the associated text message is stored in the radio
#
C
Receiving a Call/Call in Absence

10
Receiving a Call
English
Note: The calls in the stack are not deleted when the
radio is turned off. It is not possible to call back
status calls.
Call Diversion
Incoming speech calls or status calls can be
diverted either from your radio (initiated by pressing
) or from another radio (initiated by
pressing ).
When the radio is in the IDLE STATE, call diversion
can be initiated by pressing:
(or ) to divert all calls
(or ) to divert speech calls only
(or ) to divert status calls only
followed by the ID of the receiving radio and .
Examples:
Pressing
will divert all calls from your radio to the radio with
the ID "234".
Pressing
will redirect all calls to the radio with the ID "234" to
the radio with the ID "432".
If a call is made to a radio whose calls are currently
being diverted, tone D will sound and the display of
the calling radio will change to:
A call will then automatically be set up to the radio
which is receiving the diverted calls.
Cancel call diversion by pressing
followed by or , if necessary or
followed by or , if necessary, and
"ID".
Press to cancel calls redirected to your
radio.
External Alarm
The external alarm feature activates the vehicle
horn and/or lights to inform you when a call is being
received.The feature can be programmed for all
incoming calls or incoming individual calls only.
Press the external alarm button (5) to turn the
external alarm feature on and the icon will be lit.
Press the external alarm button again to turn it off.
Please contact your dealer for further information.
✱4 1
✱4 4
✱4 1 4 ✱
✱4 1 4 1 ✱
✱4 1 4 2 ✱
#
✱4 1 ✱234#
✱4 4 ✱234✱4 3 2 #
DIVERTING TO
ALIAS/NUMBER
# 4 1 1 2
# 4 4 1 2
✱
# 4 5
Receiving a Call/Call Diversion/External Alarm

11
Special Calls
English
Special Calls
Short Data Messages (SDM)
Short data messages may be set up, sent and
received using the radio keypad and controls.
Outgoing data messages from the keypad are
limited to numeric data only in any combination of
up to 20 characters (which include address
information and data selection characters).
Receiving Short Data Messages
On receiving an SDM, tone G sounds and the
display shows:
The data message icon is lit whenever SDMs
are in the data message stack, i.e. displayable,
unless the message display has been turned off
(refer to Displaying Incoming Data).
Displaying Incoming Data
The short data message display can be switched
ON and OFF using the keypad controls as follows:
♦Enter 23000 to turn OFF the incoming
short data display.
♦Enter 23001 to turn ON the incoming
short data display.
The SDM display defaults to ON, however the option
setting is retained when the radio is switched off.
Note: This feature is important if the radio is being used
with external data terminal equipment (DTE), to
prevent loss of data messages.
With the SDM display set to ON, on reception of a
valid SDM, either it can be displayed by the radio
and/or passed to external DTE. In either case, the
SDM is received and accepted (acknowledged) by
the radio.Only if the SDM is of an un-displayable
format AND the external DTE is disconnected, is the
SDM rejected by the radio.
With the SDM display set to OFF, on reception of a
valid SDM, it will not be added to the data message
stack for display, but passed to the external DTE,
which if accepted will be acknowledged by the radio.
However, if the DTE is not present e.g.
disconnected, the SDM is rejected by the radio. In
this case the SDM will not be accepted
(acknowledged) by the radio and will not be lost.
DATA RECEIVED
ALIAS/NUMBER
✱#
✱#
Special Calls/Short Data Messages

12
Special Calls
English
Summary
If using the radio only, the SDM display should be
set to ON.
If using the radio with external DTE which is
permanently connected in normal use, the SDM
display should be set to ON.
If using the radio with external DTE which may be
disconnected in normal use, then set the display to
OFF prior to disconnecting the external DTE to
avoid SDM loss.
Storing SDMs
Incoming SDMs are stored on receipt in the Short
Data Message stack.Up to ten SDMs can be stored
by the radio.The data message icon is lit whenever
SDMs are in the stack.
SDMs are not stored when the radio is switched
OFF.
Interrogating the SDM stack
To interrogate the SDM stack, with the radio in the
idle state, press the Data button (16) to enter
the SDM stack interrogate mode.
The first entry in the stack will be displayed as
shown in the following example:
where XX indicates the position in the stack, NN is
the total number of messages in the stack and Alias/
213 is the number of the calling party.
To scroll through the other entries in the stack use
the Up/Down Scroll buttons (8).
To exit the data message stack interrogate mode
press the Data button (16).
Note: You must exit the data message stack interrogate
mode to put the radio in the idle state in order to
make other calls.
Displaying/Scrolling SDMs
To view the entire data message corresponding to the
the currently selected stack entry, press either the
Left or Right Scroll button (13).The display shows:
Use the Left Scroll button to scroll upwards through the
message and the Right Scroll button to scroll
downwards.The display shows as many complete words
as the display allows, on a 3-line basis.Further lines are
D
XX DATA NN
ALIAS/213
D
MMMMMMMMMMMMMMMMMMMMMMMMMMMMMM
MMMMMMMMMMMMMMMMMMMMMMMMMMMMMM
MMMMMMMMMMMMMMMMMMMMMMMMMMMMMM
Special Calls/Short Data Messages

13
Special Calls
English
displayed using the Left/Right Scroll buttons until the
entire message has been read.To return to the stack,
press either the Up or Down Scroll button.
Deleting Messages from the SDM Stack
Pressing either Clear button (10) or keypad
keys will delete the currently selected SDM
from the stack.The radio returns to the SDM stack
interrogate mode after each deletion until the last
message is deleted when the display returns to the
idle state and the SDM icon is extinguished.
Status replies to an SDM
Where an SDM contains a calling party number, the
radio can respond with a status message.
From the SDM stack interrogate mode or SDM
scrolling mode, press the status key (15).The
radio will exit the data mode and enter the dialling
state for example:
The status digits can then be specified as in normal
status mode.
Making an SDM Call
SDM calls may be set up in one of three ways, via
the data key , manually via the keypad or via the
shortform dialling feature.
To make an SDM call via the data key, select the
desired address as detailed in Making a Call, press
the key (16) followed by the data message
string which may only consist of digits (0-9).
i.e.ADDRESS ( ) DATA
To make an SDM call via the keypad, enter
followed by the data message string
(digits 0-9), press followed by the desired
address as described in Making a Call.
i.e. DATA ADDRESS
To make an SDM call via the shortform dialling
feature, select the pre-programmed address and
send the message as detailed in Shortform
Dialling.
Note: The maximum data message size is limited to 20
characters which includes address information
and data selection characters.
On making an SDM call the display shows:
C
✱#
S
213S05
D
D
D
✱2✱
✱
✱2✱ ✱
SENDING DATA
ALIAS/NUMBER
Special Calls/Short Data Messages

14
Special Calls
English
Status Calls
Receiving a Status Call
A status is a code for transmitting prearranged
messages.For example, status "05" may indicate
"Return to base".When the radio receives a status
call, tone G will sound and the display changes to:
where 213 may be replaced by an alias.
Making a Status Call
Status calls may be initiated in two different ways,
via the status key (15) or manually via the
keypad (11).
In order to make a status call via the status button,
choose the desired address as described in Making
a Call.Then press the status button (15),
followed by two status digits.
The display then changes to:
The status number may be edited by using the clear/
edit key (10), please refer to Keypad Edit.
To initiate a status call via the keypad (11) enter
then enter the status e.g."05" followed by
and the desired address.In this case the status
message relating to the status number is not displayed.
In both cases the call is handled as described in
Making a Call.
if status text programmed in radio
or
if status text NOTprogrammed in radio
RETURN TO BASE
ALIAS/213
STATUS RECEIVED 05
ALIAS/213
S
S
or
if status text is enabled
RETURN TO BASE
213
SENDING STATUS 05
213
On pressing the PTT or # the display shows:
213S05
C
✱0✱
Special Calls/Status Calls

15
Personality Selection
English
Making an Emergency Call
If provided by the system, the user can dial a
preprogrammed emergency number via the keypad
(11). Please contact your dealer for further
information.
A dialled number may also be given an emergency
priority by prefixing the required number by
.The call is then initiated as previously
described.The display changes are described in
"Call Progress - Sending".
Making a Priority Call
A priority call allows you to gain priority over other
users of the system when requesting a call. Priority
calls are indicated by prefixing the required number
by .The call is then initiated as previously
described.The display changes are described in
"Call Progress - Sending".
Making a Broadcast Call
A broadcast call allows you to make broadcast calls
to groups of radios.Broadcast calls are indicated by
prefixing the required number by .
The call is then initiated as previously described.
Note that on a broadcast call only the calling radio
can talk and there is no indication that any units
have received the call.
DTMF
DTMF means Dual Tone Multi Frequency and is
used when the radio is required to operate in a radio
system with an interface to telephone systems.
The access code for DTMF is system dependent,
please contact your dealer for further information.
Enter the access code.To generate the DTMF tones
press and hold the PTT (18) while entering the
desired number.
Personality Selection
The radio may be programmed with a number of
different personalities.To change personality press
the personality selection button (14). Select the
personality using the Up/Down Scroll buttons (8).
When the desired personality is shown, select by
pressing the Personality Selection button (14):
where FREETEXT 1, 2 and 3 are personality text
strings programmed into the radio.Each FREETEXT
text string can be an MPT or conventional personality.
Only MPT text strings contain the unit number (NNN).
✱9✱
✱8✱
✱1 1 ✱
P
P
FREETEXT 1 NNN
>FREETEXT 2
FREETEXT 3 NNN
Special Calls/Personality Selection

16
Personality Selection
English

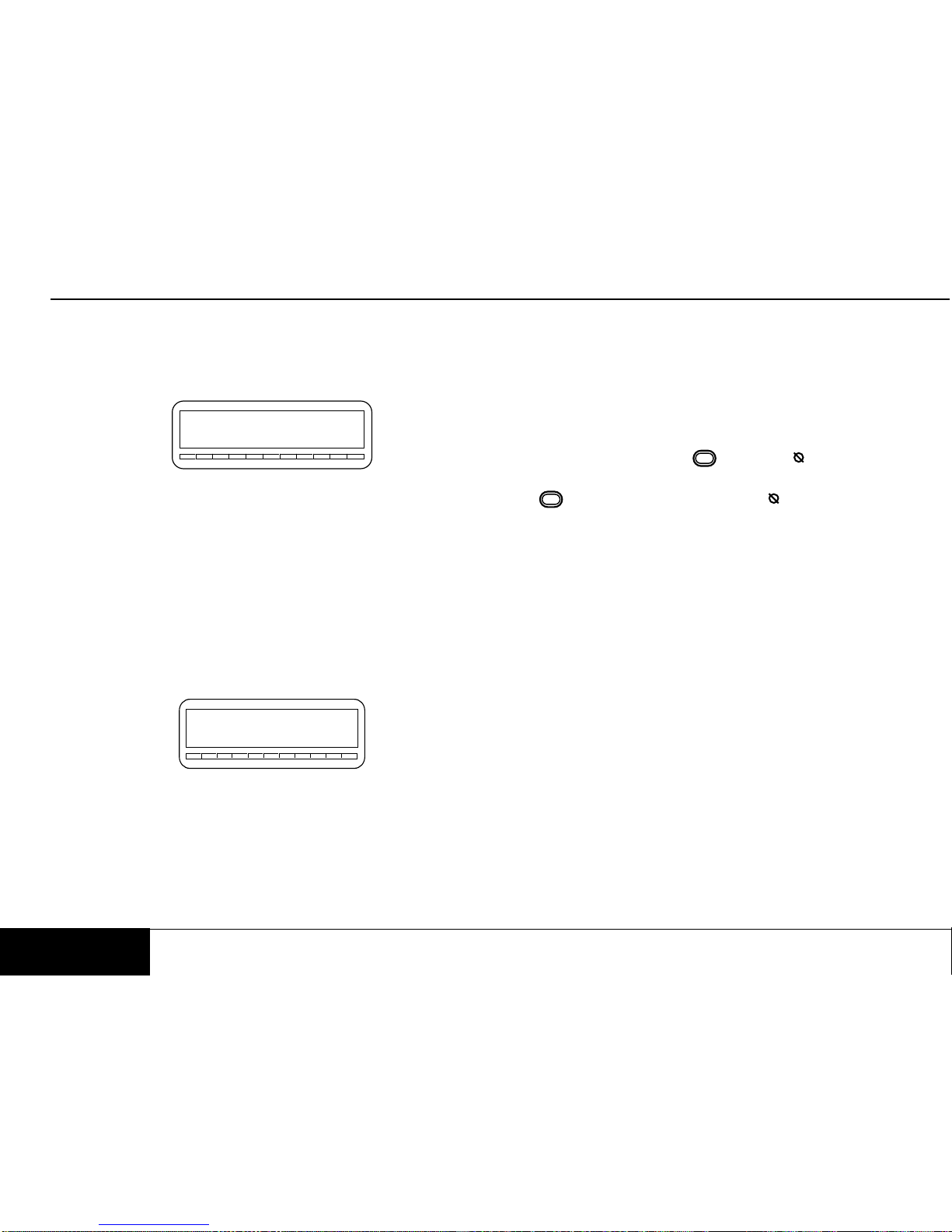

MPT Mode
On selection of an MPT personality, the display
shows:
where NNN is the unit number and FREETEXT is
the pre-programmed text string of the selected
personality.
Conventional Mode
In the conventional mode the radio operates as a
standard two-way radio.
On selection of a conventional personality as
described above, the display shows:
where 01 is the channel number and FREETEXT is
the pre-programmed text string of the selected
personality.
Use the Up/Down Scroll buttons (8) to display the
desired channel for the selected personality.
Prior to transmission always make sure that the
channel is free (red LED not flashing). Press the
PTT key (18) to transmit, release it to listen.The red
LED lights while the radio transmits and flashes if
the channel is busy.
Some channels may be monitored for activity by
pressing the monitor button (10).The icon will
be lit until the channel is changed or the monitor
button (10) is pressed again.The icon will
also light briefly when the microphone is taken out of
its holder, indicating that monitor is automatically
selected for a short duration. Please consult your
dealer for further information.
In the conventional mode the radio is equipped with
a time out timer.A speech limitation warning will
sound a few seconds before the transmitter is
switched off.The call timed out tone will sound, until
the PTT is released.
To generate the DTMF tones press and hold the
PTT (18) while entering the desired number.
FREETEXT
NNN
CHANNEL 01
FREETEXT
C
C
Personality Selection/MPT Mode/Conventional Mode

17
Call Progress
English
Call Progress
Call Progress - Sending
Tone Display Comment
D Trying to connect call
D Priority call sent, modifier *8* used
D Data Call initiated
D Emergency call sent, modifier *9* used
B Voice or Data call can proceed
G/D Call queued on system
D Calls to called unit have been diverted
C2 Call unobtainable
C2 Unit unavailable, call set-up abandoned
C4 Incorrect number
C1 System busy, try again
Tone Display Comment
D Alerting called unit
C3 Called unit is busy
F Called unit will call back
C2 Call failed, try again
C2 Call request timed out. Check service is
available
followed by
H System access lost, try again
followed by
CALLING
213
PRIORITY CALLING
213
DATA CALLING
213
EMERGENCY CALLING
213
VOICE/DATA XXX
213
QUEUED
213
DIVERTING TO
213
UNOBTAINABLE
213
UNAVAILABLE
213
213
INVALID NUMBER
SYSTEM BUSY
ALERTING
213
ENGAGED
213
WILL CALL BACK
213
CALL FAILED
NNN
TIMED OUT
213
CALL FAILED
NNN
SCANNING
213
CALL FAILED
NNN
Call Progress/Sending

18
Call Progress
English
Call Progress - Receiving
Tone Display Comment
D A call is being received on OACSU
E A call is being received on FOACSU.
Press PTT or “#” or lift microphone to
accept call
D/E Emergency call being received
G Data call being received
B Call from radio in your fleet, may be
individual or group call
B Call from radio in another fleet
B Call from public telephone system
B Call from private telephone system
B Call from unknown party
B Dynamic Group call received
(maybe alpha alias)
B Call to all radios in use on the system
B Broadcast call received, user reply not
permitted
Call Progress - Cancelling a call
Tone Display Comment
D/G Call successfully cancelled by user
Call Progress - Ending a call
Tone Display Comment
G Another call can now be made
Note: in the above displays,
XX is the position in the Group/Dynamic list
XXX is the elapsed time counter
NNN is the calling (unit) number or alias
ALERTED
NNN
ALERTED
NNN
EMERGENCY ALERTED
NNN
DATA ALERTED
NNN
VOICE/DATA XXX
NNN
VOICE/DATA XXX
INTERFLEET
VOICE/DATA XXX
TELEPHONE
VOICE/DATA XXX
PABX
VOICE/DATA XXX
UNKNOWN PARTY
DYNAMIC XX
NAME UNKNOWN
VOICE/DATA XXX
SYSTEM WIDE
BROADCAST XXX
NNN
CANCELLING
NNN
CALL ENDED
NNN
Call Progress/Receiving/Cancelling/Ending
