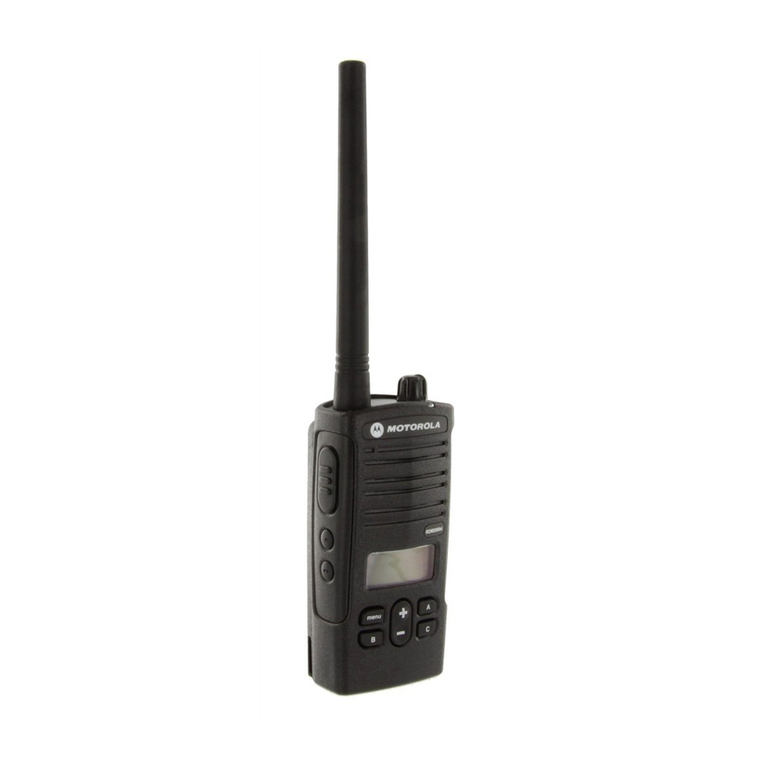

Motorola RDM2020 User manual

RDM2020/RDM2080d
PORTABLE
TWO-WAY RADIOS
Performance You Can Count On. The Motorola RDM Series MURS (Multi-Use Radio Service)
radios provide your business with a competitive communications edge, enhancing employee
efficiency and overall profitability. These radios use MURS frequencies which are exclusive to the
United States and do not require FCC licensing.
Affordable and easy to use, RDM2020/2080d radios help keep your operations on schedule,
maximize job-shift productivity, enhance security and increase overall customer satisfaction. And by
using MURS frequencies, you can standardize the radio frequency used across all of your business
locations, helping to streamline the procurement and implementation of two-way communication
for your business.
RDM SERIES MURS TWO-WAY BUSINESS RADIOS
Exceptional Audio Quality
2000 mW audio output, speaker magnetic field
reduction, wind-noise reduction and improved
RF specifications deliver superior audio quality
that is 30% louder than Motorola XTN and AX
radios.
Rugged and Water Resistant
Meets Military 810 C, D, E and F and IP54/55
standards for shock, rain, humidity, salt fog,
vibration, sand/dust, temperature shock, and
high and low temperature extremes.
Customer Programming Software (CPS)*
Allows users to perform programming func-
tions and provides access to features such as
Reverse Burst to eliminate unwanted noise,
Radio Reporting to manage cloning and radio
profiles, Manager Lock, PL/DPL Defeat and two
additional Time-Out Timers.
Channel Aliasing – RDM2080d only
Provides the ability to give each channel a user-
defined name.
Tri-Color LED Interface
Convenient interface allows users to identify
different radio features and radio status.
Power and Coverage**
2 Watt MURS—Coverage of up to 220,000 sq.
ft., 13 floors.
MURS Exclusive Frequencies
Operates exclusively on MURS (Multi-Use Radio
Service) frequencies.
Flexible and Durable Battery Life Solutions
The custom RDM Series Li-ion battery packs are
designed and manufactured to ensure durabil-
ity. Radios come with a standard Li-ion battery.
Optional accessories include a high capacity
Li-ion battery and an alkaline battery kit.
Easy Cloning
Lets users quickly copy settings with the radio-
to-radio Cloning Cable or Multi-Unit Charger.
Both sold separately.
Advanced Voice Activation (VOX)
Enables convenient hands-free operation when
used with optional audio accessories.
General Features:
• Accessory Mic Gain
• Auto Scan
• Battery Save
• 2 Channels – RDM2020
• 8 Channels – RDM2080d
• USB CPS Interface
• Radio Mic Gain
• Scan and Scan List
• Scramble
• Time-Out Timer
• Compatible with RDX
Audio Accessories
*CPS is available as free download. Windows®XP, Widows 2000 compatible, separate USB cable required.
**Coverage will vary based on terrain, conditions and the radio model used.
RDM2020 RDM2080d
SPECIFICATION SHEET
RDM2020 and RDM2080d

GENERAL SPECIFICATIONS
Channel Capacity 2 Channels 8 Channels*
Frequency Range 5 MURS frequencies (fixed)
Audio Output 2000 mW
Channel Bandwidth Specific bandwidth for each of the MURS frequencies defined by the FCC
Dimensions (H x W x D)
Standard Li-ion Battery 4.5 x 2.2 x 1.6 inches (115.6 x 57.6 x 40.5 mm)
High-Capacity Li-ion Battery 4.5 x 2.2 x 1.8 inches (115.6 x 57.6 x 45.1 mm)
Ultra High-Capacity Li-ion Battery 4.5 x 2.2 x 1.8 inches (115.6 x 57.6 x 45.1 mm)
Weight
Standard Li-ion Battery 8.6 oz (244g)
High-Capacity Li-ion Battery 10.3 oz (293g)
Ultra High-Capacity Li-ion Battery 10.3 oz (293g)
Average Battery Life @ 5/5/90 (with Battery Save on)
Standard 1100 mAH Li-ion Battery Up to 12 Hours
High-Capacity 2200 mAH Li-ion Battery Up to 24 Hours
Ultra High-Capacity 2400 mAH Li-ion Battery Up to 26 Hours
Optional Alkaline Battery Accessory Up to 26 Hours
Power Supply Voltage 7.2 Volts DC – Li-ion or Alkaline
FCC Designation AZ489FT3823 AZ489FT3823
RDM2020 RDM2080d
TRANSMITTER
RF Output 2 W
Frequency Stability < 2.5 ppm
Spurs and Harmonics < -45 dBc
FM Hum and Noise -40 dB @ 12.5 kHz
Modulation Limiting ±2.5 kHz @ 12.5 kHz
Adjacent Channel Power 60 dBc
Radiated Spurious Emissions @ 12.5 kHz < -20 dBm
Audio Frequency Response (0.3 - 3.0 kHz) +1 to -3 dB
Audio Distortion < 2%
RECEIVER
Sensitivity (12 dB SINAD) -122 dBm (0.18 μV)
Adjacent Channel Selectivity 60 dB @ 12.5 kHz
Intermodulation Rejection 60 dB
Spurious Response Rejection (blocking 1 MHz) 80 dB
Audio Distortion < 5%
CSQ Hum and Noise @ 12.5 kHz -50 dB
PL Hum and Noise @ 12.5 kHz -50 dB
DPL Hum and Noise @ 12.5 kHz -45 dB
Radiated Spurious Emissions (< 1 GHz) < -54 dBm
Radiated Spurious Emissions (> 1 GHz) < -52 dBm
Audio Output @ < 5% Distortion 1.5 W @ 8 ohms
MILITARY SPECIFICATIONS
Low Pressure 500.1 / 1 500.2 / 2 500.3 / 2 500.4 / 1
High Temperature 501.1 / 1, 2 501.2 / 1, 2 501.3 / 1, 2 501.4 / 1, 2
Low Temperature 502.1 / 1 502.2 / 1, 2 502.3 / 1, 2 501.4 / 1, 2
Temperature Shock 503.1 / 1 503.2 / 1 503.3 / 1 503.4 / 1
Solar Radiation 505.1 / 1 505.2 / 1 505.3 / 1 505.4 / 1
Rain 506.1 / 1, 2 506.2 / 1, 2 506.3 / 1, 2 506.4 / 1
Humidity 507.1 / 2 507.2 / 2, 3 507.3 / 2, 3 507.4 / 3
Salt Fog 509.1 / 1 509.2 / 1 509.3 / 1 509.4 / 1
Dust 510.1 / 1 510.2 / 1 510.3 / 1 510.4 / 1
Vibration 514.2 / 8, 10 514.3 / 1 514.4 / 1 514.5 / 1
Shock 516.2 / 1, 2, 5 516.3 / 1, 4 516.4 / 1, 4 516.5 / 1
Standard MIL 810 C MIL 810 D MIL810 E MIL 810 F
Methods/Procedures Methods/Procedures Methods/Procedures Methods/Procedures
Specifications subject to change without notice. All specifications
shown are typical. Radio meets applicable regulatory requirements.
*8 channel, display model supports multiple PL/DPL combinations
on 5 unique MURS frequencies.
ENVIRONMENTAL
Operating Temperature -30˚ C to +60˚ C (Radio)
Sealing IP55
Shock and Vibration Polycarbonate Housing passes EIA 603
Dust and Humidity Satisfied EIA 603
www.motorola.com/us
1-800-367-2346
MOTOROLA, MOTO, Motorola Solutions and the Stylized M Logo are trademarks or registered trademarks
of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of
their respective owners. © 2010 Motorola, Inc. All rights reserved.
R3-4-2039
