MoTrike M-009E User manual

This manual contains important safety, operation and maintenance information.
Read it before you take the first ride on your new bicycle, and keep it for reference.

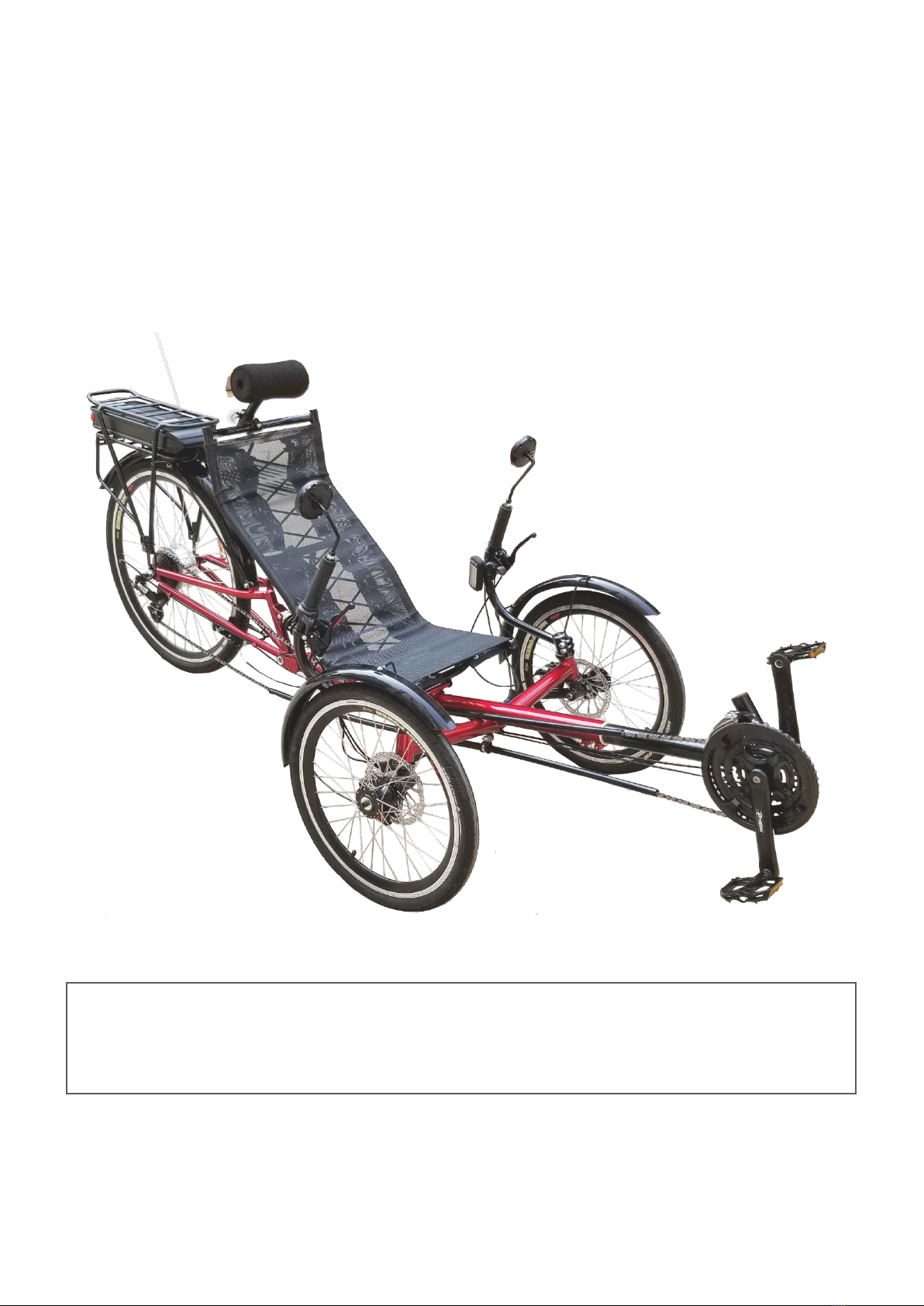

Owner's Manual
For Recumbent Trike (M-009E)

Page 1/8
Congratulations on being a new trike owner. We hope it brings you many years of
enjoyment.
This manual has been written to help you set up and use your trike. Recumbent trike may
be a little different from the cycles you are familiar with, so please take a moment to
read through this document.
Throughout the manual, we have included some Tips, which have been learned from over
10 years of experience buldlng trikes. They are well worth taking special note of.
We hope you enjoy owning and riding the trikes.
1. To ensure the vehicle is functioning correctly, do a quick check of the trike’s tires and
check that the brakes are working. Your trike has been thoroughly checked by our
engineers before delivery, but on the spot checks are equally important.
2. SAFETY NOTICE: If you twist the throttle before you are ready to go or while you are
mounting the bike it may run away from you and could lead to an accident.
3. This trike may be ridden in wet conditions, but be sure to avoid soaking it during
cleaning to avoid damaging any of the electric components.
4. The trike should not be left in strong, direct sunlight for long periods as some of the
electric components may overheat.
5. Must abide by the same traffic rules and regulations as other motorists. Before taking
your trike on a public road, be familiar with traffic rules and regulations and any special
requirements for e-trike.
6. Never drink and ride. Alcohol slows reflexes and greatly limits your ability to operate
a trike. Even a very small amount of alcohol will reduce your ability to operate a trike
safely.
7. Frequently ride at economical speed will be great help on battery life and range.
Especially at crowded city traffic.
General Instructions Before Riding

①ON/OFF button for control panel
②Front right brake lever
③Front shifter lever
④Front right brake lever
⑤Rear shifter lever
⑥Shifter release button
⑦Thumb Throttle
Page 2/8
Learn Your Trike

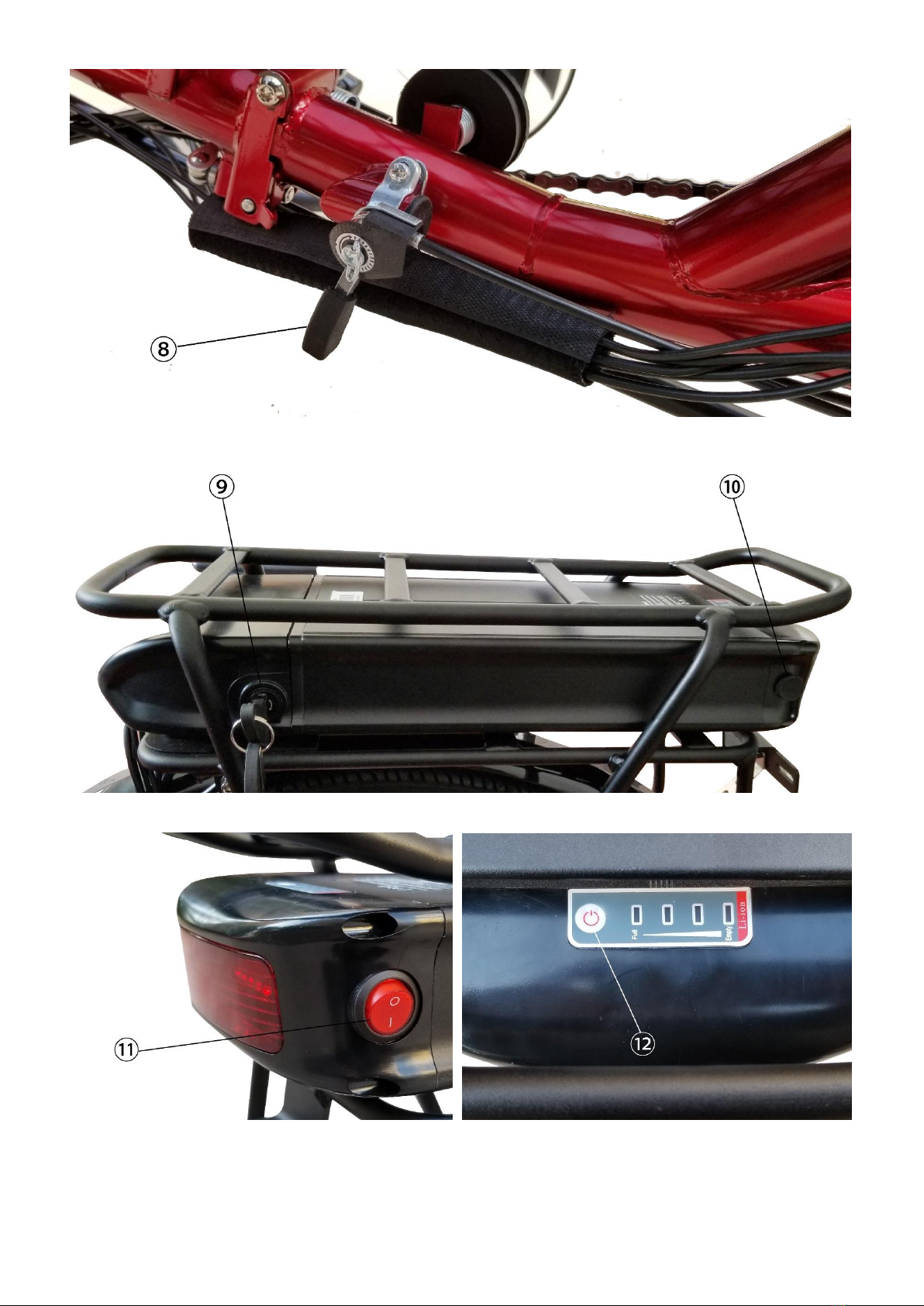

⑧Rear packing brake lever
⑨Battery lock
⑩Charging port
⑪Tail light button ⑫Button for state of charge
Page 3/8

1. Adjust the front boom and seat in the right position.
2. Turn on the control panel.
Hold the ON/OFF button 2 seconds to turn on the control panel.
Tip: Please do not touch the throttle handle if you are not ready to go.
3. Start the trike.
Pedal the trike or twist the throttle, the trike will go.
4. Gear changing.
Tips:
6. Charging the battery.
7. Tire pressure.
Page 4/8
As with any derailleur system you can only change gear when you are pedaling and
moving forward. It is easier to change if you are not putting a lot of force on the pedals,
particularly when changing from a high to a low gear. You should not try to change into
the lowest gear (largest rear sprocket) unless you are on the middle or lowest (Smallest)
chain wheel, because the chain will put strain on the rear derailleur.
2). Do not change gear when the trike is roll backwards, as the chain will jam in the rear
derailleur and likely damage it.
The battery frame have five segments, each segment represent 20% battery capacity.
When the capacity is full, the five segments are all light. In low battery, it indicates that
the battery is severely low and needs to be recharged immediately.
Typical tire pressure for the front tyres is about 240-310 KPa (35-45P.S.I.), rear tyre is
about 280-450 KPa (40-65P.S.I.) . Do not inflate the tires more than the maximum
pressure recommended of the tire sidewalls. You will need to experience a bit to find the
tire pressure that suits you best.
When the charger is connected properly, A red light showing indicates charging, A green
light showing indicates full charged or disconnect.
1). Try to anticipate hills and change to a lower (easier) gear before you get onto the
steep part of the hill hence avoiding changing gear under pressure.
For more information about the setting and operating, please refer to the control panel
manual.
How To Operate

8. How to fold the trike.
1). Make sure the battery is locked on the rear rack or remove the battery
2). Remove the seat and flagpole.
4). Carefully lift the rear part, turn it sideways and fold it.
Page 5/8
3). Open quick release at the folding hinge. Push the quick release bolt outward. When
the clasp is out from the hole, slightly press down the frame to separate the folding hinge.

Page 6/8
Good maintenance will play a major role in keeping your trike in good working condition
and prolonging the life of the batteries. Please follow these suggestions:
• To prevent rust always keep your vehicle dry and clean.
• Regularly check the front and rear tires, suspension and body frame and all fasteners.
Maintenance
Caution For Battery
• Do not short circuit positive and negative of the battery.
• Do not dismantle the battery.
• Do not place the battery under high temperature, such as heat, sunshine or close to fire.
• Do not place the battery in fluids, such as water, acid, alkaline or salt water.
• If stored for a long time, keep the battery cool and dry, and charge the battery for 2
hours every other 3 months.
• Always charge the battery with licensed charger for lithium ion or lithium polymer battery.
• Always check your trike and perform necessary routine maintenance - tires, brakes, nuts
and bolts.
• To prevent rust from forming on the trike, avoid parking your trike in high humidity and
corrosive areas.
• To avoid damage to the electrical parts of this trike, especially the controller, do not
park the trike in direct sunlight or in heavy rain.
• Due to the complexity of the electronic manufacture of this trike, customers should never
attempt to take out any of the parts, or attempt major maintenance without consulting the
supplier (this will invalidate the warranty).
• Never overload and ride the trike for an extended period of time, prolonged use with
excessive weight could cause serious damage to the electronic and mechanical parts.
• When riding in rain do not go through deep puddles or muddy areas; excessive water
will cause the motor and other electrical components to suffer undue harm.

Page 7/8
If you are really concerned about your battery, consider getting a basic volt meter to
check the voltage of your battery. If after 24 hours of charging your battery should have
at least 36 volts and as long as it is over 36 volts it will work. If it is not at or above 36
volts you should consider replacing the battery.
If the charger is plugged into the wall and battery, and you get a blinking red light on
the charger, it is very likely that the battery is faulty and should be replaced.
Battery Charger Troubleshooter
When there is a battery failure, there is a possibility it was caused by a bad battery
charger.
When the charger is only plugged into the wall, it should show a green light. If there is no
light showing, confirm that the outlet is good. If the outlet is good, it is very possible that
the issue is with the battery charger, not the battery.
If the charger is plugged into the battery only, it should show a green light. If it does not
show a green light, it is likely that the charger is not making contact with the battery. The
most likely reason for this is a faulty fuse on the wiring harness. The fuse can blow out if
there is a short in the charging system, or if the plug-in end of the wiring harness comes in
contact with a battery terminal.
When the charger is plugged into both an electrical outlet and the battery, there should
be a red light showing on the charger. A red light showing indicates that the charger is in
contact with the battery and is actively charging the battery. Once the battery has
reached a voltage level that is considered “fully charged”, the red light changes to
green. If you do not get a green led light on your charger, chances are that you battery
is loosing some voltage and is not charging fully. We recommend checking your battery
with a volt meter, explained below. If after 24 hours the light has not changed to green
there is no cause for alarm! Remember that when the light is red, the battery is being
charged, and you will be able to use your system. After 24 hours or so, your battery is as
charged as it is going to get, and if the light is still showing red you should disconnect the
charger and go fishing.

Page 8/8
Wiring Diagram
