MOTU MicroBook IIc User manual

About the Mark of the Unicorn License Agreement
and Limited Warranty on Software
TO PERSONS WHO PURCHASE OR USE THIS PRODUCT: carefully
read all the terms and conditions of the “click-wrap” license agreement
presented to you when you install the software. Using the software or this
documentation indicates your acceptance of the terms and conditions of that
license agreement.
Mark of the Unicorn, Inc. (“MOTU”) owns both this program and its
documentation. Both the program and the documentation are protected
under applicable copyright, trademark, and trade-secret laws.Your right to
use the program and the documentation are limited to the terms and
conditions described in the license agreement.
Reminder of the terms of your license
This summary is not your license agreement, just a reminder of its terms.
The actual license can be read and printed by running the installation
program for the software.That license agreement is a contract, and clicking
“Accept” binds you and MOTU to all its terms and conditions. In the event
anything contained in this summary is incomplete or in conflict with the actual
click-wrap license agreement, the terms of the click-wrap agreement prevail.
YOU MAY: (a) use the enclosed program on a single computer; (b)
physically transfer the program from one computer to another provided that
the program is used on only one computer at a time and that you remove any
copies of the program from the computer from which the program is being
transferred; (c) make copies of the program solely for backup purposes.You
must reproduce and include the copyright notice on a label on any backup
copy.
YOU MAY NOT:(a) distribute copies of the program or the documentation to
others; (b) rent, lease or grant sublicenses or other rights to the program; (c)
provide use of the program in a computer service business, network, time-
sharing, multiple CPU or multiple user arrangement without the prior written
consent of MOTU; (d) translate, adapt, reverse engineer, decompile,
disassemble, or otherwise alter the program or related documentation
without the prior written consent of MOTU.
MOTU warrants to the original licensee that the disk(s) on which the program
is recorded be free from defects in materials and workmanship under normal
use for a period of ninety (90) days from the date of purchase as evidenced
by a copy of your receipt. If failure of the disk has resulted from accident,
abuse or misapplication of the product, then MOTU shall have no responsi-
bility to replace the disk(s) under this Limited Warranty.
THIS LIMITED WARRANTY AND RIGHT OF REPLACEMENT IS IN LIEU
OF, AND YOU HEREBY WAIVE, ANY AND ALL OTHER WARRANTIES,
BOTH EXPRESS AND IMPLIED, INCLUDING BUT NOT LIMITED TO
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. THE LIABILITY OF MOTU PURSUANT TO
THIS LIMITED WARRANTY SHALL BE LIMITED TO THE
REPLACEMENT OF THE DEFECTIVE DISK(S), AND IN NO EVENT
SHALL MOTU OR ITS SUPPLIERS, LICENSORS, OR AFFILIATES BE
LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES,
INCLUDING BUT NOT LIMITED TO LOSS OF USE, LOSS OF PROFITS,
LOSS OF DATA OR DATA BEING RENDERED INACCURATE, OR
LOSSES SUSTAINED BY THIRD PARTIES EVEN IF MOTU HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.THIS
WARRANTY GIVESYOU SPECIFIC LEGAL RIGHTSWHICH MAY VARY
FROM STATE TO STATE. SOME STATES DO NOT ALLOW THE
LIMITATION OR EXCLUSION OF LIABILITY FOR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
Update Policy
In order to be eligible to obtain updates of the program, you must register the
software at motu.com.
Copyright Notice
Copyright © 2015, 2014, 2013, 2012 by Mark of the Unicorn, Inc. All rights
reserved. No part of this publication may be reproduced, transmitted,
transcribed, stored in a retrieval system, or translated into any human or
computer language, in any form or by any means whatsoever, without
express written permission of Mark of the Unicorn, Inc., 1280
Massachusetts Avenue, Cambridge, MA, 02138, U.S.A.
Limited Warranty on Hardware
Mark of the Unicorn, Inc. and S&S Research (“MOTU/S&S”) warrant this
equipment against defects in materials and workmanship for a period of
TWO (2)YEARS from the date of original retail purchase.This warranty
applies only to hardware products; MOTU software is licensed and
warranted pursuant to separate written statements.
If you discover a defect, first write or call Mark of the Unicorn at (617) 576-
2760 to obtain a Return Merchandise Authorization Number. No service will
be performed on any product returned without prior authorization. MOTU
will, at its option, repair or replace the product at no charge to you, provided
you return it during the warranty period, with transportation charges prepaid,
to Mark of the Unicorn, Inc., 1280 Massachusetts Avenue, MA 02138.You
must use the product’s original packing material for in shipment, and insure
the shipment for the value of the product. Please include your name,
address, telephone number, a description of the problem, and the original,
dated bill of sale with the returned unit and print the Return Merchandise
Authorization Number on the outside of the box below the shipping address.
This warranty does not apply if the equipment has been damaged by
accident, abuse, misuse, or misapplication; has been modified without the
written permission of MOTU, or if the product serial number has been
removed or defaced.
ALL IMPLIED WARRANTIES, INCLUDING IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
ARE LIMITED IN DURATION TO TWO (2) YEARS FROM THE DATE OF
THE ORIGINAL RETAIL PURCHASE OF THIS PRODUCT.
THE WARRANTY AND REMEDIES SET FORTH ABOVE ARE
EXCLUSIVE AND IN LIEU OF ALL OTHERS, ORAL OR WRITTEN,
EXPRESS OR IMPLIED. No MOTU/S&S dealer, agent, or employee is
authorized to make any modification, extension, or addition to this warranty.
MOTU/S&S ARE NOT RESPONSIBLE FOR SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF
WARRANTY, OR UNDER ANY LEGAL THEORY, INCLUDING LOST
PROFITS, DOWNTIME, GOODWILL, DAMAGE OR REPLACEMENT OF
EQUIPMENT AND PROPERTY AND COST OF RECOVERING REPRO-
GRAMMING, OR REPRODUCING ANY PROGRAM OR DATA STORED
IN OR USED WITH MOTU/S&S PRODUCTS.
Some states do not allow the exclusion or limitation of implied warranties or
liability for incidental or consequential damages, so the above limitation or
exclusion may not apply to you.This warranty gives you specific legal rights,
and you may have other rights which vary from state to state.
MOTU, AudioDesk, Mark of the Unicorn and the unicorn silhouette logo are
trademarks of Mark of the Unicorn, Inc.
This equipment has been type tested and found to comply with the limits for a class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment
does cause interference to radio or television equipment reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by any combination of the following measures:
• Relocate or reorient the receiving antenna
• Increase the separation between the equipment and the receiver
• Plug the equipment into an outlet on a circuit different from that to which the
receiver is connected
If necessary, you can consult a dealer or experienced radio/television technician for
additional assistance.
PLEASE NOTE: only equipment certified to comply with Class B (computer input/
output devices, terminals, printers, etc.) should be attached to this
equipment, and it must have shielded interface cables in order
to comply with the Class B FCC limits on RF emissions.
WARNING: changes or modifications to this unit not
expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.

MicroBook IIc
User Guide
1280 Massachusetts Avenue
Cambridge, MA 02138
Business voice: [phone]
Business fax: [phone]
Web site: www.motu.com
Tech support: www.motu.com/support

SAFETY PRECAUTIONS AND ELECTRICAL REQUIREMENTS
WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR OTHER MOISTURE.
CAUTION:TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER. NO
USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
WARNING: DO NOT PERMIT FINGERS TO TOUCH THE TERMINALS OF POWER PLUGS WHEN
INSTALLING OR REMOVING THE PLUG TO OR FROM A POWER SOURCE.
IMPORTANT SAFEGUARDS
1. Read instructions — All the safety and operating instructions should be read before operating the MicroBook.
2. Retain instructions — The safety instructions and owner's manual should be retained for future reference.
3. Heed Warnings — All warnings on the MOTU MicroBook and in the owner's manual should be adhered to.
4. Follow Instructions — All operating and use instructions should be followed.
5. Cleaning — Unplug the MOTU MicroBook from the computer before cleaning and use a damp cloth. Do not use liquid or
aerosol cleaners.
6. Power Sources — This MOTU MicroBook should be operated only from the type of power source indicated on the marking
label.
7. Power-Cord Protection — Power-supply cords should be routed so that they are not likely to be walked on or pinched by
items placed upon or against them. Pay particular attention to cords and plugs, convenience receptacles, and the point
where they exit from the MOTU MicroBook.
8. Lightning — For added protection for the MOTU MicroBook during a lightning storm, unplug its power supply from any wall
outlets.This will prevent damage to the MOTU MicroBook due to lightning and power line surges.
9. Servicing — Do not attempt to service this MOTU MicroBook yourself as opening or removing covers will expose you to
dangerous voltage and other hazards. Refer all servicing to qualified service personnel.
10. Damage Requiring Service — Unplug the MOTU MicroBook from the computer and refer servicing to qualified service
personnel under the following conditions.
a. When the power supply cord or plug is damaged.
b. If liquid has been spilled or objects have fallen into the MOTU MicroBook.
c. If the MOTU MicroBook has been exposed to rain or water.
d. If the MOTU MicroBook does not operate normally by following the operating instructions in the owner's manual.
e. If the MOTU MicroBook has been dropped or the cabinet has been damaged.
f. When the MOTU MicroBook exhibits a distinct change in performance, this indicates a need for service.
11. Replacement Parts — When replacement parts are required, be sure the service technician has used replacement parts
specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in
fire, electric shock or other hazards.
12. Safety Check — Upon completion of any service or repairs to this MOTU MicroBook, ask the service technician to perform
safety checks to determine that the product is in safe operating conditions.
ENVIRONMENT
Operating Temperature: 10°C to 40°C (50°F to 104°)
AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE
Do not handle the power supply, or power cables with wet hands.
CAUTION: DANGER OF EXPLOSION IF BATTERY IS REPLACED. REPLACE ONLY WITH THE
SAME OR EQUIVALENT TYPE RECOMMENDED BYMANUFACTURER. DISPOSE OF USED
BATTERY ACCORDING TO MANUFACTURER’S INSTRUCTIONS.

Contents
3
4
Quick Reference: MicroBook Front Panel
5

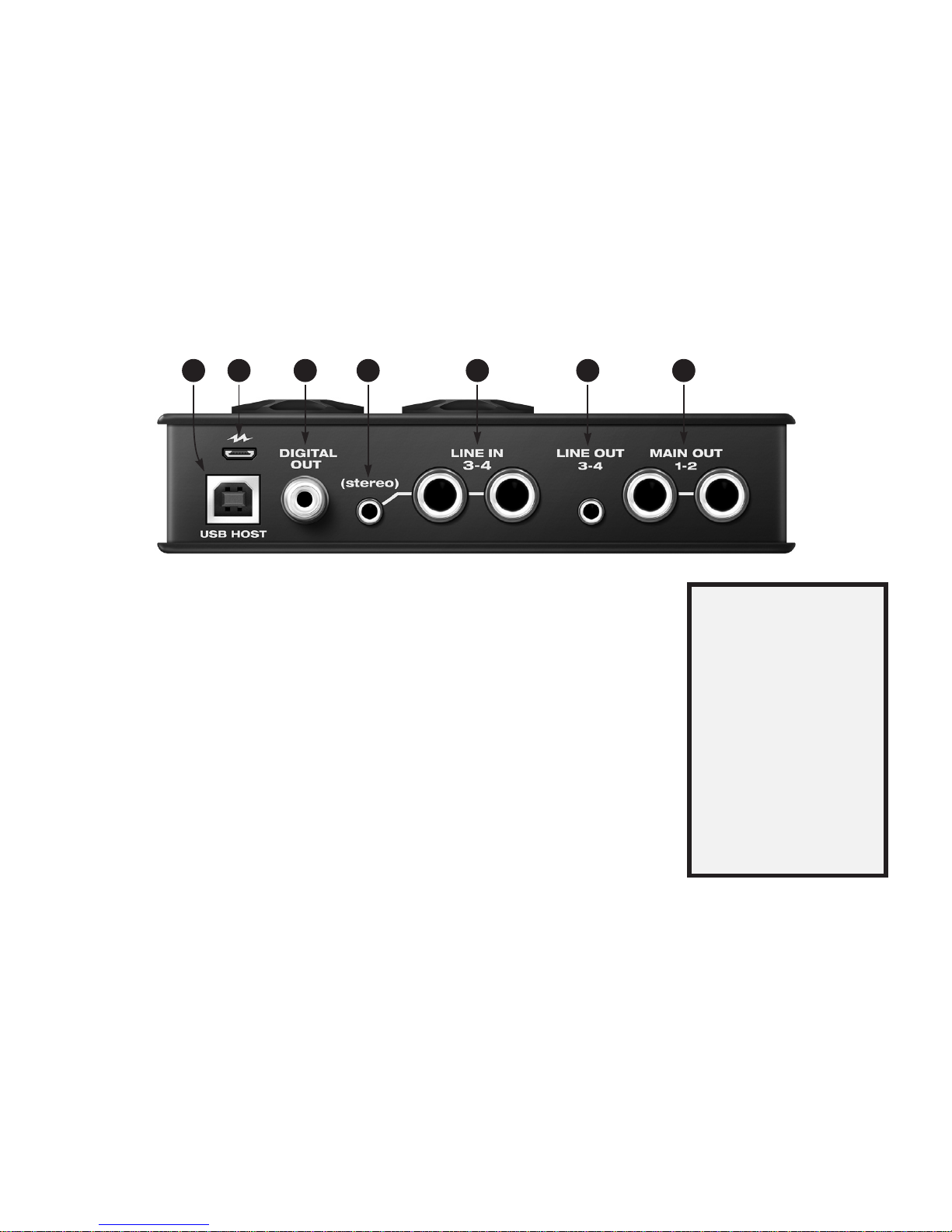

Quick Reference: MicroBook Rear Panel
6
Quick Reference: MicroBook Top Panel
7
Quick Reference: CueMix FX
9
About the MicroBook
13
Packing List and System Requirements
15
Installing the MicroBook Software
17
Installing the MicroBook Hardware
25
Mac OS X Audio Software
33
Windows Audio Software
37
CueMix FX
47
Troubleshooting
49
Index

0
Quick Reference: MicroBook Front Panel
21 3
1. Plug in your dynamic or condenser
mic here.
Use the MIC digital rotary encoder
on the top panel (4) to engage the
-20 dB pad (push) and/or 48V
phantom power (push and hold)
for a condenser mic, if necessary.
Make sure 48V power is
turned OFF BEFORE plugging
anything in to the mic input.Only
engage 48V power when a device
that requires it is plugged in.
2. Plug in your guitar here using a
standard quarter-inch guitar
cable.This input is designed with
the high-impedance characteris-
tics necessary to properly handle
both passive and active guitar
pickups.To make your guitar
sound and“feel”even more like it
is plugged directly into a actual
guitar amplifier,consider using
MOTU’s ZBox guitar impedance
adapter (sold separately),which
simply goes between your guitar
cable and this input (no extra
cable needed).
3. This is a standard quarter-inch
headphone jack.To control
volume,push the VOL rotary
encoder (5) repeatedly until the
phones LED is lit.You can control
phone volume independently or
together with main out volume.
To obtain your product
serial number,see
“Obtaining your
MicroBook serial
number”on page 14.
4 5

1. Connect to a host computer with a
standardUSB cable (TypeA toType
B).When connected to laptop or
desktop computer,the MicroBook
IIc is powered by this USB 2.0
connection.
2. This USB 2.0 Micro-B jack is for
power only.
DO NOT use this port
to connect to a host computer.Use
it for power when connecting the
MicroBook IIc to an iPad.For
details,see “Connecting to an iOS
device”on page 18.
3. This stereo,24-bit S/PDIF digital
output mirrors the Main Out.
4. This eighth-inch“stereo mini”jack
serves as an alternative input for
Line Inputs 3-4.For example,you
can plug in an iPod or CD player
here,instead of using the quarter-
inch jacks to the right.
DO NOT
plug a cable into this mini jack at
the same time as the quarter-inch
jacks.
To avoid ground loop
noise
,don’t connect a device with
another power source (such as an
iPod connected to a computer).
5. These two analog inputs are
balanced TRS (tip/ring/sleeve)
quarter-inch connectors that can
also accept an unbalanced plug.
These inputs (3-4) do not have mic
pre-amps,so they are best used
for synthesizers,drum machines,
effects processors,and other
devices with line level signals
(either -10 or +4).The CueMix FX
software lets you adjust the input
level for recording.If you use these
quarter inch jacks,DO NOT plug a
cable in to the stereo mini jack.
6. This eighth-inch“stereo mini”jack
serves as a stereo line level analog
output that is completely
independent from the Main Out
(to the right).
7. These two balanced,quarter-inch
jacks serve as the MicroBook’s
main outputs.You can connect
them to a set of powered studio
monitors.To control volume,push
the VOL knob on the top repeat-
edly until the speaker LED is lit.You
can hear the output of your audio
software on these Main Outs,and
also use CueMix FX to monitor live
MicroBook inputs.
0
Quick Reference: MicroBook Rear Panel
1 3 4 765
To minimize noise that may be
produced by connected devices:
• Use balancedTRS quarter-inch
cables whenever possible.
• Use the MicroBook’s balanced
quarter-inch connectors instead
of the eighth-inch stereo“mini”
connectors whenever possible.
• Don’t make unbalanced audio
connections between the Micro-
Book and a FireWire or USB
device while the other device is
connected to any computer.
2

0
Quick Reference: MicroBook Top Panel
1. The MIC digital rotary encoder
controls the trim for the mic
input.The preamp provides 53
dB of gain.Push to toggle the
-20 dB pad;push and hold to
toggle the 48V phantom power.
Make sure 48V power
is turned OFF BEFORE plugging
anything in to the mic input.
Only engage 48V power when a
device that requires it is plugged
in.
2. Three-LED metering for the LINE
IN jacks.
3. Stereo three-LED metering for
the MAIN OUTs.
4. Four-LED metering for the MIC
input and GUITAR input.In
“GuitarTrim Mode”(see below),
these meters indicate the input
level setting (not signal activity).
5. Three-LED metering for the LINE
OUTs.
6. TheVOL digital rotary encoder
controls the volume of the main
outs and phones.Push it repeat-
edly to cycle among three states:
a) Main outs (speaker icon)
b) Phones (headphone icon)
c) Both
Push and hold theVOL encoder
to enable
Guitar Trim Mode .
In this mode,you can use theVOL
knob to adjust the guitar input
level;the MIC knob continues to
adjust the mic input level,as
usual.The MIC and GTR signal
activity meters (4) become level
indicators.If the level is turned
all the way down,the the
bottom LED flashes.
1 62 3 4 5

CHAPTER
7
Quick Reference: CueMix FX
Launch CueMix FX (in your Mac Applications folder or in the Windows Start menu
under Programs>MOTU>CueMix FX) to control the MicroBook. This chapter gives
you a quick overview. For further details, see chapter 7,“CueMix FX” (page 37).
1. Input settings include trim
level,mono/stereo toggle,EQ
and dynamics.For more input
settings (pad,phantom power,
etc.)clickthe Focusbuttonand
go to the Channel tab.
2. The MicroBook provides four
stereo mix busses.Use the Mix
tab to mix sources (inputs,
host computer audio,etc.) for
each mix bus.See “The Mixes
tab”on page 41.
3. Output settings include
choosing what you will hear
on each output (a mix bus,
host computer audio,or a
signal generator),EQ,and
dynamics.See the next page,
or “The Outputs tab”on
page 42 for more info.
4. Click a focus button (in the
Inputs,Outputs,or Mixes tabs)
to view individual channel
settings here in the Channel,
EQ and D
y
namics tabs.
5. Control the volume of the
MicroBook’s outputs here.
6. Signal Generator tab provides
settings for white/pink noise
and a sine wave generator.
7. Meters for all ins/outs/busses.
51 32 4
67

8
1. Click the Outputs tab to access
settings for the MicroBook’s
outputs.For example,you can
choose one of four different
mixes for each output.
2. Choose the audio source for
each output pair from these
menus.The MicroBook gives
you a lot of flexibility,as
shown in the menu to the
right.You can choose one of
the four mixes,which let you
mix inputs with computer
audio.Or you can choose an
input or computer audio
directly (the Aux option).A
mix can go to as many outputs
as you want.Choosing Sine,
White,or Pink produces a sine
wave or white/pink noise from
the MicroBook’s signal genera-
tor (item 8 on the previous
page).
3. If you want to apply EQ or
dynamics processing to the
output,click here to enable it
and then adjust settings in the
channel section (4).
4. Adjust output settings in the
EQ and dynamics tabs here.In
the EQ tab,click the power
icon to enable an EQ band and
then either adjust its knobs or
drag its settings directly in the
graph above.
5. Use this menu to access the
spectrogram waterfall,real
time FFT display,and other
diagnostic tools.See “Audio
analysis tools”on page 45.
1
2
4
3
5

CHAPTER
ABOUT THE MICROBOOK
9
1
About the MicroBook
Obtaining your MicroBook
serial number
The MicroBook holds its serial
number electronically in the unit
itself. To obtain the serial number,
follow the hardware and software
installation instructions in this
booklet, and then do the following:
1 Launch the CueMix FX software.
2 Choose Devices menu>
MicroBook> Setup.
Figure 1-1: The Setup window.
3 The serial number is shown at
the bottom of the Setup window, as
shown in Figure 1-1.
Overview
The MicroBook IIc is an audio class-
compliant USB audio interface for Mac,
Windows and iOS devices, with on-
board effects and mixing that offers six
inputs and eight outputs for recording
and playback at industry standard
sample rates from 44.1 to 96 kHz.All
inputs and outputs can be accessed
simultaneously. The MicroBook consists
of a light and small aluminum alloy-
encased interface that connects directly
to a computer via a standard USB cable.
Alternately, it can connect to an iOS
device with a standard USB camera
connection kit.
MicroBook feature highlights include:
■ 4-input, 6-output bus-powered
“plug-and-play” high-speed USB 2.0
audio interface for Mac and Windows.
■ Supports Apple® iPad® and other iOS®
devices with camera connection kit (sold
separately).
■ 6 x 8 physical inputs/outputs.
■ 8-bus digital mixer to route and mix
live inputs with live computer tracks.
■ Preamp-equipped mic input with
Precision Digital Trim™, 48V phantom
power, and -20 dB pad.
■ Hi-Z guitar input with Precision
Digital Trim.

ABOUT THE MICROBOOK
10
■ Stereo line level analog input on
balanced quarter-inch (TRS) or stereo
mini connectors.
■ Stereo line level analog main outs on
balanced quarter-inch (TRS) connectors.
■Stereo eighth-inch“mini” line-level
input and output.
■S/PDIF digital out on RCA (duplicates
Main Out).
■Headphone output on a quarter-inch
stereo jack with independent volume
control.
■Operation on all analog and digital I/O
at standard sample rates from 44.1 to 96
kHz.
■Digitally controlled analog trim for the
mic and guitar inputs.
■Digital trim for all outputs.
■Output volume digital rotary encoder.
Push to cycle among three modes: main
out, phones, or both.
■Mic input digital rotary encoder for
adjusting trim level, 48V and pad.
■Dedicated 3- or 4-segment LED meters
for all inputs and outputs.
■CueMix™ FX no-latency mixing and
monitoring with EQ and dynamics
processing.
■7-band parametric EQ and
compression.
■Test tone and white/pink noise
generator.
■Instrument tuner.
■Advanced audio analysis software
tools, including FFT “waterfall” display,
oscilloscope, X-Y plot, and phase torch.
■USB audio class compliant operation
for plug-and-play operation with all
current and recent generation Macs and
iOS devices (with a USB camera
connection kit).
■Across-the-board compatibility with
any audio software.
■AudioDesk™ full-featured audio
workstation software for Mac OS X and
Windows (7, 8 and 10).
■Standard USB cable included.
■Micro-B USB cable with power adapter
included for iOS operation.
With a variety of I/O formats, dedicated
mic and guitar inputs, and no-latency
mixing and processing of live input, the
MicroBook is a complete, portable
“studio in a box”when used with a Mac,
PC or iOS device.
Precision Digital Trim™
The MicroBook’s mic and guitar inputs
are equipped with digitally controlled
analog trims with up to 51 dB and 32 dB
of boost, respectively, using the included
CueMix FX software for Mac OS X and
Windows. This allows you to fine-tune
trim settings for optimum levels.
Different trim configurations can then be
saved as files on disk for instant recall.

ABOUT THE MICROBOOK 11
16-bit and 24-bit recording
The MicroBook system handles all data
with a 24-bit signal path,regardless of the
I/O format.You can record and play back
16-bit or 24-bit audio files at any
supported sample rate via any of the
MicroBook’s inputs and outputs.
CueMix FX mixing and effects
All MicroBook inputs and outputs can be
routed to the on-board CueMix FX 8-bus
(four stereo) digital mixer driven by
hardware-based DSP. The mixer allows
you to apply no-latency EQ and
dynamics processing to inputs, outputs
or busses directly in the MicroBook
hardware, independent of the computer.
Input signals to the computer can be
recorded wet, dry, or dry with a wet
monitor mix (for musicians during
recording, for example).
Effects include parametric EQ and
compression/limiting. Standard
compression provides conventional
threshold, ratio, attack, release, trim, and
knee controls. The 7-band parametric
EQ is modeled after British analog
console EQs, featuring four filter styles
(gain/Q profiles) to effectively cover a
wide range of audio material. Low-pass
and high-pass filters are also supplied
with slopes that range from 6 to 36 dB.
The MicroBook’s flexible effects
architecture allows you to apply EQ and
compression on every input and output.

ABOUT THE MICROBOOK
12

CHAPTER
PACKING LIST AND SYSTEM REQUIREMENTS 13
2Packing List and System
Requirements
PACKING LIST
The MicroBook ships with the items
listed below. If any of these items are not
present in your MicroBook box when you
first open it, please immediately contact
your dealer or MOTU.
■One MicroBook IIc audio interface
■One USB cable for connection to a host
computer (Type A to Type B)
■One USB cable for power (Type A to
Micro B)
■One USB power adapter (USB Type A
jack to two-prong North American
power)
■(International only) one international
power adapter
■One MicroBook Mac/Windows User
Guide
■One cross-platform Universal Audio
Installer disc
■MicroBook product registration card
■One sheet of four peel-off rubber feet
MAC SYSTEM REQUIREMENTS
The MicroBook system requires the
following Mac system:
■Any Mac with an Intel processor
■4 GB of RAM or more
■Mac OS X version 10.6.8 or later
■A large hard drive, preferably at least
100 GB
WINDOWS SYSTEM REQUIREMENTS
The MicroBook system requires the
following Windows system:
■Pentium 4 CPU (or equivalent) 1 GHz
or faster
■4 GB of RAM or more
■Windows 7, 8 or 10
■A large hard drive, preferably at least
100 GB
PLEASE REGISTER TODAY!
Please register your MicroBook today.
There are two ways to register.
■Visit www.motu.com/register to
register online
OR
■Fill out and mail the included product
registration card
As a registered user, you will be eligible to
receive technical support and
announcements about product
enhancements as soon as they become
available. Only registered users receive
these special update notices, so please
register today.

PACKING LIST AND SYSTEM REQUIREMENTS
14
You need your MicroBook serial
number to register
To register your MicroBook, you need
your unit’s serial number. See “Obtaining
your MicroBook serial number” below.
Be sure to register AudioDesk
Be sure to register the included
AudioDesk software, which must be
registered separately. You can do so
online at motu.com/register. Doing so
will allow you to be eligible to receive
technical support and announcements
about software enhancements as soon as
they become available.
Thank you for taking the time to register
your new MOTU products!
OBTAINING YOUR MICROBOOK
SERIAL NUMBER
The MicroBook holds its serial number
electronically in the unit itself. To obtain
the serial number, follow the hardware
and software installation instructions in
the next two chapters, and then do the
following:
1Launch CueMix FX.
2Choose Devices menu> MicroBook>
Setup.
Figure 2-1: The Setup window.
3The serial number is shown at the
bottom of the Setup window, as shown in
Figure 2-1.

CHAPTER
INSTALLING THE MICROBOOK SOFTWARE 15
3Installing the MicroBook
Software
NO SOFTWARE INSTALLATION FOR
iOS DEVICES
The MicroBook IIc is a USB audio class
compliant device, so it can be used as a
simple 4-input, 6-output audio interface
(with no mixing or processing features)
for iPad and other iOS devices. No
software installation is required. Just
connect the MicroBook to your iOS
device as explained in “Connecting to an
iOS device” on page 18, and access it in
your iOS audio software as instructed for
your audio software.
MAC SOFTWARE INSTALLATION
To install the MicroBook software:
1Insert the MOTU Universal Installer
disc or download the installer from
motu.com/download.
2Launch the installer.
3Follow the directions that the installer
gives you.
What does the installer do?
The installer checks the computer to
make sure it satisfies the minimum
system requirements for your MOTU
interface.If so,the installer proceeds with
the Mac OS X installation. Drivers are
installed, along with the CueMix FX
application.
Class compliant operation under OS X
The MicroBook IIc is a USB audio class
compliant device, so OS X will recognize
it as a simple 4-input, 6-output audio
interface, even without the MicroBook
drivers installed. When operating in this
mode, the MicroBook can be used as a
simple audio interface (with no mixing or
processing) with any Mac audio software.
However,it is still recommended that you
run the software installer, so that you can
take full advantage of all the professional
features offered by the MicroBook.
WINDOWS SOFTWARE
INSTALLATION
Before you connect the MicroBook audio
interface to your PC and turn it on, it is
best to install the software drivers first.
This ensures that all the MicroBook
components are properly installed in
your system.
☛PC installation goes more smoothly if
you install the software before
connecting the MicroBook hardware.
To install the MicroBook software on
your PC:
1Insert the MOTU Universal Installer
disc or download the installer from
motu.com/download.
2Launch the installer.
3Follow the directions that the installer
gives you.

INSTALLING THE MICROBOOK SOFTWARE
16
If Windows asks you to locate the
drivers
If you’ve already connected the
MicroBook to your computer,Windows
probably issued an alert notifying you
that the MicroBook requires drivers,
followed by another window asking you
to locate the drivers on disk. If this
happens:
1Cancel the driver search.
2Disconnect the MicroBook.
3Run the MicroBook Software Installer
as instructed in the previous section.
CUEMIX FX
The CueMix FX application (for Mac and
Windows) is installed on your hard drive
during software installation. It provides a
mixing console that gives you control
over the MicroBook’s on-board mixing,
EQ and dynamics processing. It also
provides access to all MicroBook
settings. For details, see chapter 7,
“CueMix FX” (page 37).
☛CueMix FX is not required for iOS
operation, as the MicroBook IIc operates
as a simple 4-input, 6-output audio
interface for iOS, with no mixing or
processing features.
AUDIODESK WORKSTATION
SOFTWARE (MAC AND WINDOWS)
AudioDesk is an advanced digital audio
workstation software package for the
MicroBook that lets you record, edit,
mix, process, bounce and master multi-
track audio projects.Advanced features
include real-time 32-bit effects
processing, 24-bit recording, and much
more. See the AudioDesk User Guide PDF
in the AudioDesk Help menu for details.
Figure 3-1: AudioDesk for Mac OS X and Windows.

CHAPTER
INSTALLING THE MICROBOOK HARDWARE 17
4Installing the MicroBook
Hardware
OVERVIEW
Windows users: install the software first . . . . 17
About USB cables . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Connecting to a computer . . . . . . . . . . . . . . . . . . 18
Connecting to an iOS device . . . . . . . . . . . . . . . . 18
Connect inputs and outputs . . . . . . . . . . . . . . . . 19
Input settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Bus power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
AC power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
A typical MicroBook setup . . . . . . . . . . . . . . . . . . 23
WINDOWS USERS: INSTALL THE
SOFTWARE FIRST
PC installation goes more smoothly if
you install the MicroBook software
(previous chapter) before you connect
the MicroBook hardware (this chapter).
ABOUT USB CABLES
The MicroBook IIc includes two USB
cables: one for connecting to a host
computer, and another for connecting to
a power outlet (for iOS device operation).
Host computer USB 2.0 cable
The standard host computer USB cable
(included) has Type A and Type B
connectors.
Figure 4-1: Use this standard Type A to Type
B cable for connection to a host computer.
Micro-B USB 2.0 cable for power
The Micro-B USB cable (included) is a
standard USB 2.0 cable with Type A and
Micro-B connectors.You can use any
similar standard USB cable.
Figure 4-2: Use this cable for connecting the
MicroBook IIc to a power outlet when using
it with an iPad or other iOS device.
Use the included USB-to-power adapter
to connect the Micro-B USB cable to a
power outlet. If you are outside North
America, use the supplied international
power adapter as shown below, if needed.
Figure 4-3: Attach the supplied USB power
adapter to the Type A connector on the
Micro-B USB cable. Add the International
adapter, if needed.
Type A
Type B
Micro-B
Type A
Micro-B
USB cable
Type A
connector
USBpower
adapter
International
adapter
(if required)

INSTALLING THE MICROBOOK HARDWARE
18
CONNECTING TO A COMPUTER
1Plug the MicroBook Host Computer
USB cable (Figure 4-1, included) into a
USB socket on the computer as shown
below.
2Plug the other end of the USB cable
into the MicroBook as shown below.
Figure 4-4: Connecting the MicroBook to a
computer.
When connected to a computer, the
MicroBook IIc is bus-powered from this
USB connection.
CONNECTING TO AN iOS DEVICE
1Using a standard iOS camera
connection kit cable (purchased
separately), connect the MicroBook host
USB cable to your iPad or other iOS
device, as shown below in Figure 4-5.
Figure 4-5: Connecting the MicroBook to an
iPad or other iOS device.
2Connect the other end of the host USB
cable to the MicroBook, as shown in
Figure 4-4.
3(Optional) Using the Micro-B USB
cable (Figure 4-2, included) and USB
power adapter (Figure 4-3, included),
connect the MicroBook to a power outlet,
as shown below in Figure 4-6.
Figure 4-6: Powering the MicroBook from a
power outlet when connected to an iPad or
other iOS device.
Mac
PC
iPad
Camera
connection kit
cable
USB host
cable
(Figure 4-1)
