RTS OMI-2 User manual

0
OMI FC
2
1
15
7
1
3
2
5
4
6
11
9
8
10
13
12
14
22
16
18
17
20
19
21
23
RESET
SERIAL
J5
J2
J1
ETHERNET
OMI-2 BC
J3
J4
OMI‑2
OMNEO Matrix Interface Gen 2
en Technical Manual

OMI-2 Table of contents | en 3
Bosch Security Systems, LLC Technical Manual 2020-11 | 01 | F.01U.393.053
Table of contents
1About this manual 4
1.1 Copyright and Disclaimer 4
1.2 Notices 4
1.3 Important safety instructions 5
2Introduction 6
2.1 OMI-2 front card and back card reference view 7
2.2 Front card LED description 7
3OMI-2 system configurations 13
3.1 Single subnet system drawing 14
3.2 VLAN system drawing 15
4Install an OMI-2 card in the ADAM, ADAM-M, or ADAM-2 system 16
4.1 ADAM M Installation 16

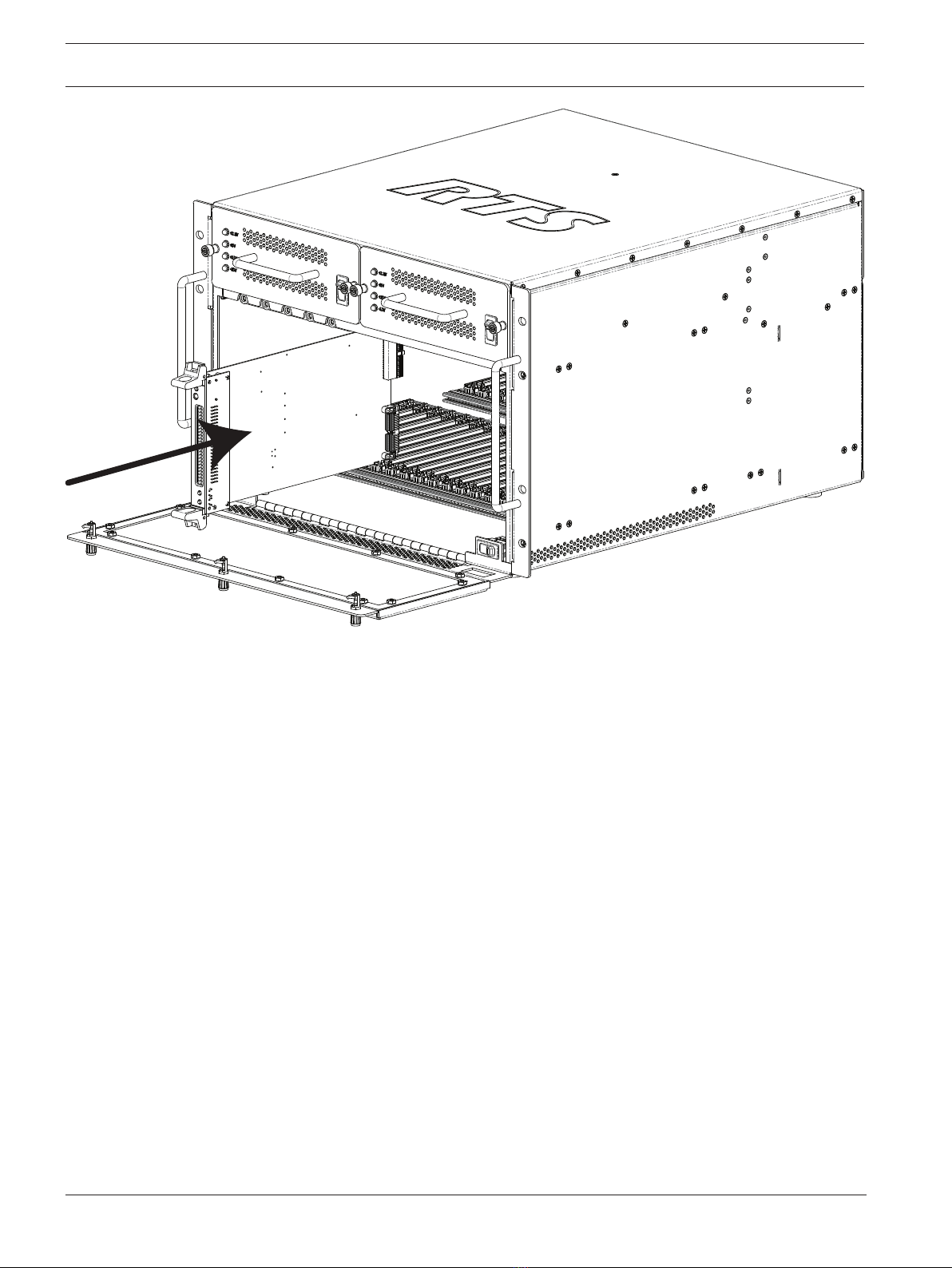

4.2 ADAM Installation 17
5Connectors 20
6OMI-2 Configuration 23
6.1 Configure the OMI-2 in AZedit 23
6.1.1 Download the license file 23
6.1.2 Allocate ports 24
6.1.3 Configure the network 26
6.1.4 Configure keypanels to the OMI-2 card 27
6.2 Configure OMI-2 in IPedit 28
6.2.1 Add the OMI-2 card to IPedit 28
6.2.2 Configure the network 28
6.2.3 Configure keypanels to the OMI card 29
6.3 Configure the DHCP Server 29
6.4 Zero Configuration 30
7Window descriptions 31
7.1 OMNEO configuration screen 31
7.2 Discovered Devices screen 34
7.3 OMNEO Connection Status screen 35
7.3.1 Card/Channel page 35
7.3.2 Connection page 36
7.3.3 Pass-Through page 37
7.3.4 Ethernet page 38
7.4 DHCP Server Configuration screen 39
7.5 OMNEO specific items in the Preferences screen 41
7.6 Firmware Upload Tool 42
7.6.1 Select Firmware for Upload window 42
7.6.2 Select Device List Columns screen 43
7.6.3 Logging window 44
8Maintenance 45
8.1 Update OMI firmware 45
8.2 OMI-2 card diagnostics 47
9Technical data 49

4en | About this manual OMI-2
2020-11 | 01 | F.01U.393.053 Technical Manual Bosch Security Systems, LLC
1 About this manual
1.1 Copyright and Disclaimer
All rights reserved. The product information and design disclosed herein were originated by
and are the property of Bosch Security Systems, LLC. Bosch reserves all patent, proprietary
design, manufacturing, reproduction, use and sales rights thereto, and to any article disclosed
therein, except to the extent rights are expressly granted to others.
No part of this document may be reproduced or transmitted in any form by any means,
electronic, mechanical, photocopying, recording, or otherwise, without the prior written
permission of the publisher. For information on getting permission for reprints and excerpts,
contact Bosch Security Systems, LLC.
All other trademarks are property of their respective owners.
The content and illustrations are subject to change without prior notice.
Bonjour® is a trademark of Apple Corporation.
1.2 Notices
The lightning flash and
arrowhead within the triangle
is a warning sign alerting you
of dangerous voltage inside
the product.
Caution: To reduce the risk of
electric shock, do not remove
cover. No user-serviceable
parts inside. Refer servicing
to qualified service personnel
The exclamation point within
the triangle is a warning sign
alerting you of important
instructions accompanying
the product.
See marking on bottom/back of product.
!
Warning!
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids,
such as vases, shall be placed on the apparatus.
!
Warning!
The main power plug must remain readily operable.
!
Caution!
To reduce the risk of electric shock, grounding of the center pin of this plug must be
maintained.
!
Warning!
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

OMI-2 About this manual | en 5
Bosch Security Systems, LLC Technical Manual 2020-11 | 01 | F.01U.393.053
This product is AC only.
CE Compliant
!
Warning!
This is a CLASS A product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.
i
Notice!
Equipment is intended for installation in Restricted Access Area.
1.3 Important safety instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the third prong is provided for your safety. If
the provided plug does not fit into your outlet, consult an electrician for replacement of
the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplug the apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.

6en | Introduction OMI-2
2020-11 | 01 | F.01U.393.053 Technical Manual Bosch Security Systems, LLC
2 Introduction
OMI-2 (OMNEO Matrix Interface) card description
The OMI-2 card set for the ADAM, ADAM-M and ADAM 2 intercom frames provides fully IP
compliant connectivity into the ADAM intercom BUS for OMNEO compatible devices. The card
set consists of a back card and front card and supports fiber optic cabling (through use of
optional fiber modules) and RJ45 Ethernet connections.
OMNEO is a fully Layer 3 compliant media-networking architecture, uniting devices normally
inaccessible without time-consuming and expensive cabling projects, planned weeks or
months ahead of the implementation of the actual system. OMNEO fully supports currently
available network infrastructure to provide low cost implementation. OMNEO also provides
extremely low latency and high audio fidelity, which make it usable in virtually any application.
OMNEO employs Audinate's Dante, a standards-based, routable IP media transport
technology, and OCA (Open Control Architecture) as the control protocol, which is a proposed
open public standard used for control and monitoring of professional media networks.
Together this allows the freedom to assemble from 2 to 10,000 cooperating devices that can
exchange studio-quality, synchronized, multi-channel audio and share common control
systems.
OMNEO also supports the current AVB (Audio/Video Bridging) standards and can take
advantage of the special features of AVB switches and networking hardware.
With multiple open standards, OMI provides an ideal solution for Layer 2 or Layer 3 media
networking within a variety of IT infrastructures.
Features
– Supports RSTP
– Supports Layer 2 or 3 IT environments. Supports DHCP and Bonjour1
– Supports Fiber (with optional single or multimode fiber module), CAT-5/6, and CAT-5e
(Ethernet 10/100MB and 1GB) for simplified wiring. Up to 64 ports per card maximum
– Provides up to 512 ports in a single ADAM Frame (8 OMI Cards) or 256 Ports in an ADAM-
M Frame (4 OMI Cards)
– OMI safely connect with PoE based switches , but cannot be powered from PoE switches

OMI-2 Introduction | en 7
Bosch Security Systems, LLC Technical Manual 2020-11 | 01 | F.01U.393.053
2.1 OMI-2 front card and back card reference view
0
OM I F C
2
1
15
7
1
3
2
5
4
6
11
9
8
10
13
12
14
22
16
18
17
20
19
21
23
R ESET
Front Card StatusLED
RJ45
Ethernet Connector
Fiber Connector
Fiber Status LED
DB-9 Connector
Reset Button
Power LED
Soft Button 1
Soft Button 2
OMI
Back Card
OMI
Front Card
SERIAL
J5
J2J1
ETHERNET
OMI-2 BC
J3
J4
Fiber Connector
Fiber Status LED
RJ45
Ethernet Connector
2.2 Front card LED description
LED State OMNEO Connection State
Green LED on; Red LED off OMNEO Connection connected
Green LED winks on and off; Red LED off OMNEO Connection connected to a keypanel
Green LED off; Red LED on OMNEO Connection configured but not
connected
Green LED off; Red LED off OMNEO Connection not configured
Tab.2.1: OMNEO Connection LEDs Status Definition
i
Notice!
On the OMI-2 card, there are four pages of status descriptions. To change the LED display
page, press the soft button 1.
OMI Status LEDs - Page 0
Red LED # Green LED
TXing on control bus 23 RXing on control bus
22

8en | Introduction OMI-2
2020-11 | 01 | F.01U.393.053 Technical Manual Bosch Security Systems, LLC
OMI Status LEDs - Page 0
Red LED # Green LED
21 Link Good Fiber A
20 Link Good Copper B
19 Link Good Copper C
18
Error/Missing Back Card 17 Valid Back Card
Driving Clock 16 Clock Good
15
14
13
Pass-Through: RJ485 12 Pass-Through:RS232
Pass-Through: CAP to UART 11 Pass-Through: UART to CAP
10 Ctrl Bus: Rx'd Byte
9 Ctrl Bus: Rx'd Message
8 Acquired Ctrl Bus
7
6
5
4 Page 4
3 Page 3
2 Page 2
1 Page 1
0 Page 0
Tab.2.2: LED Descriptions page 0
OMI Status LEDs - Page 1
Red LED # Green LED
OMNEO Connect Status (red) - channel 1 23 OMNEO Connect Status (green) channel 1
OMNEO Connect Status (red) - channel 2 22 OMNEO Connect Status (green) channel 2
OMNEO Connect Status (red) - channel 3 21 OMNEO Connect Status (green) channel 3
OMNEO Connect Status (red) - channel 4 20 OMNEO Connect Status (green) channel 4
OMNEO Connect Status (red) - channel 5 19 OMNEO Connect Status (green) channel 5
OMNEO Connect Status (red) - channel 6 18 OMNEO Connect Status (green) channel 6

OMI-2 Introduction | en 9
Bosch Security Systems, LLC Technical Manual 2020-11 | 01 | F.01U.393.053
OMI Status LEDs - Page 1
Red LED # Green LED
OMNEO Connect Status (red) - channel 7 17 OMNEO Connect Status (green) channel 7
OMNEO Connect Status (red) - channel 8 16 OMNEO Connect Status (green) channel 8
OMNEO Connect Status (red) - channel 9 15 OMNEO Connect Status (green) channel 9
OMNEO Connect Status (red) - channel 10 14 OMNEO Connect Status (green) channel 10
OMNEO Connect Status (red) - channel 11 13 OMNEO Connect Status (green) channel 11
OMNEO Connect Status (red) - channel 12 12 OMNEO Connect Status (green) channel 12
OMNEO Connect Status (red) - channel 13 11 OMNEO Connect Status (green) channel 13
OMNEO Connect Status (red) - channel 14 10 OMNEO Connect Status (green) channel 14
OMNEO Connect Status (red) - channel 15 9 OMNEO Connect Status (green) channel 15
OMNEO Connect Status (red) - channel 16 8 OMNEO Connect Status (green) channel 16
7
Ethernet 'A'1 Link Good 6
Ethernet 'A' Full-Duplex 5
Ethernet 'A' Half-Duplex 4 Page 4
Ethernet 'A' 1000 Mbps 3 Page 3
2 Page 2
1 Page 1
Ethernet 'A' Not 'AUTO' 0 Page 0
A = Fiber Port
Tab.2.3: LED Descriptions page 1
OMI Status LEDs - Page 2
Red LED # Green LED
OMNEO Connect Status (red) - channel 17 23 OMNEO Connect Status (green) channel 17
OMNEO Connect Status (red) - channel 18 22 OMNEO Connect Status (green) channel 18
OMNEO Connect Status (red) - channel 19 21 OMNEO Connect Status (green) channel 19
OMNEO Connect Status (red) - channel 20 20 OMNEO Connect Status (green) channel 20
OMNEO Connect Status (red) - channel 21 19 OMNEO Connect Status (green) channel 21
OMNEO Connect Status (red) - channel 22 18 OMNEO Connect Status (green) channel 22
OMNEO Connect Status (red) - channel 23 17 OMNEO Connect Status (green) channel 23
OMNEO Connect Status (red) - channel 24 16 OMNEO Connect Status (green) channel 24
OMNEO Connect Status (red) - channel 25 15 OMNEO Connect Status (green) channel 25

10 en | Introduction OMI-2
2020-11 | 01 | F.01U.393.053 Technical Manual Bosch Security Systems, LLC
OMI Status LEDs - Page 2
Red LED # Green LED
OMNEO Connect Status (red) - channel 26 14 OMNEO Connect Status (green) channel 26
OMNEO Connect Status (red) - channel 27 13 OMNEO Connect Status (green) channel 27
OMNEO Connect Status (red) - channel 28 12 OMNEO Connect Status (green) channel 28
OMNEO Connect Status (red) - channel 29 11 OMNEO Connect Status (green) channel 29
OMNEO Connect Status (red) - channel 30 10 OMNEO Connect Status (green) channel 30
OMNEO Connect Status (red) - channel 31 9 OMNEO Connect Status (green) channel 31
OMNEO Connect Status (red) - channel 32 8 OMNEO Connect Status (green) channel 32
7
Ethernet 'B'1 Link Good 6
Ethernet 'B' Full-Duplex 5
Ethernet 'B' Half-Duplex 4 Page 4
Ethernet 'B' 1000 Mbps 3 Page 3
Ethernet 'B' 100 Mbps 2 Page 2
Ethernet 'B' 10 Mbps 1 Page 1
Ethernet 'B' Not 'AUTO' 0 Page 0
B = Copper Port 1
Tab.2.4: LED Descriptions page 2
OMI Status LEDs - Page 3
Red LED # Green LED
OMNEO Connect Status (red) - channel 33 23 OMNEO Connect Status (green) channel 33
OMNEO Connect Status (red) - channel 32 22 OMNEO Connect Status (green) channel 32
OMNEO Connect Status (red) - channel 33 21 OMNEO Connect Status (green) channel 33
OMNEO Connect Status (red) - channel 34 20 OMNEO Connect Status (green) channel 34
OMNEO Connect Status (red) - channel 35 19 OMNEO Connect Status (green) channel 35
OMNEO Connect Status (red) - channel 36 18 OMNEO Connect Status (green) channel 36
OMNEO Connect Status (red) - channel 37 17 OMNEO Connect Status (green) channel 37
OMNEO Connect Status (red) - channel 38 16 OMNEO Connect Status (green) channel 38
OMNEO Connect Status (red) - channel 39 15 OMNEO Connect Status (green) channel 39
OMNEO Connect Status (red) - channel 40 14 OMNEO Connect Status (green) channel 40
OMNEO Connect Status (red) - channel 41 13 OMNEO Connect Status (green) channel 41
OMNEO Connect Status (red) - channel 42 12 OMNEO Connect Status (green) channel 42

OMI-2 Introduction | en 11
Bosch Security Systems, LLC Technical Manual 2020-11 | 01 | F.01U.393.053
OMI Status LEDs - Page 3
Red LED # Green LED
OMNEO Connect Status (red) - channel 43 11 OMNEO Connect Status (green) channel 43
OMNEO Connect Status (red) - channel 44 10 OMNEO Connect Status (green) channel 44
OMNEO Connect Status (red) - channel 45 9 OMNEO Connect Status (green) channel 45
OMNEO Connect Status (red) - channel 46 8 OMNEO Connect Status (green) channel 46
7
Ethernet 'C'1 Link Good 6
Ethernet 'C' Full-Duplex 5
Ethernet 'C' Half-Duplex 4 Page 4
Ethernet 'C' 1000 Mbps 3 Page 3
Ethernet 'C' 100 Mbps 2 Page 2
Ethernet 'C' 10 Mbps 1 Page 1
Ethernet 'C' Not 'AUTO' 0 Page 0
C = Copper Port 2
Tab.2.5: LED Descriptions page 3
OMI Status LEDs - Page 4
Red LED # Green LED
OMNEO Connect Status (red) - channel 49 23 OMNEO Connect Status (green) channel 49
OMNEO Connect Status (red) - channel 50 22 OMNEO Connect Status (green) channel 50
OMNEO Connect Status (red) - channel 51 21 OMNEO Connect Status (green) channel 51
OMNEO Connect Status (red) - channel 52 20 OMNEO Connect Status (green) channel 52
OMNEO Connect Status (red) - channel 53 19 OMNEO Connect Status (green) channel 53
OMNEO Connect Status (red) - channel 54 18 OMNEO Connect Status (green) channel 54
OMNEO Connect Status (red) - channel 55 17 OMNEO Connect Status (green) channel 55
OMNEO Connect Status (red) - channel 56 16 OMNEO Connect Status (green) channel 56
OMNEO Connect Status (red) - channel 57 15 OMNEO Connect Status (green) channel 57
OMNEO Connect Status (red) - channel 58 14 OMNEO Connect Status (green) channel 58
OMNEO Connect Status (red) - channel 59 13 OMNEO Connect Status (green) channel 59
OMNEO Connect Status (red) - channel 60 12 OMNEO Connect Status (green) channel 60
OMNEO Connect Status (red) - channel 61 11 OMNEO Connect Status (green) channel 61
OMNEO Connect Status (red) - channel 62 10 OMNEO Connect Status (green) channel 62
OMNEO Connect Status (red) - channel 63 9 OMNEO Connect Status (green) channel 63

12 en | Introduction OMI-2
2020-11 | 01 | F.01U.393.053 Technical Manual Bosch Security Systems, LLC
OMI Status LEDs - Page 4
Red LED # Green LED
OMNEO Connect Status (red) - channel 64 8 OMNEO Connect Status (green) channel 64
7
6
5
4 Page 4
3 Page 3
2 Page 2
1 Page 1
0 Page 0
Tab.2.6: LED Descriptions page 4

OMI-2 OMI-2 system configurations | en 13
Bosch Security Systems, LLC Technical Manual 2020-11 | 01 | F.01U.393.053
3 OMI-2 system configurations
Currently, the OMNEO technology supports single subnet and simple VLAN configurations. In
the future, larger system setups will be supported.
OMNEO general constraints
– Single subnets cannot exceed 450 OMNEO devices
– The maximum number of hops between source and destination is seven
– The maximum number of nodes in a daisy-chained system is 20

14 en | OMI-2 system configurations OMI-2
2020-11 | 01 | F.01U.393.053 Technical Manual Bosch Security Systems, LLC
3.1 Single subnet system drawing
The single subnet system contains two OMI-2 cards in one frame and two Layer 2 switches
trunked together and is capable of supporting up to 124 OKI keypanels (four ports are used by
the two OMI-2 cards audio IN and OUT). This system uses Zero Configuration.
L2 Switches
(Single Subnet)
OMI Cards
KP Series
keypanels
Figure3.1: OMNEO Single Subnet System

OMI-2 OMI-2 system configurations | en 15
Bosch Security Systems, LLC Technical Manual 2020-11 | 01 | F.01U.393.053
3.2 VLAN system drawing
In the system drawing, one OMI-2 card supports VLAN1 through VLAN40. Two MCII-e cards act
as redundant DHCP servers, meaning that if one fails, the other takes over the DHCP
responsibilities. Two Layer 3 switches create trunked ports creating communication between
all the VLANs. Also connected to the two Layer 3 switches is a Layer 2 switch that acts as a
VLAN for multiple keypanels.
i
Notice!
The system diagram shows only one OMI-2 card installed, which means only 64 ports are
available for audio transmittal. Adding addition OMI-2 cards can add more ports for use.
VLAN 2
VLAN3
VLAN16
VLAN17
VLAN39
VLAN40
VLAN1
Cisco Catalyst 3560
L3 Switches
Trunk Ports
VLAN1 L2 Switch
OMI Card MCII-e Cards
Figure3.2: 40 VLAN System with trunked switches

16 en | Install an OMI-2 card in the ADAM, ADAM-M, or ADAM-2 system OMI-2
2020-11 | 01 | F.01U.393.053 Technical Manual Bosch Security Systems, LLC
4 Install an OMI-2 card in the ADAM, ADAM-M, or
ADAM-2 system
The following firmware versions are the minimum required for OMI-2 support:
– AZedit version 4.5.0 or later
– IPedit version 3.0.0 or later
– MCII-e version 2.9.0 or later
– Bonjour1 (on the network)
– Firmware Upload Tool version 2.4.0 or later
Considerations
– Gently insert the OMI-2 into the slot. If the card is forced or twisted while inserting, a pin
on the backplane could short or break causing the card/frame to be inoperable.
– Make sure to insert the card into a compatible back card. If the card is inserted into an
incompatible backcard, undesirable results can occur.
– Do not force mating cards.
4.1 ADAM M Installation
i
Notice!
Up to four OMI-2 card sets can be used in the frame at a time.
To install the OMI-2 card set into the ADAM M frame, do the following:
1. Gently insert the OMI-2 front card into the appropriate slot.
i
Notice!
Take care to insert the card properly, as shown.

OMI-2 Install an OMI-2 card in the ADAM, ADAM-M, or ADAM-2 system | en 17
Bosch Security Systems, LLC Technical Manual 2020-11 | 01 | F.01U.393.053
2. Using the card ejectors, tighten down the front card by pushing it into the slot.
3. On the back of the frame, carefully insert the OMI-2 back card, aligning it with the OMI
front card, as shown.
4. Ensure the OMI-2 back card seats properly against the OMI-2 front card and is sitting
firmly in the frame.
5. Tighten the OMI-2 back card to the frame using the supplied screws.
6. Ensure the card ejectors are tight to the chassis on the OMI-2 front card.
4.2 ADAM Installation
i
Notice!
Use up to eight OMI-2 card sets in a frame at a time.
To install the OMI-2 card set into an ADAM or ADAM 2 frame, do the following:
1. Gently insert the OMI-2 front card into the appropriate slot.
2. Using the card ejectors, tighten down the front card by pushing it into the slot.

18 en | Install an OMI-2 card in the ADAM, ADAM-M, or ADAM-2 system OMI-2
2020-11 | 01 | F.01U.393.053 Technical Manual Bosch Security Systems, LLC
3. On the back of the frame, carefully insert the OMI-2 back card, aligning it with the OMI
front card, as shown.
4. Ensure the OMI-2 back card seats properly against the OMI-2 front card and is sitting
firmly in the frame.

OMI-2 Install an OMI-2 card in the ADAM, ADAM-M, or ADAM-2 system | en 19
Bosch Security Systems, LLC Technical Manual 2020-11 | 01 | F.01U.393.053
5. Tighten the OMI-2 back card to the frame using the supplied screws.
6. Ensure the card ejectors are tight to the chassis on the OMI-2 front card.

20 en | Connectors OMI-2
2020-11 | 01 | F.01U.393.053 Technical Manual Bosch Security Systems, LLC
5 Connectors
DB-9 Connector pin out
Pin Description
1 N/A
2 RS232-TXD Output
3 RS232-RXD Input
4 N/A
5 Ground
6 N/A
7 N/A
8 N/A
9 N/A
Tab.5.7: RS-232 Mode
Pin Description
1 N/A
2 RS485+
3 RS485-
4 N/A
5 Ground
6 N/A
7 N/A
8 N/A
9 N/A
Tab.5.8: RS-485 Mode
Pin Description
1 BI_DA+ Bi-directional pair A+
2 BI_DA- Bi-directional pair A-
3 BI_DB+ Bi-directional pair B+
4 BI_DC+ Bi-directional pair C+
5 BI_DC- Bi-directional pair C-
6 BI_DB- Bi-directional pair B-
7 BI_DD+ Bi-directional pair D+
8 BI_DD- Bi-directional pair D-
Tab.5.9: Ethernet 1000/100/10 Mode
