Chapter 1 Introduction
The DA-661/662/663 are RISC-based, ready-to-run embedded computers designed for industrial
data acquisition applications. Each model has 16 RS-232/422/485 serial ports, 1 CF socket, 1
PCMCIAsocket, and 2 USB hosts based on the Intel XScale IXP425 communication processor. In
addition, the DA-661 has two Ethernet ports, the DA-662 has 4 Ethernet ports, and the DA-663
has 2 fiber Ethernet channels. The casing is a standard 1U, 19-inch wide rack-mounted rugged
enclosure. The robust, rack-mountable mechanism design provides the hardened protection needed
for industrial environment applications, and makes it easy for users to install the DA-661/662/663
on a standard 19-inch rack. The DA-661/662/663 are ideal for applications that require a
distributed embedded technology, such as SCADA systems, plant floor automation, and power
electricity monitoring applications.
The following topics are covered in this chapter:
Overview
Package Checklist
Product Features
Hardware Specifications

DA-661/662/663 Hardware User’s Manual Introduction
Overview
The DA-661/662/663 are RISC-based, ready-to-run embedded computers designed for industrial
data acquisition applications. Each model has 16 RS-232/422/485 serial ports, 1 CF socket, 1
PCMCIAsocket, and 2 USB hosts based on the Intel XScale IXP425 communication processor. In
addition, the DA-661 has two Ethernet ports, the DA-662 has 4 Ethernet ports, and the DA-663
has 2 fiber Ethernet channels. The casing is a standard 1U, 19-inch wide rack-mounted rugged
enclosure. The robust, rack-mountable mechanism design provides the hardened protection needed
for industrial environment applications, and makes it easy for users to install the DA-661/662/663
on a standard 19-inch rack. The DA-661/662/663 are ideal for applications that require a
distributed embedded technology, such as SCADA systems, plant floor automation, and power
electricity monitoring applications.
The DA-661/662/663 are suitable for IT control room applications, the critical assets used in the
control and automation system of industrial plant floors, and in electric power utility substations.
The DA-661/662/663 can accept a wide range of power inputs (from 100 to 240V), which means
that they can be connected to AC power lines. Because of the no hard disk, fan-less, energy
efficient design, the DA-661/662/663 minimize heat generation, can operate around the clock, year
in and year out, in heavy duty, harsh industrial environments, delivering the kind of reliable
computing power expected of a multifunctional controller.
Choose from models of the DA-661/662/663 that come pre-installed with the open-standard Linux
OS, or the commonly used WinCE OS. The built-in SDK makes program development easy by
allowing you to follow the common programming procedures used on a standard PC. All of the
software you develop for your own applications can be stored in the onboard Flash memory. The
DA-661/662/663 embedded computers are ideal for creating control systems with distributed
architecture that are based on embedded technologies. Typical applications include SCADA
systems, plant floor automation, and power electricity monitoring.
Package Checklist
Before installing the DA-661/662/663, verify that the package contains the following items:
y1 DA-661/662/663 Embedded Computer
y19-inch Rack-Mount Kit
yQuick Installation Guide
yDocument & Software CD
yEthernet Cable: RJ45 to RJ45 cross-over cable, 100 cm
yCBL-RJ45M9-150: RJ45 to DB9 male serial port cable, 150 cm
yCBL-RJ45F9-150: RJ45 to DB9 female console port cable, 150 cm
yPower Cord
yProduct Warranty Statement
NOTE: Notify your sales representative if any of the above items are missing or damaged.
1-2

DA-661/662/663 Hardware User’s Manual Introduction
Product Features
yIntel XScale IXP425 533 MHz Processor
yOn-board 128 MB RAM, 32 MB Flash ROM
y16 RS-232/422/485 serial ports
y2 KV optical isolation protection for serial ports (DA-662-I only)
y2 10/100 Mbps Ethernet (4 10/100 Mbps Ethernet for DA-662 model)
y2 multi-mode 100BaseFX fiber channels with SC connector (DA-663)
yStandard 19-inch rack-mount installation, 1U height
yWide range of power input voltages from 100 to 240VAC
yLCD screen and push buttons for HMI
yReady-to-run Linux/WinCE 5.0 platform
yRobust, fanless design
yPCMCIAfor wireless LAN expansion (supports 802.11b/g)
yCompactFlash for storage expansion
yUSB 2.0 host
Hardware Specifications
DA-661 DA-662
DA-662-I
DA-663
CPU Intel XScale, IXP425 (533 MHz)
RAM 128 MB
Flash 32 MB
LAN Auto-sensing 10/100 Mbps × 2 with built-in 1.5 KV magnetic isolation protection
(RJ45 connector)
Multi-mode
100BaseFX fiber
channel × 2
(SC connector)
Serial Port RS-232/422/485 ×16 (RJ45 connector)
Serial Protection 15 KV ESD for all signals
2 KV optical isolation protection (DA-662-I only)
Data Bits 5, 6, 7, 8
Stop bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control RTC/CTS, XON/XOFF, RS-485 ADDC™
Speed 50 bps to 921.6 Kbps
Serial Console RS-232 ×1
USB 2.0 Hosts 2
PCMCIA Cardbus ×1
1-3

DA-661/662/663 Hardware User’s Manual Introduction
1-4
Storage Expansion CompactFlash ×1
LCM Text Mode (2 ×16)
Push Buttons 4
Watchdog Timer Yes
Real-time Clock Yes
Buzzer Yes
Reset Button Reset to Default ×1
Power Input 100 to 240 VAC
Power DA-661/662/663: 15W
DA-662-I: 23.5W
Dimension
(W ×D ×H) DA-661/662/663: 480 ×198 ×45 mm (with rack-mount ears)
440 ×198 ×45 mm (without rack-mount ears)
DA-662-I: 480 ×224 ×45 mm (with rack-mount ears)
440 ×224 ×45 mm (without rack-mount ears)
Weight DA-661: 2.5 kg DA-662: 2.6 kg
DA-662-I: 2.94 kg
DA-663: 2.5 kg
Operating Temperature -10 to 60°C (14 to 140°F)
Storage Temperature -20 to 70°C (-4 to 176°F), 5 to 95% RH
Anti-Vibration 1 g @ IEC-68-2-6, sine wave (resonance search), 5-500 Hz,
1 Oct/min, 1 cycle, 13 mins 17 sec/axis
Regulatory Approvals EMC: CE Class A, FCC Class A for all models
Safety: UL, cUL, TUV(EN60950) for DA-661/662/663
UL, cUL, LVD(EN60950) for DA-662-I
Warranty 5 years

2
2
Chapter 2 Hardware Introduction
DA-661/662/663 Series hardware is compact, well-designed, and built rugged for industrial
applications. LED indicators help you monitor the performance and identify trouble spots.
Multiple ports allow the connection of different devices for wireless operation. With the reliable
and stable hardware platform that is provided, you may devote your attention to the development
of your application. In this chapter, learn the basics about the embedded computer hardware and its
different parts.
This chapter covers the following topics:
Appearance
¾DA-661
¾DA-662/DA-662-I
¾DA-663
Dimensions
¾DA-661/662/663
¾DA-662-I
Hardware Block Diagram
¾DA-661
¾DA-662/DA-662-I
¾DA-663
LED Indicators
Reset Button
LCD Screen
Push Buttons
Real-time Clock

DA-661/662/663 Hardware User’s Manual Hardware Introduction
Appearance

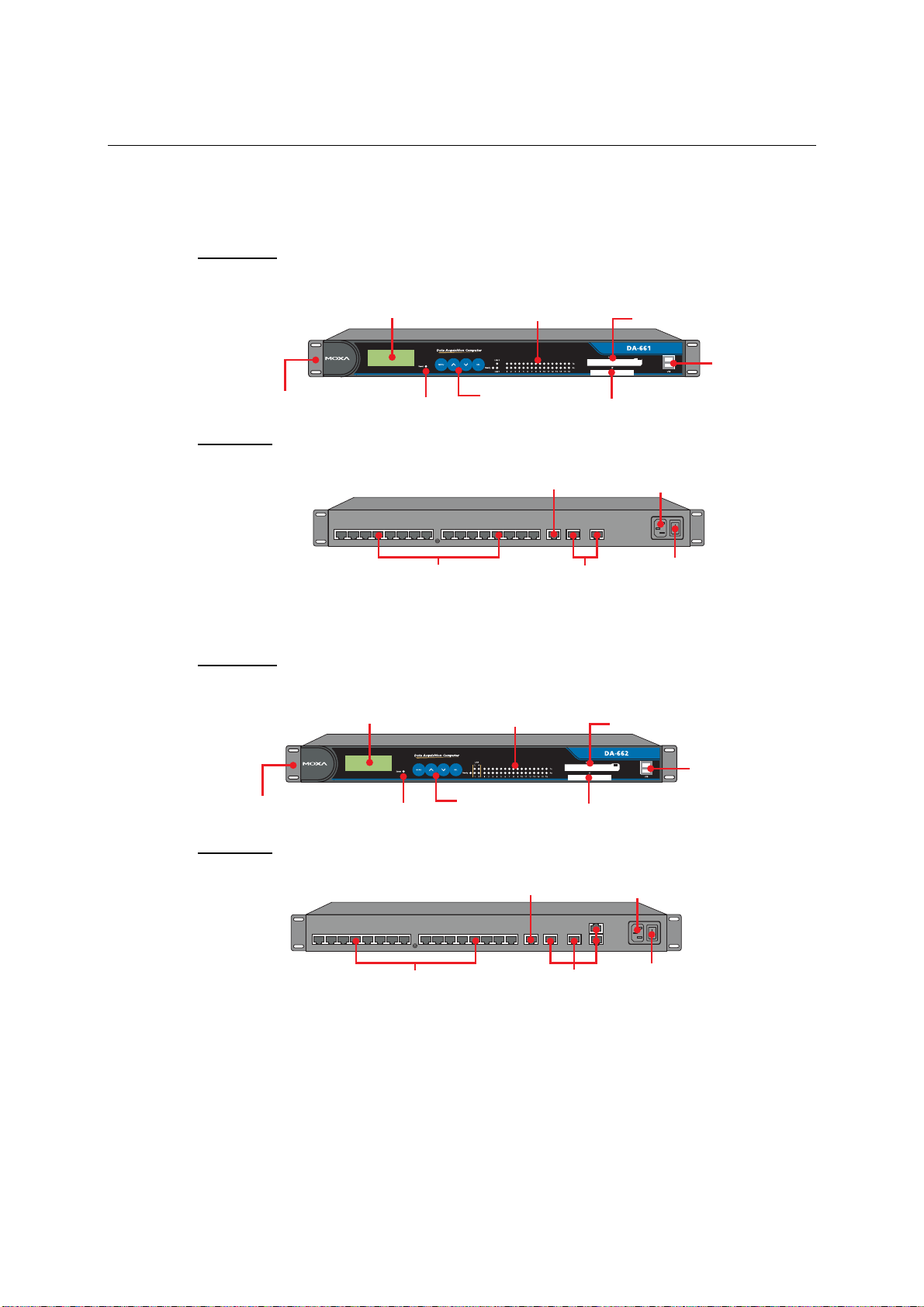

DA-661
Front View
LCM Display Panel
19-inch Rackmount Ear Reset Button Push Buttons
LED Indicators
System Status, LAN, Serial Tx/Rx
CF Socket
PCMCIA Socket
USB Host
Rear View
12345678 9 10 11 12 13 14 15 16 Console
RS-232/422/485
LAN2
LAN1
100-240 VAC/VDC
Power Input
Power Input
100-240 VAC/VDC
ON/OFF Switch
10/100 Mbps Ethernet
RJ45 x 2
RS-232 Console Port
RS-232/422/485 Serial Ports x 16
RJ45, 50 bps to 921.6 Kbps

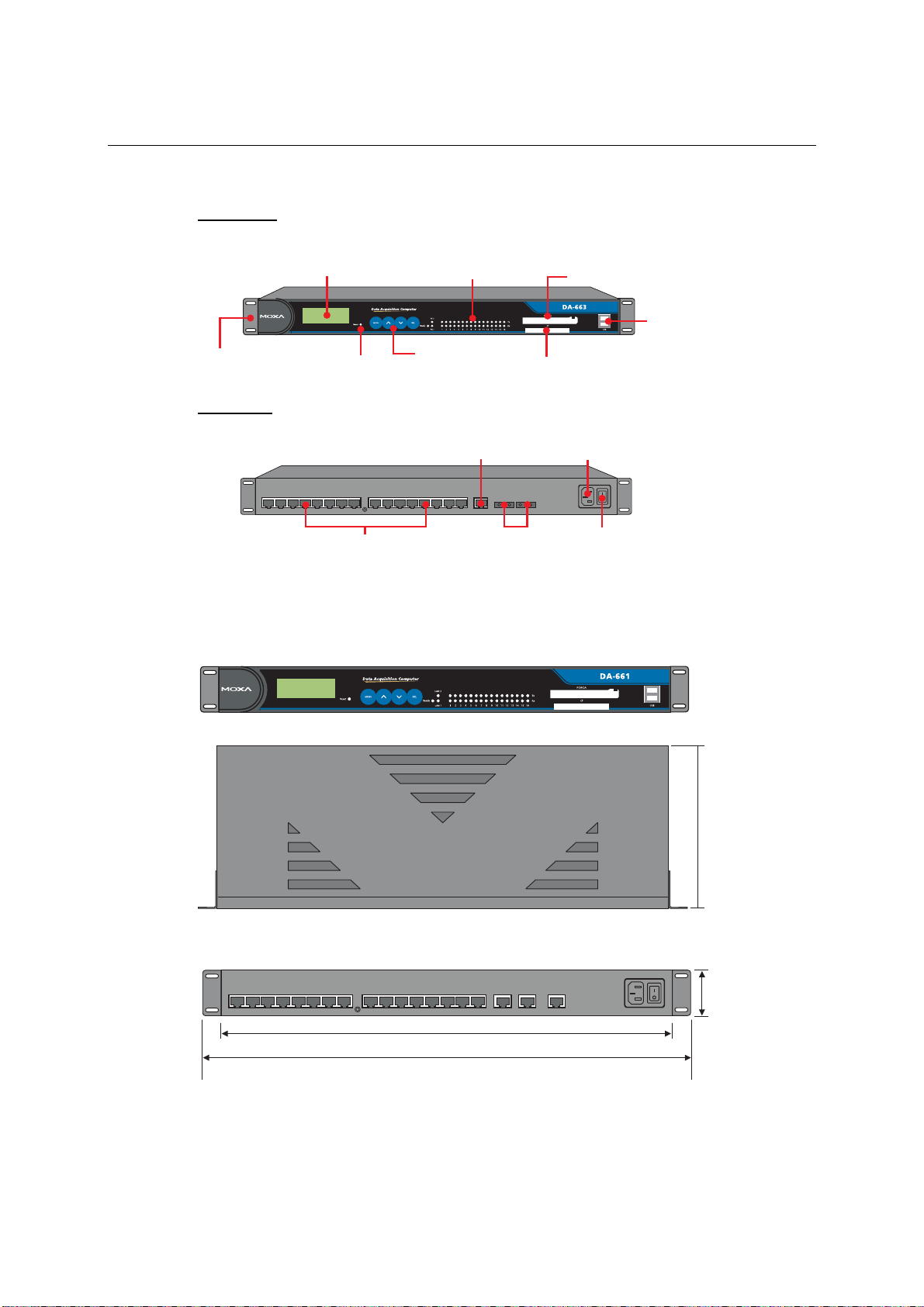

DA-662/DA-662-I
Front View
LCM Display Panel
19-inch Rackmount Ear Reset Button Push Buttons
LED Indicators
System Status, LAN, Serial Tx/Rx
CF Socket
PCMCIA Socket
USB Host
Rear View
12345678 9 10 11 12 13 14 15 16 Console
RS-232/422/485
LAN2
LAN1
100-240 VAC/VDC
Power Input
LAN3
LAN4
Power Input
100-240 VAC/VDC
ON/OFF Switch
10/100 Mbps 
Ethernet RJ45 x 4
RS-232 Console Port
RS-232/422/485 Serial Ports x 16
RJ45, 50 bps to 921.6 Kbps
2-2

DA-661/662/663 Hardware User’s Manual Hardware Introduction
DA-663
Front View
LCM Display Panel
19-inch 
Rackmount Ear Reset Button Push Buttons
LED Indicators
System Status, LAN, Serial Tx/Rx
CF Socket
PCMCIA Socket
USB Host
Rear View
Fiber Optical Connector
12345678 9 10 11 12 13 14 15 16 Console
RS-232/422/485
TX
FX1 100-240 VAC/VDC
Power Input
FX2
RX TX RX
Power Input
100-240 VAC/VDC
ON/OFF Switch
RS-232 Console Port
RS-232/422/485 Serial Ports x 16
RJ45, 50 bps to 921.6 Kbps 100 Base x 2
Dimensions
DA-661/662/663
440 mm (17.3")
480 mm (19")
198 mm (7.8")
45 mm (1.77")
12345678 9 10 11 12 13 14 15 16 Console
RS-232/422/485
LAN2
LAN1
100-240 VAC/VDC
Power Input
2-3

DA-661/662/663 Hardware User’s Manual Hardware Introduction
DA-662-I
440 mm (17.3")
480 mm (19")
)"28.8(mm422
)"77.1(mm54
12345678 9 10 11 12 13 14 15 16 Console
RS-232/422/485
LAN2
LAN1
100-240 VAC/VDC
Power Input
LAN3
LAN4
DA-662-I
USB
PCMCIA
CF
LAN

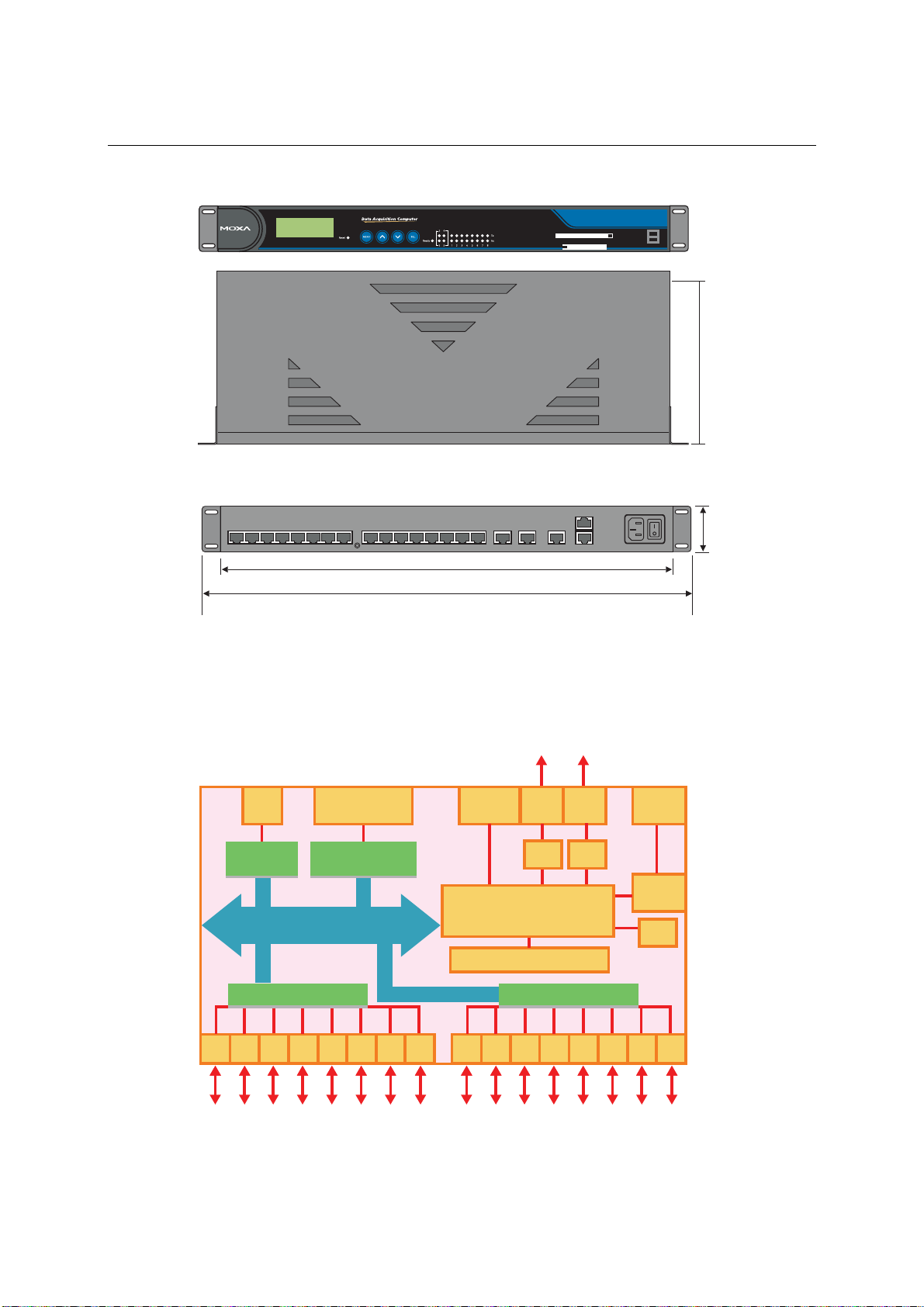

Hardware Block Diagram
The following block diagrams show the layout of the DA-661/662/663’s internal components.
DA-661
PCI Bus
Console LAN2 LAN1
232-SR
Ethernet
Power
circuit
LCM Display & Keypad
RTC
RS-232/422/485
78561234
Moxa UART ASIC
RS-232/422/485
15 1613 149101112
USB
Controller PCI to Cardbus Bridge PHY PHY
Power
XScale IXP425 533 MHz
32 MB Flash
128 MB SDRAM
Moxa UART ASIC
USB
Host PCMCIA & CF
2-4

DA-661/662/663 Hardware User’s Manual Hardware Introduction
DA-662/DA-662-I
PCI Bus
Power
circuit
LCM Display & Keypad
RTC
Console
232-SR
RS-232/422/485
78561234
Moxa UART ASIC
RS-232/422/485
15 1613 149101112
USB
Controller PCI to Cardbus Bridge
Power
Moxa UART ASIC
USB
Host
Ethernet
CAM+YHP CAM+YHP
YHP YHP
PCMCIA & CF
XScale IXP425 533 MHz
32 MB Flash
128 MB SDRAM
3NAL 4NAL 1NAL 2NAL
DA-663
PCI Bus
Console FX2 FX1
232-SR
Ethernet
Power
circuit
LCM Display & Keypad
RTC
RS-232/422/485
78561234
Moxa UART ASIC
RS-232/422/485
15 1613 149101112
USB
Controller PCI to Cardbus Bridge PHY PHY
Power
XScale IXP425 533 MHz
32 MB Flash
128 MB SDRAM
Moxa UART ASIC
USB
Host PCMCIA & CF
2-5

DA-661/662/663 Hardware User’s Manual Hardware Introduction
LED Indicators
LED indicators are located on the front panel of the DA-661/662/663.
LED Name LED Color LED Function
Ready Red Power is On, and system is ready (after booting up)
Orange 10 Mbps Ethernet connection
LAN1, LAN2,
LAN3, LAN4 Green 100 Mbps Ethernet connection
Orange Serial port is receiving RX data from the serial device
P1-P16 (Rx) Off Serial port is not receiving RX data from the serial device
Green Serial port is transmitting TX data to the serial device
P1-P16 (Tx) Off Serial port is transmitting TX data to the serial device
Green
(steady on) Fiber channel is connected
FX1, FX2 Green
(flickering) Fiber channel is transmitting data
Reset Button
Press the Reset button on the front panel continuously for at least 5 seconds to load the factory
default configuration.After the factory default configuration has been loaded, the system will
reboot automatically. The Ready LED will blink on and off for the first 5 seconds, and then
maintain a steady glow once the system has rebooted.
We recommend that you only use this function if the software is not working properly and you
want to load factory default settings. To reset an embedded Linux system, always use the software
reboot command />reboot to protect the integrity of data being transmitted or processed. The
Reset button is not designed to hard reboot the DA-661/662/663.
ATTENTION
Linux OS: DA-661/662/663-LX
Pressing the Reset button will only load the configuration file. All files in the /etc directory will
revert to their factory defaults, and all user data in the Flash ROM will be deleted.
WinCE OS: DA-661/662/663-CE
Pressing the Reset button will only load the default settings (i.e., the default registry values). All
user data NOT in the Flash ROM will be deleted.
2-6

DA-661/662/663 Hardware User’s Manual Hardware Introduction
LCD Screen
The DA-661/662/663 has an LCD screen on the front panel. The LCD screen can display 16
columns and 2 rows of text. After the DA-661/662/663 boots up, the LCD screen will display the
model name and firmware version:
D A - 6 6 1 - 1 6
V E R . 1 . 0
Push Buttons
There are four push buttons on the DA-661/662/663’s front panel. The buttons are used to enter
text onto the LCD screen. The buttons are MENU, (up cursor), (down cursor), and SEL:
Button Action
MENU Displays the main menu.
Scrolls up through a list of items shown on the LCD screen’s second line.
Scrolls down through a list of items shown on the LCD screen’s second line.
SEL Selects the option listed on the LCD screen.
Real-time Clock
The DA-661/662/663’s real time clock is powered by a lithium battery. We strongly recommend
that you do not replace the lithium battery without help from a qualified Moxa support engineer. If
you need to change the battery, contact the Moxa RMA service team.
WARNING
There is a risk of explosion if the battery is replaced by an incorrect type.
2-7

3
3
Chapter 3 Hardware Connection Description
This chapter covers the following topics:
Placement Options
¾Desktop
¾Connecting the Power
Connecting the Hardware
¾Wiring Requirements
¾Connecting the Power
¾Connecting to the Network
¾Connecting to a Serial Device
¾Connecting to the Console Port
¾PCMCIA
¾CompactFlash
¾USB Host

DA-661/662/663 Hardware User’s Manual Hardware Connection Description
Placement Options
Desktop
Place your DA-661/662/663 on a clean, flat, well-ventilated desktop. For better ventilation, attach
the 4 pads from the desktop kit to the bottom of the unit, and leave some space between the
DA-661/662/663 and other equipment. Do not place equipment or objects on top of the
DA-661/662/663, as this might damage the computers internal components.
Connecting the Power
The DA-661/662/663 is designed to be mounted on a standard 19-inch rack. Two L-shaped metal
plates are included as standard accessories with the DA-661/662/663. Use the enclosed pair of
L-shaped metal plates and screws to fasten your DA-661/662/663 to the rack cabinet. Two
placement options are available. You can either lock the front or the rear panel of the
DA-661/662/663 to the front of the rack. Each L-shaped plate has 6 holes, leaving two outer or
inner holes open for your convenience.
Connecting the Hardware
This section describes how to connect the DA-661/662/663 to serial devices. The topics covered
in this section are: Wiring Requirements, Connecting the Power, Connecting to the Network,
Connecting to a Serial Device, and Connecting to the Console Port.
Wiring Requirements
ATTENTION
Safety First!
Be sure to disconnect the power cord before installing and/or wiring your DA-661/662/663.
Wiring Caution!
Calculate the maximum possible current in each power wire and common wire. Observe all
electrical codes dictating the maximum current allowable for each wire size.
If the current goes above the maximum ratings, the wiring could overheat, causing serious
damage to your equipment.
Temperature Caution!
Be careful when handling the DA-661/662/663. When plugged in, the DA-661/662/663’s
internal components generate heat, and consequently the outer casing may feel hot to the touch.
3-2

DA-661/662/663 Hardware User’s Manual Hardware Connection Description
You should observe the following common wiring rules:
yUse separate paths to route wiring for power and devices. If power wiring and device wiring
paths must cross, make sure the wires are perpendicular at the intersection point.
NOTE: Do not run signal or communication wiring and power wiring in the same wire conduit.
To avoid interference, wires with different signal characteristics should be routed separately.
yYou can use the type of signal transmitted through a wire to determine which wires should be
kept separate. The rule of thumb is that wiring that shares similar electrical characteristics can
be bundled together.
yKeep input wiring and output wiring separate.
yWhere necessary, it is strongly advised that you label wiring to all devices in the system.
Connecting the Power
To power on the DA-661/662/663, use the power cord comes with the product to connect the
power line to the DA-661/662/663’s AC power connector. The power connector is located on the
right side of the rear panel. Next, turn on the power switch. The DA-661/662/663 takes about 30
seconds to boot up. Once the device is ready, the Ready LED on the front panel will light up, and
the DA-661/662/663 model name and firmware version will appear on the LCD screen.

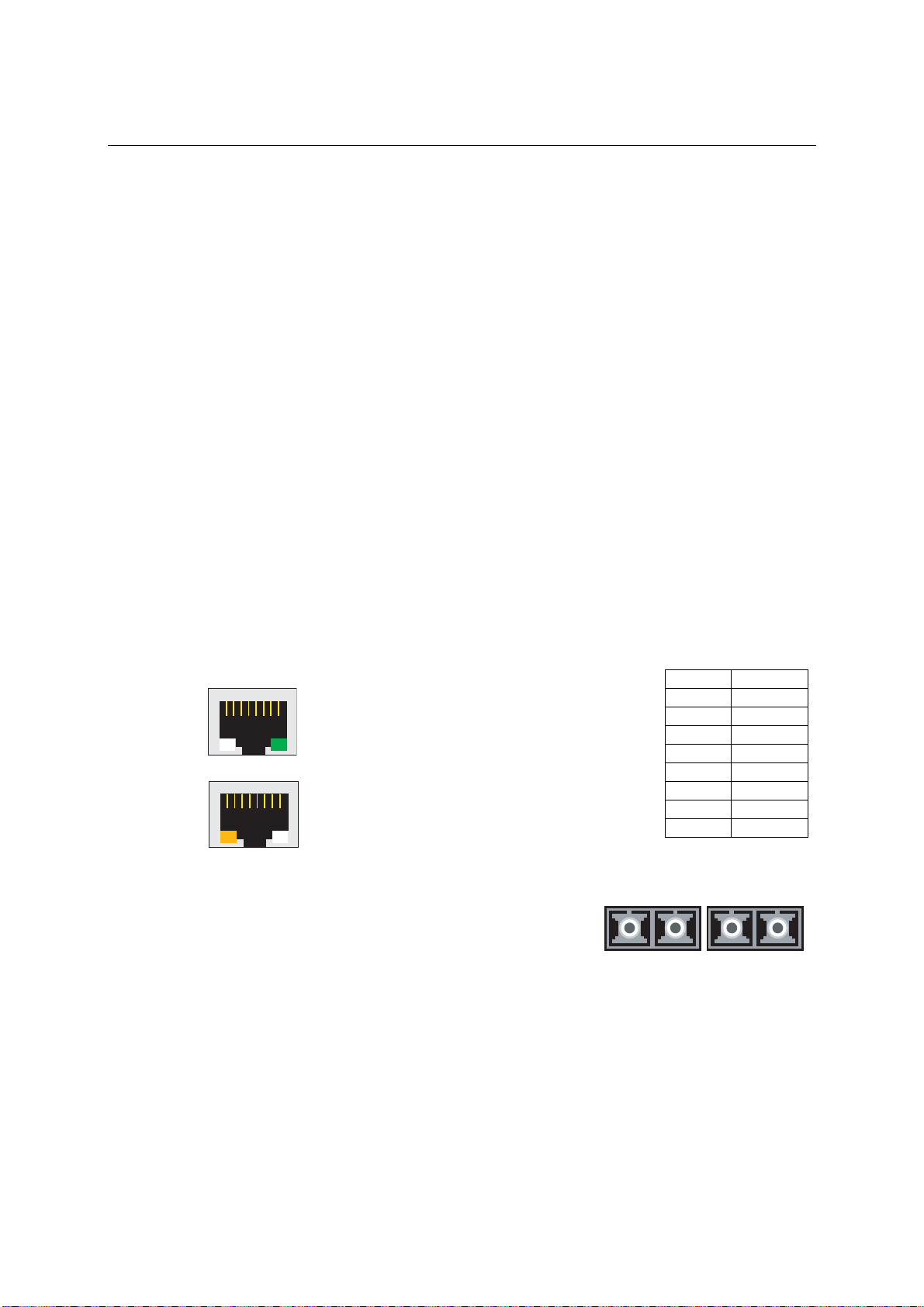

Connecting to the Network
For DA-661 and DA-662, connect one end of the Ethernet cable to one of the DA-661/662’s
10/100M Ethernet ports (8-pin RJ45) and the other end of the cable to the Ethernet network. If the
cable is properly connected, the DA-661/662 will indicate a valid connection to the Ethernet in the
following ways:
18
The lower right corner LED indicator in the lower right
corner glows a solid green color when the cable is
properly connected to a 100 Mbps Ethernet network.
The LED will flicker when Ethernet packets are being
transmitted or received.
18
The lower left corner LED indicator glows a solid
orange color when the cable is properly connected to a
10 Mbps Ethernet network. The LED will flicker when
Ethernet packets are being transmitted or received.
Pin Signal
1 ETx+
2 ETx-
3 ERx+
4 ---
5 ---
6 ERx-
7 ---
8 ---
For DA-663, connect one end of the fiber channel cable (SC
connector) to one of the DA-663’s 100BaseFX fiber channel
ports (either FX1 or FX2). The LED indicators on the front
panel indicate the operation status. When the fiber channel
cable is connected, the green light will glow a steady green.
When data is being transmitted, the green light will flicker.
TX
FX 1 FX 2
RX TX RX
3-3

DA-661/662/663 Hardware User’s Manual Hardware Connection Description
Connecting to a Serial Device
Use properly wired serial cables to connect the DA-661/662/663 to serial devices. The
DA-661/662/663’s serial ports (P1 to P16) use 8-pin RJ45 connectors. The ports can be configured
by software for RS-232, RS-422, or 2-wire RS-485. The pin assignments are shown in the
following table:
18
Pin RS-232 RS-422 RS-485
1 DSR --- ---
2 RTS TXD+ ---
3 GND GND GND
4 TXD TXD- ---
5 RXD RXD+ Data+
6 DCD RXD- Data-
7 CTS --- ---
8 DTR --- ---
Connecting to the Console Port
The DA-661/662/663’s console port is an 8-pin RJ45 RS-232 port. The port can be used to connect
to the console utility from a remote console via a V90 or GPRS modem with PPP protocol. The pin
definition is the same as for the serial ports (P1 to P16). For normal data acquisition applications,
you should connect to the DA-661/662/663’s serial ports (P1 to P16) via a V90 or GPRS modem.
If you would like to use the console port for normal data acquisition applications, you can set the
console port to start up via PPP protocol.
PCMCIA
The PCMCIA slot supports the CardBus (Card-32) card standard and 16-bit (PCMCIA
2.1/JEIDA4.2) card standard. It supports +3.3V, +5V, and +12V at a working voltage of 120
mA~1100 mA. The wireless LAN card is optional. The wireless LAN card provided by Moxa lets
you connect the DA-661/662/663 to a wireless LAN. Both 802.1b and 802.11g interfaces
supported.
If you need device drivers for other kinds of PCMCIAcards, contact Moxa for information on how
to initiate a cooperative development project.
CompactFlash
The DA-661/662/663 provides one CompactFlash slot that supports CompactFlash type I/II card
expansion. Currently, Moxa provides a CompactFlash disk for plug & play mass storage expansion.
You may also use flash disks available from most computer supply outlets. The CompactFlash will
be mounted at /mnt/hda.
If you need device drivers for other kinds of mass storage cards, contact Moxa for information on
how to initiate a cooperative development project.
USB Host
The DA-661/662/663 offers 2 USB 2.0 hosts, allowing you to connect with a USB storage device.
The first USB mass storage device to be connected will be mounted automatically by mount to
/mnt/sda, and the second device will be mounted automatically to /mnt/sdb. The DA-661/662/663
will be un-mounted automatically with the umount command when the device is disconnected.
3-4
