Moxa Technologies CP-134N Series User manual

PCI Express Board User’s Manual
Version 12.0, July 2022
www.moxa.com/product
© 2022 Moxa Inc. All rights reserved.

PCI Express Board User’s Manual
The software described in this manual is furnished under a license agreement and may be used only in accordance
with the terms of that agreement.
Copyright Notice
© 2022 Moxa Inc. All rights reserved.
Trademarks
The MOXA logo is a registered trademark of Moxa Inc.
All other trademarks or registered marks in this manual belong to their respective manufacturers.
Disclaimer
Information in this document is subject to change without notice and does not represent a commitment on the part of
Moxa.
Moxa provides this document as is, without warranty of any kind, either expressed or implied, including, but not
limited to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this manual, or to
the products and/or the programs described in this manual, at any time.
Information provided in this manual is intended to be accurate and reliable. However, Moxa assumes no responsibility
for its use, or for any infringements on the rights of third parties that may result from its use.
This product might include unintentional technical or typographical errors. Changes are periodically made to the
information herein to correct such errors, and these changes are incorporated into new editions of the publication.
Technical Support Contact Information
www.moxa.com/support
Moxa Americas
Toll-free: 1-888-669-2872
Tel: [phone]
Fax: [phone]
Moxa China (Shanghai office)
Toll
-free: 800-820-5036
Tel:
[phone]
Fax:
[phone]
Moxa Europe
Tel: [phone]
Fax: [phone]
Moxa Asia
-Pacific
Tel:
[phone]
Fax:
[phone]
Moxa India
Tel: [phone]
Fax: [phone]

Table of Contents
1. Introduction.................................................................................................................................... 1
Overview........................................................................................................................................ 2
PCI Express Solution ................................................................................................................. 2
ADDC™ (Automatic Data Direction Control) for RS-485.................................................................... 2
Operating System Support ......................................................................................................... 2
Moxa Serial Comm Tool ............................................................................................................. 2
Intelligent RS-485 ..................................................................................................................... 3
Applications .................................................................................................................................... 3
Features......................................................................................................................................... 3
Package Checklist ............................................................................................................................ 3
Installation Flowchart ....................................................................................................................... 4
2. Hardware Installation...................................................................................................................... 1

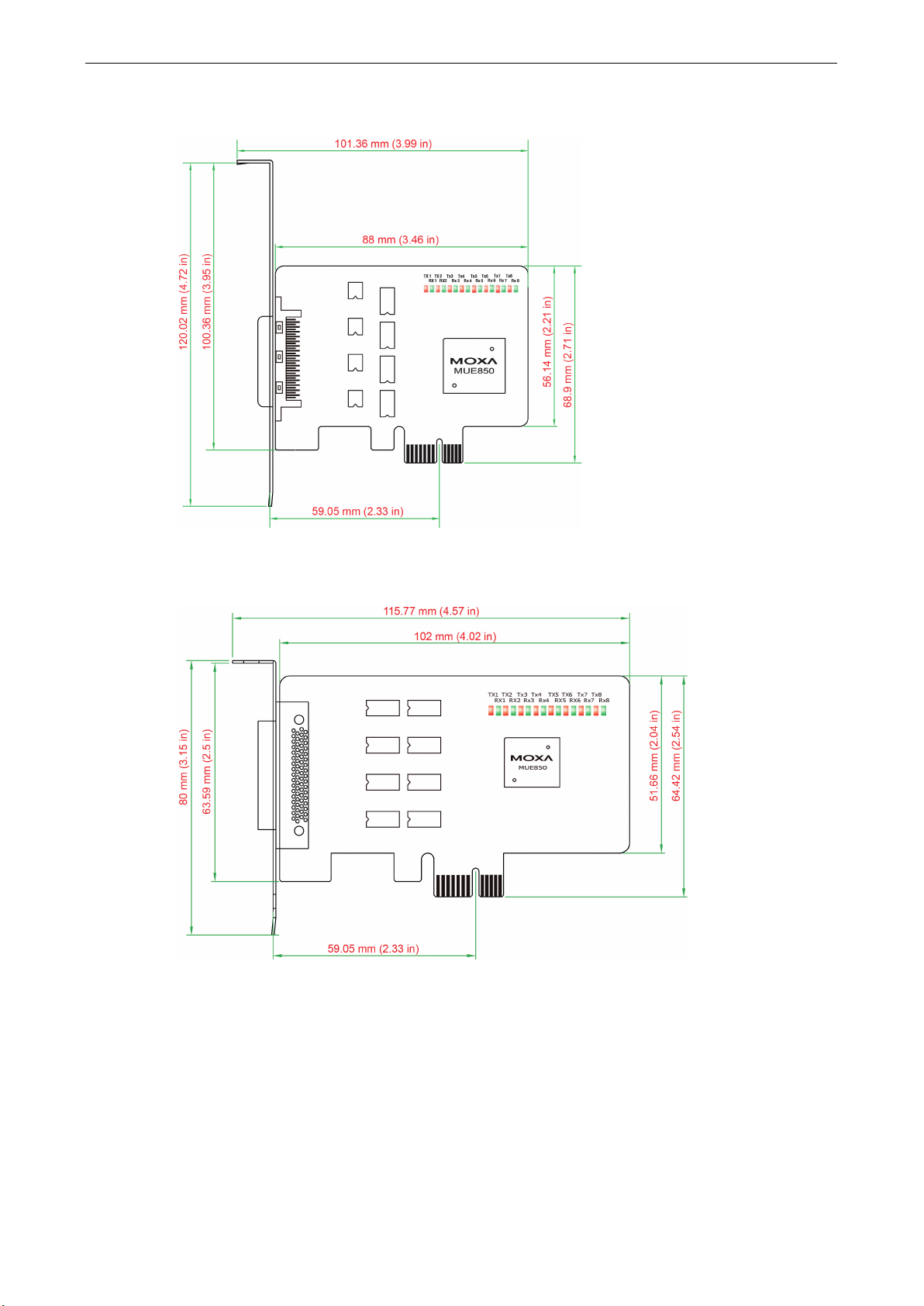

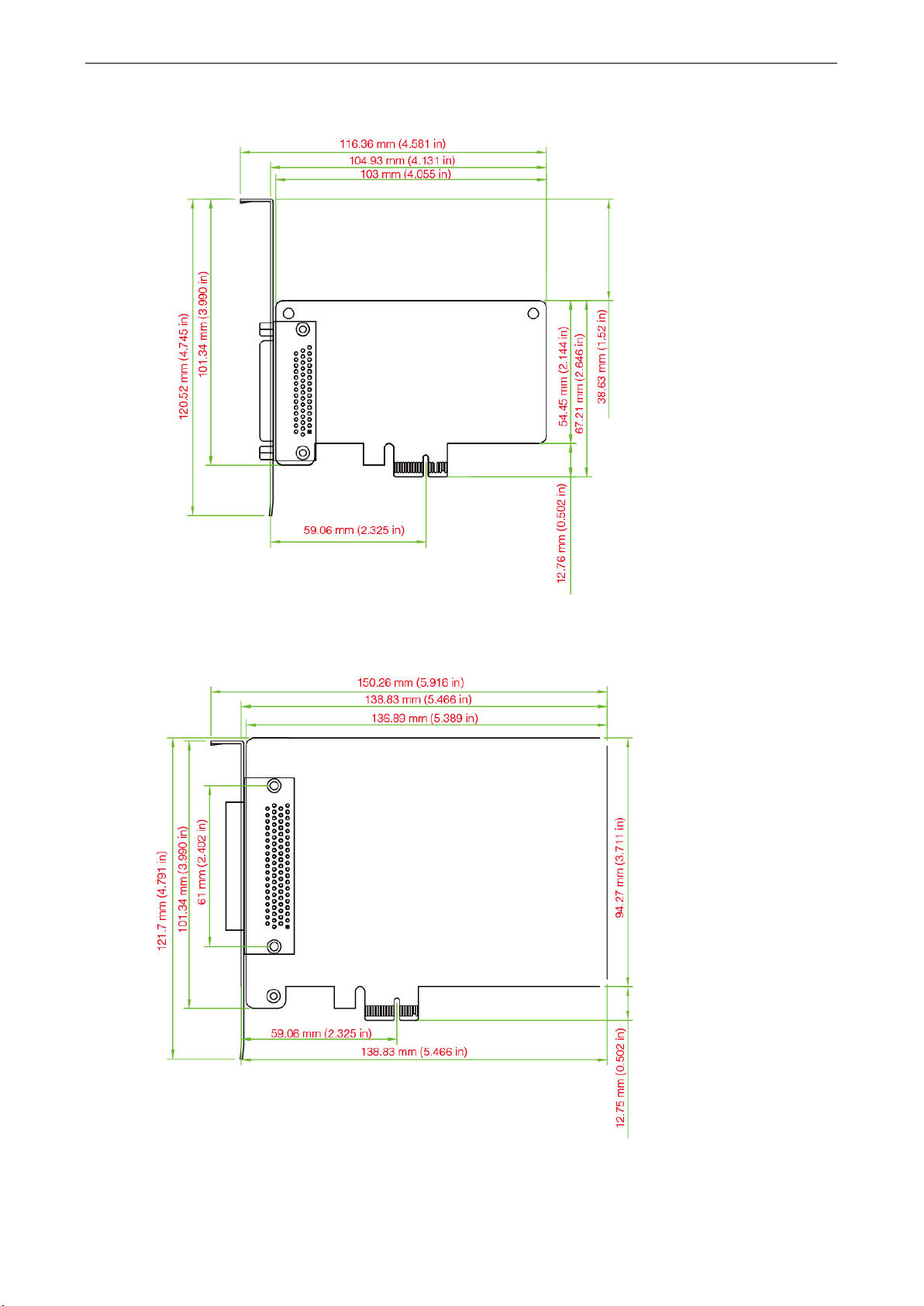

CP-118EL-A Dimensions .................................................................................................................... 2
CP-168EL-A Dimensions .................................................................................................................... 2

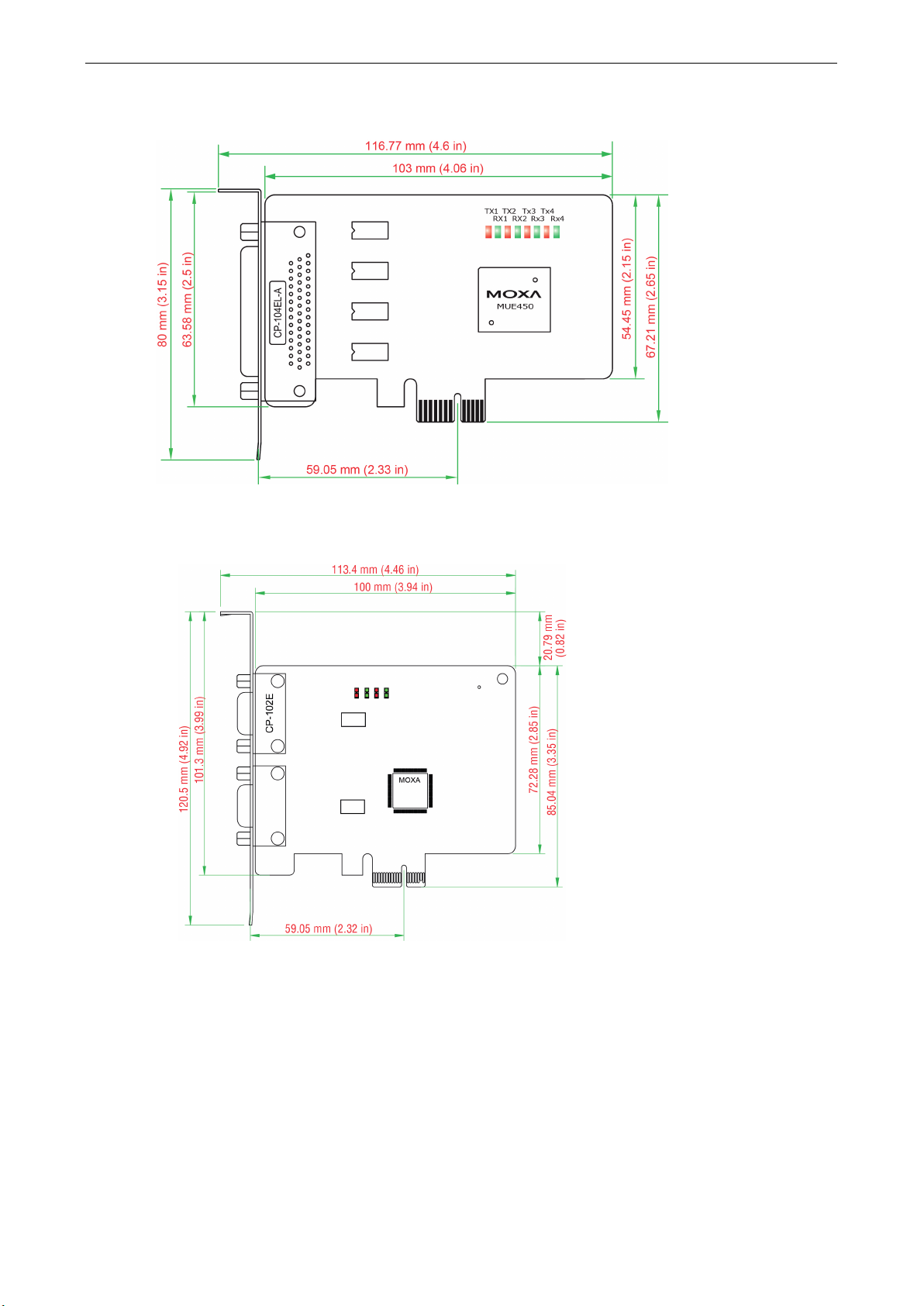

CP-104EL-A Dimensions .................................................................................................................... 3
CP-102E Dimensions ........................................................................................................................ 3

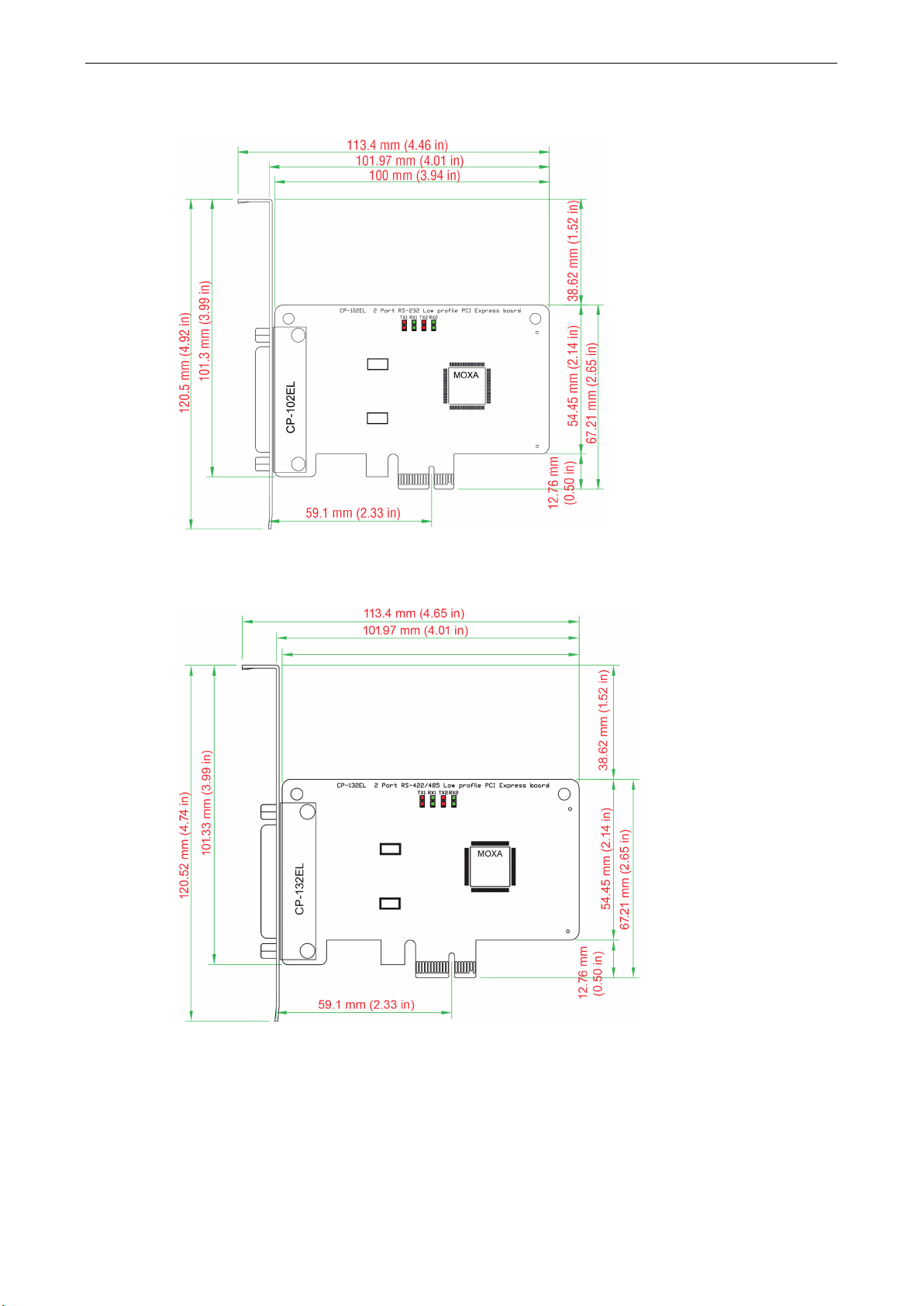

CP-102EL Dimensions ....................................................................................................................... 4

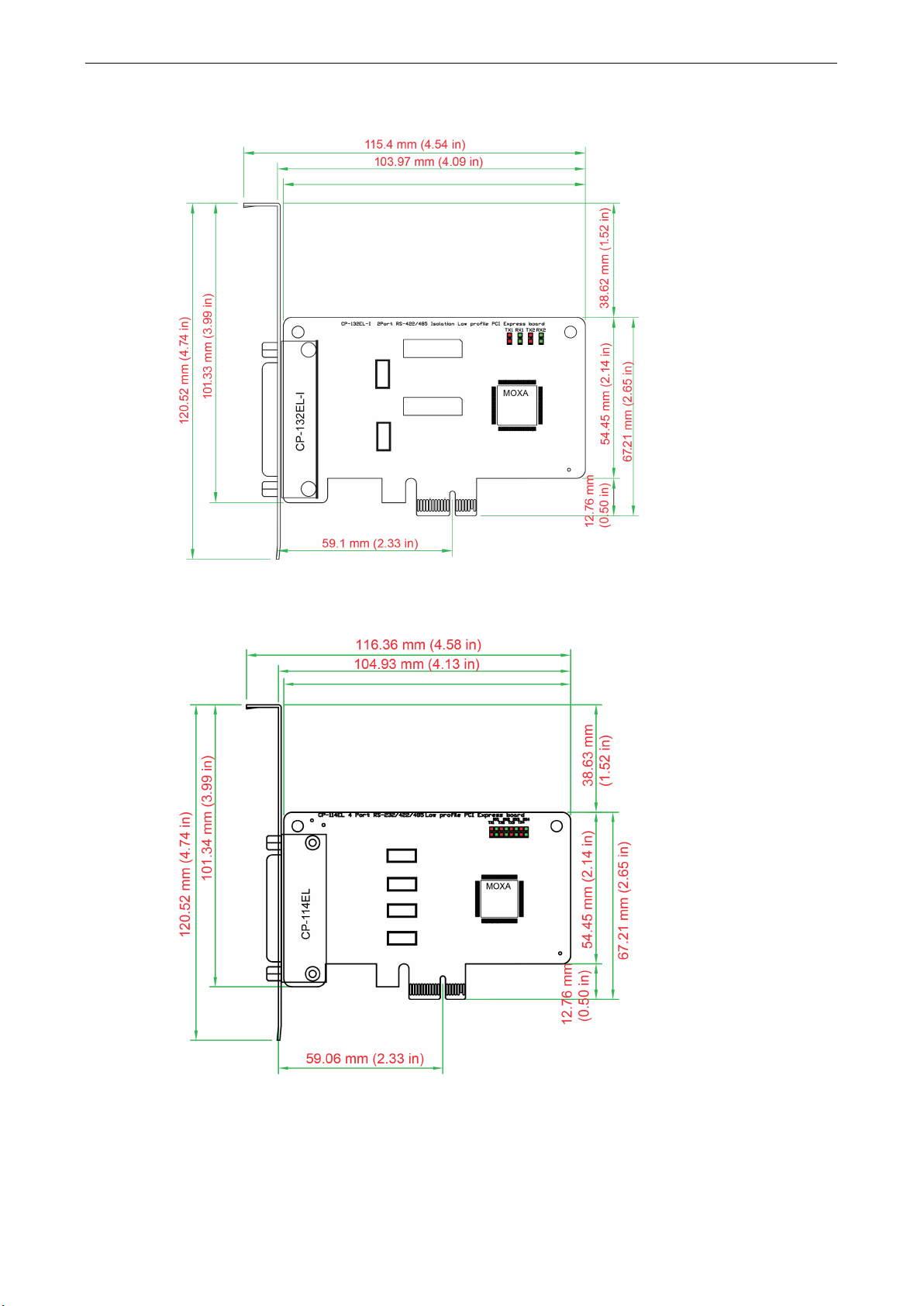

CP-132EL Dimensions ....................................................................................................................... 4
CP-132EL-I Dimensions..................................................................................................................... 5
CP-114EL Dimensions ....................................................................................................................... 5

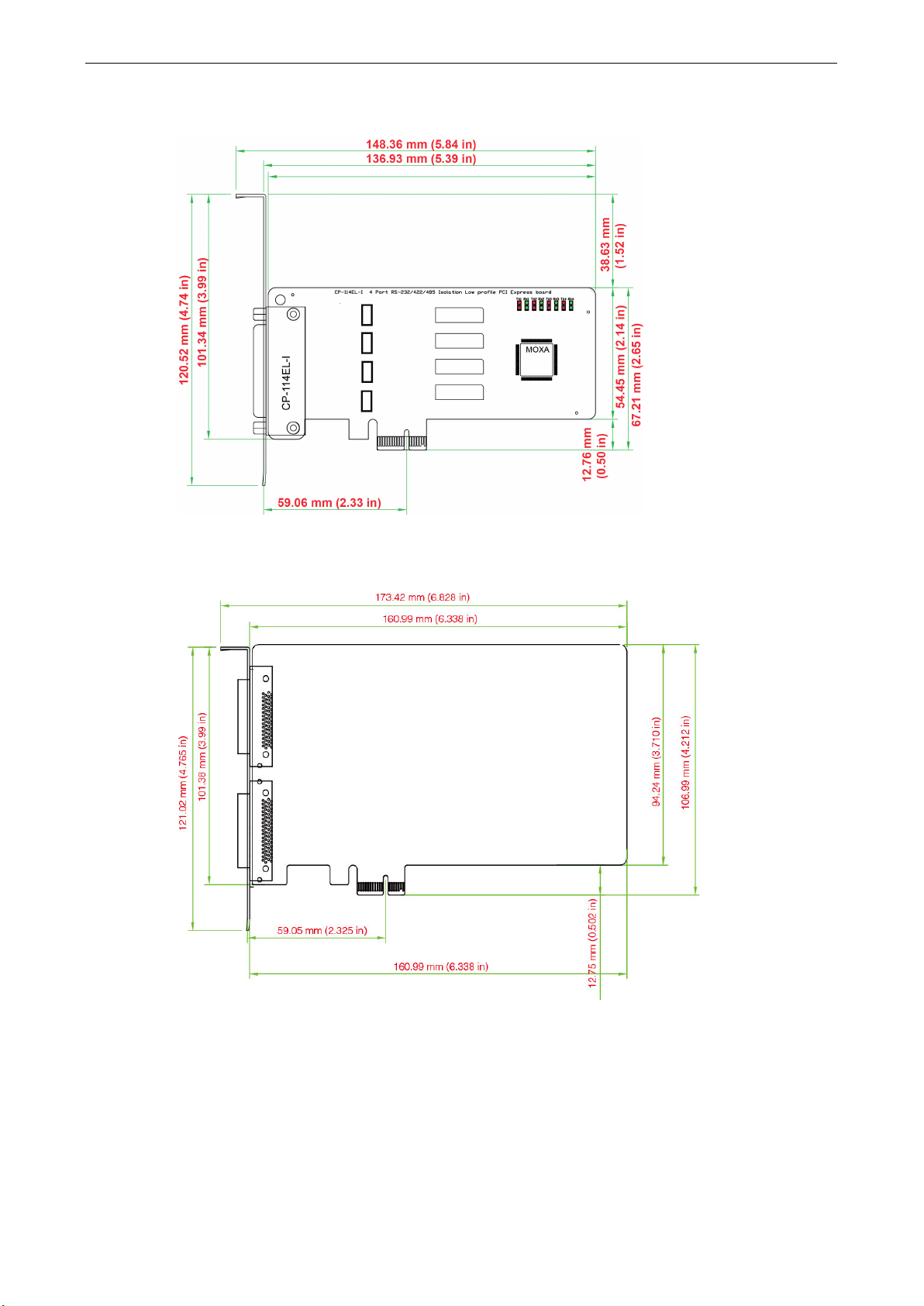

CP-114EL-I Dimensions..................................................................................................................... 6
CP-116E-A Dimensions ..................................................................................................................... 6
CP-134EL-A-I Dimensions.................................................................................................................. 7
CP-118E-A-I/138E-A-I Dimensions ...................................................................................................... 7
Plugging the Board into an Expansion Slot............................................................................................ 8
3. Software Installation....................................................................................................................... 1

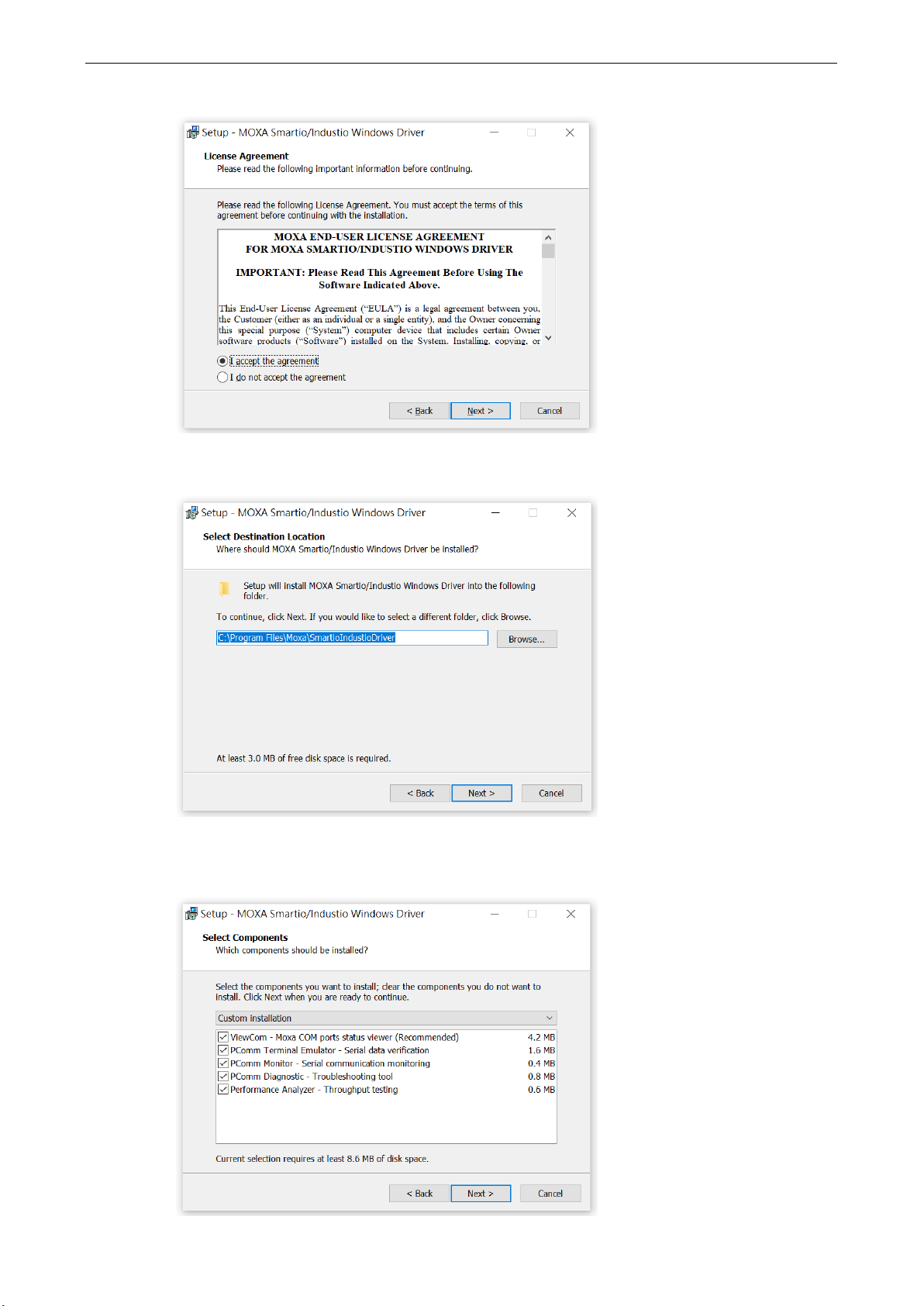

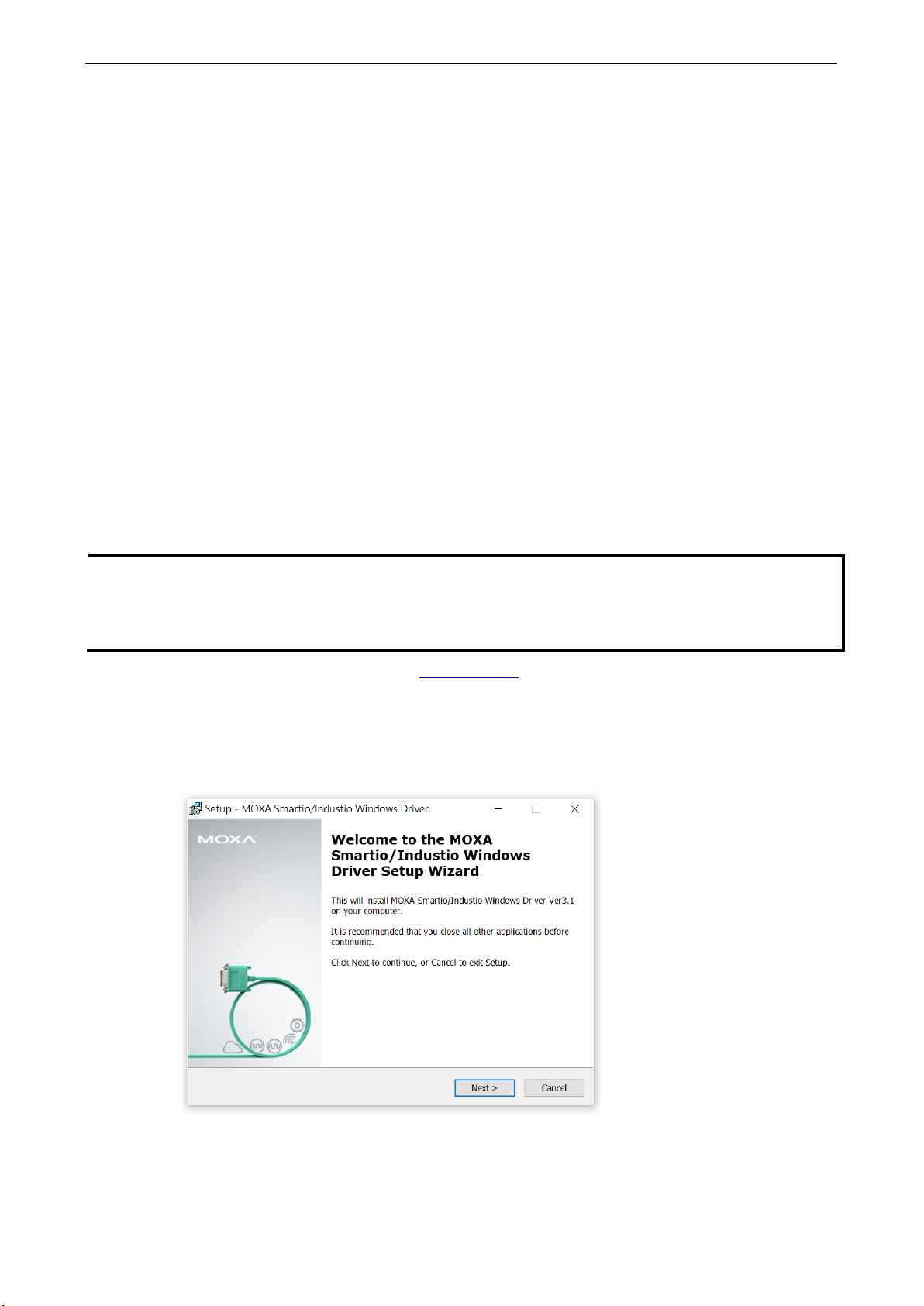

Windows Drivers.............................................................................................................................. 2
Windows 2000, 2003/ XP/ Vista/ 2008 (x86/x64), 7/8/8.1/ 10 (x86/x64), Server 2008 R2/ 2012/ 2012
R2/ 2016 (x64)/Windows 8/8.1/10/11 .......................................................................................... 3
Non-Windows Drivers ......................................................................................................................17
DOS ......................................................................................................................................17
Linux (32-bit/64-bit) ................................................................................................................20
SCO ......................................................................................................................................21
4. Configuring Intelligent RS-485......................................................................................................... 1
Windows Users ................................................................................................................................ 2
Linux Users..................................................................................................................................... 5
5. Serial Programming Tools................................................................................................................ 1
Moxa PComm .................................................................................................................................. 2
Installing PComm...................................................................................................................... 2
PComm Programming Library...................................................................................................... 2
Utilities .......................................................................................................................................... 3
Diagnostics (for Moxa boards only) .............................................................................................. 3
Monitor ................................................................................................................................... 4
Terminal Emulator .................................................................................................................... 5
ViewCom ................................................................................................................................. 6
RS-485 Programming ....................................................................................................................... 7
ADDC™ ................................................................................................................................... 7
6. Programming Guide......................................................................................................................... 1
Relative Product List ......................................................................................................................... 2
Resource Requirement for Moxa Board ......................................................................................... 2
PCI Configuration for Moxa Board ................................................................................................ 2
UART Register Structure for MU860 chip .............................................................................................. 3
UART Register Structure for MUE250, MUE450, and MUE850 chips............................................................ 4
For Baud Rate Setting....................................................................................................................... 5
Moxa Board PCI Device ID List ........................................................................................................... 6
UART Datasheet .............................................................................................................................. 6
7. Pin Assignments.............................................................................................................................. 1
PCIe Board Accessories Table............................................................................................................. 2
CP-118EL-A .................................................................................................................................... 2
Board Side Pin Assignments-Female SCSI VHDCI68 ........................................................................ 3
Device Side Pin Assignments....................................................................................................... 4
CP-168EL-A .................................................................................................................................... 5
Board Side Pin Assignments-Female SCSI VHDCI68 ........................................................................ 5
Device Side Pin Assignments....................................................................................................... 5
CP-104EL-A .................................................................................................................................... 6
Board Side Pin Assignments-Female DB44..................................................................................... 6

Device Side Pin Assignments....................................................................................................... 7
CP-102E ......................................................................................................................................... 7
Board Side Pin Assignments-Male DB9.......................................................................................... 7
CP-102EL ....................................................................................................................................... 8
Board Side Pin Assignments—Female DB25 ................................................................................... 8
Device Side Pin Assignments....................................................................................................... 8
CP-132EL/CP-132EL-I ....................................................................................................................... 9
Board Side Pin Assignments—Female DB25 ................................................................................... 9
Device Side Pin Assignments....................................................................................................... 9
CP-114EL/CP-114EL-I ......................................................................................................................10
Board Side Pin Assignments—Female DB44 ..................................................................................10
Device Side Pin Assignments......................................................................................................11
CP-118E-A-I/CP-138E-A-I ................................................................................................................12
Board Side Pin Assignments—Female DB78 ..................................................................................12
Device Side Pin Assignments—Male DB9 ......................................................................................14
Male DB25 (CBL-M78M25x8-100) ...............................................................................................14
CP134EL-A-I ..................................................................................................................................15
Board Side Pin Assignments—Female DB44 ..................................................................................15
Device Side Pin Assignments—Male DB9 ......................................................................................16
Male DB25 (CBL-M44M25x4-50).................................................................................................16
CP-116E-A .....................................................................................................................................17
Board Side Pin Assignments—Female SCSI VHDCI68......................................................................17
Device Side Pin Assignments—Male DB9 ......................................................................................17
Male DB25 ( OPT8B+ / CBL-M68M25x8-100) ................................................................................17
Female DB25 (OPT8A+/S+).......................................................................................................18
8. Troubleshooting .............................................................................................................................. 1
A. Product Specifications ..................................................................................................................... 1
CP-118EL-A Specifications ................................................................................................................. 2
CP-168EL-A Specifications ................................................................................................................. 3
CP-104EL-A Specifications ................................................................................................................. 4
CP-102E Specifications...................................................................................................................... 5
CP-102EL Specifications .................................................................................................................... 6
CP-132EL Series Specifications........................................................................................................... 7
CP-114EL Series Specifications........................................................................................................... 8
CP-118E-A-I Specifications ................................................................................................................ 9
CP-138E-A-I Specifications ...............................................................................................................10
CP-134EL-A-I Specifications..............................................................................................................11
CP-116E-A Specifications .................................................................................................................12

1
1. Introduction

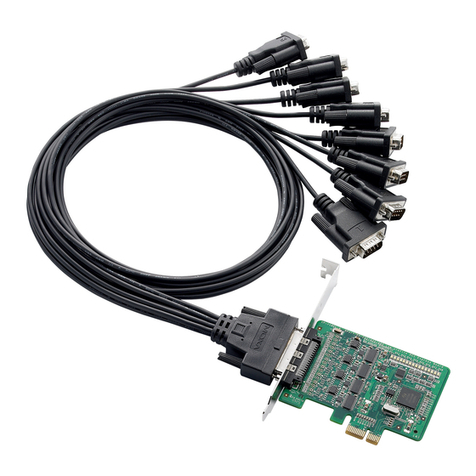

Moxa’s PCI Express serial boards meet the new slot standard for expansion boards and work with any PCI
Express slots. The boards have multiple RS-232/422/485 serial ports to connect data acquisition equipment
and other serial devices to a PC.
The following topics are covered in this chapter:

Overview
PCI Express Solution
ESD Protection
ADDC™ (Automatic Data Direction Control) for RS-485
Operating System Support
Moxa Serial Comm Tool
Intelligent RS-485

Applications

Features

Package Checklist

Installation Flowchart

PCI Express Boards Introduction
1-2
Overview
Moxa’s new PCI Express Multiport Serial Boards are designed for POS and ATM applications and for use by
industrial automation system manufacturers and system integrators. The boards are compatible with all
popular operating systems, and each of them supports data rates of up to 921.6 kbps and provides full
modem control signals, ensuring compatibility with a wide range of serial peripherals. In addition, all models
work with PCI Express x1, allowing the boards to be installed in any available PCI Express slot (including x1,
x2, x4, x8, x16, x32).
PCI Express Solution
The boards comply with PCI Express Spec. 1.1. The ports’ transmission parameters are configured after the
boards are installed. The PCI BIOS automatically assigns the IRQ and I/O addresses. For this reason, you
must plug the boards into the computer before installing the drivers. For more information about PCI
Express, refer to the “Technical Reference” appendix.

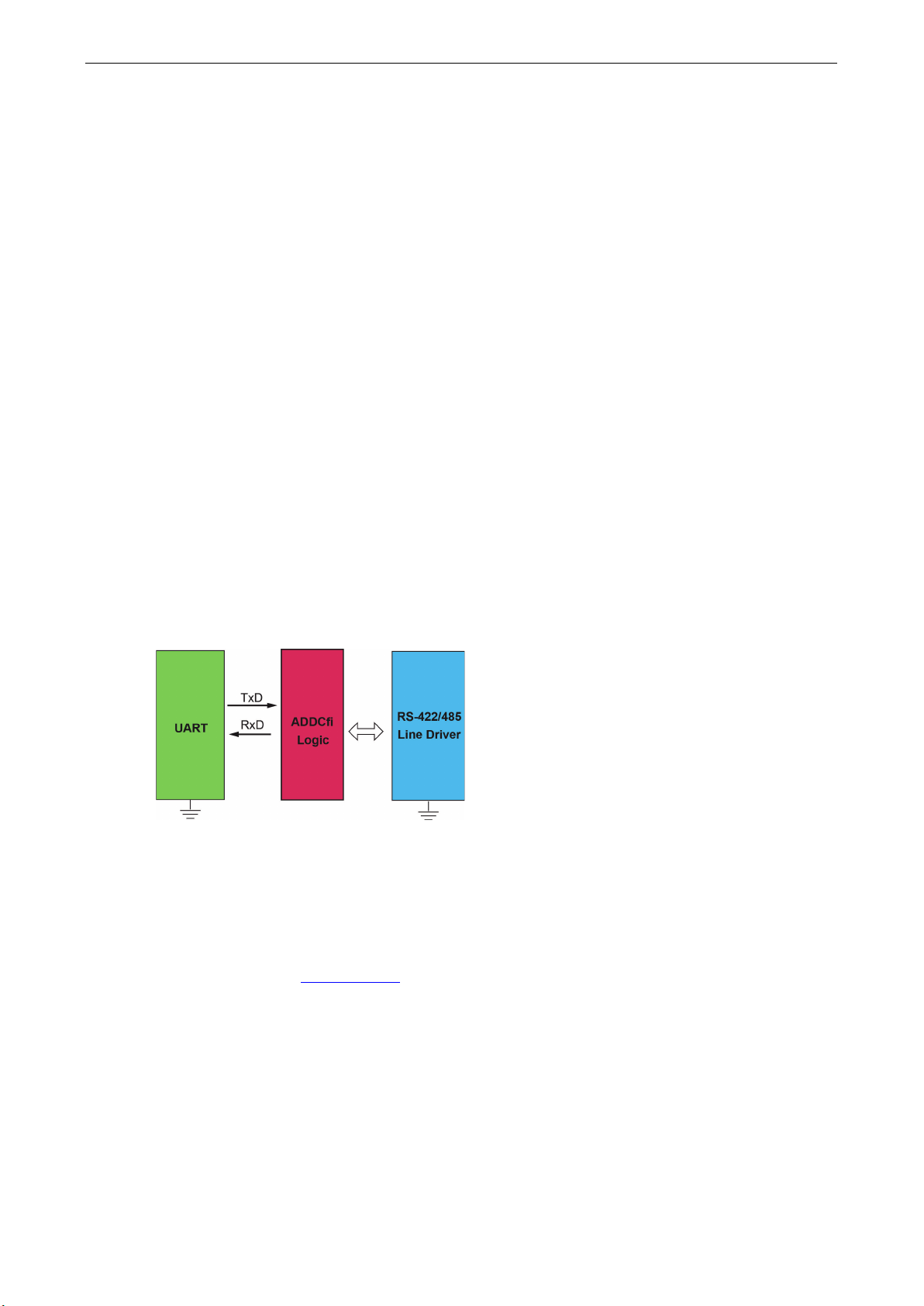

ADDC™ (Automatic Data Direction Control) for RS-485
RS-485 uses differential data transmission over two wires to transmit data from one station to another, and
allows multiple transmitters and receivers to be used on the same data line. RS-485 uses half-duplex
transmission, which means that transmission and reception share the same data channels. For this reason,
only one transmitter can be active at any given time.
Moxa’s serial boards have a built-in circuitry to switch transmitters on and off automatically. We call this
form of switching ADDC® (Automatic Data Direction Control). ADDC® is much easier to implement than the
traditional handshaking method that uses the RTS signal.
Operating System Support
The PCI Express boards are compatible with all major industrial platforms, including Windows, Windows CE,
DOS, Linux, and SCO. Moxa device drivers are provided for smoother installation, configuration, and
performance.
Visit Moxa’s website at www.moxa.com to download the latest drivers and user’s manuals for all of Moxa’s
products.
Moxa Serial Comm Tool
For application development, Moxa provides an easy-to-use serial communication library called PComm that
runs under the Windows operation system. Use this library to develop your own applications with Visual
Basic, Visual C++, Borland Delphi, to name a few. Utilities such as Data Scope, Monitor, Terminal Emulator,
and Diagnostics are included to make it easier to debug, monitor communication status, provide terminal
emulation, and transfer files.

PCI Express Boards Introduction
1-3
Intelligent RS-485
With Intelligent RS-485, you only need one click to automatically tune the Pull High/Low and Termination
resistors and get your system ready to go!
Applications
The PCI Express boards are suitable for many different applications, including:
•Internet/Intranet Connections
•Remote Access
•Multi-user Applications
•Industrial Automation
•Office Automation
•Telecommunications
•PC-based Vending Machines and Kiosks
•POS (Point-of-Sale) Systems
Features
The PCI Express boards have the following outstanding features:
•PCI Express ×1 compliant
•Low-profile board for compact-sized PCs
•Data flow LED display onboard
•128-byte FIFO and on-chip H/W, S/W flow control
•50 bps to 921.6 kbps transmission speed
•Drivers are provided for Windows, Windows CE, Windows XP Embedded, DOS, Linux (32-bit/64-bit),
SCO
Package Checklist
The following items are included in the PCI Express board package:
•PCI Express serial board
•Low-profile bracket
•Documentation
•Quick installation guide (printed)
•Warranty card
NOTE
Please notify your sales
representative if any of the above items are missing or damaged.

PCI Express Boards Introduction
1-4
Installation Flowchart
The following flowchart provides a brief summary of the procedure you should follow to install the PCI
Express boards, and it provides references to chapters with more detailed information:
If the card supports Intelligent RS
-485 function,
you can perform diagnosis and auto
-tuning. Chapter 4, Intelligent RS-485 Setting
Restart the system and check the driver
initialization status. Chapter 3, Software Installation
Connect the serial devices to the PCI Express
board’s serial ports. Chapter 6, Pin Assignments
Install the drivers and configure the boards and
ports. Chapter 3, Software Installation
Install the boards in PCI Express expansion
slots. Chapter 2, Hardware Installation
Develop and run your serial communication
applications Chapter 5, Serial Programming Tools

2
2. Hardware Installation
In this chapter, we show the dimensions diagrams of all of the boards in the PCI Express Series and
describe the hardware installation procedure. Since the BIOS automatically assigns the PCI Express board’s
IRQ number and I/O addresses, you must plug in the board before installing the driver (driver installation is
discussed in Chapter 3).
The following topics are covered in this chapter:

CP-118EL-A Dimensions

CP-168EL-A Dimensions

CP-104EL-A Dimensions

CP-102E Dimensions

CP-102EL Dimensions

CP-132EL Dimensions

CP-132EL-I Dimensions

CP-114EL Dimensions

CP-114EL-I Dimensions

CP-116E-A Dimensions

CP-134EL-A-I Dimensions

CP-118E-A-I/138E-A-I Dimensions

Plugging the Board into an Expansion Slot

PCI Express Boards Hardware Installation
2-2
CP-118EL-A Dimensions
CP-168EL-A Dimensions

PCI Express Boards Hardware Installation
2-3
CP-104EL-A Dimensions

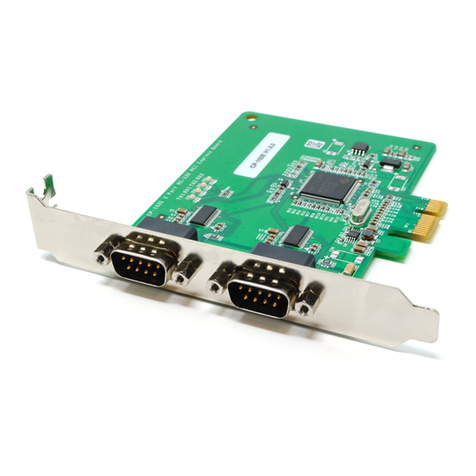

CP-102E Dimensions

PCI Express Boards Hardware Installation
2-4
CP-102EL Dimensions

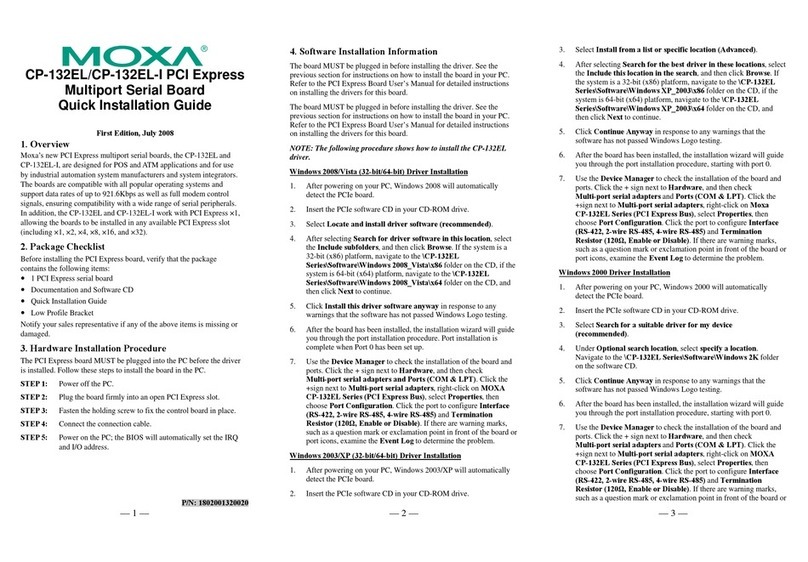

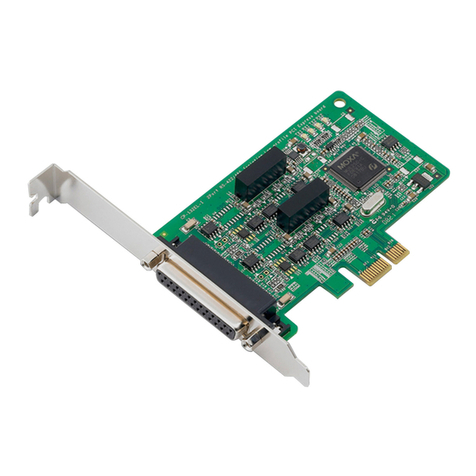

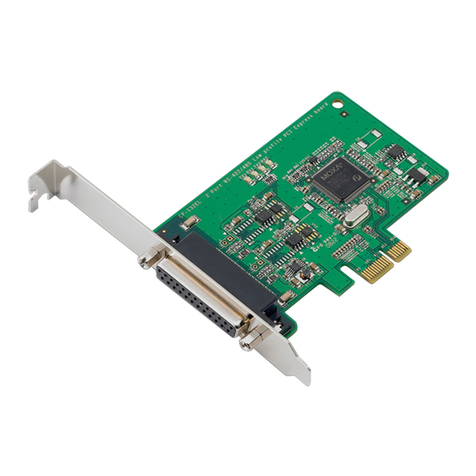

CP-132EL Dimensions

PCI Express Boards Hardware Installation
2-5
CP-132EL-I Dimensions
CP-114EL Dimensions

PCI Express Boards Hardware Installation
2-6
CP-114EL-I Dimensions
CP-116E-A Dimensions

PCI Express Boards Hardware Installation
2-7
CP-134EL-A-I Dimensions
CP-118E-A-I/138E-A-I Dimensions

PCI Express Boards Hardware Installation
2-8
Plugging the Board into an Expansion Slot
Step 1: Power off the PC.
WARNING
To avoid
damaging your system and board, make sure you turn off your computer before installing the
board.
Step 2: Remove the PC’s cover.
Step 3: Remove the slot cover bracket if there is one.
Step 4: Plug the PCI Express board firmly into a free PCI Express slot.
Step 5: Fasten the holding screw to fix the control board in place.
Step 6: Replace the PC’s cover.
Step 7: Power on the PC. The BIOS will automatically set the IRQ and I/O address.
NOTE
Each Moxa PCI Express board uses one unique IRQ and I/O
address, both of which are assigned
automatically by the PCI BIOS.
Step 8: Proceed with the software installation discussed in the next chapter, “Software Installation.”

3
3. Software Installation
In this chapter, we give installation, configuration, and update/removal procedures for the driver for
Windows 2000, Windows 2003/XP/Vista/2008 (32-bit/64-bit), Windows 7/8/8.1/10 (32-bit/64-bit), Windows
Server 2008 R2/2012/2012 R2/2016 (x64), DOS, Linux (32-bit/64-bit), SCO, and WinCE 5.0. Before
proceeding with the software installation, complete the hardware installation discussed in the previous
chapter, “Hardware Installation.”
Refer to the next chapter, “Serial Programming Tools,” for information about developing your own serial
programming applications. Note that you can install up to 8 PCI Express boards in one system, provided
sufficient I/O address and IRQ number resources are available.
You can download the drivers from the Moxa website.
The following topics are covered in this chapter:

Windows Drivers
Windows 2000, 2003/ XP/ Vista/ 2008 (x86/x64), 7/8 /8.1/ 10 (x86/x64), Server 2008 R2/ 2012/
2012 R2/ 2016 (x64)

Non-Windows Drivers
DOS
Linux (32-bit/64-bit)
SCO

PCI Express Boards Software Installation
3-2
Windows Drivers
Moxa provides drivers that allow you to use the PCI Express Series serial boards for various Windows
platforms.
The overall procedure for installing the
Windows drivers for the PCI Express boards is
summarized in the flowchart on the right.
Plug the PCI Express board into an empty
PCI Express slot. See the Hardware
Installation chapter for details.
Turn on your PC. Windows will
automatically detect the board.
Install the driver that you can download
from the Moxa website. See the
Installing the Driver subsection in this
chapter for detailed instructions.
Configure the board’s ports. See the
Configuring the Ports subsection in this
chapter for detailed instructions.
The PCI Express board and ports are
ready to use.
Driver already
No
Yes
Check the status of Moxa's multiport
serial boards. See the Checking the
Status subsection in this chapter for
detailed instructions.

PCI Express Boards Software Installation
3-3
Windows 2000, 2003/ XP/ Vista/ 2008 (x86/x64), 7/8/8.1/
10 (x86/x64), Server 2008 R2/ 2012/ 2012 R2/ 2016
(x64)/Windows 8/8.1/10/11
This section includes the following topics:
•Installing the Driver
•Configuring the Ports
•Checking the Status
•Removing the Driver
•Uninstalling the Driver
We will take Window 10 with an CP-116E-A card as an example. This procedure is similar to the other
Windows platforms regard to installing, configuring, checking the port status, and removing or uninstalling
the PCI Express cards.
Installing the Driver
In this section, we describe how to install the PCI Express cards for the first time with Windows 10. First,
make sure that you have already plugged the board or boards into the system’s PCI Express slot(s).
NOTE
If you have already installed
the Moxa’s PCI Express board in your computer, and you are installing
additional boards, Windows 7 will automatically detect and install the new board(s) the next time you boot
up the computer. In this case, proceed directly to the next section, “Configuring the Ports,” to configure the
ports’ serial transmission
parameters.
Second, you may download the drivers at www.moxa.com. Based on the OS type, choose the corresponding
driver.
Follow the following procedures to install the driver.
1. Double Click the installation file that you download from the Moxa website.
2. The Setup Wizard will open. Click Next to begin installing the driver.

PCI Express Boards Software Installation
3-4
3. Please read the license agreement. If you agree, please click Next to continue.
4. Click Next to install the driver in the indicated folder or click the Browse… button to locate a different
folder.
5. Select the component (tools) you want to install. These tools are useful for configuration, monitor, and
trouble shooting. We would recommend you install it. However, if you would like to install it later, please
untick the box in front of the tools. Click Next when you are ready to continue.
