Moza FSR User manual

FSR Formula Wheel
Behind You Is No One
Quick Guide
User Manual 使用 说 明 书

01
Product introduction
·280mm width Formula-style Wheel
·4.3-inch HD Display
·12+ professional Formula-style UI interfaces
·Hand-stitched perforated leather
·High-strength carbon fiber frame and shifters
·Aluminum Alloy Back Shell
·Carbon Fiber Photoelectric Double Clutch Paddles
·Quick Release System
·Flow RGB Shift Indicator Lighting
·Can be directly connected to PC via USB (optional)
·Ergonomic Design
·10 illuminated programmable mechanical keys
·5 band knobs, 2 thumb knobs, 2 universal joysticks
02

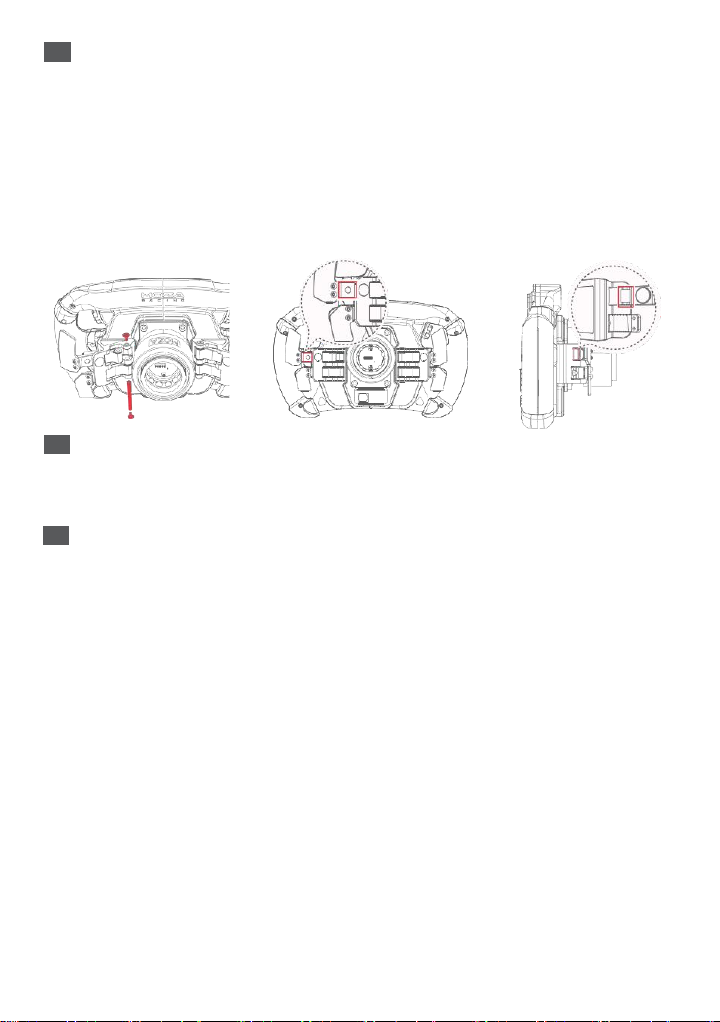

Quick Release Instructions
1. Align the 6 steel balls on the steering wheel with the 6 grooves on the wheelbase.
2. Press the wheel into the wheelbase, keeping the balls aligned with each other.
3. The quick release will automatically snap into place, locking the wheel to the base. If the quick
release does not lock, try rotating the panel on the base to its default position, and try again until
it locks correctly.
4. To remove the wheel from the base, simply use two hands to pull back on the outer ring (black
color) and pull the wheel out at the same time.

03
Wheel Configuration
Using MOZA Pit House,our software suite, the FSR steering wheel can easily be set up and configured to your
liking.
·Clutch Paddle Mode: Set the operation of the clutch paddles,which can be configured to act
together or independently of each other,also as a button input
·Joystick Mode: Joysticks can be configured as keys or buttons
·Indicator Light Switch: Allows for switching the indicator light off, on, or specific speed settings
·Indicator Light Display Mode: Divided into two modes, toggled in the MOZA Pit House suite
·Speed Adjustment:Adjustable accordingto speed and the timing of the shift indicatorlight, with
different presetsavailable
·BrightnessAdjustment:Allows for adjusting of the brightness of the shiftindicator
·UI Configuration:You can switch UI in the MOZA Pit House suite, or you can switch the UI on the wheel
directly by pressing the lower right dual-clutch paddle while moving the joystick left or right.
·Steering Wheel CombinationKeyConfiguration: Clickon the description of the combination keyin the
upper right cornerof the steering wheel picture,allowing for adjustments of thefunction.
·IndicatorLightColor Adjustment: Adjust the colorof the MOZA Flow shifter according to your preferences.
·ScreenBrightness:Adjustthe brightnessof the display on the steering wheel.
·Speed Unit: Can be set to Metric or Imperial.
·Temperature Unit: Can be set to Celsius or Fahrenheit.

(For further information on specific steering wheel settings or functions using the MOZA Pit House
Suite, visit our official website at www.mozaracing.com)

04 Key combination description
Left clutch paddle+ press the left rocker
Switching maximum steering angle of 360°
Right clutch paddle +
toggle the left rocker to the left
Switching the dashboard UI to the previous UI
Left clutch paddle+ press the right rocker
Switching maximum steering angle of 540°
Right clutch paddle +
toggle the left rocker to the right
Switching the dashboard UI to the next UI
Left clutch paddle + press BB thumb knob
Switching maximum steering angle of 720°
Press both rockers at the same time
Switching left stick mode:
cross key / normal button
Left clutch paddle+ press ERS thumb knob
Switching maximum steering angle of 900°
Press both thumb knobs simultaneously
Toggle button color
Left clutch paddle+toggle the left rocker to the left
Switching the dashboard UI to the previous UI
Left clutch paddle + toggle left rocker to the right
Switching the dashboard UI to the next UI
