MRC SRI3P-2 User manual

BOD INCUBATORS
Installation - Operation Manual
SRI3P/6P/20P-2
3, Hagavish st. Israel 58817 Tel: [phone], Fax: [phone]
[email protected]
MRC. 6.23

2| Page
Not for Fly Cultivation
This unit is not designed to hold fruit flies (Drosophila melanogaster). Use with flies voids the
manufacturing warranty and risks damaging the unit.
Other incubator models in the SRIP family are specifically manufactured for fly applications. Talk to
your distributor or customer service representative to identify a model compatible with your study or
production model.

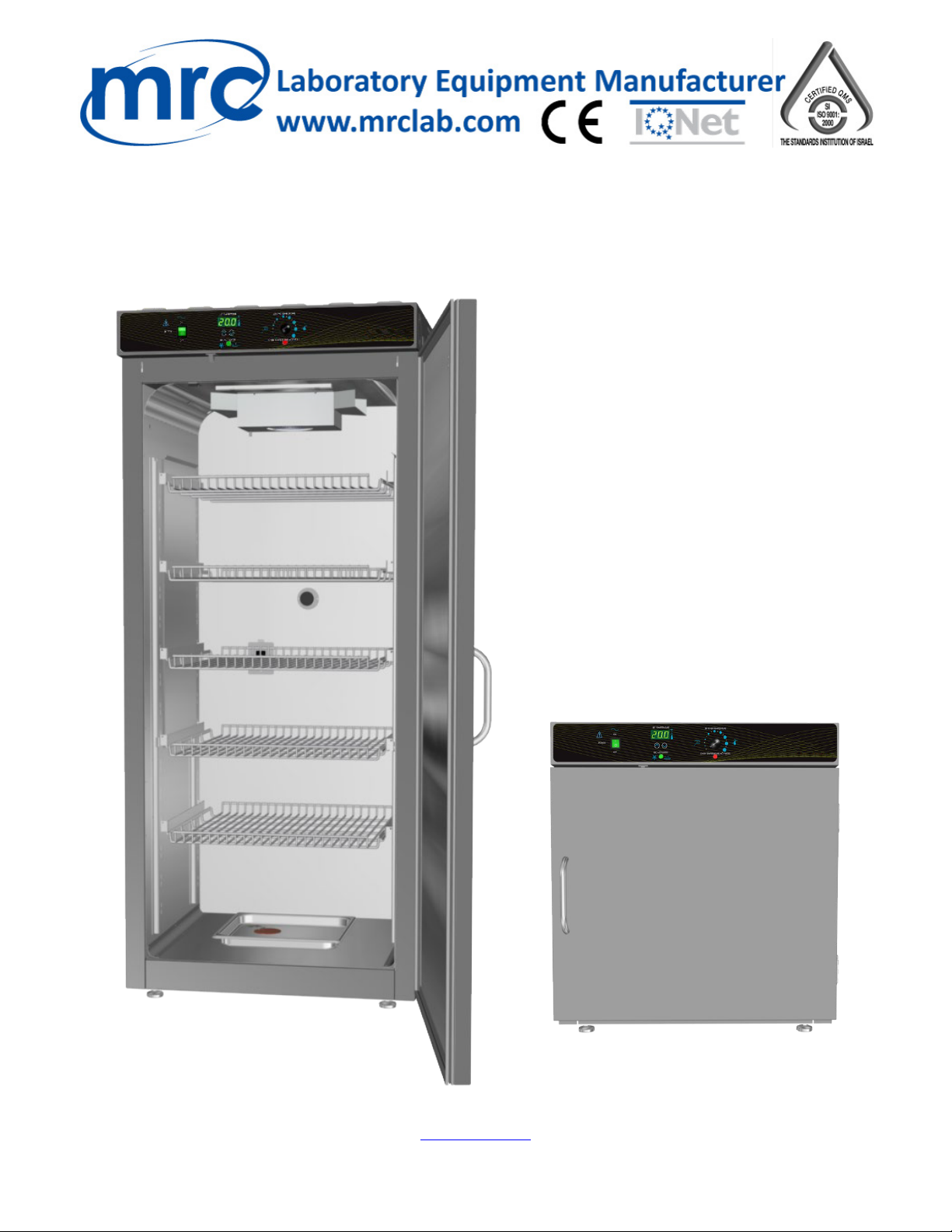

Pictured on Cover: SRI20P left, SRI6P right
SRI3P
Warning:This product contains chemicals, including triglycidyl isocyanurate, known to the State of
California to cause cancer as well as birth defects or other reproductive harm. For more information,
go to www.P65Warnings.ca.gov.
¡Advertencia! Este producto contiene sustancias químicas, incluido el triglicidil isocianurato, que el
estado de California sabe que causa cáncer, así como defectos de nacimiento u otros daños
reproductivos. Para obtener más información, visite www.P65Warnings.ca.gov.
Avertissement!Ce produit peut vous exposer à des produits chimiques, dont l'isocyanurate de triglycidyle,
reconnu par l'État de Californie pour provoquer le cancer, des anomalies congénitales ou d'autres
problèmes de reproduction. Pour plus d'informations, visitez le site www.P65Warnings.ca.gov.

3| Page
Refrigerated BOD Incubators
100 – 120 Voltage Models: SRI3, SRI6P, SRI20P
220 – 240 Voltage Models: SRI3P-2, SRI6P-2, SRI20P-2
Part Number (Manual) 4861666-1
Revision: October 4, 2021

4| Page
TABLE OF CONTENTS
MODEL CERTIFICATIONS.........................................................................................................................................7
Electromechanical Safety Testing..................................................................................................................................... 7
CE Compliant........................................................................................................................................................................... 7
UKCA Compliant..................................................................................................................................................................... 7
ISO Certified Manufacturer..................................................................................................................................................8
INTRODUCTION ........................................................................................................................................................ 9
Read this Manual....................................................................................................................................................................9
Safety Considerations and Requirements ......................................................................................................................9
Contacting Assistance ........................................................................................................................................................ 10
Manufacturing Warranty .................................................................................................................................................... 10
Engineering Improvements................................................................................................................................................ 10
Reference Sensor Device ................................................................................................................................................... 11
RECEIVING YOUR UNIT ..........................................................................................................................................13
Inspect the Shipment........................................................................................................................................................... 13
Orientation Images .............................................................................................................................................................. 14
Recording Data Plate Information................................................................................................................................... 19
INSTALLATION .........................................................................................................................................................21
Installation Procedure Checklist ...................................................................................................................................... 21
Required Ambient Conditions.......................................................................................................................................... 22
Required Clearances.......................................................................................................................................................... 23
110 - 120 Volt Power Source Requirements.................................................................................................................. 24
220 – 240 Volt Power Source Requirements ............................................................................................................. 25
Lifting and Handling ........................................................................................................................................................... 26
Removing from the Pallet.................................................................................................................................................. 26
Leveling.................................................................................................................................................................................. 26
Install the Incubator .............................................................................................................................................................27
Deionized and Distilled Water..........................................................................................................................................27
Installation Cleaning and Disinfection ...........................................................................................................................27
Install the SRI20P Side Air Ducts .................................................................................................................................... 28
Shelving Installation............................................................................................................................................................ 29
Access Port Stopper ........................................................................................................................................................... 32
GRAPHIC SYMBOLS ............................................................................................................................................... 33
CONTROL PANEL OVERVIEW .............................................................................................................................. 35
OPERATION.............................................................................................................................................................. 37
Theory of Operation ............................................................................................................................................................37
Put the Incubator into Operation .................................................................................................................................... 39
Set the Temperature Setpoint ......................................................................................................................................... 40
Set the Over Temperature Limit (OTL) ........................................................................................................................... 41
Loading Samples................................................................................................................................................................. 42
Chamber Power Outlet ...................................................................................................................................................... 42
Humidifying the Incubator................................................................................................................................................. 43
Condensation and the Dew Point .................................................................................................................................. 44
USER MAINTENANCE............................................................................................................................................. 47
Cleaning and Disinfecting..................................................................................................................................................47
Door Components ............................................................................................................................................................... 48
Electrical Components....................................................................................................................................................... 48
Calibrate the Temperature display ................................................................................................................................ 49
UNIT SPECIFICATIONS .......................................................................................................................................... 53
Weight..................................................................................................................................................................................... 53
Dimensions............................................................................................................................................................................ 53
Capacity ................................................................................................................................................................................. 53
Shelf Capacity by Weight.................................................................................................................................................. 54

5| Page
Power...................................................................................................................................................................................... 54
Temperature ......................................................................................................................................................................... 55
PARTS LIST............................................................................................................................................................... 57

6| Page
TABLE OF CONTENTS

7| Page
MODEL CERTIFICATIONS
Model Certification and Compliance Statements
ELECTROMECHANICAL AND HEATING SAFETY
IEC 61010-1:2010, AMD1:2016 and 61010-2-010:2019 Safety Certified
+USA, Canada, Europe Differences
These unit models are certified by Intertek as compliant with the International Electrotechnical
Commission’s 61010 safety standards for electrical and mechanical hazards as well as the
heating of materials in laboratory devices. The units also conform or are certified to the
following national and group differences.
Conforms to UL Standards (United States)
UL 61010-1 (3rd Ed.); Am. 1
UL 61010-2-010:2019
Certified to CSA Standards (Canada)
CAN/CSA-C22.2 No 61010-1 + Amd 1
CAN/CSA-C22.2 #61010-2-010:2019
Certified to EN Standards (European Standards)
EN 61010-1:2010/A1
EN 61010-2-010:2019
Intertek is an OSHA-recognized NRTL, a Standards Council of Canada accredited
certification body, and an EU Notified Body.
CE COMPLIANT
These unit models meet all required electromagnetic compatibility (EMC), EU
low-voltage, and RoHS safety directives.
UKCA COMPLIANT
These unit models meet all required Electromagnetic Compatibility (EMC), low-
voltage, and RoHS safety directives.
5019746

8| Page
CERTIFICATIONS
ISO CERTIFIED MANUFACTURER
We are a brand of our Manufacturing, INC, an ISO 9001
certified manufacturer

9| Page
INTRODUCTION
Thank you for purchasing the incubator. Weknow you have many choices in today’s competitive
marketplace when it comes toconstant temperature equipment. We appreciate you choosing ours. We
stand behind our products and will be here if you need us
READ THIS MANUAL
Failure to follow the guidelines and instructions in this user manual may create a protection impairment
by disabling orinterfering with the unitsafety features. This can result in injury or death.
Before using the unit, read the manual in its entirety to understand how to install, operate, and maintain
the unit in a safe manner. Ensure all operators are given appropriate training before the unit begins
service.
Keep this manual available for use by alloperators.
SAFETY CONSIDERATIONS AND REQUIREMENTS
Follow basic safety precautions, including all national laws, regulations, and local ordinances in your area
regarding the use of this unit. Ifyou have any questions about local requirements, please contact the
appropriate agencies.
SOPs: Because of the range of potential applications this unitcan be used for, the operator ortheir
supervisors must draw up a site-specific standard operating procedure (SOP) covering eachapplication
and associated safety guidelines. This SOP must be written and available to alloperators in a language
they understand.
Intended Applications andLocations: The incubators are intended for constant temperature, non-
humidified microbiological incubation applications in professional, industrial, and educational
environments. The units arenotintended for use at hazardous or household locations.
Power: Your unitand its recommended accessories are designed and tested to meet strict safety
requirements.
•The unit is designed to connect to a power source using the specific power cord type
shipped with the unit.
•Always plug the unit power cord into a protective earth grounded electrical outlet
conforming to national and local electrical codes. If the unit is not grounded properly, parts
such as knobs and controls can conduct electricity and cause serious injury.
•Do not bend the power cord excessively, step on it, or place heavy objects on it.
•A damaged cord can be a shock or fire hazard. Never use a power cord if it is damaged or
altered in any way.
•Use only approved accessories. Do not modify system components. Any alterations or
modifications to your unit not explicitly authorized by the manufacturer can be dangerous
and will void your warranty.

10 | Page
INTRODUCTION
CONTACTING ASSISTANCE
Phone hours for Customer Support are
Hagavish st. Israel 58817 Tel: [phone], Fax: [phone] [email protected] ,3
MANUFACTURING WARRANTY
For information onyour warranty and online warranty registration please visit
ENGINEERING IMPROVEMENTS
Our Manufacturing continually improves allof its products. Asa result, engineering changes and
improvements aremade from time totime. Therefore, some changes, modifications, and
improvements may not be covered in this manual. Ifyour unit’s operating characteristics or
appearance differs from those described in this manual, please contact your dealer or customer
service representative for assistance.

11 | Page
INTRODUCTION
REFERENCE SENSOR DEVICE
Must be purchased separately
Temperature Calibrations
If you are not using a third-party service, a reference sensor device is required for calibrating
your unit’s temperature display.
•See the Calibrating the Temperature Display procedure on page 49 for more information.
Device Accuracy
Reference devices must meet the following standards:
•Accurate to at least 0.1°C
The device should be regularly calibrated, preferably by a third party.
Temperature Probe
Use a digital device with a wire thermocouple probe that can be introduced into the unit chamber
through the access port or door space. Select a thermocouple suitable for the application temperature
you will be calibrating at.
Why a Probe?
Reference readings taken from outside the chamber using wire temperature probes avoid chamber
door openings. Openings disrupt the chamber temperature. Each disruption requires a minimum 1-hour
wait to allow the chamber to re-stabilize before continuing.
No Alcohol or Mercury Thermometers
Alcohol thermometers do not have sufficient accuracy to conduct accurate temperature calibrations.
Never place a mercury thermometer in the unit chamber. Always use thermocouple probes.
Temperature
Reference

12 | Page
INTRODUCTION

13 | Page
RECEIVING YOUR UNIT
INSPECT THE SHIPMENT
•When a unit leaves the factory, safe delivery becomes the responsibility of the carrier.
•Damage sustained during transit is not covered by the manufacturing defect warranty.
•Save the shipping carton until you are certain that the unit and its accessories function
properly.
When you receive your unit, inspect it for concealed loss or damage to its interior and exterior. If you
find any damage to the unit, follow the carrier’s procedure for claiming damage or loss.
1. Carefully inspect the shipping carton for damage.
2. Report any damage to the carrier service that delivered the unit.
3. If the carton is not damaged, open the carton and remove the contents.
4. The unit should come with an Installation and Operation Manual.
5. Verify that the correct number of accessory items have been included.
Model Medium Shelves Static Brackets Sliding Brackets Small Shelves Shelf Clips
SRI3P 0 0 0 2 8
SRI6P
2
4
0
0
0
SRI20P
5
8
2
0
0
Model Leveling Feet Power Cord Humidification Kit Side Air Duct Panels
SRI3P 4 1 1 0
SRI6P
4
1
1
0
SRI20P
4
1
1
2
6. The incubator ships with a rubber stopper in the access port inside the incubation chamber.
Verify the presence of the stopper.
7. Carefully check all packaging for accessories before discarding.

14 | Page
RECEIVING
ORIENTATION IMAGES
Peltier Thermoelectric Heater – Chiller Housing
SRI20P Chamber Power
Outlet, NEMA 5-15R 100
–120 Volt*
Shelf Mounting Bracket
Shelf Standard Rail
Door Gasket
Control Panel
Access Port
Drain Port - TEC Housing
Chamber Door
Humidification Pan
*SRI20P-2 Chamber Power Outlet, CEE7/3 220 – 240 Volt
SRI20P

15 | Page
RECEIVING

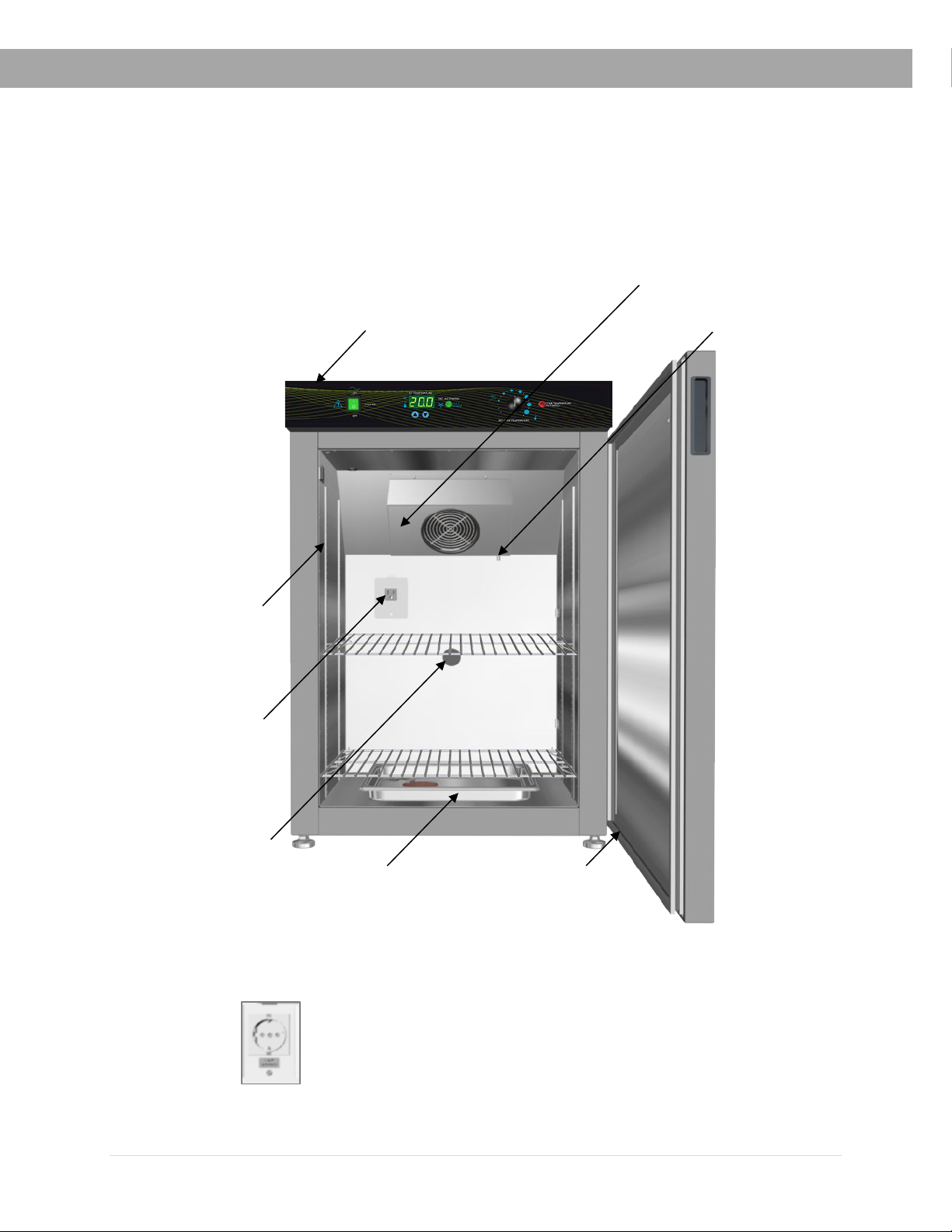

Drain Port -
TEC Housing
SRI6P Chamber
Power Outlet,
NEMA 5-15R
100 – 120 Volt*
Access Port
Door Gasket
Humidification Pan
*SRI6P-2 Chamber Power Outlet, CEE7/3 220 – 240 Volt

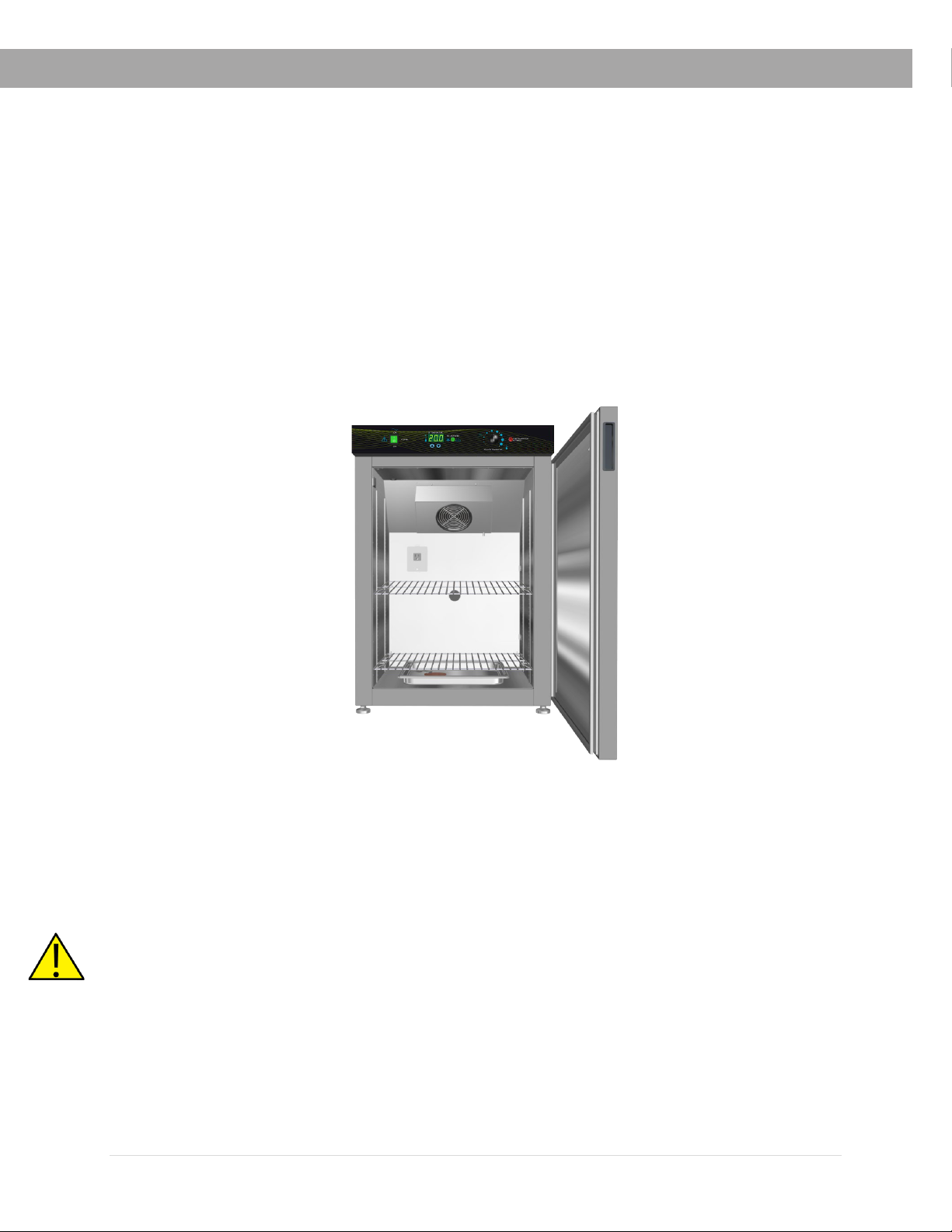

Control Panel
Peltier Thermoelectric Heater – Chiller Housing
Chamber Door
SRI6P

16 | Page
RECEIVING

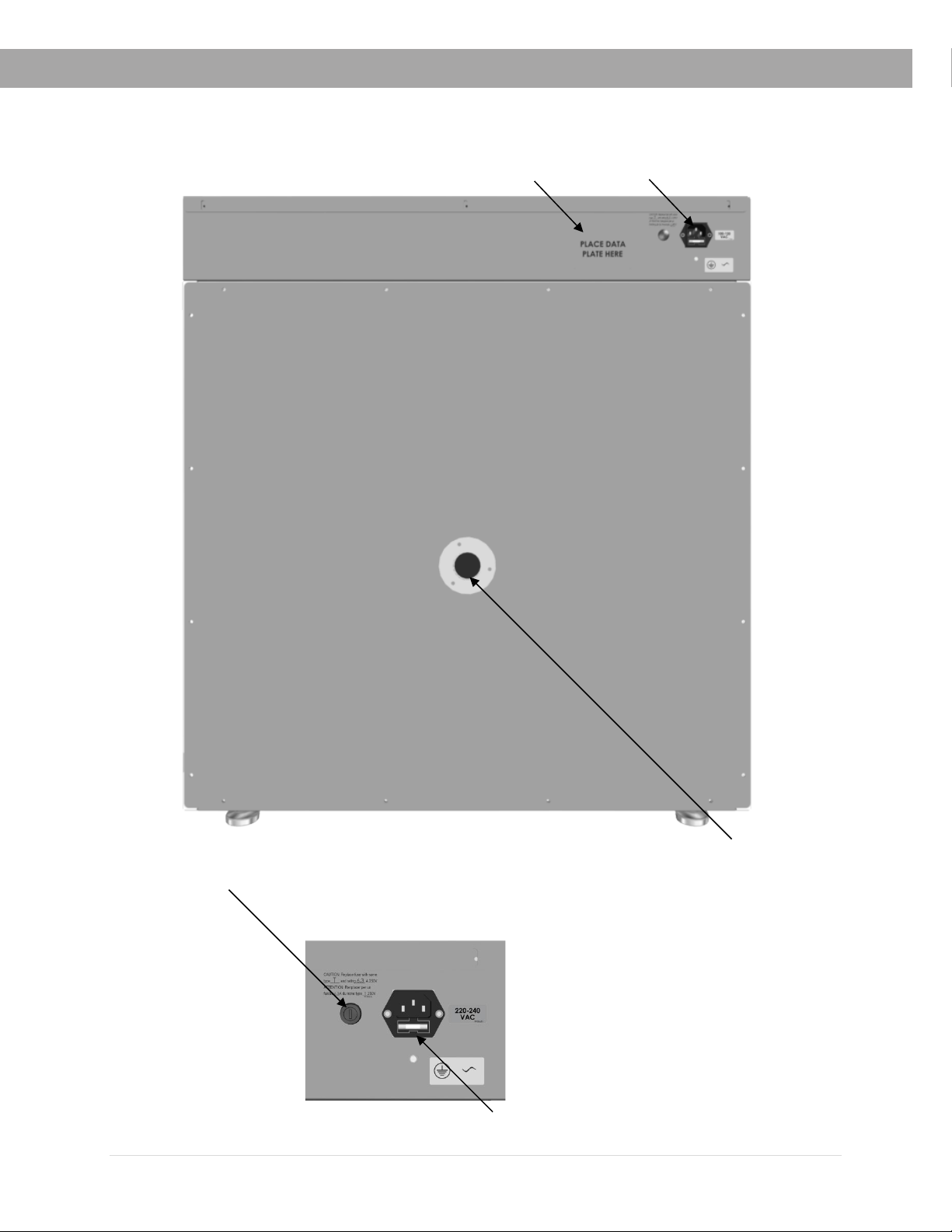

Power Panel
Data Plate
Chamber Access Port
Power Panel Closeup
Power Cord Inlet with Fuse Holder
Second Fuse Holder (220V Incubators only)

17 | Page
RECEIVING
Control Panel
Peltier Thermoelectric Heater – Chiller Housing
SRI3P
Door Gasket
Drain Port - TEC Housing
Access Port
Shelf Standard Rail
Chamber Door
SRI3P Chamber Power
Outlet, NEMA 5-15R 100
–120 Volt*
Humidification Pan
*SRI3P-2 Chamber Power Outlet, CEE7/3 220 – 240 Volt

18 | Page
RECEIVING
SRI3P, Left Side of Unit
Power Cord Inlet with Fuse
Second Fuse Holder (220V Incubators only)

19 | Page
RECEIVING
RECORDING DATA PLATE INFORMATION
Record the unit model number, serial number, and part number below for future reference.
Customer Support needs this information to provide accurate help during support calls and emails.
SRI6P, SRI20P: The data plate is located on the backofthe unit, above the power inlet
SRI3P: The data plate is located on the left side of the unit, nextto the power inlet
MODEL NO:
SERIAL NO:
PART NO:

20 | Page
RECEIVING
