Getting Started
Getting Started
This chapter provides you with the information on hardware setup procedures. While
connecting devices, be careful in holding the devices and use a grounded wrist strap
to avoid static electricity.
Package Contents
All-in-one PC Modern AM242P, Modern AM242TP, Modern AM272P
Documentation
User Guide (Optional)
Quick Start Guide (Optional)
Warranty Card & Warranty Book (Optional)
Accessories
Mouse (Optional)
Keyboard (Optional)
AC/DC Adapter
Power Cord
⚠
Important
∙ Contact your place of purchase or local distributor if any of the items is damaged or
missing.
∙ Package contents may vary by country.
∙ The included power cord is exclusively for this personal computer and should not be
used with other products.
Safety & Comfort Tips
∙Choosing a good workspace is important if you have to work with your PC for a long
period of time.
∙Your work area should have enough illumination.
∙Choose the proper desk and chair and adjust their height to fit your posture when
operating.
∙When sitting on the chair, sit straight and keep a good posture. Adjust the chair’s
back (if available) to support your back comfortably.
∙Place you feet flat and naturally on the floor, so that your knees and elbows have the
proper position (about 90-degree) when operating.
∙Put your hands on the desk naturally to support your wrists.
∙Avoid using your PC in a place where discomfort may occur (such as on the bed).
∙The PC is an electrical device. Please treat it with great care to avoid personal
injury.

4Getting Started
System Overview
Front View
2
1
1Webcam
2Touch Screen (Modern AM242TP)

5
Getting Started

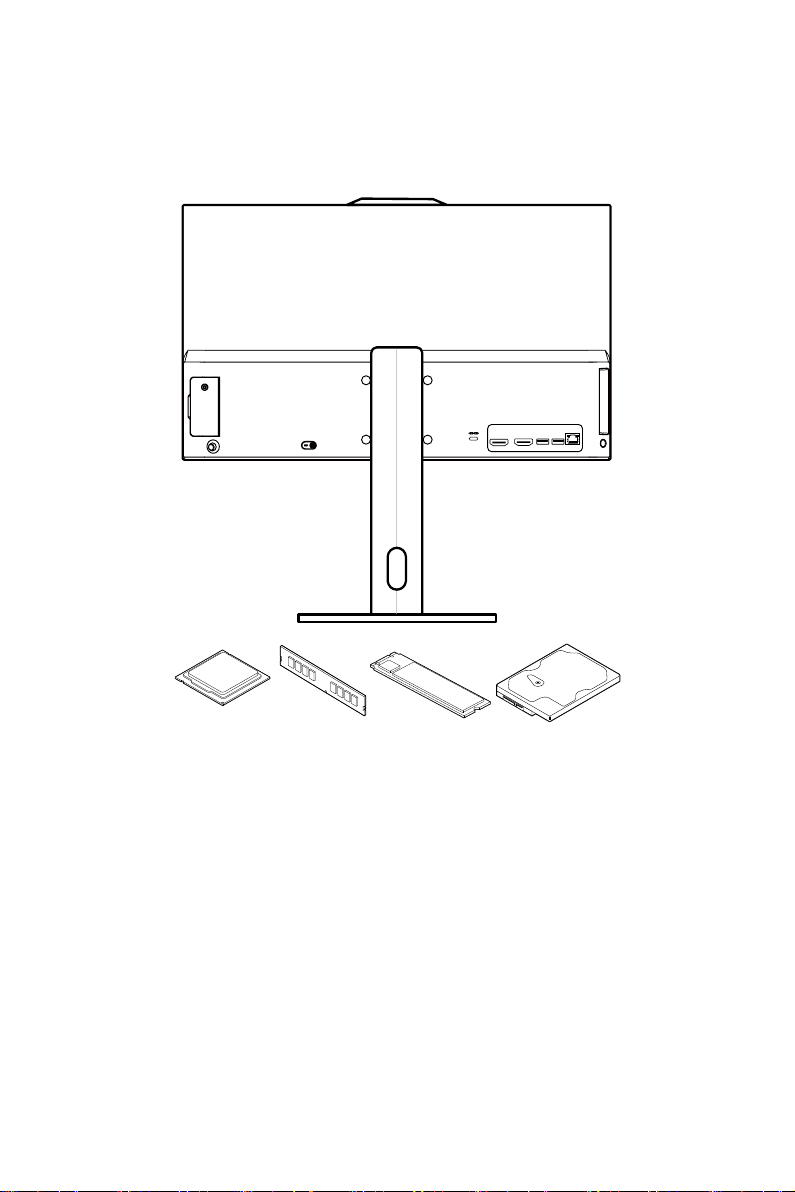

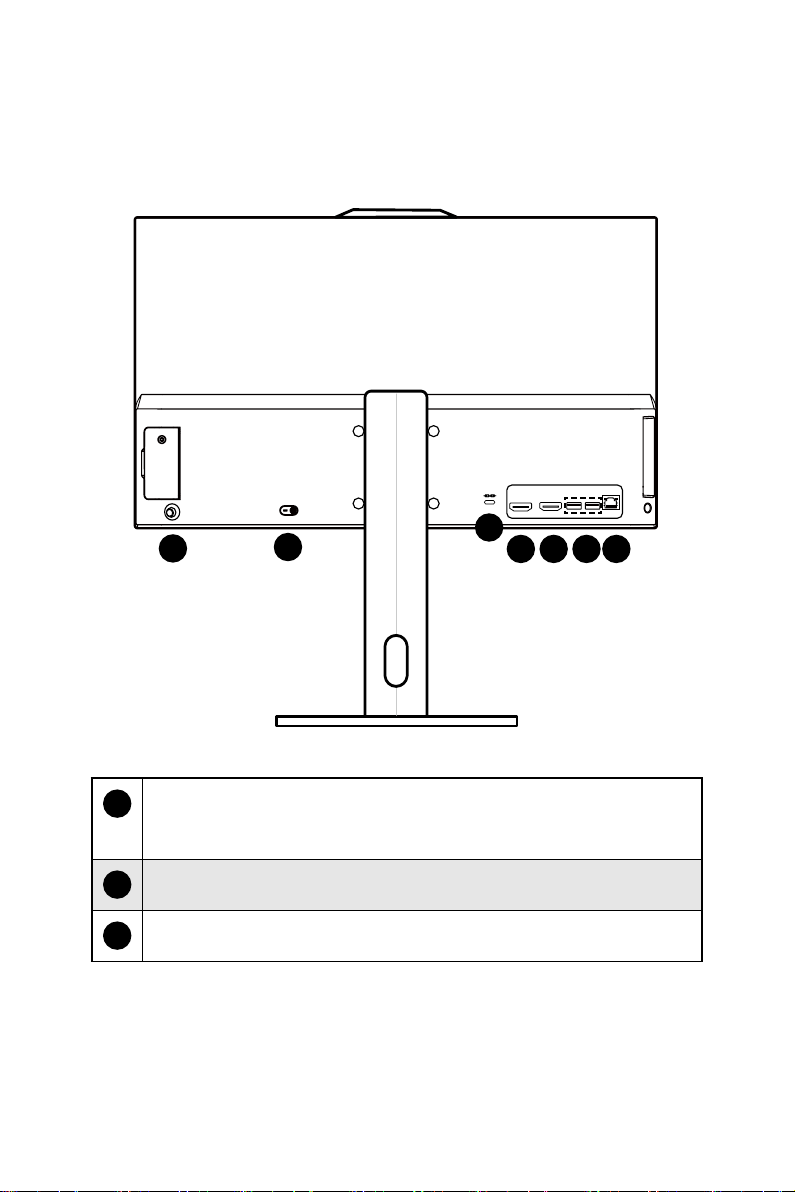

Rear View
1234 6 75
1Navi Key
The AIO PC comes with a Navi Key, a multi-directional control that helps
navigate the On-Screen Display (OSD) menu.
2Power Jack
3Kensington Lock

6Getting Started
4HDMI-In Port (with MSI Instant Display Technology)
The High-Definition Multimedia Interface (HDMI) is an all-digital audio/video
interface capable of transmitting uncompressed streams. HDMI supports
all TV format, including standard, enhanced, or high-definition video, plus
multi-channel digital audio on a single cable.
With MSI Instant Display Technology, when you connect power to the AIO PC
successfully, the monitor will automatically enter “standby” mode without
pressing the power button. When devices are connected to the HDMI-in
port, the monitor will be turned on immediately. You can also switch the
modes through the Monitor Power/ Mode Button on the side panel if you
have already turned on your AIO PC. This technology helps to save more
energy for your system.
5HDMI 2.0b Port
Supports a maximum resolution of 4K 60Hz.
⚠
Important
∙ Available for the processor with integrated graphics.
∙ Graphics specifications may vary depending on the installed CPU.
6USB 2.0 Port
This connector is provided for USB peripheral devices. (Speed up to 480
Mbps)
⚠
Important
High-speed devices are recommended for USB 3.2 ports whereas low-
speed devices, such as mouse or keyboard, are suggested to be plugged
into the USB 2.0 ports.
7LAN Jack
The standard RJ-45 LAN jack is provided for connection to the Local Area
Network (LAN). You can connect a network cable to it.
LINK/ACT
LED
SPEED
LED
LED Status Description
Link/ Activity
LED
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Off 10 Mbps
Green 100 Mbps
Orange 1 Gbps

7
Getting Started

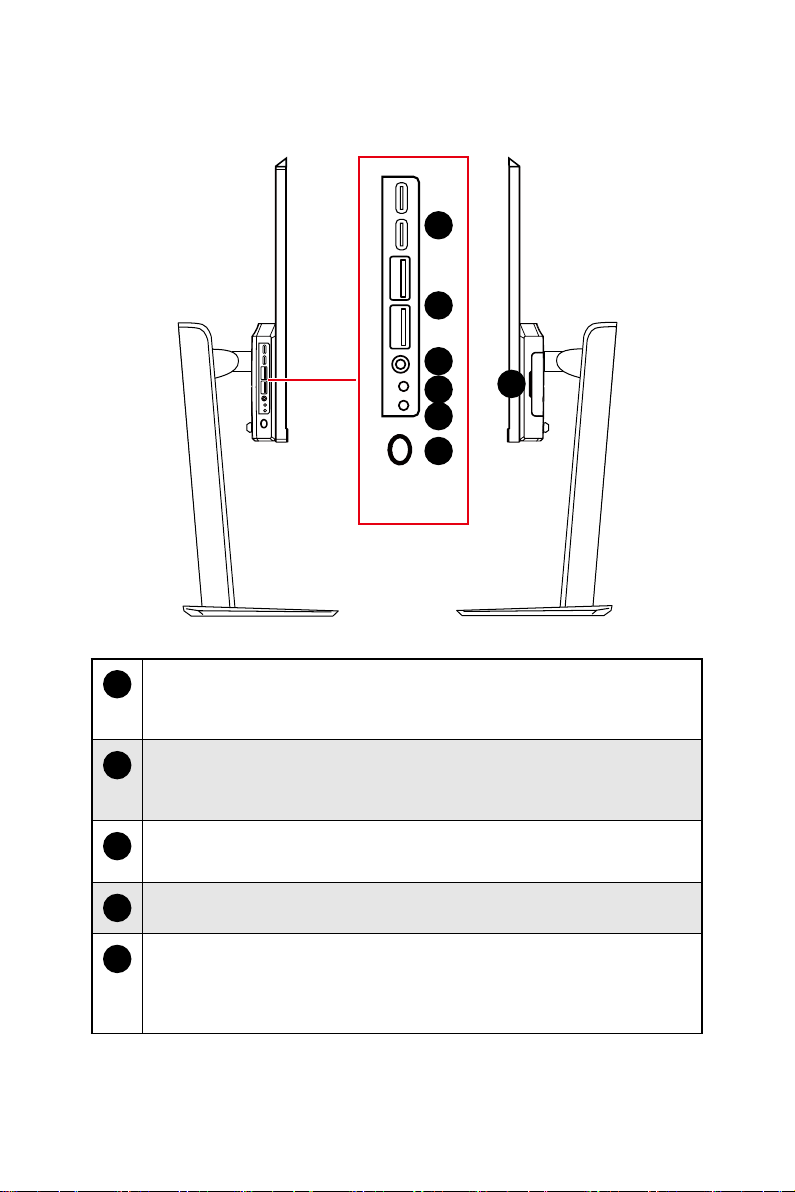

Side View
7
1
2
3
4
5
6
1USB 3.2 Gen 2 Port (Type-C)
This connector is provided for USB peripheral devices. This connector can
provide up to 5V 3A of power. (Speed up to 10 Gbps)
2USB 3.2 Gen 2 Port
This connector is provided for USB peripheral devices. (Speed up to 10
Gbps)
3Combo Audio Jack
This connector is provided for headphones or speakers or microphones.
4Monitor LED
5Hard Disk Drive LED
This indicator shows the activity status of the HDD. It flashes when the
system is accessing data on the HDD and remains off when no disk activity
is detected.

8Getting Started
6System Power Button/ LED
The power LED glows when the system is turned on and goes off when
the system is shut down. In terms of power saving, the LED blinks in S3
(Suspend to RAM) mode and goes off in S4 (Suspend to Disk) mode.
72.5” SSD/HDD Bay

9
Getting Started
Top & Bottom View
2 2
11
1Ventilator
2Stereo Speakers

10 Getting Started
Hardware Setup
Installing the Monitor Stand

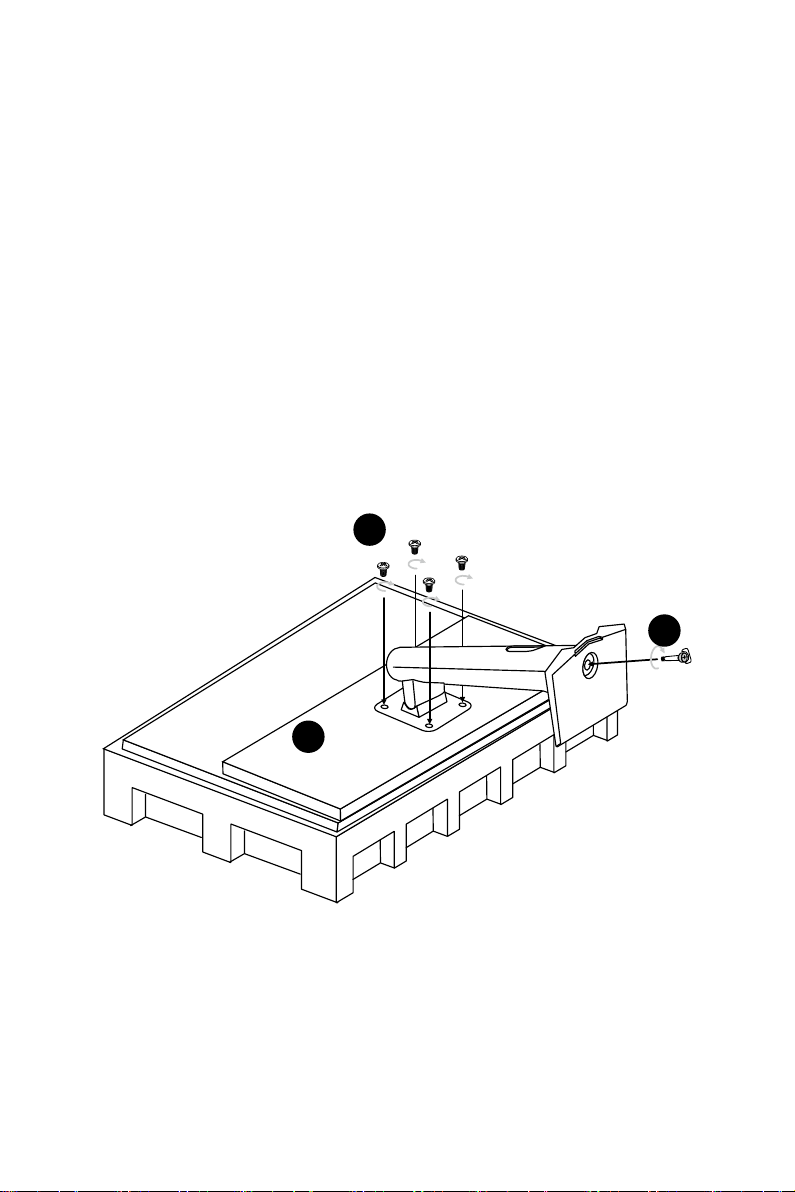

1. Leave the monitor in its protective foam packaging. Align the stand bracket to the
monitor groove.
2. Tighten the stand bracket with screws.
3. Connect the base to the stand and tighten the base screw to secure the base.
4. Make sure the stand assembly is properly installed before setting the monitor
upright.
⚠
Important
∙ Remove the screws on the monitor groove if needed before installing the stand.
∙ Place the monitor on a soft, protected surface to avoid scratching the display panel.
∙ Do not use any sharp objects on the panel.
∙ The groove for installing the stand bracket can also be used for wall mount. Please
contact your dealer for proper wall mount kit.
1
2
3
