MSI 745 Ultra-E User manual

i
Version 1.1
G52-MA00564
MS-6561 (v1.X) ATX Mainboard
MSI
MICRO-STAR INTERNATIONAL
745 Ultra
745 Ultra-E

ii
Manual Rev: 1.1
Release Date: Feb. 2002
FCC-B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a class
B digital device, pursuant to part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference when the equip-
ment is operated in a commercial environment. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accor-
dance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case the user will be required to correct
the interference at his own expense.
Notice 1
The changes or modifications not expressly approved by the party responsible
for compliance could void the users authority to operate the equipment.
Notice 2
Shielded interface cables and A.C. power cord, if any, must be used in order to
comply with the emission limits.
VOIRLANOTICEDINSTALLATIONAVANTDERACCORDERAURESEAU.
Micro-Star International MS-6561
Tested to comply
with FCC Standard
For Home or Office Use

iii
Edition
Feb. 2002
Copyright Notice
The material in this document is the intellectual property of MICRO-STAR
INTERNATIONAL. We take every care in the preparation of this document,
but no guarantee is given as to the correctness of its contents. Our products
are under continual improvement and we reserve the right to make changes
without notice.
Trademarks
All trademarks are the properties of their respective owners.
Intel®and Pentium®are registered trademarks of Intel Corporation.
PS/2 and OS®/2 are registered trademarks of International Business Machines
Corporation.
Windows®95/98/2000/NT/XP are registered trademarks of Microsoft
Corporation.
Netware®is a registered trademark of Novell, Inc.
Award®is a registered trademark of Phoenix Technologies Ltd.
AMI®is a registered trademark of American Megatrends Inc.
Revision History
Revision Revision History Date
V1.1 Add IEEE 1394 Feb. 2002
Connectors

iv
Safety Instructions
1. Read the safety instructions carefully.
2. Save this Users Guide for possible use later.
3. Keep this equipment away from humidity.
4. Lay this equipment on a stable and flat surface before setting it up.
5. The openings on the enclosure are used for air convection and to prevent
the equipment from overheating. Note: Do not cover the openings.
6. Make sure that the power voltage is within its safety range and has been
adjusted properly to the value of 110/220V before connecting the equip-
ment to the power inlet.
7. Place the power cord in a way that people are unlikely to step on it. Do not
place anything on the power cord.
8. Always unplug the power cord before inserting any add-on card or module.
9. All cautions and warnings on the equipment should be noted.
10. Never pour any liquid into the opening that could damage the equipment
or cause an electrical shock.
11. If any of the following situations arises, get the equipment checked by a
service personnel:
lthe power cord or plug is damaged
lliquid has penetrated into the equipment
lthe equipment has been exposed to moisture
lthe equipment has not work well or you can not get it work according
to Users Guide
lthe equipment was dropped and damaged
lthe equipment has obvious signs of breakage
12. Do not leave the equipment in an unconditioned environment with a stor-
age temperature of 600 C (1400F) or above, which may damage the
equipment.
CAUTION: To prevent explosion caused by improper battery
replacement, use the same or equivalent type of battery recommended
by the manufacturer only.

v
CONTENTS
Chapter 1. Getting Started ........................................................................ 1-1
Mainboard Specification ...................................................................... 1-2
Mainboard Layout ............................................................................... 1-4
Quick Components Guide .................................................................... 1-6
MSI Special Features ........................................................................... 1-7
Fuzzy Logic III ........................................................................... 1-7

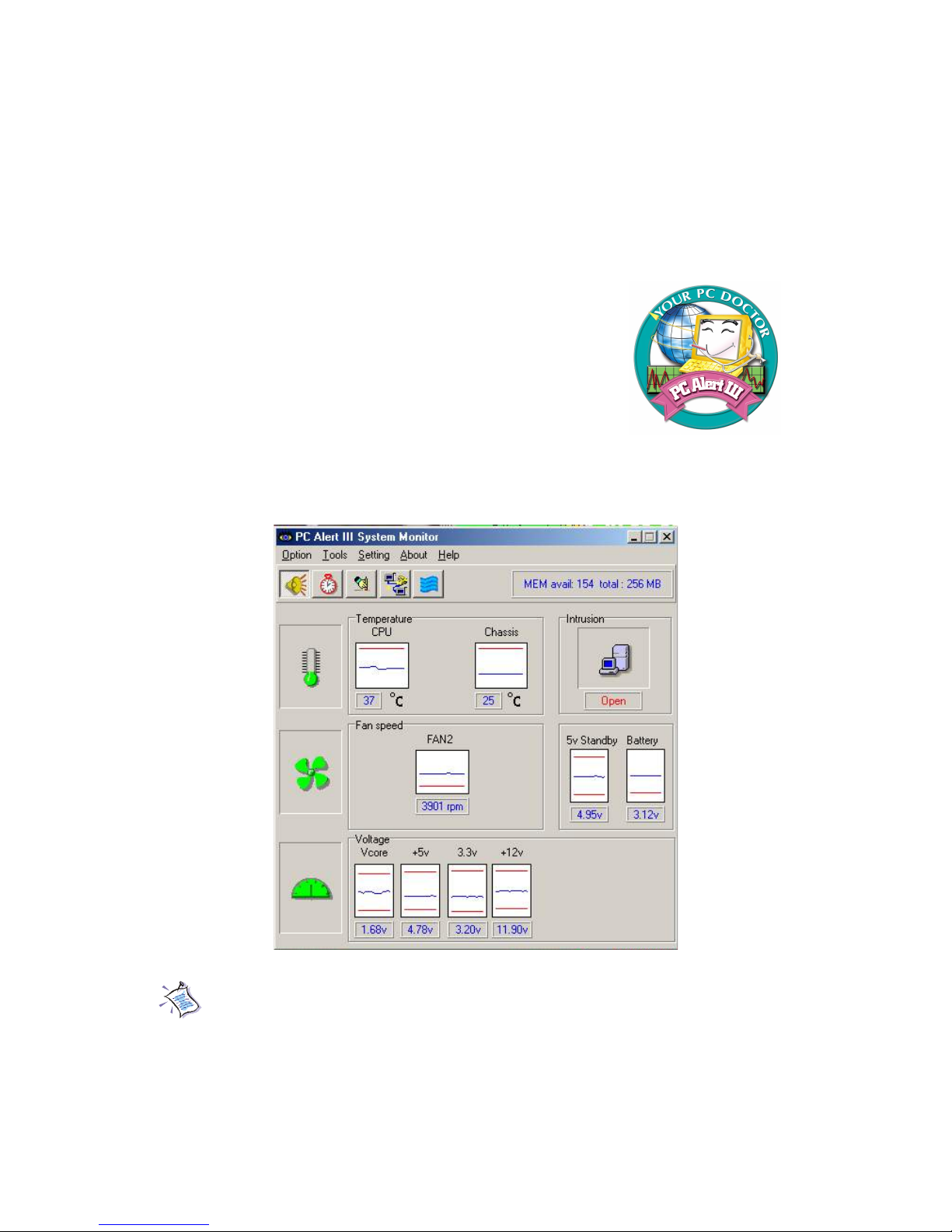

PC Alert III ................................................................................. 1-8
D-Bracket ................................................................................... 1-9

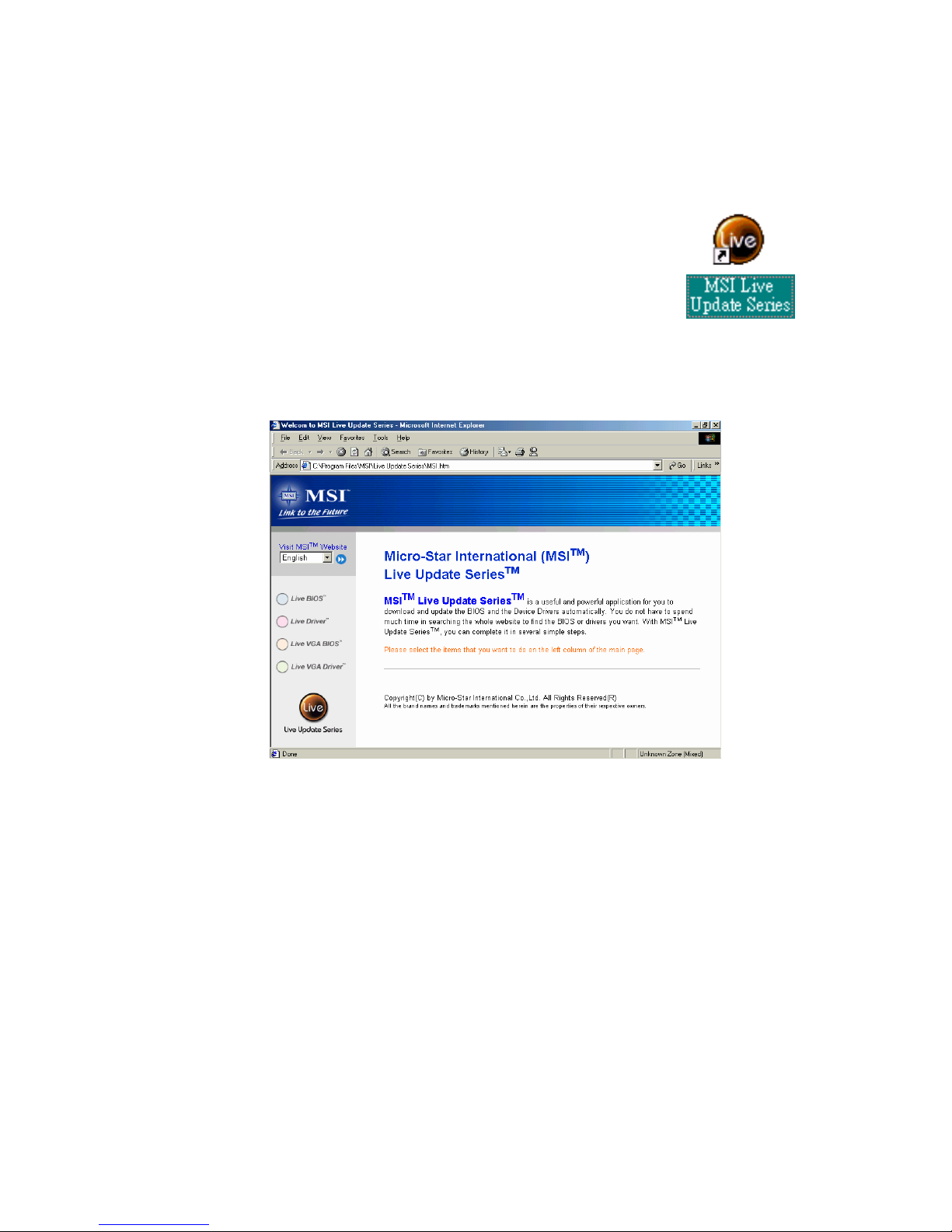

LiveBIOS/LiveDriver .......................................................... 1-11
Chapter 2. Hardware Setup ....................................................................... 2-1
Central Processing Unit: CPU .............................................................. 2-2
CPU Installation Procedures ......................................................... 2-2
Thermal Issue for CPU .................................................................. 2-3
CPU Core Speed Derivation Procedure ......................................... 2-3
Memory ................................................................................................ 2-4
Introduction to DDR SDRAM ....................................................... 2-4
DDR Module Combination ............................................................ 2-5
Installing DDR Modules ............................................................... 2-5
Power Supply ....................................................................................... 2-6
ATX 20-Pin Power Connector: JPWR1 .......................................... 2-6
Back Panel ............................................................................................ 2-7
Mouse Connector: JKBMS1 ......................................................... 2-7
Keyboard Connector: JKBMS1 ..................................................... 2-8
USB Connectors ............................................................................ 2-8
Serial Port Connector: COM A & COM B ..................................... 2-9
Joystick/Midi Connectors ............................................................. 2-9
Audio Port Connectors ................................................................. 2-9
Parallel Port Connector: LPT1 ...................................................... 2-10

vi
Connectors ......................................................................................... 2-11
Floppy Disk Drive Connector: FDD1........................................... 2-11
IrDA Infrared Module Header: JIR1 ............................................ 2-11
Hard Disk Connectors: IDE1 & IDE2 ........................................... 2-12
CD-In Connector: JCD1 ............................................................... 2-13
Aux Line-In Connector: JAUX1 .................................................. 2-13
Modem-In Connector: JMD1....................................................... 2-13
Fan Power Connectors: CFAN1/SFAN1 ...................................... 2-14
Wake On Ring Connector: JWR1 ................................................ 2-15
Front Panel Connectors: JFP1 & JFP2 ......................................... 2-16
Front Panel Audio Connector: JAUD1 ........................................ 2-17
Front USB Connector: JUSB1 ...................................................... 2-18
Chassis Intrusion Switch Connector: JCI1 .................................. 2-19
IEEE 1394 Connector: J1394-1 & J1394-2 ..................................... 2-20
D-Bracket Connector: JDB1 ..................................................... 2-22
Jumpers .............................................................................................. 2-23
Clear CMOS Jumper: JBAT1 ........................................................ 2-23
Slots ................................................................................................... 2-24
AGP (Accelerated Graphics Port) Slot ......................................... 2-24
PCI Slots ...................................................................................... 2-24
CNR (Communication Network Riser) ......................................... 2-25
PCI Interrupt Request Routing .................................................... 2-25
Chapter 3. AMI BIOS Setup ..................................................................... 3-1
Entering Setup...................................................................................... 3-2
Selecting the First Boot Device ..................................................... 3-2
Control Keys ................................................................................. 3-3
Getting Help .................................................................................. 3-3
The Main Menu ................................................................................... 3-4
Standard CMOS Features .................................................................... 3-6

vii
Advanced BIOS Features .................................................................... 3-8
Advanced Chipset Features............................................................... 3-12
Power Management Setup ................................................................. 3-14
PNP/PCI Configurations..................................................................... 3-18
Integrated Peripherals ........................................................................ 3-21
PC Health Status ................................................................................ 3-25
Frequency/Voltage Control ................................................................ 3-26
Load High Performance/BIOS Setup Defaults.................................... 3-28
Supervisor/User Password ................................................................. 3-29
Glossary .................................................................................................... G-1

Getting Started
1-1
Chapter 1. Getting Started 1
Getting Started
Thank you for purchasing the MS-6561 v1.X ATX mainboard. The MS-
6561 v1.X is based on SiS 745 chipset for optimal system efficiency. Designed
to fit the advanced AMD®Athlon/Athlon XP/Duron processor in the Socket-
462 package, the MS-6561 delivers a high performance and professional desk-
top platform solution.
TOPICS
Mainboard Specification 1-2
Mainboard Layout 1-4
Quick Components Guide 1-6
MSI Special Features 1-7

Chapter 1
1-2
CPU
Support Socket A (Socket-462) AMD®Athlon/Athlon XP/Duron processor
up to 1900+MHz
Support AMD PowerNow!TM technology
Chipset
Sis 745 Chipset
- applies the multi-threaded architecture- Build-in Multi-threaded I/O Link
to provide enough I/O bandwidth up to 1.2GB/s
- supports additional AGP slot with 4x/2x/1x and Fast Write Transaction
- offers AC97 compliant interface
- built-in fast IDE controller supports the ATA PIO/DMA, and the Ultra
DMA33/66/100 function that supports the data transfer rate up to 100MB
per second
MainMemory
Support six memory banks using three 184-pin DDR DIMM
Support up to 2 unbuffered DIMM DDR333 or up to 3 unbuffered Double-
Sided DIMM DDR266/200
Support 3 unbuffered DIMM of 2.5V DDR DRAM, up to 1GB per DIMM
with Max. Memory Size up to 3GB
Slots
One AGP (Accelerated Graphics Port) 1x/2x/4x slot (support 1.5V/3.3V)
Five PCI 2.2 32-bit Master PCI bus slots
One CNR (Communication Network Riser) slot
Support 3.3V/5V PCI bus Interface
On-Board IDE
Provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 33/66/
100 operation modes.
Can connect up to four fast IDE drives
Mainboard Specification

Getting Started
1-3
On-Board Peripherals
On-board Peripherals include:
- 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
- 2 serial ports (COM A + COM B)
- 1 parallel port supports SPP/EPP/ECP mode
- 4 USB ports (Rear x 2/ Front x 2)
- 1 Line-In/Line-Out/Mic-In/Game port
- 2 on-board IEEE1394 ports (optional)
Audio
Chip integrated
AC97 codec supports 2 channel Audio
BIOS
The mainboard BIOS provides Plug & Play function which detects the
peripherals devices and expansion cards of the board automatically
The mainboard provides a Desktop Management Interface (DMI) function
which records your mainboard specifications
Dimension
ATX Form Factor 30.5cm x 21.5cm
Mounting
6 mounting holes
Others
Vcore/memory voltage adjustable
Support WOR
Support ACPI 1.0b spec., including S1, S3

Chapter 1
1-4
745 Ultra (MS-6561 v1.X) ATX Mainboard
Mainboard Layout
BATT
+
SiS
745
DIM 1 DIM 2 DIM 3
JAUD1 JIR1
JFP2
JFP1
JUSB1
JDB1
ATX
Power Supply
SFAN1
CFAN1
JWR1
SOCKET 462
BIOS
PCI Slot 5
PCI Slot 4
PCI Slot 3
PCI Slot 2
PCI Slot 1
IDE 1
IDE 2
CNR
JBAT1
JCI1
USB
ports
Top : Parallel Port
Bottom:
COM A
COM B
To p : m ou se
Bottom: keyboard
JCD1 JAUX1
JMD1
To p :
Game port
Bottom:
Line-Out
Line-In
Mic
FDD 1
Codec

Getting Started
1-5
745 Ultra-E (MS-6561 v1.X) ATX Mainboard
BATT
+
SiS
745
DIM 1 DIM 2 DIM 3
JAUD1 JIR1
JFP2
JFP1
JUSB1
JDB1
ATX
Power Supply
SFAN1
CFAN1
JWR1
SOCKET 462
BIOS
PCI Slot 5
PCI Slot 4
PCI Slot 3
PCI Slot 2
PCI Slot 1
IDE 1
IDE 2
CNR
JBAT1
JCI1
USB
ports
Top : Parallel Port
Bottom:
COM A
COM B
To p : m ou se
Bottom: keyboard
JCD1 JAUX1
JMD1
To p :
Game port
Bottom:
Line-Out
Line-In
Mic
FDD 1
Codec
J1394-2 J1394-1

Chapter 1
1-6
Quick Components Guide
Component Function Reference
JPWR1 ATX 20-pin power connector See p. 2-6
JKBMS1 Mouse connector See p. 2-7
JKBMS1 Keyboard connector See p. 2-8
USB Connectors Connecting to USB devices See p. 2-8
COM A & COM B Serial port connector See p. 2-9
LPT1 Parallel port connector See p. 2-10
FDD1 Floppy disk drive connector See p. 2-11
JIR1 IrDA infrared module connector See p. 2-11
IDE1~ IDE2 Hard disk connectors See p. 2-12
JCD1 CD-in connector See p. 2-13
JAUX1 Aux line-in connector See p. 2-13
JMD1 Modem-in connector See p. 2-13
CFAN1/SFAN1 Fan power connectors See p. 2-14
JWR1 Wake on ring connector See p. 2-15
JFP1/JFP2 Front panel connectors See p. 2-16
JAUD1 Front panel audio connector See p. 2-17
JUSB1 Front USB connector See p. 2-18
JCI1 Chassis Intrusion connector See p. 2-19
J1394-1 & J1394-2 IEEE1394 Connector See p. 2-20
JDB1 D-Bracket Connector See p. 2-22
JBAT1 Clear CMOS jumper See p. 2-23
AGP Slot Connecting to AGP card See p. 2-24
PCI Slots Connecting to expansion cards See p. 2-24
CNR Slot Connecting to expansion card See p. 2-25

Getting Started
1-7
MSI Special Features
Fuzzy Logic III
The Fuzzy Logic III utility allows users to overclock the CPU FSB
(Front Side Bus) frequency in the Windows environment. Select the CPU fre-
quency you prefer and click Go to apply the frequency or click Save allowing
the system to run at the specified frequency each time when the system is
powered on.
Features:
lDisplay Current System Status
- CPU Fan
- CPU Temp.
- Vcore
-Vio
- Memory Clock
- CPU Clock
- AGP Clock
- PCI Clock
lAdjust CPU FSB Frequency

Chapter 1
1-8
PC Alert III
The PC AlertTM III is a utility you can find in the CD-ROM disk. The utility
is just like your PC doctor that can detect the following PC hardware status
during real time operation:
* monitor CPU & system temperatures
* monitor fan speed(s)
* monitor system voltage
* monitor chassis intrusion
Note: Items shown on PC Alert III vary depending on your systems
status.
If one of the items above is abnormal, the program
main screen will be immediately shown on the screen,
with the abnormal item highlighted in red. This will con-
tinue to be shown until users disable the warning.

Getting Started
1-9
D-Bracket (Optional)
The D-Bracket which integrates four Diagnostic LEDs is optional.
Definitions of the D-Bracket LED signals are shown below.
The D-Bracket uses graphic signal display to help users understand
their system. Four LEDs embedded in the mainboard provide up to 16 combi-
nations of signals to debug the system. The 4 LEDs can debug all problems
that fail the system, such as VGA, RAM or other failures. This special feature
is very useful for the overclocking users. These users can use the feature to
detect if there are any problems or failures.
Diagnostic LED
1 2
3 4
Red Green
1 2
3 4
D-Bracket Description
Processor Initialization
- This will show information regarding the processor
(like brand name, system bus, etc...)
Early Chipset Initialization
Memory Detection Test
- Testing onboard memory size. The D-LED will hang if the
memory module is damaged or not installed properly.
Initializing Keyboard Controller.
Decompressing BIOS image to RAM for fast booting.
Testing VGA BIOS
- This will start writing VGA sign-on message to the screen.

Chapter 1
1-10
1 2
3 4
D-Bracket Description
Processor Initialization
- This will show information regarding the processor
(like brand name, system bus, etc...)
Testing RTC (Real Time Clock
Initializing Hard Drive Controller
- This will initialize IDE drive and controller.
BIOS Sign On
-This will start showing information about logo, processor
brand name, etc...
Initializing Video Interface
- This will start detecting CPU clock, checking type of video
onboard. Then, detect and initialize the video adapter.
Testing Base and Extended Memory
- Testing base memory from 240K to 640K and extended
memory above 1MB using various patterns.
Assign Resources to all ISA.
Initializing Floppy Drive Controller
- This will initialize Floppy Drive and controller.
Boot Attempt
- This will set low stack and boot via INT 19h.
Operating System Booting

Getting Started
1-11
Live BIOS/Live Driver
The Live BIOS & Live Driver is a tool used to detect
and update your BIOS and drivers online so that you dont need
to search for the correct BIOS or drivers version through the
whole web site. To use the function, you need to install the
MSI Live Update Series application. After installation, the
MSI Live Update Series icon (as the right view) will appear on the screen.
Double click the MSI Live Update Series icon, and the following screen
will appear.
Four buttons are placed on the left column of the screen. Click the desired
button to start the update process.
ll
ll
lLive BIOS  Updates the BIOS online. If your motherboard does not support
the function, the sorry message is displayed.
ll
ll
lLive Driver  Updates the drivers online. If your motherboard does not support
the function, the sorry message is displayed.
ll
ll
lLive VGA BIOS  Updates the VGA BIOS online. If your VGA device does not
support the function, the sorry message appears.
ll
ll
lLive VGA Driver  Updates the VGA driver online. If your VGA device does not
support the function, the sorry message is displayed.
For more information on the update instructions, insert the companion CD and
refer to the Live Update Series Guide under the Manual tab.

Hardware Setup
2-1
Chapter 2. Hardware Setup
TOPICS
Central Processing Unit: CPU 2-2
Memory 2-4
Power Supply 2-6
Back Panel 2-7
Connectors 2-11
Jumpers 2-23
Slots 2-24
2
Hardware Setup
This chapter provides you with the information about hardware setup
procedures. While doing the installation, be careful in holding the components
and follow the installation procedures. For some components, if you install in
the wrong orientation, the components will not work properly.
Use a grounded wrist strap before handling computer components. Static
electricity may damage the components.

Chapter 2
2-2
Central Processing Unit: CPU
1. Pull the lever sideways away
from the socket. Then, raise
the lever up to a 90-degree
angle.
2. Look for the cut edge. The cut
edge should point towards the
lever pivot. The CPU will only
fit in the correct orientation.
3. Hold the CPU down firmly, and
then close the lever to
complete the installation.
CPU Installation Procedures
Overheating will seriously damage the CPU and system,
always make sure the cooling fan can work properly to
protect the CPU from overheating.
WARNING!
The mainboard supports AMD®Athlon/Athlon XP/Duron processor.
The mainboard uses a CPU socket called Socket-462 for easy CPU installation.
When you are installing the CPU, make sure the CPU has a heat sink and a
cooling fan attached on the top to prevent overheating. If you do not find the
heat sink and cooling fan, contact your dealer to purchase and install them
before turning on the computer.
Open Lever
Cut edge
Sliding
Plate
Close
Lever
