MSI KM3M-V Series User manual

i
FCC-B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in
which case the user will be required to correct the interference at his own expense.
Notice 1
The changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
Notice 2
Shielded interface cables and A.C. power cord, if any, must be used in order to comply with the emission limits.
VOIR LA NOTICE D’NSTALLATION AVANT DE RACCORDER AU RESEAU.
Micro-Star International
MS-7061
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation
G52-M7061X3

ii
Copyright Notice
The material in this document is the intellectual property of MICRO-STAR INTERNATIONAL. We take every care in
the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are
under continual improvement and we reserve the right to make changes without notice.
Trademarks
All trademarks are the properties of their respective owners.
AMD, Athlon™ Athlon™XP, Thoroughbred™ and Duron™ are registered trademarks of AMD Corporation.
Intel® and Pentium® are registered trademarks of Intel Corporation.
PS/2 and OS® 2 are registered trademarks of International Business Machines Corporation.
Microsoft® is a registered trademark of Microsoft Corporation. Windows® 98/2000/NT/XP are registered trademarks
of Microsoft Corporation.
NVIDIA, the NVIDIA logo, DualNet, and nForce are registered trademarks or trademarks of NVIDIA Corporation in the
United States and/or other countries.
Netware® is a registered trademark of Novell, Inc.
Award® is a registered trademark of Phoenix Technologies Ltd.
AMI® is a registered trademark of American Megatrends Inc.
Kensington and MicroSaver are registered trademarks of the Kensington Technology Group.
PCMCIA and CardBus are registered trademarks of the Personal Computer Memory Card International Association.
Revision History
Revision Revision History Date
V1.0 First released of Multi-language version for PCB 1.x April 2004
with chipsets VIA® KM400/KM400A/KM266 Pro & VT8237
V1.1 FSB Clock jumpers (SW1&SW2) & SATA1/2 update May 2004
V1.2 Update FSB frequency contents July 2004

iii
Safety Instructions
1. Always read the safety instructions carefully.
2. Keep this User Manual for future reference.
3. Keep this equipment away from humidity.
4. Lay this equipment on a reliable flat surface before setting it up.
5. The openings on the enclosure are for air convection hence protects the equipment from overheating. Do not
cover the openings.
6. Make sure the voltage of the power source and adjust properly 110/220V before connecting the equipment to the
power inlet.
7. Place the power cord such a way that people can not step on it. Do not place anything over the power cord.
8. Always Unplug the Power Cord before inserting any add-on card or module.
9. All cautions and warnings on the equipment should be noted.
10. Never pour any liquid into the opening that could damage or cause electrical shock.
11. If any of the following situations arises, get the equipment checked by a service personnel:
- The power cord or plug is damaged.
- Liquid has penetrated into the equipment.
- The equipment has been exposed to moisture.
- The equipment does not work well or you can not get it work according to User Manual.
- The equipment has dropped and damaged.
- The equipment has obvious sign of breakage.
12. Do not leave this equipment in an environment unconditioned, storage temperature above 60° C (140°F), it may
damage the equipment.
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with
the same or equivalent type recommended by the manufacturer.

iv
Table of Content
English.....................................................................1
Deutsch....................................................................15
Français...................................................................31
简体中文 ...................................................................45
繁體中文 ...................................................................59
Nederlands ..............................................................71
日本語.......................................................................85

1
Introduction
Thank you for choosing the KM4M-V/KM4AM-V/KM3M-V Series (MS-7061 v1.X) micro ATX mainboard.
The KM4M-V/KM4AM-V/KM3M-V Series is based on VIA ® KM400/KM400A/KM266 Pro & VT8237
chipsets for optimal system efficiency. Designed to fit the advanced AMD ® AthlonTM/AthlonTM
XP/DuronTM processors in 462 pin package, the KM4M-V/KM4AM-V/KM3M-V Series delivers a high
performance and professional desktop platform solution.

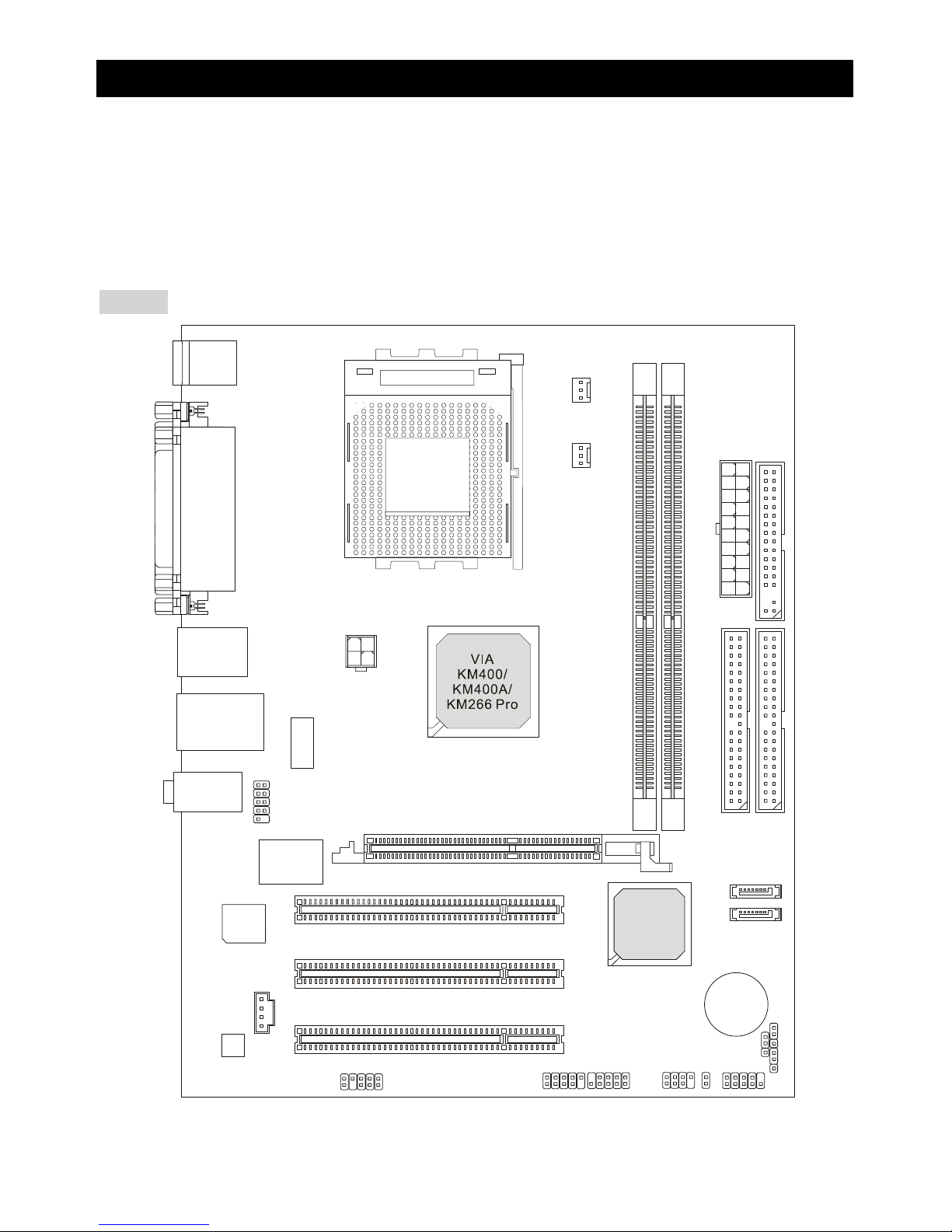

Layout
BATT
+
VIA
VT8237
DIMM1
DIMM2
JAUD1
JCD1
SW2
SW1
JBAT1
JFP1JFP2JUSB1 JUSB2
ATX
PowerSupply
FANSYS1
FAN 1CPU
PCI Slot 3
PCI Slot 2
PCI Slot 1
IDE1
IDE2
COM2
Top : Parallel Port
Bottom:
COM A
VGA port
Top : mouse
Bottom: keyboard
Top: LAN Jack
Bottom: USB
ports
USB ports
JPW1
Line-In
Line-Out
Mic
FDD1
Winbond
W83697HF
AGP Slot
SOCKET 462
VIA
VT1617A
VIA
VT6103
BIOS
SATA2
(
for KM400/
KM400A)
SATA1
(
for KM400/
KM400A)
(
Optional
)
JCI1
CONN1

2
Specifications
CPU
! Supports AMD ® AthlonTM/AthlonTM XP/DuronTM (Socket 462) processor.
! Supports from 1100MHz up to 3000+ or above @ 266/333 MHz.
(For the latest information about CPU, please visit
http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php )
Chipset
! VIA ® KM266 Pro/KM400/KM400A chipset
- FSB @ 266/333 MHz. (for KM266 Pro & KM400 ); FSB @ 266/333/400 MHz. (for KM400A only).
- Supports AGP 4X (for KM266Pro); AGP 8X (for KM400 & KM400A).
! VIA ® VT8237 chipset
- Integrated Direct Sound AC97 audio.
- Dual channel Ultra DMA 33/66/100/133 master mode EIDE controller.
- ACPI & PC2001 compliant enhanced power management.
- Integrated USB2.0 controller, 8237 supporting 8 ports.
Main Memory
! Supports four memory banks using two 184-pin DDR DIMMS.
! Supports maximum memory size up to 2GB for single channel mode.
(For the updated supporting memory modules, please visit
http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php )
Slots
! One AGP (Accelerated Graphics Port) 1.5V 4X (for KM266Pro)/ 8X (for KM400 & KM400A) slot.
! Three PCI 2.2 32-bit PCI bus slots (support 3.3v/5v PCI bus interface).
On-Board IDE
! Dual channel master mode IDE controller on the VIA ® VT8237 Chipset provides IDE
HDD/CD-ROM with PIO, Bus Master and Ultra DMA 33/66/100/133 operation modes. Can connect
up to four IDE devices.
On-Board Peripherals
! On-Board Peripherals includes:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes.
- 1 serial port and 1 VGA port.
- 1 parallel port supports SPP/EPP/ECP mode.

3
- 2 SATA connectors (for KM400/KM400A only)
- 8 USB 2.0 ports (Rear * 4/ Front * 4).
- 3 audio (Line-In/Line-Out/Mic) ports.
- COM2 on board with pin header (Intel pin-define).
Audio
- VIA1617A codec.
- 5.1 channel AC’97 software Audio.
LAN
- VIA VT8237 integrated MAC + VIA 6103 PHY.
- 1 RJ45 LAN Jack.
BIOS
! The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and
expansion cards of the board automatically.
! The mainboard provides a Desktop Management Interface (DMI) function that records your
mainboard specifications.
Dimension
! Micro-ATX Form Factor: 245 mm x 192mm.
Mounting
! 6 mounting holes.
Others
! Supports PS2 Keyboard/Mouse.
! VRAM size maximum is up to 64MB. (Optional).
! Hardware monitor is to monitor CPU’s temperature/voltage.

4
Rear Panel
The back panel provides the following connectors:
Ke
y
board
USB Ports
Mouse
COM port
V
GA port
Parallel Port
Line In
Line Out
Mic In
LAN
USB Port
s
Hardware Setup
This chapter tells you how to install the CPU, memory modules, and expansion cards, as well as how to
setup the jumpers on the mainboard. It also provides the instructions on connecting the peripheral
devices, such as the mouse, keyboard, etc. While doing the installation, be careful in holding the
components and follow the installation procedures.
Central Processing Unit: CPU
The mainboard supports AMD ® AthlonTM/AthlonTM XP/DuronTM processor in the 462 pin package. The
mainboard uses a CPU socket called Socket A for easy CPU installation. When you are installing the
CPU, make sure the CPU has a heat sink and a cooling fan attached on the top to prevent
overheating. If you do not find the heat sink and cooling fan, contact your dealer to purchase and
install them before turning on the computer. (For the latest information about CPU, please visit
http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php )
Example of CPU Core Speed Derivation Procedure
If CPU Clock = 100MHz
Core/Bus ratio = 14
then CPU core speed = Host Clock x Core/Bus ratio
= 100MHz x 14
=1.4GHz

5
Memory Speed/CPU FSB Support Matrix
Memory
FSB
DDR 266 DDR 333
DDR 400
(For KM400A only)
266 MHz OK OK OK
333 MHz OK OK OK
400 MHz
(For KM400A only)
OK OK OK
CPU Installation Procedures for Socket 462
1. Please turn off the power and unplug the power cord before installing the CPU.
2. Pull the lever sideways away from the socket. Make sure to raise the lever up to a 90-degree
angle.
3. Look for the gold arrow. The gold arrow should point towards the lever pivot. The CPU can only
fit in the correct orientation.
4. If the CPU is correctly installed, the pins should be completely embedded into the socket and
can not be seen. Please note that any violation of the correct installation procedures may cause
permanent damages to your mainboard.
5. Press the CPU down firmly into the socket and close the lever. As the CPU is likely to move
while the lever is being closed, always close the lever with your fingers pressing tightly on top of
the CPU to make sure the CPU is properly and completely embedded into the socket.
Installing the CPU Fan
The following instructions will guide you through the heat sink installation procedures. Please consult
your agent for the proper CPU cooler set.
1. Position your CPU cooler set onto the CPU.
2. Use one end of the clip to hook the latch of the CPU sliding plate.
3. Hook the other latch to fix the cooling fan set. You may need a screw drive to press down the
other side of the clip.
4. Connect the fan to the power supply connector provided on your mainboard.

6
MSI Reminds You...
Overheating…
Overheating will seriously damage the CPU and system, always make sure the cooling fan can work
properly to protect the CPU from overheating.
Replacing the CPU…
While replacing the CPU, always turn off the ATX power supply or unplug the power supply’s power
cord from grounded outlet first to ensure the safety of CPU.
Memory
The mainboard provides two 184-pin unbuffered DDR266/DDR333/DDR400 (for KM400A only) DDR
SDRAM, and supports the memory size up to 2GB. To operate properly, at least one DIMM module
must be installed. (For the updated supporting memory modules, please visit
http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php )
Install at least one DIMM module on the slots. Memory modules can be installed on the slots in any
order. You can install either single- or double-sided modules to meet your own needs.
Installing DDR Modules
1. The DDR DIMM has only one notch on the center of module. The module will only fit in the right
orientation.
2. Insert the DIMM memory module vertically into the DIMM slot. Then push it in until the golden
finger on the memory module is deeply inserted in the socket.
3. The plastic clip at each side of the DIMM slot will automatically close.
N
o
t
c
hV
o
lt

7

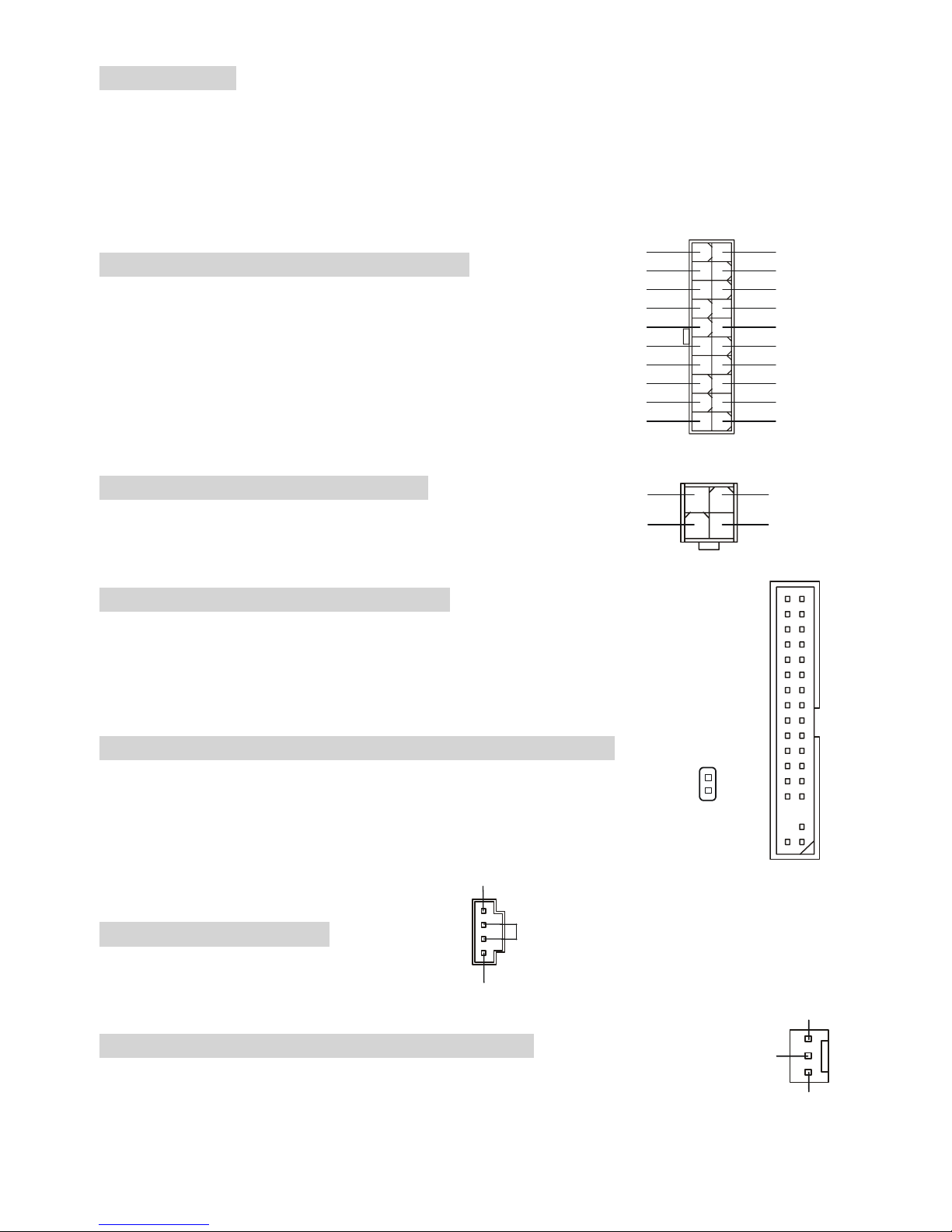

Power Supply
The mainboard supports ATX power supply for the power system. Before inserting the power supply
connector, always make sure that all components are installed properly to ensure that no damage will
be caused. A 300W or above power supply is suggested.
ATX 20-Pin Power Connector: CONN1
This connector allows you to connect to an ATX power supply. To
connect to the ATX power supply, make sure the plug of the power
supply is inserted in the proper orientation and the pins are aligned.
Then push down the power supply firmly into the connector.
ATX 12V Power Connector: JPW1
This 12V power connector is used to provide power to the CPU.
Floppy Disk Drive Connector: FDD1
The mainboard provides a standard floppy disk drive connector that supports 360K, 720K,
1.2M, 1.44M and 2.88M floppy disk types.
Chassis Intrusion Switch Connector: JCI1 (Optional)
This connector is connected to 2-pin connector chassis switch. If the
Chassis is open, the switch will be short. The system will record this
status. To clear the warning, you must enter the BIOS setting and clear the status.
CD-In Connector: JCD1
The connector is for CD-ROM audio connector.
Fan Power Connectors: FANCPU1/FANSYS1
The FANCPU1 (processor fan) and FANSYS1 (system fan) support system cooling fan
with +12V. They support three-pin head connector. When connecting the wire to the connectors, always
11
3.3V3.3V
-12V
GND
PW_O
K
5V_SB
12V
PS_ON
20
1
10
GND
GND
GND
-5V
5V
5V
3.3V
GND
5V
GND
GND
5V
12
3
4
GND
12V
GND
12V
GN
D
L
R
+12V
GND
SENSOR
1
2GND
CINTRU

8
take note that the red wire is the positive and should be connected to the +12V, the black wire is
Ground and should be connected to GND. If the mainboard has a System Hardware Monitor chipset
on-board, you must use a specially designed fan with speed sensor to take advantage of the CPU fan
control.
MSI Reminds You...
1. Always consult the vendors for proper CPU cooling fan.
2. CPUFAN1 supports the fan control. You can install the PC Alert utility that will automatically control
the CPU fan speed according to the actual CPU temperature.
IDE Connectors: IDE1/IDE2
The mainboard has a 32-bit Enhanced PCI IDE and Ultra DMA 33/66/100/133 controller that provides
PIO mode 0~4, Bus Master, and Ultra DMA 33/66/100/133 function. You can connect up to four hard
disk drives, CD-ROM, 120MB Floppy and other devices.
The first hard drive should always be connected to IDE1. IDE1 can connect a Master and a Slave drive.
You must configure second hard drive to Slave mode by setting the jumper accordingly. IDE2 can also
connect a Master and a Slave drive.
MSI Reminds You...
If you install two hard disks on cable, you must configure the second drive to Slave mode by setting its
jumper. Refer to the hard disk documentation supplied by hard disk vendors for jumper setting
instructions.

9
Front Panel Connectors: JFP1/JFP2
The mainboard provides two front panel connectors for
electrical connection to the front panel switches and LEDs.
JFP1 is compliant with Intel Front Panel I/O Connectivity
Design Guide.
Front Panel Audio Connector: JAUD1
The front panel audio connector allows you to connect to the front
panel audio and is compliant with Intel ® Front Panel I/O
Connectivity Design Guide.
MSI Reminds You...
If you do not want to connect to the front audio header, pins 5 & 6, 9 & 10 have to be jumpered in order
to have signal output directed to the rear audio ports. Otherwise, the Line-Out connector on the back
panel will not function.
1
2
9
10
Front USB Connector: JUSB1/JUSB2
The mainboard provides two standard USB 2.0 pin
headers JUSB1&JUSB2. USB2.0 technology increases
data transfer rate up to a maximum throughput of
480Mbps, which is 40 times faster than USB 1.1, and is
ideal for connecting high-speed USB interface
peripherals such as USB HDD, digital cameras, MP3
players, printers, modems and the like.
Serial Port Connector: COM2
The main board offers one serial port COM2. It is 16550A high speed communication
port that sends/receives 16 bytes FIFOs. You can attach a serial mouse or other serial
device directly to it.
1
2
9
10
AUD_MIC
AUD_MIC_BIAS
AUD_GND
AUD
_
VCC
AUD_FPOUT_R
A
UD_SPEAKER_L
AUD_FPOUT_L
HP_ON
KEY
AUD_SPEAKER_R
19
210
GND
USBOC
KEY
GND
VCC
VCC
USB0-
U
S
B1-
USB0+
USB1+
JUS
B1
1
9
2
10
GND
USBOC
KEY
GND VCC
VCC
USB0-
USB1-
USB0+
USB1+
JUS
B2
1
9
2
10
HDD
LED
Power
LED
Power
LED
Speaker
Reset
Switch
P
ower
Switch
11
7
9
22
8
10
JFP1 JFP2

10
PIN SIGNAL DESCRIPTION PIN SIGNAL DESCRIPTION
1
2
3
4
5
DCD
SIN
SOUT
DTR
GND
Data Carry Detect
Serial In or
Receive Data
Serial Out or
Transmit Data
6
7
8
9
DSR
RTS
CTS
RI
Data Set Ready
Request To Send
Clear To Send
Ring Indicate
Serial ATA HDD Connectors: SATA1/SATA2 (for KM400/KM400A )
The mainboard provides dual high-speed Serial ATA interface ports. The ports support
1st generation Serial ATA data rates of 150 MB/s and are fully compliant with Serial ATA
1.0 specifications. Each Serial ATA connector can connect to 1 hard disk drive.
PIN SIGNAL PIN SIGNAL
1
3
5
7
GND
TXN
RXN
GND
2
4
6
TXP
GND
RXP
FSB Clock Jumper: SW1/SW2
These two jumpers provide 100MHz, 133MHz, and 166MHz Front Side Bus
frequency selection. Follow the instructions below to adjust the jumpers.
Jumper
CPU Frequency
SW1 SW2
133 MHz
1
3
1
3
166 MHz
1
3
1
3
200 MHz
(for KM400A only)
1
3
1
3
Clear CMOS Jumper: JBAT1
There is a CMOS RAM on board that has a power supply from external battery to keep the data of
1
3
1
3
SW1
S
W
2
SATA1
SATA2
17

11
system configuration. With the CMOS RAM, the system can automatically boot OS every time it is
turned on. If you want to clear the system configuration, use the
JBAT1 (Clear CMOS Jumper) to clear data. Follow the instructions
below to clear the data:
MSI Reminds You...
You can clear CMOS by shorting 2-3 pin while the system is off. Then return to 1-2 pin position. Avoid
clearing the CMOS while the system is on; it will damage the mainboard.
AGP (Accelerated Graphics Port) Slot
The AGP slot allows you to insert the AGP
graphics card. AGP is an interface specification designed for the throughput demands of 3D graphics. It
introduces a 66MHz, 32-bit channel for the graphics controller to directly access main memory. The
mainboard supports 4X (for KM266Pro)/8X (for KM400 & KM400A) AGP card.
PCI (Peripheral Component Interconnect) Slots
The PCI slots allow you to insert the expansion cards to meet your needs. When adding or removing
expansion cards, make sure that you unplug the power
supply first. Meanwhile, read the documentation for the expansion card to make any necessary
hardware or software settings for the expansion card, such as jumpers, switches or BIOS configuration.
PCI Interrupt Request Routing
The IRQ, abbreviation of interrupt request line and pronounced I-R-Q, are hardware lines over which
devices can send interrupt signals to the microprocessor. The PCI IRQ pins are typically connected to
the PCI bus INT A# ~ INT D# pins as follows:
Order1 Order2 Order3 Order4
PCI Slot 1 INT A# INT B# INT C# INT D#
PCI Slot 2 INT B# INT C# INT D# INT A#
PCI Slot 3 INT C# INT D# INT A# INT B#
Keep Data Clear Dat
a
11
3
1
3

12
BIOS Setup
Power on the computer and the system will start POST (Power On Self Test) process. When the
message below appears on the screen, press <DEL> key to enter Setup.
DEL: Setup F11: Boot Menu F12: Network boot TAB: Logo
If the message disappears before you respond and you still wish to enter Setup, restart the system by
turning it OFF and On or pressing the RESET button. You may also restart the system by
simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys.

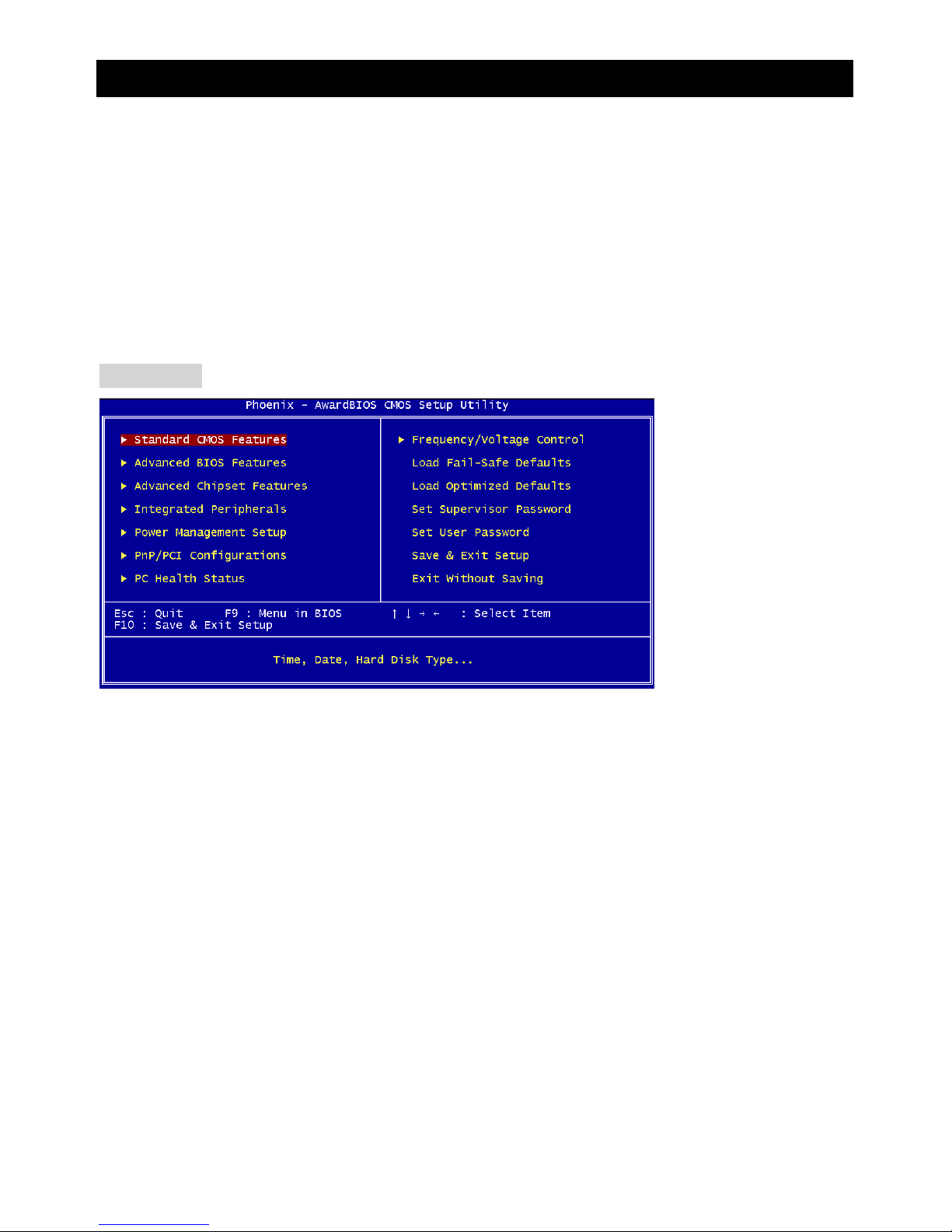

Main Page
Standard CMOS Features
Use this menu for basic system configurations, such as time, date etc.
Advanced BIOS Features
Use this menu to setup the items of Award special enhanced features.
Advanced Chipset Features
Use this menu to change the values in the chipset registers and optimize your system performance.
Integrated Peripherals
Use this menu to specify your settings for integrated peripherals.
Power Management Setup
Use this menu to specify your settings for power management.
PNP/PCI Configurations
This entry appears if your system supports PnP/PCI.
PC Health Status
This entry shows your PC health status.
Frequency/Voltage Control
Use this menu to specify your settings for frequency/voltage control.
Load Fail-Safe Defaults

13
Use this menu to load the BIOS values for the best system performance, but the system stability may
be affected.
Load Optimized Defaults
Use this menu to load factory default settings into the BIOS for stable system performance operations.
Set Supervisor Password
Use this menu to set Supervisor Password.
Set User Password
Use this menu to set User Password.
Save & Exit Setup
Save changes to CMOS and exit setup.
Exit Without Saving
Abandon all changes and exit setup.

14
Frequency/Voltage Control
Auto Detect PCI/DIMM Clk
This item is used to auto detect the PCI slots. When set to [Enabled], the system will remove (turn off)
clocks from empty PCI slots to minimize the electromagnetic interference (EMI).
Spread Spectrum
When the motherboard’s clock generator pulses, the extreme values (spikes) of the pulses creates EMI
(Electromagnetic Interference). The Spread Spectrum function reduces the EMI generated by
modulating the pulses so that the spikes of the pulses are reduced to flatter curves. If you do not have
any EMI problem, leave the setting at [Disabled] for optimal system stability and performance. But if you
are plagued by EMI, set to [Enabled] for EMI reduction. Remember to disable Spread Spectrum if you
are overclocking because even a slight jitter can introduce a temporary boost in clock speed which may
just cause your overclocked processor to lock up.
For the complete BIOS introduction and setup, please visit MSI website at http://www.msi.com.tw.

15
Einleitung
Vielen Dank für die Wahl des KM4M-V/KM4AM-V/KM3M-V Serie (MS-7061 v1.X) Micro ATX
Mainboard. Die KM4M-V/KM4AM-V/KM3M-V Serie basiert auf dem VIA ® KM400/KM400A/KM266 Pro
& Chipsatz für optimale Systemeffizienz. . Es wurde für den fortgeschrittenen AMD ®
AthlonTM/AthlonTM XP/DuronTM Prozessors in 462 Gehäuse entwickelt und stellt eine schnelle und
proffessionelle Desktop Platform dar.
Layout
BATT
+
VIA
VT8237
DIMM1
DIMM2
JAUD1
JCD1
SW2
SW1
JBAT1
JFP1JFP2JUSB1 JUSB2
ATX
PowerSupply
FANSYS1
FAN 1CPU
PCI Slot 3
PCI Slot 2
PCI Slot 1
IDE1
IDE2
COM2
Top : Parallel Port
Bottom:
COM A
VGA port
Top : mouse
Bottom: keyboard
Top: LAN Jack
Bottom: USB
ports
USB ports
JPW1
Line-In
Line-Out
Mic
FDD1
Winbond
W83697HF
AGP Slot
SOCKET 462
VIA
VT1617A
VIA
VT6103
BIOS
SATA2
(
for KM400/
KM400A)
SATA1
(
for KM400/
KM400A)
(
Optional
)
JCI1
CONN1

16
Spezifikationen
CPU
! Unterstützt AMD ® AthlonTM/AthlonTM XP/DuronTM (Socket 462) Prozessor.
! Unterstützt von 1100 MHz bis 3000+ oder schneller bei 266/333 MHz FSB.
(Für die neuesten CPU-Kompatiblitäts-Informationen besuchen Sie bitte die folgende Webseite:
http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php )
Chipsatz
! VIA ® KM266 Pro/KM400/KM400A Chipsatz
- FSB @ 266/333 MHz (nur bei KM266 Pro & KM400);
FSB @ 266/333/400 MHz. (nur bei KM400A).
- Unterstützt AGP 4X (nur bei KM266Pro); AGP 8X (nur bei KM400 & KM400A).
! VIA ® VT8237 Chipsatz
- Integrierte Direct Sound AC97 Soundlarte.
- Zweikanal Ultra DMA 33/66/100/133 Master Modus EIDE Kontroller.
- Entspricht ACPI & PC2001 Erweitertem Power Management.
- Integrierter USB2.0 Kontroller 8237, Unterstützt 8 Anschlüsse.
Hauptspeicher
! Unterstützt vier Speicherbänke für 184-Pin DDR DIMMS.
! Unterstützt maximal 2GB Speicher.
(Für die neuesten CPU-Kompatiblitäts-Informationen besuchen Sie bitte die folgende Webseite:
http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php )
Erweiterungssteckplätze
! Ein AGP (Accelerated Graphics Port) Steckplatz mit AGP 4X (nur bei KM266Pro); AGP 8X (nur bei
KM400 & KM400A).
! Drei PCI 2.2 32-Bit Master PCI Bus Steckplätze (unterstützt 3.3V/5V PCI Schnittstelle).
On-Board IDE
! Zweikanal Master Modus IDE Kontroller im VIA ® VT8237 Chipsatz, unterstützt IDE
Festplatte/CD-ROM mit PIO, Bus Master und Ultra DMA 33/66/100/133 Modus. Es können bis zu
vier Laufwerke angeschlossen werden.
On-Board Peripherie
! On-Board Peripherie beinhaltet:
- 1 Floppy Anschluss, unterstützt 2 Floppy mit 360K, 720K, 1.2M, 1.44M und 2.88Mbytes.
