MSI B350 GAMING User manual

I
Quick Start
Quick Start
Thank you for purchasing the MSI®B350 GAMING PLUS
motherboard. This Quick Start section provides demonstration
diagrams about how to install your computer. Some of the
installations also provide video demonstrations. Please link to the
URL to watch it with the web browser on your phone or tablet. You
may have even link to the URL by scanning the QR code.
Kurzanleitung
Danke, dass Sie das MSI®B350 GAMING PLUS Motherboard gewählt
haben. Dieser Abschnitt der Kurzanleitung bietet eine Demo zur
Installation Ihres Computers. Manche Installationen bieten auch
die Videodemonstrationen. Klicken Sie auf die URL, um diese
Videoanleitung mit Ihrem Browser auf Ihrem Handy oder Table
anzusehen. Oder scannen Sie auch den QR Code mit Ihrem Handy,
um die URL zu öffnen.
Présentation rapide
Merci d’avoir choisi la carte mère MSI®B350 GAMING PLUS. Ce
manuel fournit une rapide présentation avec des illustrations
explicatives qui vous aideront à assembler votre ordinateur. Des
tutoriels vidéo sont disponibles pour certaines étapes. Cliquez sur
le lien fourni pour regarder la vidéo sur votre téléphone ou votre
tablette. Vous pouvez également accéder au lien en scannant le QR
code qui lui est associé.
Быстрый старт
Благодарим вас за покупку материнской платы MSI®B350
GAMING PLUS. Вэтом разделе представлена информация,
которая поможет вам при сборке комьютера. Для некоторых
этапов сборки имеются видеоинструкции. Для просмотра
видео, необходимо открыть соответствующую ссылку в
веб-браузере на вашем телефоне или планшете. Вы также
можете выполнить переход по ссылке, путем сканирования
QR-кода.

II Quick Start
Installing a Processor/ Installation des Prozessors/ Installer un
processeur/ Установка процессора
1
2
3
6
4
5
7
89
https://youtu.be/Xv89nhFk1vc

III
Quick Start
Installing DDR4 memory/ Installation des DDR4-Speichers/
Installer une mémoire DDR4/ Установка памяти DDR4
http://youtu.be/T03aDrJPyQs
1
1
2
2
3
3
DIMMB2 DIMMB2
DIMMB1
DIMMA2 DIMMA2 DIMMA2
DIMMA1

IV Quick Start
http://youtu.be/DPELIdVNZUI
1
2 10
9
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
HDD LED
RESET SW
JFP1
HDD LED HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
Connecting the Front Panel Header/ Anschließen der
Frontpanel-Stiftleiste/ Connecter un connecteur du panneau
avant/ Подключение разъемов передней панели

V
Quick Start
Installing the Motherboard/ Installation des Motherboards/
Installer la carte mère/ Установка материнской платы
BAT1
1
2

VI Quick Start
Installing SATA Drives/ Installation der SATA-Laufwerke/
Installer le disque dur SATA/ Установка дисков SATA
http://youtu.be/RZsMpqxythc
1
23
4
5

VII
Quick Start
Installing a Graphics Card/ Einbau der Grafikkarte/ Installer
une carte graphique/ Установка дискретной видеокарты
http://youtu.be/mG0GZpr9w_A
1
2
3
4
5
6

VIII Quick Start
Connecting Peripheral Devices/ Peripheriegeräte/
Connecter un périphérique anschliessen/ Подключение
периферийных устройств
(7th Gen A-series/ Athlon™ processor)

IX
Quick Start
Connecting the Power Connectors/ Stromanschlüsse
anschliessen/ Connecter les câbles du module d’alimentation/
Подключение разъемов питания
http://youtu.be/gkDYyR_83I4
ATX_PWR1 CPU_PWR1

XQuick Start
1
4
2
3
Power On/ Einschalten/ Mettre sous-tension/ Включение
питания

1
Contents
Contents
Safety Information................................................................................................. 3
Specifications......................................................................................................... 4
Rear I/O Panel ....................................................................................................... 8
LAN Port LED Status Table..................................................................................... 8

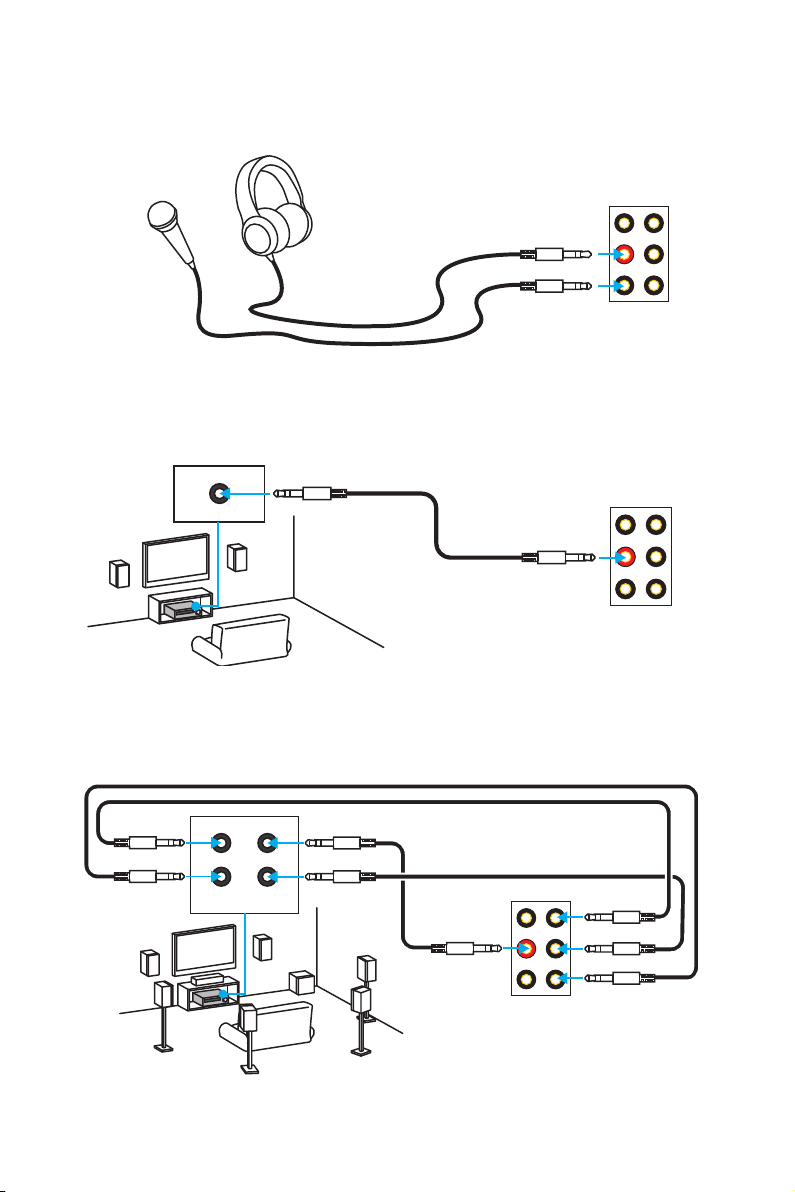

Audio Ports Configuration...................................................................................... 8
Realtek HD Audio Manager .................................................................................... 9
Overview of Components .................................................................................... 11
CPU Socket ........................................................................................................... 12
DIMM Slots............................................................................................................ 13
PCI_E1~4, PCI1~2: PCIe & PCI Expansion Slots.................................................. 14
M2_1: M.2 Slot (Key M)......................................................................................... 15
SATA1~4: SATA 6Gb/s Connectors ....................................................................... 16
JAUD1: Front Audio Connector ............................................................................ 16
CPU_PWR1, ATX_PWR1: Power Connectors ....................................................... 17
JUSB1~2: USB 2.0 Connectors............................................................................. 18
JUSB3~4: USB 3.1 Gen1 Connectors ................................................................... 18
CPU_FAN1, PUMP_FAN1, SYS_FAN1~4: Fan Connectors................................... 19
JCI1: Chassis Intrusion Connector....................................................................... 20
JLPT1: Parallel Port Connector ........................................................................... 20
JFP1, JFP2: Front Panel Connectors................................................................... 21
JTPM1: TPM Module Connector........................................................................... 21
JCOM1: Serial Port Connector ............................................................................. 21
JLED1: RGB LED strip connector......................................................................... 22
JBAT1: Clear CMOS (Reset BIOS) Jumper........................................................... 23
EZ Debug LEDs..................................................................................................... 23
GPU LED ............................................................................................................... 23
BIOS Setup........................................................................................................... 24
Entering BIOS Setup............................................................................................. 24
Resetting BIOS...................................................................................................... 25
Updating BIOS....................................................................................................... 25
EZ Mode ................................................................................................................ 26
Advanced Mode .................................................................................................... 28
OC Menu................................................................................................................ 29

2Contents
Software Description........................................................................................... 32
Installing Windows®7 64-bit/ Windows®10 64-bit............................................... 32
Installing Drivers .................................................................................................. 32
Installing Utilities ................................................................................................. 32

3
Safety Information
Safety Information
yThe components included in this package are prone to damage from electrostatic
discharge (ESD). Please adhere to the following instructions to ensure successful
computer assembly.
yEnsure that all components are securely connected. Loose connections may cause
the computer to not recognize a component or fail to start.
yHold the motherboard by the edges to avoid touching sensitive components.
yIt is recommended to wear an electrostatic discharge (ESD) wrist strap when
handling the motherboard to prevent electrostatic damage. If an ESD wrist strap
is not available, discharge yourself of static electricity by touching another metal
object before handling the motherboard.
yStore the motherboard in an electrostatic shielding container or on an anti-static
pad whenever the motherboard is not installed.
yBefore turning on the computer, ensure that there are no loose screws or metal
components on the motherboard or anywhere within the computer case.
yDo not boot the computer before installation is completed. This could cause
permanent damage to the components as well as injury to the user.
yIf you need help during any installation step, please consult a certified computer
technician.
yAlways turn off the power supply and unplug the power cord from the power outlet
before installing or removing any computer component.
yKeep this user guide for future reference.
yKeep this motherboard away from humidity.
yMake sure that your electrical outlet provides the same voltage as is indicated on
the PSU, before connecting the PSU to the electrical outlet.
yPlace the power cord such a way that people can not step on it. Do not place
anything over the power cord.
yAll cautions and warnings on the motherboard should be noted.
yIf any of the following situations arises, get the motherboard checked by service
personnel:
Liquid has penetrated into the computer.
The motherboard has been exposed to moisture.
The motherboard does not work well or you can not get it work according to user
guide.
The motherboard has been dropped and damaged.
The motherboard has obvious sign of breakage.
yDo not leave this motherboard in an environment above 60°C (140°F), it may damage
the motherboard.

4Specifications
Specifications
CPU Supports AMD®RYZEN series processors and 7th Gen
A-series/ Athlon™ processors for Socket AM4
Chipset AMD® B350 Chipset
Memory
y4x DDR4 memory slots, support up to 64GB
Support DDR4 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/
3200(OC)+ Mhz*
yDual channel memory architecture
* 7th Gen A-series/ Athlon ™ processors only support up to 2400 MHz. Please
refer www.msi.com for more information on compatible memory.
Expansion Slots
y1x PCIe 3.0 x16 slot (PCI_E2)
Supports x 16 speed with RYZEN Series Processors
Supports x 8 speed with 7th Gen A-series/ Athlon™
processors
y1x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)*
y2x PCIe 2.0 x1 slots
y2x PCI slots
* PCI_E4 slot will only support PCIe 2.0 x2 mode, when installing device in any
PCIe x1 slot.
Multi-GPU ySupports 2-Way AMD®CrossFire™ Technology
Onboard Graphics
y1x VGA port, supports a maximum resolution of
2048x1280@60HZ (RB)*
y1x DVI-D port, supports a maximum resolution of
1920x1200@60Hz*
y1x HDMI™ port, supports a maximum resolution of
4096x2160@24Hz*
* Only support when using a 7th Gen A-series/ Athlon™ processor
* Maximum shared memory of 2048 MB
Storage
AMD®B350 Chipset
y4x SATA 6Gb/s ports*
Support RAID 0, RAID 1 and RAID 10
y1x M.2 port (Key M)
Supports PCIe 3.0 x4 (RYZEN Series Processors) or PCIe
3.0 x2 (7th Gen A-series/ Athlon™ processors ) and SATA
6Gb/s
Suports 2242/ 2260 /2280/ 22110 storage devices
Audio yRealtek®ALC892 Codec
y7.1-Channel High Definition Audio
LAN y1x Realtek®8111H Gigabit LAN controller
Continued on next page

5
Specifications
Continued from previous page
USB
yAMD®B350 Chipset
4x USB 3.1 Gen1 (SuperSpeed USB) ports available
through the internal USB 3.1 Gen1 connectors
6x USB 2.0 (High-speed USB) ports (2 Type-A ports on
the back panel, 4 ports available through the internal
USB 2.0 connectors)
yAMD®processor
4x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A
ports and 1 Type-C port on the back panel)
Back Panel
Connectors
y1x PS/2 keyboard/ mouse combo port
y2x USB 2.0 Type-A ports
y1x VGA port
y1x DVI-D port
y1x HDMI™port
y3x USB 3.1 Gen1 Type-A ports
y1x USB 3.1 Gen1 Type-C port
y1x LAN (RJ45) port
y6x OFC audio jacks
Internal Connectors
y1x 24-pin ATX main power connector
y1x 8-pin ATX 12V power connector
y4x SATA 6Gb/s connectors
y2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
y2x USB 3.1 Gen1 connectors (support additional 4 USB 3.1
Gen1 ports)
y1x 4-pin CPU fan connector
y1x 4-pin water-pump-fan connector
y4x 4-pin system fan connectors
y1x 4-pin RGB LED strip connector
y1x Serial port connector
y1x Parallel port connector
y1x TPM module connector
y1x Front panel audio connector
y2x System panel connectors
y1x Chassis Intrusion connector
y1x Clear CMOS jumper
I/O Controller NUVOTON NCT6795D Controller Chip
Continued on next page

6Specifications
Continued from previous page
Hardware Monitor
yCPU/System temperature detection
yCPU/System fan speed detection
yCPU/System fan speed control
Form Factor yATX Form Factor
y12 in. x 9.6 in. (30.4 cm x 24.3 cm)
BIOS Features
y1x 128 Mb flash
yUEFI AMI BIOS
yMulti-language
Software
yDrivers
ySUPER CHARGER
yCOMMAND CENTER
yLIVE UPDATE 6
yMSI SMART TOOL
yDRAGON EYE
yGAMING APP
yX-BOOST
yRAMDISK
yGAMING LAN MANAGER
ySteelSeries Engine 3
yCPU-Z MSI GAMING
yGoogle Chrome™,Google Toolbar, Google Drive
yNorton™Internet Security Solution
Continued on next page

7
Specifications
Continued from previous page
Special Features
yAudio Boost
yGAMING LAN with Gaming LAN Manager
yTurbo M.2
yPump Fan
ySmart Fan Control
yMystic Light Extension
yGaming DNA with bottom LED
yMystic light SYNC
yEZ DEBUG LED
yPCI-E Steel Armor
yDDR4 Boost
yGAME Boost
yLightning USB
yMilitary Class 4
y7000+ Quality Test
yVR Ready
yGAMING HOTKEY
yGAMING MOUSE Control
yClick BIOS 5
yAMD FreeSync™ Ready
yAMD OverDriver™ Ready
yGAMING Certified
ySteelSeries Certified
yWTFast*
* This offer is valid for a limited period only, for more information please visit
www.msi.com

8Rear I/O Panel
USB 3.1 Gen1
Type-C
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
LAN Port LED Status Table
Audio Ports Configuration
Rear I/O Panel
PS/2 LAN
USB 2.0
Audio Ports
DVI-D
VGA
USB 3.1 Gen1
USB 3.1 Gen1
Audio Ports Channel
2468
Line-In
Line-Out/ Front Speaker Out ●●●●
Rear Speaker Out ●●●
Center/ Subwoofer Out ● ●
Side Speaker Out ●
Mic In
(●: connected, Blank: empty)

9
Rear I/O Panel
Realtek HD Audio Manager
After installing the Realtek HD Audio driver, the Realtek HD Audio Manager icon will
appear in the system tray. Double click on the icon to launch.
yDevice Selection - allows you to select a audio output source to change the related
options. The check sign indicates the devices as default.
yApplication Enhancement - the array of options will provide you a complete
guidance of anticipated sound effect for both output and input device.
yMain Volume - controls the volume or balance the right/left side of the speakers
that you plugged in front or rear panel by adjust the bar.
yProfiles - toggles between profiles.
yAdvanced Settings - provides the mechanism to deal with 2 independent audio
streams.
yJack Status - depicts all render and capture devices currently connected with your
computer.
yConnector Settings - configures the connection settings.
Auto popup dialog
When you plug into a device at an audio jack, a dialogue window will pop up asking you
which device is current connected.
Each jack corresponds to its default setting as shown on the next page.
Jack Status
Device
Selection
Connector
Strings
Profiles
Main Volume
Application
Enhancement
Advanced
Settings

10 Rear I/O Panel
Audio jacks to headphone and microphone diagram
Audio jacks to stereo speakers diagram
Audio jacks to 7.1-channel speakers diagram
AUDIO INPUT
Rear Front
Side Center/
Subwoofer
AUDIO INPUT
