MSI B350M MORTAR ARCTIC User manual

I
Quick Start
Quick Start
Thank you for purchasing the MSI®B350M MORTAR ARCTIC
motherboard. This Quick Start section provides demonstration
diagrams about how to install your computer. Some of the
installations also provide video demonstrations. Please link to the
URL to watch it with the web browser on your phone or tablet. You
may have even link to the URL by scanning the QR code.
Kurzanleitung
Danke, dass Sie das MSI®B350M MORTAR ARCTIC Motherboard
gewählt haben. Dieser Abschnitt der Kurzanleitung bietet eine Demo
zur Installation Ihres Computers. Manche Installationen bieten
auch die Videodemonstrationen. Klicken Sie auf die URL, um diese
Videoanleitung mit Ihrem Browser auf Ihrem Handy oder Table
anzusehen. Oder scannen Sie auch den QR Code mit Ihrem Handy,
um die URL zu öffnen.
Présentation rapide
Merci d’avoir choisi la carte mère MSI®B350M MORTAR ARCTIC.
Ce manuel fournit une rapide présentation avec des illustrations
explicatives qui vous aideront à assembler votre ordinateur. Des
tutoriels vidéo sont disponibles pour certaines étapes. Cliquez sur
le lien fourni pour regarder la vidéo sur votre téléphone ou votre
tablette. Vous pouvez également accéder au lien en scannant le QR
code qui lui est associé.
Быстрый старт
Благодарим вас за покупку материнской платы MSI®B350M
MORTAR ARCTIC. Вэтом разделе представлена информация,
которая поможет вам при сборке комьютера. Для некоторых
этапов сборки имеются видеоинструкции. Для просмотра
видео, необходимо открыть соответствующую ссылку в
веб-браузере на вашем телефоне или планшете. Вы также
можете выполнить переход по ссылке, путем сканирования
QR-кода.

II Quick Start
Installing a Processor/ Installation des Prozessors/ Installer un
processeur/ Установка процессора
1
2
3
6
4
5
7
89
https://youtu.be/Xv89nhFk1vc

III
Quick Start
1
1
2
2
3
3
DIMMB2 DIMMB2
DIMMB1
DIMMA2 DIMMA2 DIMMA2
DIMMA1
Installing DDR4 memory/ Installation des DDR4-Speichers/
Installer une mémoire DDR4/ Установка памяти DDR4
http://youtu.be/T03aDrJPyQs

IV Quick Start
1
2 10
9
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
HDD LED
RESET SW
JFP1
HDD LED HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
Connecting the Front Panel Header/ Anschließen der
Frontpanel-Stiftleiste/ Connecter un connecteur du panneau
avant/ Подключение разъемов передней панели
http://youtu.be/DPELIdVNZUI

V
Quick Start
Installing the Motherboard/ Installation des Motherboards/
Installer la carte mère/ Установка материнской платы
1
2

VI Quick Start
1
23
4
5
Installing SATA Drives/ Installation der SATA-Laufwerke/
Installer le disque dur SATA/ Установка дисков SATA
http://youtu.be/RZsMpqxythc

VII
Quick Start
1
2
3
4
5
6
Installing a Graphics Card/ Einbau der Grafikkarte/ Installer
une carte graphique/ Установка дискретной видеокарты
http://youtu.be/mG0GZpr9w_A

VIII Quick Start

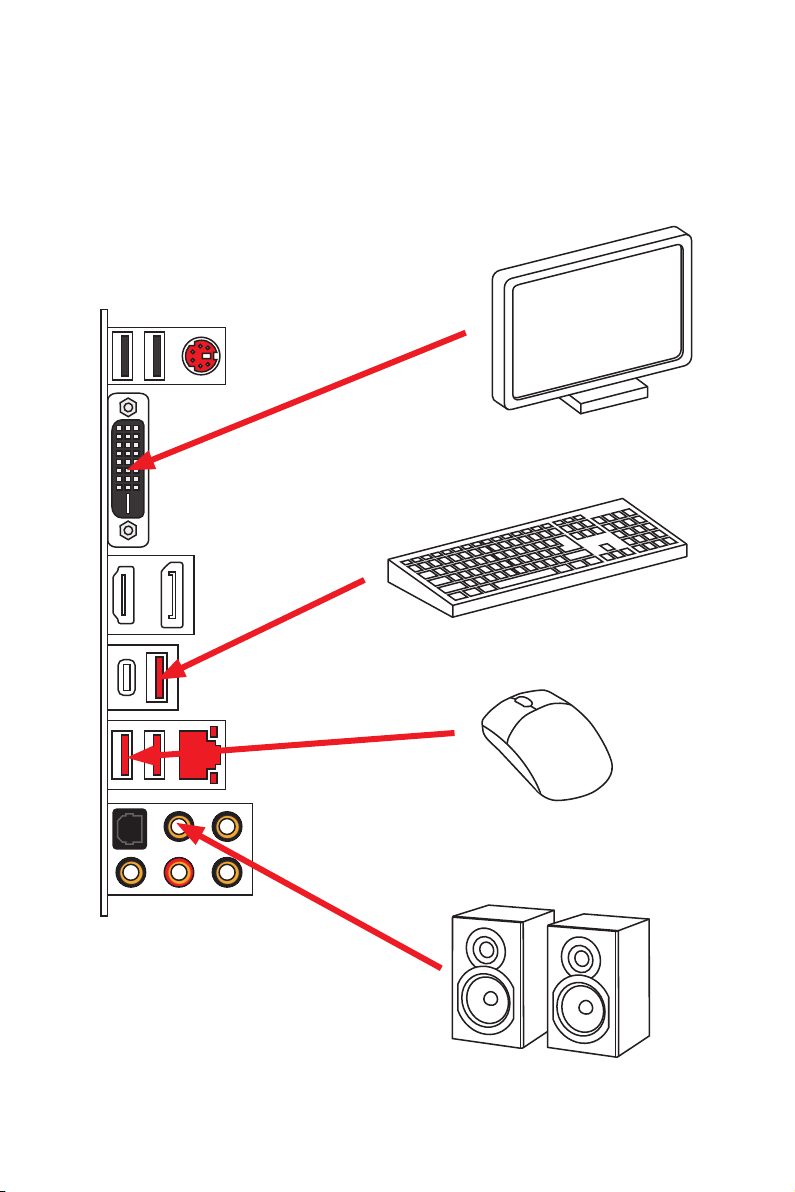

Connecting Peripheral Devices/ Peripheriegeräte/
Connecter un périphérique anschliessen/ Подключение
периферийных устройств
(7th Gen A-series/ Athlon™ CPU)

IX
Quick Start
Connecting the Power Connectors/ Stromanschlüsse
anschliessen/ Connecter les câbles du module d’alimentation/
Подключение разъемов питания
http://youtu.be/gkDYyR_83I4
ATX_PWR1 CPU_PWR1

XQuick Start
1
4
2
3
Power On/ Einschalten/ Mettre sous-tension/ Включение
питания

1
Contents
Contents
Safety Information................................................................................................. 2
Specifications......................................................................................................... 3
Rear I/O Panel ....................................................................................................... 7
LAN Port LED Status Table..................................................................................... 7
Audio Ports Configuration...................................................................................... 7
Realtek HD Audio Manager .................................................................................... 8
Overview of Components .................................................................................... 10
CPU Socket ........................................................................................................... 11
DIMM Slots............................................................................................................ 12
PCI_E1~4: PCIe Expansion Slots.......................................................................... 13
M2_1: M.2 Slot (Key M)......................................................................................... 14
SATA1~4: SATA 6Gb/s Connectors ....................................................................... 15
JFP1, JFP2: Front Panel Connectors ................................................................... 15
CPU_PWR1, ATX_PWR1: Power Connectors ....................................................... 16
JUSB1~2: USB 2.0 Connectors............................................................................. 17
JUSB3~4: USB 3.1 Gen1 Connectors ................................................................... 17
CPU_FAN1, SYS_FAN1~3: Fan Connectors.......................................................... 18
JAUD1: Front Audio Connector ............................................................................ 19
JCI1: Chassis Intrusion Connector....................................................................... 19
JTPM1: TPM Module Connector........................................................................... 20
JCOM1: Serial Port Connector ............................................................................. 20
JLPT1: Parallel Port Connector ........................................................................... 21
JBAT1: Clear CMOS (Reset BIOS) Jumper........................................................... 21
JLED1: RGB LED connector ................................................................................. 22
EZ Debug LED....................................................................................................... 22
BIOS Setup........................................................................................................... 23
Entering BIOS Setup............................................................................................. 23
Resetting BIOS...................................................................................................... 24
Updating BIOS....................................................................................................... 24
Advanced Mode .................................................................................................... 27
OC Menu................................................................................................................ 28
Software Description........................................................................................... 31
Installing Windows®7 64-bit/ Windows®10 64-bit............................................... 31
Installing Drivers .................................................................................................. 31
Installing Utilities ................................................................................................. 31

2Safety Information
Safety Information
yThe components included in this package are prone to damage from electrostatic
discharge (ESD). Please adhere to the following instructions to ensure successful
computer assembly.
yEnsure that all components are securely connected. Loose connections may cause
the computer to not recognize a component or fail to start.
yHold the motherboard by the edges to avoid touching sensitive components.
yIt is recommended to wear an electrostatic discharge (ESD) wrist strap when
handling the motherboard to prevent electrostatic damage. If an ESD wrist strap
is not available, discharge yourself of static electricity by touching another metal
object before handling the motherboard.
yStore the motherboard in an electrostatic shielding container or on an anti-static
pad whenever the motherboard is not installed.
yBefore turning on the computer, ensure that there are no loose screws or metal
components on the motherboard or anywhere within the computer case.
yDo not boot the computer before installation is completed. This could cause
permanent damage to the components as well as injury to the user.
yIf you need help during any installation step, please consult a certified computer
technician.
yAlways turn off the power supply and unplug the power cord from the power outlet
before installing or removing any computer component.
yKeep this user guide for future reference.
yKeep this motherboard away from humidity.
yMake sure that your electrical outlet provides the same voltage as is indicated on
the PSU, before connecting the PSU to the electrical outlet.
yPlace the power cord such a way that people can not step on it. Do not place
anything over the power cord.
yAll cautions and warnings on the motherboard should be noted.
yIf any of the following situations arises, get the motherboard checked by service
personnel:
Liquid has penetrated into the computer.
The motherboard has been exposed to moisture.
The motherboard does not work well or you can not get it work according to user
guide.
The motherboard has been dropped and damaged.
The motherboard has obvious sign of breakage.
yDo not leave this motherboard in an environment above 60°C (140°F), it may damage
the motherboard.

3
Specifications
Specifications
CPU Supports AMD®RYZEN series processors and 7th Gen
A-series/ Athlon™ processors for Socket AM4
Chipset AMD® B350 Chipset
Memory
y4x DDR4 memory slots, support up to 64GB
Supports DDR4 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/
3200(OC)+ Mhz *
yDual channel memory architecture
ySupports non-ECC UDIMM memory
ySupports ECC UDIMM memory (non-ECC mode)
* 7th Gen A-series/ Athlon ™ processors support a maximum of 2400 MHz.
Please refer www.msi.com for more information on compatible memory.
Expansion Slots
y1x PCIe 3.0 x16 slot
RYZEN series processors support x16 mode
7th Gen A-series/ Athlon™ processors support x8 mode
y1x PCIe 2.0 x16 slot (supports x4 mode)
y2x PCIe 2.0 x1 slots*
* PCI_E2 slot will be unavailable when an expansion card has been installed in
the PCI_E3 slot.
Onboard Graphics
y1x DVI-D port, supports a maximum resolution of
1920x1200@60Hz*
y1x HDMI™ 1.4 port, supports a maximum resolution of
4096x2160@24Hz*
y1x DisplayPort, supports a maximum resolution of
4096x2160@60Hz*
* Only support when using a 7th Gen A-series/ Athlon™ processor
Multi-GPU
Supports 2-Way AMD®CrossFire™Technology
yRYZEN series processors support x16/x4 mode
y7th Gen A-series/ Athlon™ processors support x8/x4 mode
Storage
AMD®B350 Chipset
y4x SATA 6Gb/s ports*
y1x M.2 port (Key M)
M2_1 slot supports PCIe 3.0 x4 (RYZEN series processor)
or PCIe 3.0 x2 (7th Gen A-series/ Athlon™ processors)
and SATA 6Gb/s 2242/ 2260 /2280 storage devices
ySupports RAID 0, RAID 1, RAID 10
Continued on next page

4Specifications
Continued from previous page
USB
yAMD®B350 Chipset
4x USB 3.1 Gen1 (SuperSpeed USB) ports available
through the internal USB connector
6x USB 2.0 (High-speed USB) ports (2 Type-A ports on
the back panel, 4 ports available through the internal
USB connectors)
yAMD®CPU
4x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A and
1 Type-C ports on the back panel)
Audio yRealtek®ALC892 Codec
y7.1-Channel High Definition Audio
LAN y1x Realtek®8111H Gigabit LAN controller
Back Panel
Connectors
y1x PS/2 keyboard/ mouse combo port
y2x USB 2.0 Type-A ports
y1x DVI-D port
y1x DisplayPort
y1x HDMI™port
y1x LAN (RJ45) port
y3x USB 3.1 Gen1 Type-A ports
y1x USB 3.1 Gen1 Type-C port
y5x OFC audio jacks
y1x Optical S/PDIF OUT connector
Internal Connectors
y1x 24-pin ATX 12V power connector
y1x 8-pin ATX 12V power connector
y4x SATA 6Gb/s connectors
y2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
y2x USB 3.1 Gen1 connectors (support additional 4 USB 3.1
Gen1 ports)
y1x 4-pin CPU fan connector
y3x 4-pin system fan connectors
y1x RGB LED connector
y1x TPM module connector
y1x Front panel audio connector
y2x System panel connectors
y1x Chassis Intrusion connector
y1x Serial port connector
y1x Parallel port connector
y1x Clear CMOS jumper
Continued on next page

5
Specifications
Continued from previous page
I/O Controller NUVOTON NCT6795D-M Controller Chip
Hardware Monitor
yCPU/System temperature detection
yCPU/System fan speed detection
yCPU/System fan speed control
Form Factor yATX Form Factor
y9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)
BIOS Features
y1x 128 Mb flash
yUEFI AMI BIOS
yACPI 5.0, PnP 1.0a, SM BIOS 2.8
yMulti-language
Software
yDrivers
yCOMMAND CENTER
yLIVE UPDATE 6
ySMART TOOL
yDRAGON EYE
yGAMING APP
yX-BOOST
yRAMDISK
yGAMING LAN MANAGER
ySteelSeries Engine 3
yCPU-Z MSI GAMING
yNorton™Internet Security Solution
yGoogle Chrome™,Google Toolbar, Google Drive
Continued on next page

6Specifications
Continued from previous page
Special Features
yAudio Boost
yGAMING LAN with Gaming LAN Manager
yTurbo M.2
ySmart Fan Control
yMystic Light Extension
yGaming DNA with bottom LED
yMystic light SYNC
yEZ Debug LED
yPCI-E Steel Armor
yDDR4 Boost
yGAME Boost
yUSB with type A+C
yMilitary Class 4
y7000+ Quality Test
yVR Ready
yGAMING HOTKEY
yGAMING MOUSE Control
yClick BIOS 5
yAMD FreeSync™ Ready
yAMD OverDrive™ Ready
yGAMING Certified
ySteelSeries Certified
yWTFast*
* This offer is valid for a limited period only, for more information please visit
www.msi.com

7
Rear I/O Panel
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
LAN Port LED Status Table
Rear I/O Panel
PS/2 LAN
USB 2.0
DVI-D
DisplayPort
USB 3.1 Gen1
USB 3.1 Gen1
Type-C
USB 3.1 Gen1
Audio Ports
Optical S/PDIF-Out
Audio Ports Configuration
Audio Ports Channel
2468
Center/ Subwoofer Out ● ●
Rear Speaker Out ●●●
Line-In/ Side Speaker Out ●
Line-Out/ Front Speaker Out ●●●●
Mic In
(●: connected, Blank: empty)

8Rear I/O Panel
Realtek HD Audio Manager
After installing the Realtek HD Audio driver, the Realtek HD Audio Manager icon will
appear in the system tray. Double click on the icon to launch.
Jack Status
Device
Selection
Connector
Strings
Profiles
Main Volume
Application
Enhancement
Advanced
Settings
yDevice Selection - allows you to select a audio output source to change the related
options. The check sign indicates the devices as default.
yApplication Enhancement - the array of options will provide you a complete
guidance of anticipated sound effect for both output and input device.
yMain Volume - controls the volume or balance the right/left side of the speakers
that you plugged in front or rear panel by adjust the bar.
yProfiles - toggles between profiles.
yAdvanced Settings - provides the mechanism to deal with 2 independent audio
streams.
yJack Status - depicts all render and capture devices currently connected with your
computer.
yConnector Settings - configures the connection settings.
Auto popup dialog
When you plug into a device at an audio jack, a dialogue window will pop up asking you
which device is current connected.
Each jack corresponds to its default setting as shown on the next page.

9
Rear I/O Panel
AUDIO INPUT
Rear Front
Side Center/
Subwoofer
Audio jacks to headphone and microphone diagram
Audio jacks to stereo speakers diagram
Audio jacks to 7.1-channel speakers diagram
AUDIO INPUT

10 Overview of Components
Overview of Components
SATA▼3▲4
CPU_FAN1
PCI_E1
PCI_E2
PCI_E3
PCI_E4
JTPM1
CPU Socket
CPU_PWR1
JBAT1
JCOM1
M2_1
SYS_FAN1
SYS_FAN3
DIMMB1
DIMMB2
DIMMA2
DIMMA1
SYS_FAN2
JUSB1
JLPT1
JUSB2
JFP2
JFP1
JAUD1
JLED1
ATX_PWR1
JUSB4
JUSB3
SATA1
SATA2
JCI1
