MSI MAG B560 TORPEDO User manual

I
Quick Start
Quick Start
Thank you for purchasing the MSI® MAG B560 TOMAHAWK WIFI/
MAG B560 TORPEDO motherboard. This Quick Start section provides
demonstration diagrams about how to install your computer. Some
of the installations also provide video demonstrations. Please link
to the URL to watch it with the web browser on your phone or tablet.
You may have even link to the URL by scanning the QR code.
Kurzanleitung
Danke, dass Sie das MSI® MAG B560 TOMAHAWK WIFI/ MAG
B560 TORPEDO Motherboard gewählt haben. Dieser Abschnitt der
Kurzanleitung bietet eine Demo zur Installation Ihres Computers.
Manche Installationen bieten auch die Videodemonstrationen.
Klicken Sie auf die URL, um diese Videoanleitung mit Ihrem Browser
auf Ihrem Handy oder Table anzusehen. Oder scannen Sie auch den
QR Code mit Ihrem Handy, um die URL zu öffnen.
Présentation rapide
Merci d’avoir choisi la carte mère MSI® MAG B560 TOMAHAWK WIFI/
MAG B560 TORPEDO. Ce manuel fournit une rapide présentation
avec des illustrations explicatives qui vous aideront à assembler
votre ordinateur. Des tutoriels vidéo sont disponibles pour certaines
étapes. Cliquez sur le lien fourni pour regarder la vidéo sur votre
téléphone ou votre tablette. Vous pouvez également accéder au lien
en scannant le QR code qui lui est associé.
Быстрый старт
MAG
B560 TOMAHAWK WIFI/ MAG B560 TORPEDO

II Quick Start
Installing a Processor/ Installation des Prozessors/ Installer un
processeur/ Установка процессора
⚽
https://youtu.be/4ce91YC3Oww
1
2
3
6
45
7
8
9

III
Quick Start
Installing DDR4 memory/ Installation des DDR4-Speichers/
Installer une mémoire DDR4/ Установка памяти DDR4
http://youtu.be/T03aDrJPyQs
⚽
DIMMA2 DIMMA2
DIMMB2
DIMMA1
DIMMA2
DIMMB1
DIMMB2

IV Quick Start
Connecting the Front Panel Header/ Anschließen der
Frontpanel-Stiftleiste/ Connecter un connecteur du panneau
avant/ Подключение разъемов передней панели
http://youtu.be/DPELIdVNZUI
HDD LED
RESET SW
JFP1
HDD LED
HDD LED +
POWER LED +
POWER LED
1
2 10
9
+
+
+
+
Power LED
HDD LED Reset Switch
Reserved
Power Switch
JFP1
1 HDD LED + 2 Power LED +
3 4
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
⚽

V
Quick Start

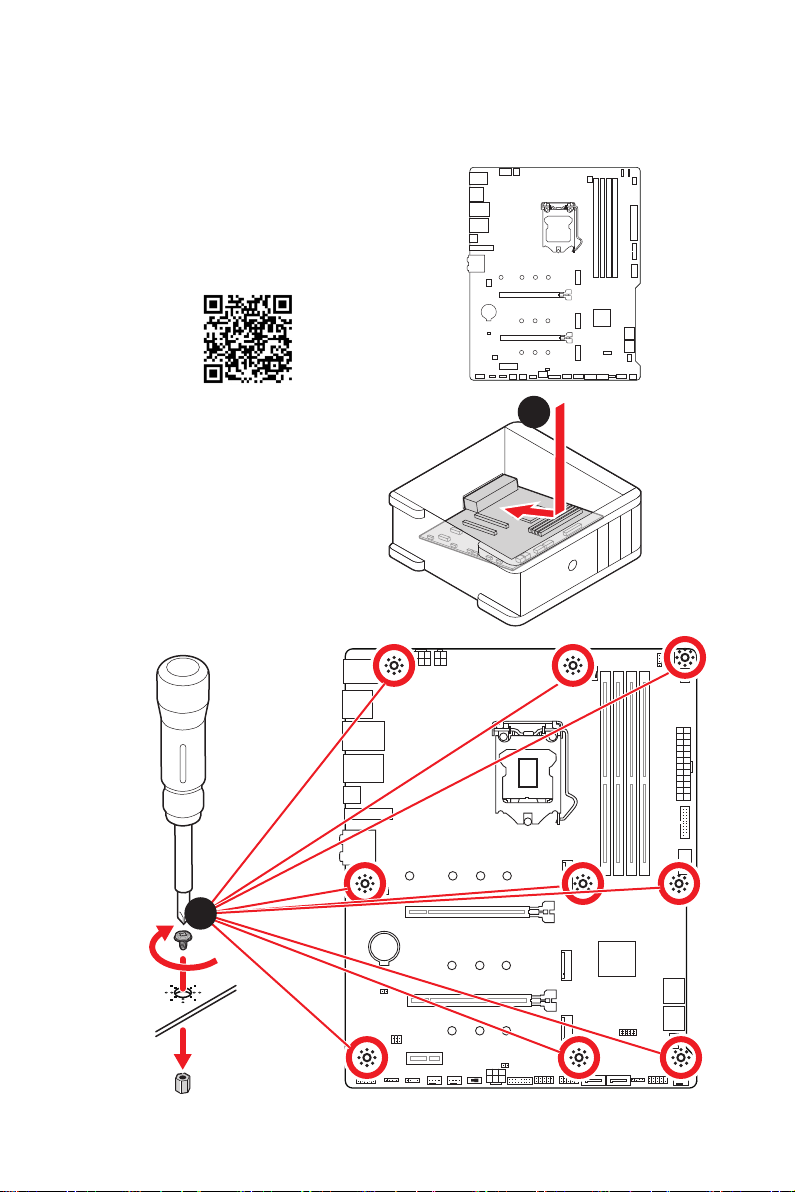

Installing the Motherboard/ Installation des Motherboards/
Installer la carte mère/ Установка материнской платы
https://youtu.be/wWI6Qt51Wnc
⚽
Youtube
1
BAT1
2
Torque:
3 kgf·cm*
*3 kgf·cm
= 0.3 N·m
= 2.6 lbf·in

VI Quick Start
http://youtu.be/gkDYyR_83I4
⚽
Connecting the Power Connectors/ Stromanschlüsse
anschliessen/ Connecter les câbles du module d’alimentation/
Подключение разъемов питания
ATX_PWR1
CPU_PWR1
CPU_PWR2
PCIE_PWR1

VII
Quick Start

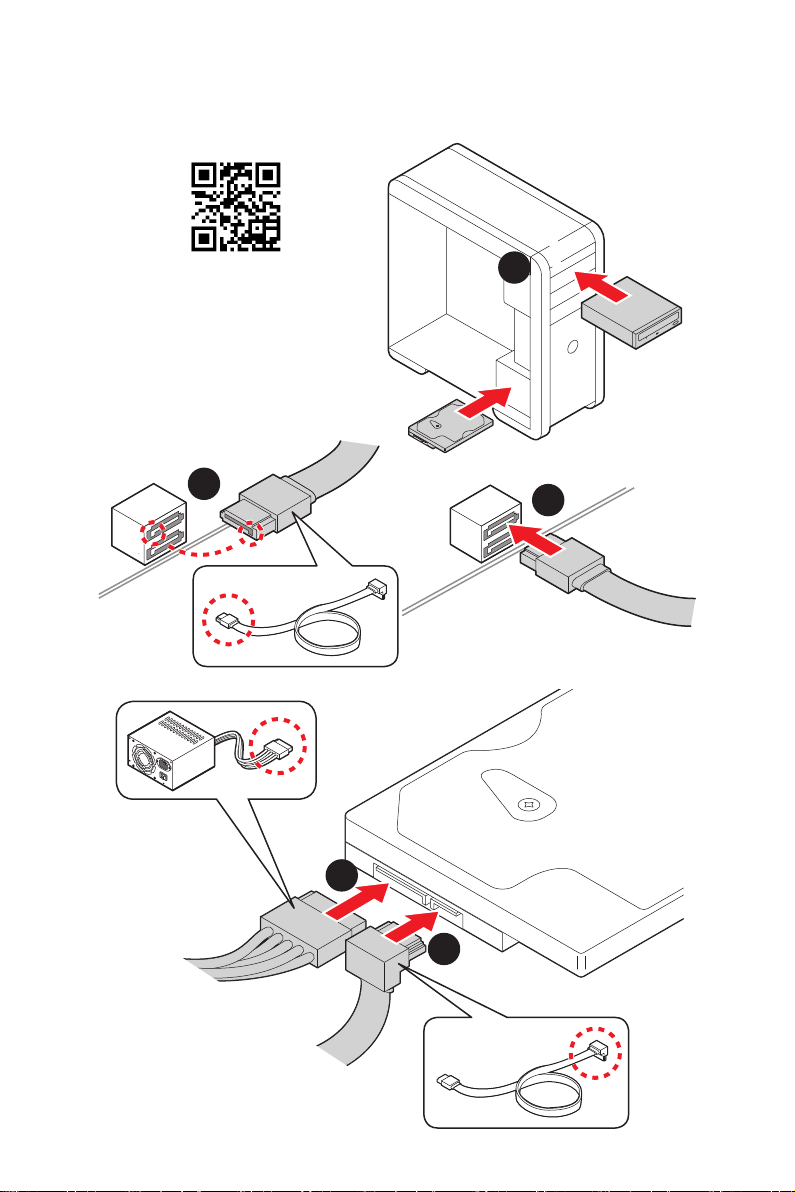

Installing SATA Drives/ Installation der SATA-Laufwerke/
Installer le disque dur SATA/ Установка дисков SATA
http://youtu.be/RZsMpqxythc
1
23
4
5
⚽

VIII Quick Start
1
http://youtu.be/mG0GZpr9w_A
2
3
4
5
6
Installing a Graphics Card/ Einbau der Grafikkarte/ Installer
une carte graphique/ Установка дискретной видеокарты
⚽

IX
Quick Start
Connecting Peripheral Devices/ Peripheriegeräte/ Connecter
un périphérique anschliessen/ Подключение периферийных
устройств
∙MAG B560 TOMAHAWK WIFI

XQuick Start
∙MAG B560 TORPEDO

XI
Quick Start
4
3
12
Power On/ Einschalten/ Mettre sous-tension/ Включение
питания

NOTE

1
Contents
Contents
Safety Information................................................................................................. 3
..................................................................................... 4
Specifications......................................................................................................... 5
Package contents ................................................................................................ 12
Rear I/O Panel ..................................................................................................... 13
LAN Port LED Status Table .................................................................................. 14
Audio Ports Configuration.................................................................................... 14
Realtek Audio Console ......................................................................................... 14
Overview of Components .................................................................................... 18
CPU Socket ........................................................................................................... 19
DIMM Slots............................................................................................................ 20
PCI_E1~3: PCIe Expansion Slots.......................................................................... 21
JAUD1: Front Audio Connector ............................................................................ 21
M2_1~3: M.2 Slots (Key M) ................................................................................... 22
SATA1~6: SATA 6Gb/s Connectors....................................................................... 24
JFP1, JFP2: Front Panel Connectors................................................................... 25
JTPM1: TPM Module Connector........................................................................... 25
CPU_PWR1~2, ATX_PWR1, PCIE_PWR1: Power Connectors ............................. 26
............................................................ 27
JUSB3: USB 3.2 Gen 1 Connector ........................................................................ 27
JUSB1~2: USB 2.0 Connectors............................................................................. 28
...................................................... 28
CPU_FAN1, PUMP_FAN1, SYS_FAN1~5: Fan Connectors.................................. 29
JCI1: Chassis Intrusion Connector....................................................................... 30
JBAT1: Clear CMOS (Reset BIOS) Jumper........................................................... 31
JDASH1 : Tuning Controller connector................................................................ 31
JRGB1~2: RGB LED connectors........................................................................... 32
JRAINBOW1~2: Addressable RGB LED connectors ............................................ 33
Onboard LEDs...................................................................................................... 34
EZ Debug LED....................................................................................................... 34
LED_SW1: EZ LED Control................................................................................... 34

2Contents
Installing OS, Drivers & MSI Center.................................................................... 35
Installing Windows® 10......................................................................................... 35
Installing Drivers .................................................................................................. 35
MSI Center............................................................................................................ 35
UEFI BIOS............................................................................................................. 36
BIOS Setup............................................................................................................ 37
Entering BIOS Setup............................................................................................. 37
BIOS User Guide ................................................................................................... 37
Resetting BIOS...................................................................................................... 38
Updating BIOS....................................................................................................... 38

3
Safety Information
Safety Information
∙The components included in this package are prone to damage from electrostatic
discharge (ESD). Please adhere to the following instructions to ensure successful
computer assembly.
∙Ensure that all components are securely connected. Loose connections may cause
the computer to not recognize a component or fail to start.
∙Hold the motherboard by the edges to avoid touching sensitive components.
∙It is recommended to wear an electrostatic discharge (ESD) wrist strap when
handling the motherboard to prevent electrostatic damage. If an ESD wrist strap is
not available, discharge yourself of static electricity by touching another metal object
before handling the motherboard.
∙
pad whenever the motherboard is not installed.
∙Before turning on the computer, ensure that there are no loose screws or metal
components on the motherboard or anywhere within the computer case.
∙Do not boot the computer before installation is completed. This could cause
permanent damage to the components as well as injury to the user.
∙If you need help during any installation step, please consult a certified computer
technician.
∙Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing any computer component.
∙Keep this user guide for future reference.
∙Keep this motherboard away from humidity.
∙Make sure that your electrical outlet provides the same voltage as is indicated on
the PSU, before connecting the PSU to the electrical outlet.
∙Place the power cord such a way that people can not step on it. Do not place
anything over the power cord.
∙All cautions and warnings on the motherboard should be noted.
∙If any of the following situations arises, get the motherboard checked by service
personnel:
▪Liquid has penetrated into the computer.
▪The motherboard has been exposed to moisture.
▪The motherboard does not work well or you can not get it work according to user
guide.
▪The motherboard has been dropped and damaged.
▪The motherboard has obvious sign of breakage.
∙Do not leave this motherboard in an environment above 60°C (140°F), it may damage
the motherboard.

4Contents
Case stand-off notification
Before installing the motherboard into the case, install first the necessary mounting
the motherboard circuits and the computer case is prohibited. The Case standoff keep
out zone signs will be marked on the backside of motherboard (as shown below) to
serve as a warning to user.

5
Specifications
Specifications
CPU
∙Supports 10th Gen Intel® Core™ Processors, 11th Gen
Intel® Core™ Processors, Pentium® Gold and Celeron®
Processors*
∙Processor socket LGA1200
* Please go to intel.com for compatibility information.
Chipset Intel® B560 Chipset
Memory
∙4x DDR4 memory slots, support up to 128GB*
▪Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel®
CPU (by JEDEC & POR)
▪Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen
Intel® CPU (by JEDEC & POR)
▪Max overclocking frequency:
▫1DPC 1R Max speed up to 5066 MHz
▫1DPC 2R Max speed up to 4600+ MHz
▫2DPC 1R Max speed up to 4266+ MHz
▫2DPC 2R Max speed up to 4000+ MHz
∙
∙
∙Supports Intel® Extreme Memory Profile (XMP)
* Please refer to www.msi.com for more information on compatible memory
Expansion Slot
∙2x PCIe x16 slots
▪PCI_E1 (from CPU)
▫Support up to PCIe 4.0 for 11th Gen Intel® CPU
▫Support up to PCIe 3.0 for 10th Gen Intel® CPU
▪PCI_E2 (from B560 chipset)
▫Support up to PCIe 3.0 x4
∙1x PCIe 3.0 x1 slot (from B560 chipset)
Multi-GPU ∙
Onboard Graphics
∙1x HDMI 2.0b with HDR port, supports a maximum
resolution of 4K 60Hz*/**
∙1x DisplayPort 1.4 port, supports a maximum resolution of
4K 60Hz*/**
* Available only on processors featuring integrated graphics.
** Graphics specifications may vary depending on the CPU installed.
Continued on next column

6Specifications
Continued from previous column
Storage
∙6x SATA 6Gb/s ports (from B560 chipset)
∙3x M.2 slots (Key M)
▪M2_1 slot (from CPU)
▫Available only on 11th Gen Intel® CPU
▫Supports up to PCIe 4.0 x4
▫Supports 2242/ 2260/ 2280/ 22110 storage devices
▪M2_2* slot (from B560 chipset)
▫Supports up to PCIe 3.0 x4
▫Supports SATA up to 6Gb/s
▫Supports 2242/ 2260/ 2280 storage devices
▪M2_3 slot (from B560 chipset)
▫Supports up to PCIe 3.0 x4
▫Supports 2242/ 2260/ 2280 storage devices
▫Intel® Optane™ Memory Ready**
∙Supports Intel® Smart Response Technology for Intel
Core™ processors
* SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
** Before using Intel® Optane™ memory modules, please ensure that you have
updated the drivers and BIOS to the latest version from MSI website.
USB
∙Intel® B560 Chipset
▪
back panel)
▪
through the internal connector)
▪
connector)
▪4x USB 2.0 ports on the back panel
∙
▪4x USB 2.0 ports available through the internal
connectors
Audio
Realtek® ALC897 Codec
∙
∙Supports S/PDIF output
Continued on next column

7
Specifications
Continued from previous column
LAN
∙1x Realtek® RTL8125B 2.5Gbps LAN controller
∙1x Intel® I219V 1Gbps LAN controller (For MAG B560
TORPEDO only)
Wireless LAN &
Bluetooth®
∙
slot
∙
(160MHz) up to 2.4Gbps
∙Supports 802.11 a/ b/ g/ n/ ac/ ax
∙Supports Bluetooth® 5.2**, FIPS, FISMA
WIN10 21H1.
** Bluetooth 5.2 will be ready in WIN10 21H1.
Internal Connectors
∙
∙
∙
∙
∙6x SATA 6Gb/s connectors
∙
∙
∙1x USB 3.2 Gen 1 5Gbps connector (supports additional 2
USB 3.2 Gen 1 5Gbps ports)
∙2x USB 2.0 connectors (supports additional 4 USB 2.0
ports)
∙
∙
∙
∙1x Front panel audio connector
∙2x System panel connectors
∙1x Chassis Intrusion connector
∙1x Clear CMOS jumper
∙1x TPM module connector
∙1x TBT connector (supports RTD3)
∙1x Tuning Controller connector
Continued on next column

8Specifications
Continued from previous column
LED Features
∙1x EZ LED Control switch
∙
∙
∙4x EZ Debug LED
Back Panel
Connectors
∙
∙1x DisplayPort
∙1x HDMI port
∙
∙
∙1x 2.5G LAN (RJ45) port
∙1x 1G LAN (RJ45) port (For MAG B560 TORPEDO only)
∙
WIFI only)
∙5x audio jacks
∙1x Optical S/PDIF OUT connector
I/O Controller
Hardware Monitor
∙CPU/ System/ Chipset temperature detection
∙CPU/ System/ Pump fan speed detection
∙CPU/ System/ Pump fan speed control
Form Factor ∙ATX Form Factor
∙12 in. x 9.6 in. (30.5 cm x 24.4 cm)
BIOS Features
∙1x 256 Mb flash
∙UEFI AMI BIOS
∙ACPI 6.2, SMBIOS 3.0
∙
Continued on next column
This manual suits for next models
1
Table of contents
Languages:
Other MSI Motherboard manuals

MSI
MSI 785GM User manual

MSI
MSI B350 GAMING PRO CARBON Instruction Manual

MSI
MSI P45T-C53 Series User manual

MSI
MSI MEG Z490 GODLIKE User manual

MSI
MSI MS-6507 Quick start guide

MSI
MSI MS-6368 User manual

MSI
MSI PRO Z690-P WIFI User manual

MSI
MSI Z370-A User manual

MSI
MSI 848PM User manual

MSI
MSI B450M BAZOOKA V2 User manual

MSI
MSI Bg Bang-XPower II User manual

MSI
MSI B150M GAMING PRO User manual

MSI
MSI H170M PRO-DH User manual

MSI
MSI Z68MA-ED55 (B3) User manual

MSI
MSI Z97-G43 GAMING User manual

MSI
MSI MS-7222 User manual

MSI
MSI B85M-E43 DASH User manual

MSI
MSI 694D PRO User manual

MSI
MSI 990XA-GD55 series User manual

MSI
MSI 694D Pro2 User manual
