MSI MAG Z690 TOMAHAWK User manual

I
MAG Z690 TOMAHAWK WIFI
MAG Z690 TORPEDO
Motherboard
User Guide
Benutzerhandbuch
Manuel d’utilisation
Руководство пользователя
取扱説明書
사용 명서
使用手冊
使用手册

VI

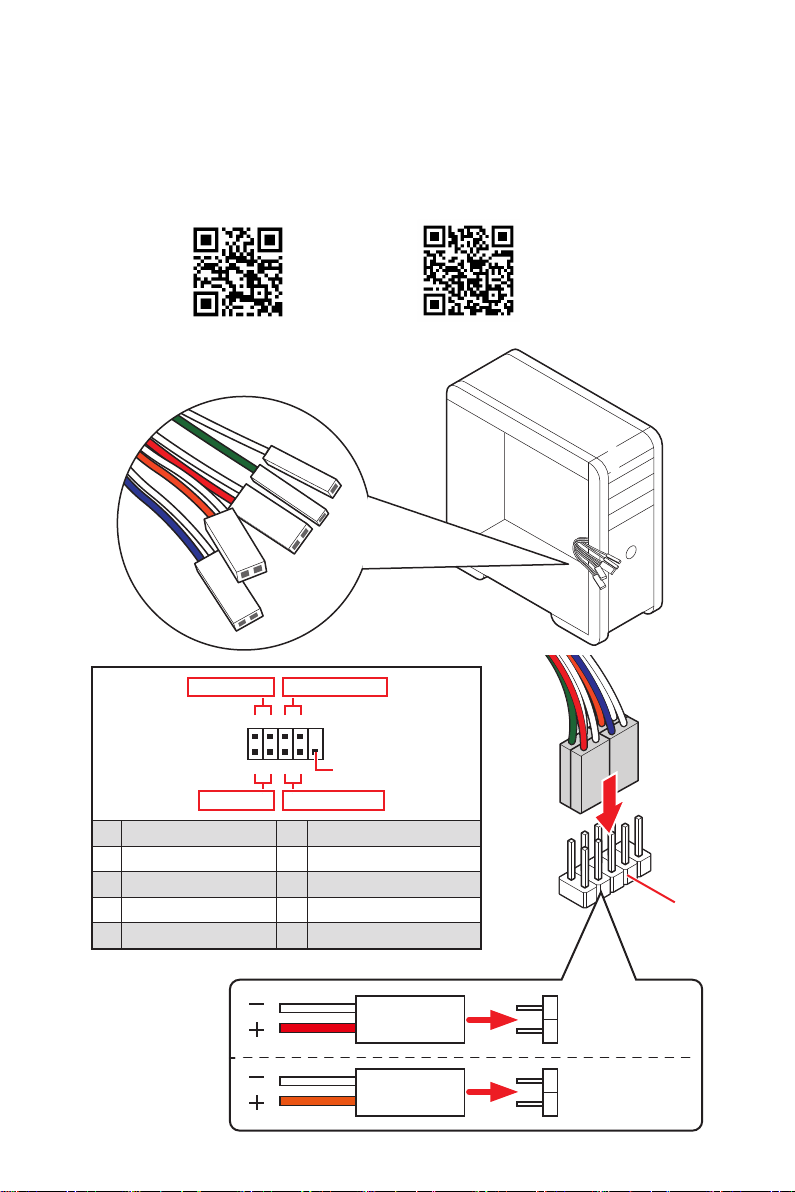

HDD LED
RESET SW
JFP1
HDD LED HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
1
2 10
9
+
+
+---
-
+
Power LED
HDD LED Reset Switch
Reserved
Power Switch
JFP1
1 HDD LED + 2 Power LED +
3HDD LED - 4Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
http://youtu.be/DPELIdVNZUI
Youtube
http://v.youku.com/v_show/id_XNjcyMTczMzM2.html

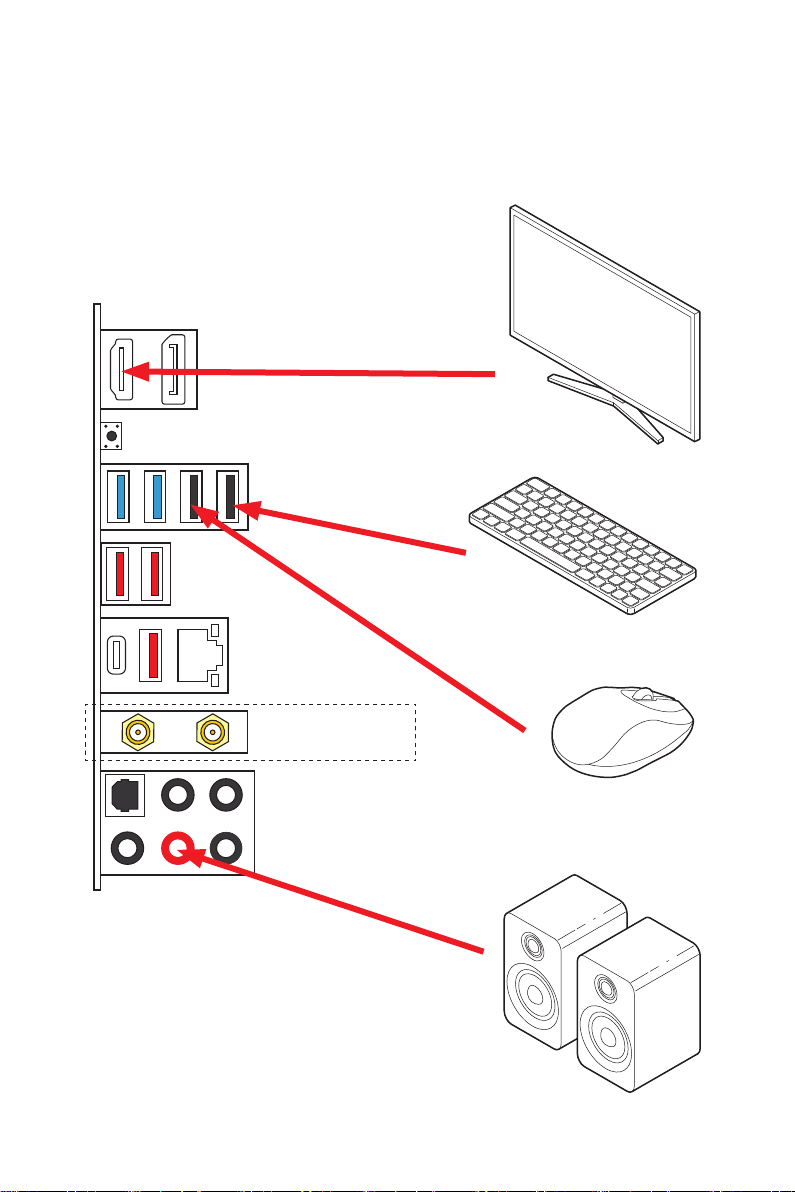

XI
(MAG Z690 TOMAHAWK WIFI)

XII
4
3
12

1
Safety Information................................................................................................. 3
Case stand-off notification ..................................................................................... 4
Avoid collision notification...................................................................................... 4
Specifications......................................................................................................... 5
Package contents ................................................................................................ 12
Rear I/O Panel ..................................................................................................... 13
LAN Port LED Status Table .................................................................................. 13
Audio Ports Configuration.................................................................................... 13
Realtek Audio Console ......................................................................................... 14
.................................................................................... 17
CPU Socket ........................................................................................................... 18
DIMM Slots............................................................................................................ 19
PCI_E1~4: PCIe Expansion Slots.......................................................................... 20
JFP1, JFP2: Front Panel Connectors................................................................... 20
M2_1~4: M.2 Slots (Key M) ................................................................................... 21
SATA1~6: SATA 6Gb/s Connectors....................................................................... 25
JAUD1: Front Audio Connector ............................................................................ 25
CPU_PWR1~2, ATX_PWR1: Power Connectors................................................... 26
JDASH1 : Tuning Controller connector................................................................ 27
JCI1: Chassis Intrusion Connector....................................................................... 27
JUSB4: USB 3.2 Gen 2 Type-C Connector............................................................ 28
JUSB3: USB 3.2 Gen 1 Connector ........................................................................ 28
JUSB1~2: USB 2.0 Connectors............................................................................. 29
JTPM1: TPM Module Connector........................................................................... 29
CPU_FAN1, PUMP_FAN1, SYS_FAN1~6: Fan Connectors.................................. 30
JBAT1: Clear CMOS (Reset BIOS) Jumper........................................................... 31
JTBT1: Thunderbolt Add-on Card Connector ...................................................... 31
JRGB1: RGB LED connector................................................................................. 32
JRAINBOW1~3: Addressable RGB LED connectors ............................................ 33
Onboard LEDs...................................................................................................... 34
EZ Debug LED....................................................................................................... 34
LED_SW1: EZ LED Control................................................................................... 34
English

2
.................................................................... 35
Installing Windows 10/ Windows 11..................................................................... 35
Installing Drivers .................................................................................................. 35
MSI Center............................................................................................................ 35
............................................................................................................. 36
BIOS Setup............................................................................................................ 37
Entering BIOS Setup............................................................................................. 37
BIOS User Guide ................................................................................................... 37
Resetting BIOS...................................................................................................... 38
Updating BIOS....................................................................................................... 38

3
Safety Information
Safety Information
The components included in this package are prone to damage from electrostatic
discharge (ESD). Please adhere to the following instructions to ensure successful
computer assembly.
Ensure that all components are securely connected. Loose connections may cause
the computer to not recognize a component or fail to start.
Hold the motherboard by the edges to avoid touching sensitive components.
It is recommended to wear an electrostatic discharge (ESD) wrist strap when
handling the motherboard to prevent electrostatic damage. If an ESD wrist strap is
not available, discharge yourself of static electricity by touching another metal object
before handling the motherboard.
Store the motherboard in an electrostatic shielding container or on an anti-static
pad whenever the motherboard is not installed.
Before turning on the computer, ensure that there are no loose screws or metal
components on the motherboard or anywhere within the computer case.
Do not boot the computer before installation is completed. This could cause
permanent damage to the components as well as injury to the user.
If you need help during any installation step, please consult a certified computer
technician.
Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing any computer component.
Keep this user guide for future reference.
Keep this motherboard away from humidity.
Make sure that your electrical outlet provides the same voltage as is indicated on
the PSU, before connecting the PSU to the electrical outlet.
Place the power cord such a way that people can not step on it. Do not place
anything over the power cord.
All cautions and warnings on the motherboard should be noted.
If any of the following situations arises, get the motherboard checked by service
personnel:
Liquid has penetrated into the computer.
The motherboard has been exposed to moisture.
The motherboard does not work well or you can not get it work according to user
guide.
The motherboard has been dropped and damaged.
The motherboard has obvious sign of breakage.
Do not leave this motherboard in an environment above 60°C (140°F), it may damage
the motherboard.

4

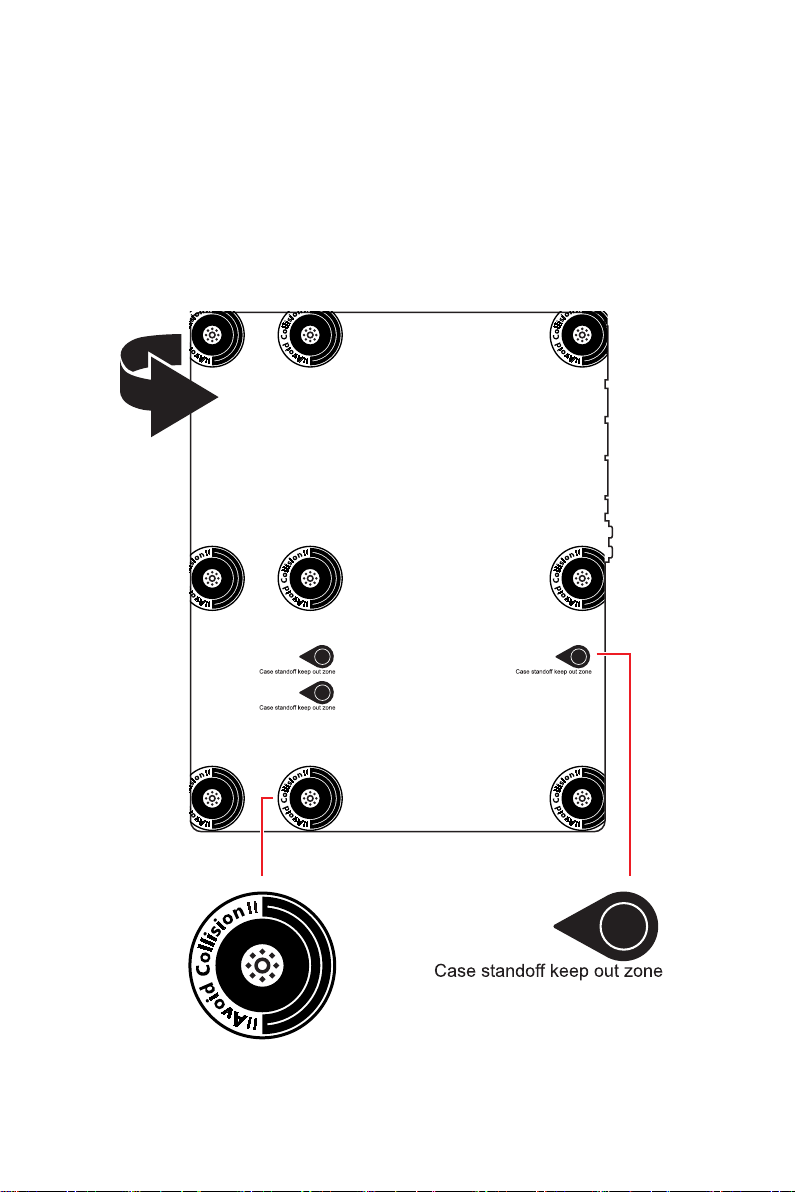

To prevent damage to the motherboard, any unnecessary mounting stand-off between
the motherboard circuits and the computer case is prohibited. The Case standoff keep
out zone signs will be marked on the backside of motherboard (as shown below) to
serve as a warning to user.
Avoid collision notification
Protective paint is printed around each screw hole to prevent parts from being
scratched.

5
Specifications
Specifications
Supports 12th Gen Intel® Core™ Processors, Pentium®
Gold and Celeron® Processors
Processor socket LGA1700
* Please go to www.msi.com to get the newest support status as new processors
are released.
Intel® Z690 Chipset
Memory
4x DDR5 memory slots, supporting up to 192GB*
Supports 1R 4800 MHz (by JEDEC & POR)
Max. overclocking frequency:
1DPC 1R Max speed up to 6400+ MHz
1DPC 2R Max speed up to 5400+ MHz
2DPC 1R Max speed up to 4000+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
* Please refer to www.msi.com for more information on compatible memory.
Expansion Slot
3x PCIe x16 slots
PCI_E1 (From CPU)
Support up to PCIe 5.0 x16
PCI_E3 (From Z690 chipset)
Support up to PCIe 3.0 x4
PCI_E4 (From Z690 chipset)
Support up to PCIe 3.0 x1
1x PCIe 3.0 x1 slot (From Z690 chipset)
Supports AMD CrossFire™ Technology
Onboard Graphics
1x HDMI 2.1 with HDR port, supporting a maximum
resolution of 4K 60Hz*/**
1x DisplayPort 1.4 port with HBR3, supporting a maximum
resolution of 4K 60Hz*/**
* Available only on processors featuring integrated graphics.
** Graphics specifications may vary depending on the CPU installed.
Continued on next column

6Specifications
Continued from previous column
Storage
6x SATA 6Gb/s ports (From Z690 chipset)
4x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (From Z690 chipset)
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280 storage devices
M2_3 slot (From Z690 chipset)
Supports up to PCIe 3.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_4 slot (From Z690 chipset)
Supports up to PCIe 4.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_2~4 slots support Intel® Optane™ Memory
Supports Intel® Smart Response Technology for Intel
Core™ processors
RAID
Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for SATA
storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage
devices
Intel® Z690 Chipset
1x USB3.2 Gen2x2 20Gbps Type-C port on the back
panel
4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal
connector, 3 Type-A ports on the back panel)
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the
back panel, 2 ports through the internal connector)
1x USB 2.0 Type-A port on the back panel
Hub-GL850G
5x USB 2.0 ports (1 Type-A port on the back panel, 4
Type-A ports available through internal connectors)
Continued on next column

7
Specifications
Continued from previous column
Audio
Realtek® ALC4080 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN 1x Intel® I225V 2.5Gbps LAN controller
(For MAG Z690
TOMAHAWK WIFI)
Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E)
slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz*(160MHz)
up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3**, FIPS, FISMA
* The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on
every country’s regulations.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset
vendor’s website for details.
1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
6x SATA 6Gb/s connectors
4x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2
USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 Type-A connectors (supports additional 4 USB
2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Clear CMOS jumper
1x TBT connector (supports RTD3)
1x Tuning Controller connector
Continued on next column

8Specifications
Continued from previous column
LED Features
1x EZ LED Control switch
1x 4-pin RGB LED connector
3x 3-pin RAINBOW LED connectors
4x EZ Debug LED
1x DisplayPort port
1x HDMI port
1x Flash BIOS button
2x USB 2.0 Type-A ports
2x USB 3.2 Gen1 5Gbps Type-A ports
1x LAN I225V port
3x USB 3.2 Gen 2 10Gbps Type-A port
1x USB 3.2 Gen 2x2 20Gbps Type-C port
2x Wi-Fi Antenna connectors (For MAG Z690 TOMAHAWK
WIFI)
5x Audio jacks
1x Optical S/PDIF Out connector
NUVOTON NCT6687-R Controller Chip
CPU/ System/ Chipset temperature detection
CPU/ System/ Pump fan speed detection
CPU/ System/ Pump fan speed control
Form Factor ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.4, SMBIOS 3.4
Multi-language
Continued on next column

9
Specifications
Continued from previous column
Drivers
MSI Center
Intel Extreme Tuning Utility
MSI APP Player (BlueStacks)
Open Broadcaster Software (OBS)
CPU-Z MSI GAMING
Google Chrome™, Google Toolbar, Google Drive
Norton™ Internet Security Solution
Features
Gaming Mode
Smart Priority
Game Highlights
LAN Manager
Mystic Light
Ambient Devices
Frozr AI Cooling
User Scenario
True Color
Live Update
Hardware Monitoring
Super Charger
Speed Up
Smart Image Finder
MSI Companion
Continued on next column

10 Specifications
Continued from previous column
Special Features
Audio
Audio Boost 5
Network
2.5G LAN
LAN Manager
Intel Wi-Fi (For MAG Z690 TOMAHAWK WIFI)
Cooling
All Aluminum Design
Extended Heatsink Design
M.2 Shield Frozr
Pump Fan
Smart Fan Control
7W/mK MOSFET thermal pad
Choke thermal pad
LED
Mystic Light Extension (RAINBOW/RGB)
Mystic Light SYNC
Ambient Devices Support
Continued on next column
Other manuals for MAG Z690 TOMAHAWK
3
Table of contents
Other MSI Motherboard manuals

MSI
MSI Z170A SLI User manual

MSI
MSI PRO-L J4205TI User manual

MSI
MSI MPG B550I GAMING EDGE WIFI User manual

MSI
MSI 7C56-002R User manual

MSI
MSI MS-7329 User manual

MSI
MSI Z77A-GD55 series User manual

MSI
MSI H170M-A PRO User manual

MSI
MSI PRO B650-S WIFI User manual

MSI
MSI MS-7365 User manual

MSI
MSI MEG Z590I UNIFY User manual

MSI
MSI MS-7235 User manual

MSI
MSI X299 RAIDER User manual

MSI
MSI 945GCM478 Series User manual

MSI
MSI MS-7388 User manual

MSI
MSI X58A-GD45 series User manual

MSI
MSI B560-A PRO User manual

MSI
MSI MS-772 v6.X User manual

MSI
MSI G52-M7246X1 User manual

MSI
MSI MAG Z490 TOMAHAWK User manual

MSI
MSI P45 NEO2-FR - Motherboard - ATX User manual
