MSI MS-6545 User manual

i
Version 1.1
G52-MA00453

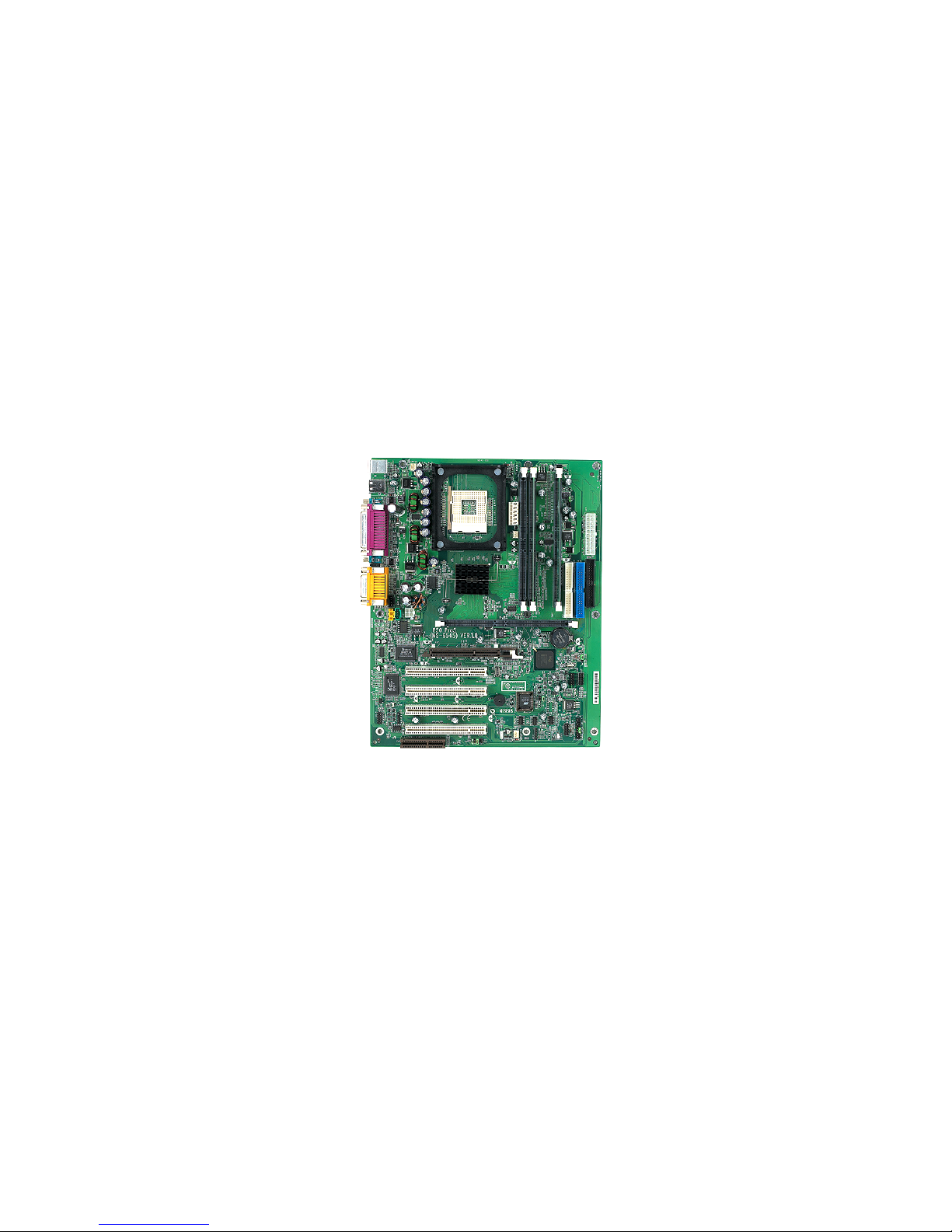

MS-6545 (v1.X) ATX Mainboard
MSI
MICRO-STAR INTERNATIONAL
850 Pro5

ii
Manual Rev: 1.0
Release Date: Sept. 2001
FCC-B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a class
B digital device, pursuant to part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference when the equip-
ment is operated in a commercial environment. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accor-
dance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case the user will be required to correct
the interference at his own expense.
Notice 1
The changes or modifications not expressly approved by the party respon-
sible for compliance could void the user’s authority to operate the equipment.
Notice 2
Shielded interface cables and A.C. power cord, if any, must be used in order to
comply with the emission limits.
VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU
RESEAU.
Micro-Star International MS-6545
Tested to comply
with FCC Standard
For Home or Office Use

iii
Edition
Sept. 2001
Copyright Notice
The material in this document is the intellectual property of MICRO-
STAR INTERNATIONAL. We take every care in the preparation
of this document, but no guarantee is given as to the correctness of its
contents. Our products are under continual improvement and we re-
serve the right to make changes without notice.
Trademarks
All trademarks used in this manual are the property of their respective
owners.
Intel and Pentium are registered trademarks of Intel Corporation.
PS/2 and OS/2 are registered trademarks of IBM Corporation.
Windows 95 and Windows NT are registered trademarks of Microsoft.
Netware is a registered trademark of Novell.
Award is a registered trademark of Award Software Inc.
Revision History
Revision Revision History Date
V1.0 First release Sept. 2001

iv
1. Always read the safety instructions carefully.
2. Keep this User’s Manual for future reference.
3. Keep this equipment away from humidity.
4. Lay this equipment on a reliable flat surface before setting it up.
5. The openings on the enclosure are for air convection hence protects the
equipment from overheating. DO NOT COVER THE OPENINGS.
6. Make sure the voltage of the power source and adjust properly 110/220V
before connecting the equipment to the power inlet.
7. Place the power cord such a way that people can not step on it. Do not
place anything over the power cord.
8. Always Unplug the Power Cord before inserting any add-on card or module.
9. All cautions and warnings on the equipment should be noted.
10. Never pour any liquid into the opening that could damage or cause electri-
cal shock.
11. If any of the following situations arises, get the equipment checked by a
service personnel:
zThe power cord or plug is damaged
zLiquid has penetrated into the equipment
zThe equipment has been exposed to moisture
zThe equipment has not work well or you can not get it work according
to User’s Manual.
zThe equipment has dropped and damaged
zIf the equipment has obvious sign of breakage
12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT
UNCONDITIONED,STORAGETEMPERATUREABOVE600 C(1400F),IT
MAY DAMAGE THE EQUIPMENT.
Safety Instructions
CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.

v
CONTENTS
Chapter 1. Introduction ............................................................... 1-1
Mainboard Specification ............................................................ 1-2
Mainboard Layout ..................................................................... 1-4
Quick Components Guide ......................................................... 1-5
Key Features ............................................................................ 1-6
MSI Special Features ................................................................ 1-7
T.O.P Tech™ ...................................................................... 1-7

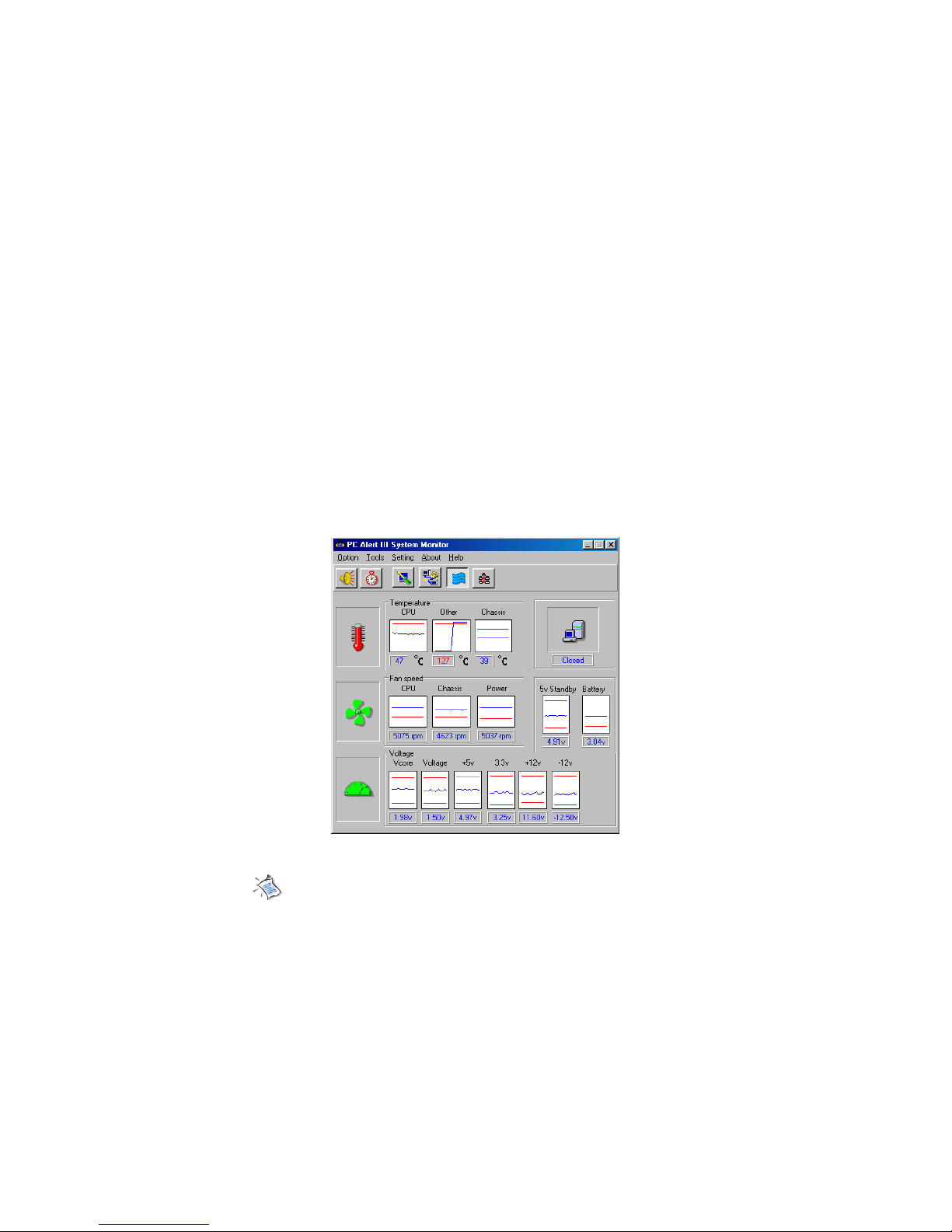

PC Alert™ III ....................................................................... 1-8
D-LED™ & D-Bracket™ (Optional) .................................... 1-10

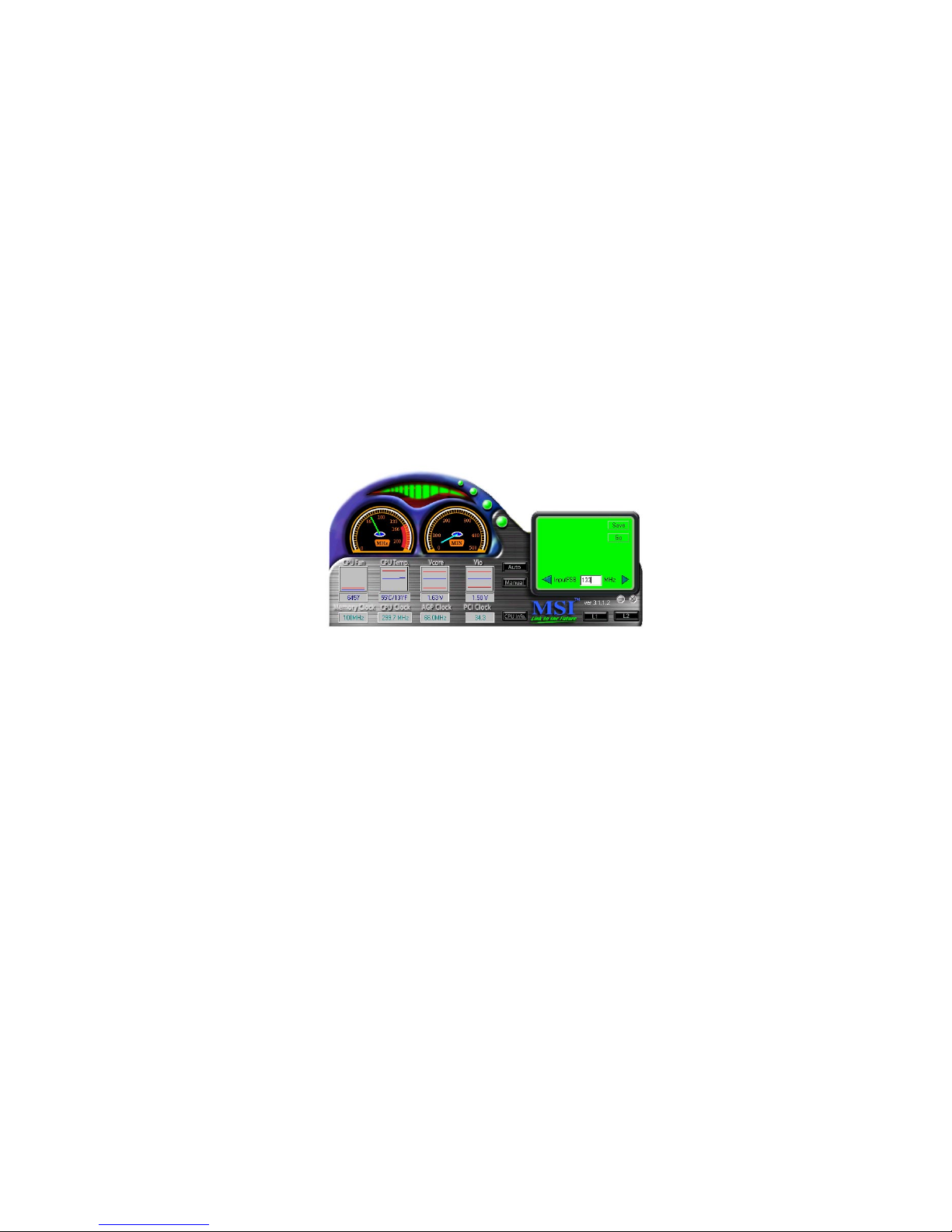

Fuzzy Logic™ III ............................................................... 1-12
Live BIOS™/Live Driver™ .................................................. 1-13
Chapter 2. Hardware Setup ........................................................ 2-1
Central Processing Unit: CPU ................................................... 2-2
CPU Installation Procedures ............................................... 2-2
Installing the CPU Fan ........................................................ 2-3
CPU Core Speed Derivation Procedure ................................ 2-4
Memory Installation ................................................................... 2-5
Memory Population Rules ................................................... 2-5
Installing RIMM Modules ..................................................... 2-6
Power Supply ............................................................................ 2-7
ATX 20-Pin Power Connector: JWR1 ................................... 2-7
ATX 12V Power Connector: JWR3 ....................................... 2-8
ATX 5V/3V Power Connector: JWR2 ................................... 2-8
Back Panel ............................................................................... 2-9
Mouse Connector: JKBMS1 ................................................ 2-9
Keyboard Connector: JKBMS1 .......................................... 2-10
USB Connectors ............................................................... 2-10
Serial Port Connector: COM A & COM B .......................... 2-11
Joystick/Midi Connectors .................................................. 2-11

vi
Audio Port Connectors ...................................................... 2-11
Parallel Port Connector: LPT1 ........................................... 2-12
Connectors ............................................................................. 2-13
Floppy Disk Drive Connector: FDD1 .................................. 2-13
Remote Power On/Off Switch Connector: JRMS1 ............. 2-13
Hard Disk Connectors: IDE1 & IDE2 ................................. 2-14
Front Panel Connector: JFP1 or J23 (Optional Intel spec) . 2-15
CD-In/Aux-In/Modem-In Connector: JCD1/JAUX1/JPHN1 ... 2-16
Fan Power Connectors: CPUFAN/SYSFAN/PSFAN .......... 2-17
Wake On Ring Connector: JMDM1 ................................... 2-18
Power Saving Switch Connector: JGS1 ............................. 2-18
IrDA Infrared Module Connector: J18 ................................. 2-19
Chassis Intrusion Switch Connector: J12 .......................... 2-19
Front Panel Audio Connector: J22 (Optional Intel spec) ..... 2-20
Front USB Connectors: JUSB1 & JUSB2 .......................... 2-21
D-Bracket™ Connector: J24 .............................................. 2-25
Jumpers .................................................................................. 2-27
Clear CMOS Jumper: JBAT1 ............................................. 2-27
RDRAM Over Voltage Jumper: J20 .................................... 2-28
Clear BIOS Password Jumper: J17 ................................... 2-29
BIOS Flash Jumper: J16 ................................................... 2-29
Slots ....................................................................................... 2-30
AGP (Accelerated Graphics Port) Slot .............................. 2-30
PCI Slots .......................................................................... 2-30
CNR (Communication Network Riser) Slot ........................ 2-30
PCI Interrupt Request Routing ........................................... 2-31
Chapter 3. AWARD®BIOS Setup .................................................. 3-1
Entering Setup .......................................................................... 3-2
Control Keys ............................................................................. 3-2

vii
Getting Help .............................................................................. 3-3
The Main Menu ......................................................................... 3-4
Standard CMOS Features ......................................................... 3-6
Advanced BIOS Features .......................................................... 3-8
Advanced Chipset Features .................................................... 3-12
Integrated Peripherals ............................................................. 3-14
Power Management Setup ...................................................... 3-19
PNP/PCI Configurations .......................................................... 3-23
PC Health Status .................................................................... 3-25
Frequency/Voltage Control ...................................................... 3-26
High System Performance ...................................................... 3-28
Load Optimized Defaults ......................................................... 3-29
Set Supervisor/User Password ................................................ 3-30
Save & Exit Setup ................................................................... 3-32
Exit Without Saving ................................................................. 3-33
Appendix A: MSI Smart Key ....................................................... A-1
Installing MSI Smart Key ......................................................... A-2
Using MSI Smart Key .............................................................. A-3
Appendix B: Using 4-/6-channel Audio Function ...................... B-1
Installing C-Media Drivers ......................................................... B-2
Hardware Configuration ............................................................ B-2
Software Configuration .............................................................. B-3
Appendix C. USB PC to PC Networking Function ..................... C-1
Installing GeneLink™ LAN Driver .............................................. C-3
Using USB PC to PC Networking Function .............................. C-5
Glossary ........................................................................................ G-1

Introduction
1-1
Chapter 1.
Introduction 1
The 850 Pro5 (MS-6545 v1.X) ATX mainboard is a high-performance
computer mainboard based on Intel®82850 chipset. It is optimized to support
Intel®Pentium®4 processors for high-end business/personal desktop markets.
The Intel®850 chipset supports 64-byte cache line size and a 32-bit host
addressing, allowing the processor to access the chipset’s memory address
space. It also provides 4x AGP data transfers and AGP Fast Write capability.
The Intel®850 chipset features a dual channel Direct RDRAM memory
operating in lock-step using RSL technology. It is a highly-flexible chipset
which is designed to extend the basic graphics/multimedia PC platform up to
the mainstream performance desktop platform.
The Intel®82801BA (ICH2) chipset is a highly integrated multifunctional
I/O Controller Hub that provides the interface to the PCI Bus and integrates
many of the functions needed in today’s PC platforms. It communicates with
the host controller over a dedicated hub interface and provides added flexibil-
ity in designing cost-effective system solutions.
This chapter includes the following topics:
Mainboard Specification 1-2
Mainboard Layout 1-4
Quick Components Guide 1-5
Key Features 1-6
MSI Special Features 1-7

Chapter 1
1-2
CPU
zSupports Intel®Pentium®4 processor in the 478 pin package.
zSupports 1.5GHz, 1.6GHz, 1.7GHz, 1.8GHz, 1.9GHz, 2GHz and up.
Chipset
zIntel®82850 MCH (615 OLGA)
- Supports Direct RDRAM up to 2GB maximum memory.
- Supports 400 MHz system bus.
- 1.5V AGP interface with 4x data transfer and 4x fast write capability.
zIntel®82801BA ICH (360 EBGA)
- Upstream hub interface for access to the Intel MCH.
- 2-channel Ultra ATA/100 Bus Master IDE controller.
- USB controller 1.1 (expanded capabilities for 4 ports).
- I/O APIC.
- SMBus controller.
- FWH interface.
- LPC interface.
- AC’97 2.1 interface.
- PCI 2.2 interface.
- Integrated system management controller.
Main Memory
zSupports four 184-pin gold-lead RIMM sockets.
zSupports a maximum memory size of 2GB.
Slots
zOne AGP (Accelerated Graphics Port) 4x slot.
zFour PCI 2.2 32-bit PCI bus slots (support 3.3v/5v PCI bus interface).
zOne CNR (Communication Network Riser) slot.
On-Board IDE
zAn IDE controller on the ICH2 chipset provides IDE HDD/CD-ROM with
PIO, Bus Master and Ultra DMA100 operation modes.
zCan connect up to four IDE devices.
On-Board Peripherals
zOn-Board Peripherals include:
Mainboard Specification

Introduction
1-3
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and
2.88Mbytes.
- 2 serial ports (COM A + COM B).
- 1 parallel port supports SPP/EPP/ECP mode.
- 1 IrDA connector for SIR.
- 1 audio/game port.
USB Interface
zThe mainboard comes with two optional USB interfaces:
- 6 USB 1.1 ports (Rear * 2/ Front * 4, two with Intel spec & two with MSI
spec).
- 4 USB 1.1 ports (Rear * 2/ Front * 2, one regular USB 1.1 port and the other
with USB PC to PC networking function).
Audio
zC-Media CMI8738 / PCI-6ch supports 2/4/6 ch speaker
- 6CH DAC for AC3® 5.1CH purpose.
- HRTF-based 3D positional audio, supporting DirectSoundTM 3D and A3DTM
interface.
- Supports 4.1/5.1 speakers, C3DX positional audio in 4/6 CH speaker mode.
- Legacy audio SBPROTM compatible.
- DLS-based wavetable music synthesizer.
BIOS
zThe mainboard BIOS provides “Plug & Play” BIOS which detects the pe-
ripheral devices and expansion cards of the board automatically.
zIDE drive auto configure, Advanced Power Management (APM) 1.2, ACPI
1.0, DMI 2.0, ECC/Parity support, LS120 support, auto enabled onboard
SCSI termintor.
Dimension
zATX Form Factor: 30.4cm(L) x 24.3cm(W) x 4 layers PCB.
Mounting
z9 mounting holes.

Chapter 1
1-4
CNR
BATT
+
Intel
82801BA
J22 (Optional)
J23
(Optional)
JUSB2
(Optional)
JBAT1
J12
J24
JRMS1
ATX
PowerSupply
JFP1
CPUFAN
PSFAN1
SYSFAN
J16
J17
JGS1
JMDM1
BIOS
PCI Slot 4
PCI Slot 3
PCI Slot 2
PCI Slot 1
IDE2
J20
USB
ports
Top : Pa ra lle l Port
Bottom:
COM A
COM B
Top : mouse
Bottom: keyboard
JCD1
JAUX1
JPHN1
JWR3
Winbond
W83627HF-AW
CMI8738
Top :
Game port
Bottom:
Line-Out
Line-In
Mic
FDD1
D-LED (optional)
RIMM2
RIMM3
RIMM4
RIMM1
J18
AGP Slot
JWR2
JUSB1
(Optional)
Mainboard Layout
850 Pro5 (MS-6545 v1.X) ATX Mainboard

Introduction
1-5
Quick Components Guide
Component Function Reference
JWR1/2/3 ATX power connectors See p. 2-7
JKBMS1 Mouse/keyboard connector See p. 2-9
USB Connectors Connecting to USB devices See p. 2-10
COM A & COM B Serial port connector See p. 2-11
LPT1 Parallel port connector See p. 2-12
FDD1 Floppy disk drive connector See p. 2-13
JRMS1 Remote power on/off switch See p. 2-13
IDE1~ IDE2 Hard disk connectors See p. 2-14
JFP1/J23 Front panel connector See p. 2-15
JCD1/JAUX1/JPHN1 CD/AUX/Modem-in connectors See p. 2-16
CPU/PS/SYS FAN Fan power connectors See p. 2-17
JMDM1 Wake on ring connector See p. 2-18
JGS1 Power saving switch connector See p. 2-18
J18 IrDA infrared module connector See p. 2-19
J12 Chassis intrusion switch connector See p. 2-19
J22 Front panel audio connector See p. 2-20
JUSB1/JUSB2 Connecting to USB devices See p. 2-21
J24 D-Bracket connector See p. 2-25
JBAT1 Clear CMOS jumper See p. 2-27
J20 RDRAM over voltage jumper See p. 2-28
J17 Clear BIOS password jumper See p. 2-29
J16 BIOS flash jumper See p. 2-29
AGP Slot Connecting to AGP cards See p. 2-30
PCI Slots Connecting to expansion cards See p. 2-30
CNR Slot Connecting to expansion cards See p. 2-30

Chapter 1
1-6
zATX Form Factor
zCPU: Intel®Pentium®4 processor in the 478 pin package
zSmart Key - the best solution to prevent unauthorized access to your PC
(Optional)
zUSB PC to PC networking function (Optional)
zFuzzy Logic 3
zLive BIOS / Live Driver
zCMI8738/PCI-6ch supports 2/4/6 ch. speaker
zPC Alert™ III system hardware monitor
zD-LED/ D-Bracket (Optional)
zModem (Internal/External) Ring Wake Up Function
zSuspend to RAM/Disk
zPC2001 Compliant
Key Features

Introduction
1-7
MSI Special Features
T.O.P Tech™
The T.O.P TechTM is an extended sensing device that can 100% accu-
rately detect the CPU’s temperature. You can find out the temperature on BIOS
setup menu. The PC AlertTM also provides the information.
CPU temperaure on Setup menu
CPU Warning Temperature [Disabled]
Current System Temp.
Current CPU Temperature
Current Top Tech. III Temp.
SYSTEM fan
POWER fan
CPU fan
Vcore
VTT
3.3V
+5V
+12V
-12V
-5V
VBAT(V)
5VSB(V)
Chassis Intrusion Detect [Disabled]
Shutdown Temperature [Disabled]
Item Help
Menu Level >
↑ ↓ → ← Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
CMOS Setup Utility - Copyright(C) 1984-2001 Award Software
PC Health Status

Chapter 1
1-8
PC Alert™ III
The PC AlertTM III is a utility you can find in the CD-ROM disk. The
utility is just like your PC doctor that can detect the following PC hardware
status during real time operation:
* monitor CPU & system temperatures
* monitor fan speed(s)
* monitor system voltage
* monitor chassis intrusion
If one of the items above is abnormal, the program main screen will be
immediately shown on the screen, with the abnormal item highlighted in red.
This will continue to be shown,until user disables the warning.
Note: Items shown on PC Alert III vary depending on your system’s
status.

Introduction
1-9
Features:
zNetwork Management
- Monitoring & remote control
zBasic System Utilities
- Scandisk & Defragment to maintain your HDD
z3D Graphics Design
- Enables a more friendly user interface
zSofware Utilities
- SoftCooler Optimized Cooling

Chapter 1
1-10
D-LED™ & D-Bracket™ (Optional)
The D-LED™ uses graphic signal display to help
users understand their system. Four LEDs embedded in
the mainboard provide up to 16 combinations of signals to
debug the system. The 4 LEDs can debug all problems that
fail the system, such as VGA, RAM or other failures. This
special feature is very useful for the overclocking users.
These users can use the feature to detect if there are any
problems or failures.
The D-Bracket™ which integrates four Diagnostic LEDs is optional.
Definitions of the D-Bracket™ LED signals are the same as D-LED™ as shown
below.
1
2
3
4
Diagnostic LED
Red Green
D-LED D-Bracket Description
System Power ON
- The D-LED will hang here if the processor is damaged or
not installed properly.
Early Chipset Initialization
Memory Detection Test
- Testing onboard memory size. The D-LED will hang if
the memory module is damaged or not installed properly.
Decompressing BIOS image to RAM for fast booting.
Initializing Keyboard Controller.
Testing VGA BIOS
- This will start writing VGA sign-on message to the screen.
1 2 3 4
1 2
3 4

Introduction
1-11
D-LED D-Bracket Description
Processor Initialization
- This will show information regarding the processor (like
brand name, system bus, etc…)
Testing RTC (Real Time Clock)
Initializing Video Interface
- This will start detecting CPU clock, checking type of video
onboard. Then, detect and initialize the video adapter.
BIOS Sign On
- This will start showing information about logo, processor
brand name, etc….
Testing Base and Extended Memory
- Testing base memory from 240K to 640K and extended
memory above 1MB using various patterns.
Assign Resources to all ISA.
Initializing Hard Drive Controller
- This will initialize IDE drive and controller.
Initializing Floppy Drive Controller
- This will initializing Floppy Drive and controller.
Boot Attempt
- This will set low stack and boot via INT 19h.
Operating System Booting

Chapter 1
1-12
Fuzzy Logic™ III
The Fuzzy Logic™ III utility allows users to overclock the CPU FSB
(Front Side Bus) frequency in the Windows environment. Select the CPU fre-
quency you prefer and click Go to apply the frequency or click Save allowing
the system to run at the specified frequency each time when the system is
powered on.
Features:
zDisplay Current System Status
- CPU Fan
- CPU Temp.
- Vcore
- Vio
- Memory Clock
- CPU Clock
- AGP Clock
- PCI Clock
zAdjust CPU FSB Frequency

Introduction
1-13
Live BIOS™/Live Driver™
The Live BIOSTM is a tool used to detect and update your
BIOS online so that you don’t need to search for the correct
BIOS version through the whole web site. To use the function,
you need to install the “MSI Live Update Series” application.
After installation, the “MSI Live Update Series” icon (as the
right view) will appear on the screen.
Double click the “MSI Live Update Series” icon, and the following screen
will appear.
Four buttons are placed on the left column of the screen. Click the desired
button to start the update process.
zz
zz
zLive BIOS – Updates the BIOS online. If your motherboard does not support
the function, the “sorry” message is displayed.
zz
zz
zLive Driver – Updates the drivers online. If your motherboard does not sup-
port the function, the “sorry” message is displayed.
zz
zz
zLive VGA BIOS – Updates the VGA BIOS online. If your VGA device does
not support the function, the “sorry” message appears.
zz
zz
zLive VGA Driver – Updates the VGA driver online. If your VGA device does
not support the function, the “sorry” message is displayed.
For more information on the update instructions, insert the companion CD and
refer to the “Live Update Series Guide” under the “Manual” tab.
