MSI MEG X670E GODLIKE User manual

MEG X670E GODLIKE
Motherboard
User Guide
Benutzerhandbuch
Manuel d’utilisation
Руководство пользователя
取扱説明書
사용 명서
使用手冊
使用手册

English

1
Contents
Quick Start..................................................................................................................... 3
Case stand-off notification ..................................................................................... 5
Avoid collision notification...................................................................................... 5
Specifications.............................................................................................................. 16
Special Features......................................................................................................... 21
Package Contents ...................................................................................................... 22
Back Panel Connectors ............................................................................................. 23
2.5 Gbps LAN Port LED Status Table ................................................................... 25
10 Gbps LAN Port LED Status Table .................................................................... 25
Audio Jacks Connection ....................................................................................... 26
Installing Antennas............................................................................................... 28
Overview of Components........................................................................................... 29
CPU Socket ........................................................................................................... 30
DIMM Slots............................................................................................................ 31
PCI_E1~3: PCIe Expansion Slots.......................................................................... 32
SATA_P3~4, SATA_A1~2, SATA_B1~2 & SATA_B3~4: SATA 6Gb/s Connectors . 34
M2_1~4: M.2 Slots (Key M) ................................................................................... 35
Installing M.2 Xpander-Z Gen 5 Dual card........................................................... 41
JAUD1: Front Audio Connector ............................................................................ 45
JFP1, JFP2: Front Panel Connectors................................................................... 45
CPU_PWR1~2, ATX_PWR1, PD_PWR1, PCIE_PWR1: Power Connectors........... 46
JUSB1: USB 3.2 Gen 2 Type-C Front Panel Connector ....................................... 47
JUSB2: USB 3.2 Gen 2x2 Type-C Front Panel Connector.................................... 47
JUSB3~4: USB 3.2 Gen 1 Connectors .................................................................. 48
JUSB5~6: USB 2.0 Connectors............................................................................. 48
T_SEN1~2: Thermal Sensor Connectors ............................................................. 49
JDASH1 : Tuning Controller connector................................................................ 49
W_FLOW1: Water Flow Meter Connector ............................................................ 50
JLN1: Low Temperature Booting Jumper ........................................................... 50
JOC_FS1: Safe Boot Jumper................................................................................ 51
V-Check Points Lite .............................................................................................. 51
BIOS_SW1: Multi-BIOS Switch ............................................................................. 52
POWER1 & RESET1: Power Button, Reset Button .............................................. 52
English

2
JCI1: Chassis Intrusion Connector....................................................................... 53
CPU_FAN1,
PUMP_FAN1~2, SYS_FAN1~6 : Fan Connectors ............................... 54
JBAT1: Clear CMOS (Reset BIOS) Jumper........................................................... 55
BAT1: CMOS Battery............................................................................................. 55
JRGB1: RGB LED Connector ................................................................................ 56
JARGB_V2_1~3: A-RAINBOW V2 (ARGB Gen2) LED Connectors ........................ 57
M_SW1: M-Vision Switch...................................................................................... 59
Onboard LEDs............................................................................................................. 61
EZ Debug LED....................................................................................................... 61
JPWRLED1: LED power input............................................................................... 61
LED_SW1: EZ LED Control................................................................................... 61
Debug Code LED................................................................................................... 62
Boot Phases.......................................................................................................... 62
Debug Code LED Table......................................................................................... 62
Installing OS, Drivers & MSI Center.......................................................................... 67
MSI Center............................................................................................................ 67
UEFI BIOS.................................................................................................................... 68
BIOS Setup............................................................................................................ 69
Resetting BIOS...................................................................................................... 70
Updating BIOS....................................................................................................... 70

3
Quick Start
Thank you for purchasing a new motherboard from MSI®. This Quick Start section
provides demonstration diagrams about how to install your computer. Some of the
installations also provide video demonstrations. Please link to the URL to watch it
with the web browser on your phone or tablet. You may have even link to the URL by
scanning the QR code.

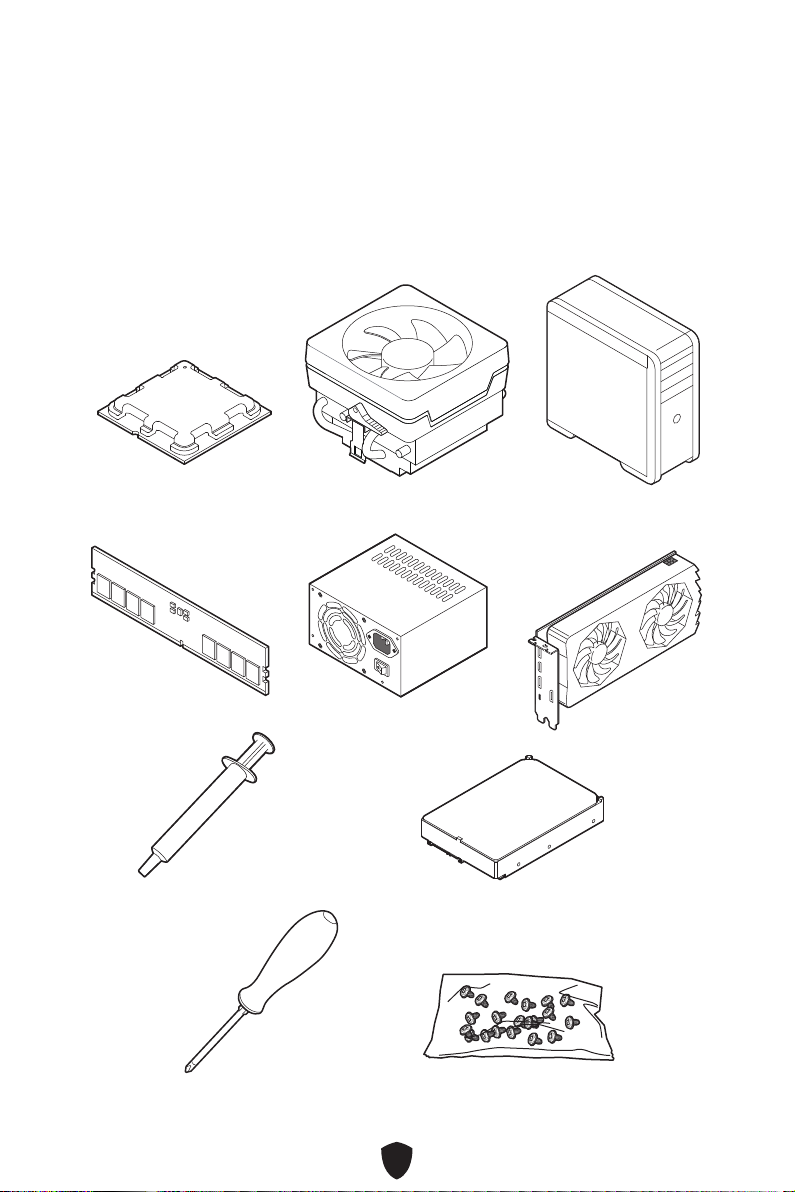

Preparing Tools and Components
AMD AM5 CPU AM5 CPU Fan
DDR5 Memory
Graphics Card
SATA Hard Disk Drive
Phillips Screwdriver
Chassis
Power Supply Unit
A Package of Screws
Thermal Paste

4
Safety Information
∙The components included in this package are prone to damage from electrostatic
discharge (ESD). Please adhere to the following instructions to ensure successful
computer assembly.
∙Ensure that all components are securely connected. Loose connections may cause
the computer to not recognize a component or fail to start.
∙Hold the motherboard by the edges to avoid touching sensitive components.
∙It is recommended to wear an electrostatic discharge (ESD) wrist strap when
handling the motherboard to prevent electrostatic damage. If an ESD wrist strap
is not available, discharge yourself of static electricity by touching another metal
object before handling the motherboard.
∙Store the motherboard in an electrostatic shielding container or on an anti-static
pad whenever the motherboard is not installed.
∙Before turning on the computer, ensure that there are no loose screws or metal
components on the motherboard or anywhere within the computer case.
∙Do not boot the computer before installation is completed. This could cause
permanent damage to the components as well as injury to the user.
∙If you need help during any installation step, please consult a certified computer
technician.
∙Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing any computer component.
∙Keep this user guide for future reference.
∙Keep this motherboard away from humidity.
∙Make sure that your electrical outlet provides the same voltage as is indicated on
the PSU, before connecting the PSU to the electrical outlet.
∙Place the power cord such a way that people can not step on it. Do not place
anything over the power cord.
∙All cautions and warnings on the motherboard should be noted.
∙If any of the following situations arises, get the motherboard checked by service
personnel:
• Liquid has penetrated into the computer.
• The motherboard has been exposed to moisture.
• The motherboard does not work well or you can not get it work according to user
guide.
• The motherboard has been dropped and damaged.
• The motherboard has obvious sign of breakage.
∙Do not leave this motherboard in an environment above 60°C (140°F), it may damage
the motherboard.

5
Case stand-off notification
To prevent damage to the motherboard, any unnecessary mounting stand-off between
the motherboard circuits and the computer case is prohibited. The Case standoff keep
out zone signs will be marked on the backside of motherboard (as shown below) to
serve as a warning to user.
Avoid collision notification
Protective paint is printed around each screw hole to prevent parts from being
scratched.

6

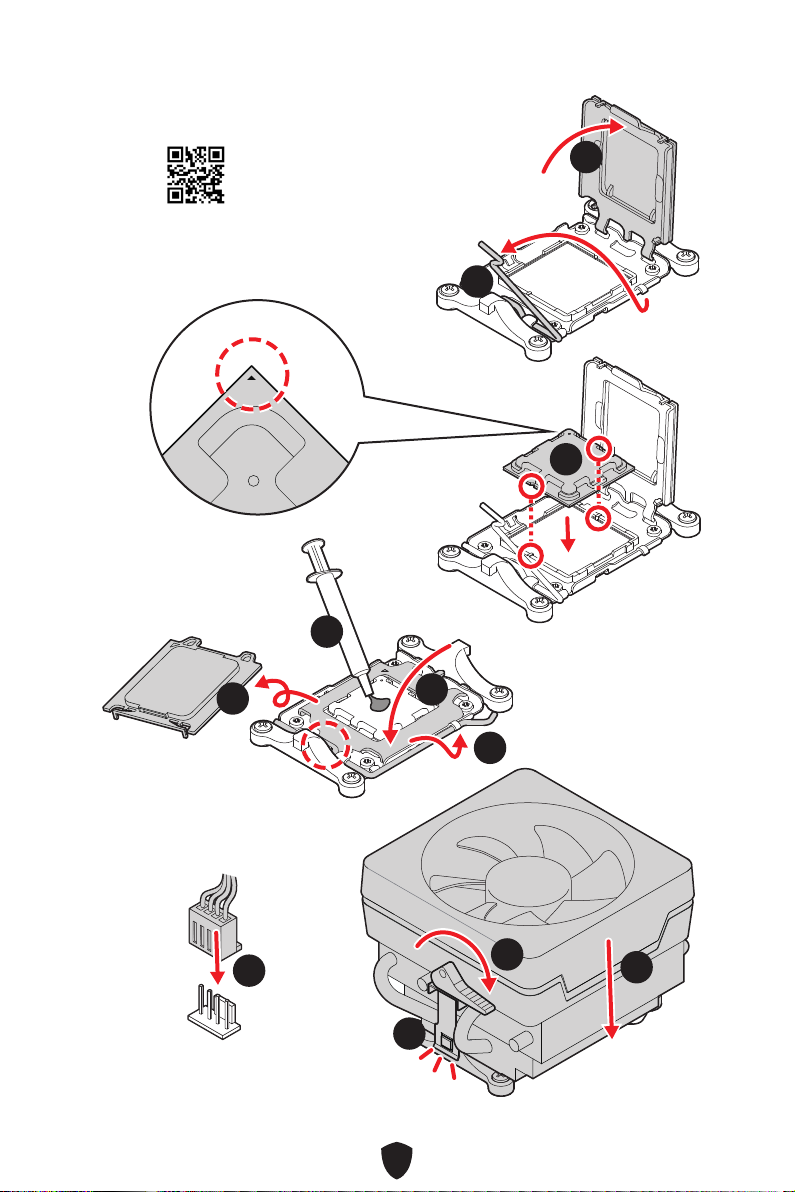

Installing a Processor
11
22
33
6644
55
77
88
1111
99
1010
⚽
∙https://youtu.be/cltgIYiGtWY

7
⚠
Important
If you are installing the screw-type CPU heatsink, please follow the figure below to
remove the retention module first and then install the heatsink.

8
Installing DDR5 memory
∙https://youtu.be/XiNmkDNZcZk
⚽
DIMMA2 DIMMA2
DIMMB2
DIMMA1
DIMMA2
DIMMB1
DIMMB2

9
HDD LED
RESET SW
Connecting the Front Panel Header
∙http://youtu.be/DPELIdVNZUI
JFP1
HDD LED HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
⚽
1
2 10
9
Power LED
Reserved
Power Switch
JFP1
Reset SwitchHDD LED

10

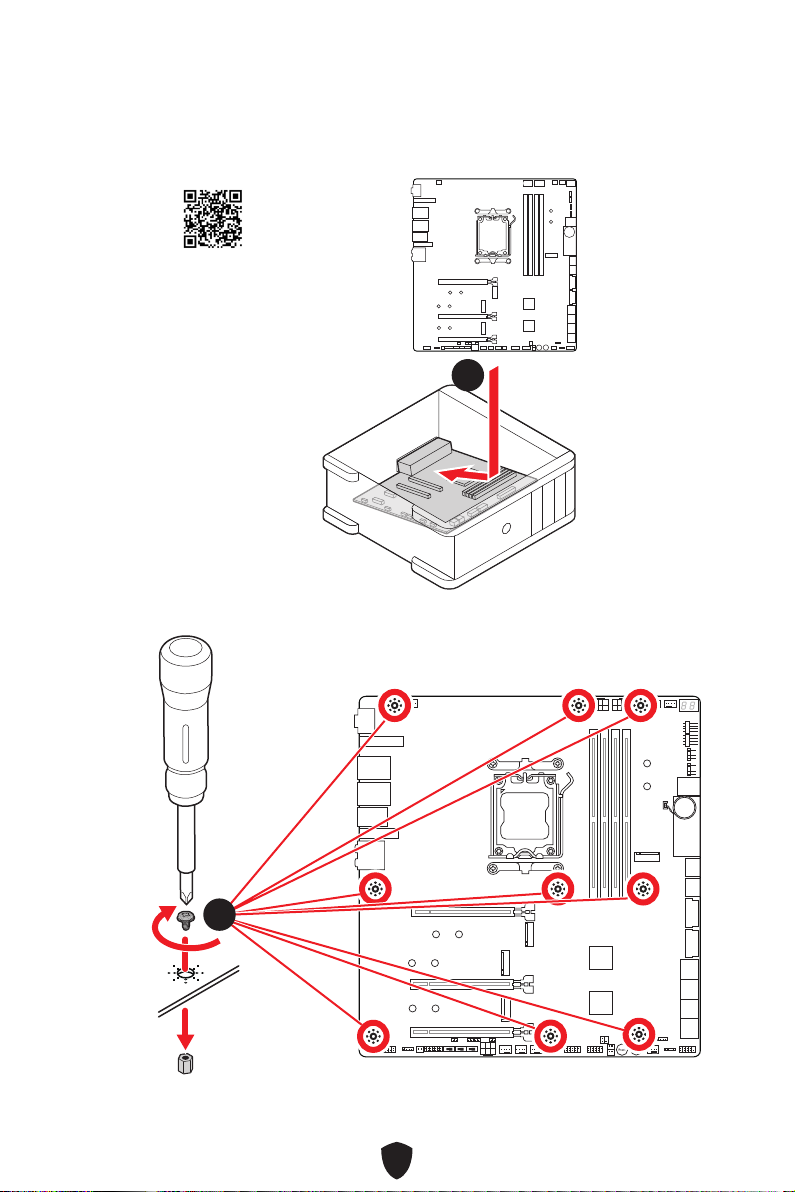

Installing the Motherboard
∙https://youtu.be/wWI6Qt51Wnc
⚽
BAT1
11
Torque:
3 kgf·cm*
*3 kgf·cm
= 0.3 N·m
= 2.6 lbf·in
22

11

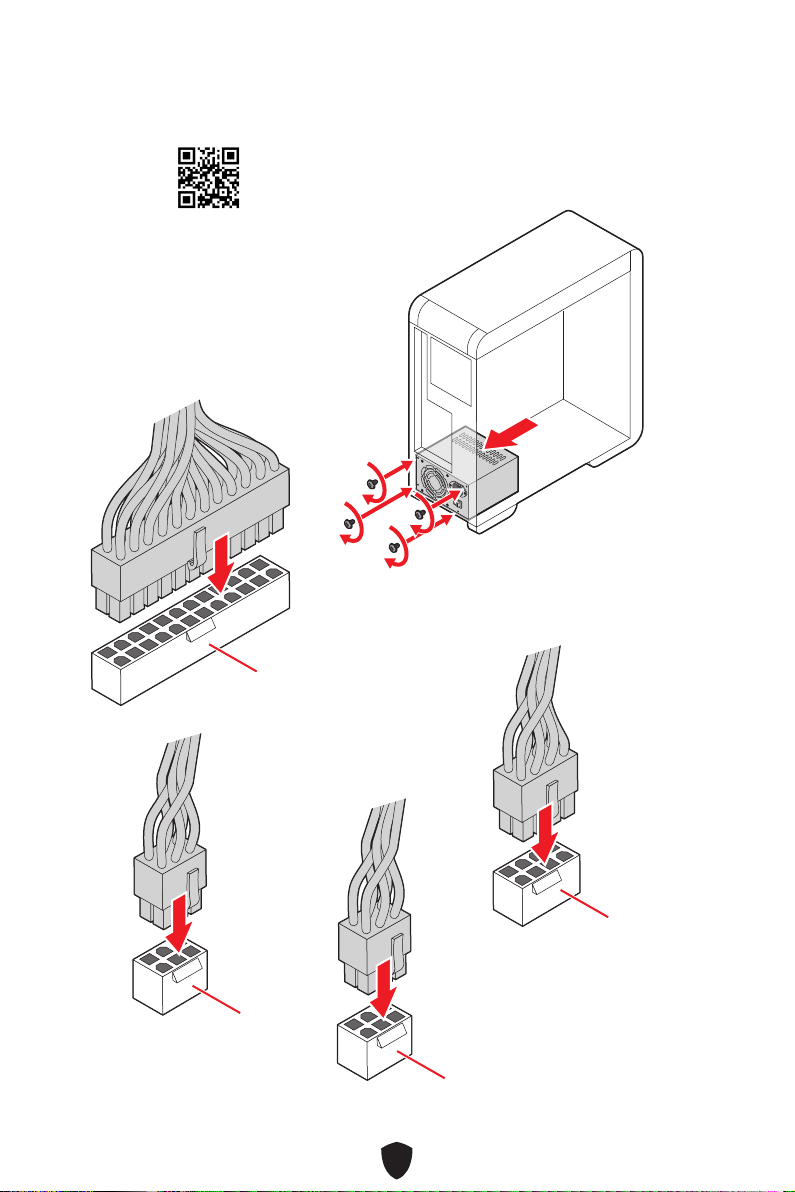

Connecting the Power Connectors
∙http://youtu.be/gkDYyR_83I4
ATX_PWR1
CPU_PWR1~2
⚽
PCIE_PWR1
PD_PWR1

12

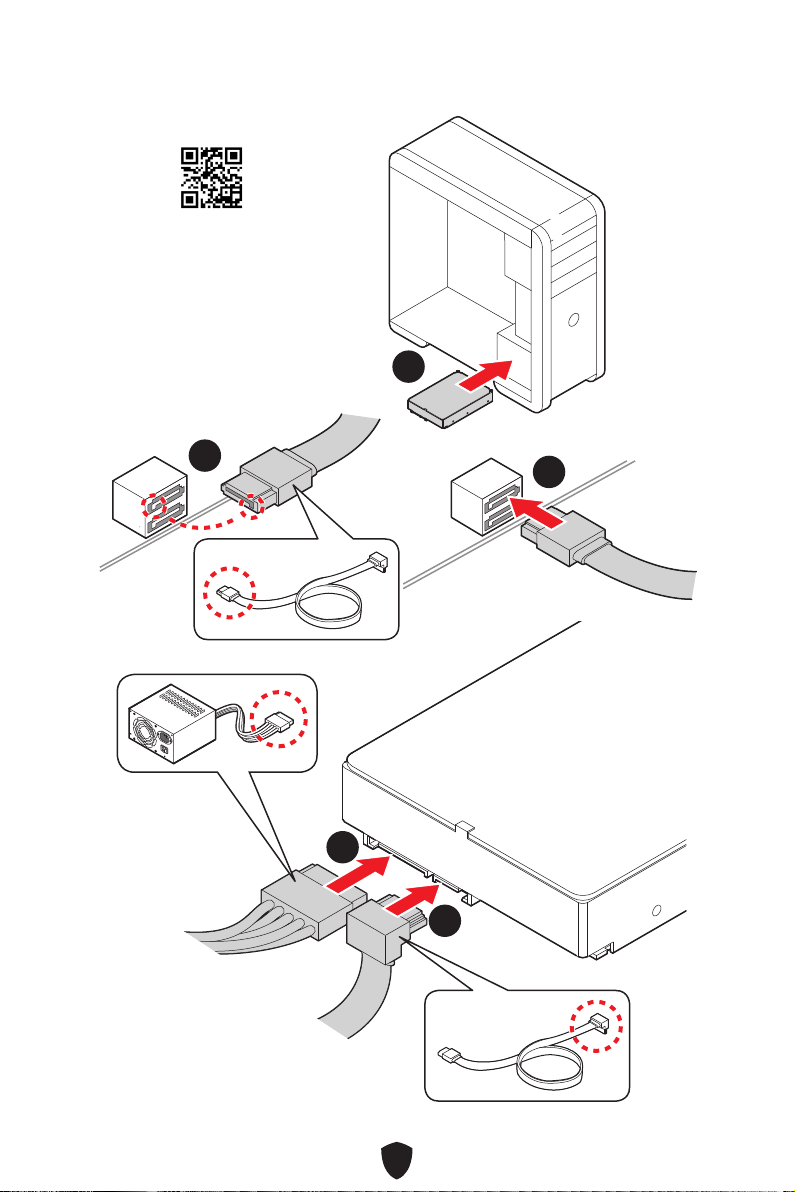

Installing SATA Drives
∙http://youtu.be/RZsMpqxythc
11
2233
44
55
⚽

13

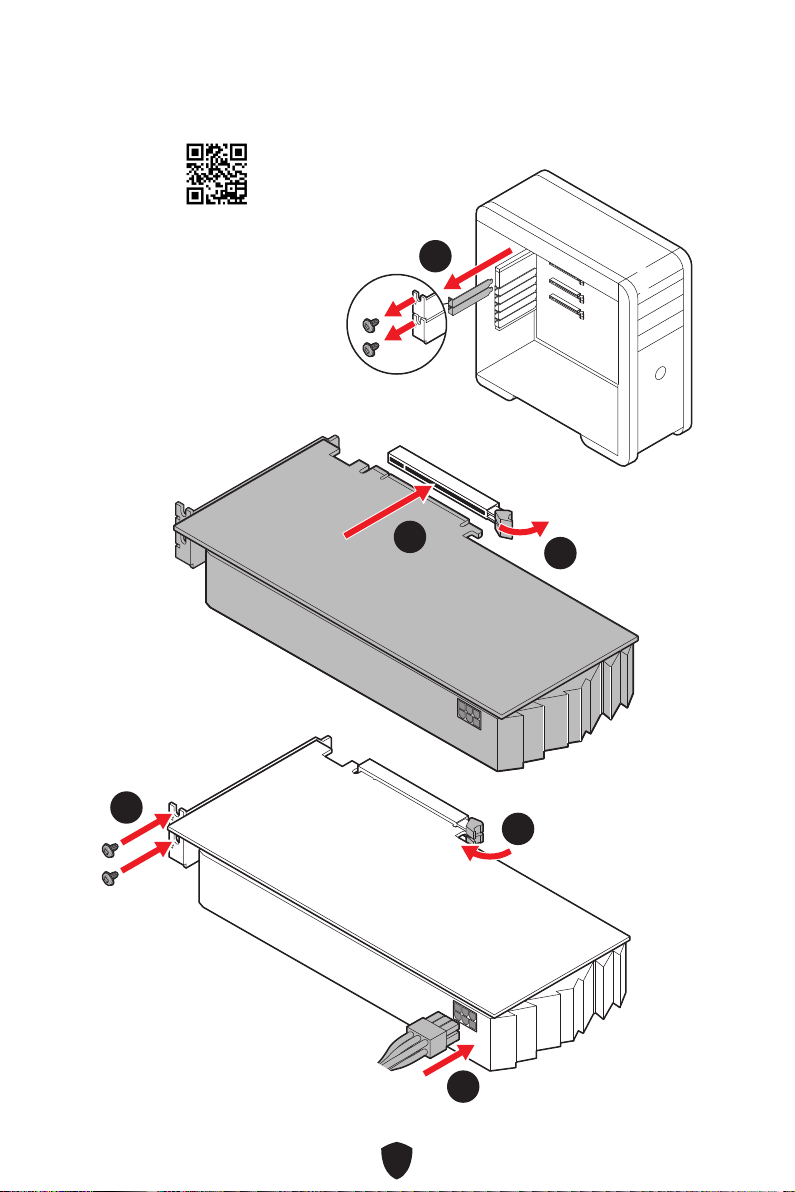

Installing a Graphics Card
∙http://youtu.be/mG0GZpr9w_A
⚽
11
22
33
44
55
66

14
Connecting Peripheral Devices

15
Power On
44
33
1122

16
Specifications
CPU
∙Supports AMD Ryzen™ 7000 Series Desktop Processor*
∙Processor socket AM5
* Please go to www.msi.com to get the newest support status as new processors
are released.
Chipset AMD X670 Chipset
Memory
4x DDR5 memory slots, supporting up to 128GB*
∙Supports 1R 4800 MHz by JEDEC
∙Max. overclocking frequency:
• 1DPC 1R Max. speed up to 6666+ MHz
• 1DPC 2R Max. speed up to 6000+ MHz
• 2DPC 1R Max. speed up to 6400+ MHz
• 2DPC 2R Max. speed up to 4000+ MHz
∙Supports Dual-Channel mode
∙Supports non-ECC, un-buffered memory
∙Supports AMD EXPO
* Please refer to www.msi.com for more information on compatible memory.
Expansion Slots
∙3x PCIe x16 slots (From CPU)
∙Supports x16/x0/x4, x8/x8/x4
• PCI_E1 supports up to PCIe 5.0 x16
• PCI_E2 supports up to PCIe 5.0 x8
• PCI_E3 Supports up to PCIe 5.0 x4
Multi-GPU ∙Supports NVIDIA® SLI™ Technology
∙Supports AMD Multi-GPU
SATA Ports
∙8x SATA 6Gb/s ports
• SATA_P3_P4 (From X670 Chipset)
• SATA_A1_A2 (From ASM1061)
• SATA_B1_B2 & SATA_B3_B4 (From ASM1064)
Continued on next column

17
Continued from previous column
M.2 SSD Slots
∙4x M.2 slots (Key M)
• M2_1 slot (From CPU)
• Supports up to PCIe 5.0 x4
• Supports 2280 storage devices
• M2_2, M2_3 and M2_4 slots (From X670 chipset)
• Supports up to PCIe 4.0 x4
• Supports 2260/ 2280 storage devices
RAID
∙Supports RAID 0 and RAID 1 for SATA storage devices*
∙Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe
storage devices
* SATA_A1_A2, SATA_B1_B2, and SATA_B3_B4 do not support RAID function.
Audio
Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA
∙7.1-Channel USB High Performance Audio
∙Supports up to 32-bit/384kHz playback on front panel
∙Supports S/PDIF output
LAN ∙1x Intel® I225V 2.5Gbps LAN controller
∙1x Marvell® AQC113CS-B1-C 10Gbps LAN controller
Wi-Fi & Bluetooth®
AMD Wi-Fi 6E
∙The Wireless module is pre-installed in the M.2 (Key-E)
slot
∙Supports MU-MIMO TX/RX
∙Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in
2.4GHz/ 5GHz or 6GHz* bands
∙Supports 802.11 a/ b/ g/ n/ ac/ ax
∙Supports Bluetooth® 5.2**
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in
Windows 10 build 21H1 and Windows 11.
** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.
Power Connectors
∙1x 24-pin ATX main power connector
∙2x 8-pin +12V power connectors
∙1x 6-pin PCIe power connector
∙1x 6-pin PD power connector*
* To achieve USB PD 60W charging for JUSB2, PD_PWR1 connector needs to be
connected to the power supply unit.
Continued on next column

18
Continued from previous column
Internal USB
Connectors
∙1x USB 3.2 Gen 2x2 20Gbps Type-C front panel connector*
(From X670 chipset)
• Supports USB PD 60W fast charging**
∙1x USB 3.2 Gen 2 10Gbps Type-C front panel connector
(From X670 chipset)
∙2x USB 3.2 Gen 1 5Gbps connectors (From X670 chipset)
• Supports additional 4 USB 3.2 Gen 1 5Gbps ports
∙2x USB 2.0 Type-A connectors (From X670 chipset)
• Supports additional 4 USB 2.0 ports
* JUSB2 doesn’t support USB 2.0 device.
** To achieve USB PD 60W charging for JUSB2, PD_PWR1 connector needs to be
connected to the power supply unit.
Fan Connectors
∙1x 4-pin CPU fan connector
∙2x 4-pin water-pump fan connectors
∙6x 4-pin system fan connectors
System Connectors
∙1x Front panel audio connector
∙2x System panel connectors
∙1x Chassis intrusion connector
∙1x 3-pin Water flow connector
∙2x 2-pin Thermal sensor connectors
∙1x Tuning controller connector
Button ∙1x Power button
∙1x Reset button
Switch
∙1x EZ LED Control switch
∙1x Multi-BIOS switch
∙1x M-VISION switch
Jumpers
∙1x Clear CMOS jumper
∙1x Low temperature booting jumper
∙1x OC safe boot jumper
LED Features
∙1x 4-pin RGB LED connector
∙3x 3-pin A-RAINBOW V2 (ARGB Gen2) LED connectors
∙4x EZ Debug LED
∙1x 2-Digit Debug Code LED
Continued on next column
