MSI MS-6377 User manual

MSI
MICRO-STAR INTERNATIONAL
MS-6377 ATX Mainboard
Version 1.0
G52-MA00282
i

Manual Rev: 1.0
Release Date: August 2001
FCC-B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a
class B digital device, pursuant to part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference, in which case
the user will be required to correct the interference at his own expense.
Notice 1
The changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
Notice 2
Shielded interface cables and A.C. power cord, if any, must be used in
order to comply with the emission limits.
VOIR LA NOTICE D'INSTALLATION AVANT DE RACCORDER
AU RESEAU.
Micro-Star International MS-6377
For Home or Office Use
Tested to comply
with FCC Standard
ii

Edition
August 2001
Copyright Notice
The material in this document is the intellectual property of MICRO-
STAR INTERNATIONAL. We take every care in the preparation of
this document, but no guarantee is given as to the correctness of its
contents. Our products are under continual improvement and we reserve
the right to make changes without notice.
Trademarks
All trademarks used in this manual are the property of their respective
owners.
Intel and Pentium are registered trademarks of Intel Corporation.
PS/2 and OS/2 are registered trademarks of IBM Corporation.
Windows 98/2000/ME and Windows NT are registered trademarks of Microsoft.
Netware is a registered trademark of Novell.
AMI is a registered trademark of American Megatrends. Inc.
Revision History
Revision Revision History Date
1.0 First Release August 2001
iii

Safety Instructions
1. Always read the safety instructions carefully.
2. Keep this User’s Manual for future reference.
3. Keep this equipment away from humidity.
4. Lay this equipment on a reliable flat surface before setting it up.
5. The openings on the enclosure are for air convection hence protects the
equipment from overheating. DO NOT COVER THE OPENINGS.
6. Make sure the voltage of the power source and adjust properly
110/220V before connecting the equipment to the power inlet.
7. Place the power cord such a way that people can not step on it. Do not
place anything over the power cord.
8. Always Unplug the Power Cord before inserting any add-on card or
module.
9. All cautions and warnings on the equipment should be noted.
10. Never pour any liquid into the opening that could damage or cause
electrical shock.
11. If any of the following situations arises, get the equipment checked by
a service personnel:
• The power cord or plug is damaged
• Liquid has penetrated into the equipment
• The equipment has been exposed to moisture
• The equipment has not work well or you can not get it work
according to User’s Manual.
• The equipment has dropped and damaged
• If the equipment has obvious sign of breakage
12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT
UNCONDITIONED, STORAGE TEMPERATURE ABOVE 600 C
(1400F), IT MAY DAMAGE THE EQUIPMENT.
CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.
iv

v
Contents
Chapter 1. Introduction ...............................................................1-1
MainboardSpecification ............................................................1-2
Key Features ............................................................................1-5
MainboardLayout .....................................................................1-6
Quick Components Guide .........................................................1-7
MSI Special Features................................................................1-8

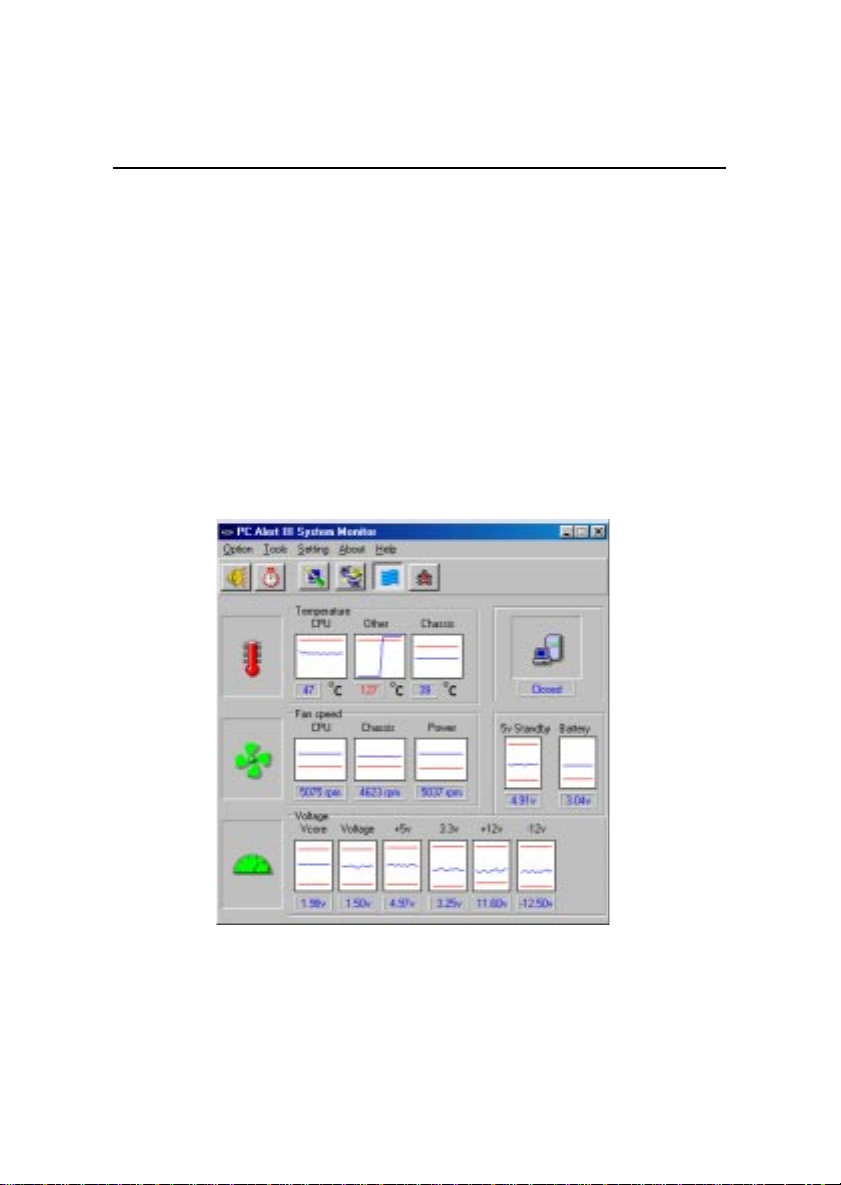

PC Alert™ III .......................................................................1-8
D-LED™ ...........................................................................1-10
Chapter 2. Hardware Setup ........................................................2-1
Central Processing Unit: CPU ...................................................2-2
CPU Installation Procedures ...............................................2-3
CPUCoreSpeedDerivation Procedure................................2-4
Memory ....................................................................................2-5
Introduction to SDRAM .......................................................2-5
DIMM Modules Combination ...............................................2-6
Installing DIMM Modules .....................................................2-6
Power Supply............................................................................2-7
ATX 20-Pin Power Supply....................................................2-7
Back Panel ...............................................................................2-8
MouseConnector................................................................2-8
KeyboardConnector ...........................................................2-9
USB Connectors .................................................................2-9
Parallel Port Connector .....................................................2-10
Serial Port Connector: COM1 & COM2 ............................. 2-11
VGA DB 15 Pin Connector................................................ 2-11
LAN Jacks (RJ-45) ............................................................2-12
Connectors .............................................................................2-13
Floppy Disk Drive Connector: FDD1 ..................................2-13
Hard Disk Connectors: IDE1 & IDE2 .................................2-14

vi
Case Connector: JFP1 ......................................................2-15
Chassis Intrusion Switch Connector: J4 ............................2-17
Wake On Ring Connector: JMDM1 ...................................2-17
LAN LEDs Connector: J3 ..................................................2-18
Front USB Connector: JUSB1 ...........................................2-18
Fan Power Connectors: CPUFAN1/CPUFAN2/SFAN1.......2-19
Ultra160 SCSI Connectors: SCSI 1/2 ................................2-20
Jumpers ..................................................................................2-21
Clear CMOS Jumper: JBAT1 .............................................2-21
LAN Enable/Disable Jumpers: JLANC1 & JLANC2 ............2-22
SCSI Enable/Disable Jumper: JSCSI1...............................2-23
VGA Enable/Disable Jumper: J2 .......................................2-23
Spread Spectrum Jumper: JSPRD1 ..................................2-24
DIP Switches ..........................................................................2-25
Setting CPU Core/Bus Ratio: SW2 (Reserved)..................2-25
Slots .......................................................................................2-26
PCI Slots ..........................................................................2-26
PCI Interrupt Request Routing ...........................................2-27
Chapter 3. AMI® BIOS Setup ......................................................3-1
Entering Setup ..........................................................................3-2
Control Keys .............................................................................3-2
Getting Help..............................................................................3-3
The Setup Categories................................................................3-4
The Main Menu .........................................................................3-6
TheAdvancedMenu..................................................................3-8
SuperIOConfiguration .........................................................3-9
IDEConfiguration .............................................................. 3-11
FloppyConfiguration .........................................................3-15
Boot Settings Configuration...............................................3-16
EventLogConfiguration.....................................................3-19

vii
System Health Monitoring Hardware .................................3-20
Remote Access Configuration ...........................................3-22
The Chipset Menu ...................................................................3-24
The PCIPnP Menu ..................................................................3-26
ThePower Menu .....................................................................3-29
The Boot Menu .......................................................................3-32
The Security Menu ..................................................................3-34
The Exit Menu.........................................................................3-36
Glossary............................................................................................ I

Introduction
1-1
Chapter 1.
Introduction 1
The MS-6377 ATX mainboard is a high-performance computer
mainboard based on RCC/ServerWorks chipset. The MS-6377 is designed
for dual Intel®Pentium®III (FC-PGA) processor for cost-effective entry-
level and mid-range server markets.
The mainboard consists of the North Bridge “CNB30 LE” and
ServerWorks Open South Bridge™ “OSB4”. CNB30 LE provides an inte-
grated high-performance main memory sub-system, a dual channel PCI bus,
and a 32-bit PCI Bus. The CNB30 LE filters all the unnecessary bus traffic
going to the Processor bus and also performs packing and unpacking of
data for PCI accesses, which in turn allows more Processor bus bandwidth
for other processors in multiprocessor systems. As a main memory sub-
system, the CNB30 LE provides an efficient interface between the Processor
bus and memory with data integrity features such as ECC, memory
scrubbing, and memory snarfing.
OSB4 primarily functions as a PCI to ISA bridge, but is also a source
of numerous other integrated functions, including ISA bus controller,
DMA33 support, ACPI, USB interface, etc.
This chapter includes the following topics:
Mainboard Specification 1-2
Key Features 1-5
Mainboard Layout 1-6
Quick Components Guide 1-7
MSI Special Features 1-8

Chapter 1
1-2
CPU
zSupport Dual or Single Socket370 for Intel®Coppermine processors
zSupport up to 1GHz at 133MHz FSB
Chipset
zServerWorks CNB 30LE chipset
- Extensive Data Buffering between all interfaces for high throughput and
concurrence
- Support 100/133MHz FSB
zServerWorks OSB4 chipset
- PCI to ISA bridge
- Client Management support
- ACPI power management
Main Memory
zSupport four 3.3 volt, 168-pin registered DIMM (25-degree sockets) PC100 or
PC133
zSupport 16/64/128/256Mbit technology
zUp to 3 GB ECC registered SDRAM
Note: Only registered ECC memory is supported. Non-ECC or unbuffered
SDRAM is not supported.
Slots
zThree 32-bit, 33MHz Primary PCI Bus Master slots
zTwo 64-bit, 33/66MHz Secondary PCI Bus Master slots
zSupport 3.3v/5v PCI bus Interface
On-BoardIDE
zAn IDE controller on the OSB4 chipset provides IDE HDD/CD-ROM with PIO,
Bus Master and Ultra DMA33 operation modes.
zCan connect up to four fast IDE drives
zTwo 64-bit, 66/33 MHz PCI bus mastering slots
zThree 32-bit PCI bus mastering slots
On-Board Peripherals
zOn-Board Peripherals include:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M or
Mainboard Specification

Introduction
1-3
2.88Mbytes
- 1 serial port (COM1)
- 1 parallel port supports SPP/EPP/ECP mode
- 4 USB ports (Rear * 2 / Front * 2)
- 1 VGA port
- 2 LAN RJ45 Jacks
- 2 SCSI connectors
- 1 COM2 pin header
Network
zDual Intel®82550 LAN Controllers
- Integrated IEEE802.3 10-BaseT & 100-BaseTX PHY
- Wake-On-LAN and WFM 2.0 supported (ET/EM)
Adaptec Ultra-160 SCSI
zIntegrated Adaptec AIC-7899W Ultra-160 SCSI Adaptor
zSupport dual channels
Video
zIntegrated ATI Rage XL graphics controller
zOnboard 4MB Video SDRAM
BIOS
zSupports ACPI (Advanced Configuration and Power Interface) and APM
(Advanced Power Management)
zBlinking LED for Sleep State indicator
zPC Health Monitoring protects your system from problems even before they
occur
zDMI support
zBIOS protection
z4 Mb flash ROM (AMI BIOS)
zBIOS rescure hot keys for rescuing BIOS chip from flash failure
Dimension
zATX Form Factor: 12 in. x 10.5 in. (W x H)
Mounting
z9 mounting holes
PC Health Monitoring
z9 onboard voltage monitors for CPU core/s, 3.3V, -12V, -5V, 5V, 5VSB, VTT,

Chapter 1
1-4
VBAT, Vcc status monitor
zCPU/chassis temperature monitoring
zSupport for system management software
zFAN speed monitoring
Other Features
zACPI/APM power management
zOne chassis intrusion connector
zControl of power-on mode for recovery from AC power loss

Introduction
1-5
zATX Form Factor
zCPU: Socket 370 for Single/Dual Intel®Pentium III
zMemory:4PC100/PC133SDRAMs
zSlot: Three 32-bit, 33MHz Primary PCI slots & Two 64-bit, 33/66MHz
Secondary PCI slots
zI/O: 1 serial port (COM1) & 1 COM2 pin header, 1 VGA port, 1 parallel
port, 4 USB ports, 1 floppy port, 2 SCSI connectors, 2 LAN jacks
zLAN Wake up Function
zPC Alert™ III system hardware monitor
zD-LED™ -- 4 LEDs embedded in the mainboard
Key Features

Chapter 1
1-6
Mainboard Layout
MS-6377 ATX Mainboard
ServerWorks
CNB 30LE
BATT
+
Super IO
HW
Monitor
ATX Power Suppl
y
JFP1
J3
JSCSI1
J2
SW2 (Reserved)
JUSB1
JMDM1
COM2
BIOS
PCI Slot 3
PCI Slot 2
PCI Slot 1
64-bit PCI Slot 1
64-bit PCI Slot 2
IDE1
IDE2
JBAT1
J4
JSPRD1
JLANC1
CPUFAN1
CPUFAN2
SFAN1
JLANC2
USB
ports
Top :
Parallel Port
Bottom:
COM Port &
VGA Port
Top : mouse
Bottom:
keyboard
SOCKET 370
SOCKET370
SCSI 1
SCSI2
JLAN2
JLAN1
DIMM1
DIMM2
DIMM4
DIMM3
ATI
Rage XL
ServerWorks
OSB 4 Adaptec
7899W
Intel
82550
Intel
82550
CPU1
CPU2

Introduction
1-7
Quick Components Guide
Component Function Reference
DIMM1~4 Installing SDRAM modules See p. 2-5~2-6
Socket 370 Installing CPU(s) See p. 2-2~2-3
CPUFAN1/2 Connecting to CPU FANs See p. 2-19
SFAN1 Connecting to SYSTEM FAN See p. 2-19
ATX Power Supply Installing power supply See p. 2-7
IDE1& IDE2 Connecting to IDE drives See p.2-14
FDD1 Connecting to floppy disk drive See p.2-13
JUSB1 Connecting to USB interface See p. 2-18
PCI Slot 1~3 Installing 32-bit PCI expansion cards See p. 2-26
64-bit PCI Slot1~2 Installing 64-bit PCI expansion cards See p. 2-26
JMDM1 Connecting to modem module See p. 2-17
JBAT1 Clearing CMOS data See p. 2-21
JFP1 Connecting to case See p. 2-15
J4 Connecting to chassis intrusion switch See p. 2-17
J3 Connecting to LAN LEDs backplane See p. 2-18
JLANC1/2 Enabling onboard LAN function See p. 2-22
JSCSI1 Enabling onboard SCSI function See p. 2-23
J2 Enabling onboard VGA device See p. 2-23
JSPRD1 Setting spread spectrum feature See p. 2-23
SCSI 1/2 Connecting to SCSI interfaces See p. 2-20
SW2 Setting CPU core/bus ratio See p. 2-25

Chapter 1
1-8
PC Alert™ III
The PC AlertTM III is an utility you can find in the CD-ROM disk. The
utility is just like your PC doctor that can detect the following PC hardware
status during real time operation:
* monitor CPU & system temperatures
* monitor fan speed(s)
* monitor system voltage
* monitor chassis intrusion
If one of the items above is abnormal, the program main screen will be immedi-
ately shown on the screen, with the abnormal item highlighted in red. This will
continue to be shown,until user disables the warning.
Note: Items shown on PC Alert III vary depending on your system’s status.
MSI Special Features

Introduction
1-9
Features:
zNetwork Management
- Monitoring & remote control
zBasic System Utilities
- Scandisk & Defragment to maintain your HDD
z3D Graphics Design
- Enables a more friendly user interface
zSofwareUtilities
- SoftCooler Optimized Cooling

Chapter 1
1-10
D-LED Description
System Power ON
- The D-LED will hang here if the processor is damaged or not installed
properly.
Early Chipset Initialization
Memory Detection Test
- Testing onboard memory size. The D-LED will hang if the memory
module is damaged or not installed properly.
Decompressing BIOS image to RAM for fast booting.
Initializing Keyboard Controller.
Testing VGA BIOS
- This will start writing VGA sign-on message to the screen.
D-LED™
The D-LED™ uses graphic signal display to help users understand
their system. Four LEDs embedded in the mainboard provide up to 16
combinations of signals to debug the system. The 4 LEDs can debug all
problems that fail the system, such as VGA, RAM or other failures. This
special feature is very useful for the overclocking users. These users can
use the feature to detect if there are any problems or failures. The defini-
tions of LED signal combinations are listed below:
Red Green
1234
43
2
1Diagnostic LED

Introduction
1-11
Processor Initialization
- This will show information regarding the processor (like brand name,
system bus, etc…)
Testing RTC (Real Time Clock)
Initializing Video Interface
- This will start detecting CPU clock, checking type of video onboard.
Then, detect and initialize the video adapter.
BIOS Sign On
- This will start showing information about logo, processor brand name,
etc….
Testing Base and Extended Memory
- Testing base memory from 240K to 640K and extended memory
above 1MB using various patterns.
Assign Resources to all ISA.
Initializing Hard Drive Controller
- This will initialize IDE drive and controller.
Initializing Floppy Drive Controller
- This will initializing Floppy Drive and controller.
Boot Attempt
- This will set low stack and boot via INT 19h.
Operating System Booting

Hardware Setup
2-1
Chapter 2.
Hardware Setup
This chapter provides you with the information about hardware setup
procedures. While doing the installation, be careful in holding the compo-
nents and follow the installation procedures. For some components, if you
install in the wrong orientation, the components will not work properly.
Use a grounded wrist strap before handling computer components.
Static electricity may damage the components.
2
Central Processing Unit (CPU) 2-2
Memory 2-5
Power Supply 2-7
BackPanel 2-8
Connectors 2-13
Jumpers 2-21
DIP Switches 2-25
Slots 2-26
This chapter contains the following topics:

Chapter 2
2-2
Central Processing Unit: CPU
The mainboard supports Single/Dual Intel®Coppermine processor
(s). The mainboard uses two CPU sockets called Socket 370 for easy CPU
installation. You can install SINGLE or DUAL CPUs on the board to meet
your own needs. Keep the following points in mind before installing CPU(s):
1. If SINGLE CPU is intended, always install the CPU on the CPU1
socket.
2. To install DUAL CPUs on the board, you must use the same type of
CPUsrunningat the same FSB frequency.
When you are installing the CPU, make sure the CPU has a Heat
Sinkanda cooling fan attached onthetop to prevent overheating. If you do
not find the Heat Sink and cooling fan, contact your dealer to purchase and
install them before turning on the computer.
CPU1
