MTX THUNDER FORM C1500EX-07 User manual

C1500EX-07 Installation Guide
Chevrolet/GMC 1500/2500 Extended Cab 2007 - UP
(Loaded/Amplied)
STEP 1: STEP 2:
Flip up the driver side rear seat and place the enclosure on
the oor as shown above. The enclosure should be inside
the seat trim when the seat is in the lowered position.
Attach the mounting bracket to the enclosure as shown
using (2) 2" screws to attach the bracket to the oor, and (1)
M6 bolt to attach the bracket to the enclosure.
STEP 3:
From the passerger side, attach the second bracket to the
enclosure as shown. Use the same screws from Step 2.
STEP 4:
Make all nal wire connections (See Page 2) and fold the
seat down. Your installation is complete. Enjoy your new
bass in a small space.

C1500EX-07 Installation Guide
Chevrolet/GMC 1500/2500 Extended Cab 2007 - UP
(Loaded/Amplied)

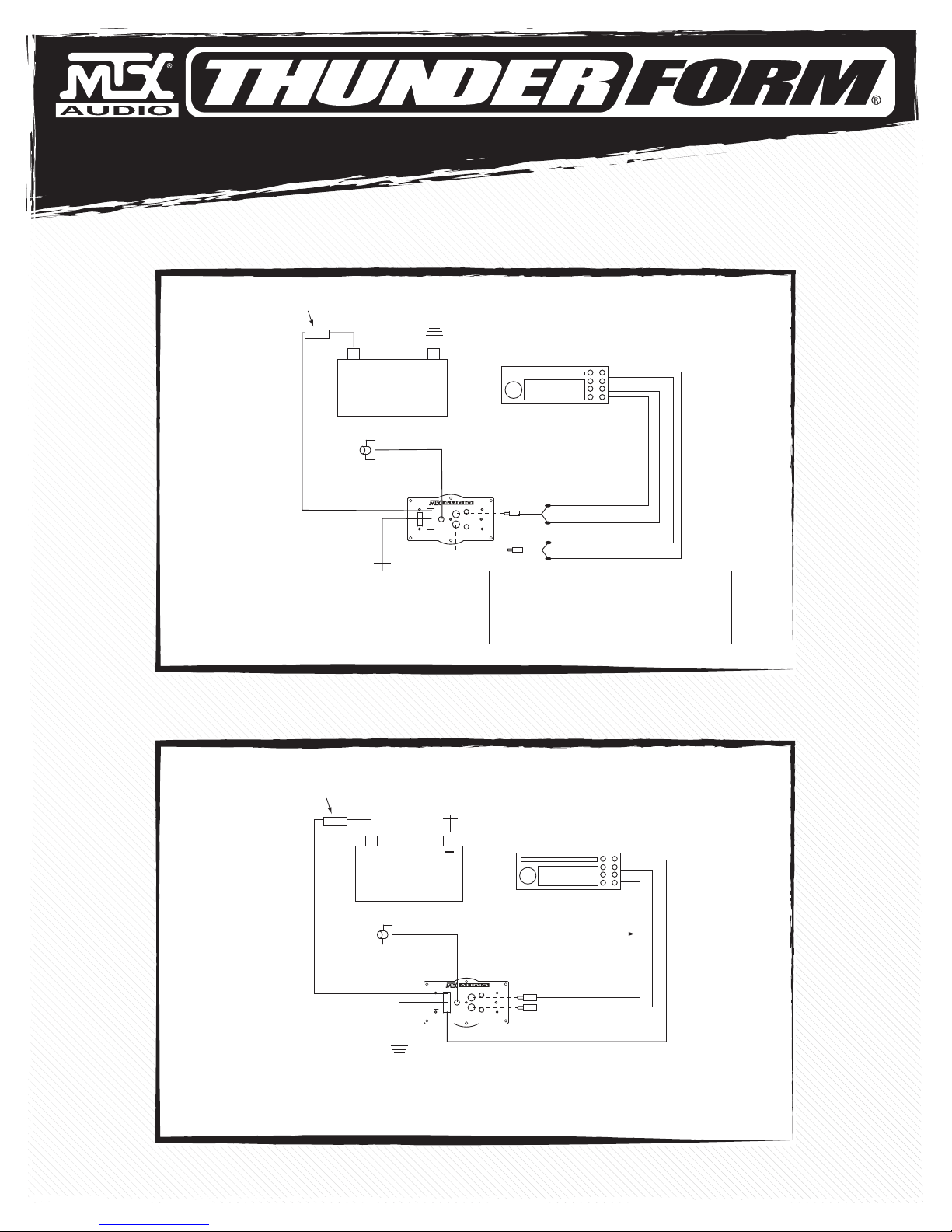

RCA Interconnect Wiring
_+
20 Amp Fuse
RCA Interconnects
Blue Turn On Lead
20A
PWRGNDREM
EBC
INPUT
RIGHTLEFT
GAINX-OVER
STATUS
Optional EBC
(Electronic Bass Control)
Source Unit with
RCA Outputs
Red Power Wire
Black Ground Wire
Attach Ground Wire Directly to
Vehicle Frame After Clearing
Area of Debris and Paint
Speaker Level Wiring
_+
20 Amp Fuse
20A
PWRGNDREM
EBC
INPUT
RIGHTLEFT
GAINX-OVER
STATUS
Right Channel* (+)
Right Channel* (-)
Left Channel* (-)
Left Channel* (+)
Optional EBC
(Electronic Bass Control)
Source Unit without
RCA Outputs
Red Power Wire
Black Ground Wire
Attach Ground Wire Directly to
Vehicle Frame After Clearing
Area of Debris and Paint
• Check with your vehicle manufacturer to determine
• wire color for appropriate connection.
• Front or rear speaker channels will work.
• If connecting to a system with an integrated factory
• amplifier, connect to signal BEFORE amplifier.
*
