MTX THUNDER FORM J-WRANGLER-07 User manual

J-WRANGLER-07 Installation Guide
Jeep Wrangler 4 Door JK Series (Drivers Side) 2007 - UP
(Loaded/Amplied)

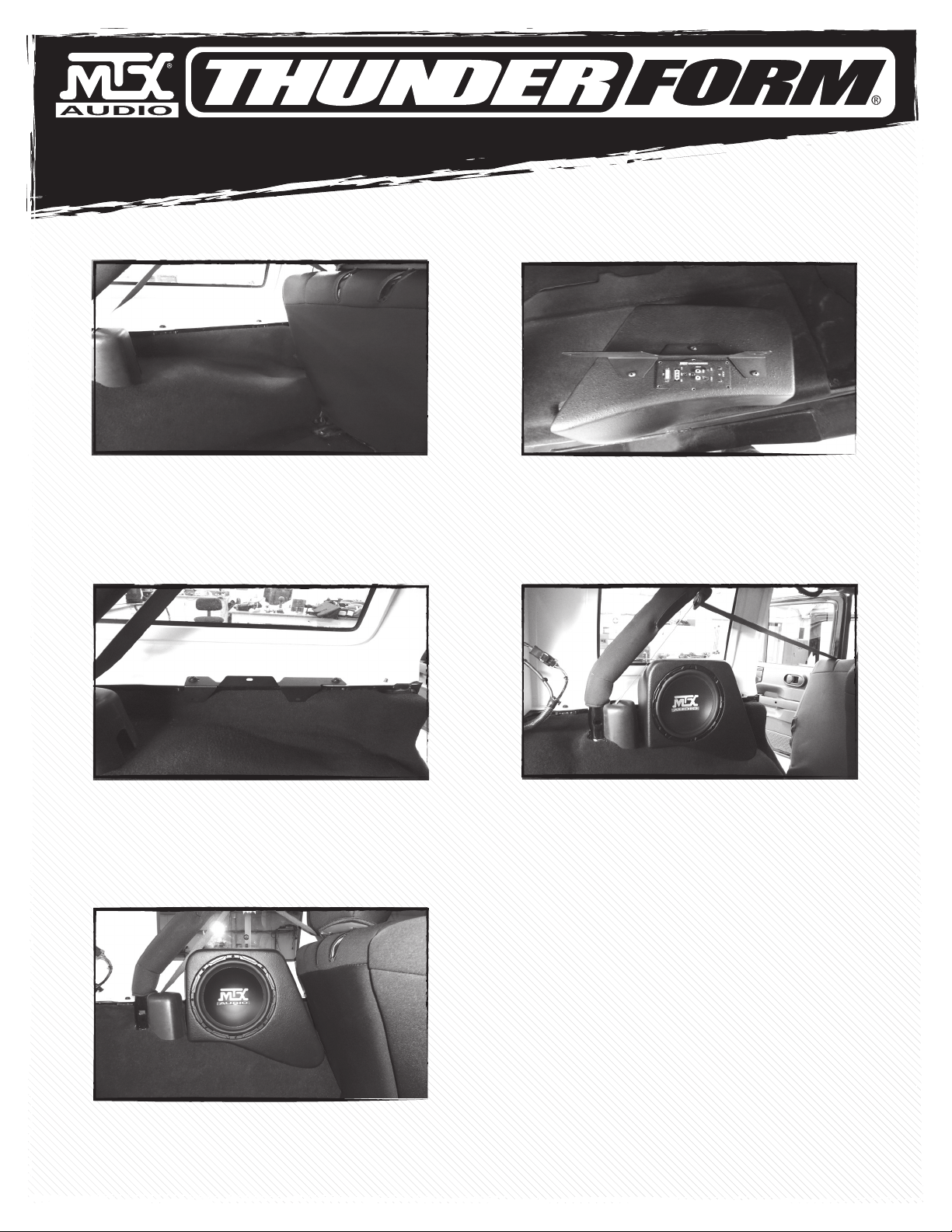

STEP 1: STEP 2:
Locate the rooftop mounting bolts as shown (driver side,
behind the rear seat above the wheel well). Note: Enclosure
does not t convertible version.
Attach the mounting bracket to the enclosure as shown
using the supplied hardware.
STEP 3:
STEP 5:
When the bracket is assembled to the enclosure, this is
how the bracket mounts to the vehicle.
This is for reference only!
Your installation is complete. Enjoy your new bass in a small
space.
STEP 4:
Make all nal wire connections (See Page 2), and mount
the enclosure into place using the bolts removed from the
rooftop mounting location in Step 1.

J-WRANGLER-07 Installation Guide
Jeep Wrangler 4 Door JK Series (Drivers Side) 2007 - UP
(Loaded/Amplied)
RCA Interconnect Wiring
_+
20 Amp Fuse
RCA Interconnects
Blue Turn On Lead
20A
PWRGNDREM
EBC
INPUT
RIGHTLEFT
GAINX-OVER
STATUS
Optional EBC
(Electronic Bass Control)
Source Unit with
RCA Outputs
Red Power Wire
Black Ground Wire
Attach Ground Wire Directly to
Vehicle Frame After Clearing
Area of Debris and Paint
Speaker Level Wiring
_+
20 Amp Fuse
20A
PWRGNDREM
EBC
INPUT
RIGHTLEFT
GAINX-OVER
STATUS
Right Channel* (+)
Right Channel* (-)
Left Channel* (-)
Left Channel* (+)
Optional EBC
(Electronic Bass Control)
Source Unit without
RCA Outputs
Red Power Wire
Black Ground Wire
Attach Ground Wire Directly to
Vehicle Frame After Clearing
Area of Debris and Paint
• Check with your vehicle manufacturer to determine
• wire color for appropriate connection.
• Front or rear speaker channels will work.
• If connecting to a system with an integrated factory
• amplifier, connect to signal BEFORE amplifier.
*
Buy quality subwoofers and boxes in our online store.
