Multipipe Rio Quantum User manual

By
®
®
QUICK GUIDE 22-23006

2
Introduction
The 22-23006 Quantum is a ZigBee temperature controller for wireless control of Smart Home series devices,
such as the 22-23013 wiring centre, mini TRV head, 22-99995 boiler control module.
In order to control 22-23006 over the Internet or via the Smart Home mobile app (ONLINE mode), it must
be installed together with the 22-99998 Internet gateway (sold separately). From the application level, it is
possible to pair 22-23006 with other system elements, e.g. Smart Plug 22-99993, Smart Relay 22-99991 or
window/door sensor 22-99997.
22-23006 can be used locally without an Internet connection (OFFLINE mode), however, it’s communication
with other devices must be done using the CO10RF coordinator (sold separately).
UseinaccordancetonationalandEUregulations.Usethedeviceasintended,keeping it in drycondition.Productfor
indoor use only. Installation must be carried out by a qualied person in accordance to national and EU regulations.
Disconnect your equipment before cleaning it with a dry cloth.
Please always ensure the AC 230V mains power is switched o before installing or working on any components.
Product Compliance
Safety Information
Warning:
This product complies with the essential requirements and other relevant provisions of Directives 2014/30/ EU,
2014/35/EU, 2014/53/EU and 2011/65/EU. The full text of the EU Declaration of Conformity is available at the
following internet address: www.saluslegal.com.
Package Content:
1) 22-23006 QuantumThermostat
2) Mounting screws
3) Manual instruction
THERMOSTAT 22-23006 Quantum can work without Universal Gateway or CO10RF Coordinator as a standalone
Full manual in PDF format is available at www.salus-controls.eu site.

3
Before you start: Wiring diagram:
Symbols explanation:
S - volt-free contact
T - temperature sensor
L, N - 230V AC pover supply
COM, NO -Voltage free output
S1,S2 Terminals:
- air or oor temperature sensor
- external volt-free contact to connect any ON/
OFF switch or occupancy sensor (Hotel card)
Mounting: to mount thermostat you can use included
accessories (mounting screws). Remove plate from
the back to mount it to the wall. After that just put
thermostat on the plate.
Please note:
The ideal position to thermostat mounting is about 1,5m
under oor level far from heating or cooling sources.
Thermostat can’t be exposed to sunlight or any extreme
conditions like for example draft.
COM
SQ610
NO L
L
230V~,50Hz
S1 S2
N
N
T
S
MM
150 cm
min 20 cm
Select correct thermostat location
AC 230V
Français Deutsch
Nederlands English

4
1. Menu/Settings description + Clock
2. AM/PM
3. Temperature unit
4. Heating indicator (icon is animating when
there is heating demand)
5. Cooling indicator (icon is animating when
there is cooling demand)
6. RF Connection indicator
7. Internet connection indicator
8. Occupancy sensor (hotel card)
9. Key lock function
10. Standby mode icon
11. Current Temperature / Setpoint Temperature
12. Holiday mode
13. Temporary override mode
14. Settings icon
15. External / Floor temp sensor indicator
16. Schedule program number
17. Schedule mode icon
18. Day indicator/ SET information
19. Current Humidity value
2
8
9
10111214
19
18
17
16
15
1
3
4
5
6
7
13
LCD Icon Description

5
Buttons Description
Buttons Description
1) Menu button / Return button.
2) In the MAIN SCREEN: Press and hold for 3 sec to change the thermostat operating mode
(Schedule mode / Permanent mode /Temporary override mode).
3) In the SETTINGS SCREEN:
Press and hold for 3 sec to go back without saving the changes.
4) In the PAIRING SCREEN (in SYSTEM TYPE Menu): Press and hold for 3 sec to see other
pairing options.
+
In the MAIN SCREEN - press and hold these buttons together for 3 seconds to LOCK / UNLOCK
the Thermostat keys).
“Up”Button (Increase parameter value/moving on the menu in‘UP’direction)
„Down”Button (Decrease parameter value/moving on the menu in‘DOWN’direction)
1)“OK /Tick”Button (Conrm parameter value / Go to the next menu / Save settings)
2) In the MAIN SCREEN: Press and hold for 3 seconds to enter Standby mode
3) In the SETTINGS SCREEN: Press and hold for 3 sec to go back to the MAIN SCREEN & SAVE all the changes.
Button Function
Français Deutsch
Nederlands English

6
COMPATIBILTY WITH OTHER SALUS CONTROLS DEVICES
QuantumThermostat can work in ONLINE or OFFLINE mode. *
QuantumThermostat can work in ONLINE or OFFLINE mode. *
At rst step you need to decide in which mode your thermostat will work.
At rst step you need to decide in which mode your thermostat will work.
ONLINE MODE OFFLINE MODE
Universal Gateway is
CONNECTED TO THE INTERNET
You can congure and use all your
devices in the Smart Home App
Download the Smart Home
App on your iOS or Android
device for remote access to your
SALUSequipment. SALUS
Smart Home
CO10RF Coordinator - You can use
standard ZigBee network coordinator
toinstallanduse yourdevices.
Universal Gateway is NOT
CONNECTED TO THE INTERNET
You can use your devices locally
without the SmartHome App.
Gateway works in this mode as
standard ZigBee coordinator.
Compatibile devices:
22-23013
Wiring Centre for 8-zone
underoor heating (UFH).
22-99994
(Thermostatic
Radiator Valve) with
wireless communication.
22-99995
receiver
22-99991*
Smart Relay 22-99993*
Smart Plug
OR
22-23006 Quantum Thermostat can work without coordinators (ONLINE/
OFFLINE MODE) as a standalone device with the wires use.
*Only with Online Mode
GET IT ON
Download on the
Please note:

7
First power up sequence
To power on the Thermostat you
have to connect it to the 230V power
then...
For easier installation, please make sure you have already added other devices to your ZigBee network, such as
Underoor Heating Control Box (22-23013) or Radiator heads (TRV’s) etc.
Please note:
Now, choose your language by
„” or „ ”buttons. Conrm
your language by button.
...display will showall icons... ...then thermostat will display
the software version.
2
1
4
3
5
Thermostat work as a standalone device
for pump, boiler, receivers etc. That is, you
candirectly connect thermostattoselected
device without any network system. You
canadditlateranytime.
NO - STANDALONE.
You can congure your thermostat
with universal gateway or CO10RF
coordinator.That is, add it to the Salus
Smart Home system.
Français Deutsch
Nederlands English
YES - ONLINE, OFFLINE MODE.

8
Installation in ONLINE mode
AfterLanguageselection followbelowstepstoadd your device to theSmart Home app and pair with other devices:
21
SALUS
SmartHome
Go to SALUS Smart Home app
3
Once your thermostat is added to
the app you will see above screen
on the LCD.
9
7
45 6
8

9
Français Deutsch
Nederlands English
10
13
Afterthat thermostatwill show
mainscreen.
Congratulations!
You succesfullyconfigured22-
23006QuantumThermostat.
15
14
1211
Name this equipment
22-23006 230V
Connect equipment
Finish
3

10
Installation in OFFLINE mode
123
Open the ZigBee network
456
Select system type: UNDERFLOOR,
press button to conrm
Using and buttons select the Control
Box number (press PAIR button on the Control
Box to see its address number). Press button
to conrm
Use or buttons to select
the zone number and press
button to conrm.
8
7
Now you can pair your thermostat
with additional zones. Select one
more zone or nish the pairing
process by button.
OR
5 sec
5 sec
9
Close the ZigBee network
OR
5 sec.
5 sec
Pairing with Wiring Centre / Control Box (Installthe Wiring Centre / Control Box accordingto the
instructions included withproduct)
3
3

11
7
54
3
6
Open the ZigBee network
Select system type:
RADIATORS
Now hold antenna button for 10
sec. on all TRV’s which you want
to pair with your Termostat.
Pairing with TRV radiator head (Install the TRV accordingto theinstructions includedwith
product)
On the LCD you will see the number of
pairedTRV’s. Once allTRV’s are paired - press
button to nish the pairing process.
OR
5 sec
5 sec.
10 sec
12
98
Close the ZigBee network
OR
5 sec
5 sec
You can pair up to 6 TRV’s with
1 Thermostat. All TRV’s have
to within the same room with
Thermostat.
3
3
Français Deutsch
Nederlands English

12
Wired device
Thermostat 22-23006 Quantum can work without Universal Gateway or CO10RF Coordinator as a standalone
Please note:
Wiring diagram for volt-free connection (e.g. boiler control):
1
2Wiring diagram for 230VAC connections:
N
L
L
N
AC 230V
S1
S2
BOILER CONNECTIO
N
N
L
S1
S2
L
N
AC 230V
COM NO
COM NO *
MAX 3(1)A
S

13
Please note:
3Wiring diagram for control box connection:
N
L
N
1-8 Zones
SLL
S1
S2
L
N
AC 230V
Power
NO
N
L
COM
Legend:
Boiler connection * - Boiler’s contacts
for ON/OFF thermostat (according to the
boiler’s instructions)
Pump
Boiler
Valve actuator
Heating mat
KL08NSB
Self-acting 22-23006 Quantum Thermostat without application support can be easily added to
the
Smart Home app anytime. All settings made before adding to the application are automatically
S
Français Deutsch
Nederlands English

14
22-23006 Full menu structure
Schedule settings
User settings
Admin settings
Language
TIME/DATE
HOLIDAY MODE
THERMOSTAT CALIBRATION
SHOW/HIDE DISPLAY HUMIDITY
SHOW/HIDE DISPLAY FLOOR
STANDBY TEMP SETPOINT
HEAT/COOL
RESET USER SETTINGS
ENGLISH
DANISH
POLISH
...
DISABLE
MO-FR+SA-SU
MO-SU
SINGLE DAYS
Main menu
TEMPERATURE SCALE
DISPLAY TEMPERATURE RESOLUTION
1.
HEAT CONTROL ALGORITHM
2.
COOL CONTROL ALGORITHM
S1/S2 INPUT
3.
MINIMUM SETPOINT
MAXIMUM SETPOINT
VALVE PROTECTION
4.
INTERNAL RELAY (NO / NC)
5.
MINIMUM TURN OFF TIME
6.
OPTIMISATION FEATURE
7.
COMFORT WARM FLOOR
8.
PIN CODE
DEVICE INFORMATION
9.
CONNECT WITH GATEWAY
FACTORY RESET
10.*

15
Short description of some selected functions
(all functions are described in the full version of the 22-23006 manual):
1. DISPLAY TEMP RESOLUTION: This function determines the resolution of the displayed
temperature ( 0.5°C or 0.1°C ).
2. CONTROL ALGORITHM: This function denes how to control the room temperature. Available
options are: ITLC for Underoor Heating / Radiators / Electrical Heating (that’s advanced algorithm for
precise maintenance of room temperature), hysteresis +/-0.5°C or +/-0.25°C, THB Actuator (option
recommended for systems withTHB auto balancing actuators).
3. S1/S2 INPUT: A oor sensor, an external temperature sensor or an occupancy sensor can be
connected to the S1/S2 input of 22-23006RF. Additionally, by connecting a NO type of ON/OFF
voltage-free contact, you can use this input as a OneTouch rules trigger (programmed in the Salus
Smart Home app) or as a Heat/Cool changeover.
4. VALVE PROTECTION: This function activates all actuators once a week for 5 minutes (in summer,
this function helps to prevent the actuators stuck).
6. MIN TURN OFF TIME: Minimum switch-o time (thermostat will not send the signal for
heating/cooling more often than specied in this parameter).
7. OPTIMISATION FEATURE: Optimum Start and Optimum Stop functions are energy saving feature
that makes thermostat most cost eective (in combination with ITLC control algorithm).
9. DEVICE INFORMATION: In this menu user can check: Software Version, RF range value, Paired
devices or also user can activate Identication mode.
*10.FACTORY RESET: HereyoucanRESETyourdeviceto factory settings. After successfull reset
device will be removed from ZigBee network and you will need to add / pair your device again.
8. COMFORT WARM FLOOR: This function helps to keep the oor warm, even if the room is warm
enough and there is no need to turn on the heating. User can select 3 levels of warm oor feature.
Please note it is not an economy feature, as your heating system may be ON even if there is no heating
demand from the room thermostat. It is COMFORT feature which keeps your oor warm all the time.
5. INTERNAL RELAY (COM/NO): Internal relay activation or deactivation with COM/NO outputs use. Default
is enable.
Français Deutsch
Nederlands English

16
Einleitung:
Verwendung in Übereinstimmung mit nationalen und EU-Vorschriften. Verwenden Sie das Gerät wie vorgesehen,
haltenSiees in trockenemZustand.Produktnur für denInnenbereich.Die Installation muss voneinerqualizierten
Person gemäß den nationalen und EU-Vorschriften durchgeführt werden.
Nur mit einem trockenenTuch reinigen.
Der 22-23006 Quantum ist ein ZigBee-Temperaturregler zur Funk Steuerung von Geräten der Smart Home-
Serie, z.B. Die Klemmleiste 22-23013, den TRV10RFM (Thermostatkopf) oder den 22-99995 Kesselsystem-
Empfänger
Um den 22-23006 über das Internet und die mobile SALUS Smart Home-App (ONLINE-Modus) zu regelen,
muss er zusammen mit dem Internet-Gateway 22-99998 (separat erhältlich) installiert werden. Ausgehend von
der Anwendungsebene ist es möglich 22-23006 mit anderen Systemelementen zu verbinden, z.B. Smart Plug
22-99993, Smart Relais 22-99991 oder Fenster- / Türsensor 22-99997.
Der 22-23006 kann lokal ohne Internetverbindung verwendet werden (OFFLINE-Modus). Die Kommunikation
mit anderen Geräten muss jedoch über den CO10RF-Koordinator (separat erhältlich) erfolgen.
Der Thermostat 22-23006 Quantum kann ohne Universal Gateway oder CO10RF Koordinator als eigenständiges
Produktkonformität
Die vollständige PDF-Version der Bedienungsanleitung nden Sie unter www.salus-controls.com
Sicherheitsinformation
Dieses Produkt erfüllt die grundlegenden Anforderungen und sonstigen einschlägigen Bestimmungen
der Richtlinien 2014/30/EU, 2014/35/EU, 2014/53/EU und 2011/65/EU. Der vollständige Wortlaut der EU-
Konformitätserklärung ist unter folgender Internetadresse abrufbar: www.saluslegal.com.
Inhalt:
1)
Der 22-23006 Quantum
Thermostat
2) Schrauben
Bitte trennen Sie immer die 230V Stromversorgung, bevor Sie Komponenten installieren oder daran arbeiten.
Warnung:

17
Der Anfang: Schaltplan (S1, S2 Eingang):
Symbolik:
S – potentialfreie Kontakte
T – Temperatur-Sensor
L, N - 230V AC-Pover-Versorgung
COM, NO - Spannungsfreier Ausgang
S1,S2 Anschlüsse:
- Fern oder Bodenfühler
- Externer potentialfreier Kontakt für jegliche
AN/AUS Schaltung oder Anwesenheitssensor
(Hotel-Schlüsselkarte)
Montage: zur Montage des Thermostats können Sie
mitgeliefertes Zubehör (Befestigungsschrauben)
verwenden. Entfernen Sie die Platte von der Rückseite,
um sie an der Wand zu montieren. Danach einfach
Thermostat auf die Platte legen.
Bitte beachten:
Die ideale Position für die Thermostatmontage ist etwa
1,5 m über dem Boden, weit entfernt von Heiz- oder
Kühlquellen. Thermostat darf weder Sonnenlicht noch
extremen Bedingungen wie Zugluft ausgesetzt werden.
COM
SQ610
NO L
L
230V~,50Hz
S1 S2
N
N
T
S
MM
150 cm
min 20 cm
Wählen Sie den richtige Montageort
AC 230V
Français Deutsch
Nederlands English

18
1. Menü/Einstellung Beschreibung + Uhrzeit
2. AM/PM
3. Temperatur Einheit
4. Heiz-anforderung (Symbol ist animiert bei Heizan
foderung)
5. Kühl-anforderung (Symbol ist animiert bei
Kühlan foderung)
6. Funkverbindungs Indikator
7. Internetverbindungs Indikator
8. Anwesenheitssensor (Hotel Schlüsselkarte)
9. Tastesperre Funnktion
10. Standby-Modus-Symbol
11. AktuelleTemperatur / Sollwerttemperatur
12. Urlaubsmodus
13. Temporärer Override-modus
14. Einstellungssymbol
15. Externe / Boden-Temperatursensor-Anzeige
16. Programmnummer
17. Programm-Modus-Symbol
18. Tagesanzeige/ Einstell-Informationen
19. Aktueller Feuchtigkeitswert
2
8
9
10111214
19
18
17
16
15
1
3
4
5
6
7
13
LCD Symbol Beschreibung

19
Tasten Beschreibung
Tasten Beschreibung
1) Menütaste /Zurücktaste
2) In der Hauptanzeige: Für 3 Sek gedrückt halten um den Betriebsmodus zu ändern (Programm /
Manuell / kurzfristiger Override).
3) Im der Einstellungsanzeige: Für 3 Sek gedrückt halten um zurückzukehren ohne die Änderun-
gen zu speichern.
4) Im Verbindungsbildschirm (SYSTEMTYP Menü) : drücken und halten für 3 Sek um andere
Verbinndungsoptionen zu sehen.
+
In der Hauptanzeige - halten Sie diese Tasten zusammen für 3 Sekunden gedrückt um die
Tasten zu SPERREN / ENTSPERREN .
“Rauf”Taste (Wert erhöhen /Menü nach oben bewegen)
“Runter”Taste (Wert verringern/ Menü nach unten bewegen)
1)“OK / Hacken”Taste (Wert bestätigen / Zum nächsten Menü gehen / Einstellungen speichern).
2)Im der Hauptanzeige: HaltenSie3Sekundenlanggedrückt,um in den Standby-Modus zu wechseln.
3) In der Einstellungsanzeige: Halten Sie für 3 Sek um alle Änderungen zu speichern und zur
Hauptanzeige zurückzukehren.
Taste Funktion
Français Deutsch
Nederlands English

20
KOMPATIBILTY MIT ANDEREN SALUS CONTROLS GERÄTEN
QuantumThermostat kann im ONLINE- oder OFFLINE-Modus arbeiten.
QuantumThermostat kann im ONLINE- oder OFFLINE-Modus arbeiten.
Im ersten Schritt müssen Sie entscheiden, in welchem Modus IhrThermostat funktioniert.
Im ersten Schritt müssen Sie entscheiden, in welchem Modus IhrThermostat funktioniert.
ONLINE MODUS OFFLINE MODUS
Universelles Gateway ist
VERBUNDEN MIT DEM
INTERNET Sie können alle Ihre
Geräte in der Smart Home App
kongurieren und verwenden
Laden Sie die Smart Home
App auf Ihr iOS - oder
Android-Gerät herunter, um
Fernzugri auf Ihre SALUS-
Geräte zu erhalten.
SALUS
Smart Home
CO10RF-Koordinator - Sie können
den Standardmäßigen ZigBee-
Netzwerkkoordinator verwenden,
um Ihre Geräte zu installieren und
zu verwenden.
Universelles Gateway ist NICHT
VERBUNDEN MIT DEM INTERNET
Sie können Ihre Geräte lokal ohne die
SmartHome App verwenden. Gateway
funktioniert in diesem Modus als
Standard-ZigBee-Koordinator.
Kompatible Geräte:
22-23013
Klemmleiste für
8-Zonen-Fußbodenheizung
(UFH).
22-99994
(Thermostatic Radiator
Valve) mit drahtloser
Kommunikation.
22-99995
Empfänger
22-99991*
Smart Relais 22-99993*
Smart Plug
ODER
* 22-23006 Quantum Thermostat kann ohne Koordinatoren arbeiten
*Nur mit Online-Modus
GET IT ON
Download on the
Bitte beachten Sie:
This manual suits for next models
2
Table of contents
Languages:
Popular Temperature Controllers manuals by other brands

Kingspan
Kingspan SC100 Installation and operating instructions

Tactical
Tactical TTC instruction manual

RKC INSTRUMENT
RKC INSTRUMENT REX-F9000 instruction manual

ACS
ACS 3200 Series Custom manual

t.a.c.
t.a.c. I/A MicroNet MN-S Series General instructions

Johnson Controls
Johnson Controls FX-WRZ Series installation instructions

Thermal Care
Thermal Care Aquatherm RQT Premium Operation, installation, and maintenance manual

aci
aci SST2630 Installation and operation instructions

KE2

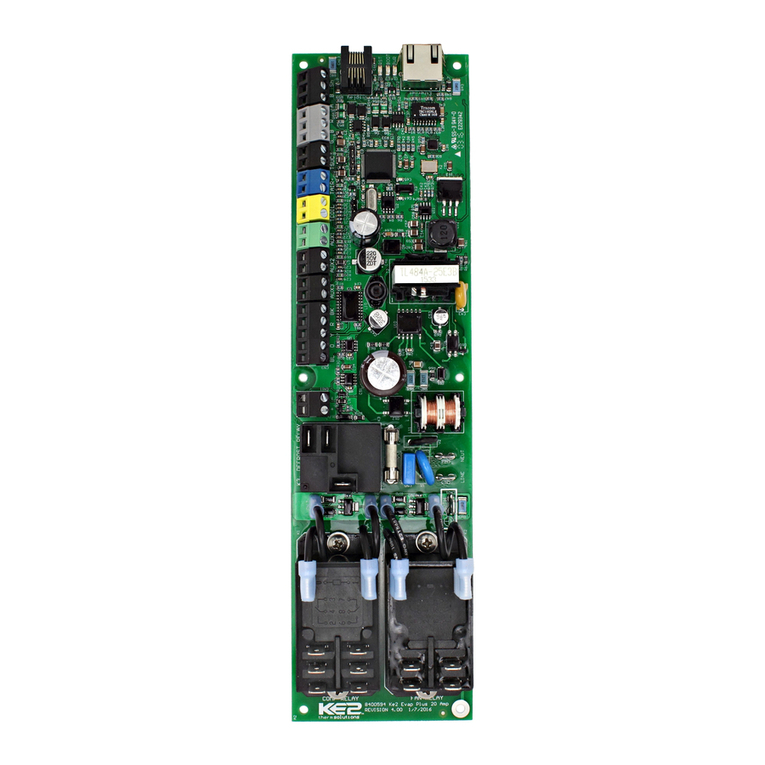

KE2 EvapOEM quick start guide

AKO
AKO AKO-16524A user manual

HYDAC International
HYDAC International HTT 1200S smart instruction manual

Daikin
Daikin BYCQ140E2GW1 Operation manual
