MULTIQUIP Mikasa Series User manual

OPERATION MANUAL
THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.
SERIES
MODEL FU162A
HIGH FREQUENCY INVERTER
Revision #0 (05/12/22)
To find the latest revision of this publication or
associated parts manual, visit our website at:
www.multiquip.com

PAGE 2 — FU162A INVERTER • OPERATION MANUAL — REV. #0 (05/12/22)
PROPOSITION 65 WARNING

FU162A INVERTER • OPERATION MANUAL — REV. #0 (05/12/22) — PAGE 3
TABLE OF CONTENTS
FU162A
High-Frequency Inverter
Proposition 65 Warning ........................................... 2
Safety Information ................................................ 4-7
Specifications ....................................................... 8-9
Dimensions............................................................ 10
General Information............................................... 11
Components ..................................................... 12-13
Inspection .............................................................. 14
Operation.......................................................... 15-17
Maintenance..................................................... 18-20
Troubleshooting ................................................ 21-27
NOTICE
Specifications and part numbers are subject to change
without notice.

PAGE 4 — FU162A INVERTER • OPERATION MANUAL — REV. #0 (05/12/22)
SAFETY INFORMATION
Do not operate or service the equipment before reading
the entire manual. Safety precautions should be followed
at all times when operating this equipment.
Failure to read and understand the safety
messages and operating instructions could
result in injury to yourself and others.
SAFETY MESSAGES
The four safety messages shown below will inform you
about potential hazards that could injure you or others.The
safety messages specifically address the level of exposure
to the operator and are preceded by one of four words:
DANGER, WARNING, CAUTION
or NOTICE.
SAFETY SYMBOLS
DANGER
Indicates a hazardous situation which, if not avoided,
WILL result in DEATH or SERIOUS INJURY.
WARNING
Indicates a hazardous situation which, if not avoided,
COULD result in DEATH or SERIOUS INJURY.
CAUTION
Indicates a hazardous situation which, if not avoided,
COULD result in MINOR or MODERATE INJURY.
NOTICE
Addresses practices not related to personal injury.
Potential hazards associated with the operation of this
equipment will be referenced with hazard symbols which
may appear throughout this manual in conjunction with
safety messages.

FU162A INVERTER • OPERATION MANUAL — REV. #0 (05/12/22) — PAGE 5
SAFETY INFORMATION
GENERAL SAFETY
CAUTION

NEVER operate this equipment without proper protective
clothing, shatterproof glasses, respiratory protection,
hearing protection, steel-toed boots and other protective
devices required by the job or city and state regulations.

NEVER operate this equipment when not
feeling well due to fatigue, illness or when
under medication.

NEVER operate this equipment under the influence of
drugs or alcohol.

ALWAYS check the equipment for loosened threads or
bolts before starting.

DO NOT use the equipment for any purpose other than
its intended purposes or applications.

ALWAYS clear the work area of any debris, tools, etc.
that would constitute a hazard while the equipment is
in operation.
NOTICE

This equipment should only be operated by trained and
qualified personnel 18 years of age and older.

Whenever necessary, replace nameplate, operation and
safety decals when they become difficult read.

Manufacturer does not assume responsibility for any
accident due to equipment modifications. Unauthorized
equipment modification will void all warranties.
NEVER
use accessories or attachments that are not
recommended by Multiquip for this equipment. Damage
to the equipment and/or injury to user may result.
ALWAYS know the location of the nearest
fire extinguisher.
ALWAYS know the location of the nearest
first aid kit.
ALWAYS know the location of the nearest phone or
keep
a phone on the job site.
Also, know the phone numbers
of the nearest ambulance, doctor and
fire department.
This information will be invaluable in the case of an
emergency.

PAGE 6 — FU162A INVERTER • OPERATION MANUAL — REV. #0 (05/12/22)
SAFETY INFORMATION
INVERTER SAFETY
DANGER

NEVER operate the equipment in an explosive
atmosphere or near combustible materials.An
explosion or fire could result causing severe
bodily harm or even death.
CAUTION

NEVER attempt service on a running machine.
NOTICE

ALWAYS keep the machine in proper running condition.

Fix damage to machine and replace any broken parts
immediately.

ALWAYS store equipment properly when it is not being
used. Equipment should be stored in a clean, dry location
out of the reach of children and unauthorized personnel.

USE the inverter away from direct sunlight, dust and rain.
This product is of dust and water proof structure equivalent
to JIS IP56, but if water is splashed during operation or
used on water puddle, damage might occur.

DO NOT use more than theThe maximum number of the
vibrators determined and specified for the inverter. If this
number is exceeded, malfunction of inverter might occur.

DO NOT use electronic devices such as a computer near
the inverter. The noise from the inverter might interfere or
damage such devices.

DO NOT use with generators equipped with GFCI
(Ground-Fault Circuit Interrupter).Replace with a
generator not equipped with GFCI and use it. GFCI has
very high sensitivity and high-speed ground-fault circuit
characteristics (5 ± 1mA, 0.25 seconds), so the inverter
cannot be started.

NEVER use an inverter that cannot be started or stopped
with the circuit protector switch.
ELECTRICAL SAFETY
CAUTION

Prevent body contact with grounded surfaces such as
pipes, reinforcing bar, etc.

When using inverter, always use grounding wire to prevent
electric shock.

Operate inverter only at the specified voltage indicated
on the nameplate.
DO NOT spray water on the machine.
DO NOT
yank the cord to disconnect it from the
receptacle. Grasp the plug itself to disconnect it.
ALWAYS
make sure the circuit protector switch on the
machine is in the OFF position when not in use and
before inserting the power plug into an AC receptacle.
Power Cord/Cable Safety
DANGER
ALWAYS
use a grounded 3-wire extension cord that has
a 3-prong grounding plug, and a 3-pole receptacle that
accepts the plug on the concrete vibrator motor.
DO NOT
REMOVE THE GROUNDING PIN FROM THE PLUG!
NEVER let power cords or cables lay in water.
NEVER use damaged or worn
cables or cords when
connecting equipment to generator. Inspect for cuts in
the insulation.
NEVER grab or touch a live power
cord or cable with wet hands. The
possibility exists of electrical shock,
electrocution or death.

Make sure power cables are securely connected.
Incorrect connections may cause electrical shock and
damage to the vibrator motor.

FU162A INVERTER • OPERATION MANUAL — REV. #0 (05/12/22) — PAGE 7
SAFETY INFORMATION
CAUTION
Ensure that cables and cords will not be tripped over.
NOTICE
ALWAYS make certain that proper power or extension
cord has been selected for the job.
Use only extension cords that are intended for outdoor
use and so marked.
Use only the gauge wire and length of cord recommended
for the motor size. If in doubt, go to the next heavier gauge.
(The smaller the gauge number, the heavier the cord.)
TRANSPORTING SAFETY
NOTICE
Do not pull or lift the inverter by the cable only. Cable
damage and short circuit might occur.
Make the cable into a bundle, then hold the middle handle
of the inverter when transporting or moving. Make sure
that the inverter will not touch the nearby objects such
as iron frames and bars.
ENVIRONMENTAL SAFETY
NOTICE

Dispose of hazardous waste properly.
Examples of potentially hazardous waste
are used motor oil, fuel and fuel filters.
DO NOT use food or plastic containers to dispose of
hazardous waste.
DO NOT pour waste, oil or fuel directly onto the ground,
down a drain or into any water source.

PAGE 8 — FU162A INVERTER • OPERATION MANUAL — REV. #0 (05/12/22)
Table 1. FU162A Specifications
Input
Phase SINGLE PHASE
Voltage V 100 -120 / 220 - 240
Current A 20 / 14
Input kVA 2.0 / 2.8
Frequency Hz 50 / 60
Output
Phase THREE PHASE
Voltage V 48
Current A 19.2
Input kVA 1.6
Frequency Hz 100 - 240
Dimensions (L x W x H) 12.8 x 9.5 x 9.8 in (324 x 240 x 248 mm)
Total Weight 19.2 lb (8.7 Kg)
Number of Receptacles 2
Ambient temperature condition 14° F to 104° F (-10° C to +40° C)
Ambient humidity condition 80% or less (no condensation)
Overload protection CURRENT CONTROL
Machine cooling method FORCED AIR COOLING
SPECIFICATIONS

FU162A INVERTER • OPERATION MANUAL — REV. #0 (05/12/22) — PAGE 9
SPECIFICATIONS
Table 2. Cord Size
Size of Power Cord
Length of Extension Cord
(between inverter and vibrator)
Single phase (100 - 120V) Single phase (220 - 240V)
AWG14 46 ft (14 m) 66 ft (20 m)
AWG12 82 ft (25 m) 115 ft (35 m)
AWG10 125 (38 m) 180 ft (55 m)
AWG8 183 ft (56 m) 262 ft (80 m)
Table 3. Number of Vibrators Allowed
Frequency Inverter
Vibrator
FX30E6 FX40G6 FX50G6 FX60E6
FU162A 4 3 2 1

PAGE 10 — FU162A INVERTER • OPERATION MANUAL — REV. #0 (05/12/22)
DIMENSIONS
Figure 1. FU162A Dimensions
Table 4. Dimensions
Reference Description Measurement
A Length 12.8 in (324 mm)
B Height 9.8 in (248 mm)
C Width 9.5 in (240 mm)
A
B
C

FU162A INVERTER • OPERATION MANUAL — REV. #0 (05/12/22) — PAGE 11
GENERAL INFORMATION
DEFINITION OF INVERTER
The Mikasa FU162A with built-in high frequency induction
motor, is a special inverter to convert single phase AC 80-
130V and single phase AC180-250V power to the voltage
and frequency suitable for use by a high frequency vibrator.
The output frequency can be varied from 100Hz to 240Hz.
This small and light weight inverter is portable, and it is
suitable for use at every concrete casting site.
COMPONENTS
Electric parts other than the external cooling fan, output
outlet and power cable are placed inside the dust and
water proof box. For protection of the box, a pipe frame
is provided.
The power cable led inside the box is connected to the relay
substrate.Via the relay substrate, the cable is connected to
the circuit protector, then to the voltmeter. The output from
the circuit protector is connected to the output outlet via
the rectifier, smoother, inverter circuit, and control circuit.
POWER TRANSMISSION
This machine converts the commercial power or single-
phase AC power from a generator into direct current. The
direct current is then converted again, by electronic control,
to high frequency AC power suitable for a high frequency
vibrator.
Commercial power (single-phase AC) enters through the
power cable, and when the attached breaker switch is
turned on, electric current flows through the circuit. This
current is converted to direct current via the rectifier and
the condenser.This direct current is converted again by the
transistor switching control to alternate current suitable for
a high frequency vibrator. The power is sent to the output
outlet and the power is supplied to the high frequency
vibrator.
APPLICATION AND TECHNIQUES
A high frequency vibrator can be connected to the inverter.
This machine should only be connected to the specified
high frequency vibrators.
As input power source, use general commercial power
and power generator that is equivalent to the general
commercial power. Do not connect to other power sources.
Also, do not use this machine beyond the allowable input
voltage of the inverter. Otherwise, the vibrator and the
inverter will be damaged.
Do not try to connect to a vibrator having a motor with
different specification by altering the plug and the outlet
for connection. The vibrator and the inverter might get
damaged, and also there is a danger of electric shock.

PAGE 12 — FU162A INVERTER • OPERATION MANUAL — REV. #0 (05/12/22)
COMPONENTS
Connector Standard: NEMA 5-20P
Maximum Voltage: 250V
Maximum Current Rating: 20A
1
2
3
4
5
8
7
6
Figure 2. FU162A Controls and Components

FU162A INVERTER • OPERATION MANUAL — REV. #0 (05/12/22) — PAGE 13
COMPONENTS
Figure 2 shows the location of the basic controls and
components of the FU162A Inverter. The function of each
control is described below:
1. Guard Frame — Protects the components of the
frequency inverter.
2. Power Cable —Connects the inverter to the power
plug.
3. Power Plug — Connects to the power source.
4. LED — Green LED lamp lights up when at normal
voltage range. If the green or orange LED lamp is
blinking or the red LED is ON, abnormality in power
source is detected. Stop using immediately.
5. Outlet — Connects the vibrator to the inverter.
6. Frequency Adjustment /Abnormality Display
Switch — The display indicates operation frequency,
input voltage, output current, input current in normal
mode. When there is an abnormality, an error number
is indicated.
7. Circuit Protector Switch — Check to make sure that
the switch is always turned off when machine is not in
use. If you insert the power plug into the power outlet
when switch is turned on, the vibrator connected to
the inverter might start suddenly, which might cause
an accident.
8. Voltmeter Input — Indicates the input voltage. Make
sure voltage is in the green zone.

PAGE 14 — FU162A INVERTER • OPERATION MANUAL — REV. #0 (05/12/22)
INSPECTION
BEFORE STARTING
1. Read safety instructions at the beginning of manual.
2. Check power plug and contact for dirt, rust, deformation
and breakage.
3. Check power cable for wear, crushing, crack, etc.
4. Open the output outlet cover to check inside and
terminal part for dirt, etc. Check bolts and nuts used on
inverter for looseness, deformation, etc. Also check the
output outlet cover for smooth open/close movement.
5. Check circuit protector switch to see if it properly
switches ON and OFF, and the green LED turns ON.
After inspection, always turn the switch OFF.
6. Connect to a vibrator and check to see if the vibrator
operates normally.
7. Check anti-vibration rubber for deformation and cracks.
8. Check conduction resistance between power plug
contacts when circuit protector is OFF.
For safety purpose, the input voltmeter needle moves
when the power plug is inserted into the power source
outlet even if the circuit protector is turned OFF.
Measure conduction resistance between power plug
contacts. The tester needle will point to around 200
to 300Ω. This is the impedance (resistance) of the
voltmeter, not conduction trouble.This value pointed by
the tester may vary slightly depending on the detection
method and accuracy of the tester.

FU162A INVERTER • OPERATION MANUAL — REV. #0 (05/12/22) — PAGE 15
OPERATION
1. Check to see if the power source matches the
specification of this inverter and the voltage is within
the normal voltage range of this product. When a
generator is used, check to see if it is of or above the
rated output shown in Table 6.
2. Connect the power plug to the power source, then
check to see if the voltmeter on the inverter shows a
value within the green zone (Table 6). Always connect
the grounding wire. For single phase 100V outlet of
non-grounding type (without grounding wire), use the
grounding clip attached to the power plug to connect
to the grounding wire.
Table 5. Power Source Specifications
Model Frequency Voltage Current
FU162A
Single-
Phase
(AC)
50/60Hz
100V 20A
120V 16A
200V 14A
240V 10.5A
Table 6. Power Source Voltage
Model Power Source
Specifications
Voltage
Range
FU162A
Single-Phase
50/60Hz 100-120V 80-130V
50/60Hz 220-240V 180-250V
NOTICE
If used at a voltage exceeding values shown in Table 6,
the inverter board and parts may be damaged.
If the voltage used is low, the inverter output gets
lowered and the performance of the concrete vibrator
will also be lowered, making it difficult to do efficient
concrete consolidation. Also, the inverter substrate and
parts might be damaged.
3. Turn on the inverter circuit protector switch (Figure 3).
Make sure that the cooling fan starts and the green LED
lamp lights up (normal voltage range). If the green or
orange LED lamp is blinking or the red LED is lighted,
some abnormality has been detected in the power
source. Stop using immediately and correct the cause
of abnormality before operation.
Figure 3. Circuit Protector Switch
4. When the inverter circuit protector switch is turned on,
frequency (when normal) is displayed at the Frequency
Adjustment/Abnormality Display (Figure 4).
Figure 4. Frequency Display
CIRCUIT PROTECTOR
SWITCH
NOTICE
Do not use the same power source used by the inverter
for other electronic devices such as a computer. The
noise from the inverter causes interference and damage
might occur in the electronic device.
FREQUENCY
DISPLAY

PAGE 16 — FU162A INVERTER • OPERATION MANUAL — REV. #0 (05/12/22)
OPERATION
5. After frequency is displayed, the power source condition
and output current can be checked by pressing the C
button (Figure 4). See for the sequence of displays.

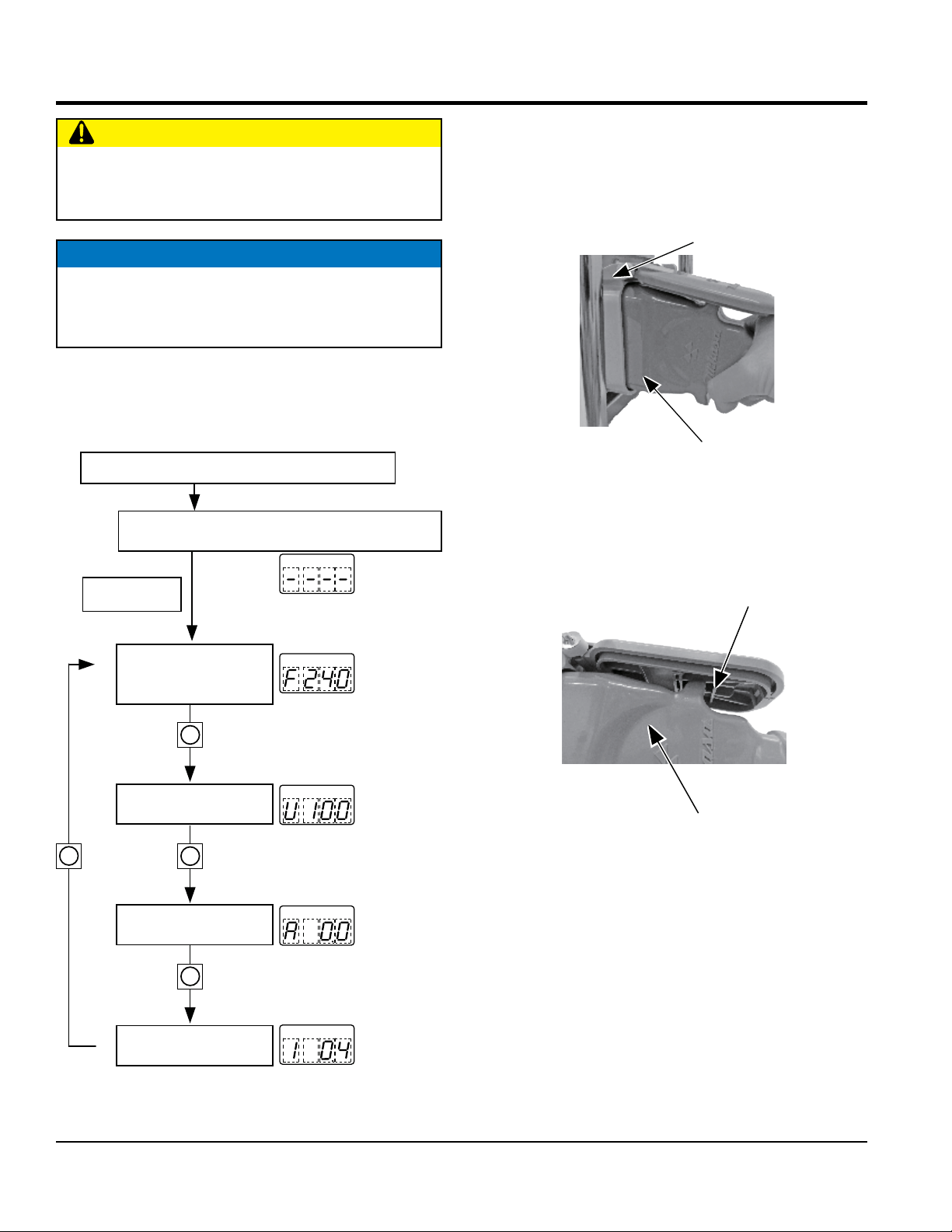

Figure 5. Power Source Condition and Output
Current Check
CAUTION
When using FX Series of high frequency vibrators,
always use the frequency of 240 Hz. Do not set to the
frequency other than 240 Hz.
NOTICE
If error code is indicated on the Frequency Adjustment/
Abnormality Display instead of the frequency, see
section on Abnormality Indication Display Function.
Operation frequency
display
(F240)
Input voltage display
(
Example：
V100)
Output current display
(
Example：
A0.0)
Input current display
(
Example
：
I0.4)
Turn inverter circuit protector switch [ON]
Standby display
（----、Lights up, then goes out immediately）
①
⑤
④
③
②
C
C
C
C
NORMAL
6. Make sure that the switch of the work machine
(vibrator), is turned off.
7. Insert the male plug of the work machine securely into
the end of the inverter output outlet (Figure 6).
Figure 6. Connecting Work Machine to Inverter
8. Check to see if the output outlet cover claw is properly
engaged into the male plug, and it does not come off
when pulled lightly (Figure 7).
Figure 7. Output Outlet Cover Claw
9. Hold the hose and hang the vibration head (vibrator
end portion) of the vibrator. When doing so, make sure
there is no person or obstacle nearby and it is safe to
operate.
10. After reconfirming that the inverter input side power
voltage is in the normal voltage range and the green
LED lamp is lighted, turn the switch of vibrator on one
after another to start casting.
11. During your work if the vibrator starts to pulsate and the
green LED lamp starts to blink or the red LED lights up,
VIBRATOR PLUG
INVERTER OUTLET
VIBRATOR PLUG
OUTLET COVER CLAW

FU162A INVERTER • OPERATION MANUAL — REV. #0 (05/12/22) — PAGE 17
abnormality might have occurred in the power source
or in the machine. Correct the cause of the trouble
before resuming work.
12. After the casting work is finished, turn off the switch of
vibrator one at a time.
13. Unplug the vibrator male plug from the inverter output
side outlet. Because the output outlet cover claw is
catching the plug, raise the cover to disengage the
claw before unplugging (Figure 8).
Figure 8. Raising the Output Outlet Cover
14. Turnoff the inverter circuit protector switch and unplug
the power plug (Figure 9). When unplugging, do not
hold the cable. Problems such as cable breakage
might occur.
Figure 9. Inverter Power Plug
VIBRATOR PLUG
OUTPUT OUTLET COVER
Power plug
for single phase 250V
ABNORMALITY INDICATION DISPLAY FUNCTION
After the inverter circuit protector switch is turned on and
an error occurs, error code is displayed on the Frequency
Adjustment/Abnormality Display. If that happens, check the
description of the error and correct the cause of abnormality.
See Figure 10 for Error Sequence.

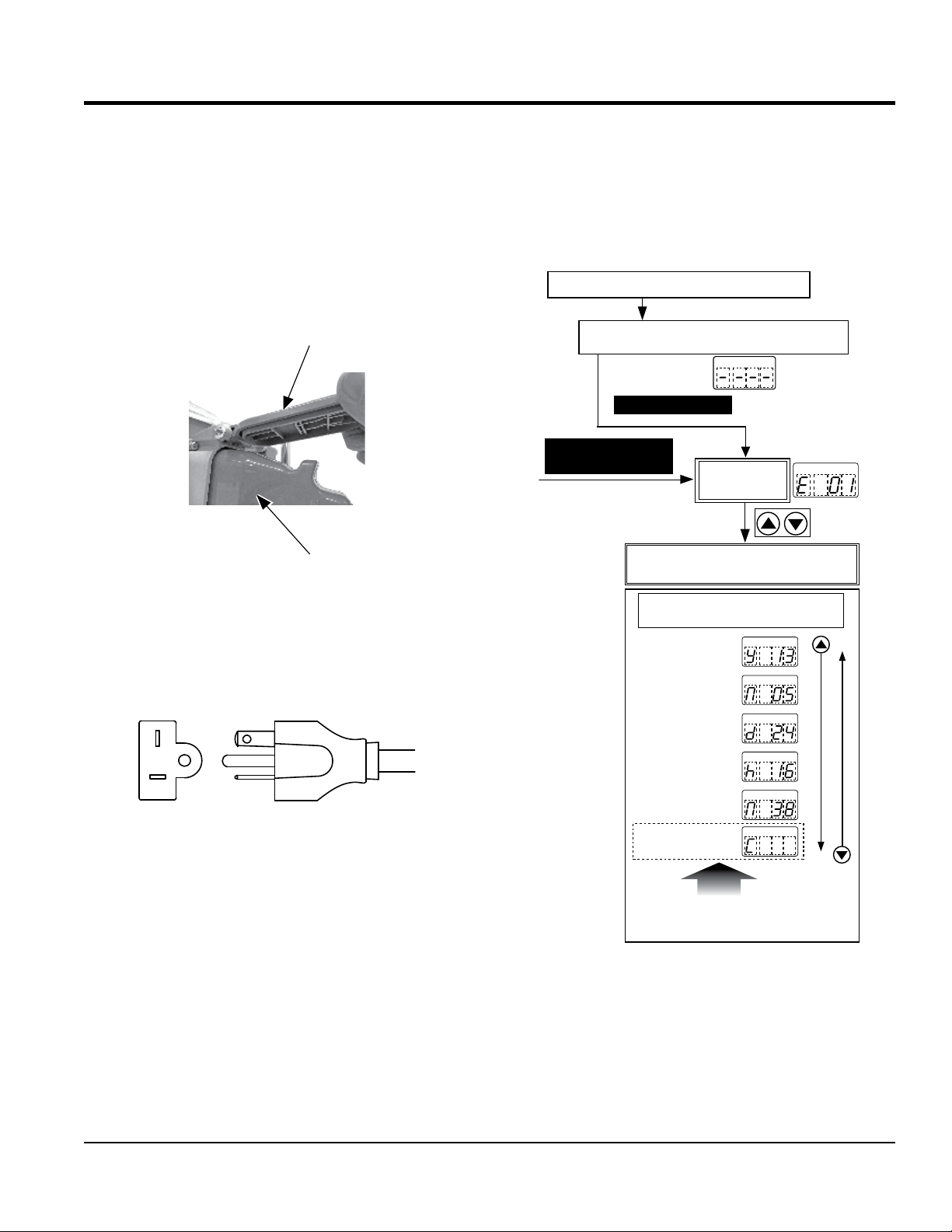

Figure 10. Error Display
15. For details of error display, please refer to Error List
Table.
16. After the cause of the error is corrected or removed,
the regular display appears automatically.
Turn inverter circuit protector switch [ON]
Standby display
（----、Lights up, then goes out immediately）
①
（Automatic display）
（Automatic
display）
Error display
(
Example： E01)
Error date check
(Error occurrence date/time can be checked)
Example of date and time
Ｙ：
M：
Ｄ：
H
M：
C：Temperature
(Celsius)
Years
( Example
：
2013)
Month
( Example
：
May)
Day
( Example
：
24)
Hour
( Example
：
16)
Minute
( Example
：
38)
( Example： May 24 2013 16:38)
●
Temperature display is shown only
when “E04” error (internal overheating
occurs.
ERROR (at start)
ERROR
(during operation)
OPERATION

PAGE 18 — FU162A INVERTER • OPERATION MANUAL — REV. #0 (05/12/22)
MAINTENANCE
Check the following items before and after use.
1. Check power plug and contact for dirt, rust, deformation
and breakage.
2. Check power cable for wear, crushing, crack, etc.
3. Open the output outlet cover to check inside for dirt.
4. Check terminal part for dirt.
5. Check bolts and nuts used on inverter for looseness
or deformation. Also check the output outlet cover for
smooth open/close movement.
6. Check circuit protector switch to see if it properly
switches ON and OFF, and that the green LED turns
ON. After inspection, always turn the switch to OFF.
7. Connect to a vibrator and check to see if the vibrator
operates normally.
8. Check anti-vibration rubber for deformation and crack.
While doing concrete consolidation, promptly remove the
concrete that splashes on the inverter. When washing the
inverter with water, pay attention to the following point. Do
not wash with water if there is deformation or breakage on
the inverter, or when the female panel outlet cover does
not close securely.
1. Check the bolts, screws, switches and input cable of
the inverter for looseness.
2. Check the parts of the inverter (front panel, switch
panel, top surface cover, side surface cover) for
deformation and crack. If there is deformation or
breakage, dust and water proofing performance will be
lowered, and water might enter inside during washing
with water, leading to trouble of electronic parts.
3. Check the output side outlet cover to make sure it
closes. if it does not close properly, water might enter
inside through the terminal part. When washing, close
the output side outlet.
4. When washing, keep the inverter in the upright position
while splashing water from the top. If washed with the
inverter set on its side or put upside down, the cooling
fan will be immersed in water, leading to malfunction of
the fan. Do not put water nozzle directly to the intake/
exhaust holes at the bottom.
5. Pay attention to the amount and pressure of the water
used for washing to maintain them at the level specified
by JIS standard IP56. See Notice.
NOTICE
The first number “5 (IP5X)” indicates class 5 of dust
proof structure protection class (no effect on machine
when exposed in talc dust for 8 hours), and the ending
number “6 (IPX6)” indicates class 6 of water proof
performance protection class (no abnormality in the
machine when the machine body installed normally is
injected with water from outside from every direction for
more than 3 minutes at a rate of 100 liter per surface
area of 1m2per minute with a water spray nozzle having
a diameter of 12.5 mm positioned 2.5 to 3.0 m away
from the machine body).
CAUTION
After washing, wipe off the water and let the inverter dry.
Wipe off water also from the inside of the output side
outlet cover and the terminal holes. If there is remaining
water, electric shock and electric leak might occur.

FU162A INVERTER • OPERATION MANUAL — REV. #0 (05/12/22) — PAGE 19
MAINTENANCE
INPUT POWER VOLTAGE CONDITION/
ABNORMALITY INDICATION FUNCTION
Input power voltage condition display function
The FU162A inverter has three-color high-intensity LED
lamps on the panel outlet side of the main unit, to display
input power voltage condition and inverter abnormality in
four different modes. In addition, at the time of abnormality,
the frequency display function on the back surface of the
inverter is switched to LED to show error situation. See
Table 7.
As a function of the FU162A, in addition to the blinking
of LED lamp, the vibrator will be pulsated by the inverter
control when the power source voltage is abnormally low
to warn the worker of abnormality by sound and vibration.
Table 7. Input Power Voltage Condition
Input
Voltage
LED
Status
Voltage Current
Single Phase
100 - 120V
Single Phase
220 - 240V
Normal
voltage
Green
ligh ONt About 80 - 130V About 180 - 250V
Warning
voltage
Green
Blinking
About 70 - 80V
and
About 130 - 140V
About 160 - 180V
and
About 250 - 260V
Abnormal
voltage
Orange
Blinking
About 60 - 70V*
and
About 140 - 160V
About 140 - 160V
and
About 260 - 270V
Stop
voltage
Red
Light ON
About 60V or less and
About 270V or more
(Error display: E01,E02)
* High frequency vibrator • self vibrating motor pulsates.
NOTICE
When the power source is a generator and there is a
waveform feed or damage/wear problem with the the
generator, you might not be able to get a proper reading
of the display functions.This is an issue of the generator
and not the inverter.
Table 8. Abnormality Indication Display Function
Abnormal
Condition
LED
Status
Description of
Display
(lighting)
Error
Display
FU162A
Load Side
Abnormality
or
Machine Body
Abnormality
Red light
ON
Input voltage drop E01
Load short E03 or
E13
Internal
overheating E04
Power source
electric leak E05*
External fan
malfunction E08
Abnormality
(substrate trouble,
etc)
E15 -
E26
Green light
ON Battery error E14
* If leakage has begun, there are times when error memory E05 is insufficient power supply time.

PAGE 20 — FU162A INVERTER • OPERATION MANUAL — REV. #0 (05/12/22)
MAINTENANCE
Table 9. Error Countermeasures
Error
(LED Display) Description LED Status Machine Behavior Countermeasure
Inverter restart
method and
required action
E01 Blinking Input low voltage Red light ON Output stop
Power source
inspection/
replacement
Inspection/replacement
E02 Lights up
and immediately
goes out
Input high voltage
Red light ON and
immediately
goes off
Inverter stop and
circuit protector
OFF
Power source
inspection/
replacement
Circuit protector
ON again
E03 Blinking Output overcurrent Red light ON Output stop
Machine body
inspection/repair
and replacement
Circuit protector OFF
then ON again
E04 Blinking Internal overheating Red light ON Output stop External fan and
other inspection
After machine cools
down,circuit protector
OFF then ON again
E05 Lights up
and immediately
goes out
Power source electric
leak
Red light ON and
immediately goes
off
Inverter stop and
circuit protector
OFF
Electric leakage
location, inspection
and repair, or
power source
change
Circuit protector
ON again
E08 Blinking External fan
malfunction Red light ON Output stop External fan inspection/change
Circuit protector OFF
then ON again
E14 Blinking Battery charging
capacity insufficient Green light ON ______ Installed battery change _______
E15 - E26
Blinking
Abnormality of
machine body Red light ON
Inverter stop and
circuit protector
OFF
Immediately stop
using, machine
body inspection
and repair
Inspection or repair
without doing restarting
