MULTIQUIP WHISPERWELD SGW-250SS User manual

© COPYRIGHT 2001, MULTIQUIP INC.
MQ POWER
PARTS AND OPERATION MANUAL
WHISPERWELD
TM
DC WELDER/AC GENERATOR
Model SGW-250SS
Revision #2 (08/08/01)
MULTIQUIP INC. PARTS DEPARTMENT:
18910 WILMINGTON AVE. 800-427-1244
CARSON, CALIFORNIA 90746 FAX: [phone]
310-537-3700 SERVICE DEPARTMENT:
800-421-1244 800-478-1244
FAX: [phone] FAX: [phone]
E-mail:[email protected] •www:multiquip.com
Parts No. D2845200004A

PAGE 2 — SGW-250SS DC WELDER/AC GENERATOR— PARTS & OPERATION MANUAL — REV. #2 (08/08/01)

SGW-250SS DC WELDER/AC GENERATOR — PARTS & OPERATION MANUAL — REV. #2 (08/08/01) — PAGE 3
HERE'S HOW TO GET HELP
PLEASE HAVE THE MODEL AND SERIAL NUMBER
ON-HAND WHEN CALLING
PP
PP
PARAR
ARAR
ARTS DEPTS DEP
TS DEPTS DEP
TS DEP
ARAR
ARAR
ARTMENTTMENT
TMENTTMENT
TMENT
800/427-1244 or 310/537-3700
FAX: [phone] or 310/637-3284
SERSER
SERSER
SERVICE DEPVICE DEP
VICE DEPVICE DEP
VICE DEPARAR
ARAR
ARTMENTTMENT
TMENTTMENT
TMENT
800/835-2551 or 310/537-3700
FAX: [phone]
WW
WW
WARRANTY DEPARRANTY DEP
ARRANTY DEPARRANTY DEP
ARRANTY DEPARAR
ARAR
ARTMENTTMENT
TMENTTMENT
TMENT
800/835-2551 or 310/537-3700
FAX: [phone]
MAINMAIN
MAINMAIN
MAIN
800/421-1244 or 310/537-3700
FAX: [phone]

PAGE 4 — SGW-250SS DC WELDER/AC GENERATOR— PARTS & OPERATION MANUAL — REV. #2 (08/08/01)
TABLE OF CONTENTS
Here's How To Get Help ............................................ 3
Table Of Contents ..................................................... 4
Parts Ordering Procedures ....................................... 5
Rules For Safe Operation ...................................... 6-7

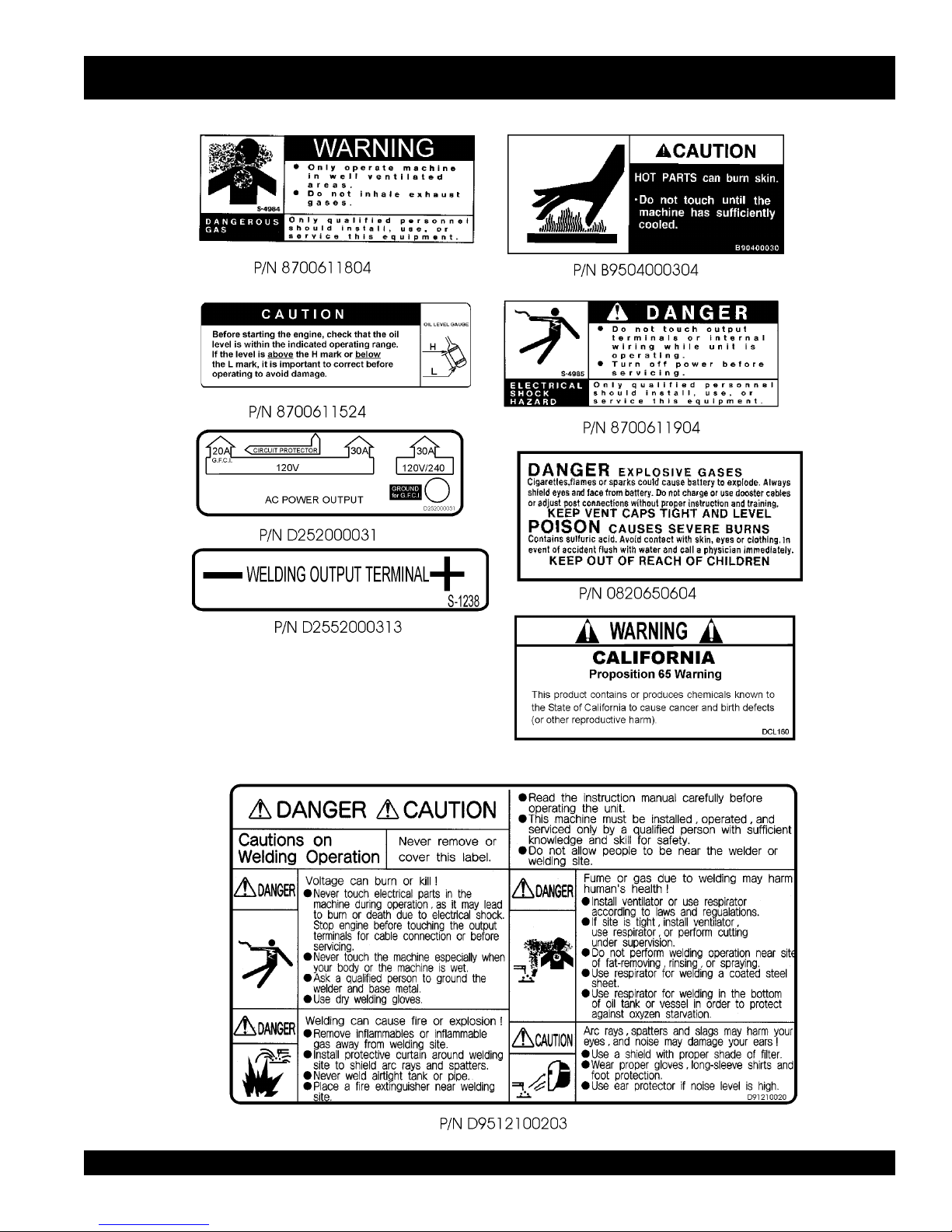

Operation and Safety Decals ................................. 8-9
Specifications .......................................................... 10
General Information ................................................ 11

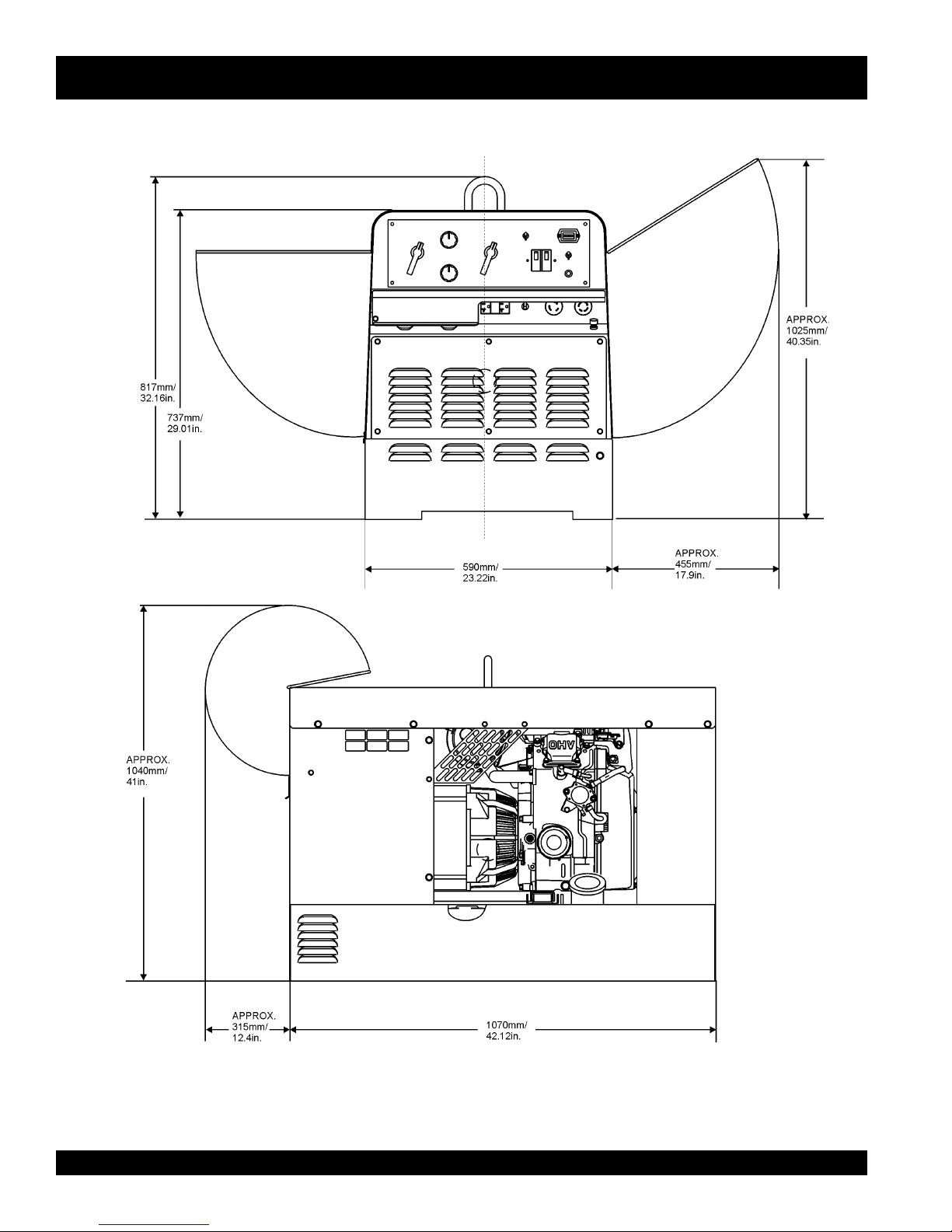

Dimensions ............................................................. 12

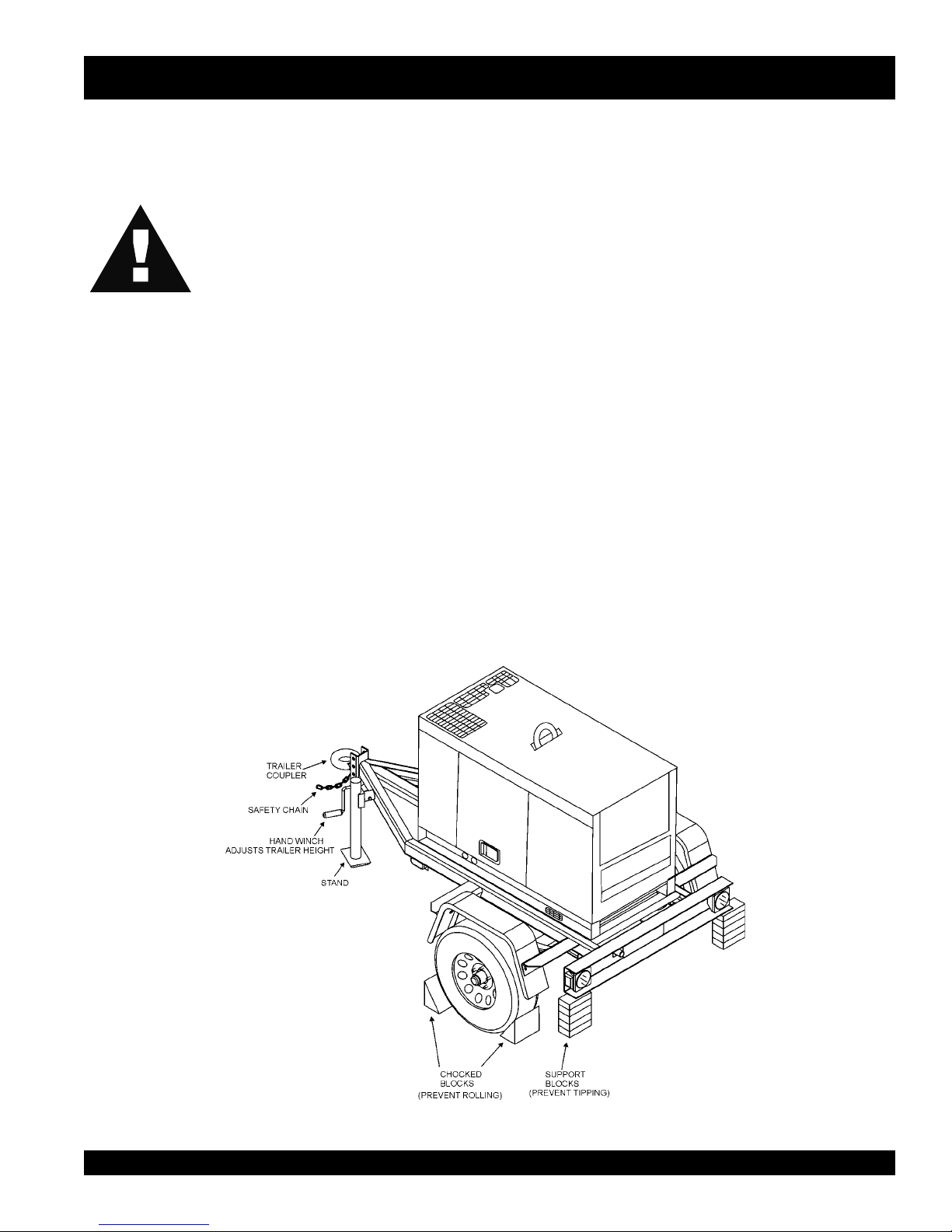

Trailer Safety Guidelines .................................... 13-17

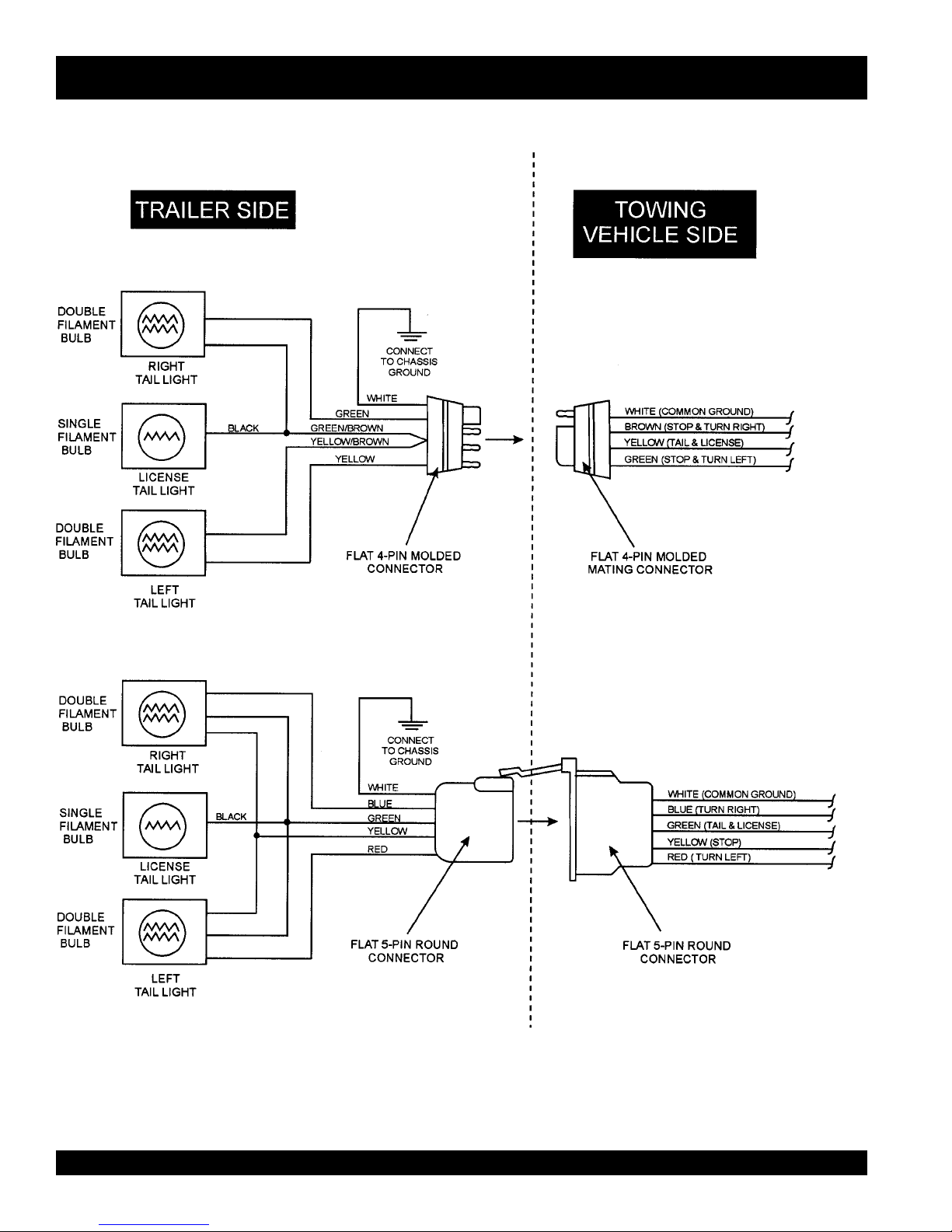

Trailer Wiring Diagram............................................. 18
Towing ..................................................................... 19
Controls and Indicators ...................................... 20-21
Installation ............................................................... 22
Pre-Setup ........................................................... 23-25
Instrumentation ....................................................... 26
Load Application ..................................................... 27
Welder Operating Instructions ........................... 28-30
Engine Operating Instructions ................................ 31
Maintenance ...................................................... 32-33
Preparation For Long Term Storage ....................... 34
Engine/Generator Wiring Diagram .......................... 35
Troubleshooting (Welder) ....................................... 36
Troubleshooting (Engine) ................................... 37-39
Explanation Of Codes In Remarks Column ............ 40
Suggested Spare Parts ........................................... 41
MQ Power SGW-250SS—
DC Welder/AC Generator
Generator Assembly .......................................... 42-43
Control Panel Assembly ..................................... 44-47
Electric Parts Assembly...................................... 48-49
Battery Assembly ............................................... 50-51
Tail Pipe Assembly ............................................. 52-53
Fuel Tank Assembly ........................................... 54-55
Enclosure Assembly ........................................... 56-57
Name Plate And Decals ..................................... 58-59
NOTE
Specification and part numberSpecification and part number
Specification and part numberSpecification and part number
Specification and part number
are subject to change withoutare subject to change without
are subject to change withoutare subject to change without
are subject to change without
noticenotice
noticenotice
notice..
..
.
Honda GX610VXD Engine
Cylinder Head Assembly ....................................60-61
Cylinder Barrel Assembly ...................................62-63
Crankcase Cover Assembly ............................... 64-65
Crankshaft Assembly .........................................66-67
Piston Assembly .................................................68-69
Camshaft Assembly ........................................... 70-71
Fan Cover Assembly .......................................... 72-73
Carburetor Assembly .........................................74-75
Air Cleaner Assembly......................................... 76-77
Muffler Assembly ...............................................78-79
Fuel Pump Assembly ......................................... 80-81
Flywheel Assembly ............................................82-83
Ignition Coil Assembly ........................................84-85
Starter Motor Assembly .....................................86-87
Control Assembly ............................................... 88-89
Terms and Conditions Of Sale — Parts .................. 90

SGW-250SS DC WELDER/AC GENERATOR — PARTS & OPERATION MANUAL — REV. #2 (08/08/01) — PAGE 5
PARTS ORDERING PROCEDURES
Get special freight allowances
when you order 10 or more
line items via FAX!**
■ UPS Ground Service at no charge for freight
■ PS Third Day Service at one-half of actual freight cost
No other allowances on freight shipped by any other carrier.
**Common nuts, bolts and washers (all items under $1.00 list price)
do not count towards the 10+ line items.
*DISCOUNTS ARE SUBJECT TO CHANGE*
Fax order discount and UPS special programs revised June 1, 1995
Earn Extra Discounts when
you order by FAX!
All parts orders which include complete part numbers
and are received by fax qualify for the following extra
discounts:
Number of
line items ordered Additional Discount
1-9 items 3%
10+ items** 5%
Now! Direct TOLL-FREE access
to our Parts Department!
Toll-free nationwide:
800-421-1244
Toll-free FAX:
800/6-PARTS-7 • 800-672-7877
■Dealer account number
■Dealer name and address
■Shipping address (if different than billing address)
■Return fax number
■Applicable model number
■Quantity, part number and description of each part
■Specify preferred method of shipment:
•UPS Ground
•UPS Second Day or Third Day*
•UPS Next Day*
•Federal Express Priority One (please provide us with your Federal
Express account number)*
•Airborne Express*
•Truck or parcel post
*Normally shipped the same day the order is received, if prior to 2PM west coast time.
Extra Fax Discount
for Domestic USA
Dealers Only

PAGE 6 —SGW-250SS DC WELDER/AC GENERATOR—PARTS & OPERATION MANUAL —REV. #2 (08/08/01)

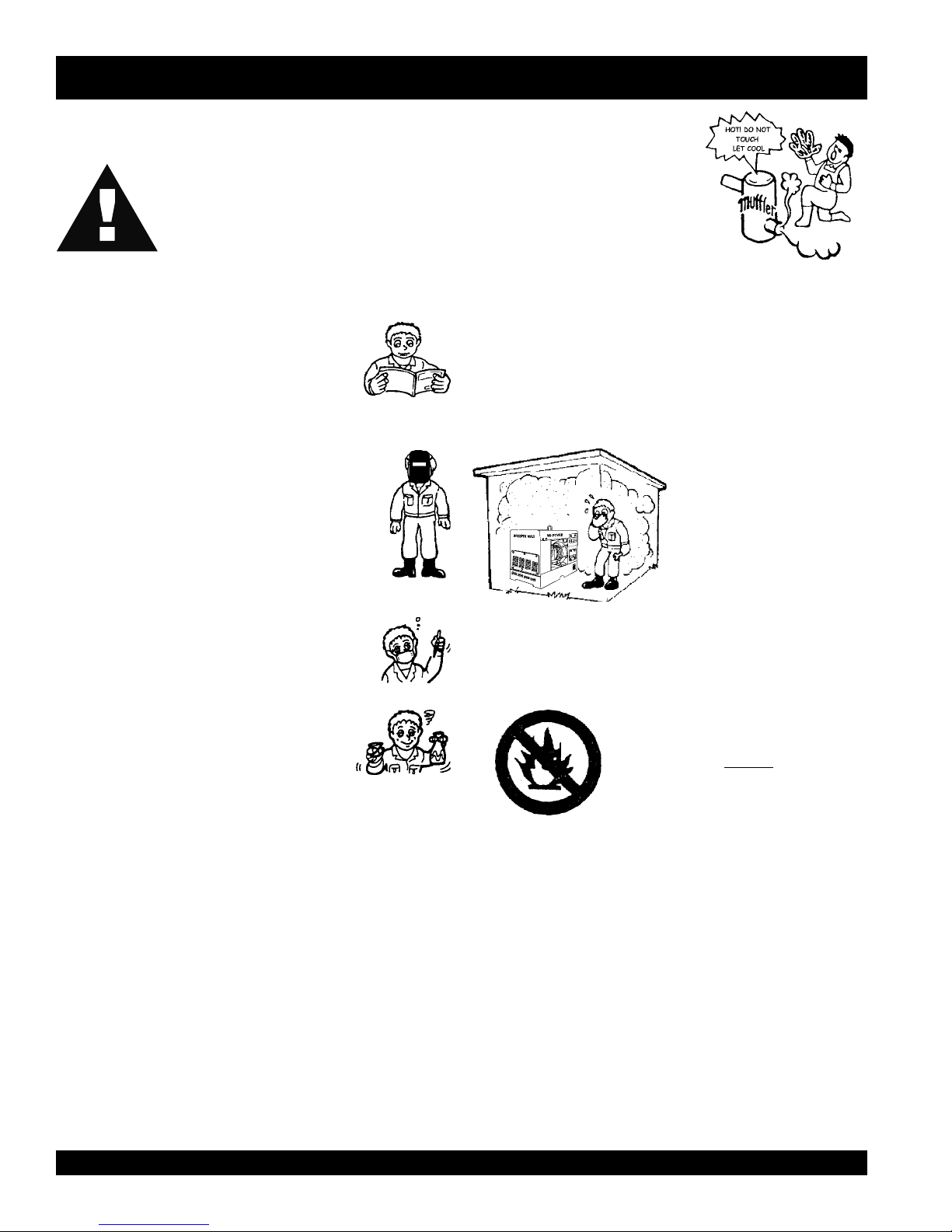

RULES FOR SAFE OPERATION
CAUTION:
Failure to follow instructions in this manual may
lead to serious injury or even death! This
equipment is to be operated by trained and
qualified personnel only! This equipment is for
industrial use only.
The following safety guidelines should always be used when
operating the SGW-250SS Welder/AC Generator :
GENERAL SAFETY
■ DO NOT operate or service this equipment before
reading this entire manual.
■ This equipment should not be operated by
persons under 18 years of age.
■ NEVER operate this equipment without proper
protective clothing, shatterproof glasses, steel-
toed boots and other protective devices required
by the job.
■ NEVER operate this equipment when not feeling
well due to fatigue, illness or taking medicine.
■ NEVER operate this equipment under the
influence or drugs or alcohol.
■ NEVER use accessories or attachments, which are not
recommended by MQ Power for this equipment. Damage to
the equipment and/or injury to user may result.
■ Manufacture does not assume responsibility for any accident
due to equipment modifications.
■ Whenever necessary, replace nameplate, operation and
safety decals when they become difficult read.
■ Always check the machine for loosened threads or bolts
before starting.
■ Always refuel in a well-ventilated area, away from sparks and
open flames.
■ Always use extreme caution when
working with flammable liquids. When
refueling, stop the engine and allow it
to cool. DO NOT smoke around or near
the machine. Fire or explosion could
result from fuel vapors, or if fuel is
spilled on a hot engine.
■ NEVER operate the generator in an explosive atmosphere
or near combustible materials. An explosion or fire could
result causing severe
bodily harm or even death.
■ Topping-off to filler port is dangerous, as it tends to spill
fuel.
■ NEVER touch the hot exhaust
manifold, muffler or cylinder. Allow
these parts to cool before servicing
engine or generator.
■ The engine of this welder/generator requires an adequate
free flow of cooling air. Never operate the generator in any
enclosed or narrow area
where free flow of the air is
restricted. If the air flow is
restricted it will cause serious
damage to the welder/
generator engine and may
cause injury to people.
Remember the welder/
generator's engine gives off
DEADLY carbon monoxide
gas.
■ High Temperatures –Allow the engine to cool before
adding fuel or performing service and maintenance
functions. Contact with
hot components can cause serious
burns.

SGW-250SS DC WELDER/AC GENERATOR —PARTS & OPERATION MANUAL —REV. #2 (08/08/01) —PAGE 7
CAUTION:
This generator is a source of providing
LETHAL high voltages. Never permit
unqualified personnel-especially children to
operate the generator.
■ Always refuel in a well-ventilated
area, away from sparks and open flames.
■ This generator is equipped with a
ground terminalground terminal
ground terminalground terminal
ground terminal for your
protection. Always complete the grounding path from the
generator to an external grounding source.
■ NEVER operate this generator, or handle any electrical
equipment while standing in
ww
ww
waterater
aterater
ater, while bare f, while bare f
, while bare f, while bare f
, while bare foot, whileoot, while
oot, whileoot, while
oot, while
hands are wet, or in the rain.hands are wet, or in the rain.
hands are wet, or in the rain.hands are wet, or in the rain.
hands are wet, or in the rain. Dangerous electrical shock
could occur causing severe bodily harm or even death.
■ Keep electrical cords in good condition.Worn, bare or frayed
wiring can cause electrical shock, thus causing
bodily harm
or even death.
■ This generator requires an adequate free flow of cooling
air. Never operate the generator in any enclosed or narrow
area where free flow of the air is restricted. If the air flow is
restricted it will cause serious damage to the generator and
may cause injury to people.
■ NEVER touch the hot exhaust manifold, muffler or cylinder.
Allow these parts to cool before servicing generator.
■ Provide adequate ventilation when operating the generator.
DO NOT operate the generator in any enclosed or narrow
space. The gasoline engine that provides power to the
generator gives off DEADLY monoxide gas.
■ Always make sure the welder/ generator is secure on level
ground so that it cannot slide or shift around, endangering
workers. Also keep the immediate area free of bystanders.
■ HighTemperatures –Allow the machine and engine to cool
before adding fuel or performing service and maintenance
functions. Contact with
hot components can cause serious
burns.
CAUTION:
Emergencies
Always know the location of the nearest
firefire
firefire
fire
extinguisherextinguisher
extinguisherextinguisher
extinguisher
and
first aid kitfirst aid kit
first aid kitfirst aid kit
first aid kit . Know the
location of the nearest telephone. Also know
the phone numbers of the nearest
ambulanceambulance
ambulanceambulance
ambulance ,
doctordoctor
doctordoctor
doctor and
fire departmentfire department
fire departmentfire department
fire department .
Maintenance Safety
■ NEVER lubricate components or attempt service on a running
machine.
■ Always allow the machine a proper amount of time to cool
before servicing.
■ Keep the machinery in proper running condition.
■ Fix damage to the machine immediately and always replace
broken parts.
■ Dispose of hazardous waste properly. Examples of
potentially hazardous waste are used motor oil, coolant, fuel
and fuel filters.
■ DO NOT use plastic containers to dispose of hazardous
waste.
■ DO NOT pour waste, oil, coolant, or fuel directly onto the
ground, down a drain or into any water source.
RULES FOR SAFE OPERATION

PAGE 8 —SGW-250SS DC WELDER/AC GENERATOR—PARTS & OPERATION MANUAL —REV. #2 (08/08/01)
OPERATION AND SAFETY DECALS

SGW-250SS DC WELDER/AC GENERATOR —PARTS & OPERATION MANUAL —REV. #2 (08/08/01) —PAGE 9

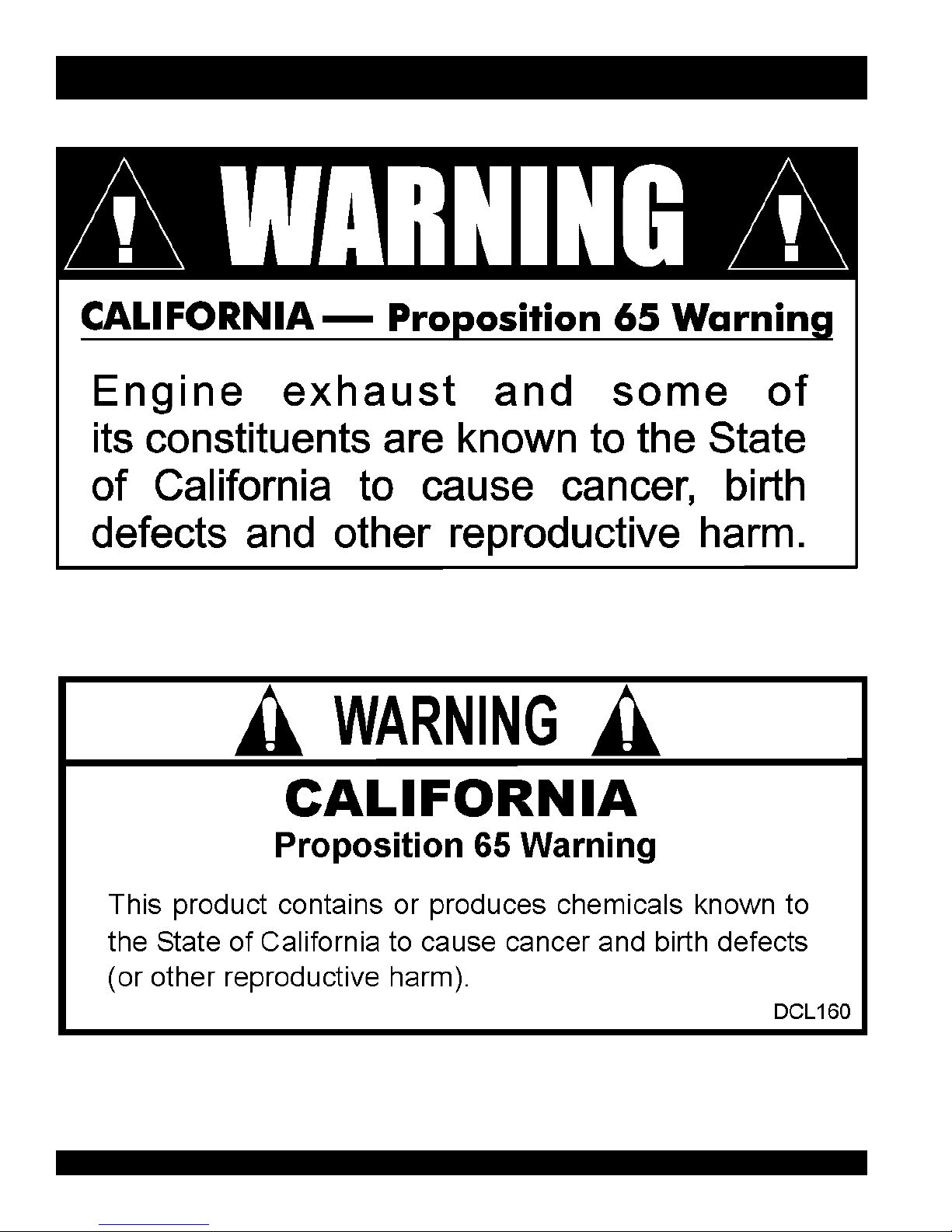

OPERATION AND SAFETY DECALS
P/N DCL160

PAGE 10 —SGW-250SS DC WELDER/AC GENERATOR—PARTS & OPERATION MANUAL —REV. #2 (08/08/01)
SGW-250SS —SPECIFICATIONS
The maximum output of the engine listed above is applicable to supplying electrical power for continuous service at ambient
conditions in accordance with SAE Test cord J607. The above ambient conditions are at standard sea level, with a barometric
reading of 29.92 inches and a temperature of 60 degrees fahrenheit.
Generally, the engine output power will decrease 3 1/2% for each 1000 feet of altitude above sea level, and 1% for each 10
°°
°°
°
F
fahrenheit above the standard temperature of 60
°°
°°
°
F
snoitacificepS.1elbaT
snoitacificepSredleW
)CC/VC(tuptuOdetaRWk6.5/0.4
)CC(tnerruCdetaRspmA002
)CC/VC(egatloVdetaRstloV82/02
elcCtuD%001
deepSdetaRmpr/0063
egnaRegatloVstloV82-51
egnaRtnerruCspmA522-05
snoitacificepSrotareneG
esahPesahPelgniS
seriW)dednuorGlartueN(seriW-3
tuptuOdetaRWk2.7
egatloVdetaRstloV042/021
cneuqerFzH06
rotcaFrewoP0.1
gnitaRsuounitnoC
snoitacificepSenignE
ledoMDXV016XGADNOH
epTVHO,EKORTS-4
tuptuOdetaR PH4.41/Wk7.01
mpr0063@
tnemecalpsiD)cc416(ni.uc5.73
metsSgnilooCriadecroF
metsSgnitratStratScirtcelE
ticapaCknaTleuFsretil83/lag01
ticapaCliOebuLsretil5.1/lag04.0
:noitpmusnoCleuF
gnidleWVC.rh/)sretil15.3(lag39.0
gnidleWCC.rh/)sretil22.4(lag11.1
rewoPCA.rh/)sretil83.4(lag61.1
rettaBhA53-V21
leuFenilosaGdedaelnU
)HxWxL(snoisnemiD mm518x095x0701
)ni1.23x2.32x1.24(
thgieWrD)gk152(.sbl355

SGW-250SS DC WELDER/AC GENERATOR —PARTS & OPERATION MANUAL —REV. #2 (08/08/01) —PAGE 11
SGW-250SS —GENERAL INFORMATION
SGW-250SS FAMILIARIZATION
Generator
The MQ Power Model SGW-250SS welder/generator can
provide 200 amps of welding current when in the CV/DC
mode and 250 amps of welding current when in the CC/DC
mode. When used as a generator it can provide a maximum
of 7,200 watts of power.
Control Panel
The
control panelcontrol panel
control panelcontrol panel
control panel is provided with the following:
z One GFCI 120 volt receptacle, 30 amp (single-phase)
z One 120 volt receptacle, 30 amp (single-phase)
z One 120/240 volt receptacle, 30 amp (single-phase)
z Main Circuit Breaker 265V @25 Amps
z Circuit Protector Breaker (GFCI) 120V @20 Amps
z Idle Control Switch
z Starter Switch
z Starter Button
z Hour Meter
z Ground Terminal
Welder Protection System
In the event of an overload, this welder/generator is equipped
with an welder protection system . If an overload is detected
while operating the welder/generator, the welder protection
system will shut down the engine.
Oil Pressure Warning Alarm
In the event of low oil pressure (engine), this welder/generator
is equipped with an engine protection fail safe system . If
low oil pressure is detected while operating the welder/
generator, the engine protection system will shut down the
engine.
If this condition (low oil pressure) should occur, please refer
to the engine troubleshooting table in this manual.
Excitation System
The SGW-250SS welder/generator uses a brushless
exciter to create rated output electricity. This system will
use the mechanical energy generated by the 3600 RPM
engine to spin the rotor (or armature) inside the generator
(or alternator end).
The motion created by the rotor (which holds copper coils)
spins inside a housing of permanent magnets called the
"STATOR". A magnetic field is created by the stator and
produces an electrical current.
Engine
The SGW-250SS is powered by an air-cooled, 4-cycle
HONDA gasoline engine. This engine is designed to meet
every performance requirement for generator. Reference
Table 1, page 9 for engine specifications.
In keeping with MQ Power's policy of constantly improving
its products, the specifications quoted herein are subject to
change without prior notice.
Figures 2 and 3 (pages 14-15) show the basic controls and
indicators for the SGW-250SS welder/generator.

PAGE 12 —SGW-250SS DC WELDER/AC GENERATOR—PARTS & OPERATION MANUAL —REV. #2 (08/08/01)
Figure 1. SGW-250SS Dimensions
SGW-250SS —DIMENSIONS

SGW-250SS DC WELDER/AC GENERATOR —PARTS & OPERATION MANUAL —REV. #2 (08/08/01) —PAGE 13
Explanation of Chart:
This section is intended to provide the user with trailer ser-
vice and maintenance information. The service and main-
tenance guidelines referenced in this section apply a wide
range of trailers. Remember periodic inspection of the trailer
will ensure safe towing of the equipment and will prevent
damage to the equipment and personal injury.
It is the purpose of this section to cover the major mainte-
nance components of the trailer. The following trailer com-
ponents will be discussed in this section:
 Brakes
 Tires
 Lug Nut Torquing
 Suspension
 Electrical
 Brake Troubleshooting Tables
Use the following definitions with reading Table 2.
1. Fuel Cell - Provides an adequate amount of fuel for
the equipment in use. Fuel cells must be empty when
transporting equipment.
2. Braking System - System employed in stopping the
trailer. Typical braking systems are electric, surge, hy-
draulic, hydraulic-surge and air.
3. GVWR- Gross Vehicle Weight Rating (GVWR), is the
maximum number of pounds the trailer can carry, in-
cluding the fuel cell (empty).
SGW-250SS —TRAILER-SAFETY GUIDELINES
4. Frame Length - This measurement is from the ball
hitch to the rear bumper (reflector).
5. Frame Width - This measurement is from fender to
fender.
6. Jack Stand - Trailer support device with maximum
pound requirement from the tongue of the trailer.
7. Coupler - Type of hitch used on the trailer for towing.
8. Tire Size - Indicates the diameter of the tire in inches
(10,12,14, etc.), and the width in millimeters
(175,185,205, etc.). The tire diameter must match the
diameter of the tire rim.
9. Tire Ply - The tire ply (layers) number is rated in letters;
2-ply,4-ply,6-ply, etc.
10. Wheel Hub - The wheel hub is connected to the trailer’s
axle.
11. Tire Rim - Tires mounted on a tire rim. The tire rim must
match the size of the tire.
12. Lug Nuts - Used to secure the wheel to the wheel hub.
Always use a torque wrench to tighten down the lug
nuts. See Table 4 and Figure 5 or lug nut tightening and
sequence.
13. Axle - Indicates the maximum weight the axle can sup-
port in pounds, and the diameter of the axle expressed
in inches (see Table 3). Please not that some trailers
have a double axle. This will be shown as 2-6000 lbs.,
meaning two axles with a total weight capacity of 6000
pounds.
14. Suspension - Protects the trailer chassis from shocks
transmitted through the wheels. Types of suspension
used are leaf, Q-flex, and air ride.
15. Electrical - Electrical connectors (looms) are provided
with the trailer so the brake lights and turn signals can
be connected to the towing vehicle.
16. Application - Indicates which units can be employed
on a particular trailer.
CAUTION:
ALWAYS make sure the trailer is in good
operating condition. Check the tires for
proper inflation and wear. Also check the
wheel lug nuts for proper tightness.

PAGE 14 —SGW-250SS DC WELDER/AC GENERATOR—PARTS & OPERATION MANUAL —REV. #2 (08/08/01)
SGW-250SS —TRAILER-SPECIFICATIONS
snoitacificepS.1elbaT
LEDOM NOITACILPPA LEUF
LLEC
EKARB
METSYS
RWVG EMARF
HTGNEL
EMARF
HTDIW
KCAJ
DNATS
W01-RLRT ,522WDS
003WLT,052WGS
ONONSBL0091"69"05.BL008
LEEHWTLITLLUF
01-RLRT ,21GLT,01ACD
51-ACD
ONONSBL0091"69"05.BL008
LEEHWTLITLLUF
FX01-RLRT ,21-GLT,01ACD
003-WLT,51ACD
LAG25ONSBL0091"69"05.BL008
LEEHWTLITLLUF
W522-RLRT ,SREDLEW
SS0007AD
ONONSBL0022"58"24.BL008
LEEHWTLITLLUF
004WLB-RLRT 004-WLBONCIRTCELESBL0072"451TSAM/W
"421O/W
"55
)LLAT"87(
.BL008
LEEHWTLITLLUF
X05-RLRT 52-ACDONONSBL0072"421"55.BL008
LEEHWTLITLLUF
FX05-RLRT 52-ACDLAG14ONSBL0072"421"55.BL008
LEEHWTLITLLUF
W07-RLRT 07,06-,54-ACDONEGRUSSBL0007"681"77.BL0002
DAPTALF
X07-RLRT 07,06-,54-ACDTPOEGRUSSBL0007"831"66.BL0002
DAPTALF
FX07-RLRT 07,06-,54-ACDLAG35EGRUSSBL0007"831"66.BL0002
DAPTALF
FX001-RLRT 521,001-ACDLAG051EGRUSCILUARDYHSBL0007"091"67.BL0002
DAPTALF
521/58-RLRT ,001,58-ACD
521
LAG541CILUARDYHSBL00001"681"77.BL0002
DAPTALF
FX051-RLRT 081,051-ACDLAG002EGRUSCILUARDYHSBL06111"402"48.BL0005
DAPTALF
FX022-RLRT 022-ACDLAG052EGRUSCILUARDYHSBL00041"222"38.BL0005
DAPTALF
FX003-RLRT 003-ACDLAG052EGRUSCILUARDYHSBL00081"832"38.BL0005
DAPTALF
FX004-RLRT 004-ACDLAG053CIRTCELESBL00081"832"38.BL0005
DAPTALF
FX006-RLRT 008,006-ACDLAG055RIASBL00003"483"69.BL0005
DAPTALF
XS008-RLRT 008,006-ACDLAG055RIASBL00003"483"69.BL0005
DAPTALF

SGW-250SS DC WELDER/AC GENERATOR —PARTS & OPERATION MANUAL —REV. #2 (08/08/01) —PAGE 15
)t'noC(snoitacificepS.1elbaT
LEDOM RELPUOC SERIT SLEEHW ELXA SBUH NOISNEPSUS LACIRTCELE
W01-RLRT SSALCLLAB"2
ELBATSUJDA2
C31-571"05.4X"312X2#0022GUL5FAEL3/WMOOLERIW4
TALFELOP4
01-RLRT SSALCLLAB"2
ELBATSUJDA2
C31-571"5.4X"312X2#0022GUL5FAEL3TALFELOP4
FX01-RLRT SSALCLLAB"2
ELBATSUJDA2
C31-571"5.4X"312X2#0022GUL5FAEL3TALFELOP4
W522-RLRT SSALCLLAB"2
ELBATSUJDA2
B31-571"5.4X312X2#0022GUL5XELFQTALFELOP4
WLB-RLRT
004
SSALCLLAB"2
ELBATSUJDA2
C31-571"5.4X312X2#0022GUL5FAEL3TALFELOP4
X05-RLRT SSALCLLAB"2CRL31-87B"05.4X"31.sbl0053
"8/3-2
GUL5FAEL4REBBURELOP4
TALF
FX05-RLRT SSALCLLAB"2CRL31-87B"05.4X"31.sbl0053
"8/3-2
GUL5FAEL4REBBURELOP4
TALF
W07-RLRT SSALCLLAB"2
ELBATSUJDA"3
C41-502
)4(SAIB
"5X"41.sbl0053
"3
GUL5FAEL5REBBURELOP4
TALF
X07-RLRT SSALCLLAB"2
ELBATSUJDA"3
C41-502
)4(SAIB
"5X"41sbl0053
"3
GUL5FAEL5REBBURELOP4
TALF
FX07-RLRT SSALCLLAB"2
ELBATSUJDA"3
C41-502
)4(SAIB
"5X"41.sbl0053
"3
GUL5FAEL5REBBURELOP4
TALF
FX001-RLRT 6/5-2ELBATSUJDA
EYE"3TPO
C51-502
)4(SAIB
"5.5X"41sbl0053
"3
GUL5FAEL5MOOLERIW4
521/58-RLRT 6/5-2ELBATSUJDA
EYE"3TPO
D51R57/522TS
)4(LAIDAR
"6x"41sbl0006-)2(GUL6FAEL7MOOLERIW4
FX051-RLRT EYELLAB"3E61-057
)4(SAIB
"7X"61sbl0006-)2(GUL8FAEL7MOOLERIW4
FX022-RLRT EYE"3
ELBATSUJDA
E61R58/532TS
)4(LAIDAR
"7X"61sbl0007-)2(GUL8XELFQMOOLERIW4
FX003-RLRT EYE"3
ELBATSUJDA
E61R58/532TS
)6(LAIDAR
"7X"61sbl0006-)2(GUL8XELFQMOOLERIW4
FX004-RLRT EYE"3
ELBATSUJDA
E61R58/532TS
)6(LAIDAR
"7X"61.sbl0007-)3(GUL8XELFQMOOLERIW4
FX006-RLRT LEEHWHT5H5.71R57/512TS
)8(LAIDAR
"7X"61sbl00001-)3(GUL8FAEL7MOOLERIW6
RA008-RLRT LEEHWHT5H5.71R57/512TS
)8(LAIDAR
"7X"61sbl00001-)3(GUL8EDIR-RIAMOOLERIW6
SGW-250SS —TRAILER-SPECIFICATIONS

PAGE 16 —SGW-250SS DC WELDER/AC GENERATOR—PARTS & OPERATION MANUAL —REV. #2 (08/08/01)
Tires/Wheels/Lug Nuts
Tires and wheels are a very important and critical
components of the trailer. When specifying or replacing the
trailer wheels it is important the wheels, tires, and axle are
properly matched.
CAUTION:
DO NOT attempt to repair or modify a
wheel. DO NOT install in inner tube to
correct a leak through the rim. If the rim
is cracked,
the air
pressure in
the inner tube may cause pieces
of the rim to explode (break off)
with great force and cause serious
eye or bodily injury.
Tire Wear/Inflation
Tire inflation pressure is the most important factor in tire life.
Pressure should be checked cold before operation DO NOT
bleed air from tires when they are hot. Check inflation
pressure weekly during use to insure the maximum tire life
and tread wear.
Table 3 (Tire Wear Troubleshooting) will help pinpoint the
causes and solutions of tire wear problems.
CAUTION:
NOTE
ALWAYS wear safety glasses when removing
or installing force fitted parts. Failure to
comply may result in serious injury.
Suspension
The leaf suspension springs and associated components
(Figure 2) should be visually inspected every 6,000 miles for
signs of excessive wear, elongation of bolt holes, and
loosening of fasteners. Replace all damaged parts
(suspension) immediately. Torqued suspension components
as detailed in Table 4.
SGW-250SS —TRAILER SAFETY GUIDELINES
Figure 2. Major Suspension Components

SGW-250SS DC WELDER/AC GENERATOR —PARTS & OPERATION MANUAL —REV. #2 (08/08/01) —PAGE 17
stnemeriuqeReuqroTnoisnepsuS.4elbaT
metI ).sbL-.tF(euqroT
TLOB-U"8/353-XAM03-NIM
TLOB-U"61/706-XAM54-NIM
TLOB-U"2/106-XAM54-NIM
SHACKLE BOLT
SPRING EYE BOLT
SNUG FIT ONLY . PARTS MUST ROTATE FREELY .
LOCKING NUTS OR COTTER PINS ARE PROVIDED TO
RETAIN NUT
- BOLT ASSEMBLY .
SHOULDER TYPE
SHACKLE BOLT
05-XAM03-NIM
stnemeriuqeReuqroTeriT.5elbaT
eziSleehWssaPtsriF
SBL-TF
ssaPdnoceS
SBL-TF
ssaPdrihT
SBL-TF
"2152-0204-5356-05
"3152-0204-5356-05
"4152-0206-05021-09
"5152-0206-05021-09
"6152-0206-05021-09
Lug Nut Torque Requirements
It is extremely important to apply and maintain proper wheel
mounting torque on the trailer. Be sure to use only the
fasteners matched to the cone angle of the wheel. Proper
procedure for attachment of the wheels is as follows:
1. Start all wheel lug nuts by hand.
2. Torque all lug nuts in sequence. See Figure 3. DO NOT
torque the wheel lug nuts all the way down. Tighten
each lug nut in 3 separate passes as defined by Table 5.
3. After first road use, retorque all lug nuts in sequence.
Check all wheel lug nuts periodically.
NOTE
NEVER use an pneumatic air gun to
tighten wheel lug nuts.
SGW-250SS —TRAILER SAFETY GUIDELINES
Figure 3. Wheel Lug Nuts Tightening Sequence

PAGE 18 —SGW-250SS DC WELDER/AC GENERATOR—PARTS & OPERATION MANUAL —REV. #2 (08/08/01)
SGW-250SS —TRAILER-WIRING DIAGRAM

SGW-250SS DC WELDER/AC GENERATOR —PARTS & OPERATION MANUAL —REV. #2 (08/08/01) —PAGE 19
SGW-250SS —TOWING
To reduce the possibility of an accident while transporting
the generator on public roads, always make sure the trailer
(Figure 4) and the towing vehicle are in good operating
condition and both units are mechanically sound.
The following list of suggestions should be used when towing
your generator:
CAUTION :
Towing Safety Precautions
■ ALWAYS attach trailer's safety chain to bumper of towing
vehicle.
■ ALWAYS make sure the vehicle and trailer directional,
backup, brake, and trailer lights are connected and are
working properly.
■ The maximum speed (unless otherwise posted) for highway
towing is 45 MPH. Recommended off-road towing is not to
exceed 10 MPH or less, depending on type of terrain.
■ Place chocked blocks underneath wheel to prevent
rollingrolling
rollingrolling
rolling,
while parked.
■ Place support blocks underneath the trailer's bumper to
prevent
tippingtipping
tippingtipping
tipping , while parked.
■ Use the trailer's hand winch to adjust the height of the trailer,
then insert locking pin to lock wheel stand in place, while
parked.
■ Avoid sudden stops and starts.This can cause skidding, or
jackknifing. Smooth, gradual starts and stops will improve
gas milage.
■ Avoid sharp turns to prevent rolling.
■ Remove wheel stand when transporting.
■ DO NOT transport generator with fuel in tank.
Check with your county or state safety
towing regulations department before
towing your generator. Vehicle towing
codes and regulations can vary from state
to state.
■ Make sure the hitch and coupling of the towing vehicle are
rated equal to, or greater than the trailer "gross vehicle weight
rating" (GVWR).
■ ALWAYS inspect the hitch and coupling for wear. NEVER
tow a trailer with defective hitches, couplings, chains etc.
■ Check the tire air pressure on both the towing vehicle and
the trailer. Also check the tire tread wear on both vehicles.
■ ALWAYS make sure the trailer is equipped with a "Safety
Chain".
Figure 4. Welder/AC Generator and Towing Trailer

PAGE 20 —SGW-250SS DC WELDER/AC GENERATOR—PARTS & OPERATION MANUAL —REV. #2 (08/08/01)
Figures 5 and 6 show the location of the controls and indicators.
The functions of each control or indicator is described below
and on the preceding page.
1. Welding Type (Wire/Stick) Selector Switch (CV/CC) –
Turn this selector switch to either the CV or CC for
welding. DO NOT turn this switch under load.
2. Current Range Selector Switch (CV/CC) –Turn this
selector switch to either the CV or CC for welding. DO
NOT turn this switch under load.
3. Current Control (CC) Adjustment Knob –Use this
control to adjust welding current. Low scale (50~120 amps),
High scale (90~250 amps). This function will not work in
the CV mode.
4. Voltage Control (CV) Adjustment Knob –Use this
control to adjust the welding voltage. This function will not
work in the CC mode.
5. Idle Control Switch –Regulates the engine speed when
the generator is under load.
6. Hour Meter –Indicates number of hours the welder has
been in use or engine has been running.
7. Oil Filler Port –Use this port when adding oil to the
engine.
8. Engine Air Cleaner –Prevents dirt and other debris
from entering the fuel system. Lift locking latch on air
filter cannister to gain access to filter element.
9. Main Circuit Breaker –This 2-pole circuit breaker provides
circuit protection (265V @30 amps) for the electric parts.
10. ON/OFF Switch –This switch is used to start and stop the
engine. Must be in th ON position (up) when starting the
engine. Place in the OFF position (down) to stop the engine.
11. Start Button –Press and hold this push-button switch
until the engine has started. The ON/OFF switch must be
in the‘ON’position in order for the start push-button switch
to start the engine.
12. Oil Filter –Provides oil filtering for the engine.
13. Fuel Cap –Remove this cap to add fuel. Add only clean
unleaded fuel. Always keep an adequate amount of fuel
in the tank. DO NOT top off. Wipe up any spilled fuel
immediately.
14. Battery Terminals –Connect these terminals to the
battery. Always pay close attention to the polarity of the
terminals when connecting to the battery, RED (positive),
and BLACK (negative).
15. Battery –Provides +12 VDC power for the generator.
When replacing battery (12V 35 AH) use only
recommended type battery.
Figure 5. SGW250SS Components 1
MQ POWER
ON
IDLECONTROL
OFF
ON
OPERATION
SWITCH
OFF
AC CIRCUIT
BREAKER
HONDA
POWERED by
POWERED by
MQ POWER
START
BUTTON
WHISPERWELD
SGW-250SS
QUARTZ
HOURMETER
MQ POWER
Power Source Professionals.
4
1
3 2 56
11
9
10
15
12
7 8
13
14
SGW-250SS —CONTROLS AND INDICATORS
