Multiva FX6000 User manual

Operation and maintenance manual  
Seed drill
FX6000
Translation of the original manual
EN

Table of contents
6
6
6
7
8
8
9
10
10
12
15
17
17
19
19
20
20
21
22
22
23
24
24
25
26
26
28
29
30
31
33
33
33
34
35
35
38
40
42
42
43
44
47
47
48
49
49
50
1. Foreword . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.1. Purpose of the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.2. Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.3. Type plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.4. Liability terms and conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

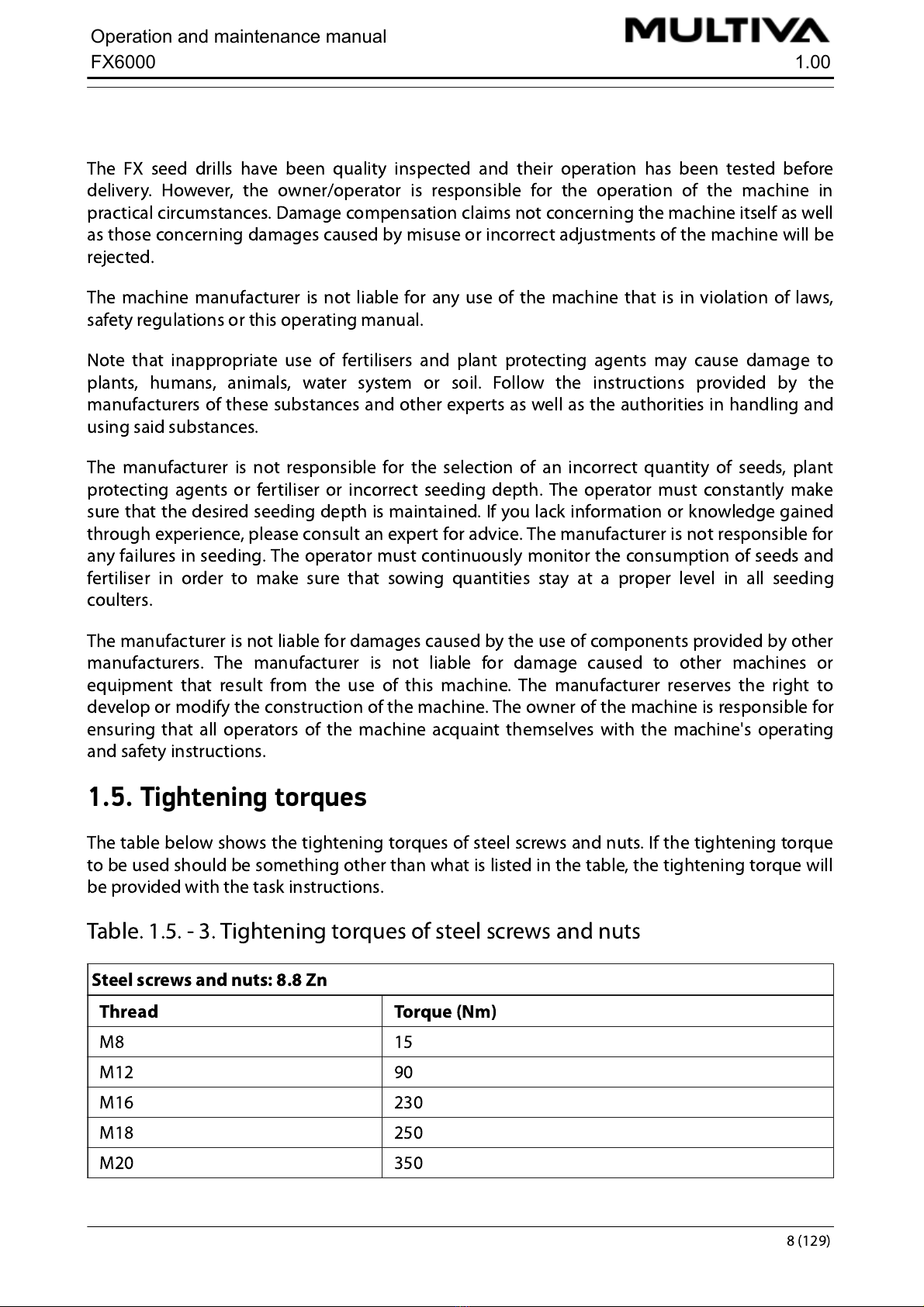

1.5. Tightening torques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

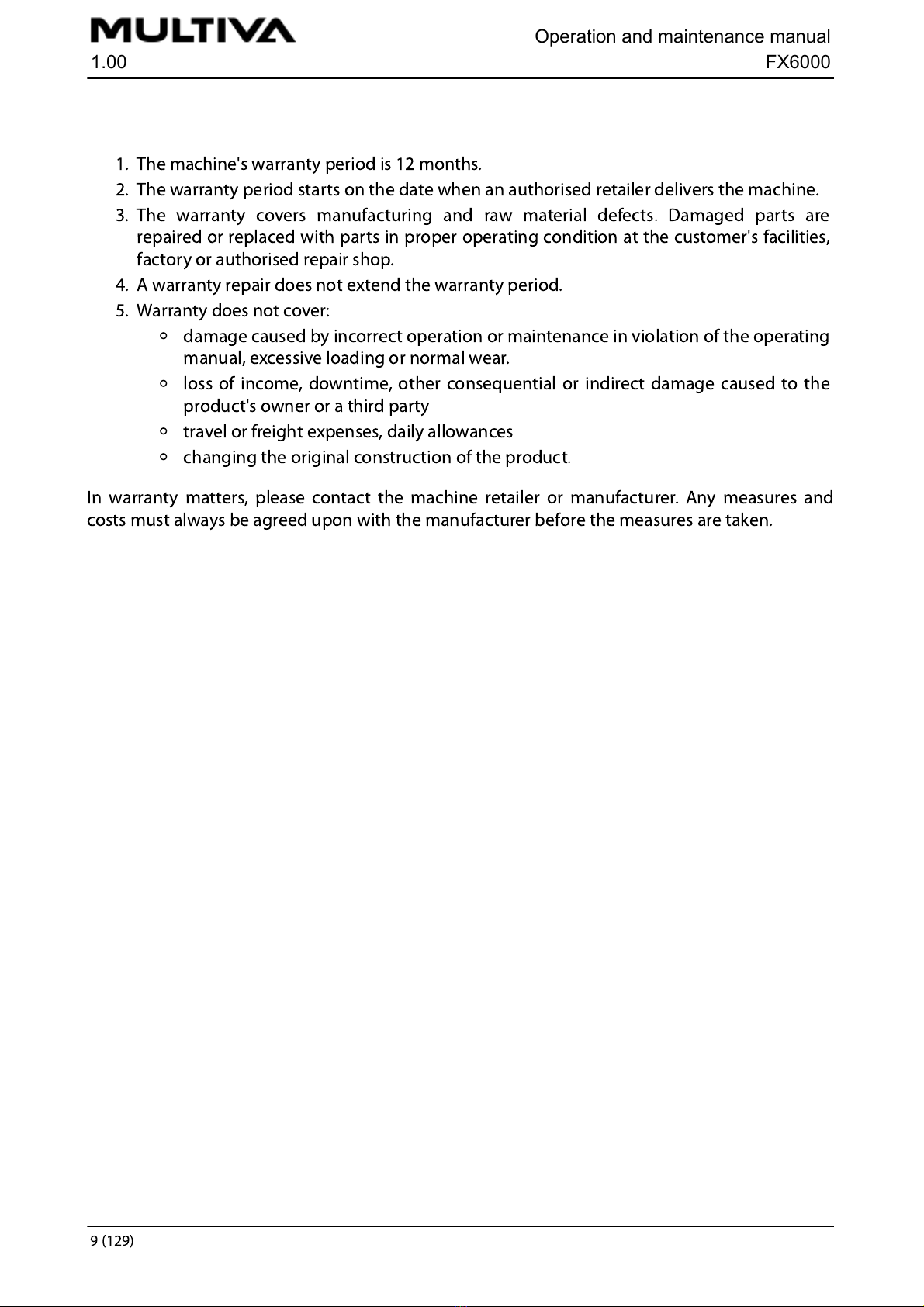

2. Warranty terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3. Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1. Residual risks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

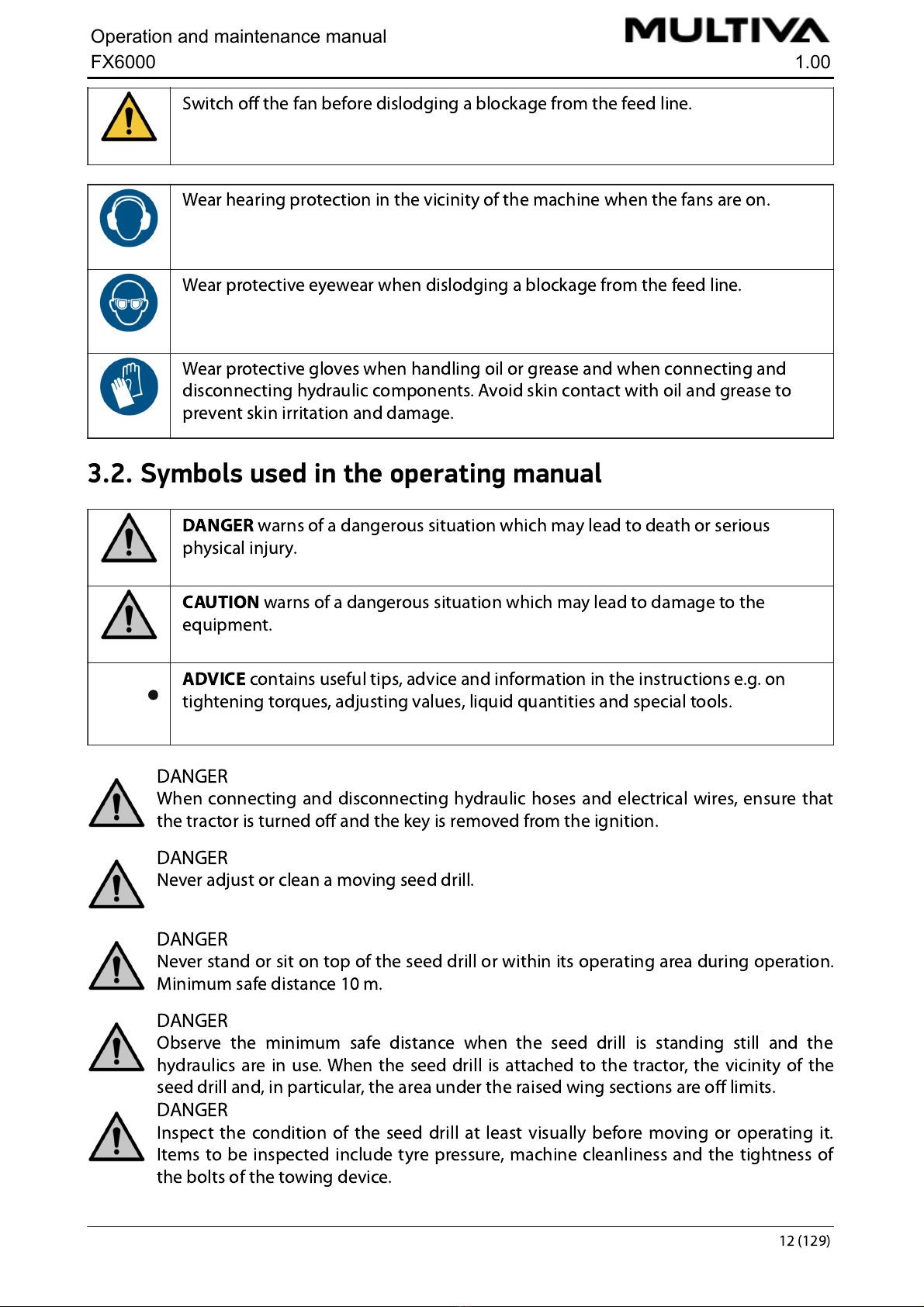

3.2. Symbols used in the operating manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

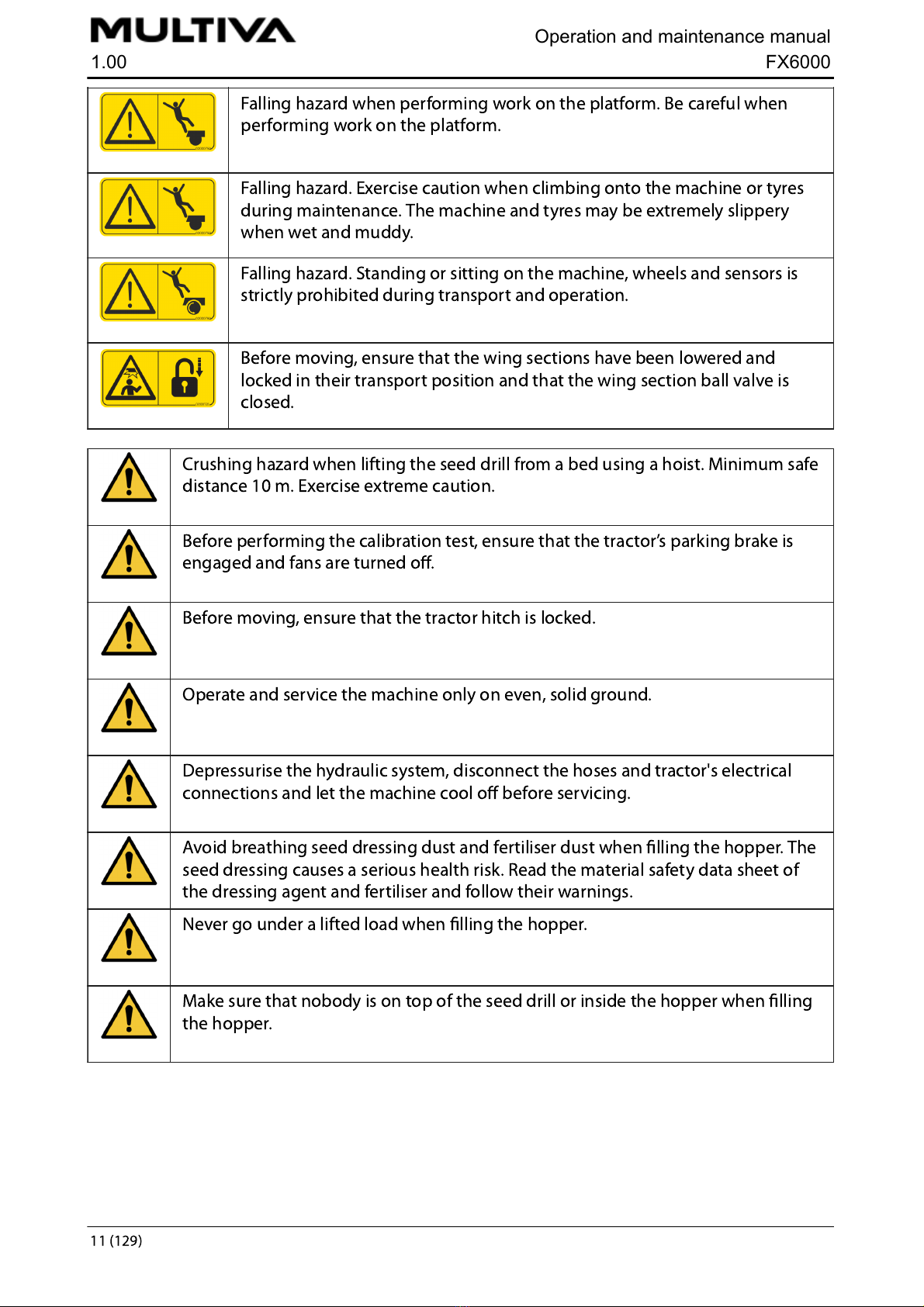

3.3. Warning labels used on the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4. Artemis control system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.1. Control system components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.1.1. Working position sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.1.2. Radar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.1.3. Hopper level sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.1.4. Tramline motors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.1.5. Blockage monitoring system sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2. Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2.1. Function buttons and connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2.2. Touch screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.3. User interface pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.3.1. Startup screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.3.2. Pages of Artemis application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.4. Using the user interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.4.1. Main operating page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.4.2. Middle markers and hydraulics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.4.3. Seeding summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.4.4. Blockage monitoring system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.4.5. Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5. Commissioning and basic settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.1. Commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.1.1. Installing the Artemis control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.1.2. Power cable connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.1.3. Artemis control system commissioning settings . . . . . . . . . . . . . . . . . . . .
5.1.3.1. Tramline setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.1.3.2. Prestart setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.1.3.3. Simulated speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.1.4. Artemis control system alarm settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.1.4.1. Fan rotation speed alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.1.4.2. Activating the hopper level sensors . . . . . . . . . . . . . . . . . . . .
5.2. Connecting to tractor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.2.1. Adjusting the length of the boom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.2.2. Using the ground support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.2.3. Adjusting the longitudinal level of the machine . . . . . . . . . . . . . . . . . . . .
5.2.4. Ensuring the steerability of the tractor . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.2.5. Adjusting the middle markers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6. Machine adjustment and use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation and maintenance manual
FX6000 1.00
2 (129)

50
51
54
54
55
55
56
57
57
58
59
59
59
60
61
61
62
63
63
63
65
66
67
68
68
70
73
75
76
77
77
77
79
79
81
81
81
82
82
82
83
84
86
87
87
88
88
89
89
90

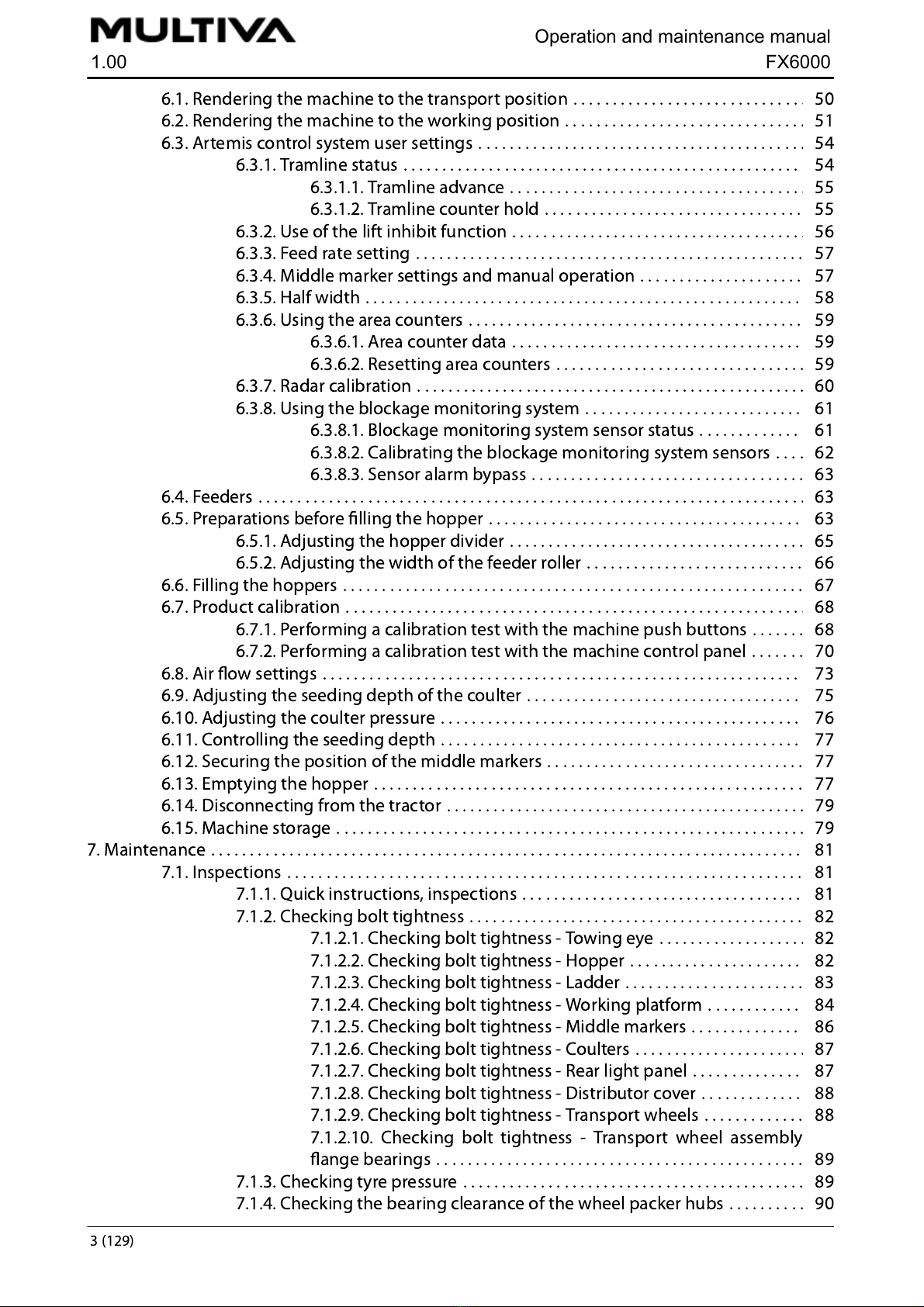

6.1. Rendering the machine to the transport position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.2. Rendering the machine to the working position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.3. Artemis control system user settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.3.1. Tramline status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.3.1.1. Tramline advance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.3.1.2. Tramline counter hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.3.2. Use of the lift inhibit function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.3.3. Feed rate setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.3.4. Middle marker settings and manual operation . . . . . . . . . . . . . . . . . . . . .
6.3.5. Half width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.3.6. Using the area counters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.3.6.1. Area counter data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.3.6.2. Resetting area counters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.3.7. Radar calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.3.8. Using the blockage monitoring system . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.3.8.1. Blockage monitoring system sensor status . . . . . . . . . . . . .
6.3.8.2. Calibrating the blockage monitoring system sensors . . . .
6.3.8.3. Sensor alarm bypass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.4. Feeders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.5. Preparations before lling the hopper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.5.1. Adjusting the hopper divider . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.5.2. Adjusting the width of the feeder roller . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.6. Filling the hoppers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.7. Product calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.7.1. Performing a calibration test with the machine push buttons . . . . . . .
6.7.2. Performing a calibration test with the machine control panel . . . . . . .
6.8. Air ow settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.9. Adjusting the seeding depth of the coulter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.10. Adjusting the coulter pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.11. Controlling the seeding depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.12. Securing the position of the middle markers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.13. Emptying the hopper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.14. Disconnecting from the tractor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.15. Machine storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.1. Inspections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.1.1. Quick instructions, inspections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.1.2. Checking bolt tightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.1.2.1. Checking bolt tightness - Towing eye . . . . . . . . . . . . . . . . . . .
7.1.2.2. Checking bolt tightness - Hopper . . . . . . . . . . . . . . . . . . . . . .
7.1.2.3. Checking bolt tightness - Ladder . . . . . . . . . . . . . . . . . . . . . . .
7.1.2.4. Checking bolt tightness - Working platform . . . . . . . . . . . .
7.1.2.5. Checking bolt tightness - Middle markers . . . . . . . . . . . . . .
7.1.2.6. Checking bolt tightness - Coulters . . . . . . . . . . . . . . . . . . . . . .
7.1.2.7. Checking bolt tightness - Rear light panel . . . . . . . . . . . . . .
7.1.2.8. Checking bolt tightness - Distributor cover . . . . . . . . . . . . .
7.1.2.9. Checking bolt tightness - Transport wheels . . . . . . . . . . . . .
7.1.2.10. Checking bolt tightness - Transport wheel assembly
ange bearings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.1.3. Checking tyre pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.1.4. Checking the bearing clearance of the wheel packer hubs . . . . . . . . . .
Operation and maintenance manual
1.00 FX6000
3 (129)

90
90
90
91
92
93
93
94
94
95
95
96
96
97
97
98
98
99
99
100
101
101
102
102
102
102
103
103
103
104
106
106
107
108
108
109
110
110
110
111
111
112
112
112
112
113
114
115
116
116
120
7.1.5. Checking the condition of hydraulics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.1.6. Checking the condition of electric wires . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.1.7. Inspecting the towing eye . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.1.8. Checking the wing section locking function . . . . . . . . . . . . . . . . . . . . . . .
7.1.9. Inspecting the coulter discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.1.10. Checking the condition of transfer hoses . . . . . . . . . . . . . . . . . . . . . . . . .
7.2. Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.2.1. Quick instructions, lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.2.2. Lubricating the wheel axle bearings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.2.3. Lubricating the wing section cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.2.4. Lubricating the wing section hinges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.2.5. Lubricating the wing section locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.2.6. Lubricating the towing eye . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.2.7. Lubricating the middle markers and middle marker cylinders . . . . . . .
7.2.8. Lubricating the coulter cylinders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.3. Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.3.1. Cleaning the hopper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.3.2. Cleaning the paint surface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.3.3. Cleaning the coulter discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.3.4. Cleaning the feeder and feeder hoses . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.4. Wheel hub bearing clearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.4.1. Tightening the bearing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.5. Towing eye . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.5.1. Replacing the towing eye . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.5.1.1. Detaching the towing eye . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.5.1.2. Installing the towing eye . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.6. Coulters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.6.1. Replacing a coulter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.6.1.1. Demounting a coulter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.6.1.2. Installing a coulter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.6.2. Replacing a coulter disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.6.2.1. Detaching a disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.6.2.2. Installing a disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.6.3. Replacing a coulter bearing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.6.3.1. Detaching a bearing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.6.3.2. Installing a bearing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.6.4. Replacing the coulter covering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.6.4.1. Demounting the covering wheel . . . . . . . . . . . . . . . . . . . . . .
7.6.4.2. Installing the covering wheel . . . . . . . . . . . . . . . . . . . . . . . . .
7.6.5. Adjusting the scrapers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.6.5.1. Adjusting the disc scraper . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.6.5.2. Adjusting the cover wheel scraper . . . . . . . . . . . . . . . . . . . .
7.7. Transfer hoses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.7.1. Changing a transfer hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.7.1.1. Removing a transfer hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.7.1.2. Connecting a transfer hose . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.7.2. Repairing a transfer hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.7.3. Removing a blockage from a transfer hose . . . . . . . . . . . . . . . . . . . . . . .
8. Fault situations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.1. Artemis control system troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.2. Blockage monitoring system troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation and maintenance manual
FX6000 1.00
4 (129)

121
123
124
125
128
129
8.3. Troubleshooting of the seed drill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9. Attachments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9.1. EC Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9.2. Hydraulic schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9.3. Connection socket according to SFS 2473 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9.4. Calculating the stability of the tractor - seed drill combination . . . . . . . . . . . . . . . .
Operation and maintenance manual
1.00 FX6000
5 (129)

1. Foreword
Thank you for choosing a high-class Multiva Forte FX6000 seed drill. We hope the product will
meet your requirements and provide years of reliable service. Please read this manual
thoroughly before operating the machine. It is important that you perform the inspection and
maintenance measures specied in this manual to ensure awless operation of the machine and
validity of its warranty. You must follow all the instructions, warnings and prohibitions related to
the use of the machine. They are provided to ensure operator safety and the long service life of
the machine.
The FX6000 is an extremely efficient and versatile seed drill, enabling you to seed directly into
stubble, grass or tilled soil.  The machine is equipped with a pneumatic feeder which ensures
even ow of seeds and fertilisers to all seeding coulters. 
1.1. Purpose of the machine
The operator of the seed drill must acquaint themselves with the machine and read and
understand the contents of its operating manual before operating the machine. The seed drill
may only be operated when it is in a awless technical condition. The seed drill must be used in
accordance with regulations, identifying hazards and following the safety and operating
instructions.
Original Multiva spare parts and accessories are designed for this particular seed drill. The
manufacturer bears no responsibility for spare parts and accessories provided by other
suppliers.  Using them in certain circumstances may weaken the machine and compromise
personal safety.
The machine is intended for sowing seeds and applying fertiliser. The construction of the
machine allows road transport with the hoppers full. Any use exceeding this, such as using the
machine for transport, is not considered to be in accordance with the regulations. Use in
accordance with the regulations includes following the operating instructions and
manufacturer's instructions as well as regulations concerning service and maintenance.
Occupational safety regulations concerning agricultural machinery, other rules and regulations
on general safety technology and occupational health as well as traffic rules and regulations
must be followed.
1.2. Specifications
Table. 1.2. - 1. Specications
Specications FX6000
Working width (cm) 600
Transportation height (cm) 340
Transportation width (cm) 300
Hopper lling height (cm) 300
Weight (kg) 9,300
Hopper volume (L) 8,000
Operation and maintenance manual
FX6000 1.00
6 (129)

Coulter pressure (kg) 50-250
Tyres 500/50R-17
Coulters (pcs) 36
Furrow spacing (mm) 167
Recommended working speed (km/h) 8- 12
Normal track width of tramline (mm) 1,834
Alternative track width of tramline (mm) 1,500 / 2,168
Extended track width of tramline (mm) 1,660 / 2,000
Tractor power requirement (hp) 200
Automation ISOCAN Artemis
1.3. Type plate
The type plate is located in the front of the seed drill frame. 
Figure. 1.3. - 1. Location and details of the type plate
Table. 1.3. - 2. Details of the type plate
1. CE marking
2. Machine manufacturer
3. Machine serial number
4. Machine model
5. Manufacturing year
6. Manufacturer's information
Operation and maintenance manual
1.00 FX6000
7 (129)

1.4. Liability terms and conditions
The FX seed drills have been quality inspected and their operation has been tested before
delivery. However, the owner/operator is responsible for the operation of the machine in
practical circumstances. Damage compensation claims not concerning the machine itself as well
as those concerning damages caused by misuse or incorrect adjustments of the machine will be
rejected. 
The machine manufacturer is not liable for any use of the machine that is in violation of laws,
safety regulations or this operating manual.
Note that inappropriate use of fertilisers and plant protecting agents may cause damage to
plants, humans, animals, water system or soil. Follow the instructions provided by the
manufacturers of these substances and other experts as well as the authorities in handling and
using said substances.
The manufacturer is not responsible for the selection of an incorrect quantity of seeds, plant
protecting agents or fertiliser or incorrect seeding depth. The operator must constantly make
sure that the desired seeding depth is maintained. If you lack information or knowledge gained
through experience, please consult an expert for advice. The manufacturer is not responsible for
any failures in seeding. The operator must continuously monitor the consumption of seeds and
fertiliser in order to make sure that sowing quantities stay at a proper level in all seeding
coulters.
The manufacturer is not liable for damages caused by the use of components provided by other
manufacturers. The manufacturer is not liable for damage caused to other machines or
equipment that result from the use of this machine.  The manufacturer reserves the right to
develop or modify the construction of the machine. The owner of the machine is responsible for
ensuring that all operators of the machine acquaint themselves with the machine's operating
and safety instructions.
1.5. Tightening torques
The table below shows the tightening torques of steel screws and nuts. If the tightening torque
to be used should be something other than what is listed in the table, the tightening torque will
be provided with the task instructions. 
Table. 1.5. - 3. Tightening torques of steel screws and nuts
Steel screws and nuts:  8.8 Zn
Thread Torque (Nm)
M8 15
M12 90
M16 230
M18 250
M20 350 
Operation and maintenance manual
FX6000 1.00
8 (129)

2. Warranty terms
1. The machine's warranty period is 12 months.
2. The warranty period starts on the date when an authorised retailer delivers the machine.
3. The warranty covers manufacturing and raw material defects. Damaged parts are
repaired or replaced with parts in proper operating condition at the customer's facilities,
factory or authorised repair shop. 
4. A warranty repair does not extend the warranty period. 
5. Warranty does not cover:
damage caused by incorrect operation or maintenance in violation of the operating
manual, excessive loading or normal wear.
loss of income, downtime, other consequential or indirect damage caused to the
product's owner or a third party
travel or freight expenses, daily allowances
changing the original construction of the product.
In warranty matters, please contact the machine retailer or manufacturer. Any measures and
costs must always be agreed upon with the manufacturer before the measures are taken.
Operation and maintenance manual
1.00 FX6000
9 (129)

3. Safety instructions
3.1. Residual risks
Read this operating and maintenance manual thoroughly before operating
the machine and follow the instructions given. 
Crushing hazard when connecting and disconnecting the seed drill.
Minimum safe distance 10 m. Exercise extreme caution when someone
else is near the seed drill and tractor giving instructions on connecting and
disconnecting. 
Crushing hazard when lifting and lowering the coulters. When lifting and
lowering the coulters, make sure there is no one in the vicinity. Ensure that
stands or other support devices are placed under the coulters for support
when servicing. 
Crushing, cutting and impact hazard when lifting and lowering the wing
sections. The seed drill and its vicinity are off limits to persons when the
wing sections are lifted and lowered. When lifting and lowering the wing
sections, make sure there is no one is in the vicinity. Minimum safe distance
10 m. 
Crushing hazard when lifting and lowering the middle markers. When
lifting and lowering the markers, make sure there is no one in the vicinity.
The minimum safe distance is 10 m when lifting and lowering the markers. 
Crushing hazard when the seeding depth is adjusted. Before adjusting the
seeding depth, make sure that the tractor is turned off, the key is removed
from the ignition and the parking brake is engaged. 
Be careful not to crush or cut your hand or ngers in the feeder of the
hopper.
When the machine is in the seeding position, the radar detects if someone
is walking past the machine and the feeder starts to rotate automatically.
Ensure that the controller and tractor are turned off, the key is removed
from the ignition and the parking brake is engaged when there are
personnel in the hopper or near the machine. 
Hydraulic hoses under pressure may release a life-threatening jet of liquid.
High-pressure liquid may also pose a crushing, cutting or impact hazard.
The hydraulic system must be depressurised before pressure hoses are
handled, connected or disconnected. Depressurise the hydraulic system
and disconnect the hoses before maintenance work.
Never touch the hydraulic cylinders, hoses and hydraulic connectors when
the cylinders are in operation. 
Operation and maintenance manual
FX6000 1.00
10 (129)

Falling hazard when performing work on the platform. Be careful when
performing work on the platform. 
Falling hazard. Exercise caution when climbing onto the machine or tyres
during maintenance. The machine and tyres may be extremely slippery
when wet and muddy.
Falling hazard. Standing or sitting on the machine, wheels and sensors is
strictly prohibited during transport and operation.
Before moving, ensure that the wing sections have been lowered and
locked in their transport position and that the wing section ball valve is
closed.
Crushing hazard when lifting the seed drill from a bed using a hoist. Minimum safe
distance 10 m. Exercise extreme caution. 
Before performing the calibration test, ensure that the tractor’s parking brake is
engaged and fans are turned off. 
Before moving, ensure that the tractor hitch is locked.
Operate and service the machine only on even, solid ground. 
Depressurise the hydraulic system, disconnect the hoses and tractor's electrical
connections and let the machine cool off before servicing. 
Avoid breathing seed dressing dust and fertiliser dust when lling the hopper. The
seed dressing causes a serious health risk. Read the material safety data sheet of
the dressing agent and fertiliser and follow their warnings. 
Never go under a lifted load when lling the hopper. 
Make sure that nobody is on top of the seed drill or inside the hopper when lling
the hopper. 
Operation and maintenance manual
1.00 FX6000
11 (129)

Switch off the fan before dislodging a blockage from the feed line. 
Wear hearing protection in the vicinity of the machine when the fans are on. 
Wear protective eyewear when dislodging a blockage from the feed line. 
Wear protective gloves when handling oil or grease and when connecting and
disconnecting hydraulic components. Avoid skin contact with oil and grease to
prevent skin irritation and damage.
3.2. Symbols used in the operating manual
DANGER warns of a dangerous situation which may lead to death or serious
physical injury. 
CAUTION  warns of a dangerous situation which may lead to damage to the
equipment. 
ADVICE contains useful tips, advice and information in the instructions e.g. on
tightening torques, adjusting values, liquid quantities and special tools. 
DANGER
When connecting and disconnecting hydraulic hoses and electrical wires, ensure that
the tractor is turned off and the key is removed from the ignition. 
DANGER
Never adjust or clean a moving seed drill.
DANGER
Never stand or sit on top of the seed drill or within its operating area during operation.
Minimum safe distance 10 m.
DANGER
Observe the minimum safe distance when the seed drill is standing still and the
hydraulics are in use.  When the seed drill is attached to the tractor, the vicinity of the
seed drill and, in particular, the area under the raised wing sections are off limits. 
DANGER
Inspect the condition of the seed drill at least visually before moving or operating it.
Items to be inspected include tyre pressure, machine cleanliness and the tightness of
the bolts of the towing device. 
Operation and maintenance manual
FX6000 1.00
12 (129)

DANGER
Before seeding, make sure that the machine is in working order. Make sure that the
hoses are intact and have no leaks. Make sure that the coulters and mechanics are
intact. Specically ensure that all the pins are in place. 
DANGER
When transporting the seed drill on public roads, exercise caution and observe all road
traffic regulations, as well as specic regulations concerning slow-moving vehicles. 
DANGER
Before moving the tractor, check that the slow-vehicle triangle is visible and tractor
lights are lit and visible. Keep the triangle and lights clean, because they have a
considerable impact on the combination vehicle's traffic safety. 
DANGER
The transport height of the seed drill should be less than 4 m. 
DANGER
The maximum allowed transportation speed of the seed drill is 40  km/h. 
DANGER
Before starting the sowing, ensure that both wing sections are completely lowered so
that the cylinder is fully extended. 
DANGER
When servicing and performing maintenance work, ensure that the wing sections are
fully lowered. 
DANGER
When replacing hydraulic system components and conductors, only use spare parts
with sufficient pressure resistance.
DANGER
Never use oil or lubrication grease to clean skin. These substances may contain small
metal particles, which cause irritation of the skin or cuts. Follow the lubricant
manufacturer handling instructions and safety regulations. Synthetic oils are often
corrosive and cause severe irritation of the skin. Seek medical attention if oil or grease
causes any injuries. 
DANGER
Never spray water directly on electric equipment. 
CAUTION
Use original machine spare parts whenever servicing and repairing the seed drill. Using
generic parts will void the warranty. 
CAUTION
Collect oil waste and dispose of it appropriately in accordance with national
regulations.
Operation and maintenance manual
1.00 FX6000
13 (129)

CAUTION
If oil is spilled on the ground, absorb it with an absorbent material, such as turf, to
prevent the oil spill from spreading. Handle the absorbent material in accordance with
regulations. 
CAUTION
Clean the machine whenever you change fertiliser or seed types. 
CAUTION
If the machine will be unused overnight or over a long rain season, empty its fertiliser
hopper in advance and clean the roller grooves of the feeder by adjusting the feed
quantity from one extreme position to the other. Otherwise, the fertiliser may dissolve
and clog the feeders. 
CAUTION
Before using a detergent, make sure it is appropriate for washing a seed drill. Follow the
safety and operating instructions of the detergent manufacturer.
Operation and maintenance manual
FX6000 1.00
14 (129)

3.3. Warning labels used on the machine
The warning labels on the front of the machine are shown in the next image. 
Figure. 3.3. - 2. Warning labels used on the front of the machine
Table. 3.3. - 4. Warning labels used on the front of the machine
1. Hydraulic connection of the wing sections 1 pc
2. Hydraulic connection of the coulters 1 pc
3. Hydraulic connection of the fan 1 pc
4. Hydraulic connection of the drawbar adjustment 1 pc
5. Hydraulic connection of the front levelling board (optional) 1 pc
6. Required tyre pressure 1 pc
7. Falling hazard. Standing or sitting on the machine during operation and
transport is prohibited. 1 pc
8. Falling hazard 1 pc
9. Protective gloves must be worn 1 pc
10. Eye protection must be worn 1 pc
11. Hearing protection must be worn 1 pc
12. Crushing hazard 1 pc
Operation and maintenance manual
1.00 FX6000
15 (129)

13. Beware of pressurised hydraulic hoses 1 pc
14. Before servicing, make sure that the tractor is turned off, the key is removed
from the ignition and the parking brake is engaged 1 pc
15. Before moving, ensure that the wing sections are locked in place 1 pc
16. Read the operation and maintenance manual carefully before operation  1 pc
17. Cutting hazard 1 pc
The warning labels on the rear of the machine are shown in the next image. The same warning
labels are affixed to the opposite side of the machine.
Figure. 3.3. - 3. Warning labels used on the rear of the machine
Table. 3.3. - 5. Warning labels used on the rear of the machine
 1. Crushing, cutting and impact hazard when lifting and lowering the wing
sections 2 pc
2. Crushing hazard 2 pc
3. Marker warning tape 2 pc
4. Crushing hazard when lifting and lowering the markers 4 pc
5. Cutting hazard 2 pc
6. Falling hazard. Standing or sitting on the machine during operation and
transport is prohibited. 
2 pc
Operation and maintenance manual
FX6000 1.00
16 (129)

4. Artemis control system
Artemis  is an ISOBUS-compatible monitoring and control system for seed drills.
4.1. Control system components
Figure. 4.1. - 4. Artemis control system components
1. ISOBUS/CAN module Includes the system software
2. MCM CAN module CANBUS interface for the feeder motor and sensors 
3. ISOCAN control panel Colour touch screen
4. Power supply Power supply to the seed drill from the tractor electrical
system
5. Feeder motor Controls one or more dispensers
6. Radar Measures driving speed
7. Speed sensor Disabled
8. Push button for
calibration test
9. Rotational speed
sensors Motor feed
10. Magnetic sensor Fan rotation speed sensor
11. MCM junction box
Operation and maintenance manual
1.00 FX6000
17 (129)

12. Inductive sensor The working position sensor detects when the machine is in
its working position
13. Linear motors Half width (optional)
14. Capacitive sensor Hopper level sensor
15. HBM junction box
16. HBM CAN module CANBUS interface for other switches, sensors and actuators
Figure. 4.1. - 5. Blockage monitoring system
1. Extension cable
2. Power cable
3. ECU
4. Y extension cable
5. Seed sensor module
6. Fertiliser sensor module
Operation and maintenance manual
FX6000 1.00
18 (129)

4.1.1. Working position sensor
Figure. 4.1.1. - 6. Working position sensor
The working position sensor (1) is installed on the middle section coulter suspension. The
working position sensor (M12 inductive sensor) turns on the feed and works as a counter.  The
sensor is adjusted by adjusting the height of the sensor mount (2).  The lower the sensor, the later
the feed will start when lowering the coulters and the earlier the feed will stop when raising the
coulters. When the feed starts, there is a delay during which the seeds are run from the feeder to
the coulters.
4.1.2. Radar
Figure. 4.1.2. - 7. Radar
A radar works as the machine’s speed sensor. The radar is located in the machine frame, next to
the boom mount and close to the ladder.
Operation and maintenance manual
1.00 FX6000
19 (129)

4.1.3. Hopper level sensors
Figure. 4.1.3. - 8. Hopper level sensors
There is 1 hopper level sensor in the seed hopper and 1 in the fertiliser hopper. The sensors are
located next to the dispenser at the bottom of the hopper. The hopper level sensors are
capacitive sensors. If the seed or fertiliser level in the hopper is too low, an alarm is triggered in
the control system.
4.1.4. Tramline motors
Figure. 4.1.4. - 9. Tramline motors
Operation and maintenance manual
FX6000 1.00
20 (129)
