Muratec M-4700 User manual

TM
M4700 Operating Instructions

OperatingInstructions
Table of Contents
A Quick Introduction
EasyStart ..... .
Clearing Memory . . . . . .
Using EasyStart to Enter Initial Settings
Your Fax Machine
Tips for Use
Unpacking .....

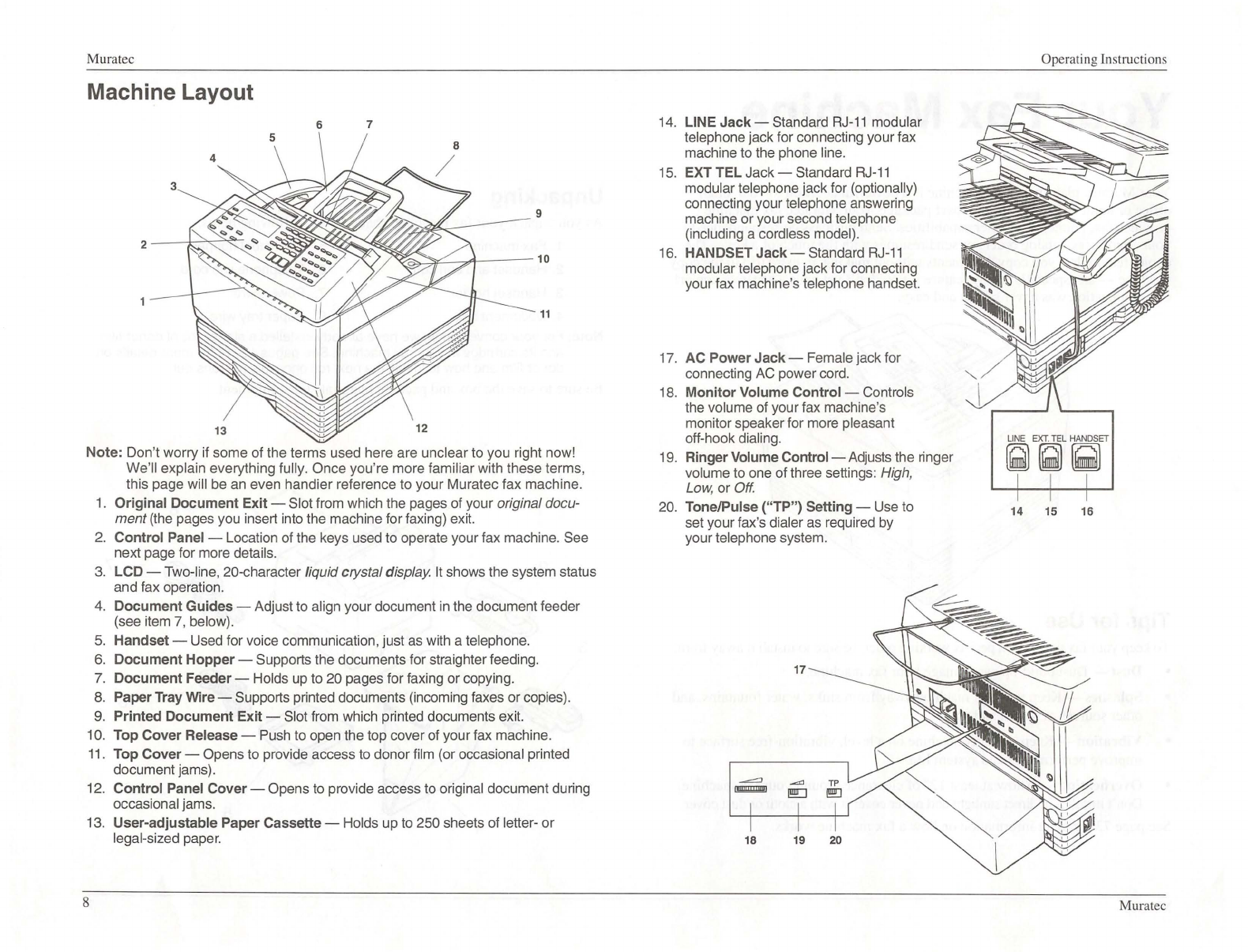

Machine Layout

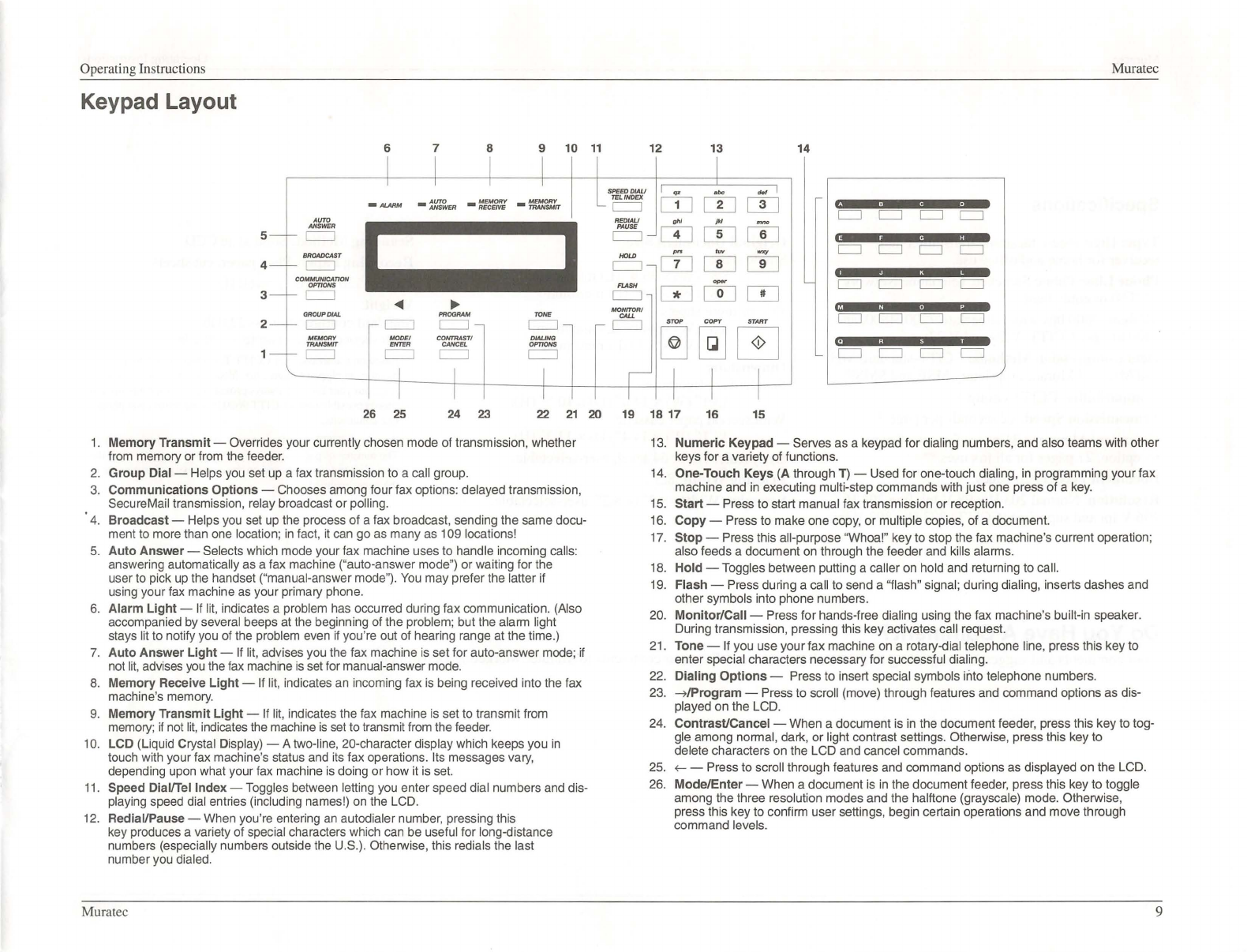

Keypad Layout .. .
Do You Have A Comment?
Setting Up Your Fax Machine .
Phone and Electrical Requirements

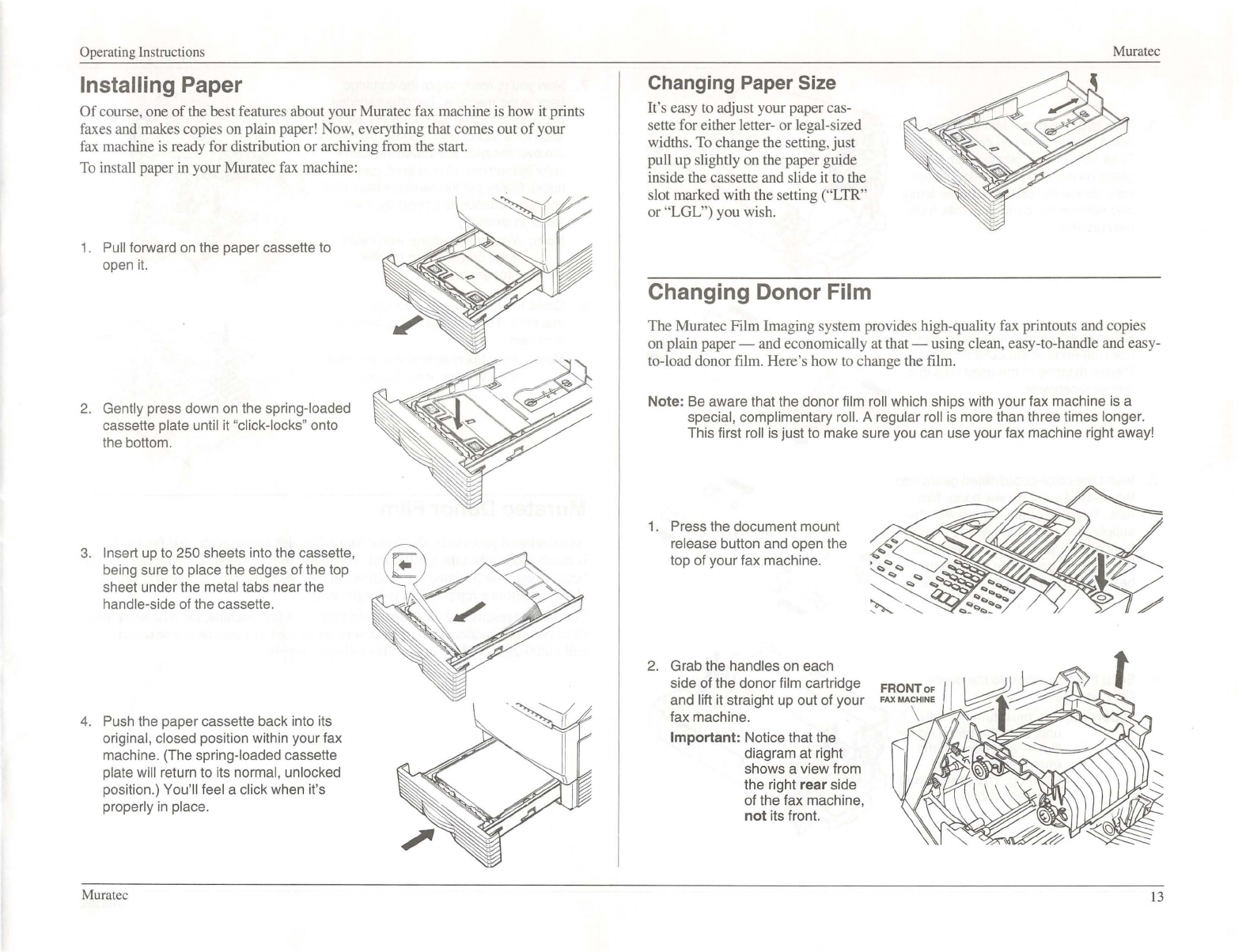

Installing Paper . . . . . . . . . . . .

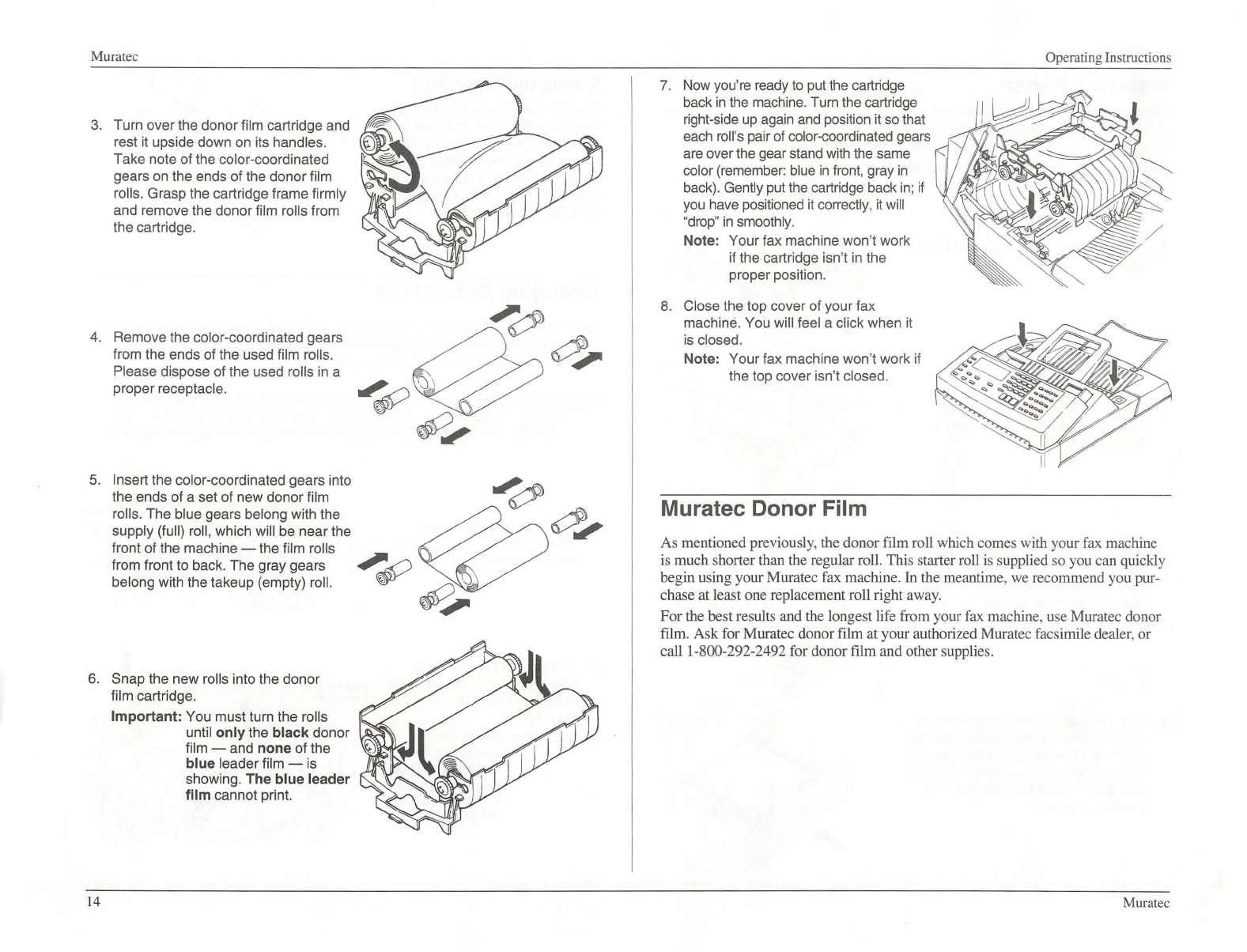

Changing Donor Film ....... .
Muratec Donor Film . . . . . . . . .
Adjusting Monitor and Ringer Volume
Attaching a Second Telephone or an Answering Machine
Using an Answering Machine with Your Fax Machine
Telephone Features
Redial . . . .
Hold . .. .. .
Monitor/Call . .
Telephone Index
User Settings
Must-Do Setting #I: Date and Time .
Must-Do Setting #2: Subscriber ID and TTI
Erase Your TTI . . . . . . . . . .
Print Your TTI .. .. .. . .. .
Set Primary (Transmission) Mode
Set Grayscale ....
Set Number of Rings ..
Set Paper Size
Set Print Reduction .
Set Copy Reduction Rate
Block Junk Fax
Set ECM Mode . .
Set Silent Mode
Print User Settings
Clear All Settings
Muratec
3
5
5
5
7
7
7
8
9
. 10
... 11
. II
. 13
. 13
. 14
. 15
. 15
. 15
.. . 17
. 17
. 17
. 17
. 17
... 19
. 19
. 19
. 20
. 20
. 20
. 21
. 21
. 21
. 22
. 22
. 23
. 23
. 24
. 24
. 24
Reception .
Tel Ready ..
Fax Ready
Ans/Fax Ready
Tel/Fax Ready
"Bei ng Called" Display
Out-of-Paper Warning .
Out - of-Paper Reception
Fax Retrieve . . . . . .
Detection of "S ilent" Fax Machines
Call Request . . . . . . . . . . . .
OneLine +Di stinctive Ring Detection
Sending A Fax
Adjusting the Document Hopper
Inserting Pages . . . . . .
Resolution ....... .
Contrast .... . . .. .
Special Dialing Characters
Set Memory Transmission
Transmission ...... .
Transmission With the Handset or Monitor
Delayed Transmission
Automatic Redial
Redial Key ...
Dialing Pause . .
Broadcasting ..
Numbering Pages
Making Copies .
Autodialer . . . . .
Using Special Dialing Characters
Call Groups . . . . . . . . . . . .
One-Touch Numbers . . . . . . .
Speed-Dial Numbers ...... .
Using Programmable One-touch Keys
Programming a Broadcast ..... .
Erasing Programmable One -touch Keys
Printing a Programmable One-touch Key List
Muratec
. 25
. 25
. 26
. 26
. 26
. 27
. 27
. 27
. 27
. 28
. 28
. 28
. 31
. 31
. 31
. 31
. 32
. 32
. 32
. 32
. 33
. 33
. 34
. 34
. 35
. 35
. 36
. 36
. 37
. 37
. 37
. 38
. 39
. 40
. 41
. 44
. 44

Muratec

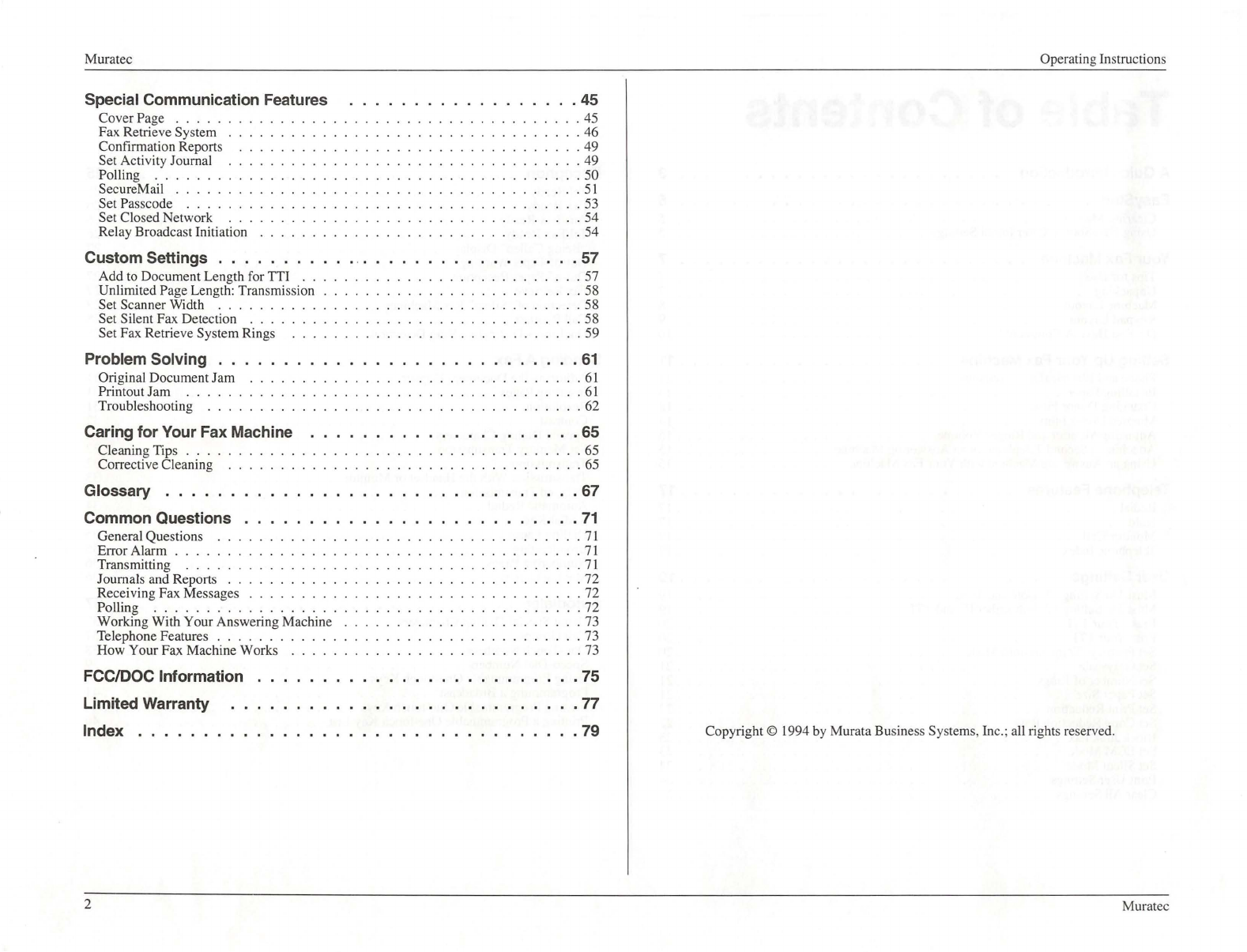

Special Communication Features
CoverPage ... .. .
Fax Retrieve System .
Confirmation Reports
Set Activity Journal
Polling ...... .
SecureMail . . . . . .
Set Passcode . . . . .
Set Closed Network
Relay Broadcast Initiation
Custom Settings . . . .
Add to Document Length for TTI . .
Unlimited Page Length: Transmission
Set Scanner Width . . . . . . .
Set Silent Fax Detection ....
Set Fax Retrieve System Rings
Problem Solving . . . .
Original Document Jam
Printout Jam ... . . .. .
Troubleshooting . . . . . .
Caring for Your Fax Machine
Cleaning Tips . . . .
Corrective Cleaning
Glossary ..... .
Common Questions
General Questions .
Error Alarm . . . . . .
Transmitting .. . ..
Journals and Reports .
Receiving Fax Messages
Polling . . . . . . . . . . . . ....
Working With Your Answering Machine
Telephone Features . . . . . . .
How Your Fax Machine Works ...
FCC/DOC Information
Limited Warranty
Index ..... .
2
... 45
. 45
. 46
. 49
. 49
. 50
. 51
. 53
. 54
. 54
... 57
. 57
. 58
. 58
. 58
. 59
... 61
. . 61
.. 61
.. 62
... 65
... 65
.. . . 65
. 67
. 71
. 71
. 71
. 71
. 72
. 72
. 72
. 73
. 73
. 73
. 75
. 77
. 79
Operating Instructions
Copyright© 1994 by Murata Business Systems, Inc .; all rights reserved.
Muratec

OperatingInstructions Muratec
A Quick Introduction
This brief overview will help you more quickly learn how to use your Muratecfax machine. Of course, please be sure you read the rest of the instructions, too!
What's a "Fax Document"?
Simply put, a ' fax document" is anything a fax user wants to fax to someone else. It
can be just one page or as many pages as you need. That's up to you. It can be a
page of text, a photograph, your child's latest drawing -anything you want to send.
So, what the term fax documentmeans is always your choice!
How Do You Send a Fax Document?
It's easy to send a fax document. Just place your document into your fax machine's
feeder, dial the appropriate fax number (see next item) and press the Start key.
(With one-touch numbers, you don't even have to press the Start key! See "How
Can You Send a Fax to a Frequently Called Number?" below.) The fax machines -
yours and the one you' re calling -will take it from there.
What's a Fax Number?
Since your fax machine operates on standard phone lines, a "fax number" is just a
phone number on which someone is using a fax machine. And, because your
Muratec fax machine is also a high-quality, full-featured telephone, your fax number
can be your regular phone number if you prefer. You can - but th is isn't necessary!
-dedicate a phone number to your fax machine, letting you use one number just
for ordinary voice calls and one numberjust for incoming and outgoing faxes.
How Can You Send a Fax to a Frequently Called Number?
Just as is true for many ordinary telephones nowadays, your Muratec fax machine
has a built-in autodialer. Th is handy device stores your more frequently called fax
numbers - so you don't have to remember them. Each stored number can include
long-distance codes, area codes and even pauses. Your Muratec fax machine can
save 20 of these autodialer numbers for you to dial by pressing just one key. These
are one-touch numbers. The remaining numbers are available for speed dialing,
which involves pushing just three keys to dial a stored number -for example, *O8
for your speed-dial number 8.
Muratee
How Can You Send a Fax to More than One Location?
There are three ways to send the same fax document to more than one place at a
time. -Well, only two ways you'd really want to try. (Obviously, you couldstay by
your fax machine and keep feeding the document overand over again, but your
Muratec fax machine is smart enough to make that unnecessary!)
1. You can put numbers in callgroups.These are groups of fax numbers which
the fax machine will "remember" belong together.
For example, put the fax numbers for your regional offices, or your best
customers, into a call group. Then, when you need to send all of them the
same document (say, an updated price list), just fax it to their call group.
The fax machine automatically will send the document to each number in the
call group.
2. You also can do broadcasting. This lets you send the same document to
as many as 109 different locations in one operation. You can broadcast to
individual fax numbers, your call groups or a combination of the two. This is
really a great labor- and brain-saver!
What's All This.About "Resolution" and "Grayscale"?
The sharpness of a fax transmission is measured by its resolution. This is
expressed in lines per inch (or lpi). There are three levels of resolution in the fax world.
In order of quality, they are: normal (203x 98 lpi), fine (203 x 196 lpi), and superfine
(203 x 3921pi).
Similarly,a fax transmission can be judged by the quantity of its grayscale
levels, or shades of gray -really halftones, such as you might see in a newspaper
photo. When you need this capability (such as when sending a photo), you want as
many grayscale levels as possible for maximum quality. Your Muratec fax machine
can transmit with either 16 or 64 grayscale levels -you decide which.
So why not always set your fax machine for superfine resolution, or for 64
grayscale levels? Because these settings require your fax machine to transmit
much more data, making your transmissions last much longer and (on those long
distance calls) driving up your phone bills. That's why -as you'll see -we make it
easy for you to customize the settings on your Muratec fax machine for the most effi-
cient and truest fax transmission ofthe types of documents you send!
3

Muratec Operating Instructions
4 Muratec

OperatingInstructions
EasyStart
Your Muratec fax machine comes with EasyStart - a quick introductory program
which makes it easy for you to enter the basic information necessary to get started
right away.
Important: You can always change any of these settings later, as you familiarize
yourself with your fax machine and your fax communications needs.
Also, be sure you have correctly plugged in your machine (see page 11)
before proceeding.
Clearing Memory
Before you use EasyStrut to enter information into your fax machine, it 'sbest to
cleru· its memory. The fax machine's user settings, protected by along-life battery
backup, store information such as your fax number and the date and time. Cleaiing
the memory ensures that only your information is stored.
To cl ear the fax machine'smemory, pre ss ~/Program,*, 2, Mode, Enter.
Using EasyStart to Enter Initial Settings
Important: Be sure your fax machine has paper before proceeding with
EasyStart, since this procedure will print a settings list at the end.
1. Press --7 /Program, *, 4.
Enter Time
'01 01/01 00 : 00
Enter the date and time (in 24-hour format; see page 19) using the numeric
keypad, "typing over'' the numerals displayed. If you want to change just one
numeral in the date or time, press f- to move leftward in the line or --7/Pro-
gram to move rightward. To save the change, press Mode/Enter. To abort
the change, press Stop.
Mur atec
Muratec
2. Use the numeric keypad to enter your fax number, up to 20 digits in length.
(To put in a dash for easier reading, as shown here, press Dialing Options
once.) To save the number, press Mode/Enter.
Your Fax Number
214-555-1985
Note: If you make a mistake, just press Contrast/Cancel to erase, leftward.
Then re-enter until the fax number is just as you want it.
3. Enter the name you want to appear at the top of your faxes. Make sure it
doesn't exceed 22 characters. (Your fax machine's display will scroll to show
21st and 22nd characters.)
ABCDEFGHIJ . 20
And Sew It Goes Co .
Change
character choice
I // ~ ID
You can choose among uppercase
letters, lowercase letters, numerals
and symbols. Use the numeric
keypad, as shown, to select charac-
ter choices and enter characters.
(For spaces, use the leftmost
character in each line of choices.)
Note: If you make a mistake, press
Scroll~ ~ I ~ I Scroll
wlthlnset ~ ~ ~ wlthlnse\
Contrast/Cancel to erase,
leftward. Then re-enter until
the name is as you wish.
When done, press Mode/Enter.
Dl ~ IG
Change
character choice
4. Now, specify the reception mode (see the table on page 25) your fax machine
should use as its default.
Fax Ready
Program/Enter
For now, we recommend you accept the first choice, "Fax Ready ." (However,
if you wish to see the other choices, press f- or --7/Program to cycle through
them.) Press Mode/Enter.
5. Your fax machine will now print a list of its settings.
5

Muratec OperatingInstructions
6 Muratee

Operating Instructions

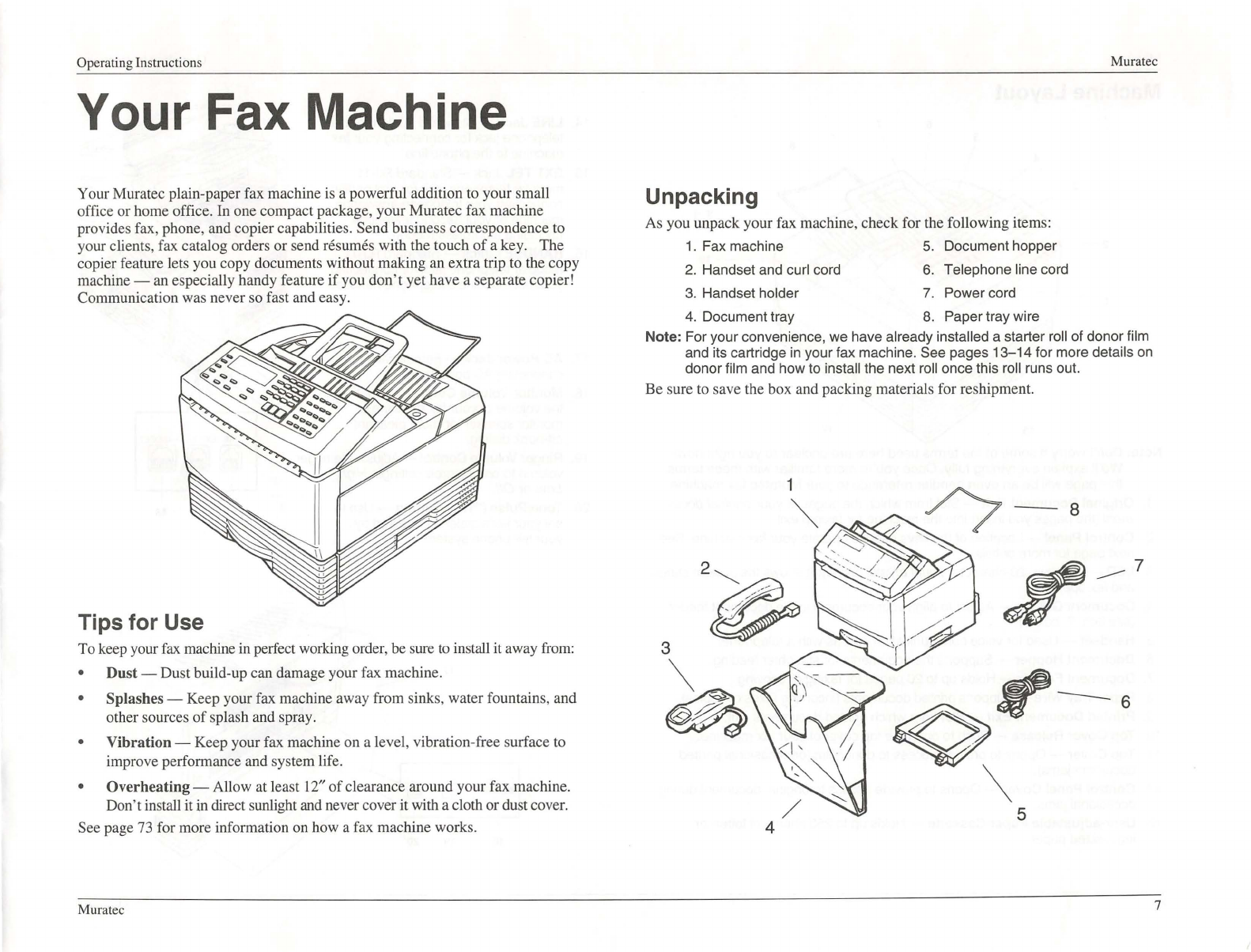

Your Fax Machine
Your Muratec plain-paper fax machine is a powerful addition to your small
office or home office. In one compact package, your Muratec fax machine
provides fax, phone, and copier capabilities. Send business correspondence to
your clients, fax catalog orders or send resumes with the touch of a key. The
copier feature lets you copy documents without making an extra trip to the copy
machine - an especially handy feature if you don't yet have a separate copier!
Communication was never so fast and easy.
Tips for Use
To keep your fax machine in perfect working order, be sure to install it away from:
• Dust-Dust build-up can damage your fax machine.
• Splashes -Keep your fax machine away from sinks, water fountains, and
other sources of splash and spray.
• Vibration -Keep your fax machine on a level, vibration-free surface to
improve performance and system life.
• Overheating-Allow at least 12" of clearance around your fax machine.
Don'tinstall it in direct sunlight and never cover it with a cloth or dust cover.
See page 73 for more information on how a fax machine works.
Muratec
Mura tee
Unpacking
As you unpack your fax machine, check for the following items:
1. Fax machine 5. Document hopper
2. Handset and curl cord 6. Telephone line cord
3. Handset holder 7. Power cord
4. Document tray 8. Paper tray wire
Note: For your convenience, we have already installed a starter roll of donor film
and its cartridge in your fax machine. See pages 13-14 for more details on
donor film and how to install the next roll once this roll runs out.
Be sure to save the box and packing materials for reshipment.
5
7

Mura tee
Machine Layout
6 7
2
Note: Don't worry if some of the terms used here are unclear to you right now!
We'll explain everything fully. Once you're more familiar with these terms,
this page will be an even handier reference to your Muratec fax machine.
1. Original Document Exit- Slot from which the pages of your original docu-
ment (the pages you insert into the machine for faxing) exit.
2. Control Panel -Location of the keys used to operate your fax machine. See
next page for more details.
3. LCD -Two-line, 20-character liquid crystal display It shows the system status
and fax operation.
4. Document Guides -Adjust to align your document in the document feeder
(see item 7, below).
5. Handset -Used for voice communication,just as with a telephone.
6. Document Hopper -Supports the documents for straighter feeding.
7. Document Feeder -Holds up to 20 pages for faxing or copying.
8. Paper Tray Wire -Supports printed documents (incoming faxes or copies).
9. Printed Document Exit -Slot from which printed documents exit.
10. Top Cover Release -Push to open the top cover of your fax machine.
11 . Top Cover- Opens to provide access to donor film (or occasional printed
document jams).
12. Control Panel Cover -Opens to provide access to original document during
occasional jams.
13. User-adjustable Paper Cassette -Holds up to 250 sheets of letter- or
legal-sized paper.
8
14. LINE Jack -Standard RJ-11 modular
telephone jack for connecting your fax
machine to the phone line.
15. EXT TEL Jack -Standard RJ-11
modular telephone jack for (optionally)
connecting your telephone answering
machine oryour second telephone
(including a cordless model).
16. HANDSET Jack -Standard RJ-11
modular telephone jack for connecting
your fax machine's telephone handset.
17. AC Power Jack- Female jack for
connecting AC power cord.
18. Monitor Volume Control -Controls
the volume of your fax machine's
monitor speaker for more pleasant
off-hook dialing.
19. Ringer Volume Control -Adjusts the ringer
volume to one of three settings: High,
Lo w, or Off .
20. Tone/Pulse ("TP") Setting -Use to
set your fax's dialer as required by
your telephone system.
17
18 19
Operating Instructions
14 15 16
Muratec

Oper ating Instructions
Keypad Layout
6 7 8 9 10
- ALARM
- ~vriWER
- MEMORY
RECEIVE
-~~IT
AUTO
c:::::::J
ANSWER
5
c:::J
BROADCAST
4
c:::J
COMMUNICATION
OPTIONS
3
c:::J
~
....
GROUP DIAL PROGRAM TONE
2
c:::J
c:::J c:::J c:::J
MEMORY MODEi CONTRASTI OIALJNG
TRANSMIT ENTCR CANCEL OPTJOHS
c:::J c:::J c:::J c:::J
11
SPEED DIA.LI
TE"LINDEX
c:::J
REDIAL/
PAUSE
c:::J
HOLD
c:::J
FLASH
c:::J
MON/TOR I
CALL
c:::J
12 13
ghl Jld mno
ITJ IT] [TI
mm 19 1
Ci:Jl ~ I LO
STOP COPY START
~@JG
Muratec
14
26 25 24 23
22 21 20 19 18 17 16
15
1. Memory Transmit -Overrides your currently chosen mode of transmission, whether
from memory or from the feeder.
2. Group Dial -Helps you set up a fax transmission to a call group.
3. Communications Options -Chooses among four fa x options: delayed transmission,
SecureMail transmission, relay broadcast or polling.
4. Broadcast -Helps you set up the process of a fax broadcast, sending the same docu-
ment to more than one location; in fact, it can go as many as 109 locations!
5. Auto Answer -Selects which mode your fax machine uses to handle incoming calls:
answering automatically as a fax machine ("auto-answer mode") or waiting for the
user to pick up the handset ("manual-answer mode"). You may prefer the latter if
using your fax machine as your primary phone.
6. Alarm Light -If lit, indicates a problem has occurred during fa x communication. (Also
accompanied by several beeps at the beginning of the problem; but the alarm light
stays lit to notify you of the problem even if you' re out of hearing range at the time .)
7. Auto Answer Light -If li t, advises you the fax machine is set for auto-answer mode; if
not lit , advises you the fax machine is set for manual-answer mode.
8. Memory Receive Light - If lit, indicates an incoming fax is being received into the fax
machine's memory.
9. Memory Transmit Light -If lit, indicates the fax machine is set to transmit from
memory; if not lit , indicates the machine is set to transmit from the feeder.
10. LCD (Liquid Crystal Display) - A two-line, 20-character display which keeps you in
touch with your fax machine's status and its fax operations. Its messages vary,
depending upon what your fax machine is doing or how it is set.
11 . Speed Dial/Tel Index -Toggles between letting you enter speed dial numbers and dis-
playing speed dial entries (including names!) on the LCD.
12. Redial/Pause -When you' re entering an autodialer number, pressing this
key produces a variety of special characters which can be useful for long-distance
numbers (especially numbers outside the U.S.). Otherwise, this redials the last
number you dialed.
Muratee
13. Numeric Keypad -Serves as a keypad for dialing numbers, and also teams with other
keys for a variety of functions.
14. One-Touch Keys (A through T) -Used for one-touch dialing, in programming your fax
machine and in executing multi-step commands with just one press of a key.
15. Start -Press to start manual fax transmission or reception.
16. Copy -Press to make one copy, or multiple copies, of a document.
17. Stop -Press this all-purpose "Whoa!" key to stop the fax machine's current operation;
also feeds a document on through the feeder and kills alarms.
18. Hold -Toggles between putting a caller on hold and returning to call.
19. Flash- Press during a call to send a "flash" signal; during dialing, inserts dashes and
other symbols into phone numbers.
20. Monitor/Call -Press for hands-free dialing using the fax machine's built-in speaker.
During transmission, pressing this key activates call reques t.
21 . Tone -If you use your fax machine on a rotary-dial telephone line, press this key to
enter special characters necessary for successful dialing.
22. Dialing Options -Press to insert special symbols into telephone numbers.
23. ~/Program -Press to scroll (move) through features and command options as dis-
played on the LCD.
24. Contrast/Cancel -When a document is in the document feeder, press this key to tog-
gle among normal, dark, or light contrast settings. Otherwise, press this key to
delete characters on the LCD and cancel commands.
25. ~ -Press to scroll through features and command options as displayed on the LCD.
26. Mode/Enter -When a document is in the document feeder, press this key to toggle
among the three resolution modes and the halftone (grayscale) mode. Otherwise,
press this key to confirm user settings, begin certain operations and move through
command levels.
9

Muratec
Specifications
Type: High-speed, facsimile transmitter and
receiver for home and office use.
Phone Line: Public Switched Telephone Network
(PSTN) or equivalent.
Modem: 9600 bps with fallback to 7200, 4800, and
2400 bps per CCITT, V.29 and Y.27ter.
Data Compression Methods: CCITT-standard MH
and MR, and Murata-proprietary MSE and SMSE.
Compatibility: CCITT Group 3.
Transmission Speed: 12 seconds per page.*
Document Memory: 31 pages for out-of-paper
reception, 27 pages for all fax uses. **
Document Feeder: 20 pages.
Resolution: Normal 203 H x 98 V lpi, fine 203 H x
196 Vlpi and superfine (CCITT) 203 H x 392 V lpi.
Do You Have A Comment?
Original Document Size:
Single sheet
8.5" (W) x 35.4" (L) maximum
5.8" (W) x 3.9" (L) minimum
Two or more sheets
8.5'' (W) x 14.0" (L) maximum
5.8" (W) x 5.8" (L) minimum
Dimensions:
Standard configuration
13.1" (W) x 14.4" (D) x 10.5'' (H).
With second paper cassette
13.1" (W) x 14.4" (D) x 13.3" (H).
Grayscale: 16- or 64-level, user-selectable.
Printing Width: 8.5".
Scanning Width: 8.5'' or 8.2", user-selectable.
Operating Instructions
Scanning Method: Solid-state CCD.
Recording Paper: Plain paper, cut sheets.
Power: 120V ± 10%, 50/60 Hz.
Weight:
Standard configuration -22.0 lbs.
With second paper cassette -30.8 lbs.
* Based on transmission of CCITT Test Document I to a
memory-equipped Muratec fax. Your transmission times will
vary, but your fax will always provide the fastest transmission
speeds possible under CCITT 9600 bps guidelines and phone
line conditions.
** Based on CCITT Test Document I stored at normal resolution.
The number of pages stored in memory wi ll vary based on the
size of your documents and on the comp le xity of images on
the pages scanned.
Your comments and suggestions regarding this manual are welcome. Fax your comments to Muratec Marketing Department, [phone].
10
Muratec

Operating Instructions Muratec
Setting Up Your Fax Machine
Phone and Electrical Requirements
Dos and Don'ts
Do place the fax machine near a wall outlet, so you can easily unplug it.
Do use an electrical surge protector. This will shield your fax machine from
high-voltage electrical surges that may damage it. Many surge protectors
guard both telephone and electrical lines.
Do plug your fax machine into a standard three-pronged 120 VAC electri-
cal outlet.
Do leave your fax machine plugged in so you never miss a fax. In standby,
your fax machine uses only about as much electricity as a clock radio.
Don't connect to a multi-line (PBX) office phone system without first check-
ing with your PBX's manufacturer or seNice representative.
Don't plug your fax machine into an electrical outlet controlled by a wall
switch; you' ll risk missing fax messages.
Don 't plug your fax machine into the same outlet as a large appliance such
as a refrigerator or air conditioner. High-consumption appliances can
cause electrical "draw-downs" -temporary drops in power available for
other equipment on the circuit -and could damage your fax machine.
Note: To disconnect the machine from the power, it is necessary to unplug
the power cord from the wa ll socket or remove the power cord from
the rear of the unit. For convenience, the unit must be install ed so that
easy access to the power outlet is provided.
Avertissement: Debrancher le cordon electrique a la fiche au dos de l'appare il ou a la
prise murale pour le mettre hors tension. La prise murale doit se
trouver pres de l'appareil pour un acces facile.
Voltage requirements and power consumption
Voltage Requirements: 120 VAC ± 10 , 50-60 Hz
Power Consumption: Standby 1 OW Transmission
Reception 40W Maximum
Copy 60W
Call-waiting signals
20W
160W
Telephone call-waiting signals can stop fax transmission and reception. If you
must use only one phone line, consult your telephone company for informa-
tion on how to disable call-waiting seNice while using the fax machine.
Muratec
Quick Set-up
First, select apla ce within five feet of a standard three-pronged, 120 VAC electri-
cal outlet and a stan dard ("mo dular") telephone jack (an RJ -11).
1. Using a small Phillips screwdriver,
attach the handset cradle to the side ""
of your fax machine using the handset
cradle screws.
2. Plug the handset cradle's cord into
the HANDSET connection on the left
side of your fax machine. Plug one
end of the handset curl cord into the
jack on the handset cradle and the
other end of the handset curl cord into
the jack on the handset. Place the LINE mm N ANDSE '
telephone handset on the cradle. ~ ~ ~
3. Plug one end of the uncurled telephone
line cord into the LINE connector on
the left side of the fax machine.
Plug the other end into a standard
telephone wall jack. If you will be using
an answering machine or second
telephone with your fax machine,
plug the jack from that other device's
telephone line cord into the EXT. TEL
connector, also on the left side of the
fax machine. (See "Attaching a Second
Telephone or Answering Machine,"
page 15, for more information.)
Note: Do not connect the answering
machine or second telephone
directly into a telephone wall
jack. The other device now
receives its telephone signals
through your fax machine.
11

Muratec

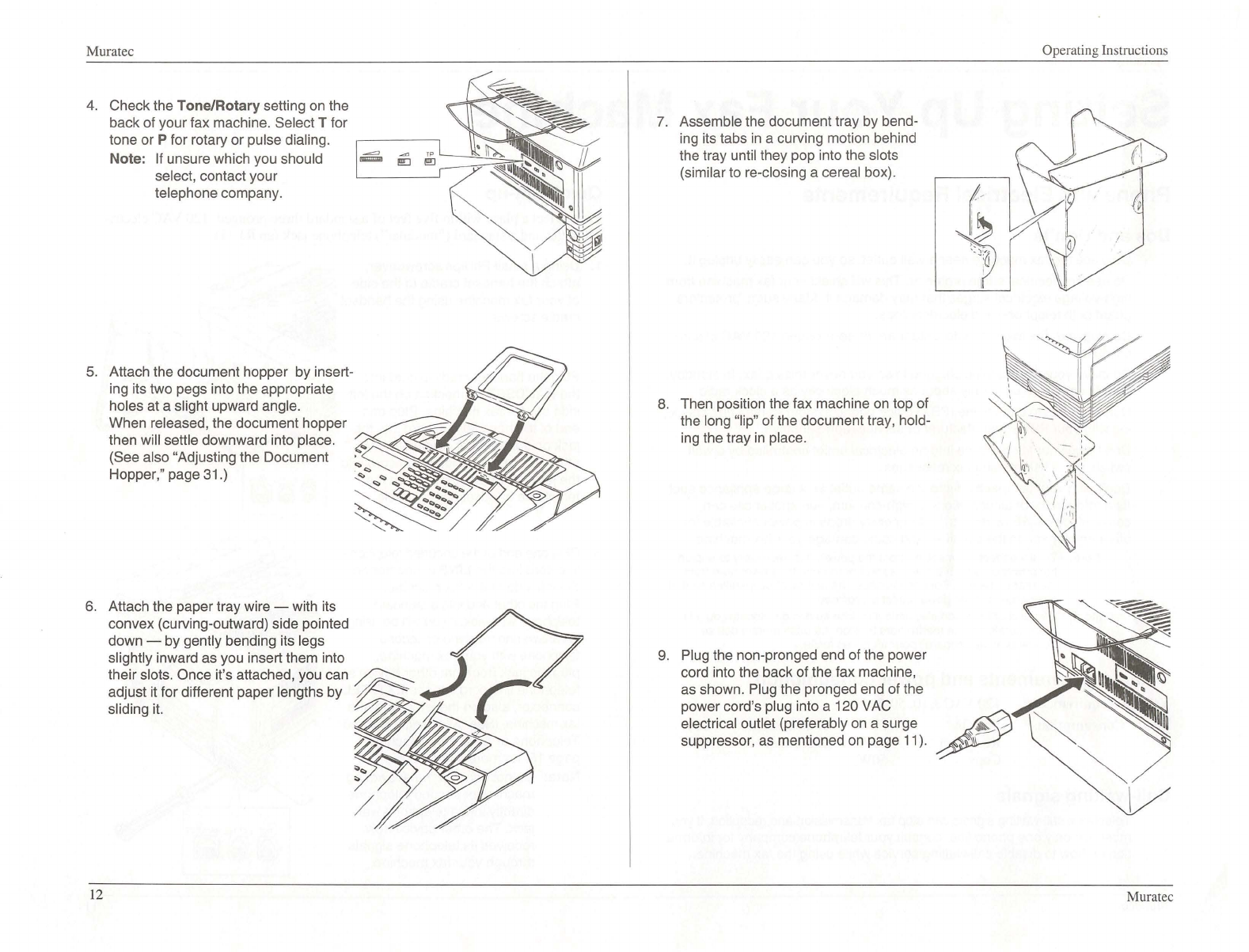

4. Check the Tone/Rotary setting on the
back of your fax machine. Select T for
tone or P for rotary or pulse dialing. - -- ----,
Note: If unsure which you should ~ ~ ~ - ~"-= -"-
select, contact your
telephone company.
5. Attach the document hopper by insert-
ing its two pegs into the appropriate
holes at a slight upward angle.
6.
12
When released, the document hopper
then will settle downward into place.
(See also "Adjusting the Document
Hopper," page 31.)
7. Assemble the document tray by bend-
ing its tabs in a curving motion behind
the tray until they pop into the slots
(similar to re-closing a cereal box).
8. Then position the fax machine on top of
the long "lip" of the document tray, hold-
ing the tray in place.
9. Plug the non-pronged end of the power
cord into the back of the fax machine,
as shown. Plug the pronged end of the
power cord's plug into a 120 VAC
electrical outlet (preferably on a surge
suppressor, as mentioned on page 11 ).
Operating Instructions
Muratec

Operating Instructions
Installing Paper
Of course, one of the best features about your Muratec fax machine is how it prints
faxes and makes copies on plain paper! Now, everything that comes out of your
fax machine is ready for distribution or archiving from the start.
To in stall paper in your Muratec fax machine:
1. Pull forward on the paper cassette to
open it.
2. Gently press down on the spring-loaded
cassette plate until it "click-locks" onto
the bottom.
3. Insert up to 250 sheets into the cassette,
being sure to place the edges of the top
sheet under the metal tabs near the
handle-side of the cassette.
4. Push the paper cassette back into its
original, closed position within your fax
machine. (The spring-loaded cassette
plate will return to its normal, unlocked
position.) You'll feel a click when it's
properly in place.
Muratec
Changing Paper Size
It's easy to adjust your paper cas-
sette for either letter- or legal-sized
widths. To change the setting, just
pull up slightly on the paper guide
inside the cassette and slide it to the
slot marked with the setting ("LTR"
or "LGL") you wish.
Changing Donor Film
Muratec
The Muratec Film Imaging system provides high-quality fax printouts and copies
on plain paper-and economically at that -using clean, easy-to-handle and easy-
to-load donor film. Here's how to change the film.
Note: Be aware that the donor film roll which ships with your fax machine is a
special, complimentary roll. A regular roll is more than three times longer.
This first roll is just to make sure you can use your fax machine right away!
1. Press the document mount
release button and open the
top of your fax machine.
2. Grab the handles on each
side of the donor film cartridge
and lift it straight up out of your
fax machine.
Important: Notice that the
diagram at right
shows a view from
the right rear side
of the fax machine,
not its front.
13

Mura tee
3. Turn over the donor film cartridge and
rest it upside down on its handles.
Take note of the color-coordinated
gears on the ends of the donor film
rolls. Grasp the cartridge frame firmly
and remove the donor film rolls from
the cartridge.
4. Remove the color-coordinated gears
from the ends of the used film rolls.
Please dispose of the used rolls in a
proper receptacle.
5. Insert the color-coordinated gears into
the ends of a set of new donor film
rolls. The blue gears belong with the
supply (full) roll, which will be near the
front of the machine -the film rolls
from front to back. The gray gears
belong with the takeup (empty) roll.
6. Snap the new rolls into the donor
film cartridge.
14
Important: You must turn the rolls
until only the black donor
film -and none of the
blue leader film - is
showing. The blue leader
film cannot print.
7. Now you're ready to put the cartridge
back in the machine. Turn the cartridge
right-side up again and position it so that
each roll's pair of color-coordinated gears
are over the gear stand with the same
color (remember: blue in front, gray in
back). Gently put the cartridge back in; if
you have positioned it correctly, it will
"drop" in smoothly.
Note: Your fax machine won't work
if the cartridge isn't in the
proper position.
8. Close the top cover of your fax
machine. You will feel a click when it
is closed.
Note: Your fax machine won't work if
the top cover isn't closed.
Muratec Donor Film
Operating Instructions
As mentioned previously, the donor film roll which comes with your fax machine
is much shorter than the regular roll. This starter roll is supplied so you can quickly
begin using your Muratec fax machine. In the meantime, we recommend you pur-
chase at least one replacement roll right away.
For the best results and the longest life from your fax machine, use Muratec donor
film. Ask for Muratec donor film at your authorized Muratec facsimile dealer, or
call 1-800-292-2492 for donor film and other supplies.
Muratec

OperatingInstructions
Adjusting Monitor and Ringer Volume
For your convenience, your fax machine allows you to set the volume of the
monitor speaker and of the ringer.
1. Press Monitor/Call. You should hear a dial tone. If not, go back and re-check
your connections so far.
2. Adjust the volume with the monitor speaker dial on the back of your fax.
Press Monitor/Call once more to turn off the monitor.
You may set the ringer volume to one of these three levels: high, medium, or low.
To do so, use the ringer volume switch, also at the back of your fax machine.
Attaching a Second Telephone
or an Answering Machine
1. Plug the line of your second telephone or answering machine into the
EXT. TEL jack on the side of your
fax machine.
Note: Do not plug your second
phone or answering machine
into the wall jack. In order for
your fax machine and answering
machine to work together, the
answering machine must be
connected to the fax machine's
EXT. TEL jack, as shown.
'-.._
I
2. Plug your answering machine's power cord into a standard electrical outlet.
3. Set your answering machine so that it will always let the phone ring at least
two times. This is necessary to allow the fax machine to detect the ap-
propriate signals in a call which indicate it's a fax call.
Note: If your answering machine uses a "toll-saver" feature which causes
the phone to ring fewer than two times, this may cause difficulty.
Please be sure your answering machine is set to allow at least two
rings, regardless of whether it has any messages waiting.
Muratee
Using an Answering Machine
with Your Fax Machine
1. Press Auto Answer repeatedly until the "Auto Answer" light is lit.
Muratec
2. Press these keys in the following order: ~/Program, J, 1, 3, Mode/Enter.
Important: Look to the "one-touch" keys on the right side of the control panel
to find the J key.
Then press ~/Program until the display shows:
Ans/Fax Ready
Program /E nter
Then press Mode/Enter to confirm your choice of answering machine/fax
machine -"Ans/Fax" -receiving mode.
3. Set your answering machine to answer calls after no fewer than two rings.
Consult your answering machine's operator manual for instructions. Set your
fax to answer after six rings.
4. Create an outgoing message for your answering machine. Here's a sug-
gested outgoing message for your answering machine that you can modify to
suit your needs:
You have reached [your name or telephone number].
To leave a voice message, wait for the beep. To send
a fax now, press Start. Or, leave a voice message and
then press Start to send afax. Thanks!
For best results, keep your message short -under ten seconds.
(See page 73.)
15

Muratec Operating Instructions
16
Muratec

Operating Instructions
Telephone Features
Your fax machine is apersonal communications center designed to satisfy your fax
and copier needs. You' ll soon find it is also a full-featured phone, equipped with
many handy conveniences. Indeed, you can use it to do one thing regular phones
can't do: you can use the phone to make either voice calls or fax calls!
Note: When calling a remote fax machine either by using your fax machine's
handset or by dialing on-hook using the Monitor/Call feature, wait until you
hear fax reception tones and then press Startto transmit the document
which is in the feeder of your fax machine.
Your fax machine's phone features include:
Redial
Pressing Redial automatically redials the last number you dialed.
During transmission, if your fax encounters abusy signal when dialing a number
you have entered with a one-touch key, a speed -di al number or on the numeric
keypad, your fax will automatically redial the number. How many times it redials,
and the length of the interval between redials, is something you can set (see
page 34 for more details).
Note: Your fax machine initially is set to redial five times at three-minute intervals.
Important: If you encounter a busy signal on a call you have entered manually
Hold
through the handset or by using the Monitor/Call feature, you will
need to redial manually by pressing this key.
You can put a caller on hold during your telephone conversation by pressing Hold
and hanging up the handset. To return to your call, pick up the handset and press
Hold again.
** On Ho l d **
9-5 5 5-3300
As a courtesy feature, your fax machine will beep at one-minute intervals to
remind you of the call on hold. If you do not pick up the call after five minutes,
your fax machine will hang up the call, automatically.
Muratec
Muratec
Monitor/Call
Press Monitor/Call to get a dial tone for hands-free dialing. Dial the telephone
number using the numeric keypad, a one-touch key, or a speed-dial number. If
you're using the numeric keypad, press Start when the remote fax answers. When
you use one-touch and speed-dial keys, your fax will attempt to transmit automat-
ically; there's no need to press Start.
** Tel Mode **
Telephone Index
With the alphanumeric (using letters and numbers) autodialer index, you can look
up other fax numbers by the name of the company or person using the fax
machine! When the name you want appears, press Start and your fax machine will
automatically dial the number. We'll tell you later how you can easily store this in-
formation in your autodialer (see "Autodialer," page 37).
Here's how to search your autodialer index for a fax name:
1. Press Speed Dial!Tel Index two times. The first listing -by alphabetical
order -in your autodialer directory will appear. (If this first listing which ap-
pears is the one to which to desire to send a fax, skip to step 3.)
Tel ep ho ne In dex [A]
A BC Company : A
2. Your autodialer alphabetizes using three character sets: uppercase letters,
then lowercase letters, then certain symbols. Use the following keys on the
numeric keypad to scroll through your fax machine's autodialer listings:
• 8 to scroll forward among the character sets
• 2 to scroll backward among the character sets
• 6 to scroll forward within a selected character set
• 4 to scroll backward within a character set
Try it! You'll see how easy it is.
3. When the desired name appears, press Start to begin sending a fax to that
person or company.
17

Muratee
Op era tin g In s tru c ti ons
18
Muratec
