MANUFACTURER'S MANUAL
MD3071 Inflatable PFD
Manual Inflation Model
Approved by Transport Canada
DO NOT REMOVE PRIOR TO SALE
MUSTANG SURVIVAL
WE SAVE LIVES FOR A LIVING
INFLATABLE PERSONAL FLOTATION DEVICE
HT-3071 (Rev 07Sept2011)

Contents
APPROVAL CONDITIONS AND CARRIAGE REGULATIONS.......................1
WHAT IS AN INFLATABLE PFD?.................................................2
INSTRUCTIONS FOR USE .......................................................2
Component Inspection Instructions ........................................2
Readiness Checklist........................................................3
Sizing and Fit ..............................................................3
Donning Instructions.......................................................4
Inflating Your Inflatable PFD ..............................................5
Deflating the Inflatable PFD ...............................................6
Usage Below Freezing .....................................................7
Re-arming Your PFD .......................................................7
Repacking .................................................................9
IS YOUR PFD IN GOOD AND SERVICEABLE CONDITION? .................... 10

CLEANING AND STORING OF YOUR INFLATABLE PFD ........................ 12
HOW AND WHY TO TEST YOUR PFD ......................................... 12
HOW DO YOU TEST YOUR PFD USING THE MANUAL
INFLATOR? ................................................................... 13
HOW DO YOU TEST YOUR PFD USING THE ORAL INFLATOR? ................ 13
WEAR YOUR PFD............................................................. 14

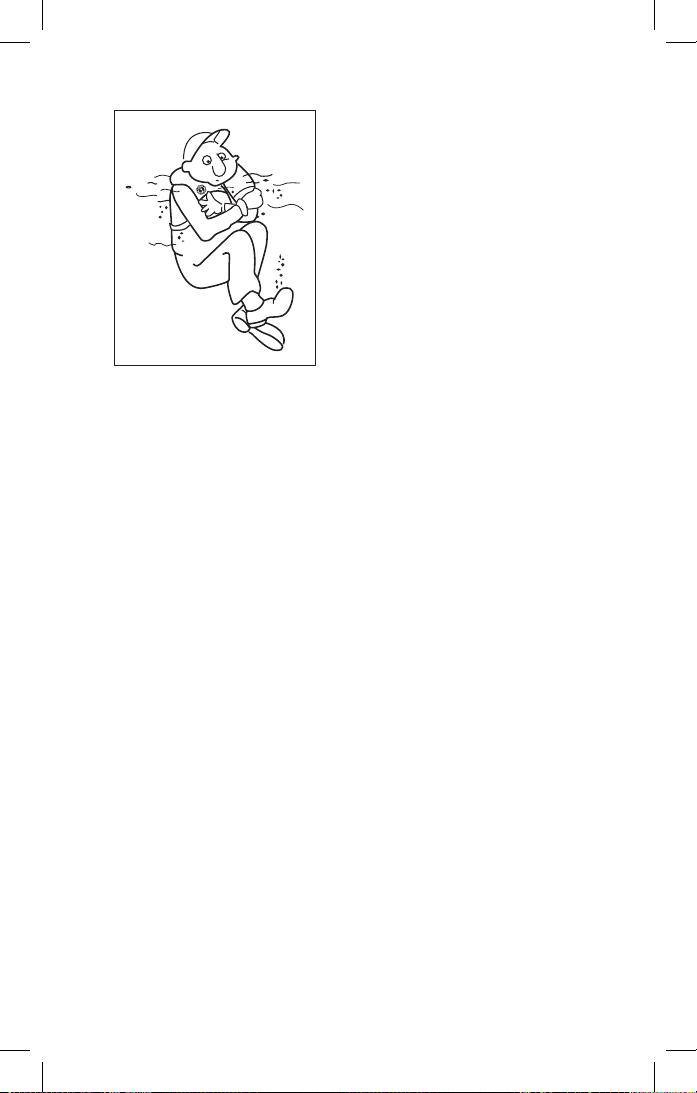

HYPOTHERMIA ............................................................... 14
EACH OF THESE DEVICES IS INTENDED TO HELP YOU
SAVE YOUR OWN LIFE ....................................................... 16
INFLATABLE PFD SAFETY ACCESSORIES ...................................... 17
ADDITIONAL INFORMATION ................................................. 17

1
InFLAtABLe PFDs
Inflatable PFDs are special devices in that the flotation of the wearer
is not derived from inherently buoyant materials. In order for them
to do their job, you, the wearer, must do yours! This means you have
the responsibility to ensure you are familiar with the operation and
maintenance requirements of your inflatable PFD! You must also
be aware of the limitations of the device and know that it is not
approved under the Small Vessel Regulations for certain boating
activities.
ReAD YoUR oWneR’s MAnUAL AnD tHe
InFoRMAtIon LABeLs on YoUR PFD!
It CoULD sAVe YoUR LIFe!
APPROVAL CONDITIONS AND CARRIAGE
REGULATIONS
This inflatable PFD is approved by Transport Canada for use as Type III
[MD3071] Personal Flotation Device (PFD). It is not approved for water
skiing or other high impact, high speed activities. This inflatable PFD
was designed to be more comfortable and less restrictive to wear than
inherently buoyant PFDs.When worn, used, and serviced according to
this owner’s manual, this PFD can greatly increase your chances of
survival in the water. Not recommended for non-swimmers or weak
swimmers. Users of inflatable PFDs must be at least 16 years old.
The models described in this manual are Department of Transport
(Canada) approved personal flotation devices (PFDs) for use on
recreational vessels. When worn, used, and serviced according to
this owner’s manual, these PFDs can greatly increase your chances
of survival in the water. They should always be fitted with the
appropriate, unpunctured, and fully functional inflation cartridge,
or be worn fully inflated. NOT for white water paddling or personal
watercraft use. PFDs fitted with an automatic inflator are not
permitted for sailboarding activities. In order to meet the equipment
carriage requirements of the small vessel regulations, these PFDs must
be worn by an adult, in the case of an open boat or on deck or in the
cockpit in any other type of boat, or readily available to any other
adult occupant while below deck.

2
MANDATORY CARRIAGE REQUIREMENTS
The Small Vessel Regulations require that you carry on board a
Transport Canada approved personal flotation device, which bear a
markor label indicating the approval and is of an appropriate size for
each person on board. To be considered serviceable, this Inflatable
PFD shall not exhibit deterioration that could diminish its performance
such as broken or deformed hardware, detached webbing, rotted
structural components, air leaks, or nonfunctional oral inflation
tube. Unless worn inflated, this Inflatable PFD must also be properly
armed with a full CO2 cylinder, inflation system status indicator, and
an accessible manual inflation lanyard. A PFD which is “approved
only when worn” or “required to be worn” must be worn under the
specified conditions.
WHAT IS AN INFLATABLE PFD?
While traditional PFDs are inherently buoyant, inflatable PFDs, rely
entirely on inflation for buoyancy. Uninflated, the Inflatable PFD is
a comfortable slim collar that can be inflated at any time with a
33-gram CO2 gas cylinder. The Inflatable PFD is designed to offer
maximum mobility with minimum bulk. The Inflatable PFD (MD3071)
can be inflated either manually by jerking a pull-tab, or orally (by
mouth). It is recommended that you familiarize yourself with the
procedures outlined in INSTRUCTIONS FOR USE (p. 2).
INSTRUCTIONS FOR USE
This manual supplies instructional, maintenance and safety
information for model MD3071 unless specified otherwise. The model
number is listed on the underside label.
Congratulations on your Inflatable PFD purchase.
Uninspected Commercial Vessel Use
This Inflatable PFD is not approved for “hot work” and care must be
taken to avoid damage from abrasion and sharp objects.
Component Inspection Instructions
1) Examine the service indicator through the window panel (Fig.
1). Ensure the service indicator is green. If the service indicator

3
is red, the mechanism has been fired or is incorrectly fitted (see
Re-arming Your PFD (p.7)).
NOTE: The service indicator must be green before
proceeding.
2) Undo the Velcro™ strips along the underside of the PFD.
3) Ensure the oral-inflation dust cap is in the stowed position (Fig. 6).
4) Ensure the service indicator is green and the pull-tab lanyard is
hanging on the outside (Fig. 1); secure the Velcro™ strips on the
underside of the Inflatable PFD.
Readiness Checklist
Check your Inflatable PFD and ensure all of the checkpoints listed
below are true before use.
Service indicator is green (Fig. 1).
No rips, tears or holes; all seams are securely sewn; and the fabric,
straps and hardware are still strong.
All Velcro™and waist belt are securely fastened.
Inflatable PFD is not twisted.
Oral-inflation dust cap is in the stowed position (Fig. 6).
“Jerk to inflate” tab exits bottom of pouch.
Your Inflatable PFD is ready for use if all applicable boxes are checked.
NOTE: Contact your Mustang Dealer if you have any concerns
about the readiness of your Inflatable PFD.
Sizing and Fit
This PFD provides a minimum of 150 Newtons (33.7 lbs) of buoyancy
MD3075 Service Indicator
Manual Inator
FIGURE 1
FIGURE 1
MD3071 Service Indicator

4
when inflated and is designed for wearers over 16 years of age, with a
chest range of 76–132 cm (30–52 in) weighing over 36 kg (80 lbs).
Donning Instructions
It is important that the Inflatable PFD is properly adjusted to fit
the person wearing it. An incorrect fit or improper fastening of
attachments could impede its effectiveness.
1) All belts and straps are already threaded correctly and only need
to be adjusted for fit. The MD3071 waist belt should fit securely
below your rib cage.
2) Put the Inflatable PFD on just like a standard waist belt pack, and
fasten the front buckle. Adjust waist belt to a snug, comfortable
fit, and secure the belt’s loose end in the belt loop. Do not wear
Inflatable PFD under clothing, as the inflation could be restricted,
or you could be injured (Fig.2, Step 1 and 2).
WARNING: Do not wear Inflatable PFDs under clothing as
the inflation could be restricted or you could be injured.
Deployment and Use of the PFD (Fig2, Step 3-6)
Inflating then donning
1) Either pull out the bladder from fabric casing, then inflate orally, or
pull sharply on tab to inflate.
2) Put over head.
3) Tie the tie tapes at neckline
FIGURE 2

5
Donning then inflating
1) Pull out the bladder.
2) Put over head.
3) Pull sharply on tab to inflate or inflate orally.
4) Tie the tie tapes at neckline.
Inflating Your Inflatable PFD
It is recommended that the following procedures be followed to
inflate your Inflatable PFD:

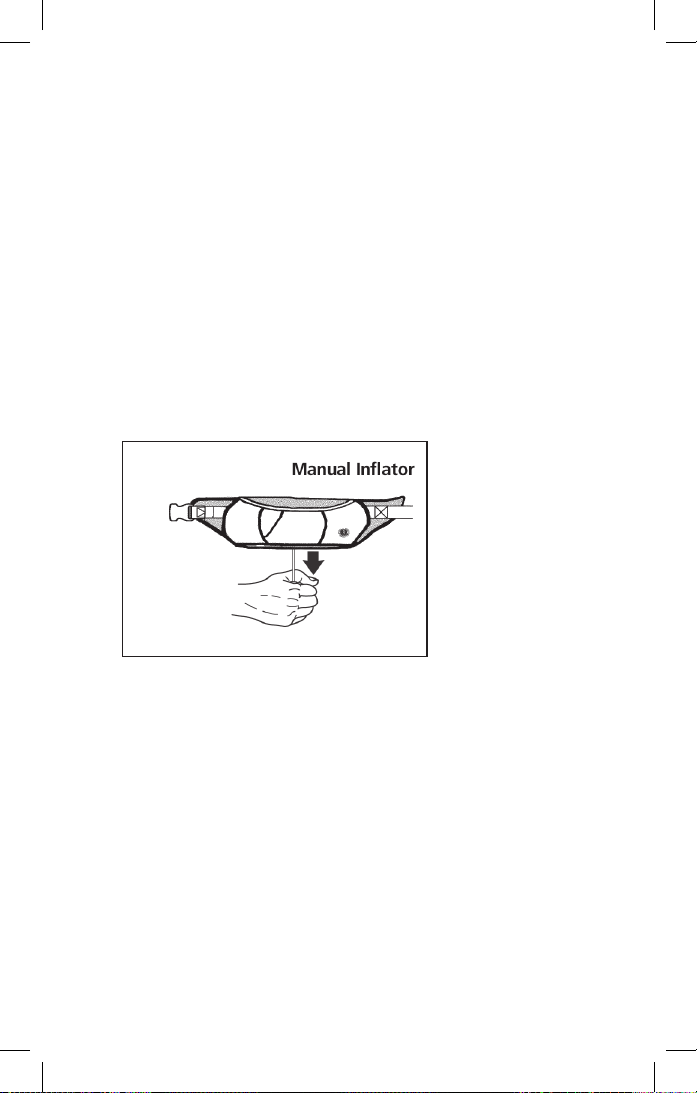

1) Manual Inflation
Activate the inflation system by jerking firmly downward on the
pull-tab (Fig. 3). The Inflatable PFD should fully inflate within 5
seconds.
Information
When inflated, the carbon dioxide (CO2gas) used to inflate the
PFD will slowly escape through the fabric over time. A slight
reduction of pressure will be observed after several hours of
inflation. Topping up by oral inflation may be required in the event
of very prolonged immersion.
3) Oral Inflation
Properly armed and inspected Inflatable PFDs will inflate when
manually or automatically activated. However, you can fully inflate
the Inflatable PFD by mouth (Fig. 4) should inflation not occur,
or if you are in a non-emergency situation. To orally inflate the
Inflatable PFD, first locate the oral inflation tube by opening the
MD3071
FIGURE 3

6
cover panel of the Inflatable PFD. Remove the dust cap from the
end of the oral tube and blow into the tube until the Inflatable
PFD is fully inflated.
Place the oral inflator dust cap back in the stowed position (Fig.
6).
WARNING: Avoid double inflation (CO2cylinder inflation
after full oral inflation) as it could damage the PFD.
Deflating the Inflatable PFD
1) To deflate the Inflatable PFD, reverse the oral-inflation tube dust
cap and insert it into the valve or depress valve with fingertip. The
dust cap will not lock in the deflate position so it is necessary to
hold it in place (Fig. 5).
2) Gently squeeze the Inflatable PFD until all air or gas has been
expelled. To avoid damage; do not wring or twist the Inflatable
PFD. Put the inflation tube dust cap back in its stowed position on
the oral inflation tube (Fig. 6).
3) Examine the service indicator (Fig. 1). If the service indicator is
red, the mechanism has been fired or is incorrectly fitted and the
inflator requires service (see Re-arming your PFD (MD3071)).
NOTE: The service indicator must be green before
proceeding.
FIGURE 4
FIGURE 4

7
4) Your device is ready to be repacked (see Repacking p. 9).
Usage Below Freezing
When the temperature is below freezing, the Inflatable PFD should
be worn partially inflated because a fully discharged cylinder may
not quickly or adequately inflate your Inflatable PFD. Under these
conditions use the oral inflator to adequately top-up the PFD, after
CO2inflation.
WARNING: CO2inflation could over-pressurize and damage your
Inflatable PFD if already fully inflated.
Re-arming Your PFD (MD3071)
NOTE: A re-arm kit (MA7203) is required for this procedure.
IMPORTANT: Follow instructions in the exact sequence below.
1) Open bottom cover flap so that manual inflator is exposed (Fig. 7).
2) Remove the cylinder/bayonet assembly by rotating
counterclockwise and then pull out. Discard the used cylinder/
bayonet assembly.
3) Check the new cylinder/bayonet assembly to ensure the o-ring is
in place and the sensor ring is attached (Fig. 7). Ensure that the
CO2cylinder has not been pierced (Fig. 7).
Dust cap
position for
deation
Dust cap
in stowed
position
Oral Inator
FIGURE 6
Cap In
Deflate
Position
FIGURE 5

8
4) Raise, and hold, the lever into the inflator housing. Install a new
cylinder/bayonet assembly by engaging bayonet tabs in housing,
pushing in then turning clockwise 1/8 turn to a full stop (Fig. 8).
5) Examine the service indicator (Fig. 8) and ensure it is GREEN. If
the service indicator is red, the mechanism has been fired or is
incorrectly fitted and the inflator requires service. See Re-arming
Your PFD (MD3071) p. 7.
NOTE: The service indicator must be green before proceeding.
Tab
Piercing Pin
Cylinder
Lever
Service Indicator
MD3085 Manual Inflator
1/8 Turn
Cylinder
1/8 Turn
Tab
Piercing Pin
Lever
Service
Indicator
MD3081 and MD3082 Manual Inflator
FIGURE 8 MD3071
Service Indicator
If green, unit is operable
If red, stop and service unit
MD3085 Manual Inflator
Tab
Step 4
O-Ring
Step 3
Lever
Step 4
Service
Indicator
Step 5
Cylinder
Step 2
Sensor Ring
Step 3
Bayonet
FIGURE 7
WARNING: PFD WILL ONLY INFLATE IF CYLINDER IS
TURNED TO A FULL STOP.
3F Manual Inflator

9
6) Refold the Inflatable PFD in accordance with the Repacking
section (p. 9).
YOUR INFLATABLE PFD (MD3071) IS NOW READY FOR MANUAL
USE
Repacking
Gently squeeze the Inflatable PFD until all air or gas has been expelled
(Fig. 5). Do not wring or twist the Inflatable PFD. Put the oral tube
dust cap back in its stowed position on the oral inflation tube (Fig. 6).
NOTE: Before following the repacking sequence, be sure to
properly re-arm your Inflatable PFD.
1) Lay the bladder and pouch out on a flat surface with the bladder’s
inflator and oral tube facing the flat surface (Fig.9).
2) Fold sides to meet in the middle.
3) Start by folding bladder at first crease, roughly 2” from bottom.
Continue folding the bladder using the creases as guidance.
FIGURE 9

10
4) Without twisting, fold the bladder over once and place into the
centre of the pouch between the two wings (Fig.9). Ensure the
yellow inflator pulltab is positioned so it hangs out from the
bottom, between the VelcroTM closure.
5) Position so that green indicator is visible through window.
6) Ensure yellow pulltab is still hanging out the bottom of the pouch.
7) Close VelcroTM at bottom of pouch.
IS YOUR PFD IN GOOD AND SERVICEABLE
CONDITION?
Check your Inflatable PFD between outings to be sure that it is
properly armed; that it is free of rips, tears or holes; that all seams
are securely sewn; and that the fabric, straps and hardware are still
strong (See Readiness Checklist, p. 3). Inspect the inflatable portion of
the Inflatable PFD in accordance with the CARE AND MAINTENANCE
INSTRUCTIONS.
Check the following at the intervals listed below.
1) Before Each Use:
i) Examine the service indicator through the window panel,
ensuring it is green. If the indicator is red, the mechanism requires
service. See Re-arming Your PFD (MD3071), p.7.
ii) Ensure the manual pull-tab is accessible.
iii) Visually examine your Inflatable PFD for damage or excessive
abrasion, wear, tear or contamination. Particular attention must be
paid to the stitching, straps and hardware. If in doubt, send it to
your Mustang dealer for evaluation and/or servicing.
2) Every Two (2) Months:
i) Leak Test: The Inflatable PFD should be tested for general
leakage by orally inflating your Inflatable PFD until firm and let
stand for 16 hours. A leaking Inflatable PFD will not hold its
firmness and should be replaced. If your Inflatable PFD leaks, take
it to your Mustang dealer for evaluation and/or servicing. Repack

11
the Inflatable PFD as outlined in the Repacking section (p. 9).
ii) Oral Inflation Valve Test: To check the oral inflation valve, fully
inflate the Inflatable PFD using the oral inflator and hold valve
under water. If bubbles appear, deflate and re-inflate to test again.
Should the leak persist, take your Inflatable PFD to your Mustang
dealer for evaluation and/or servicing.
iii) Perform a thorough visual examination. See Readiness
Checklist (p. 3).
Perform these tests more often if exposed to potential damage or
used in extreme conditions.
3) After Each Inflation - Re-arm the Inflatable PFD. See Re-arming
Your PFD, p. 7.
4) Annually - Perform the following at the beginning of each
boating season, after inflation, or whenever the integrity of the
Inflatable PFD is in doubt:
i) Check all components for dirt or corrosion. Clean or replace, as
neccessary. See Readiness Checklist (p. 3).
ii) Visually examine your Inflatable PFD for damage or excessive
abrasion, wear, tear or contamination. Particular attention must be
paid to the stitching, straps and hardware. If in doubt, send it to
your Mustang dealer for evaluation and/or servicing.
iii) Perform the Oral Inflation Valve Test: See the Oral Inflation
Valve Test in the Every Two (2) Months Care and Maintenance
Instructions section.
iv) Perform the Leak Test. See the Leak Test in the Every Two (2)
Months Care and Maintenance Instructions section.
v) Ensure the service indicator is green (Fig. 1).
vi) Record as an “Annual” inspection in permanent ink on the
Care and Storage label, in the Date Maintained column.
Repack the Inflatable PFD as outlined in the Repacking section (p. 9).

12
WARNING: If you are not confident in the self-inspection
and servicing of your Inflatable PFD in accordance with
these instructions, take your Inflatable PFD to a Mustang
dealer for professional servicing or contact Mustang
Survival (see contact information on back of manual).
Cleaning and Storing of Your Inflatable PFD
(MD3071)
To clean your Inflatable PFD, remove the CO2cylinder/bayonet
assembly. Hand wash or sponge down the Inflatable PFD, including
inflator, in warm, soapy water and rinse with clean water. Hang to
dry on a plastic coat hanger. Be sure to replace CO2cylinder/bayonet
assembly. See Re-arming your PFD (MD3071) (p. 7).
Always store your Inflatable PFD in a warm, dry place out of direct
sunlight.
HOW AND WHY TO TEST YOUR PFD
Inflate your Inflatable PFD and try it out in the water to:
Make sure it floats you:
•Comfortably(whenwornproperly)
•Adequatelyforexpectedwaveconditions(bodyshapes/densities
affect performance)
Make sure it works:
•Aflowofbubblesshouldnotappear(seeCAREAND 
MAINTENANCE INSTRUCTIONS for leak tests p. 10). It should
inflate quick and easily.
Learn how it works by:
•ActivatingtheCO2inflation system
•Re-armingtheCO2inflation system
•Usingtheoralinflatortube
To check the manual inflation system (with CO2cylinder/bayonet
assembly removed); determine that the CO2cylinder piercing pin
moves freely when pushing up on the lever arm by pushing down on
the pins and releasing the pins followed by the lever arm. Repeat this
several times to check the manual inflation system.

13
HOW DO YOU TEST YOUR PFD USING THE
MANUAL INFLATOR?
1) To test your Inflatable PFD, you will need your fully armed
Inflatable PFD, and re-arming kit approved for your Inflatable PFD:
MA7203
2) Put on the Inflatable PFD.
3) Actuate the inflation system by jerking firmly downward on the
pull-tab. The Inflatable PFD should fully inflate within 5 seconds.
4) Get into shallow water, just deep enough that you can stand with
your head above the surface.
5) See if the Inflatable PFD will float you on your back or just slightly
back of vertical. In a relaxed floating position, verify that your
mouth is well above the water’s surface. Note the effect of where
you hold your legs and how you float.
6) Get out of the water and remove the Inflatable PFD. Completely
deflate the Inflatable PFD using the oral inflator (see Deflating the
Inflatable PFD p. 6). Remove the CO2cylinder/bayonet assembly
from the inflator.
7) Let the Inflatable PFD dry thoroughly. Re-arm & Repack the PFD (p.
7).
HOW DO YOU TEST YOUR PFD USING THE
ORAL INFLATOR?
1) No spare parts or re-arming kits are needed to test your Inflatable
PFD.
2) Remove the CO2cylinder/bayonet assembly to prevent inadvertent
inflation, which could potentially damage the Inflatable PFD.
Inspect the cylinder to confirm it is unused (Fig. 7).
3) Put on the Inflatable PFD.
4) Get into shallow water, just deep enough that you can stand with
your head above the surface.
5) If you are a weak swimmer or non-swimmer, orally inflate the
Inflatable PFD partially so that you are supported well enough to

14
be able to complete inflation without touching bottom. Note this
level of inflation because it is the minimum needed for you to
safely use this Inflatable PFD.
6) Fully inflate the Inflatable PFD using the oral tube.
7) See if the Inflatable PFD will float you on your back or just slightly
back of vertical. In a relaxed floating position, verify that your
mouth is well above the water’s surface. Note the effect of where
you hold your legs on how you float.
8) Get out of the water and remove the Inflatable PFD. Completely
deflate the Inflatable PFD using the oral tube.
9) Let the Inflatable PFD dry thoroughly. Re-arm and repack the PFD
(p. 7).
WEAR YOUR PFD
In approximately 80 percent of all boating fatalities, the victims were
not wearing a PFD. Most fatal accidents happen on calm sunny days.
This Inflatable PFD is much more comfortable to wear than other PFD
types. Get into the habit of wearing this Inflatable PFD.
Non-swimmers and children especially should wear a hybrid or non-
Inflatable PFD at all times when on or near the water.
HYPOTHERMIA
Prolonged exposure to cold water causes a condition known as
hypothermia - a substantial loss of body heat, which leads to
exhaustion and unconsciousness. Most drowning victims first
suffer from hypothermia. The following chart shows the effects of
hypothermia: how hypothermia affects most adults.

15
How hypothermia affects most adults
Water Exhaustion or Expected
Temperature ˚C (˚F) Unconsciousness Time of Survival
0.3 (32.5) Under 15 min. Under 15–45 min.
0.3–4 (32.5–40) 15–30 min. 30–90 min.
4–10 (40–50) 30–60 min. 1–3 hrs
10–16 (50–60) 1–2 hrs. 1–6 hrs.
16–21 (60–70) 2–7 hrs. 2–40 hrs.
21–27 (70–80) 2–12 hrs. 3 hrs. to Indefinite
over 27 (over 80) Indefinite Indefinite
PFDs can increase survival time because they allow you to float
without using energy treading water and because of their insulating
properties. Naturally, the warmer the water, the less insulation you
will require. When operating in cold waters [below 60°F (15.6°C)] you
should consider using a coat or jacket style PFD or a Type V Thermal
Protective PFD as they cover more of the body than the vest or belt
style PFDs. Some Points to Remember About Hypothermia Protection:
1) Always wear your Inflatable PFD. Even if you become
incapacitated due to hypothermia, the Inflatable PFD will keep you
afloat and greatly improve your chances of rescue.
2) Do not attempt to swim unless it is to reach a nearby craft, fellow
survivor, or a floating object on which you can lean or climb.
Swimming increases the rate of body heat loss. In cold water,
drown-proofing methods that require putting your head in the
water are not recommended. Keep your head out of the water. This
will greatly lessen heat loss and increase your survival time.
3) Use the standard H.E.L.P. position when wearing an Inflatable PFD,
drawing the legs up to a seated position, because doing so will
help you conserve body heat (Fig. 10).
4) Keep a positive attitude about your survival and rescue. This
will improve your chances of extending your survival time until
rescued. Your will-to-live does make a difference!
5) If there is more than one person in the water, huddling is
recommended while waiting to be rescued. This action tends to
reduce the rate of heat loss and thus increase the survival time.

16
EACH OF THESE DEVICES IS INTENDED TO
HELP YOU SAVE YOUR OWN LIFE
For your Inflatable PFD to function properly, follow these suggestions
to verify that it fits, floats, and remains in good condition.
1) Check the inflation mechanism status indicators before each use.
2) Get in the habit of re-arming the inflation mechanism right after
each inflation.
3) Try your wearable Inflatable PFD on and adjust it until it fits
comfortably in and out of the water.
4) Mark your Inflatable PFD with your name if you are the only
wearer.
5) Do not alter your Inflatable PFD. If it doesn’t fit properly, get one
that does. An altered device is no longer Coast Guard approved.
6) Your Inflatable PFD is not intended for use as a fender or kneeling
pad.
7) If your Inflatable PFD is wet, allow it to dry thoroughly before
storing it. Store it in a well-ventilated area.
8) Do not dry your Inflatable PFD in front of a radiator or other
source of direct heat.
FIGURE 10
HELP Position

17
Inflatable PFD Safety Accessories
For the MD3071 - MA7203 Re-arm Kit – Contains 33-gram
replacement CO2cylinder/bayonet assembly for the manual inflator.
ADDITIONAL INFORMATION
If you need more information about PFDs and safe recreational
boating, contact your provincial boating authority, Transport Canada
- Office of Boating Safety, the Canadian Coast Guard (CCG), CCG
auxiliary or the Canadian Red Cross.
DO NOT ATTACH PFD’S TO YOUR BOAT
Each PFD has straps, hooks, buckles, or other means for securing the
device in place on the wearer. Some PFDs also incorporate decorative
d-rings or tabs. Such items are not to be used to attach the device
to the boat. Attaching the device to the boat will not permit it to
perform as intended.
AIRLINE OPERATOR POLICY ON CARRIAGE
OF INFLATABLE PFDS AND CO2CARTRIDGES
Please be aware that regulations may apply to the air transport of
this product. With the approval of the aircraft operator, carbon dioxide
cylinder(s) may be carried by a passenger or crew in checked or carry-
on baggage.
Please consult airline operator policy.
