500769 & 500769-RM Web Interface Guide
Overview
The HDMI 2.0 Digital Signage Media Player may be controlled by the unit Web Interface and by
Digisign CMS (Content Management System) software for scheduling. This document covers how
to setup and manage the 500769 and 500769-RM via the device’s web interface. Please refer to the
Digisign CMS operation manual for scheduling signage content on a weekly basis, with multiview
windows supporting multiple content sources (from both local and network sources).
Access to the 500769 and 500769-RM web interface is possible via a web browser. The unit is
configured in DHCP mode by default, and will be assigned an IP address if your network has a
DHCP server. If no DHCP server is available on the network, the device will default to the Static IP
address: 192.168.168.63. You may identify the IP address of the unit by looking at a connected
display, as it will be visible when the device is booting up. Once its IP address is known set your
PC to a different IP address in the same segment, and set the PC subnet mask and gateway address
accordingly. Enter the device IP address in your browser and press Enter. The first screen presented
is the Login screen. If you require assistance on how to do this, please see your IT manager.
There are several screens to navigate in order to manage the 500769 and 500769-RM. The first
screen shown after entering the device IP address in the browser is the login screen. Note that
several screens allow the user to click on a “Blink LED” button to cause the device “Link” LED to
blink for testing and tracing purposes. The “Blink LED” button operates as a toggle.
Login
To login to the 500769 and 500769-RM web
interface, type in the Username and Password,
and then click on “Sign in”. The default
Username and Password is “admin”.
Info Tab
Click on the “Info”tab to get information on the
unit, such as the (a) System Time (b) output
video resolution, (c) deep color information, (d)
security check (e) memory usage vs total
memory, (f) external USB memory used vs total
and (g) internal SD memory used vs total.
PlayList Tab
Click on the “PlayList” tab to (a) create a new
play list (click on the “New Playlist” button,
enter a description then click on the “Save
changes” button), (b) select a playlist, (c) load a
playlist (click on the play icon beside the steam
URL to play the stream), (d) add a new playlist
(from either a file or live stream), (e) select an
image file to add it to the video or stream, then
enter the image display duration and click on the
“Add”button.

Page 2 © MuxLab Inc. 2018 Page 3

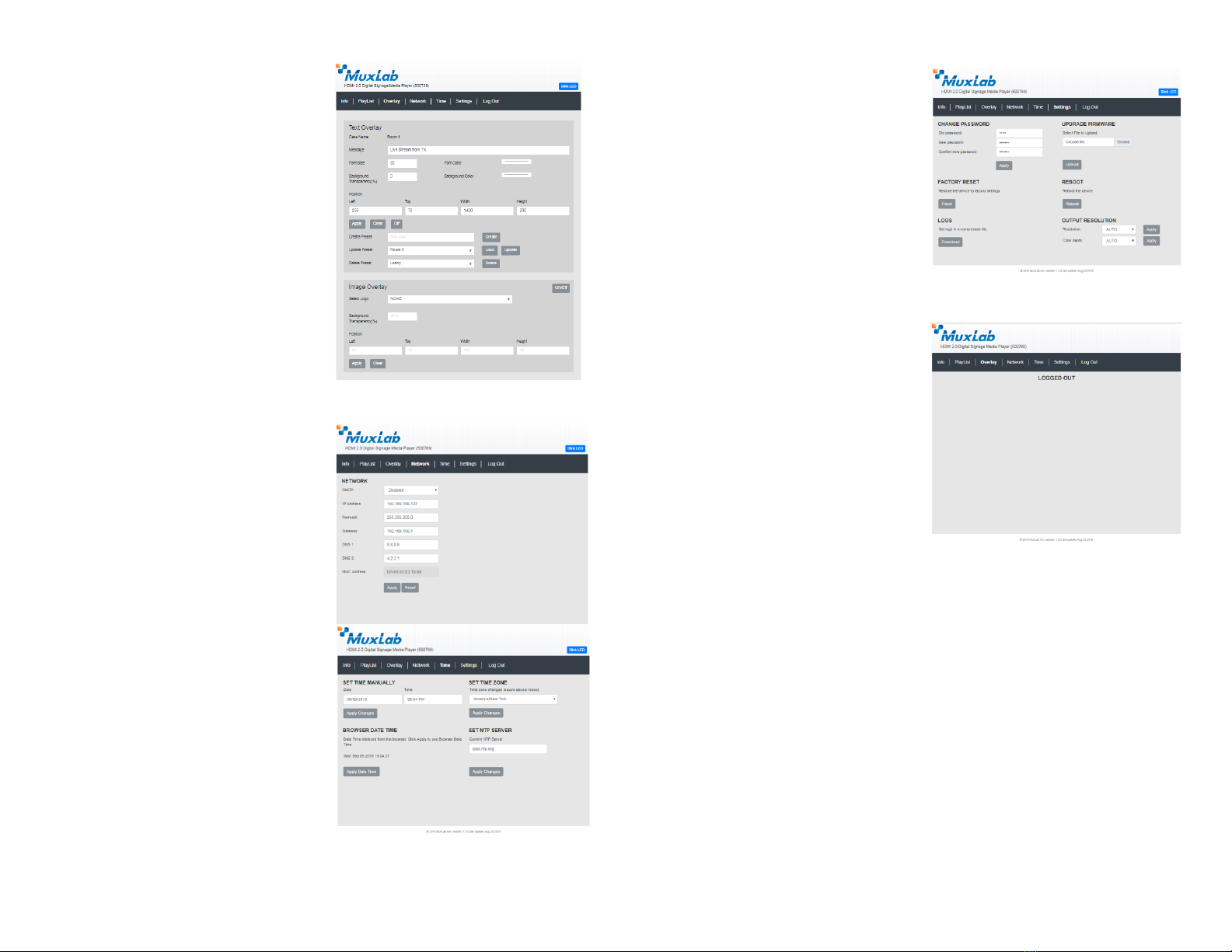

Overlay Tab
Click on the “Overlay”tab to (a) overlay a
text over a video (type the message to be
displayed, select the font size, font color,
transparency, background color and position.
Clicking on the “Off”button will make the
text disappear), (b) create a preset (enter a
name in the “Create Preset”box), (c) upload
an image (i.e. logo) over the video (select the
file from the internal memory or external
USB memory device, select the background
transparency level and position, then click
on the “Apply”button). You may click on
the “Clear”button to clear these settings. To
make the logo appear/disappear, click on the
“On/Off”button.
When loading a preset, click on the “Apply”
button so that the unit gets updated. To
delete a Preset, select the preset and click on
the “Delete”button. Clicking on the
“Update”button will allow you to modify
your preset (e.g. changing the Font size).
Network Tab
Click on the “Network”tab to (a) enable or
disable DHCP via a pulldown tab, (b) set the
device Static IP Address, Subnet Mask and
Gateway, and DNS (c) obtain the unit MAC
address.
Click on the “Apply” button to accept
changes, or “Reset” to return to the previous
settings.
Time Tab
Click on the “Time”tab to (a) set time
manually (note that the date/time is not
saved on power off), (b) set time zone,
(c) set the date/time from the local
computer, (d) set date/time from a ntp
server (preferred method).
Once configured, click on the “Apply
Changes” button to apply the new
settings.
Settings Tab
Click on the “Settings” tab to (a) change the
login password, by entering the old password,
new password, reconfirming the new password,
and clicking on “Apply”, (b) upgrade the device
firmware, by clicking on the “Choose File”
button to search for and select the new firmware,
and then clicking “Upload”, (c) reset the unit to
factory default, by clicking on the “Reset”
button, (d) reboot the unit, by clicking on the
“Reboot” button, (e) download event logs from
the unit, and (f) configure the output resolution
and color depth (click on the “Apply”button so
that the change take effect).
Log Out Tab
Click on the “Log Out” tab to log out of the
device web interface.
