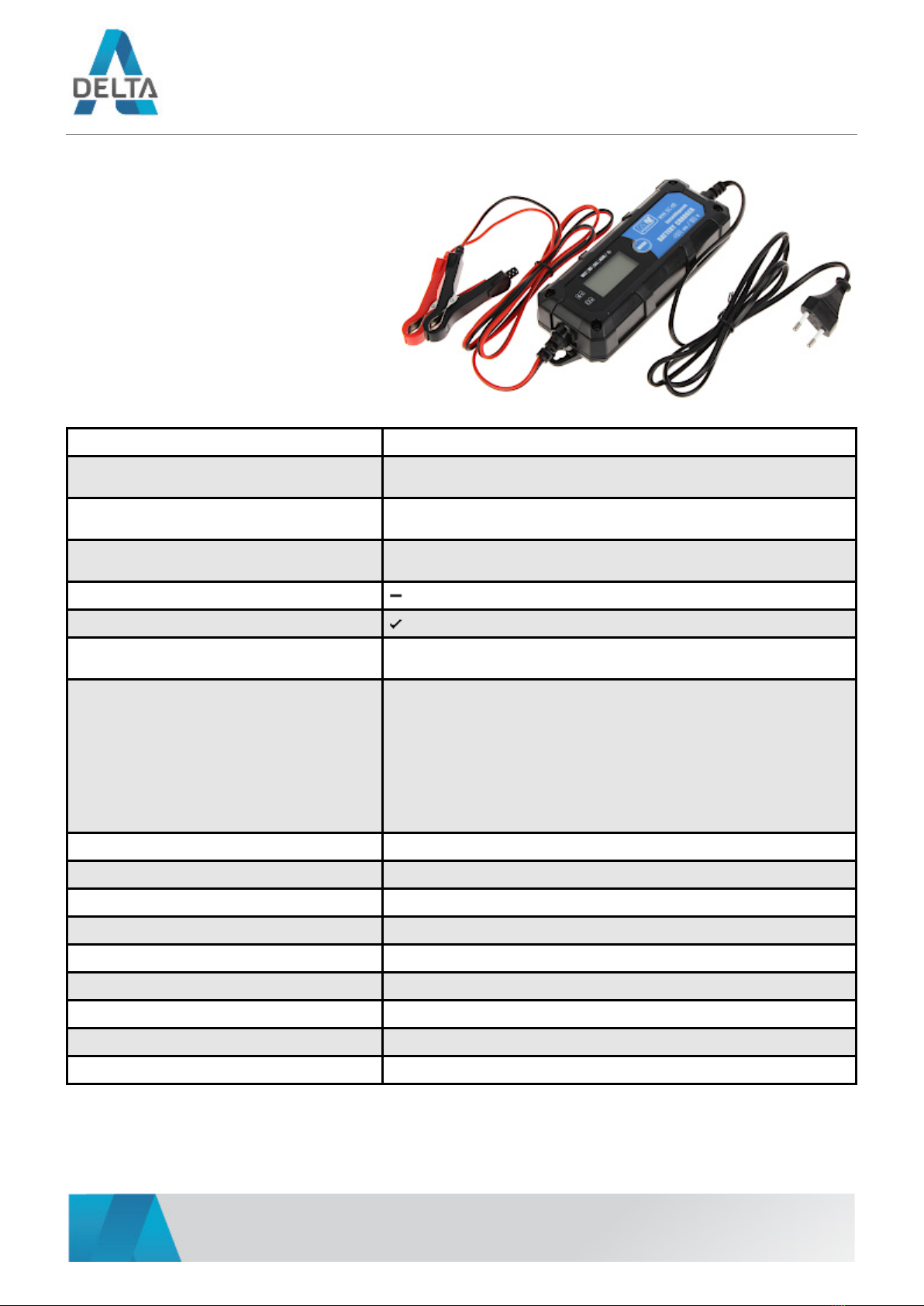

The MW-SC4B Smart Battery Charger is designed for
charging lead-acid, gel and AGM batteries used in cars,
quads, boats, lawn mowers, motorcycles, mopeds, etc.
Processor control ensures a fully automatic, multi-stage
charging process and keeps the battery charged.
Battery type: 6 V, 12 V : Lead-Acid, Sealed lead-acid, AGM
Battery capacity: • 6 V : 1.2 Ah ... 14 Ah,
• 12 V : 1.2 Ah ... 120 Ah
Battery charging current: • 6 V : 1 A ± 10 %,
• 12 V : 1 A / 4 A ± 10 %
Battery charging voltage: • 7.2 V / 7.4 V DC ± 25 %
• 14.4 V / 14.7 V DC ± 25 %
LED indicator:
LCD display:
Length of the cables: • 1.45 m - Battery cable
• 1.50 m - Power cord
Main features:
• Microprocessor control system
• Fully automatic 10-stage charging process
• Keeping the battery charged
• Detection and regeneration of an exhausted battery
• Short-circuit protection, Overvoltage
• Overcharge protection
• Thermal protection
• Protection against reverse polarity connection
• Insulated crocodile clips
• The device is designed to work both inside and outside the building
Power supply: 220 ... 240 V AC / 50 Hz
Power consumption: max. 70 W
"Index of Protection": IP65
Isolation class: Class II
Operation temp: -10 °C ... 40 °C
Weight: 0.4 kg
Dimensions: 194 x 75 x 42 mm
Manufacturer / Brand: MW POWER
Guarantee: 2 years

User Manual
Code: MW-SC4B
CHARGER MW-SC4B MW POWER
DELTA-OPTI Monika Matysiak; https://www.delta.poznan.pl
POL; 60-713 Poznań; Graniczna 10
e-mail: [email protected]; tel: +(48) 61 864 69 60
2021-07-04 MW-SC4B 3/4
Front view:
Multi-stage charging characteristic:
U - Voltage
I - Current
A - Regeneration mode
B - Desulfurization mode
1 - Initialization
2 - Low current charging
3-6 - Constant current charging (CC)
7 - Constant voltage charging (CV)
8 - Rest charging
9 - Analysis
10 - Maintenance
