My Water Filter ULTRAPURE Aragon User manual

Installation Instruction
ULTRAPURE Aragon 10" Twin Under Sink Water Filter
System with Fluoride Removal
Thank You for trusting us with your Water Filtration needs.
Please read and follow the steps below on setting up your Product.
If you need any help, please call us at 1800-769-300 or contact us through our website
at www.mywaterfilter.com.au/contacts/ or email us at
[email protected]

Parts

Faucet Parts

Before you start
Things You Will Need:
Plumber Thread Tape Sharp knife
Electric Drill Spanners Screwdriver
3 Easy Steps to Install:
1. Install system
2. Install faucet
3. Flush system & cartridges - Now Ready to use.
NOTE: DO NOT FLOW ANY WATER THROUGH THE SYSTEM OR THE
CARTRIDGES UNTIL THE CORRECT STEP 3. FLUSHING PROCEDURE
HAS BEEN DONE.
1. Take some time to clear any items out of the way to ensure you have a
safe, clear area to install the water filter. Ensure there are no trip hazards
or anything that can create harm in the work area.
2. Unpack and check that you have received your product in good
condition. If it has been damaged in transit, please do not attempt to install
or assemble the unit. Alert us immediately or as soon as possible, so we
can provide the necessary assistance.

Installation Diagram

1. Easy Installation Guide
Click Here to Watch the Video
1. Get a towel and put it inside the cupboard. This will help to absorb water in case
there's spillage or leaks while working.
2. Turn off the cold water supply via the angle stop valve under the sink or at the water
metre out the front of the property.
3. Disconnect the braided flexible hose from the water source using a spanner by
turning counter-clockwise.
4. Clean and remove any remaining thread tape from the male thread end of the water
supply connection.
5. Wrap some thread tape around the male thread of the connector, then screw on the
provided t-piece connector by turning clockwise via the swivel female end. Use a
spanner to tighten. Make sure that the push-in hose end is facing the location where the
under sink water filter unit will be mounted. Apply thread tape to the male end connector
of the t-piece then screw on the braided flexible hose via the swivel end female

connector of the hose. (See diagram below)
6. Place the water filter into position (Ensure you have a minimum of 30mm of space
under the water filter housing so you are able to remove the housings to replace the
cartridges when required) Drill 2 x holes in accordance with the mounting holes of the
under sink bracket. Screw the mounting screws into the holes, then mount the under
sink water filter onto the screws, tighten as required.
7. Push the water hose into the push-in connector of the t-piece, then cut the water
hose to length & insert into the PLV, then into the inlet side of the water filter. Use the
remaining hose to push into the outflowing side of the water filter ready to connect onto
the faucet.

2. How to Install the Under Sink Faucet:
1. Before you start, take some time to ensure there are no hazards or electricity that can
harm you.
2. Ensure you are a competent installer, otherwise, ask for assistance from a plumber.
3. Select the best position where you would like to install your drinking water faucet on
your sink or bench top.
4. Once the best position is determined BEFORE YOU DRILL make sure you are able
to locate the thread of the faucet under the sink to tighten the nut once the faucet hole
has been drilled and the faucet is pushed through the hole. Ensure you are able to fill
your kettle & other home appliances you use under the selected faucet position.
5. Stick a piece of 1cm x 1cm tape over where you are going to drill your hole for your
faucet. This will secure your drill bit so it does not move around on the smooth steel sink
or benchtop and create any damage.
6. Use a centre punch or pointed object to mark a spot where to drill if drilling into steel.
7. Drill a pilot hole through the steel sink or benchtop using a small drill bit around a
3mm to 5mm. Then drill a 12.5-millimetre hole through the pilot hole big enough for the
faucet shaft to fit through. (If drilling a stone bench top get a competent person)

8. Insert the escutcheon plate of the faucet onto the faucet shaft, then the escutcheon
rubber washer.
9. Insert the faucet shaft through the newly drilled hole. Once the faucet is in the hole,
insert the rubber washer onto the faucet shaft from under the sink, then the lock washer,
then screw on the lock nut provided.

10. Tighten the faucet holding nut using a spanner. Connect the water hose with the
connections supplied, the most common connector used nowadays is a simple push-in
connector. If you are connecting your water hose using the old style ferrule, please find
the instructions for that on the faucet box.
Your water filter is now installed.
Please read the How to Flush your ULTRAPURE Aragon 10" Twin Under Sink
Water Filter System with Fluoride Removal before you flow any water into your
system and inspect for leaks at that time.
NOTE: DO NOT FLOW ANY WATER THROUGH THE SYSTEM OR THE
CARTRIDGES UNTIL THE CORRECT STEP 3. FLUSHING PROCEDURE
HAS BEEN DONE.

3. How to Flush your Under Sink Water Filter:
1. Connect your water filter as required. DO NOT TURN ON THE WATER YET
CARTRIDGE POSITIONS:
Fluoride Removal Cartridge - position 1
Aragon Cartridge - position 2
2. Get the housing opening tool and open the two housings, remove any cartridge
packaging if not already removed before installing each cartridge as below.
3. Ensure the Fluoride Removal Cartridge is installed into position 1 and remove the
cartridge from position 2.
4. Screw back on the two housings and tighten.
ENSURE NO CARTRIDGE is installed into position 2. Housing 2 must be empty before
starting the flushing procedure.
5. Slowly turn on the water. The filter will only take a minute to fill. Keep the water
flowing only flushing the cartridge in position 1 for a minimum of 10 minutes.
NOTE: The Fluoride Removal Cartridge works very well at removing Fluoride from the
water, however, this cartridge MUST be flushed for a minimum of 10 minutes.
6. After flushing the Fluoride Removal Cartridge for 10 minutes turn off the water and
install the Aragon Cartridge into housing position 2. No need to remove the cartridge in
position 1.
7. Turn on the water and flush both the cartridges for 5 minutes straight.
8. You can get a bucket to save the water being flushed for the plants if preferred.
9. The unit is now ready for use.
NOTE: Cartridges with carbon inside can emit black water when first flushed. This will
become clear quite quickly.
PLEASE READ: If the water filter is unused for 5 or more days turn it on and flow water
through the filter for 2 minutes before use.

How to Change Cartridges:
Click Here to Watch the Video
1. Turn off the t-piece cold water supply valve under the sink.
2. Turn on the faucet. This will drain the remaining water & release any pressure built up
inside the under sink water filter system.
3. Get a towel and put it inside the under sink cupboard floor. This will help to absorb
water in case there's spillage or leaks while working.

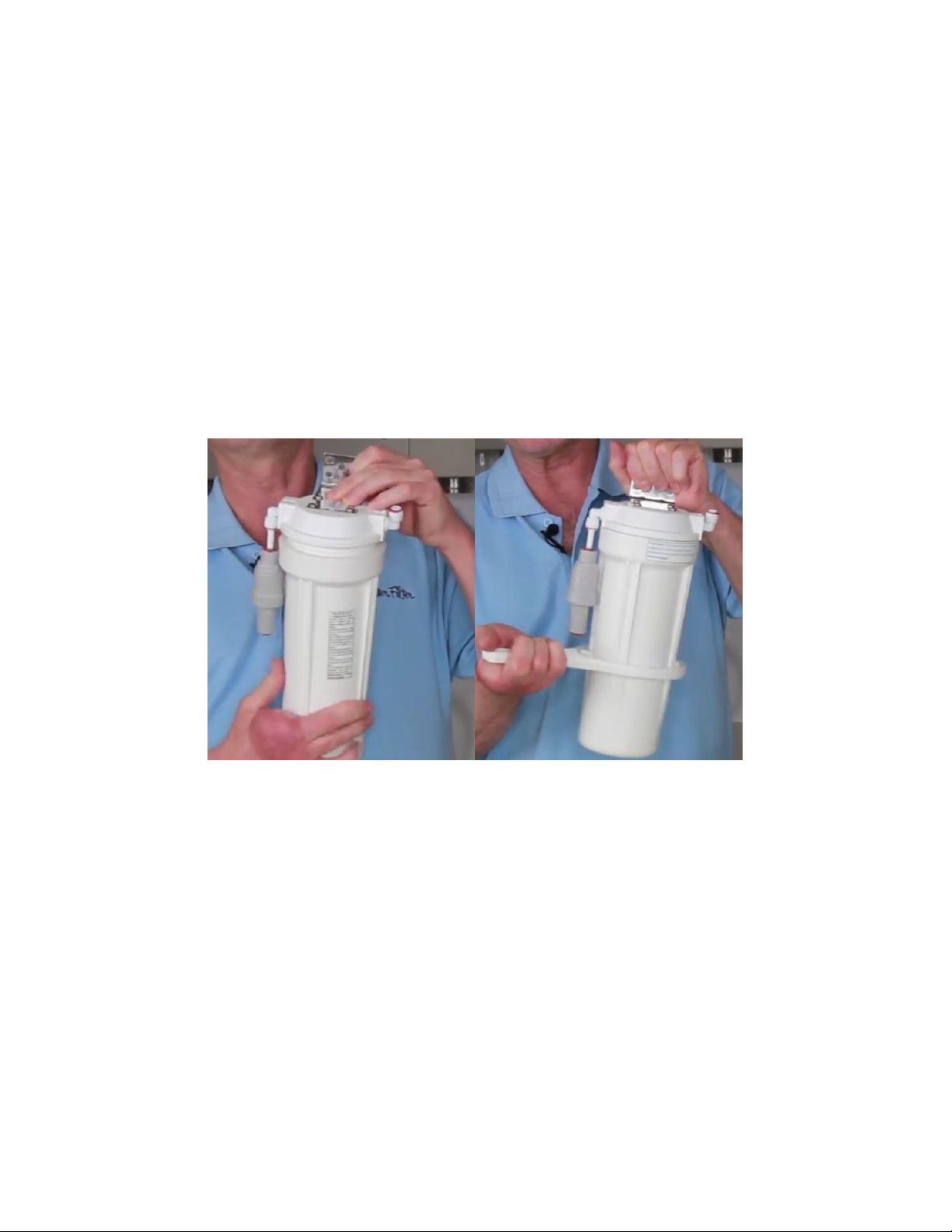

4. Get the housing opening tool and insert it onto the under sink water filter housing you
wish to remove.

5. Turn the housing opening tool to the left until the seal breaks open. Now turn by hand
until the housing is removed.
NOTE: There might be water left inside the housing, Please avoid spilling it onto the
floor. Drain the water into the kitchen sink.
6. Remove the old cartridges and discard in the rubbish bin. Get the new cartridges and
check if it has an inscription “This Way Up”. Be aware that this side must face up into
the spigot of the under sink water filter head.

CARTRIDGE POSITIONS:
Fluoride Removal Cartridge - position 1
Aragon Cartridge - position 2
7. Ensure the Fluoride Removal Cartridge is installed into position 1 and remove the
cartridge from position 2.
8. Screw back on the two housings and tighten.
ENSURE NO CARTRIDGE is installed into position 2. Housing 2 must be empty before
starting the flushing procedure.
9. Slowly turn on the water. The filter will only take a minute to fill. Keep the water
flowing only flushing the cartridge in position 1 for a minimum of 10 minutes.
NOTE: The Fluoride Removal Cartridge works very well at removing Fluoride from the
water, however, this MUST be flushed for a minimum of 10 minutes.
10. After flushing the Fluoride Removal Cartridge for 10 minutes turn off the water and
follow the same procedure to install the Aragon Cartridge into housing position 2. No
need to remove the cartridge in position 1.

11. Turn on the water and flush both the cartridges for 5 minutes straight.
12. You can get a bucket to save the water being flushed for the plants if preferred. The
unit is now ready for use.
NOTE: Cartridges with carbon inside can emit black water when first flushed. This will
become clear quite quickly.
PLEASE READ: If the water filter is unused for 5 or more days turn it on and flow water
through the filter for 2 minutes before use.

For Customer Service.
Call us at 1800-769-300
My Water Filter Pty Ltd
