ULTRAPURE ARAGON 10” TWIN UNDER SINK WATER
FILTER SYSTEM WITH ALKALINE
INSTALLATION INSTRUCTION
Thank You for trusting us with your Water Filtration needs.
Please read and follow the steps below on setting up your Product.
Ensure you check you have received ALL the correct components before you
call & arrange the plumber or any installation just in the unexpected case that
you have a missing part.
If you need any help, please call us at 1800-769-300 or contact us through our
website at www.mywaterfilter.com.au/contacts/ or email us at customerservice@
mywaterfilter.com.au

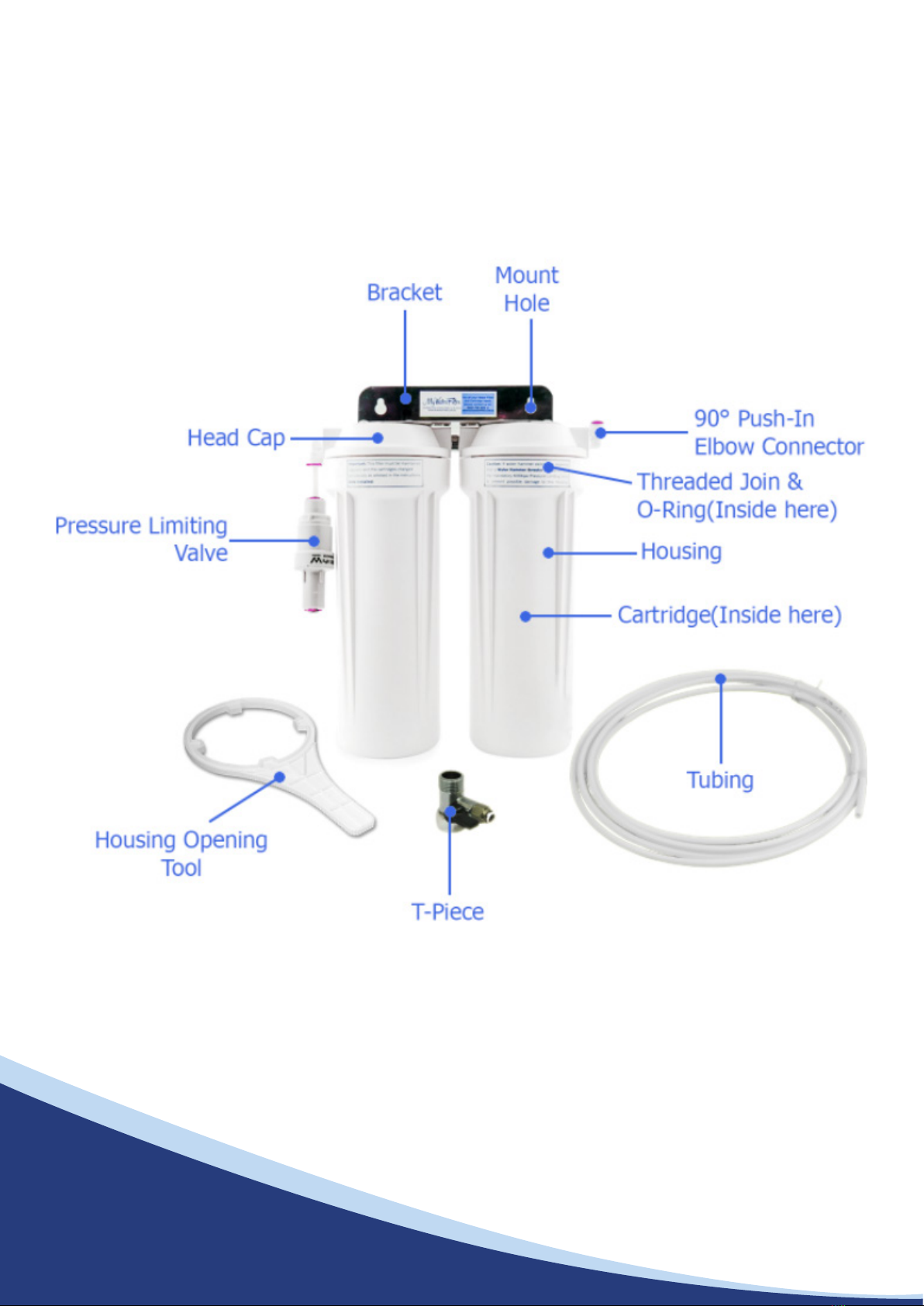

PARTS

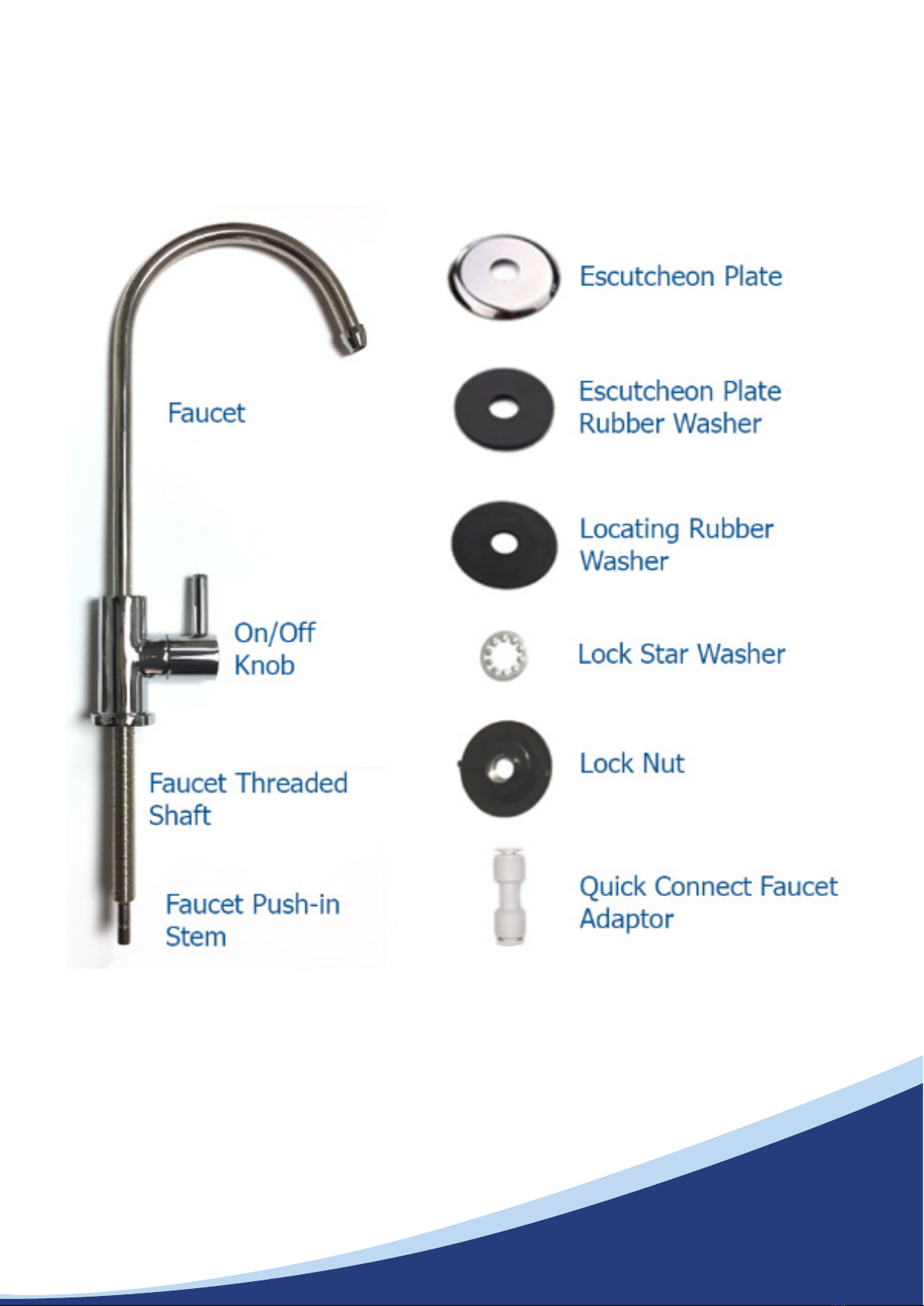

FAUCET PARTS

BEFORE YOU START
Things you will need:
üPlumber
üElectric Drill
üThread Tape
üSpanners
üSharp Knife
üScrewdriver
3 Easy Steps to Install:
1. Install system
2. Install faucet
3. Flush system & cartridges - Now Ready to use.
NOTE: DO NOT FLOW ANY WATER THROUGH THE SYSTEM OR THE
CARTRIDGES UNTIL THE CORRECT STEP 3. FLUSHING PROCEDURE
HAS BEEN DONE.
Take some time to clear any items out of the way to ensure you
have a safe, clear area to install the water filter. Ensure there are
no trip hazards or anything that can create harm in the work area.
Unpack and check that you have received your product in good
condition. If it has been damaged in transit, please do not attempt
to install or assemble the unit. Alert us immediately or as soon as
possible, so we can provide the necessary assistance.
1
2

INSTALLATION DIAGRAM
SAME FOR SINGLE, TWIN OR TRIPLE WATER FILTERS

1. Get a towel and put it inside the cupboard. This will help to absorb water
in case there’s spillage or leaks while working.
2. Turn o the cold water supply via the angle stop valve under the sink
or at the water metre out the front of the property.
3. Turn on the sink tap to drain water & release any pressure, then
disconnect the braided flexible hose from the water source using a
spanner by turning counter-clockwise.
4. Clean and remove any remaining thread tape from the male thread
end of the water supply connection.
CLICK HERE TO WATCH THE VIDEO
1. EASY INSTALLATION GUIDE

5. Wrap some thread tape around the male thread of the connector, then
screw on the provided t-piece connector by turning clockwise via the
swivel female end. Use a spanner to tighten. Make sure that the push-
in hose end of the t-piece is facing the location where the under sink
water filter unit will be mounted. Apply thread tape to the male end
connector of the t-piece then screw on the braided flexible hose via the

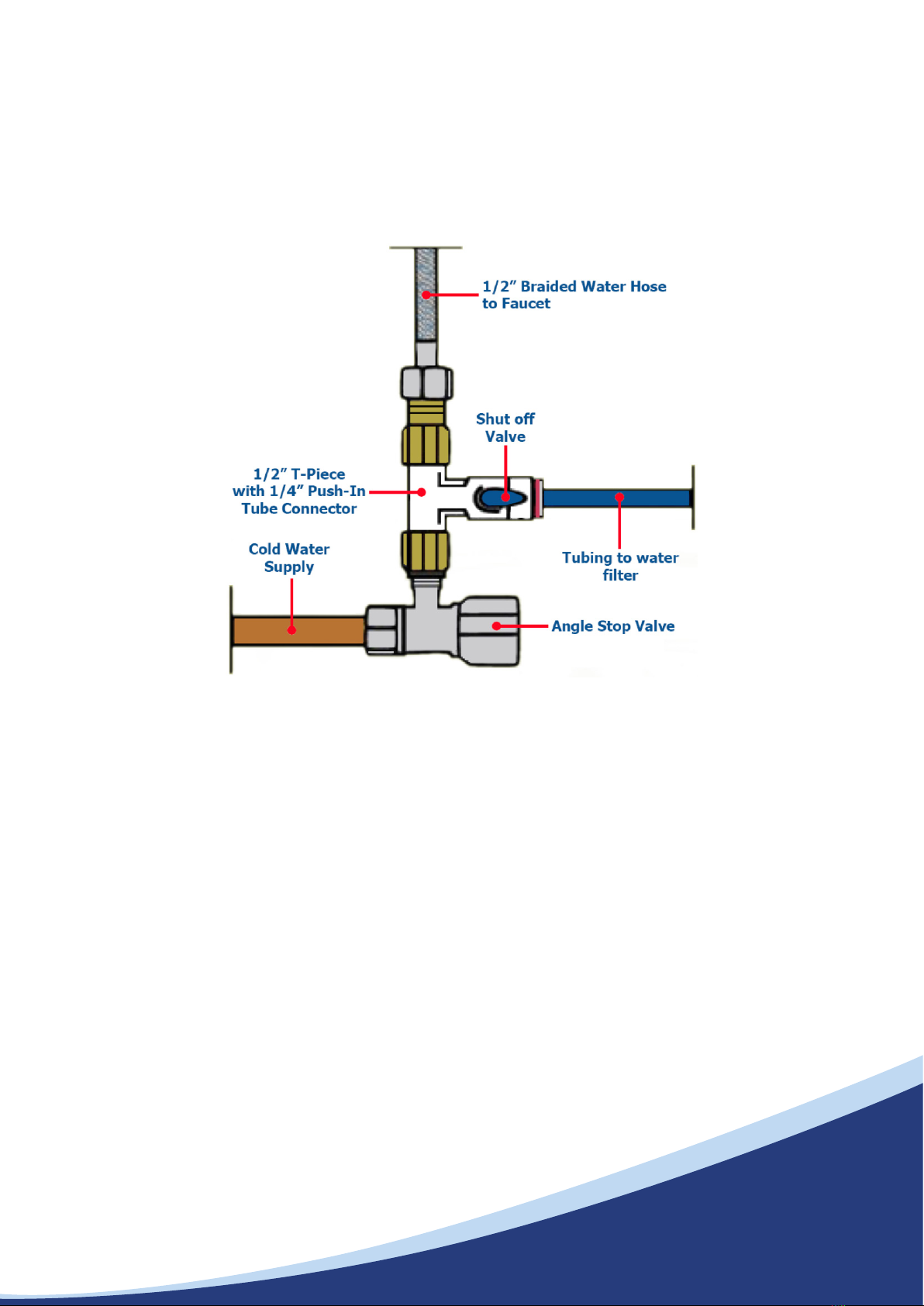

swivel end female connector of the hose. (See diagram below)
6. Place the water filter into position (Ensure you have a minimum of
30mm of space under the water filter housing so you are able to remove
the housings to replace the cartridges when required) Drill 2 x holes in
accordance with the mounting holes of the under sink bracket. Screw
the mounting screws into the holes, then mount the under sink water
filter onto the screws, tighten as required.
7. Push the water hose into the push-in connector of the t-piece, then cut
the water hose to length & insert the cut end of the hose into the PLV,
then the PLV connects via water hose into the inlet side of the water
filter.
Use the remaining hose to push into the outflowing side of the water filter
ready to connect onto the faucet. Push on a red clip at each connection
if supplied. (Please note this system can be installed without red clips
if required)

2. HOW TO INSTALL THE UNDER SINK FAUCET
1. Before you start, take some time to ensure there are no hazards or
electricity that can harm you.
2. Ensure you are competent, otherwise, ask for assistance from a qualified
person.
3. Select the best position where you would like to install your drinking
water faucet on your sink or benchtop.
4. Once the best position is determined BEFORE YOU DRILL make sure
you are able to locate the thread of the faucet under the sink to tighten
the nut once the faucet hole has been drilled and the faucet is pushed
through the hole. Ensure you are able to fill your kettle & other home
appliances you use under the selected faucet position.
5. Stick a piece of 1cm x 1cm tape over where you are going to drill your
hole for your faucet. This will secure your drill bit so it does not move
around on the smooth steel sink or benchtop and create any damage.
6. Use a centre punch or pointed object to mark a spot where to drill if
drilling into steel.
7. Drill a pilot hole through the steel sink or benchtop using a small drill
bit around a 3mm to 5mm. Then drill a 12-millimetre hole through the
pilot hole big enough for the faucet shaft to fit through. (If drilling a
stone benchtop get a competent person)

8. Insert the escutcheon plate of the faucet onto the faucet shaft, then the
escutcheon rubber washer.
9. Insert the faucet shaft through the newly drilled hole. Once the faucet
is in the hole, insert the rubber washer onto the faucet shaft from under
the sink, then the lock washer, then screw on the lock nut provided.
NOTE: DO NOT FLOW ANY WATER THROUGH THE SYSTEM OR THE
CARTRIDGE UNTIL THE CORRECT STEP 3. FLUSHING PROCEDURE
HAS BEEN DONE.
10. Tighten the faucet holding nut. Connect the water hose with the
connection supplied, the most common connector used nowadays is a
simple push-on connector. If you are connecting your water hose using
the old style ferrule connection, please find the instructions for that on
the faucet box. Your water filter is now installed.
Please read the How to Flush your ULTRAPURE Aragon 10” Twin Under Sink
Water Filter System with Alkaline before you flow any water into your system
and inspect for leaks at that time.

3. HOW TO FLUSH YOUR UNDER SINK
WATER FILTER:
1. Connect your water filter as required. DO NOT TURN ON THE WATER YET
CARTRIDGE POSITIONS:
Aragon Cartridge - position 1
Alkaline cartridge - position 2

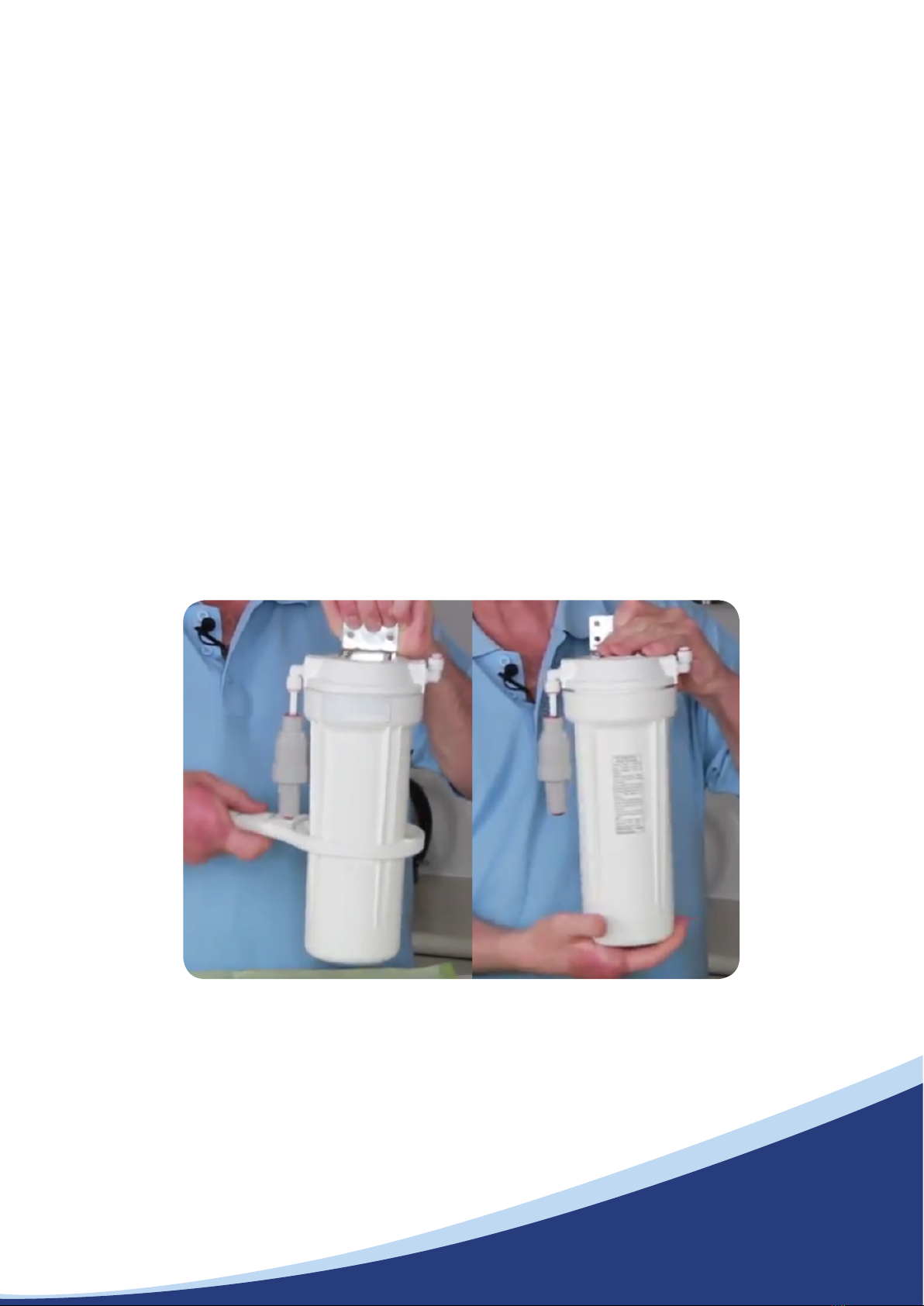

2. Use the housing opening tool and open the two housings, remove any
cartridge packaging from each cartridge if not already removed.
3. Install each cartridge into the correct housing up the correct way &
tighten.
4. Slowly turn on the water at the t-piece. The filter will start to fill with
water. Check all over for any leaks. Open the faucet on the sink keeping
the water flowing and flush both the cartridges for a minimum of 5
minutes.
5. You can get a bucket to save the water being flushed for the plants if
preferred.
6. Whilst the water is flowing, adjust the incoming water T-piece into
the correct position to ensure the water is flowing from your drinking
water faucet at a maximum of 3 litres per minute for best filtration
results, your water filter is now ready for use.
NOTE: Cartridges with carbon inside can emit black water when first flushed.
This will become clear quite quickly. The slower we filter our water - the
better the water quality we create.
The slower we filter our water - the better water quality we create. If it
interests you, for maximum performance, slow the flow rate right down to 1
litre per minute or even slower, you can even fill containers at this slow rate
you can use the water from later on.
PLEASE READ: If the water filter is unused for 5 or more days turn it on and
flow water through the filter for 2 minutes before use.

HOW TO CHANGE CARTRIDGES
1. Turn o the t-piece cold water supply valve under the sink.
2. Turn on the faucet. This will drain the remaining water & release any
pressure built up inside the under sink water filter system.
3. Get a towel and put it inside the under-sink cupboard floor. This will
help to absorb water in case there’s spillage or leaks while working.
4. Get the housing opening tool and insert it onto the under-sink water
filter housing you wish to remove.
5. Turn the housing opening tool to the left until the seal breaks open.
Now turn by hand until the housing is removed.
NOTE: There might be water left inside the housing, Please avoid spilling
it onto the floor. Drain the water into the kitchen sink.

6. Remove the old cartridges and discard into
the rubbish bin. Get the new cartridges and
remove the packaging for both cartridges
if not already removed. Unscrew the end
plug from the Aragon cartridge. Ensure
there is a washer on each end of the
Aragon cartridge then insert the cartridge
into the housing. The Alkaline cartridge
washer must go up into the head cap.
7. Screw the housing back on and tighten
before starting the flushing procedure.
8. Slowly turn on the water. The filter will only take a minute to fill. Keep
the water flowing and flush both the cartridges together for a minimum
of 5 minutes.
9. You can get a bucket to save the water being flushed for the plants if
preferred.
10. Whilst the water is flowing, adjust the incoming water T-piece into
the correct position to ensure the water is flowing from your drinking
water faucet at a maximum of 3 litres per minute for best filtration
results, your water filter is now ready for use.
NOTE: Cartridges with carbon inside can emit black water when first flushed.
This will become clear quite quickly.
The slower we filter our water - the better water quality we create. If it
interests you, for maximum performance, slow the flow rate right down to 1
litre per minute or even slower, you can even fill containers at this slow rate
you can use the water from later on.
PLEASE READ: If the water filter is unused for 5 or more days turn it on and
flow water through the filter for 2 minutes before use.
