MyBinding Formax 6102 User manual
1
ENGLISH
TABLE OF CONTENTS
1 Health, Safety and Environment ...................................................... 2
1.1 Precautions and Safety Issues ................................................... 2
1.2 Country Specific Conditions ...................................................... 3
1.3 End of Life .............................................................................. 4
2 Functional description ..................................................................... 5
2.1 The Folding and Inserting Process .............................................. 5
2.2 Operating Controls .................................................................. 7
2.3 Control Panel .......................................................................... 8
2.4 User Interface Description ........................................................ 8
3 Operating Instructions .................................................................. 11
3.1 Installing the Envelope Catch Tray ............................................ 11
3.2 Starting Up ............................................................................ 11
3.3 Loading Documents ................................................................ 12
3.4 Loading Envelopes .................................................................. 14
3.5 Filling the Sealing Liquid Reservoir ............................................ 15
3.6 Run a Job .............................................................................. 15
3.7 Daily Mail .............................................................................. 16
3.8 Stopping the system ............................................................... 16
4 Job Programming .......................................................................... 17
4.1 Create a Job .......................................................................... 17
4.2 Edit a Job .............................................................................. 18
4.3 Delete a Job .......................................................................... 18
5 Operator Maintenance ................................................................... 19
5.1 Cleaning or Replacing Moistening Brushes .................................. 19
5.2 Clean the System ................................................................... 19
6 Fault finding .................................................................................. 20
6.1 Error Messages ...................................................................... 20
6.2 Clearing Stoppages ................................................................. 20
6.3 Operator Troubleshooting ........................................................ 22
7 Specifications ................................................................................ 27
7.1 Technical Specifications ........................................................... 27
7.2 Dimensions ........................................................................... 27
7.3 Other Specifications ................................................................ 27
7.4 Document Specifications ......................................................... 27
7.5 Envelope and Insert Specifications ............................................ 28
8 Terminology .................................................................................. 29
Index.............................................................................................. 34
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920
2
1. HEALTH, SAFETY AND ENVIRONMENT
1.1 Precautions and Safety Issues
Thoroughly read this operator manual, before using this system.
According to the EC declaration (European Commission) following the Low Voltage
Directive (2006/95/EC), this operator manual must be available in the national
language(s) of the country where the system is delivered. Therefore, if you do not have an
operator manual in your country’s language(s), contact your authorized distributor.
Warnings
• Disconnect the mains supply before performing any maintenance.
• Before connecting check if the system is suitable for the local mains voltage. Refer to
the type plate.
Safety Precautions
• Only trained personnel should operate this system.
If untrained personnel do operate this system, the manufacturer does not accept
responsibility for any resulting accidents or injuries.
• Only service technicians, who are aware of the risks involved, may open the protective
covers.
For safety reasons, the system will not function when the covers are open.
• Keep long hair, fingers, jewelry, etc. away from rotating and moving parts.
• The power connection must be easily accessible, preferably close to the system.
• For safety reasons, it is essential that the system is connected to a socket outlet that
has a protective earth connection.
• Over-current protection in the equipment also relies on the branch circuit protection
(max. 20 A).
• The following part is considered the equipment disconnect device:
- Power supply cord plug or appliance coupler
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920
3
ENGLISH
Conventions
Note
A note gives additional relevant information.
Caution
Indicates the presence of a hazard that can cause personal injury or property damage, if
the hazard is not avoided.
1.2 Country Specific Conditions
Denmark
In Denmark, certain types of Class 1 appliances may be provided with a plug that does not
provide an adequate earth connection when inserted into a Danish socket outlet.
Make sure the system has a good functioning connection that has protective earthing (the
plug and socket outlet must match).
Japan
• Establish an earth connection before connecting the mains plug to the power supply.
• First disconnect the power supply before removing the earth connection.
Languages
This manual is also available in other languages. For more information, please contact
your local supplier.
Warning
This symbol:
• Identifies situations where improper use of the system can result in
personal injury or permanent/catastrophic damage to the system.
• Indicates that the operator manual should be consulted.
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920
4
1.3 End of Life
The objectives of the European Community's environment policy are, in particular, to
preserve, protect and improve the quality of the environment, protect human health and
utilise natural resources prudently and rationally. That policy is based on the
precautionary principle and principles that preventive action should be taken, that
environmental damage should as a priority be rectified at source.
Separate collection of waste is the precondition to ensure reuse and recycling of waste
that is generated at the disposal of electrical or electronical equipment and is necessary to
achieve the chosen level of protection of human health and the environment in the
European Community.
More particularly, certain materials and components of waste electrical and electronical
equipment needs selective treatment as their injudicious handling or disposing of on or
into land, water or air would represent a major threat to the environment and human
health.
In order to facilitate collection and treatment separated from normal domestic waste,
electrical and electronical equipment is marked with the following logo:
Not only are you by law not allowed to dispose of the waste equipment via other waste-
streams, but we encourage you to actively contribute to the success of such collection and
to the common good and better quality of life of present and future generations.
For more information on the correct disposal of this product please contact your local
dealer.
Do not mix with normal domestic waste
collection system dedicated to electrical
and electronical waste.
Please use the subjoined return or
Equipment produced after August 13,
2005.
5
ENGLISH
2. FUNCTIONAL DESCRIPTION
The system feeds, folds and inserts documents into envelopes and then seals and stacks
the envelopes. Automatic monitoring ensures the correct number of inserts per envelope.
The system is a sophisticated folding and inserting system which can process large
quantities of mail rapidly and easily.
You can save the settings of the system (document type, envelope type and fold type) as
jobs.
2.1 The Folding and Inserting Process
The figure shows an overview of the document and envelope flow.
Feeder Area (1)
The system has a feeder block with two document feeders. The feeder block is equipped
with hopper swap. This means that you can link both feeders as pairs. When the first
feeder is empty, the system switches to the other feeder. Meanwhile you can refill the
other empty feeder without stopping the system.
The front feeder (feeder 1) is equipped with a “daily mail” function to process documents
or sets of documents which cannot be processed automatically (e.g. stapled).
1
2
3
4
65
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920
6
Double Feed Control (DFC)
Each feeder has double feed control (DFC). In this way the system can detect faulty sets
of documents. When a job is started, the first document taken per feeder is used for a
reference measurement. When a document is exceeding that reference thickness an error
will be displayed.
Note
When Daily mail is selected, the DFC is switched off automatically.
Envelope Hopper (2)
The envelopes are picked up and transported to the insert position inside the system.
Feeder for Business Reply Envelopes (BRE) and Other Enclosures
(feeder 3)
Small enclosures or BREs are fed from feeder 3 and added to the folded document set.
Folding area (4)
In the folding area the documents are folded. The following fold types are possible (see
“Terminology” on page 29):
•Nofold
• V-fold (half fold)
• C-fold (letter fold)
• Double V-fold (double parallel fold)
Inserter (5)
The folded document set is transported to the inserter unit and inserted into a waiting
envelope. The inserter can seal the envelope.
Exit (6)
The mail set leaves the system from the exit.
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920
7
ENGLISH
2.2 Operating Controls
A button to open the system K power inlet
B control panel with touch screen L power switch
C standby button M side guides envelope hopper
D paper guides N thumb wheel for adjusting side guides
envelope hopperE document feeder 1
F document feeder 2 O locking lever for side guides of document
feeder tray 2 and for filling tray 2G flap, for access to document path
of feeder 3 P thumb wheel for adjusting side guides
H support feeder 3 document feeder tray 2
I side guides feeder 3 Q sealing liquid reservoir
J thumb wheel to adjust side guides
feeder 3
Rcatchtray
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920
8

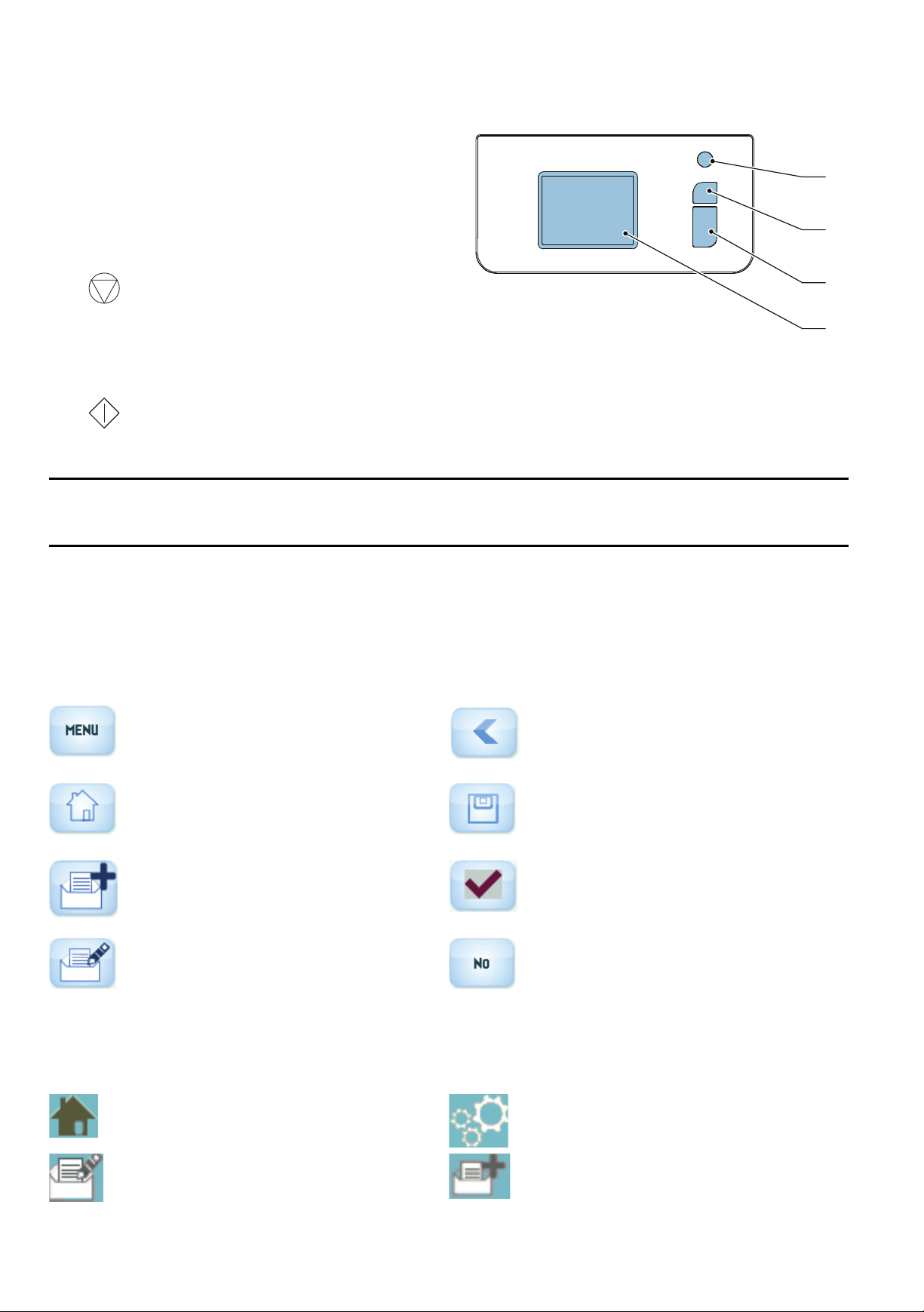

2.3 Control Panel
The system has a touch screen (D).
There are three buttons next to the touch
screen:
• Standby button Ato switch the system
on or off.
•:thestopkey(B)
When the stop key is pressed, the
system completes the current set and
stops.
• : the start key (C)
When the start key is pressed the system starts processing.
Caution
The touch screen is covered with a thin pressure-sensitive layer. To avoid permanent
damage of the touch screen, do not use sharp objects to press on the touch screen.
2.4 User Interface Description
2.4.1 Explanation of Buttons and icons
Buttons
Meaning of Icons in Upper Left Corner of Touch Screen
The icons in the upper left corner indicate the menu type you are working in.
Opens a selection menu with
language settings and supervisor
menu
Back: return to the previous menu
Home: return to the ‘job selection’
menu
Save: save changes to a job
New job: create a new job OK or Yes: confirm choice
Edit: open the ‘job settings’ menu No: reject choice
Home menu or ‘job selection’ menu Settings
‘job settings’ menu Wizard
A
B
C
D
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920
9
ENGLISH
2.4.2 Home (Job Selection)
When you start up the system, the home menu
‘job selection’ appears. With the arrows you can
scroll through the jobs. If you want more
information on a job, select the job (see
2.4.3 ”Job Description (Current Job)” on page 9).
The Menu button opens a selection menu (see
2.4.4 ”Menu” on page 10).
With the New Job button you can define a new
job (see “Create a Job” on page 17).
2.4.3 Job Description (Current Job)
If you want more information on a job, select the
job in the ‘job selection’ menu.
The ‘current job’ menu shows the following
information of the selected job:
•Jobname.
• Job counter: total number of mail sets that
have been processed with this job.
If you want to set the job counter to zero,
press the edit button and Reset job
counter.
Note
The counter settings are job related.
• A picture of the system with symbols for the selected features. The following symbols
can be used:
With the home button you get back to the home menu (‘job selection’).
Feeder 1 is set for daily mail.
Sealing is on.
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920
10
2.4.4 Menu
When you press the Menu button a selection
menu appears. This menu allows you to change
system settings and define jobs. The screen
shows the following functions:
•Language settings: change the language of
the user interface.
•Supervisor menu: define envelope settings
(see “Supervisor Menu” below, only for
authorized personnel).
2.4.5 Supervisor Menu
When you press the Supervisor menu button in the selection menu, a login menu opens.
Enter the PIN-code 2546 to access the ‘supervisor menu’.
When you enter the correct pin code the
‘supervisor menu’ appears. This menu enables
you to:
• Define custom envelope sizes (press the
Adjust stop position button).
• Adjust the envelope stop position (see
“Envelope Position” on page 26).
• Adjust the sealing position (see “Sealing
position” on page 26).
• Switch off popups, like the popup that tells
you to press the 1x button.
2.4.6 Job Settings Menu
When you press on a job and press the edit button
, the ‘job settings’ menu opens. This menu
enables you to:
• Edit a job (see 4.2 ”Edit a Job” on page 18).
• Delete a job (see 4.3 ”Delete a Job” on page
18).
• Reset the job counter: sets counter to zero.
• Switch the double feed control (DFC) on or
off, per feeder. For example, if you have a
document with an address sticker on it,
switch the DFC off. The DFC sees the sticker as a double feed and generates an error
message.
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920
11
ENGLISH
3. OPERATING INSTRUCTIONS
3.1 Installing the Envelope Catch
Tray
To install the envelope catch tray:
1. Move the catch tray until the clamps hold the
feet of the system.
2. Adjust the catch tray to the correct envelope
size.
3.2 Starting Up
Warning
You can severely damage the system if it is connected to the incorrect power supply.
Before plugging in the system, check if the local voltage is the same as the voltage
mentioned on the type plate.
For the location of switches and buttons, see “Operating Controls” on page 7.
To start up the system:
1. Connect the system to the mains power
supply.
2. Use the power switch to switch the system
on. The power switch is located at the back of
the system.
3. Press the power button next to the display.
The touch screen shows the home menu.
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920
12
3.3 Loading Documents
3.3.1 Document Orientation
See also the job information on the touch screen. The table shows how to load documents,
depending on the fold type.
feeder linking two documents document + enclosure
one document
no fold
V-fold
C-fold
Address carrier in
feeder 1.
Face up and trailing.
Address carrier in
feeders 1 and 2.
Face up and trailing.
Address carrier in
feeder 1.
Face up and trailing.
Address carrier in
feeder 1.
Face up and trailing.
double
V-fold
1111
2
Address carrier in
feeder 3.
Face up and trailing.
3
3
2
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920
13
ENGLISH
3.3.2 Adjusting the Side Guides of the
Document Feeder
To adjust the side guides of the document feeder
trays:
1. Pull lever C.
2. Move the side guides Aapart as far as possible
with thumb wheel B.
3. Put a small stack of documents between the
side guides.
4. Move the side guides towards the documents
with thumb wheel B.
The space between the side guides and the
documents should be such that the documents
have just enough play to move freely.
5. Return lever Cto its original position.
6. Remove the stack of documents.
3.3.3 Loading the Document Feeder
Tray
To load the document feeder tray:
1. Pull lever Cat the tray.
2. Place a stack of documents between the side guides.
Feed the documents (depending on the type of documents) as shown in
3.3.1 ”Document Orientation” on page 12.
3. Return lever Cto its original position.
3.3.4 Adjusting the Side Guides of
Feeder 3
To adjust the side guides of feeder 3:
1. Move the side guides Capart as far as
possible with thumb wheel D.
2. Pull back support B.
3. Put a small stack of enclosures (A) between
the side guides.
4. Release support B.
5. Move the side guides towards the enclosures
with thumb wheel D.
The space between the side guides and the
enclosures should be such that the enclosures
have just enough play to move freely.
6. Remove the stack of enclosures.
A
B
C
D
14
3.3.5 Loading Feeder 3
To load feeder 3:
1. Pull back support B.
2. Place a stack of documents or BREs between the side guides.
Place documents with trailing edge down. Place BREs with leading edge down and the
flap at the support side.
3. Release support B.
3.4 Loading Envelopes
To load the envelopes:
1. Move the side guides Bapart as far as
possible with thumb wheel A.
2. Fan the stack of envelopes Cand place
them between the side guides (flap down
and trailing - bottom side of envelope
pointing to the system).
3. Move the side guides towards the
envelopes with thumb wheel A.
The space between the side guides and
the envelopes should be such that the
envelopes have just enough play to move
freely.
Note
If the distance between the side guides is too large, the envelopes will skew, when
transported into the system.
BA C
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920
15
ENGLISH
3.5 Filling the Sealing Liquid Reservoir
When you want to seal envelopes,
the sealing liquid reservoir must be
filled.
1. Press thebutton to open
the system (see “Operating
Controls” on page 7).
2. Lift the sealing liquid reservoir
Dwith the blue handles A
carefully out of the system.
3. Remove the strip Cfrom the
reservoir.
4. Fill the three reservoirs with
sealing liquid.
5. Make sure the brushes Bare
moistened sufficiently.
6. Replace the liquid reservoir.
7. Close the system.
Before you start the job, wait
approximately 5 minutes for the
brushes to moisten.
3.6 Run a Job
Note
Before you run a job, make sure the sealing liquid reservoir is filled.
To run a job:
1. From the home menu choose a job.
The job information appears (see “Job
Description (Current Job)” on page 9).
2. Load envelopes as specified in the job.
3. Load the documents face up and trailing, as
specified in the job.
Place the address carrier in feeder 1.
4. Press the 1x button to start a test run or
press the button to start the job.
If you press the 1x test button, the system helps you to adjust the address position
(see 6.3.7 ”Address Position” on page 26).
16
3.7 Daily Mail
To process documents or sets of documents, which can not be processed automatically
(e.g. stapled documents), you can use feeder 1 as a daily mail feeder. Daily mail can
handle sets with a maximum of five sheets (80 g/m2).
1. To use the daily mail function, define a new job with daily mail (see “Job
Programming” on page 17) or use an existing daily mail job.
2. Place the document or document set in the feeder 1.
3. Press the button to start the job.
The document or document set will be folded and inserted into the envelope as
defined in the selected job.
4. Place the next document or document set in the feeder. The system will keep running
to process the inserted document or document set.
5. When finished with Daily Mail, press thebutton to stop the job.
3.8 Stopping the system
To stop the system press the button. The system completes and inserts the current
set and stops. This results in a cleared system which is ready to process a new job.
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920
17
ENGLISH
4. JOB PROGRAMMING
4.1 Create a Job
To create a new job:
1. In the home menu, press the(new job)
button.
The Job Wizard starts and helps you to
choose:
-Envelope size. Custom is only available if
defined by the supervisor (“Supervisor
Menu” on page 10).
- If the envelopes should be sealed or not.
- Document size for feeder 1.
- Daily mail or normal documents.
- Document size for feeder 2. If you choose None, you can use feeder 2 as a linked
feeder. This means that when one feeder is empty, the system automatically
starts picking documents from the other feeder.
- Enclosure size (from feeder 3).
-Foldtype.
2. Press the 1x button to make sure that the address position is correct (see “Address
Position” on page 26).
3. Press thebutton to start the job or press the button to save the job.
4. If you press the button:
a Enter a name for the job. Use the <button to clear a character left of the cursor
position (backspace).
b Press the >button to confirm the job name.
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920
18
4.2 Edit a Job
To edit an existing job:
1. From the home menu choose a job.
2. Press the edit button .
The ‘job settings’ menu opens.
3. Press Edit job.
The Job Wizard starts and helps you to
change job settings.
4. Press Save to save the job with the changed
settings.
5. Press the 1x button to make sure that the
address position is correct (see “Address Position” on page 26).
4.3 Delete a Job
To delete an existing job:
1. From the home menu choose a job.
2. Press the edit button .
The ‘job settings’ menu opens.
3. Press Delete job.
4. Press the Yes button to confirm.
The job will be deleted without a warning.
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920
Table of contents
Other MyBinding Office Equipment manuals
