PolyVision Flow User manual

Doc # 100218 | Rev A | Page 1 of 16
Flow™ Framed
Installation Guide
Guidelines for installing
your new Flow system
Americas 2022
English

English
3 Safety Requirements
4 Handling + Storing of Panels
5 Required Materials + Equipment
6 Key to System Details
7 Standard Extrusions
8 D1 - D4 Systems
12 Installation
18 Warranty
Doc # 100218 | Rev A | Page 2of 16

Flow - Wall Mounted Dry Erase Board,
Non-Seismic Applications
Safety Requirements
Safety Requirements
Minimum Required Wall Construction
Drywall with metal studs:
• Must be at least 0.6 mm (.02”) thick Metal
stud 48.8 mm x 50 mm (1.92” x 1.97”)
• Studs on maximum 600 mm (24”) centers
• Must be at least 2 x 12,5 mm (.49”) Type X
gypsum drywall
• 35 mm (1.34”) drywall screws on 250 mm
(12”) centers
Verify Wall Construction
CAUTION! Adequate wall construction is
required to support the weight of the board.
Minimum wall construction must be capable
of supporting weight amounts listed in Table
1 on page 12.
Drywall with wooden studs:
• Stud grade SPF, DFL or Hem-Fir 45 mm
x 70 mm (1.5” x 3.5”)
• Studs on 600 mm (24”) centers
• Must be atleast 25 mm (5/8”) thick Type X
gypsum drywall for the US or 2 x 12,5 mm (1/2”)
for EU
• 35 mm (#6 x 11/4”) drywall screws on 250 mm
(12”) centers
The building’s Engineer of Record must be
consulted to determine if there are any seismic
requirements.
Doc #100218 | Rev A | Page 3of 16

Handling + Storing of Panels
Handling + Storing of Panels
Handling
• When Polyvision panels are shipped, they are
protected by craft paper or a self-adhesive
transparent polyethylene ilm. Keep panels in the
original package until installation.
• Handle with care to prevent damage.
• Never slide panels o the stack during handling.
Panels should always be lifted and moved in a
vertical position.
• Never place an Polyvision panel in a vertical
position on the loor. This is to prevent damage
to the edges.
• Prevent dirt from settling on and between panels
to avoid surface damage, scratches or defects.
• Follow all safety instructions regarding personal
protection when processing the panels.
• Protect panel surface against sawdust and
sparks (metal particles).
• Polyvision panels will chip when cut or drilled
with power tools. Hand-cutting can cause
chipping up to approx. 2 mm from the edge.
When chipping is in excess of 2 mm, please
check the state of cutting tools and check that
the panel is adequately supported and clamped
to prevent it from vibrating.
• All cut or drilled sections should be protected
against humidity with PVC tape and/or by
covering/sealing proiles or sealing washers.
• For detailed processing instructions, please refer
to the panel processing instructions.
Storing
• Keep panels dry and free of debris.
• Store panels inside temps 5090 °F (1032 °C).
• Any panels stored outside should be protected
from inclement weather conditions.
• Place panels on hard, lat surfaces that are not
subject to standing water.
• Polyvision panels should be stacked no more
than three high.
• Panels should never be stored vertically or in
such a way that the corners are vulnerable to
damage.
If you have a problem, question, or a request, call
your local fabricator, your regional sales manager
or Polyvision Customer Service. Polyvision’s global
customer service team can be contacted on
Polyvision.com.
Doc # 100218 | Rev A | Page 4of 16

Required Materials + Equipment
Required Materials + Equipment
Electrical Equipment
1. Drill
2. Miter saw
3. Grinder
4. Jigsaw
5. Industrial vacuum cleaner
Hardware Equipment
1. Level (laser level recommended)
2. Aluminum straight guide
3. Chalk line
4. Anchors adapted to wall
• For gypsum walls, use #8 plastic wall anchor with #8 x 11/4” (4 mm x 35 mm) self drilling screws.
• For stone walls, anchors and screws must be provided by installer per conditions
• Recommended anchor spacing is 406 mm (16”) to 610 (24”) on center
5. Shims 1 mm - 2 mm - 3 mm (1/32” - 1/16” - 1/8”)
6. Soft wood block ± 50 mm x 25 mm x 300 mm (2” x 1” x 12”) length or rubber mallet to knock in the coverstrip
7. Glass suction cup lifters (2)
Included Hardware
1. Anchors
2. Screws
Doc #100218 | Rev A | Page 5of 16

Key to System Details
Key to System Details
The details listed in the image below show placement for panel proiles and how the material can be
installed. IMPORTANT: Proiles must be secured to studs in as many locations as possible and at least
24” o.c. for horizontals and 18” o.c. for verticals.
Standard Extrusions
Top FrameMid Frame Base Frame
Doc # 100218 | Rev A | Page 6of 16

Standard Extrusions
Top Frame
D2 | Panel Head at Ceiling
top frame
gypsum board plug or screw
if located over stud
factory edges on both panels
CeramicSteel
structural support max
24” o.c. (by others)
type S bugle head screws
@ 16” o.c. (by erector)
interior panels
panel dimension panel dimension
Grid
mid
frame
D2 | Panel Head at Ceiling
Doc #100218 | Rev A | Page 7of 16

type S bugle head screws
@ 16” O.C. (by erector)
top frame
structural support max
24” o.c. (by others)
CeramicSteel
interior panels
base
frame
Standard Extrusions
D3 | Panel Terminator at Wall
D4 | Panel Bottom Line
CeramicSteel
interior panels
base frame
gypsum board plug or
screw if located over stud
Doc # 100218 | Rev A | Page 8of 16

Before starting the installation of Flow
1. Verify that the required equipment is available and material provided is accurate.
2. Provide adequate protection for inished loor surfaces.
3. If cutouts are required for electrical outlets or switches, refer to the following
instructions
• Square penetrations for light switches and electrical outlets can be made by
irst drilling a pilot hole and then cutting with a jig saw using a metal cutting
blade minimum 14 TPI (teeth per inch).
• All cutouts should be made with the inish side up, through the protective
polyilm and a layer of common masking tape. Apply masking tape to the
entire area. Be sure to apply enough to protect the surface from the baseplate
of the saw.
• Metal burrs left after cutting can be removed with a ile or ine sand paper.
Installation
Installation
Table 2
Vertical Orientation
Panel Qty Proile Length
1 Panel 2 1195 mm (47 1/16”)
2 Panel 2 2380 mm (93 11/16”)
3 Panel 2 3565 mm (140 5/16”)
4 Panel 24750 mm (187”)
Horizontal Orientation
Wall Length Qty Proile Length
12’ 2 3670 mm (144 1/2”)
14’ 3 4280 mm (168 1/2”)
16’ 2 4850 mm (190 15/16”)
18’ 3 5500 mm (218 15/16”)
20’ 3 6090 mm (239 3/16”)
24’ 3 7270 mm (286 3/16”)
30’ 5 9160 mm (360 5/8”)
Table 1
Product Weight (kgs/lbs)
Flow 1220 18,7 kgs / 41 lbs
Flow 1830 28 kgs / 61.7 lbs
Flow 2420 37 kgs / 81.5 lbs
Step One
1. Start with a leveled line for the bottom proile. A laser level is recommended. Be sure to allow a
minimum of 3 mm (1/8”) space between the proile and the wall base molding.
2. Mark and drill the holes in the wall.
3. Attach the base frame using the provided anchors. Refer to Table 2 for proile dimensions.
Doc #100218 | Rev A | Page 9of 16

Step Two
1. Start with a leveled line for the vertical proile (base frame). A laser level is recommended. Be sure to
allow a minimum of 3 mm (1/8”) space between the proile and any existing wall.
2. Mark and drill the holes in the wall.
Step Three
1. Repeat steps 1 and 2 for top and adjacent base frames.
2. Mark and drill the holes in the wall
Vertical Trim Lengths
Product Inch mm
Flow 1830 69 - 11/16 1770
Flow 2420 92 - 7/8 2360
Horizontal Trim Lengths
Flow 1185 44 - 1/4 1125
Doc # 100218 | Rev A | Page 10 of 16

Step Four
1. Before installing the irst panel, locate the panel with the logo in the bottom right corner. (Note that the logo
is not drawn to size.) This panel will need to be the furthest right panel. This installation guide shows the
logo panel as the irst to be installed. Installation lows from right to left.
2. Place the irst panel (with logo) into position and hold the panel into position with a temporary piece of
cover trim 8” (200 mm). The panel must it against the vertical end proile and the horizontal bottom proile.
Cut pairs of Snap in Trim Extrusion, 8” (200mm) long with 45 mitre at one end. These can be used to
temporarily hold the irst panel until the Vertical Joint Spline is installed and secured.
Installation
Doc #100218 | Rev A | Page 11 of 16

Step Five
1. Insert the mid frame (H-proile) into the vertical side of the panel opposite from the vertical end
proile by sliding the metal extrusion into the groove on the side of the panel.
2. Depending upon the type of wall, either anchor directly through the lat part of the H-proile or
predrill the wall for the appropriate type of anchor.
Step Six
1. Repeat step 5 for the remaining panels
2. Place the inal panel into position and hold in place with a temporary piece of cover trim 8” (200 mm).
Doc # 100218 | Rev A | Page 12 of 16

Step Seven
1. Place the temporary snap on cover trim pieces on each end of the verticals.
2. Measure and miter cut the top and bottom cover trim (top frame).
3. Place snap on cover trim being sure to install using a piece of soft wood blocking or a rubber mallet
in order to avoid damaging the exposed inish. Start the proile aligned with the bottom/top of the
panel. Once thenproiles are ixed they will be diicult to remove without damaging.
Installation
Doc #100218 | Rev A | Page 13 of 16

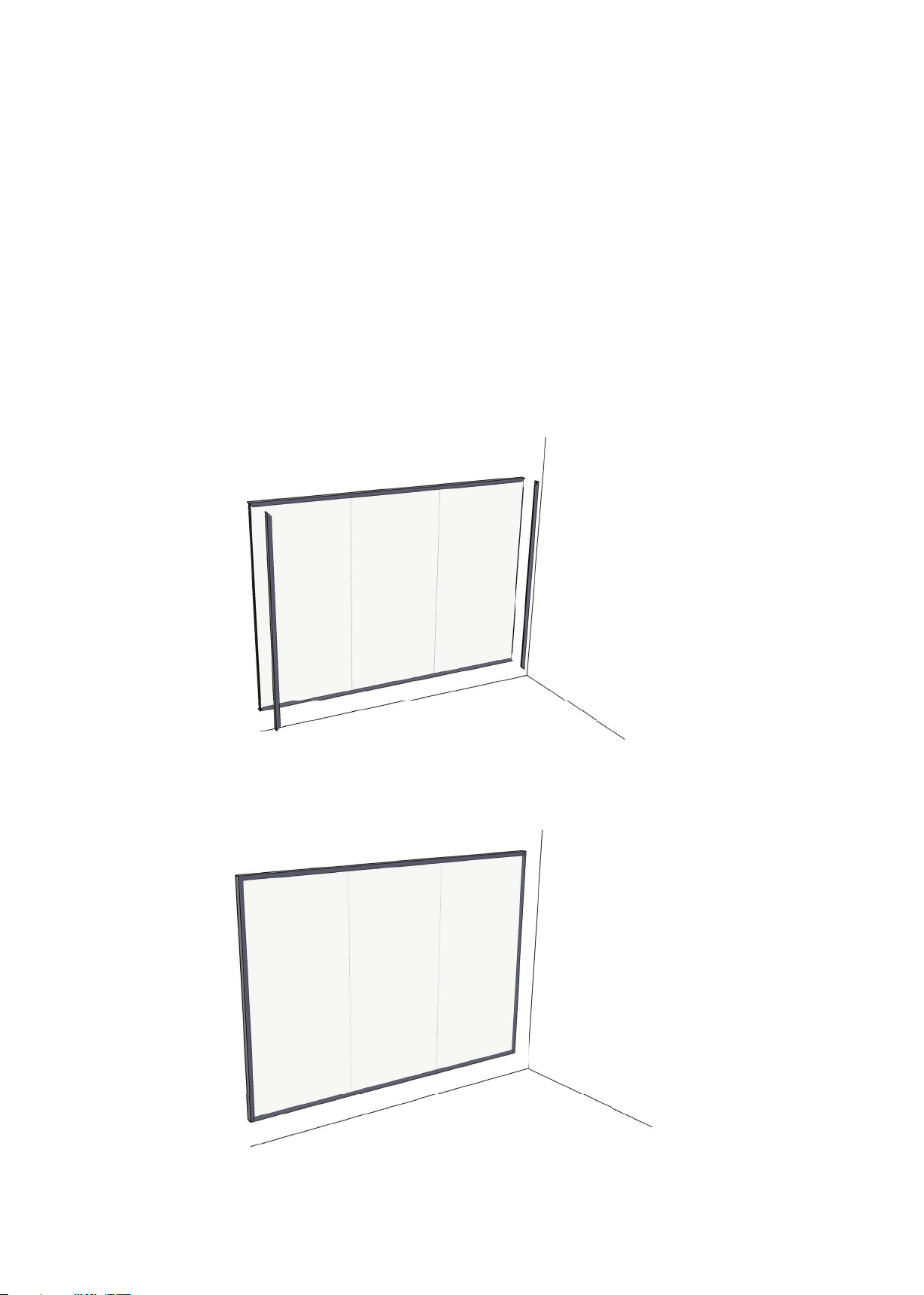

Step Eight
1. Measure and miter cut the vertical cover trim (top frame).
2. Place snap on cover trims being sure to install using a piece of soft wood blocking or a rubber mallet
in order to avoid damaging the exposed inish. Start the proile aligned with the panel. Once the
proiles are ixed they will be diicult to remove without damaging.
Step Nine
1. Installation for Flow is complete.
Doc # 100218 | Rev A | Page 14 of 16

CeramicSteel Surface: Forever warranty
Polyvision warrants that all porcelain-enameled surfaces and/or products made with
CeramicSteel will retain will retain its writing and erasing qualities and maintain its gloss
variance and color consistency for the life of the building or for as long as the product is in use,
whichever comes irst.
Panel Construction and Mobile: 10 year limited warranty
Polyvision warrants that our panels, under normal atmospheric conditions and when sealed
from moisture, will not delaminate from the substrate or warp for a period of 10 years. Polyvision
warrants that our Mobile products, when used under normal conditions, will perform as
intended for a period of 10 years
Accessories: 2 year limited warranty
Polyvision warrants that our accessories, including but not limited to Collaborative ToolBar
and round magnetic eraser, when used under normal conditions will perform as intended
for a period of 2 years. Consumables like markers and chalk sticks are not covered by the
Accessories warranty
Alternative Materials: Limited Warranty
Polyvision warrants that our glass products, including but not limited to glassboards, when used
under normal conditions will perform as intended for a period of 5 years. Manufacturing defects
are warranted for a period of 5 years. Polyvision warrants that our tackable products, including
but not limited to Tac, when used under normal conditions will perform as intended for a period
of 2 years. Tackable products are warranted under the conditional terms of interior use only.
Should any failure to conform to this warranty become apparent, then, upon written notice
from the customer, Polyvision, at its option, will correct such nonconformity by repair or
replacement. Correction in the manner provided above shall constitute a fulillment of all
liabilities of Polyvision with respect to the quality of the CeramicSteel. The warranty is applicable
only under normal usage and maintenance and does not cover defects caused by improper
handling, vandalism or abuse, or arising from failure to follow Polyvision’s instructions and
recommendations for maintenance.
The warranty is voided if any modiications are made to the products by the customer or other
trades with or without Polyvision’s written consent or prior knowledge. The warranty does not
include the cost of removal or reinstallation. This warranty is eective as of July 12, 2019, and
supersedes the terms and conditions of all prior surface warranties issued to the customer by
Polyvision.
This limited warranty is the sole remedy for product defects and no other express or implied
warranty is provided, including but not limited to any implied warranties of merchantability
or itness for a particular purpose. Polyvision shall not be liable for consequential or
incidental damages arising from any product defect.
Collaborative Products Warranty
Doc #100218 | Rev A | Page 15 of 16

©2022 Polyvision Corporation. All rights reserved. Trademarks used herein are the property of Polyvision
Corporation or of their respective owner. Polyvision Corporation reserves the right to make changes
in product design, construction or detail, and to discontinue any product or material without notice.
Polyvision.com 02182022
Polyvision Americas
10700 Abbotts Bridge Road
Suite 100
Johns Creek, GA 30097 USA
T 1 888 325 6351
E [e-mail]
Polyvision Europe
Zuiderring 56
3600 Genk, Belgium
T [phone]
E [email protected]
Polyvision Asia-Pacific
15th Floor, Kinwick Centre
32 Hollywood Road, Central District
Hong Kong
T [phone]
E APA[email protected]
