mychway S-shape MS-45T2 User manual

Warning
Thanks for choosing our company’s product, in order to fully make use of the products, we
sincerely suggest follow:
◆◆Please read the instruction in detail and keep it well for further reading and consulting.
◆◆Please follow the instruction to fit and operate the machine correctly.
◆◆Please do not remove and change any accessories of the machine.
◆◆It forbids others others to open and remove the mainframe except the authorized people in
the company.
◆◆It forbids others to change and maintain the machine except the professional people.
◆◆Please contact us if there is any trouble during operation.
After Sale service
◆
We offer ONE YEAR warranty. Within warranty period, all exchanges or replacement due to
defects are free. (Buyer is responsible for shipping charges).
If the machine is over warranty, please also do not hesitate to contact us. we will assure you of
our best service all the time.
◆
How to contact us?
Phone:[phone]
Tel: [phone]
Email: [e-mail]
This product does not belong to medical,please don’t use for disease treatment!

- 1 -
Table of contents
1. Introduction to Manual............................................................................................................ - 2 -
1.1 Purpose............................................................................................................................- 2 -
1.2 Conventions.....................................................................................................................- 2 -
2. Medical Safety.......................................................................................................................... - 2 -
2.1 Indications for Use...........................................................................................................- 2 -
2.2 Contraindications............................................................................................................ - 3 -
2.3 Precautions......................................................................................................................- 3 -
2.4 Patient Safety...................................................................................................................- 4 -
3. Features &Function.................................................................................................................. - 4 -
4. Control Unit & Handpieces.......................................................................................................- 5 -
5. Principle & Operation pictures................................................................................................. - 6 -
5.1 RF & Ultra sound............................................................................................................ - 7 -
5.2 RF & Suction Body.......................................................................................................... - 7 -
5.3 RF & Suction Face........................................................................................................... - 8 -
5.4 EMS & EL.........................................................................................................................- 9 -
6. Package listing.........................................................................................................................- 10 -
7. Technical Specifications.......................................................................................................... - 10 -
8. Notice......................................................................................................................................- 11 -
9. Treatment session...................................................................................................................- 12 -
9.1 Body slimming.............................................................................................................. - 12 -
9.2 Face lifting.................................................................................................................... - 14 -
10. Treatment Operation............................................................................................................ - 15 -
10.1 Face.............................................................................................................................- 15 -
10.2 Belly............................................................................................................................ - 20 -
10.3 Waist........................................................................................................................... - 22 -
10.4 Back............................................................................................................................ - 23 -
10.5 Buttocks...................................................................................................................... - 27 -
10.6 Arms............................................................................................................................- 29 -
10.7 Legs............................................................................................................................. - 32 -
10.8 Chest........................................................................................................................... - 39 -

- 2 -
1. Introduction to Manual
1.1 Purpose
This instructions for use manual provides a description of the system components, its
controls and displays, instructions for its operation, and other equipment information
important to the user
Warning: Do Not operate this machine before reading this manual thoroughly. In
addition to this manual,additional clinical training may be available by the company
or your local distributor.
For more information on training available please contact your local representative.
1.2 Conventions
Note: Notes designate information of special interest.
Caution: Cautions alert the user to precautionary steps necessary to properly
operate the system.Failure to observe these cautions may void the warranty
Warning: Warnings alert the user to information that is of the highest importance
and vital to the safety of the patient and user
All procedures are broken down by numbered steps.Steps must be completed in the sequence
they are presented
Bulleted lists indicate general information about a particular function or procedure.They do not
imply a sequential procedure.
Control names are spelled as they are on the system,and they appear in Bold text
2. Medical Safety
2.1 Indications for Use
A MUST HAVE OF A LUXURY SPA/SALON
S-SHAPE Ultrasound+RF EMS+Electroporation Vacuum Suction+RF Face&Body Double Treatment
SYNERGY Effect Machine
Suction + RF (Facial Slimming)
Suction allows the fats to move within the body, promoting blood circulation and metabolism.

- 3 -
RF converts electric energy into heat energy to penetrate deep into the skin to accelerate the blood
circulation and subcutaneous tissue to stimulate collagen, proteins and cell renewal, to tighten
wrinkles and other effects.
Combining these technologies can stretch the facial muscles and lift the skin to restore the elasticity
of the skin.
EMS + EL (Electroporation) (Facial anti-aging)
EMS allows for firming, lifting and regeneration of skin to increase elasticity.
EL allows products to be more effectively penetrated into the skin.

Cavitation + RF (Body)
The two functions are used in combination. Cavitation improves the performance of RF
to destroy fat by several times by damaging it first.
Suction + RF (Body)
Suction stimulates tissue under the skin, accelerates blood circulation and activates
subcutaneous fat, improves lymphatic circulation, accelerates the breakdown of fat
burning into fatty acids, and promotoes the excretion of toxins and excess water to
make skin firmer and more elastic.
RF converts electric energy into heat energy to penetrate deep into the skin to
accelerate the blood circulation and subcutaneous tissue to stimulate collagen, proteins
and cell renewal, to tighten wrinkles and other effects.
2.2 Contraindications
The S Shape machine is contraindicated for use in patients with:
 Open wounds or lesions on the face and/or neck
 Severe or cystic acne on the face and/or neck
2.3 Precautions
The S Shape machine has not been evaluated for use over various materials. Therefore,
treatment is not recommended directly over those areas with any of the following:
 Mechanical implants
 Dermal fillers
 Implanted electrical devices in the face and/or neck
 Metal stents in the face and/or neck area
Treatment energy is not recommended for use directly on an existing keloid.
The cavitation vacuum RF photon machine has not been evaluated for use in patients on
an anticoagulant treatment plan
It is recommended that the following areas should be avoided during treatment:
 Thyroid gland, thyroid cartilage and trachea
 Major vessels

- 4 -
The S Shape machine has not been evaluated for use in the following patient populations:
 Pregnant or breast feeding women
 Children
 Those with the following disease states
A hemorrhagic disorder or hemostatic dysfunction
An active systemic or local skin disease that may alter wound healing
Herpes simplex
Autoimmune disease
Diabetes
Bell’s palsy
2.4 Patient Safety
Warning: cavitation vacuum RF photon machine should not be used on a
patent’s eyes or in a location or technique where ultrasound energy
can reach the eye.
Warning: Use this system only if you are trained and qualified to do so.
Warning: If any problems occur during system operation, ask immediate
Action(s): lift the transducer off the patent’s skin, press the STOP button to
completely halt system operation.
3. Features &Function
Features
 Painless treatment focus RF energy at the correct position, compared to other
radio frequency technology. It uses low energy and high frequency,safe and effective.
 Aim at the skin surface and deep location, using a complex method to control the
different currents and energy, direct access to the different skin layer. Does not cause the
phenomenon of uneven skin.
 Selectively targeting fatty tissue, to avoid heating other fat, to achieve the fastest
treatment effect.
 The entire process is completed without the need of surgery and anesthesia.
 With the most useful 30KHZ ultrasonic cavitation system.
 Without side effects and the risk of gaining the weight back, the results are rather
obvious. Does not affect the normal work and life.

- 5 -
4. Control Unit & Handpieces
A: Body Ultra sound + RF
B: Body Suction + RF
C: Face Suction + RF
D: Face EMS + EL

- 6 -

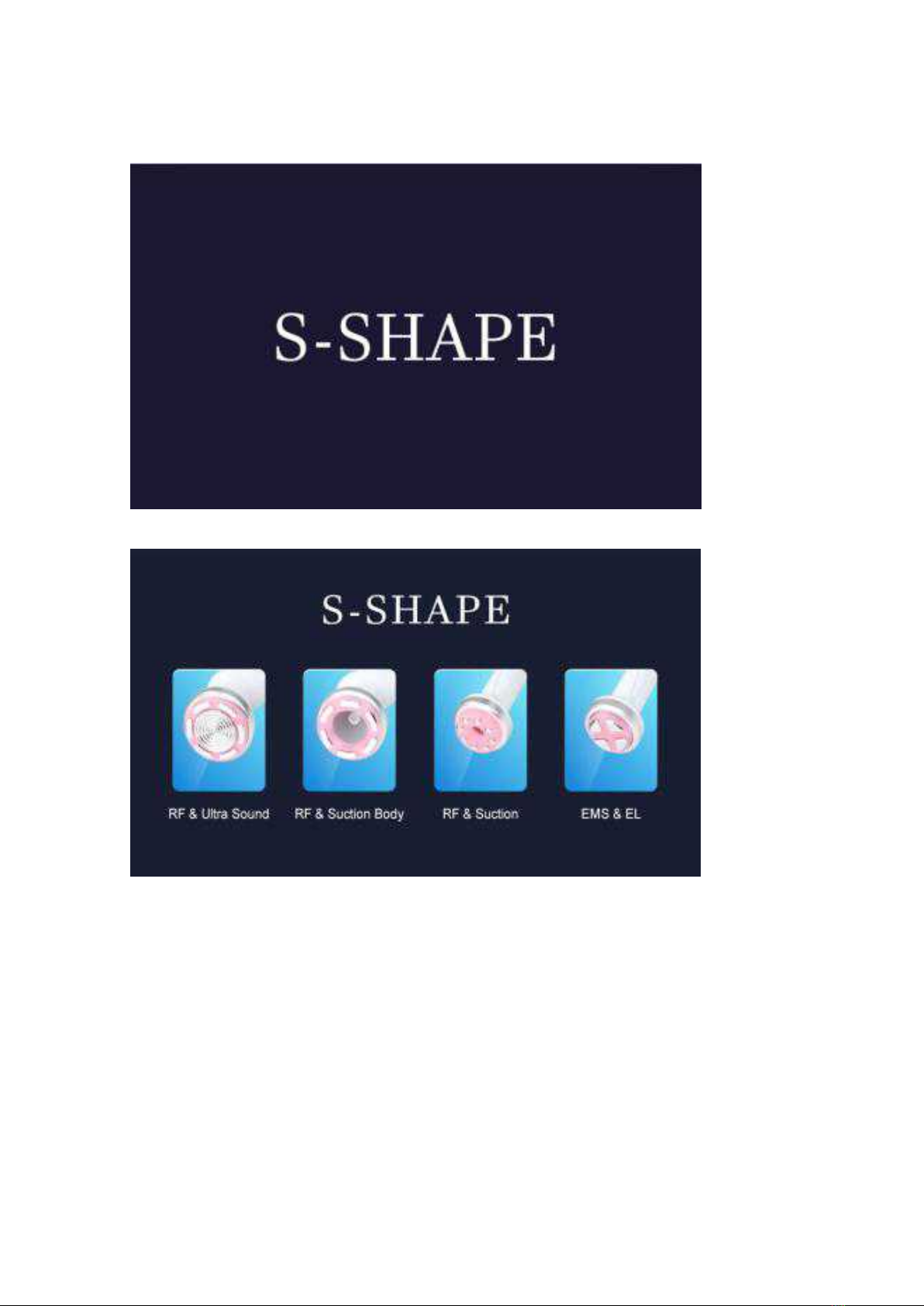

5. Principle & Operation pictures

- 7 -
5.1 RF & Ultra sound
Press to decrease/ increase the Ultra sound energy, 1~10 available
Press to adjust the Ultra sound working mode
Press to decrease/ increase the RF energy, 1~10 available
Press to choose the RF working mode
Press to adjust the working time
Press to back to home page
Press to start/ pause
Press to reset the parameter
Notes:
Do not operate the Ultra sound head on back, chest
M1:continuous wave, for the area with thin fat;
M2:dis-continuous wave, for the area with thick fat.
NOR means photon keep lighting,and RF temperature will goes slowly to the energy setting
PRO means photon light on when touch the treatment skin, RF temperature will arrived to the
energy setting directly
Please do not irradiate eyeball directly with colored light.
Apply slimming cream or cooling gel to the part of skin to be treated before the treatment.
Adjust the intensity from low level to high level
Operate with the 30KHz cavitation head for 15-20 minutes.

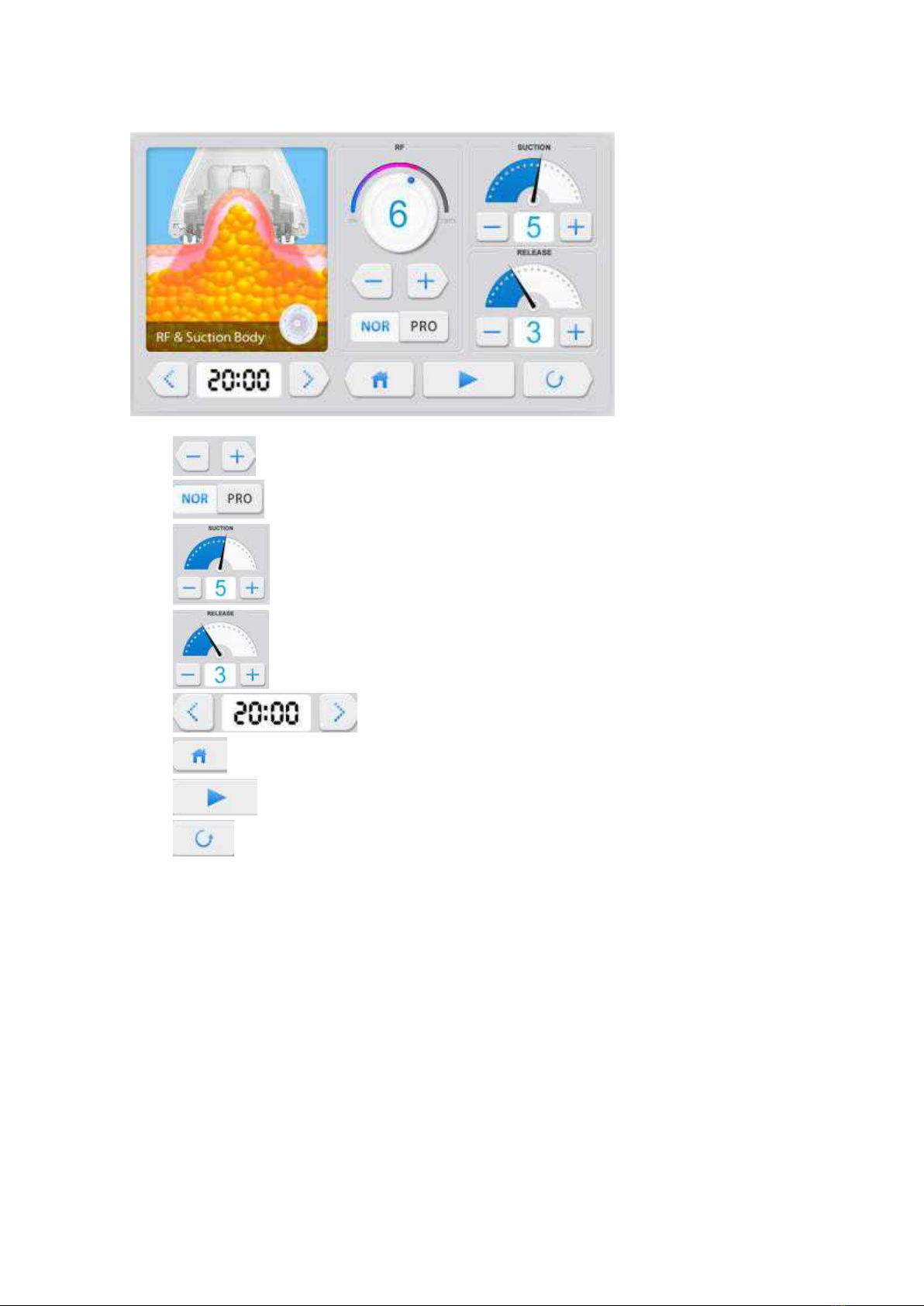

5.2 RF & Suction Body

- 8 -
Press to decrease/ increase the RF energy, 1~10 available
Press to choose the RF working mode
Press to adjust the suction energy
Press to adjust the release energy
Press to adjust the working time
Press to back to home page
Press to start/ pause
Press to reset the parameter
Notes:
NOR means photon keep lighting,and RF temperature will goes slowly to the energy setting
PRO means photon light on when touch the treatment skin, RF temperature will arrived to the
energy setting directly
Setting the suction time longer than release time
Apply slimming cream or cooling gel to the part of skin to be treated before the treatment.
Keep close contact between the probe and the skin.
Adjust the intensity from low level to high level.
Please do not irradiate eyeball directly with colored light.
Operate with the vacuum rf photon head for 15-20 minutes on body, arm, leg,back, waist,
stomach.
5.3 RF & Suction Face

- 9 -
Press to decrease/ increase the RF energy, 1~10 available
Press to choose the RF working mode
Press to adjust the suction energy
Press to adjust the release energy
Press to adjust the working time
Press to back to home page
Press to start/ pause
Press to reset the parameter
Notes:
NOR means photon keep lighting,and RF temperature will goes slowly to the energy setting
PRO means photon light on when touch the treatment skin, RF temperature will arrived to the
energy setting directly
Setting the suction time longer than release time
Apply slimming cream or cooling gel to the part of skin to be treated before the treatment.
Keep close contact between the probe and the skin.
Adjust the intensity from low level to high level.
Please do not irradiate eyeball directly with colored light.
Operate with the vacuum rf photon head for 15-20 minutes on face and eyes around.
5.4 EMS & EL

- 10 -
Press to decrease/ increase the EMS energy, 1~10 available
Press to decrease/ increase the EL energy, 1~10 available
Press to adjust the working time
Press to back to home page
Press to start/ pause
Press to reset the parameter
Notes:
Apply slimming cream or cooling gel to the part of skin to be treated before the treatment.
Keep close contact between the probe and the skin.
Adjust the intensity from low level to high level.
Please do not irradiate eyeball directly with colored light.
Operate with the EMS & EL photon head for 5-10 minutes on face and eyes around.
6. Package listing
1 x S-SHAPE Main Machine
1 x Suction + RF Facial Slimming Handle
1 x EMS + EL (Electroporation) Facial Anti-aging Handle
1 x Ultrasound Cavitation + RF Body Shape Handle
1 x Suction + RF Body Sculpture Handle
1 x Power Supply Cord ( Both 110v and 220v voltage (frequency: 50/60Hz) version are available.
Also we stock the USA, UK, AU, EU plug to suit for the country all over the world.)
1 x Holder
7. Technical Specifications
Dimensions: 380x455x224 (mm)
Net Weight: 12.2kg
Gross Weight : 18kg

- 11 -
Input Power: AC 110V/220V 50/60Hz
Power Consumption:MAX 150W
Display: Touch Screen
Ultrasound Cavitation + RF Body Shape Handle
Ultrasound Cavitation
Frequency:30KHz
Power:50W
RF Freqeuncy:5MHz
Power:85W
Suction + RF Body Sculpture Handle
RF Freqeuncy:5MHz
Power:85W
Suction Vacuum: <-80kPa
Pressure: >250kPa
Air flow: >10L/minute
Noise level: <70dB (30cm away)
Power:20W
Suction + RF Facial Slimming Handle
Freqeuncy:5MHz
Power:85W
Suction Vacuum: <-80kPa
Pressure: >250kPa
Air flow: >10L/minute
Noise level: <70dB (30cm away)
Power:20W
EMS + EL (Electroporation) Facial Anti-aging Handle
EMS Freqeuncy: 4.5KHz
Power:10W
EL (Electroporation)
Freqeuncy: 65Hz
Power:10W
8. Notice
1. Please insert the filter to the back of the machine at your first use. Or the vacuum
RF probe wont have suction
2. please use gel before you use the RF probes, and make sure the probes
completed touched with skin, or you will not feel the heat

- 12 -
3. If the suction is weak, please adjust the following knob:
Clockwise rotation：Min to Max.
4. If the suction is not working, please check the body or face handle you choose, the RF can work
when you choose the different handle on screen and the knob, but suction not
5. if the vacuum probe still dosent have suction after inserting the filter,adjusting the
suction,release time,adjusting the vacuum knob, please hear the vacuum pump is working or not.
If the vacuum pump is working, please take off the vacuum probe from the machine, then use
your finger to touch the vacuum connector on the machine to see whether you can feel the
suction( when you test, please make sure the vacuum function is on). If you can feel the suction
on the vacuum connector on the machine, it shows it will be the problem of the vacuum probe,
then just need to exchange one new vacuum probe;
If you cant feel the suction, please take one video for your operating and testing, then send the
person who sale you the machine. Then we solve the problem very fast.
6. If your machine has some problems, or you have some doubts for the machine urgently, please
contact [phone] (whatsapp, Wechat) directly.
9. Treatment session
9.1 Body slimming
1st Course of Treatment Recommended
Ultrasound+RF+Suction: 8 sessions
Product need: Ultrasound Gel

- 13 -
2nd Course of Treatment Recommended
Ultrasound+RF+Suction: 4 sessions
Product need: Ultrasound Gel
3rd Course of Treatment Recommended
Ultrasound+RF+Suction: 2sessions
Product need: Ultrasound Gel
First session
Mon.
Tue.
Wed.
Thu.
Fri.
Sat.
Sun.
1st week
Ultrasound+RF+Suction
Ultrasound+RF+Suction
2nd week
Ultrasound+RF+Suction
Ultrasound+RF+Suction
3rd week
Ultrasound+RF+Suction
Ultrasound+RF+Suction
4th week
Ultrasound+RF+Suction
Ultrasound+RF+Suction
Second session
Mon.
Tue.
Wed.
Thu.
Fri.
Sat.
Sun.
1st week
Ultrasound+RF+Suction
2nd week
Ultrasound+RF+Suction
3rd week
Ultrasound+RF+Suction
4th week
Ultrasound+RF+Suction
Third session
Mon.
Tue.
Wed.
Thu.
Fri.
Sat.
Sun.
1st week
Ultrasound+RF+Suction
2nd week
3rd week
Ultrasound+RF+Suction
4th week

- 14 -
Note:
The course can be adjusted according to the skin improvement during the course of
treatment.
Application Range
Shoulder, Arm, Back, Waist, Belly, Buttock, Leg
Ultrasound are prohibited used on back
9.2 Face lifting
1st Course of Treatment Recommended
Hydro+EMS+EL+RF 1 session
Hydro+EMS+EL 2 session
RF: 2 Sessions RF 2 session
EMS+EL+Vitamin 1 session
Water injection 1 session
2nd Course of Treatment Recommended
Hydro+EMS+EL+RF 1 Session
Hydro+EMS+EL 2 Sessions
RF: 2 Sessions RF 2 sessions
EMS+EL+Vitamin 2 sessions
Water injection 1 session
3rd Course of Treatment Recommended
Hydro+EMS+EL 2 Sessions
RF: 2 Sessions
EMS+EL+Vitamin 1 session
Water injection 1 session
First session
Mon.
Tue.
Wed.
Thu.
Fri.
Sat.
Sun.
1st week
Hydro+EMS+EL+RF
EMS+EL+Vitamin
2nd week
water injection
3rd week
Hydro+EMS+EL
RF
4th week
Hydro+EMS+EL
Second session
Mon.
Tue.
Wed.
Thu.
Fri.
Sat.
Sun.

- 15 -
1st week
Hydro+EMS+EL+RF
2nd week
water injection
RF
3rd week
Hydro+EMS+EL
EMS+EL+Vitamin
4th week
Hydro+EMS+EL
Third session
Mon.
Tue.
Wed.
Thu.
Fri.
Sat.
Sun.
1st week
Hydro+EMS+EL
RF
2nd week
3rd week
Hydro+EMS+EL
4th week
RF
Note:
The course can be adjusted according to the skin improvement during the course of treatment.
10. Treatment Operation
10.1 Face

- 16 -

- 17 -

- 18 -
