Takara Belmont Yume DX User manual

Thank you for purchasing our Takara Belmont YUME DX.
The instructions contained in this booklet should be thoroughly read and
understood before operating the shampoo unit.
This product is intended for the exclusive use for hairdressing & barber
salons, and must not be used for other purpose.
Keep manual in a place where it can be easily referred to when necessary.
YUME DX
Operating Instructions
1E002CC0
Version 7 2022.10

TABLE OF CONTENTS
1. Locations of Warning Labels ................................... 1
2. Dimension and Specifications ................................. 2
3. Overall View and Major Components ...................... 3
4. Accessories ............................................................ 5
5. Preparation ............................................................ 5
6. Operating Instruction .............................................. 7
7. Maintenance ......................................................... 11
8. Troubleshooting ................................................... 14
9. Parts Replaced on a Regular Basis ........................ 15
10. Consumable Supplies ......................................... 16

1

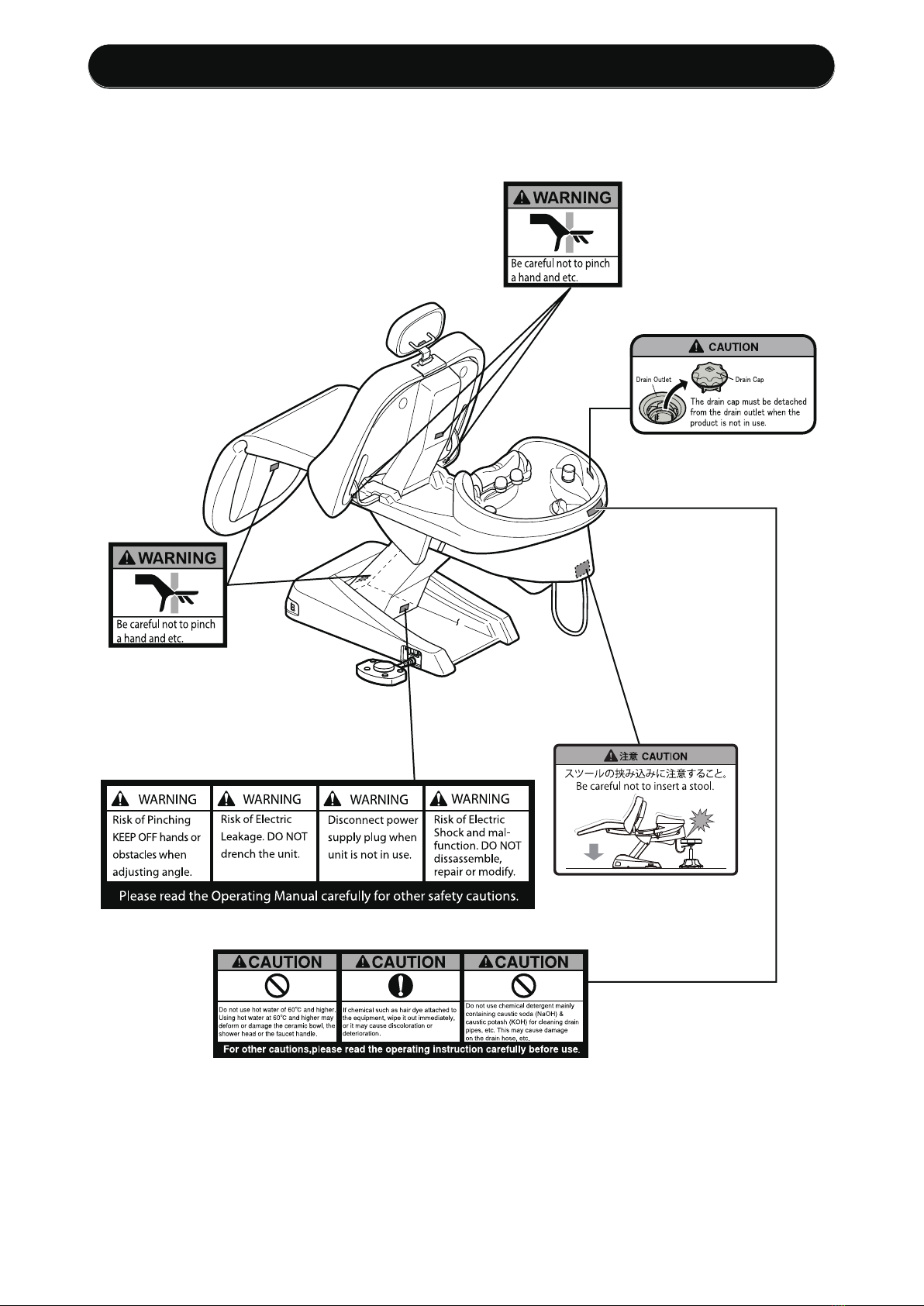

1. Locations of Warning Labels

2

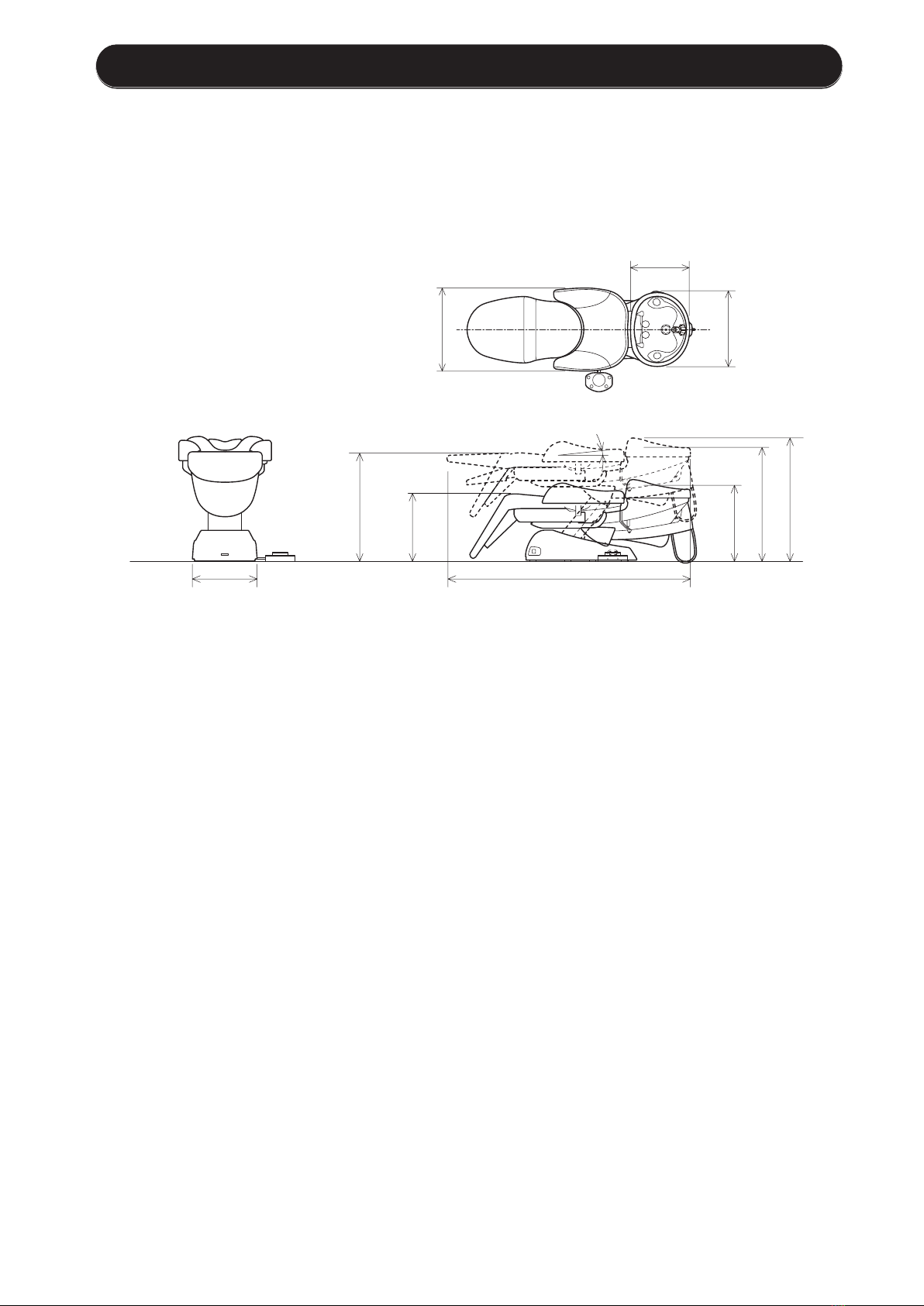

2. Dimension and Specificatio ns
650
520
520
2000
760
845
505
610
950
990
8°
Type ----------------------- EX-YM2*L, EX-YM2*R, SU-YM2
Drive System ---------------- Motorized Hydraulic System
Measurement --------------- 760 x 2000 x 990 mm (W x L x H)
Angle of Bracket ------------- 67°(8°〜75°)
Type of Mixing -------------- Thermo Mixing
Stop Valve ------------------ Water x 1 (Handle Type) / Hot Water x 1 (Handle Type)
Electrical Requirements ------ AC 110・120V 50/60 Hz 4.8/3.5A
Electrical Requirements ------ AC 220V 50/60 Hz 1.7A
Electrical Requirements ------ AC 230V 50/60 Hz 1.7A(appliance itself)
Electrical Requirements ------ AC 240V 50/60 Hz 1.7A
Usage Environment ---------- Operational Temperature (10〜40℃)
Water and Hot Water --------- 0.1〜0.4Mpa (1〜4kgf/cm2)
Supply Pressure ------------- Water Supply Pressure ≧Hot Water Supply Pressure
Pressure difference between water supply and hot water supply within 0.2Mpa (2kgf.cm2)
Water Volume (Shower Head) --- 10L/min (water and hot water pressure are 0.1 Mpa)
Weight --------------------- 205 kg

3

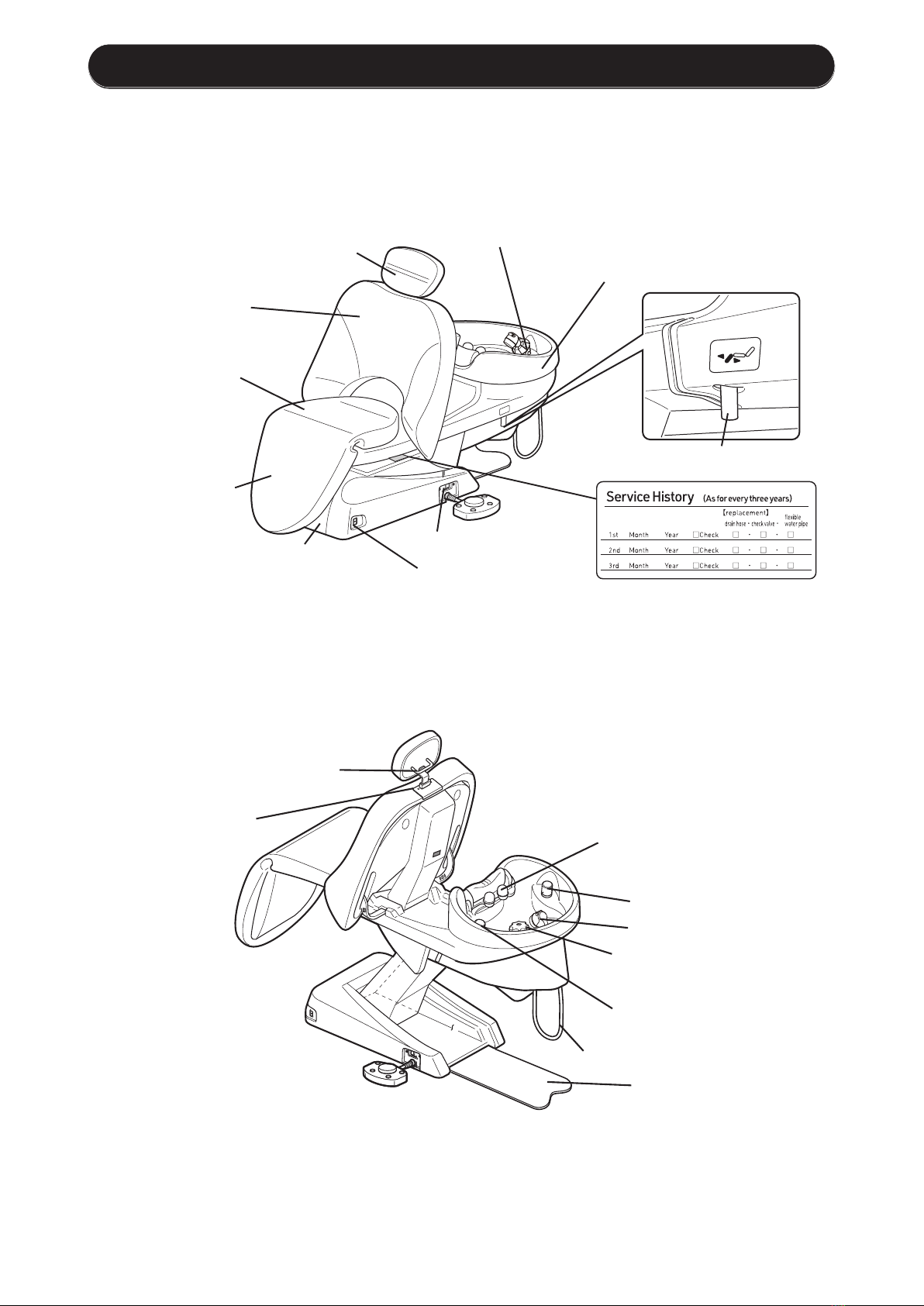

3. Overall View and Major Components

Backrest
Headrest Shower head holder
Shampoo basin
Seat
Legrest
Legrest lever
Main power switch
Service outlet
Maintenance cover
Headrest handle
Headrest bar socket
Neck cushion
(Consumable) Head pillow
(Consumable)
Thermostatic control knob
Shower head
Shower hose
Tap
Floor sheet
■Main Body
A sticker of drain hose replacement
Drain cap

4
■Foot Control
EX-YM2*LA : Left side foot control EX-YM2*RA : Right side foot control
■Leg rest Lever
Leg rest
raising
Leg rest
lowering
(EX-YM2*LA and
EX-YM2*RA only)
Seat lifting
Seat lowering
Seat lifting
Seat lowering
Preset Shampoo
position Backrest
return
Preset Shampoo
position Backrest
return
Backrest
reclining
Backrest
raising
Auto Return Seat rotation lock Auto Return Seat rotation lock
Backrest
reclining Backrest
raising
■Shower Head Holder with Drainer
Name of Parts
Cover
Sponge
Sponge holder
Shower head
holder
■Shower Head
Dual Function Shower HeadDual Function Shower Head YUME shower headYUME shower head
Protrusion Shower head
Shower head
Shower head
plate
Low-splash mode water outlet
Selection
switch
Shower head plate
[OPTION]

5

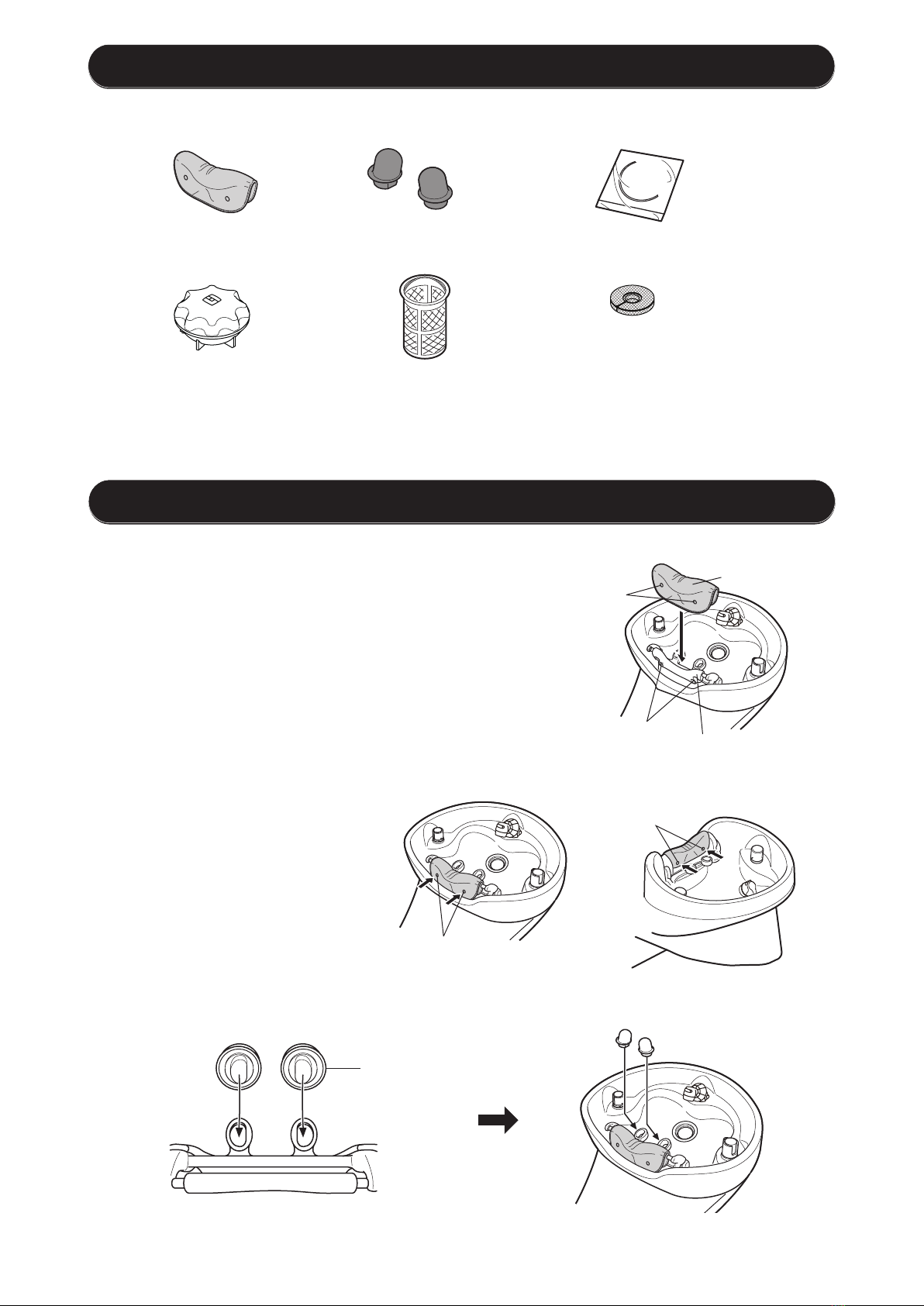

4. Accessories
Operation Manual ...1
Installation instructions ...1
YUME SPA Technical Manual(except for China) ...1
Neck Cushion ....1 Head Pillow ...1set
Drain Cap ...1 Hair Catcher ...1
Mohair Tape ...1
5. Preparation
5-1. Attach the Neck Cushion
1. Attach the neck cushion on metal fittings
as shown in figure.
2. Both side snap buttons of the neck cushion is fixed on a fixed pin.
5-2. Attach the Head Pillow
1. Attach the head pillow as shown in figure.
Snap button
Neck Cushion
Fixed Pin Metal Fitting
Snap button
Snap button
Head Pillow
Sponge ...1

6
5. Preparation

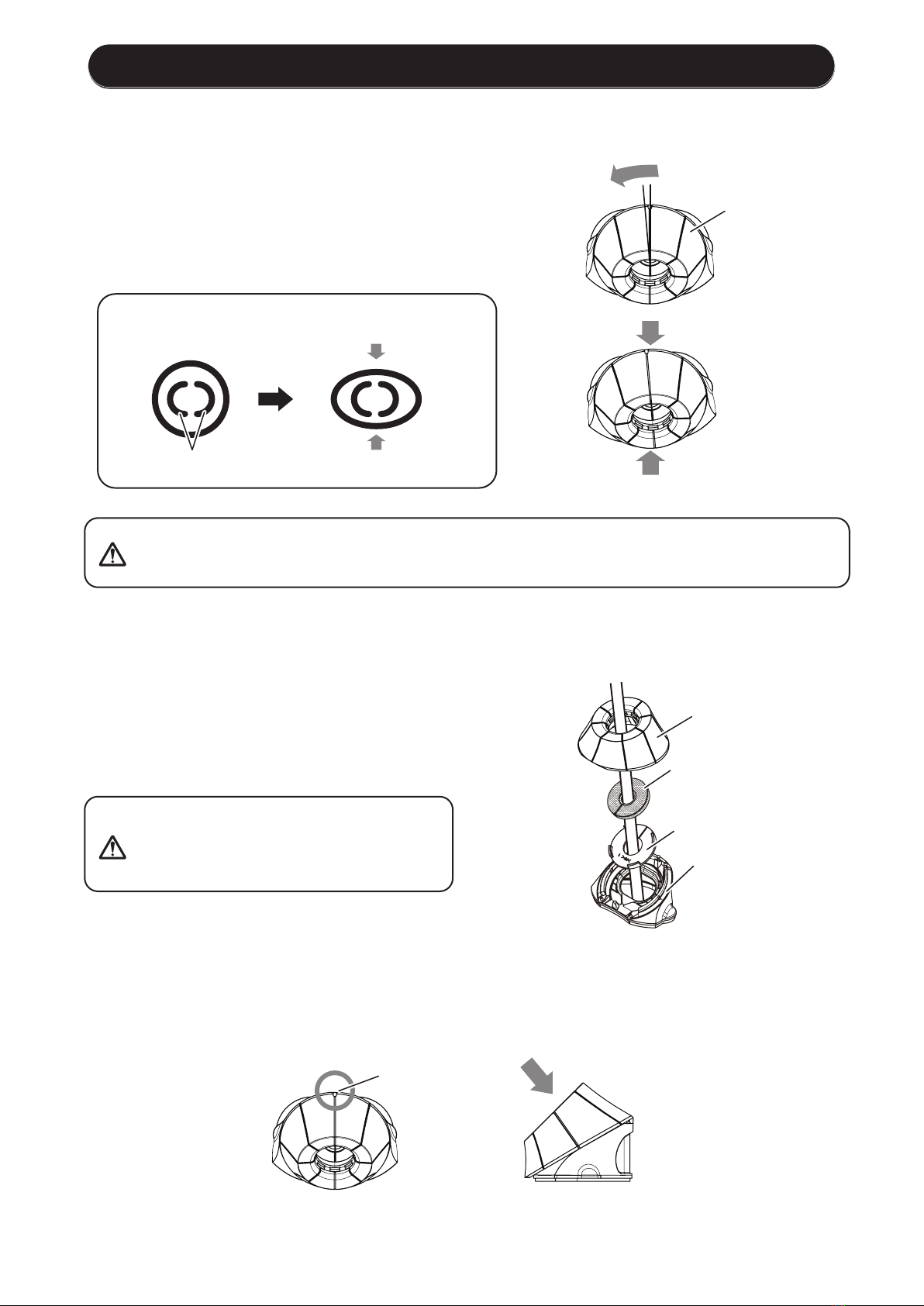

1Turn the cover anticlockwise.
Turn the cover around 5 degrees.
【Image】
2Pinch the front and back of the cover
to deform and remove the catch.
Catch
Cover
Attach the sponge to the shower hose.
Attach the sponge and sponge holder to the shower
hose, between the shower head holder and the
cover.
Align groove in the cover and protrusion of the holder until they snap into place.
Protrusion
Sponge
Cover
Sponge holder
Shower head
holder
Do not remove the cover of holder forcibly.
Failure to follow the instruction may cause damage the product.
Caution
Ensure that the harder side of
sponge is facing upwards.
Caution
Note: Harder side of sponge to be
facing upwards.
5-3. Removing the cover
5-4. Sponge installation
5-5. Installation of the cover

7
6. Operating Instruction
6-1 Main Switch
Main switch is located on the left side of the pump cover (EX-YM2*L)
or on the right side (EX-YM2*R).
OFF
Turn off the main switch after daily operation
Operate the main switch by hand only.
In the event of extremely low oil temperature,
“warm-up” mode may start.
6-2 Controls
Before operating the chair, confirm that it is safe for the patient
and the operator.
(1) Manual Mode Control
A. Seat Lifting
Keep depressing Seat lifting switch until the seat is lifted up to the
desired position.
B. Seat Lowering
Keep depressing Seat lowering switch until the seat is lowered to the
desired position.
C. Backrest Reclining
Keep depressing Backrest reclining switch until the backrest is
reclined to the desired position.
D. Backrest Raising
Keep depressing Backrest raising switch until the backrest is
raised to the desired position.
Caution
E. Legrest Raising (EX-YM2*LA and EX-YM2*RA only)
Move leg rest lever to the left/right side for raising and lowering.
F. Seat Rotating
Make sure to raise the backrest by depressing P2 switch
rotating the seat. Momentarily press LP switch (Lock switch)
releases the safety seat lock.
*The lock is not released when backrest angle is less than 30°.
Rotating the seat slowly by holding the backrest.
Press LP switch again to lock the seat at desired position.
<Warm-up mode>
Warm-up operation goes on at the extremely low oil tempera-
ture. It beeps for 3 minutes until this mode completes.
ON
Seat lifting
Seat lowering
Legrest loweringLegrest raising
Backrest
reclining
Seat rotation lock
Backrest raising

8

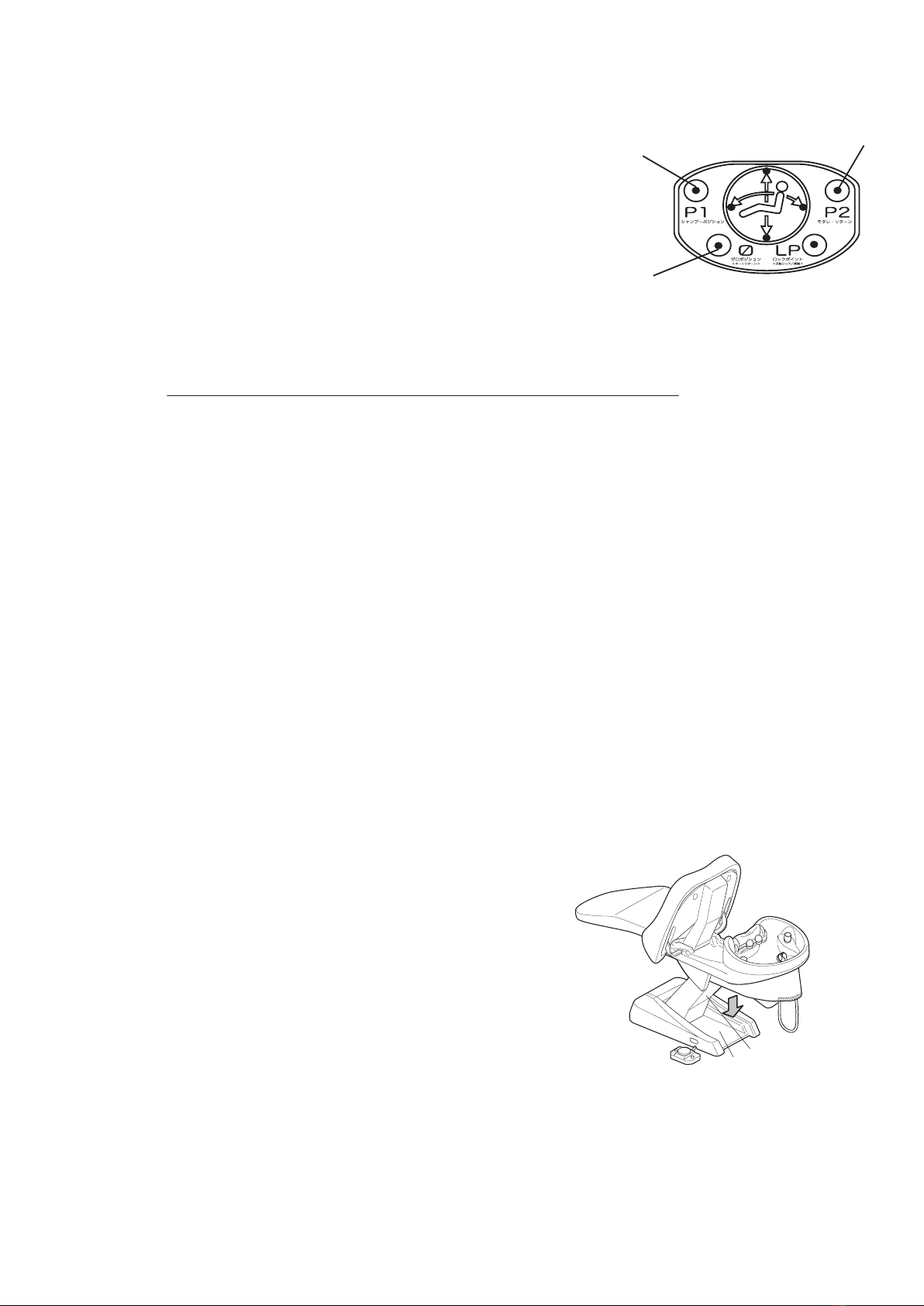

(2) Auto Mode Control
G. Preset Control
Press P1 switch a little longer (for around half second),
the seat will move to the preset shampoo position automatically.
(If adjustment is needed, please refer AUTO MODE
POSITION ADJUSTMENT.)
H. Auto Return
Press P2 switch a bit longer (for around half second) puts
the backrest upright position automatically.
Press Auto Return switch for around half second, the seat will return
to the initial position.
* Initial position : seat - lowest point , backrest - upright position
I. Emergency Stop
During automatic procedure (Preset and Auto return), depress of any
side of the switches on the foot control will cancel the automatic
movement immediately.
6-3 Auto Mode Position Adjustment
Preset position adjustment
A. Set the seat and the backrest to the desired preset position by manual control.
B. Turn off main switch.
C. While depressing P1 switch, turn on main switch.
D. Keep depressing P1 switch until buzzer sounds, then release it.
6-4. Safety Lock Device
Chair lowering movements can be stopped
automatically by the safety lock device when
pressure is detected between the base and the
safety lock cover.
If the safety device has been activated, simply operate
the seat raising switch and remove the object causing the
safety device to activate from this area.
Safety lock cover
Base
Preset Shampoo position Backrest return
Auto Return
